Xantech MRKP1E User Manual
INSTALLATION INSTRUCTIONS
MRKP1E
Keypad controller
EU and UK Standard
Safety Information
Read Information — All the safety and operating information should be read before the
appliance is operated.
Follow Information — All operating and use information should be followed.
Retain Information — The safety and operating information should be retained for
future reference.
Heed Warnings — All warnings on the appliance and in the operating instructions
should be heeded.
Wall Mounting — Mounting of this appliance should be done only by an authorized
installer.
Non-Use Periods — Appliances that are left unattended and unused for long periods of
time should be de-energized.
Water — Do not use the apparatus near water.
Cleaning — Unplug the apparatus from the power outlet before cleaning. Use only a dry
cloth to clean the apparatus.
Object and Liquid Entry — Never insert objects of any kind through the openings of
these appliances, as they may touch dangerous voltage points or short-circuit parts that
could result in a fire or electric shock. Care should be taken so that objects do not fall
and liquids are not spilled into the appliance through openings in the enclosure.
Servicing — Do not attempt to service these appliances yourself, as opening or
removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
Damage Requiring Service — These appliances should be serviced by qualified
service personnel when:
A power supply connection or a plug has been damaged or
If liquid has been spilled into the appliance or objects have fallen into the appliance
or
The appliance has been exposed to water or moisture or
The appliance does not appear to operate normally or exhibits a marked change in
performance or
The appliance has been dropped or the enclosure damaged.
Replacement Parts — When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or that have the
same characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards. The Master Control Unit battery should be replaced
only after turning the power off and only by an authorized installer.
Xantech Limited Warranty
Xantech Corporation (“Xantech”) warrants this product to be free defects in
materials and workmanship for a period of two years from the date of
documented purchase by the original consumer. Any products returned to
Xantech and found to be defective by Xantech within the warranty period will be
repaired or replaced, at Xantech’s option, at no charge. Xantech will not be
responsible for the actual coast of the installation or removal of the product, nor
for any incidental or consequential damages. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above
limitation may not apply to you. This warranty gives you specific legal rights.
You may have additional legal rights that vary from state to state.
Xantech and Universal Dragon™ are trademarks of Xantech Corporation
Legrand® is a registered trademark of the Legrand Group.
All other trademarks are the properties of their registered owners.
Xantech Corporation
13100 Telfair Avenue, Sylmar CA 91342 | Xantech.com
Installation Instructions, MRKP1E © 2009 Xantech Corporation
Document #08905249C
This document is copyright protected. No part of this manual may be copied or
reproduced in any form without prior written consent from Xantech Corporation. Xantech
Corporation shall not be liable for operational, technical, or editorial errors/omissions
made in this document.
1
22
Safety Check — Upon completion of any service or repairs to this audio product, ask
the service technician to perform safety checks to determine that the audio product is in
proper operating condition.
Lightning Storms — Unplug this apparatus during lightning storms or when unused for
long periods of time.
Attachments and Accessories — Use only attachments/accessories specified by the
manufacturer.
Cart, Stand, Tripod, Bracket or Table — Use only with a cart, stand, tripod, bracket or
table specified by the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip over.
Disconnect Device — Where the mains plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain operable.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by Xantech could void the
user’s authority to operate the equipment
Caring For the MRKP1E
Clean only with a dry soft cloth.
It is important to properly care for your MRKP1E Keypad and Amplifier. Follow these
guidelines to ensure your device is preserved and protected.
• Do not expose the MRKP1E to rain, liquids or moisture for an extended period
of time.
• Do not expose the MRKP1E to temperature extremes.
Operating Temperatures & Environments
Operating Temperature: 32-104°F (0-40° C)
Humidity: 0-90%
Precautions
• Always exercise care when operating the MRKP1E Keypad and Amplifier.
21
2
• Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
• In the unlikely event that smoke, abnormal noise, or strange odor is present,
immediately power the MRKP1E off. Please report the problem to your dealer
immediately.
Never attempt to disassemble the MRKP1E. You will lose any product warranty
on the unit.
6. Specifications
MRKP1E basic dimensions and cable lengths
Front panel dimensions
Wall Hole size
Unit Depth in-wall
Max length Cat-5 Cable
with 1 keypad
Max length Cat-5 cable
with 1 keypad and 1
expansion keypad
Max length Cat-5 cable
with 1 keypad and 3
expansion keypads
80mm height x 83.8 width x 15.3mm thick
3.15” height x 3.3” width x 0.6” thick
69mm (2.7”) diameter hole when using
compatible EU back box.
43.2mm (1.7”) depth when using compatible
EU back box
152 meters (500 feet) total per zone
77 meters (250 feet) total per zone
38 meters (125 feet) total per zone
Operating
Temperatures &
Environments
Operating Temperature: 32-104°F (0-40° C)
Humidity: 0-90%

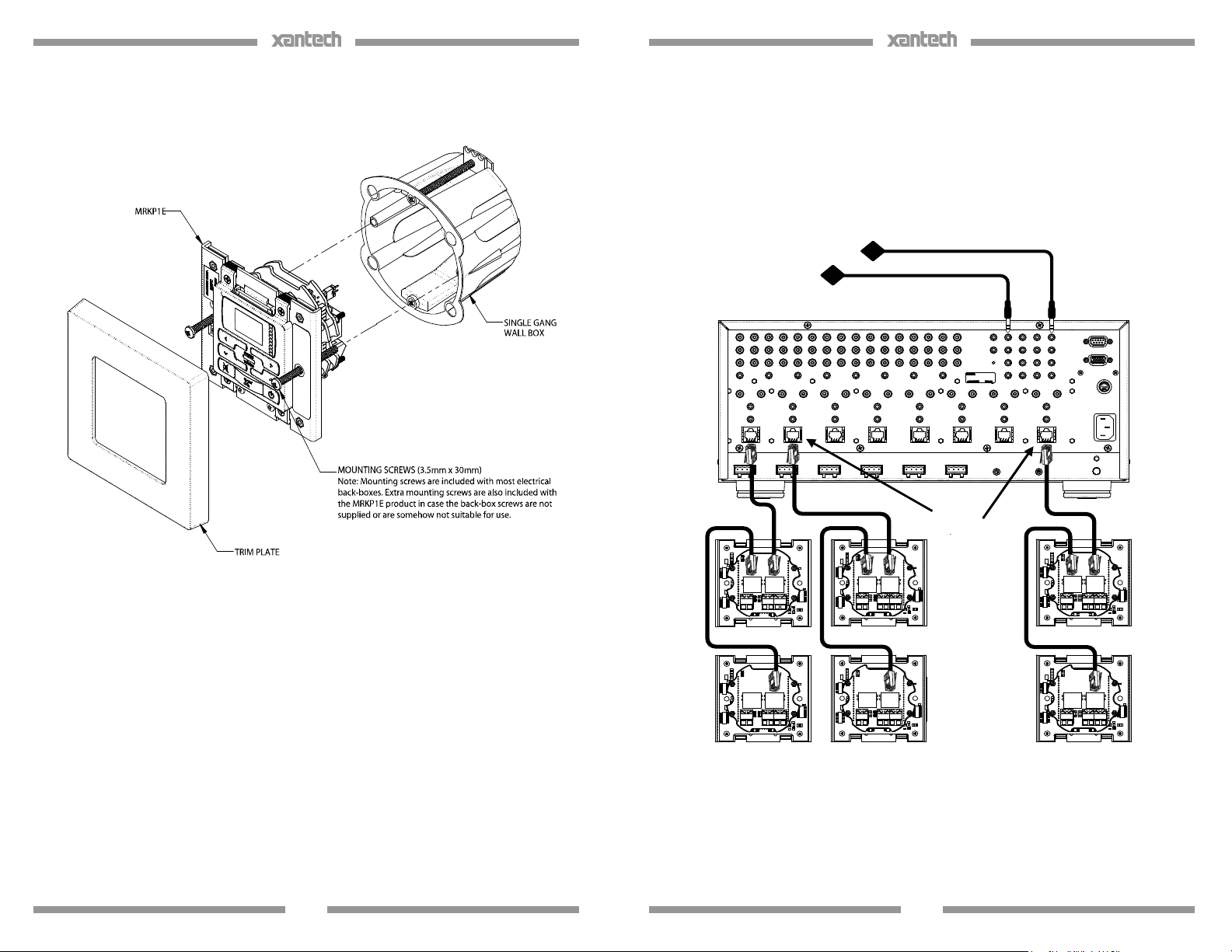

Compatible Electrical back-boxes
EU back-box
Legrand® 801 01, EAN 3 245060 905019
(40mm Depth x 60mm Inner Diam.)
UK back-box Standard UK one-gang 47mm depth

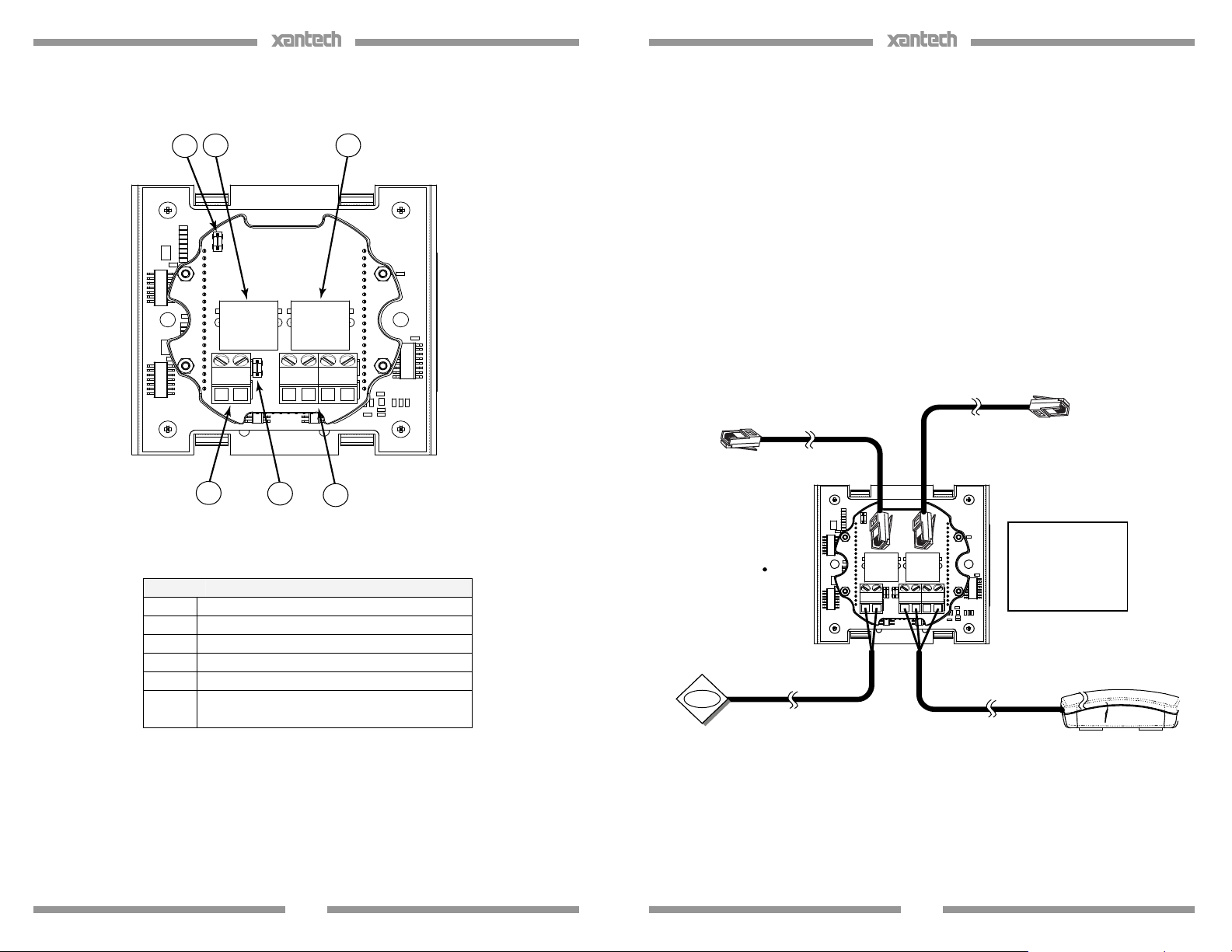

Extending external IR receiver
connection with 3-wire cable
Size (AWG)
Maximum allowable
length (feet)
Extending external IR
receiver connection

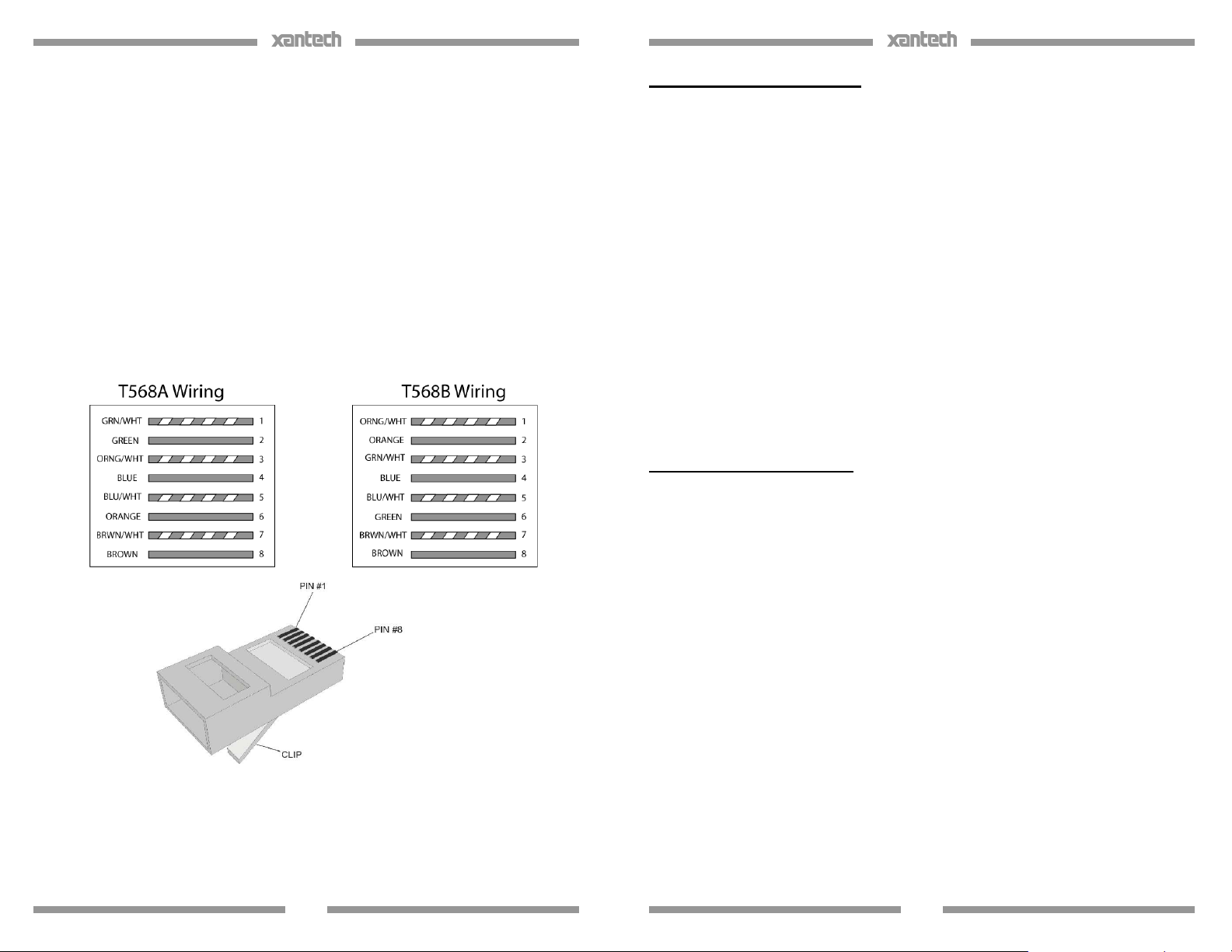

with Cat-5 cable using all 8
conductors
24 150 Use 4 striped wires for GND
22 300 Use 2 solid wires for IR signal
20 1000 Use 2 solid wires for +12V
18 2000
3
20
