X10 RR501 User Manual

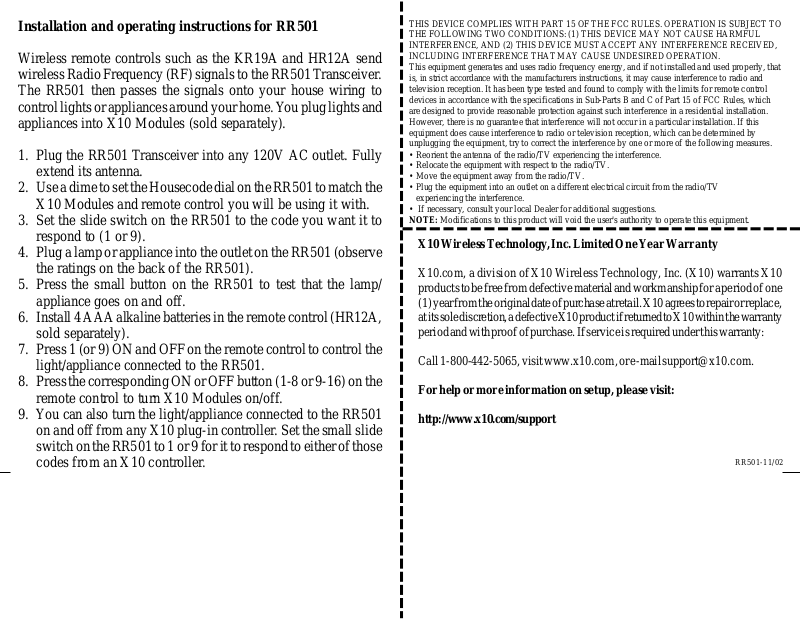

Installation and operating instructions for RR501

Wireless remote controls such as the KR19A and HR12A send
wireless Radio Frequency (RF) signals to the RR501 T ransceiver .
The RR501 then passes the signals onto your house wiring to
control lights or appliances around your home. Y ou plug lights and
appliances into X10 Modules (sold separately).

1. Plug the RR501 Transceiver into any 120V AC outlet. Fully
extend its antenna.

2. Use a dime to set the Housecode dial on the RR501 to match the
X10 Modules and remote control you will be using it with.

3. Set the slide switch on the RR501 to the code you want it to
respond to (1 or 9).

4. Plug a lamp or appliance into the outlet on the RR501 (observe
the ratings on the back of the RR501).

5. Press the small button on the RR501 to test that the lamp/
appliance goes on and off.

6. Install 4 AAA alkaline batteries in the remote control (HR12A,
sold separately).

7. Press 1 (or 9) ON and OFF on the remote control to control the
light/appliance connected to the RR501.

8. Press the corresponding ON or OFF button (1-8 or 9-16) on the
remote control to turn X10 Modules on/off.

9. You can also turn the light/appliance connected to the RR501
on and off from any X10 plug-in controller . Set the small slide
switch on the RR501 to 1 or 9 for it to respond to either of those
codes from an X10 controller.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
This equipment generates and uses radio frequency energy, and if not installed and used properly, that
is, in strict accordance with the manufacturers instructions, it may cause interference to radio and
television reception. It has been type tested and found to comply with the limits for remote control
devices in accordance with the specifications in Sub-Parts B and C of Part 15 of FCC Rules, which
are designed to provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio or television reception, which can be determined by
unplugging the equipment, try to correct the interference by one or more of the following measures.

• Reorient the antenna of the radio/TV experiencing the interference.

• Relocate the equipment with respect to the radio/TV.

• Move the equipment away from the radio/TV.

• Plug the equipment into an outlet on a different electrical circuit from the radio/TV
experiencing the interference.

• If necessary, consult your local Dealer for additional suggestions.

NOTE: Modifications to this product will void the user's authority to operate this equipment.
