Wyse Technology Device Manager User Manual

Inst allation Guide

Wyse Device Manager™ Release 4.9

Issue: 021512 PN: 883886-01 Rev. M

Copyright Notices

transcribe, store in a retrieval system, or translate into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of this publication without express written permission.

End User License Agreement (“License”)

A copy of the Wyse Technology End User License Agreement is included in the software and provided for your reference only. The License at http://www.wyse.com/license agreement. By copying, using, or installing the software or the product, you agree to be bound by those terms.

Trademarks

The Wyse and PocketCloud logos and Wyse and PocketCloud are trademarks of Wyse Technology Inc. Other product names mentioned herein are for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. Specifications subject to change without notice.

Restricted Rights Legend

You acknowledge that the Software is of U.S. origin. You agree to comply with all applicable international and national laws that apply to the Software, including the U.S. Export Administration Regulations, as well as end-user, end-use and country destination restrictions issued by U.S. and other governments. For additional information on exporting the Software, see http://www.microsoft.com/exporting

as of the purchase date is the controlling licensing

Ordering Information

For availability, pricing, and ordering information in the United States and Canada, call 1-800-GET-WYSE (1-800-438-9973) or visit us at http://www.wyse.com

. In all other countries, contact your sales representative.

Content s

1 Introduction 1

About this Guide 2

Finding the Information You Need in this Guide 2

Wyse Technical Support 2

Related Documentation and Services 2 Wyse Online Community 2

2 Preparing for Installation 3

Pre-Installation Checklist 3 Hardware Requirements 6 Software Requirements 6 Communication Port Requirements 7 Upgrading Requirements 8 Requirements for Managing ThreadX Devices 9

Creating a DNS Service Location (SRV) Resource Record for Wyse ThreadX Devices 9

3 Installing or Upgrading WDM Workgroup Edition 11

Installing or Upgrading Procedures (WDM Workgroup Edition) 12

4 Installing or Upgrading WDM Enterprise Edition 15

About Evaluation Licensing 16 Installing or Upgrading Procedures (WDM Enterprise Edition) 16

Detailed Custom Installation and Upgrade Instructions 19

WDM Database Installation Tips You Need to Know 20 Software Repository Installation Tips You Need to Know 22 Administrator Console Installation Tips You Need to Know 24

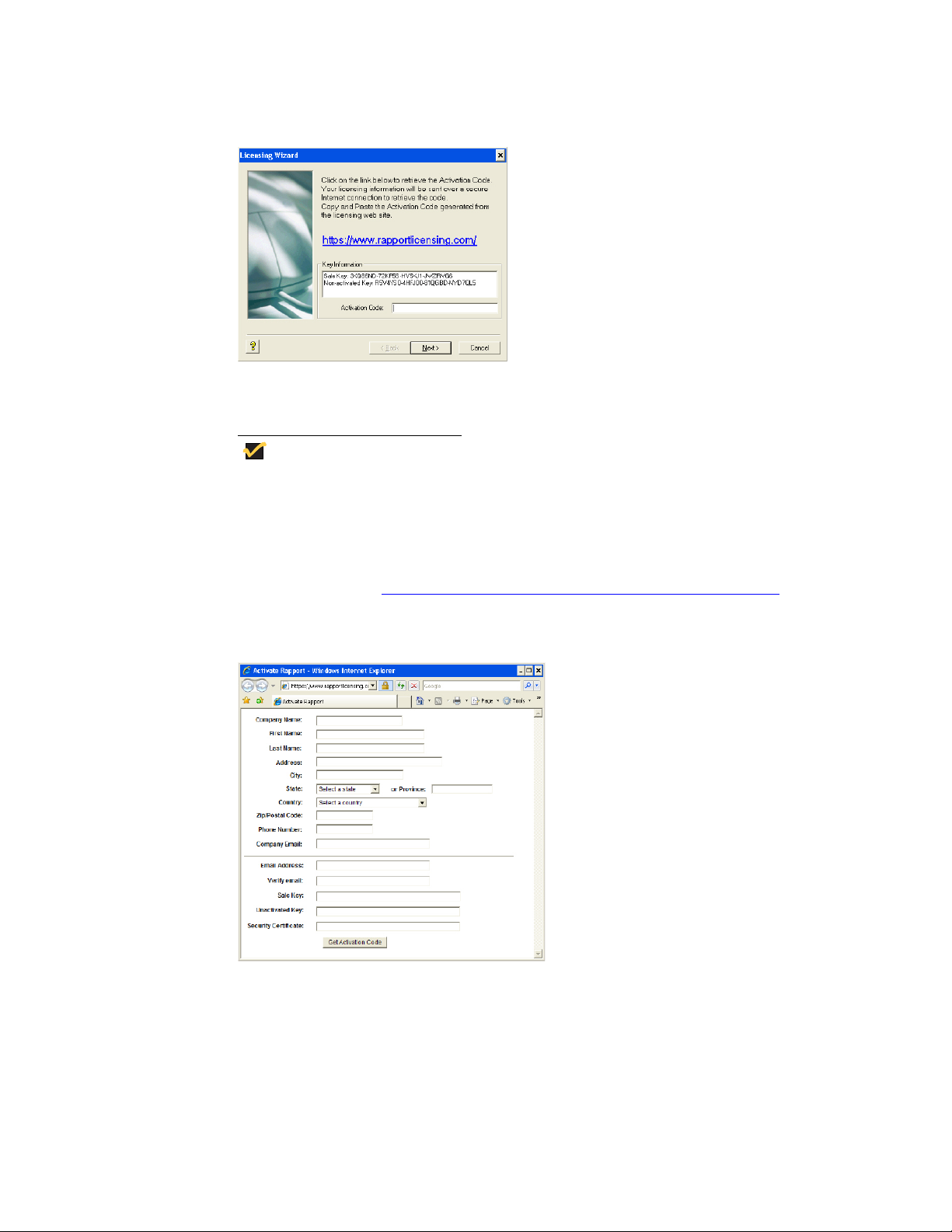

A Activating Your Sales Key 25 B Uninstalling WDM 27 C Reference and Troubleshooting: FTP, IIS, and Firewall Information 29

How the WDM Installer Installs and Configures FTP 30

Installing and Configuring FTP on Windows Server 2003 30 Installing and Configuring FTP on Windows Server 2008 33 Installing and Configuring FTP on Windows Server 2008 R2 36 Installing and Configuring FTP on Windows 7 39

How the WDM Installer Installs and Configures IIS 42

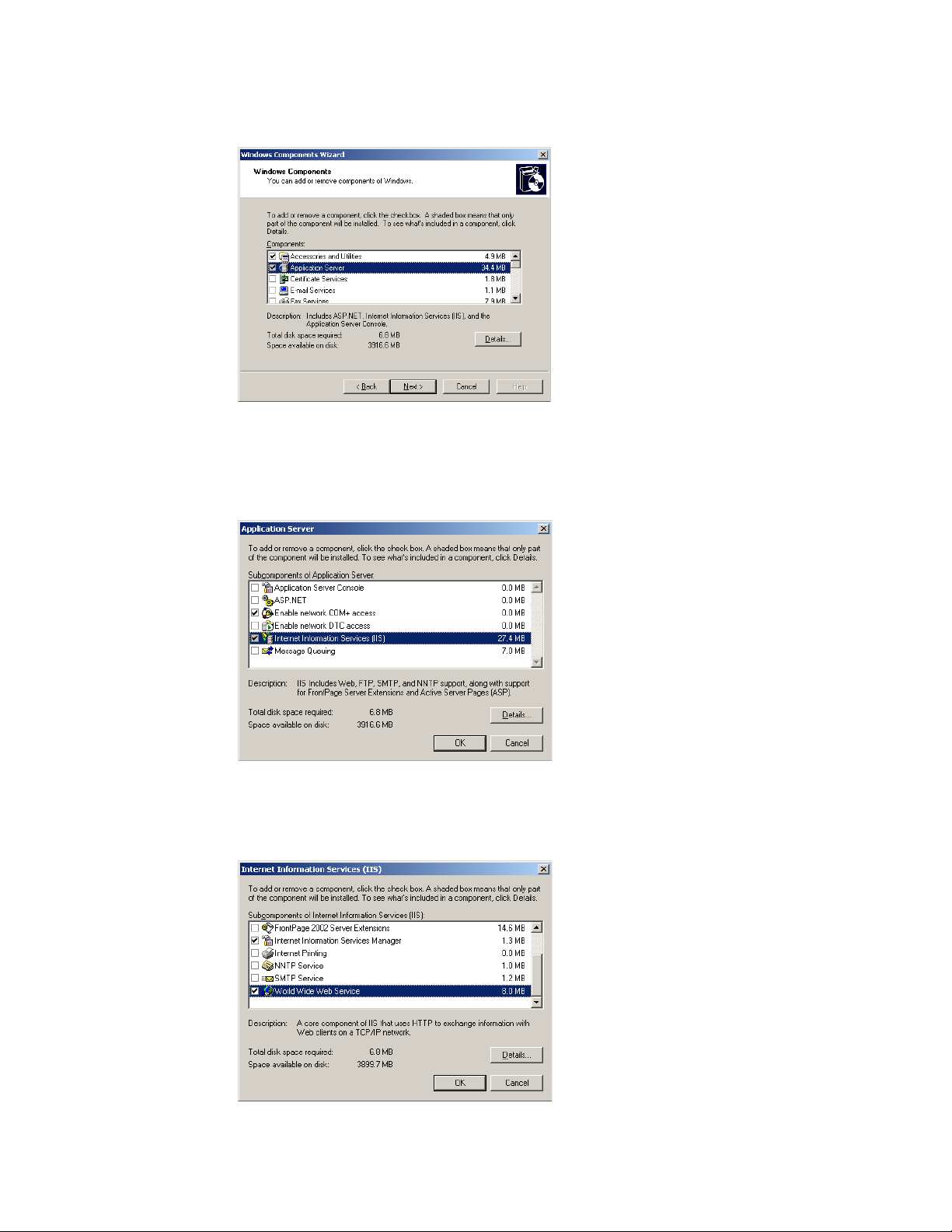

Installing and Configuring IIS 6.0 on Windows Server 2003 42

Installing and Configuring WebDAV on Windows Server 2003 42

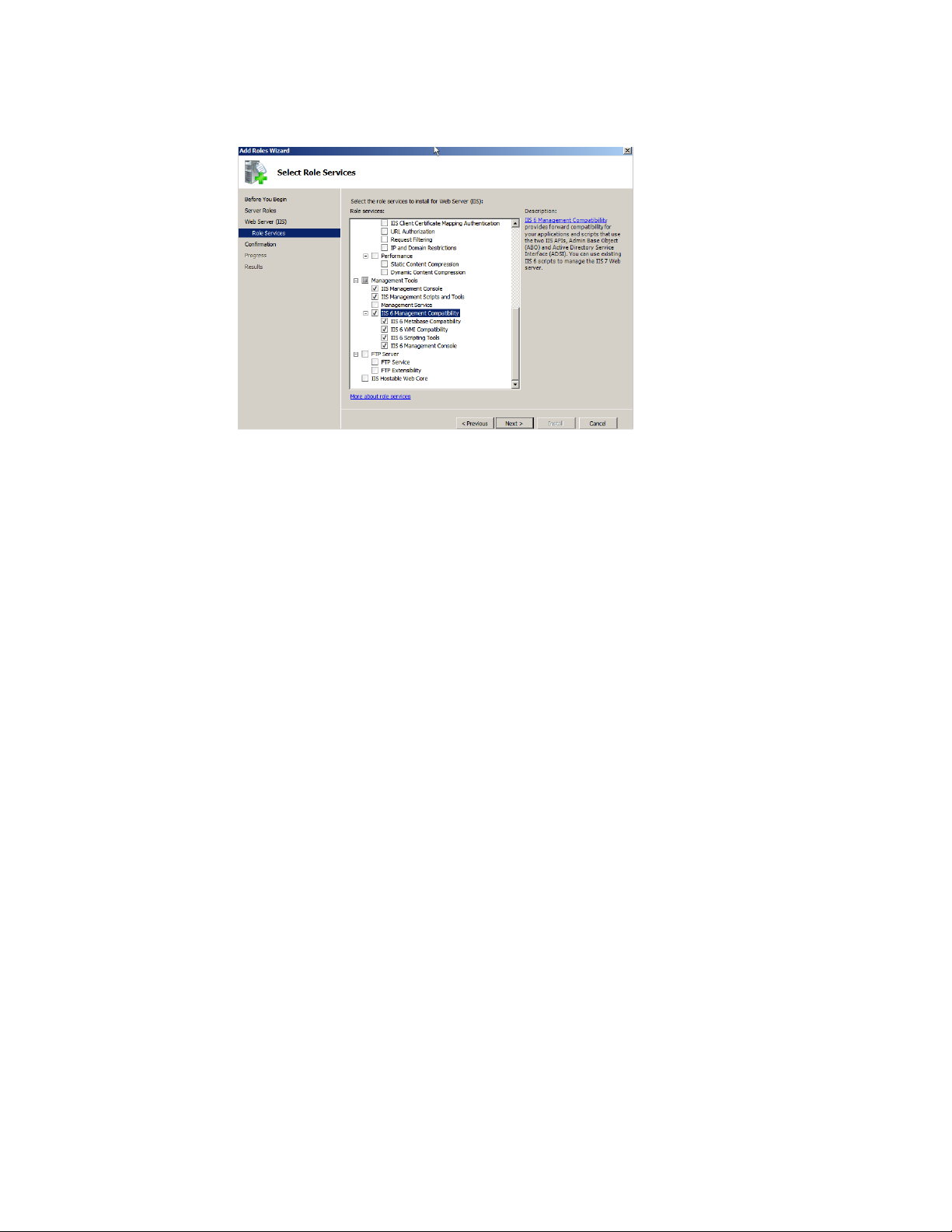

Installing IIS 7.0 on Windows Server 2008 46

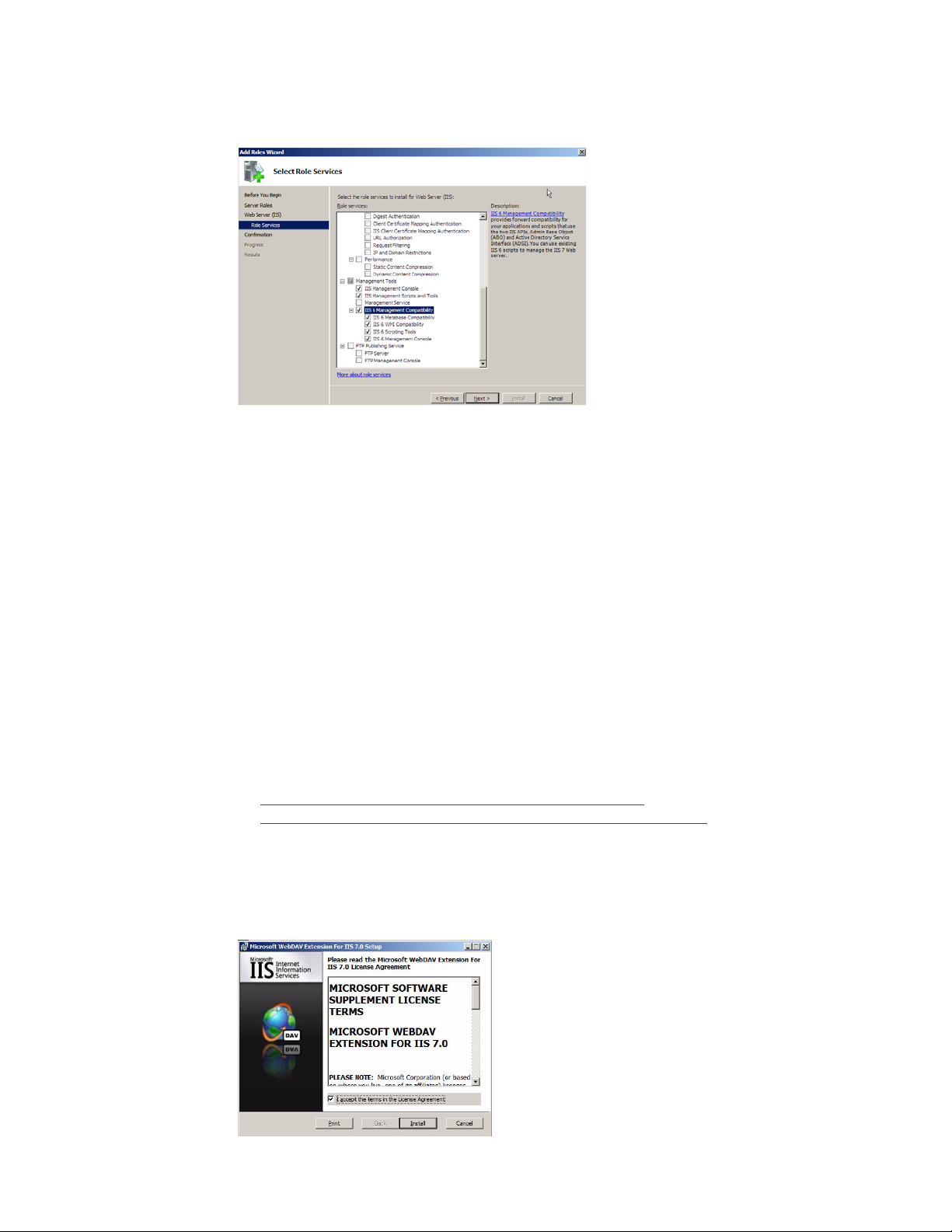

Installing WebDAV Extension for IIS 7.0 47 Configuring the Web.config File 48

iv Contents

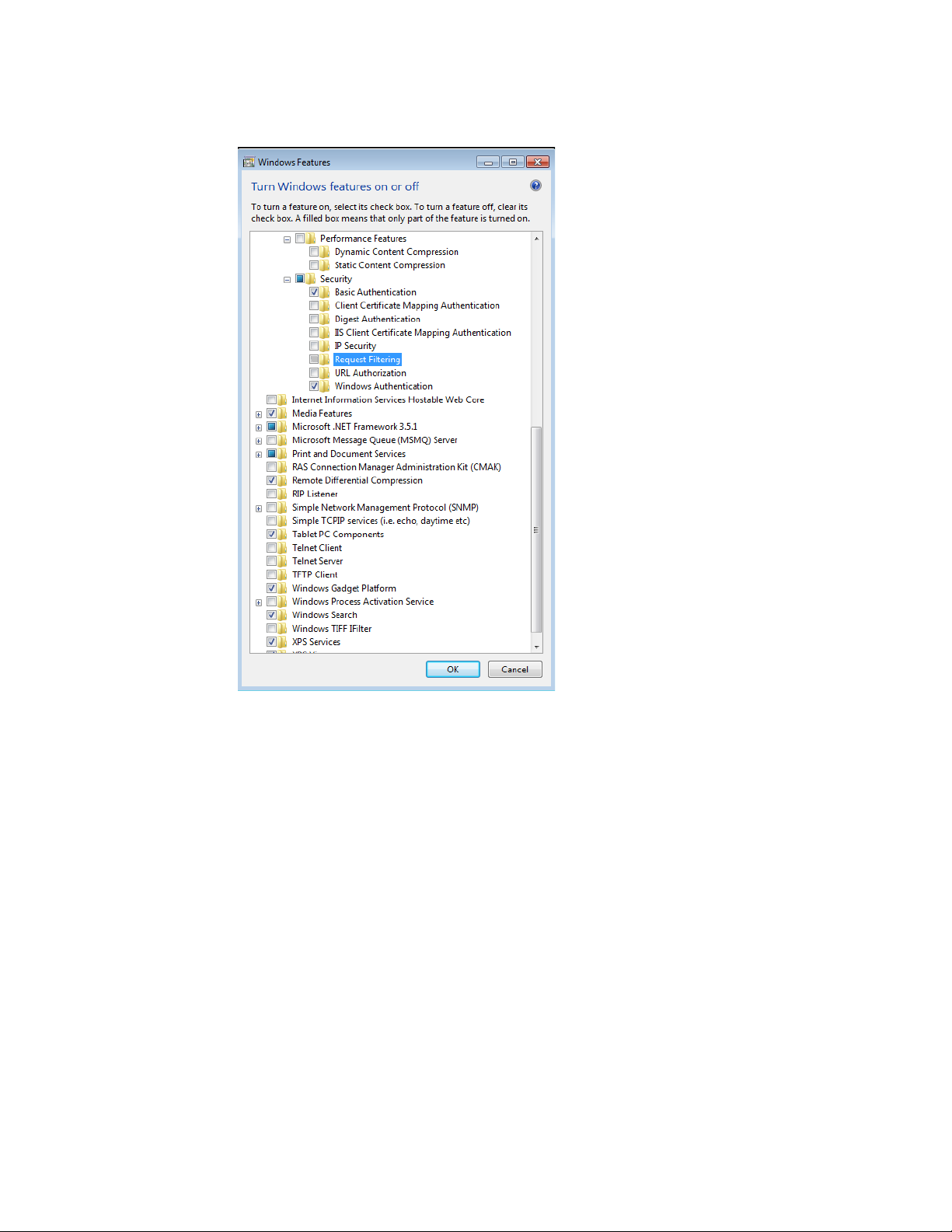

Installing IIS 7.5 on Windows Server 2008 R2 49 Installing IIS 7.5 on Windows 7 52

Using Windows Firewall with WDM 55

Tables 57

1 Introduction

Wyse Device ManagerTM (WDM) software is the premier enterprise solution for managing network intelligent devices simply, remotely, and securely. It enables IT professionals to easily organize, upgrade, control, and support thousands of devices running Microsoft Windows XP Embedded, Microsoft Windows CE, Wyse Enhanced Microsoft Windows Embedded Standard, Wyse Enhanced Microsoft Windows Embedded Standard 7, Wyse Enhanced SUSE Linux Enterprise, Wyse ThinOS, Wyse Xenith, or ThreadX across any LAN, WAN, or wireless network.

WDM software uses industry standard communica tion protocols and a component-based architecture to efficiently manage your network devices. Its intuitive, simple, and powerful user interface is built to operate as a standard snap-in to the Microsoft Management Console (MMC). From one simple to use console, WDM allows you to manage all of your network devices easily and quickly.

2 Chapter 1

About this Guide

This guide provides the step-by-step instructions you need to install and configure a WDM environment. It also includes the requirements you must address before you begin the installation procedures.

This guide is intended for experienced network administrators and Inform ation Technology professionals who have installed and configured Windows operating systems and applications.

Finding the Information You Need in this Guide

You can use either the Search window or Find toolbar to locate a word, serie s of words, o r partial word in an active PDF document. For detailed information on using these features, refer to the Help in your PDF reader.

Wyse Technical Support

To access Wyse technical resources, visit http://www.wyse.com/support. If you still have questions, you can submit your questions using the Wyse Self-Service Center at

http://support.wyse.com/selfservice.html

(toll free in U.S. and Canada). Hours of operation are from 6:00 A.M. to 5:00 P.M. Pacific Time, Monday through Friday.

or call Customer Support at 1-800-800-WYSE

To access international support, visit http://www.wyse.com/global

Wyse Online Community

Wyse maintains an online community where users of our products can see k and exchange information on user forums. Visit the Wyse Online Community forums at:

http://community.wyse.com/forum

is intended for administrators of the WDM

2 Prep aring for Inst allation

This chapter contains the pre-installation requirements you must complete to prepare the environment for WDM installation and configuration. After you have completed all pre-installation requirements, you can con tinue with the installation/upgrade you want ("Installing or Upgrading WDM Workgroup Edition" or "Installing or Upgrading WDM Enterprise Edition").

Pre-Installation Checklist

Before you begin installing WDM, be sure you have met the following requirements:

• Obtain and configure all hardware and software, as necessary (see "Hardware Requirements" and "Software Requirements"). CAUTION: It is highly recommended that you do not install WDM on any server which is currently dedicated to other tasks (such as a Domain Controller, Backup Controller, Mail Server, Production W eb Server, DHCP Server, MSMQ Server , Applica tion Server , and so on). It is h ighly recommended that WDM be installed on a server that is dedicated to WDM services.

• Install a supported operating system on the machine to which WDM will be installed. Be sure that all systems are up-to-date with current Microsoft service packs, patches, and updates (see "Software Requirements").

• Install Microsoft Internet Explorer (IE) 6.0 or later on all machines.

• Use of the built-in HTML help files requires Java to be installed on all machines to which you install the WDM Administrators Console (MMC Snap-in). Visit

http://www.java.com

• If you will be running IIS 7.0 on Windows Server 2008 SP1 or IIS 7.5 on either Windows Server 2008 R2 or Windows 7, be sure to update the HAgent on your devices as follows to ensure your devices are discovered by WDM (otherwise, IIS limitations may prevent discovery):

· Devices running CE .NET require HAgent v4.7.1.2

· ThreadX (P20) devices requ ire v3. 5 (fir m war e ve rsio n )

· Devices running Linux v6 require HAgent v4.2.0-2.0

· Devices running Wyse Enhanced SUSE Linux require HAgent v4.3.94-00.04

CAUTION: Upgrading WDM Agents is supported on SUSE Linux Enterprise

Desktop 11 and 11 SP1; it is not supported on SUSE Linux Enterprise Desktop 10.

· Devices running Wyse Enhanced Ubuntu Linux require HAgent v4.3.90

· Devices running WES 2009 require HAgent v5.1.2.4

· Devices running WES 7 require HAgent v6.0.0.24 or later

· Devices running Wyse ThinOS require v7.0_213 or later (firmware version)

· Devices running XPe require HAgent v5.1.2.4

• Ensure that no other applications requiring IIS are running on the machine to which WDM will be installed.

• Ensure that all required communications ports are available and open for proper communication between servers, routers, and switches (see "Communication Port Requirements").

and install the latest Java/JRE version for your operating system).

4 Chapter 2

Caution

• WDM requires Microsoft Data Access Components (MDAC) version 2.8. WDM installs MDAC 2.8 if it is not already present on the server.

• Ensure you have access to your operating system CD-ROM and your Microsoft Windows system files for use during your installation. NOTE: During WDM installation WDM checks the system to determine if all required software is present. If required software is not present, WDM indicates which software is missing. Some required third-party software is included with the WDM software, while other software is available from your operating system CD-ROM or from the network location for your Microsoft Windows system files (usually the i386 folder).

• WDM Workgroup Edition Only:

· You do not need to obtain special licenses to install WDM (you will use the WDM

Workgroup Sales Key that appears by default in the InstallShield Wizard).

· Ensure your FTP service is running (see also "How the WDM Installer Installs and

Configures FTP"). Note that you can ignore all HTTP/HTTPS information in this guide, as you must use FTP.

· Ignore all WebDAV for Microsoft Windows information in this guide (you do not

need WebDAV for Microsoft Windows).

· Ignore all custom SQL Server information in this guide (you must use Microsoft

SQL Server 2008 R2 Express (32-bit) which WDM installs by default).

• WDM Enterprise Edition Only:

· Ensure you obtain (from Wyse) and have access to your WDM Enterprise Sales

Key or Enterprise Evaluation License Key for use during your installation (after

purchase, you should have received an email from Wyse or your reseller with full instructions on registering and generating your WDM Enterprise Sales Key; if you did not receive this email, contact your reseller).

· WDM requires a supported SQL Server as described in "Software Requirements."

WDM provides (and installs) Microsoft SQL Server 2008 R2 Express (32-b it) as the default option, however, you can choose to use another supported SQL Server. To use another supported SQL Server, you must perform a Custom installation (see "Installing or Upgrading Procedures (WDM Enterprise Edition)").

· If you plan to install and configure WDM components on multiple machines

(Custom installation), you will repeat some of the installation and configuration procedures in this guide. Likewise, you must also complete the pre-installation requirements for each related machine you intend to use.

· If you plan to use FTP, ensure your FTP service is running (see also "How the WDM

Installer Installs and Configures FTP"). CAUTION: If you intend to use the firmware upgrade feature for Wyse ThreadX devices, FTP must be configured.

· If you plan to use HTTP or HTTPS for your server communications, you must

perform a custom installation (see "Detailed Custom Installation and Upgrade Instructions"). In addition the WDM installer will install WebDAV for Microsoft Windows on IIS and use the HTTP or HTTPS ports (as described in "Communication Port Requirements").

(Installations on Windows Server 2008 Only) - During the installation, if you are prompted to download and install the WebDAV Extension for IIS 7.0, simply follow the instructions (see also "Installing WebDAV Extension for IIS

7.0").

· If you plan to use Wyse ThreadX devices, you must create and configure a DNS

Service Location (SRV) resource record as described in "Requirements for Managing ThreadX Devices."

Preparing for Installation 5

• Upgrading Current WDM Installations Only:

· Planning for Upgrading - WDM 4.9 supports direct upgrades from WDM version

4.8.0 or 4.8.5. If you are running WDM version 4.7.0 or 4.7.1, you must first upgrade to 4.7.2, and then upgrade to 4.8.5 before upgrading to 4.9. CAUTION: Upgrading from WDM 4.7.2 to 4.8.5 is supported if the following hotfixes are installed in the following order prior to installing WDM 4.8.5: HF04072025609 and then HF04072036209.

· WDM 4.7.2 Installations Planning for V90L, V90LE, or V90LEW Devices Using

Non-PXE Imaging - If you have an existing WDM 4.7.2 installation containing V90L,

V90LE, or V90LEW devices, and you want to continue using Non-PXE imaging in WDM 4.9, be aware of the following requirements before upgrading to WDM 4.9 (CAUTION: If you have devices running earlier builds than those described below, you must re-image the devices with the latest firmware before you upgrade to WDM

4.9):

· If you have V90L and V90LE devices running XPE build 673 or later, you must

first upgrade your devices using the following package (obtained from Wyse) before upgrading to WDM 4.9: MerlinBootAgentUpgradeXPE_VLE.zip

· If you have V90LEW devices running WES build 68 8 or later, you must first upgrade your devices using the following package (obtained from Wyse) before upgrading to WDM v4.9: MerlinBootAgentUpgradeWES_VLE.zip

6 Chapter 2

Hardware Requirements

Depending on your operating system, be sure the machine(s) to which you will install WDM meets or exceeds the minimum system requirements show n in Table 1 for 32-bit operating systems or in Table 2 for 64-bit operating systems (as these are general guidelines, be sure to refer to your operating system documentation for details on hardware requirements). IMPORTANT: The actual free space required depends on the number and size of the packages you register, as well as the number of devices you will be managing (the WDM Database size). The minimum free space shown assumes the WDM Database and packages require that amount of space.

Table 1 Server Hardware Requirements for 32-bit OS

Category Minimum Requirements Recommended

CPU 1GHz Intel or AMD X86 2.4 GHz Dual Core Intel or AMD X86 RAM 2 GB 4 GB Minimum Free Space 4 GB 20 GB

Table 2 Server Hardware Requirements for 64-bit OS

Category Minimum Requirements Recommended

CPU 1GHz Intel or AMD X86 2.4 GHz Dual Core Intel or AMD X86 RAM 4 GB 8 GB Minimum Free Space 8 GB 40 GB

Software Requirements

WDM 4.9 supports the English versions of software shown in Table 3. Installing the latest version of each software package is highly recommended.

Table 3 Server Software Requirements

Component Software Requirements

Operating System Windows Server 2003 (Standard or Enterprise) R2 SP2 (32-bit),

Windows Server 2008 (Standard or Enterprise) SP1 (32-bit), Windows Server 2008 (Standard or Enterprise) R2 (64-bit), Windows Server 2008 (Enterprise) SP2 (32-bit or 64-bit), Windows Server 2008 (Enterprise) R2 SP1 (64-bit), or Windows 7 (Enterprise) SP1 (32-bit or 64-bit)

Database Server Microsoft SQL Server 2005, 2005 Express, 2008, 2008 Express,

or 2008 R2 Express (32-bit)

By default, WDM installs Microsoft SQL Server 2008 R2 Express (32-bit). To use an SQL Server Personal Edition, SQL Server Developer Edition, or another supported SQL Server, you must perform a custom installation (see "Installing or Upgrading Procedures (WDM Enterprise Edition)").

Preparing for Installation 7

Communication Port Requirements

To perform their full range of management functions, WDM software components require certain ports to remain open on your server s, routers, and switches.

For example, WDM relies on the HTTP/HTTPS communications port designated by your Web service (such as Microsoft Internet Information Service) for push operations (push refers to operations initiated by WDM and sent/pushed to devices). Push operations include:

• Issuing quick device commands (such as Refresh Device Information, Reboot, Change Device or Network Information, Get Device Configuration, and so on)

• Distributing packages at a specific time (either immediately or at a specific date and time)

Typically, port 80 is designated as the HTTP port and port 443 is designated as the HTTPS port. However, if port 80 (or the designated HTTP port), or port 443 (or the designated HTTPS port) is closed, WDM will be unable to push updates or quick commands to devices.

Table 4 lists the ports WDM uses and describes the respective communication protocols and their function (ensure that these ports are open for proper communication between servers).

Table 4 Communication Ports

WDM Component

GUI HTTP 80

Web Service HTTP 80

Protocol Port Function

280

FTP 21 Register new packages into the

OLE DB 1433 (default)

Can be configured during installation

VNC 5800

5900

280

HTTPS 443

8443

OLE DB 1433 (default)

Can be configured during installation

Communicate with the Web Service and Standard Service.

Master Software Repository. Communicate with the WDM

Database.

Remote shadows devices.

Communicate with the Web Agent, GUI, and Standard Service.

Secure Communication with the Web Agent, GUI, and Standard Service

Communicate with the WDM Database.

Web Agent HTTP 80

280

FTP 21 Read and write files to the Master

Communicate with the Web Service.

and Remote Software Repositories.

8 Chapter 2

Caution

Table 4 Communication Ports, Continued

WDM Component

Protocol Port Function

Standard Service

Standard Service and PXE

Standard Service and legacy support for older WDM Agents

OLE DB 1433 (default)

Can be configured during installation

HTTP 8008 Communicate with the GUI and Web

DHCP 67

68 4011

TFTP 69 Download bootable image to enable

HTTP 80 Communicate with the Web Service

FTP 21 Download and upload files to the

UDP 44956

44957

TCP 44955 Discover devices using IP Range

Communicate with the WDM Database.

Service. Process UDP requests from

PXE-enabled devices to the Standard Service.

management processing.

regarding actions and status of current task.

Master and Remote Software Repositories.

Discover devices (using subnet directed broadcasts) that have older WDM Agents (5.0.0.x and earlier) installed.

Walking. Upgrade devices that have an older WDM Agent (5.0.0.x and earlier) installed.

ThreadX Manager Service

Upgrading Requirements

WDM 4.9 supports direct upgrades from WDM version 4.8.0 or 4.8.5. If you are running WDM version 4.7.0 or 4.7.1, you must first upgrade to 4.7.2, and then upgrade to 4.8.5 before upgrading to 4.9.

Upgrading from WDM 4.7.2 to 4.8.5 is sup po rt ed if the fo llowin g hotfixes are installed in the following order prior to installing WDM 4.8.5: HF04072025609 and then HF04072036209.

TCP 9880

50000

Uses these ports to communicate with ThreadX devices.

Preparing for Installation 9

Requirements for Managing ThreadX Devices

ThreadX devices require a DNS Service Location (SRV) resource record to perform the following actions:

• Partial Check-In (heartbeat) - Where the device performs a heartbeat check-in every 5 minutes (this amount of time is not configurable).

• Firmware Download Completion Status - Where firmware upload is initiated by the server and download completion is initiated (made known) by the device using the DNS SRV record.

• Reboot Status - This necessary intimation (especially when DHCP lease for an IP has expired and a device receives a fresh IP) enables WDM to keep track of the device even if an IP has changed.

Therefore, it is highly recommended to complete the steps in "Creating a DNS Service Location (SRV) Resource Record for Wyse ThreadX Devices."

However, for special cases where a DNS server is unavailable, you can provide a polling mechanism where WDM runs a polling thread to check if th e ThreadX de vices listed in the Device Manager are up and running. Simply enable the ThreadX device polling feature (Device Configuration > Preferences > Service > Enabling ThreadX Device Polling) and then restart the ThreadX Service. CAUTION: Be aware that this polling thread is not equivalent to using a DNS Service Location (SRV) resour ce record and is a workaround to manage only a Partial Check-In (heartbeat). Firmware Download Completion Status and Reboot Status are not supported with this method. In addition, as the number of devices increases, the polling thread can become resource intensive and CPU usage can significantly increase.

Creating a DNS Service Location (SRV) Resource Record for Wyse ThreadX Devices

If you plan to use Wyse ThreadX devices, you must create and configure a DNS Service Location (SRV) resource record.

Use the following guidelines:

1. Open the DNS management console.

Figure 1 Other New Records

2. Select the domain where the server is configured, right-click it, and then select Other New Records to open the Resource Record Type dialog box.

10 Chapter 2

Figure 2 Service Location (SRV)

3. Select the Service Location (SRV) resource record type and then click Create Record to open the New Resource Record dialog box.

Figure 3 New Resource Record

4. Use the following guidelines (Domain is automatically shown):

• Enter _Pcoip-tool in the Service box.

• Enter _tcp in the Protocol box.

• (Optional) Enter the value you want for this WDM server in the Priority box (the

lower the priority value the higher the priority).

• (Optional) Enter the value you want for this WDM server in the Weight box (within

the same priority class the higher the weight value the higher the priority).

• Enter 50000 in the Port number box.

• Enter the <FQDN of the WDM server> (for example, p20.rap45.com) in the Host

offering this service box.

5. Click OK.

3 Inst alling or Upgrading WDM

Caution

Workgroup Edition

This section provides the detailed procedures you must complete to install or upgrade WDM Workgroup Edition.

Be sure you have completed all pre-inst allation r equirement s as de scribed in

"Preparing for Installation" before you begin installing or upgrading WDM Workgroup Edition.

WDM Workgroup Edition installs the following WDM components on a single server:

• WDM Database (Database) - Stores and provides access to all of the information for device management, including logging, packages, user data, and Remote Software Repository information.

• Software Repository (Repository) - Stores WDM packages for deployment use.

• Web Services (HServer) - Uses HTTP/HTTPS to enable push and pull communications to devices equipped with the WDM Web Agent.

• Standard Services - Allows WDM to:

· Execute pre-boot management functions on devices that support Preboot

Execution Environment (PXE).

· Upgrade older WDM Web Agents to the latest WDM Web Agent.

• Administrator Console (MMC Snap-in) - User interface allows you to manage all of your network devices easily and quickly.

12 Chapter 3

Installing or Upgrading Procedures (WDM Workgroup Edition)

The WDM Workgroup Edition installation wizard automatically detects whether a new installation or an upgrade installation from WDM 4.8.0 or 4.8.5 is needed, and guides you through the process. Use the following guidelines:

1. Download and extract the WDM Workgroup Edition files to a folder on the machine to which you will install WDM (for upgrades, this is the machine on which you are currently running WDM Workgroup Edition version 4.8.0 or 4.8.5).

2. Double-click Setup.exe to open and use the InstallShield Wizard.

Figure 4 InstallShield Wizard - Workgroup Edition

Use the following guidelines:

• Be Sure to Use the WDM Workgroup Sales Key - It appears by default in the

Customer Information window of the InstallShield Wizard.

• Be Sure to Carefully Follow the WDM Prerequisite Utility - It finds out what you

have and what you need, and then guides you through all th e steps neede d for your environment.

Installing or Upgrading WDM Workgroup Edition 13

Tip

• If You are Upgrading - Be sure to use the correct system administrator password

(SA Password) for the current installation of your WDM Workgroup Edition.

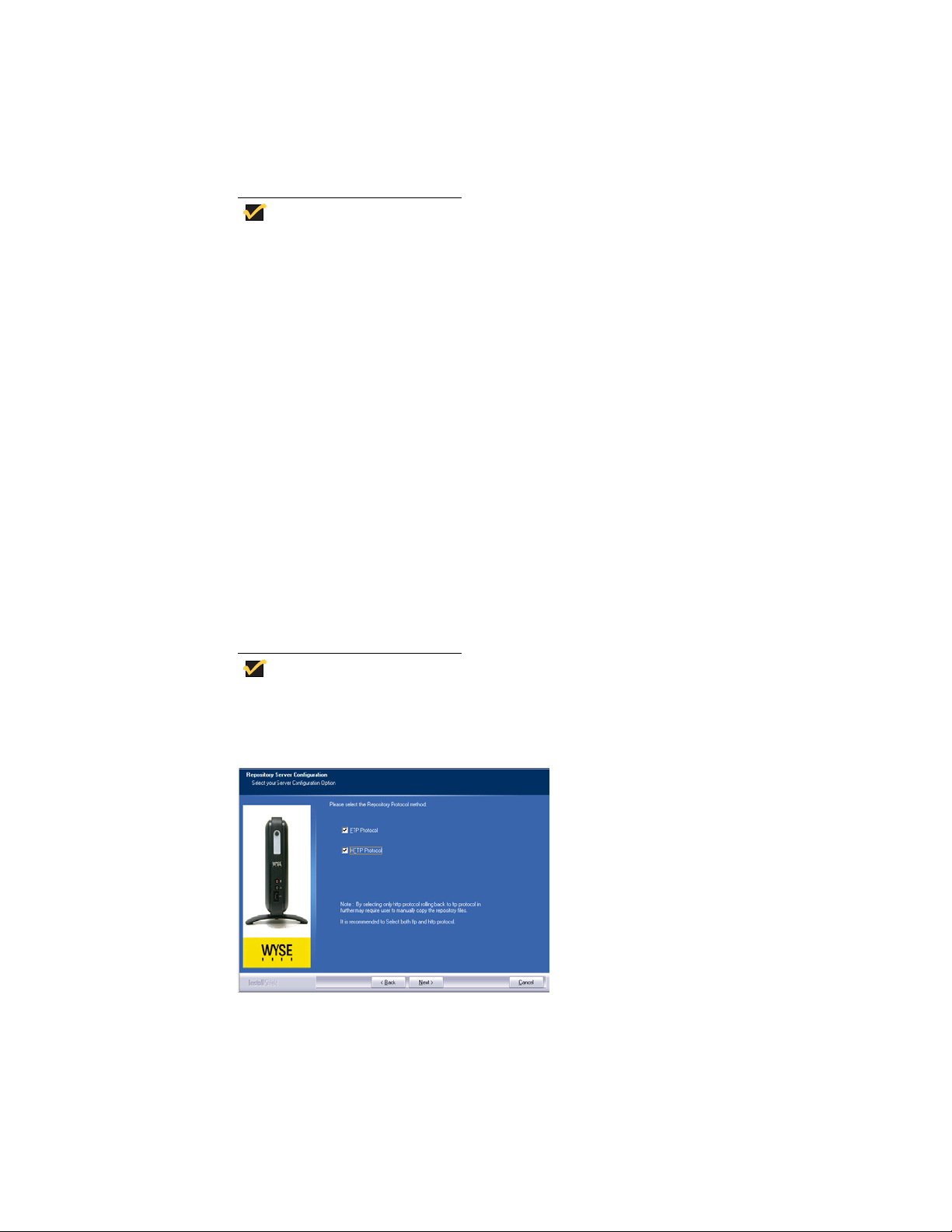

• Use FTP for Repository Communication - When selecting the protocol to use for

repository communication be sure to use FTP (HTTP is not supported for WDM Workgroup Edition installations).

• Restart Your Computer after Installation is Complete - Select the Yes, I want to

restart my computer now option, remove any disks from their drives, and then click Finish.

3. After installing WDM Workgroup Edition, it is best practice to activate your WDM Workgroup Sales Key with an Activation Code at this time as described in "Activating

Your Sales Key."

Although you have 30 days in which to activate your WDM Wo rkgrou p Sales Key (after 30 days you cannot use WDM until you do activate it), it is highly recommended to do so at this time, as you must perform the activation on the server to which you installed the Administrator Console (MMC Snap-in).

14 Chapter 3

This page intentionally blank.

4 Inst alling or Upgrading WDM

Caution

Tip

Enterprise Edition

This section provides the detailed procedures you must complete to install or upgrade WDM Enterprise Edition.

Be sure you have completed all pre-inst allation r equirement s as de scribed in

"Preparing for Installation" before you begin installing or upgrading WDM Enterprise Edition.

WDM Enterprise Edition installs the following WDM components on a single server

(Typical installation) or on multiple servers (Custom installation):

• WDM Database (Database) - Stores and provides access to all of the information for device management, including logging, packages, user data, and Remote Software Repository information (there can be only one instance of this WDM Database in you r WDM environment).

• Software Repository (Repository) - Stores WDM packages for deployment use (in a Custom installation, you can have one Master Repository and multiple remote repositories in your WDM environment).

• Web Services (HServer) - Uses HTTP/HTTPS to enable push and pull communications to devices equipped with the WDM Web Agent (in a Custom installation, it is recommended to have as ma ny inst ances of this Web Services as you have repository instances in your WDM environment).

• Standard Services - Allows WDM to (there can be only one instance of this Standard Services in your WDM environment):

· Execute pre-boot management functions on devices that support Preboot

Execution Environment (PXE).

· Upgrade older WDM Web Agents to the latest WDM Web Agent.

• Administrator Console (MMC Snap-in) - User interface allows you to manage all of your network devices easily and quickly (in a Custom installation, you can have multiple instances of this Administrator Console in your WDM environment).

Using a WDM Enterprise Sales Key or Enterprise Evaluation License Key during installation allows the WDM components to be separately installed on different servers.

+ 43 hidden pages

Wyse Technology Device Manager User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Inst allation Guide

Copyright Notices

Content s

1 Introduction

About this Guide

Finding the Information You Need in this Guide

Wyse Technical Support

Related Documentation and Services

Wyse Online Community

2 Prep aring for Inst allation

Pre-Installation Checklist

Hardware Requirements

Software Requirements

Communication Port Requirements

Upgrading Requirements

Requirements for Managing ThreadX Devices

Creating a DNS Service Location (SRV) Resource Record for Wyse ThreadX Devices

Installing or Upgrading Procedures (WDM Workgroup Edition)
