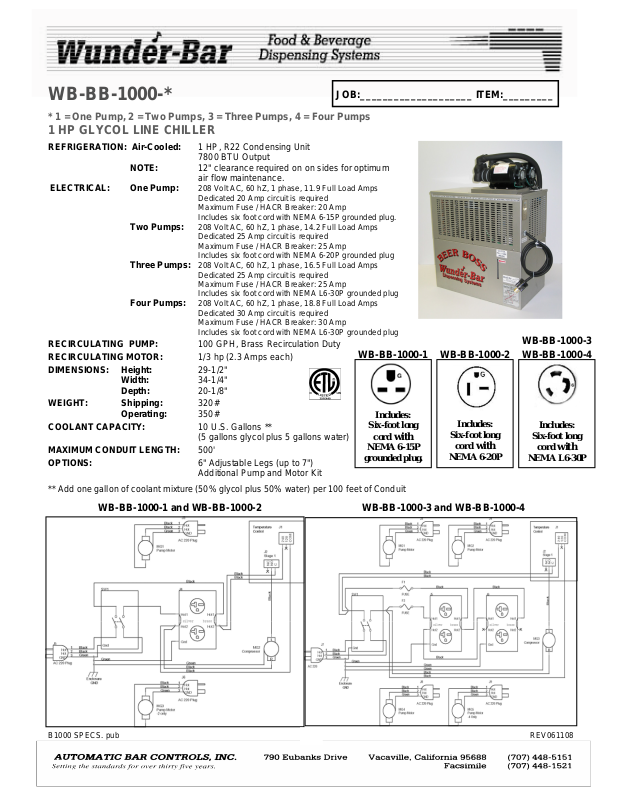

Wunder Bar WB-BB-1000-1 User Manual

WB-BB-1000-*

JOB:____________________ ITEM:_________

* 1 = One Pump, 2 = Two Pumps, 3 = Three Pumps, 4 = Four Pumps

1 HP GLYCOL LINE CHILLER

REFRIGERATION: Air-Cooled: 1 HP, R22 Condensing Unit

7800 BTU Output

NOTE: 12" clearance required on on sides for optimum

air flow maintenance.

ELECTRICAL: One Pump: 208 Volt AC, 60 hZ, 1 phase, 11.9 Full Load Amps

Dedicated 20 Amp circuit is required

Maximum Fuse / HACR Breaker: 20 Amp
Includes six foot cord with NEMA 6-15P grounded plug.

Two Pumps: 208 Volt AC, 60 hZ, 1 phase, 14.2 Full Load Amps

Dedicated 25 Amp circuit is required
Maximum Fuse / HACR Breaker: 25 Amp
Includes six foot cord with NEMA 6-20P grounded plug

Three Pumps: 208 Volt AC, 60 hZ, 1 phase, 16.5 Full Load Amps

Dedicated 25 Amp circuit is required

Maximum Fuse / HACR Breaker: 25 Amp
Includes six foot cord with NEMA L6-30P grounded plug

Dedicated 30 Amp circuit is required
Maximum Fuse / HACR Breaker: 30 Amp
Includes six foot cord with NEMA L6-30P grounded plug

RECIRCULATING PUMP: 100 GPH, Brass Recirculation Duty
RECIRCULATING MOTOR: 1/3 hp (2.3 Amps each)
DIMENSIONS: Height: 29-1/2"

Width: 34-1/4"
Depth: 20-1/8"

WEIGHT: Shipping: 320#
Operating: 350#

COOLANT CAPACITY: 10 U.S. Gallons **
(5 gallons glycol plus 5 gallons water)

MAXIMUM CONDUIT LENGTH: 500'
OPTIONS: 6" Adjustable Legs (up to 7")

Additional Pump and Motor Kit
** Add one gallon of coolant mixture (50% glycol plus 50% water) per 100 feet of Conduit

Four Pumps: 208 Volt AC, 60 hZ, 1 phase, 18.8 Full Load Amps

WB-BB-1000-1

Six-foot long

NEMA 6-15P

grounded plug.

Includes:

cord

with

WB-BB-1000-2

Includes:

Six-foot long

cord

NEMA 6-20P

with

WB-BB-1000-3
WB-BB-1000-4

Includes:

Six-foot long

with

cord

NEMA L6-30P

WB-BB-1000-1 and WB-BB-1000-2 WB-BB-1000-3 and WB-BB-1000-4

B1000 SPECS. pub

4

REV061108
