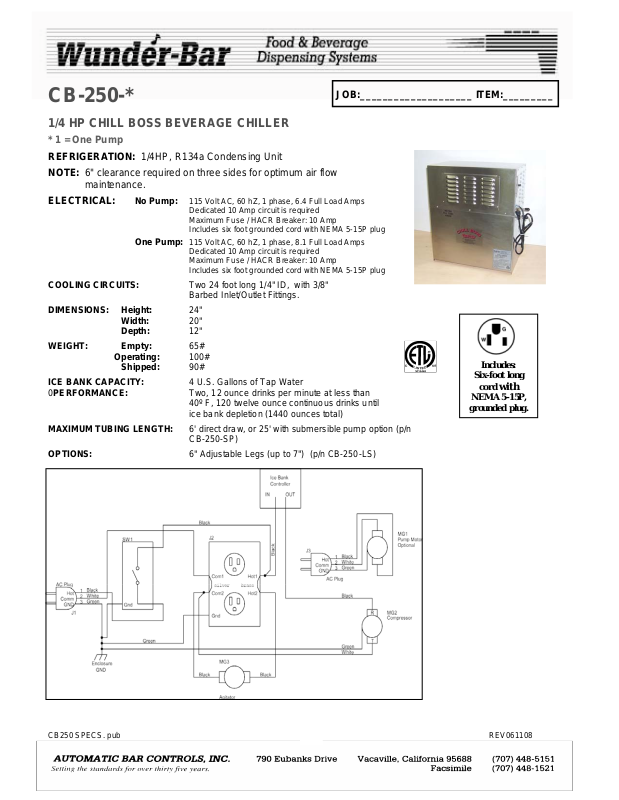

CB-250-*

1/4 HP CHILL BOSS BEVERAGE CHILLER

* 1 = One Pump

REFRIGERATION: 1/4HP, R134a Condensing Unit

JOB:____________________ ITEM:_________

NOTE: 6" clearance required on three sides for optimum air flow

maintenance.

ELECTRICAL: No Pump: 115 Volt AC, 60 hZ, 1 phase, 6.4 Full Load Amps

Dedicated 10 Amp circuit is required

Maximum Fuse / HACR Breaker: 10 Amp
Includes six foot grounded cord with NEMA 5-15P plug

One Pump: 115 Volt AC, 60 hZ, 1 phase, 8.1 Full Load Amps
Dedicated 10 Amp circuit is required

Maximum Fuse / HACR Breaker: 10 Amp
Includes six foot grounded cord with NEMA 5-15P plug

COOLING CIRCUITS: Two 24 foot long 1/4" ID, with 3/8"
Barbed Inlet/Outlet Fittings.

DIMENSIONS: Height: 24"
Width: 20"
Depth: 12"

WEIGHT: Empty: 65#
Operating: 100#

Shipped: 90#
ICE BANK CAPACITY: 4 U.S. Gallons of Tap Water

0PERFORMANCE: Two, 12 ounce drinks per minute at less than
40º F, 120 twelve ounce continuous drinks until
ice bank depletion (1440 ounces total)

MAXIMUM TUBING LENGTH: 6' direct draw, or 25' with submersible pump option (p/n
CB-250-SP)

OPTIONS: 6" Adjustable Legs (up to 7") (p/n CB-250-LS)

Includes:

Six-foot long

cord

with

NEMA 5-15P,

grounded plug.

16

REV061108 CB250 SPECS. pub
