World vision force1 User Manual [ru]
force1
English
User's Guide
World Vision force1
- Advanced Linux Operating System
- Full compatible with Enigma2
- The fastest CPU : 1.3GHz Broadcom chipset(BCM7356)
- 256 Mbyte NAND Flash & 1Gbyte DDR3 RAM
- HD DVB-S/DVB-S2 Satellite Twin Tuner
- MPEG-4, H.264 & MPEG-2 Compliant
- Full HD(1080p 50Hz)
- 2HD AV decoding (perfect PIP)
- Full 3D
- 10/100/1000 Mbps Full Duplex Ethernet Interface
- 1 x Common Interface
- 1 x Smartcard Readers
- 3 x USB 2.0 Port (1 in front & 2 in rear)
- 12 character VFD display with scrolling for local time or channel name
- S/PDIF Output for Digital Audio and Dolby AC-3 Bit Stream Output
-
Easy Firmware/ Software Upgrade ; through Ethernet or USB Memory Stick
- Less than 1 second channel change
- Extended EPG and recording reservation on EPG
- Multi language OSD, Skins
- Fully automatic, Manual Channel Search
- Timer & multi-event recording
- Teletext & Subtitle support by OSD and VBI
- DiSEqC 1.0, 1,1 ,1.2 and 1.3(USALS) compatible
- External Power Supply
- Under 0.5 Watt Stand-by power consumption
force1
ACCESSORIES

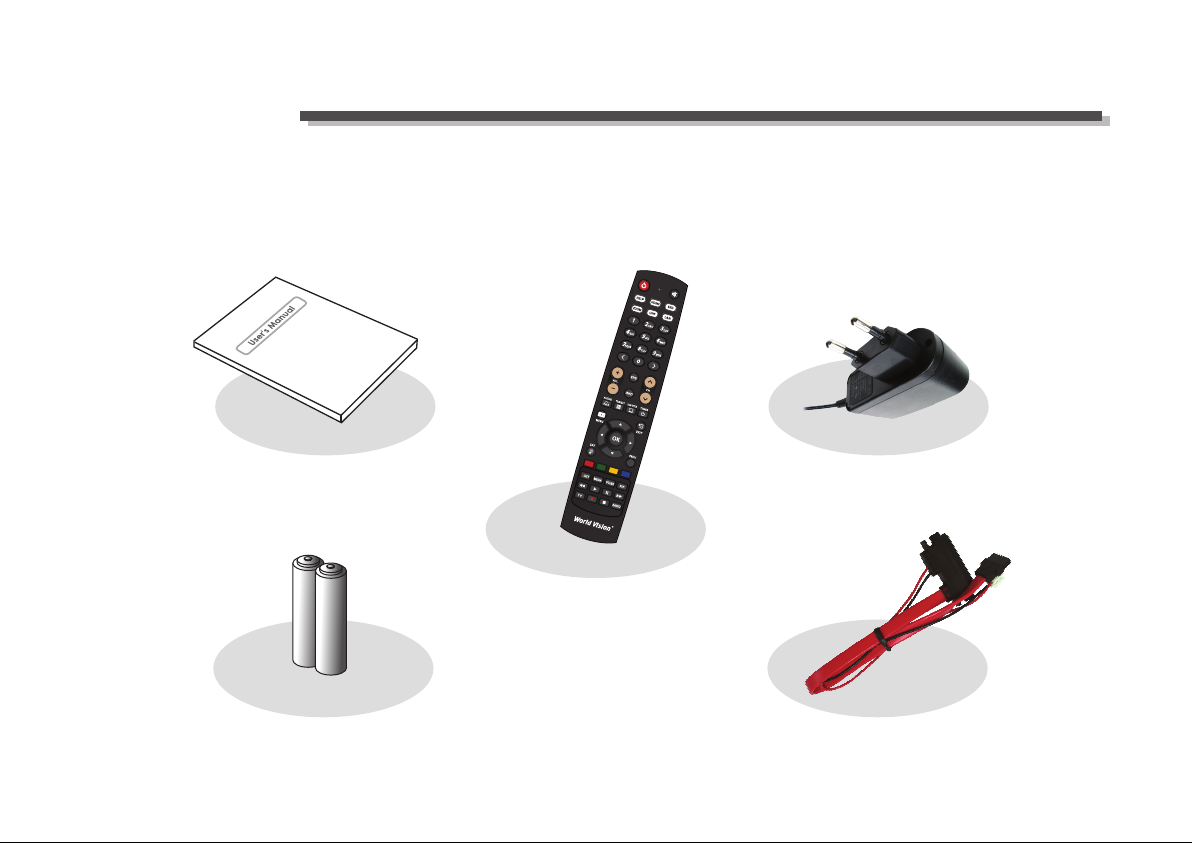

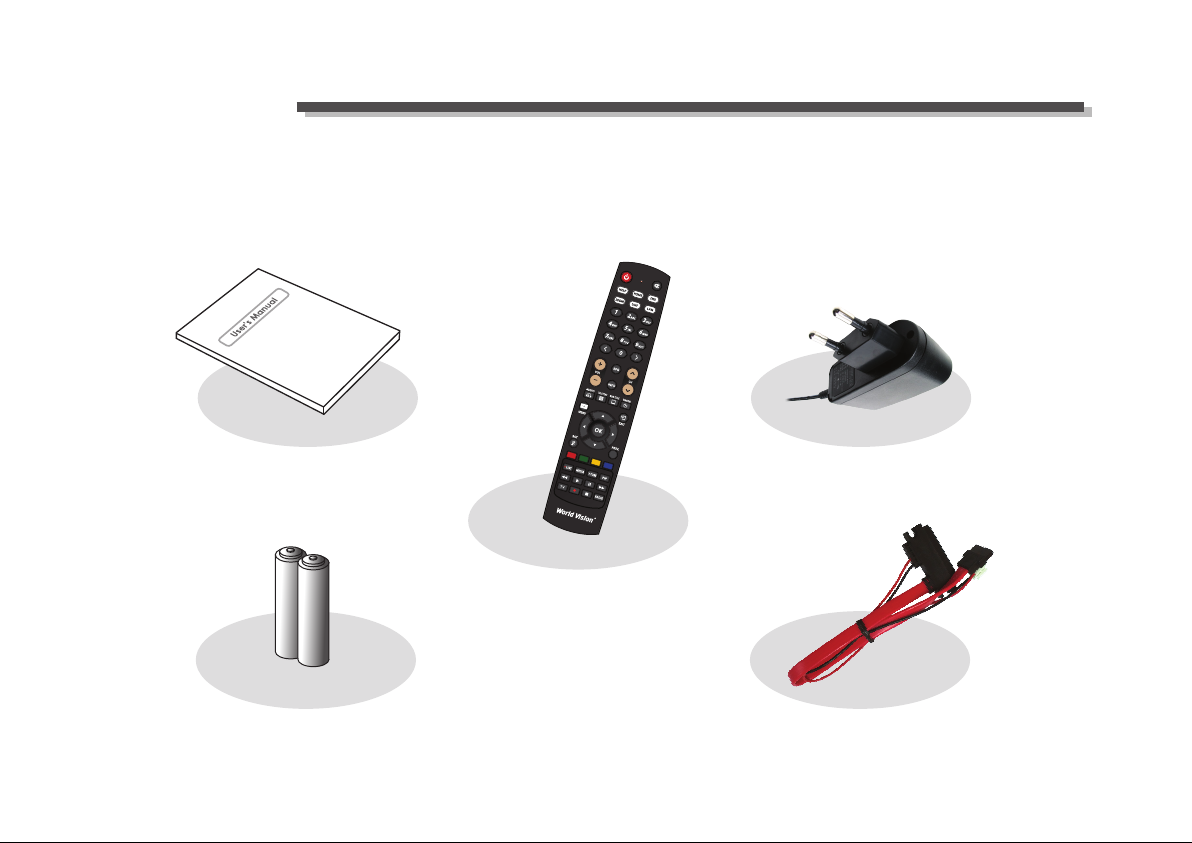

Please check that the following contents are enclosed :
User's Manual
AAA X 2 BATTERIES
Power Supply
Remote control unit
SATA Cable

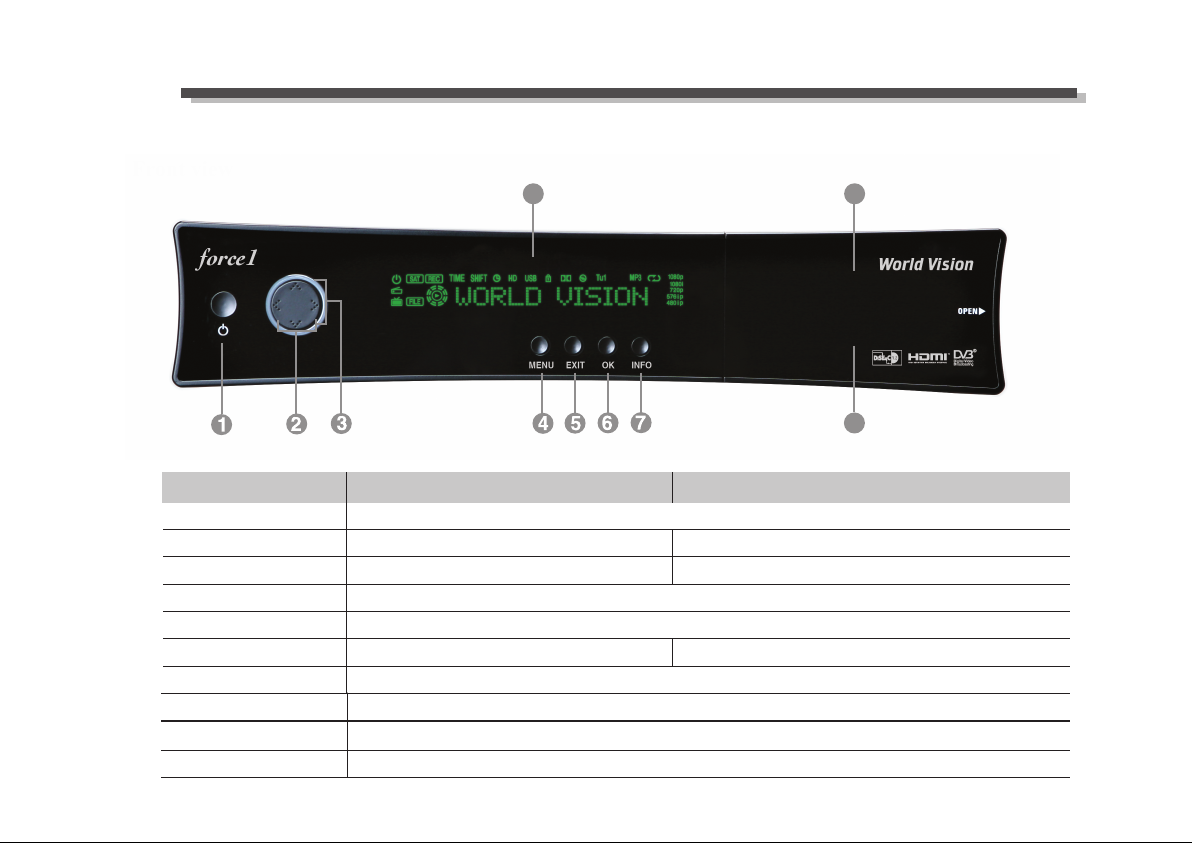

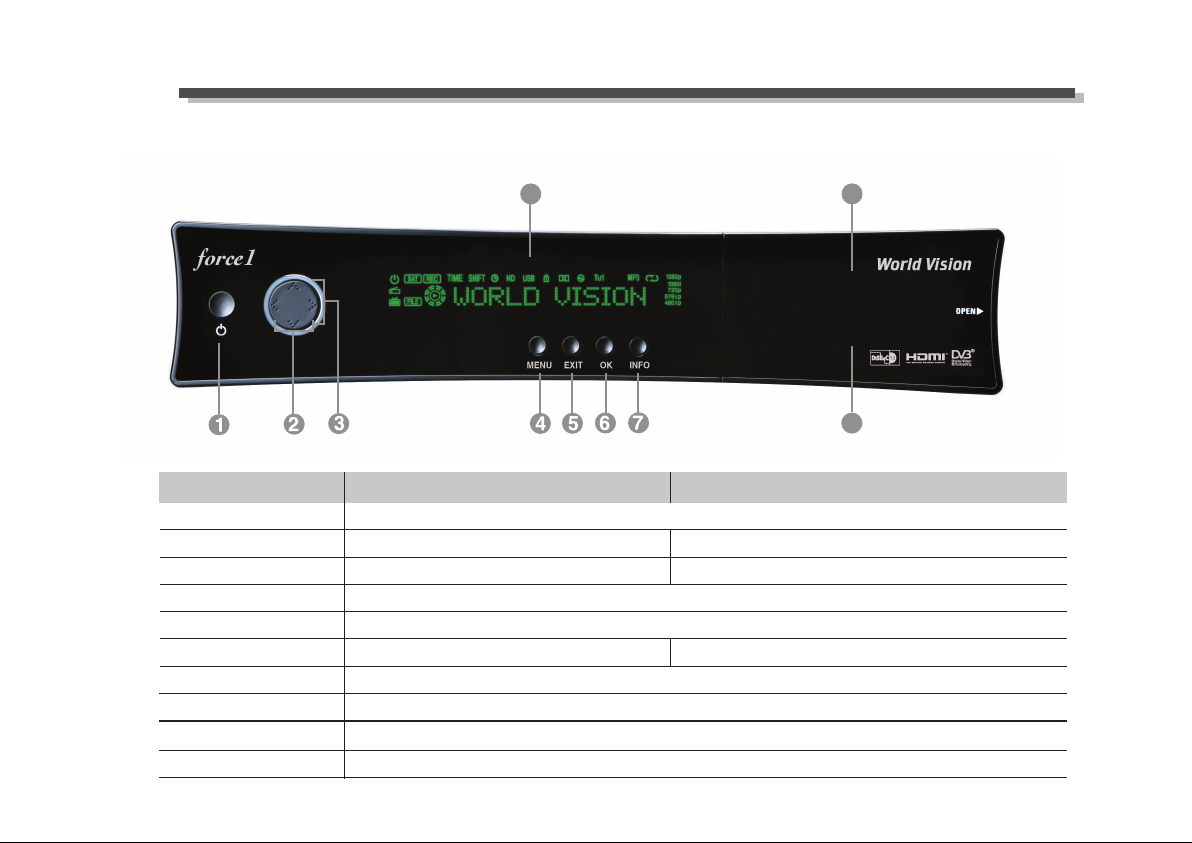

VIEWS

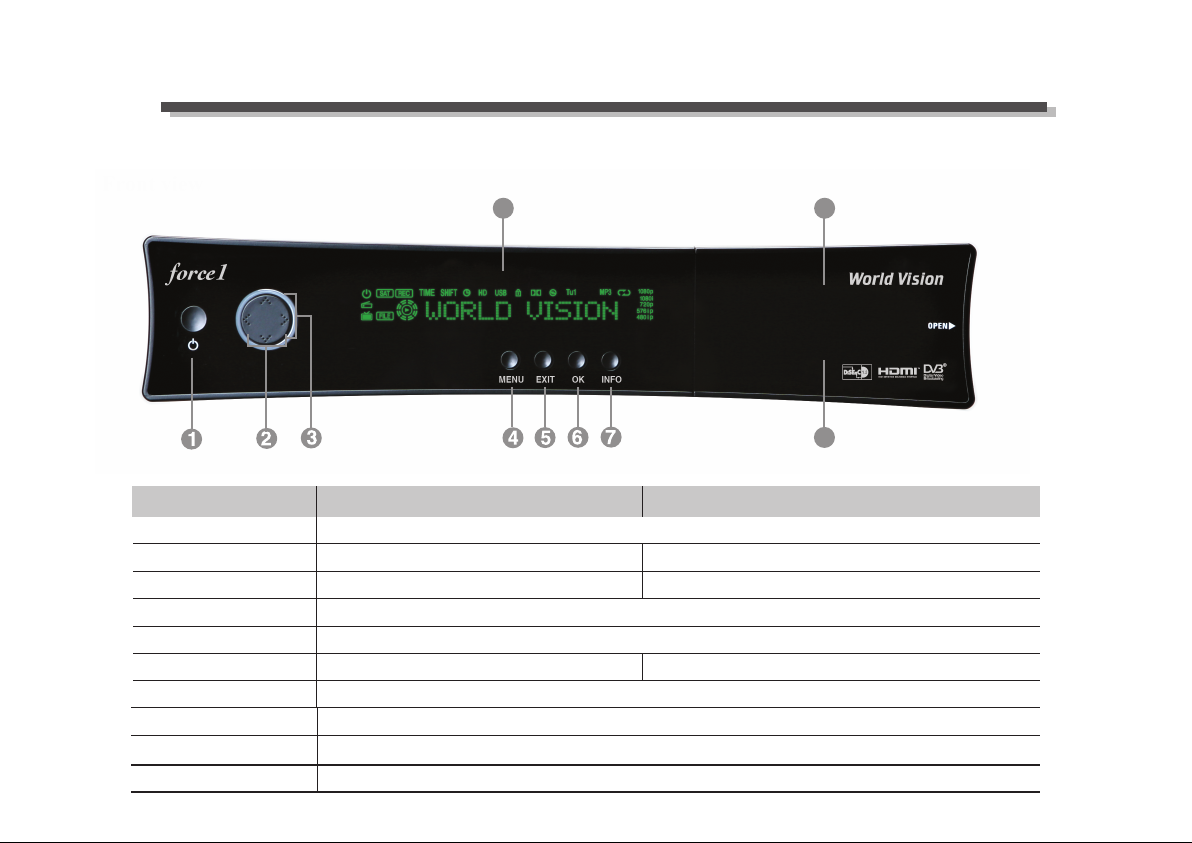

1. Power
Switch between operation and standby modes.
2. Volume +/-
To change volume level
To change parameter value.
3. Channel +/-
To change current channel.
To move cursor up/down.
4. Menu
To enter or exit the Main Menu.
5. Exit
Close and return to the previous menu and screen.
Shows current program's stream information.
6. OK
To open channel list
To Select / Confirm an item
7. Info
Display current menu information and channel name etc.
8. Display
(VFD)
Insert smart card with the golden chip facing up.
9.
Smartcard reader
One common interface module slots are provided.
Common Interface Slot
Front view
Front view
8
9
10
Watching TV status (Live mode) OSD operating status (OSD mode)
Rear view
5
7
11
1
3
4
6
8

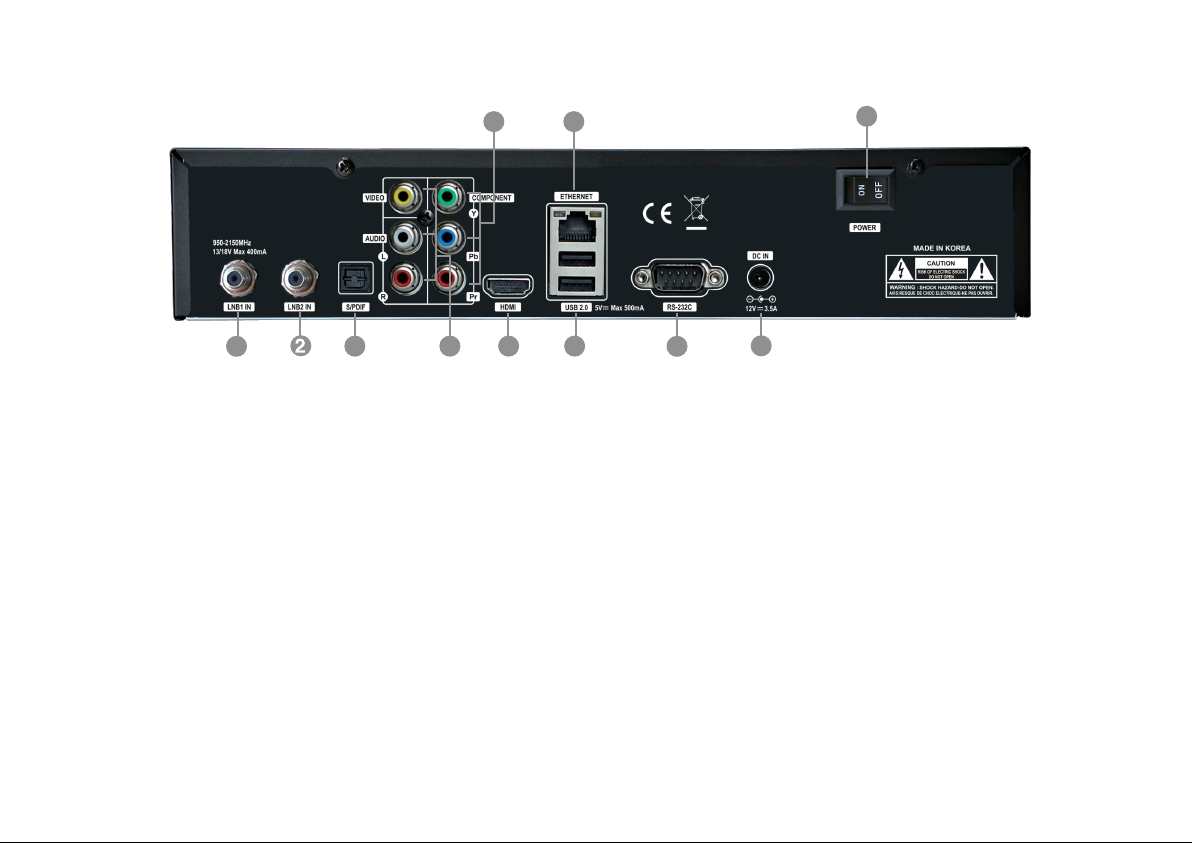

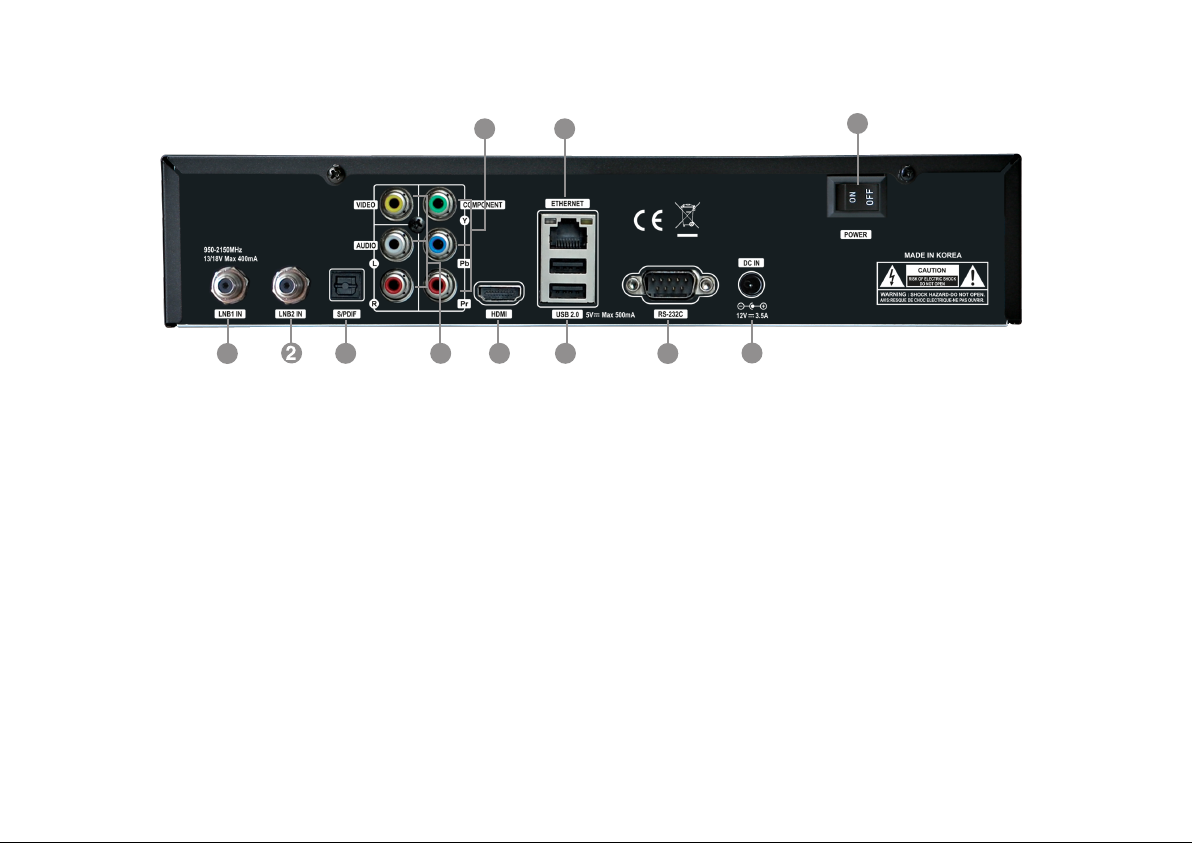

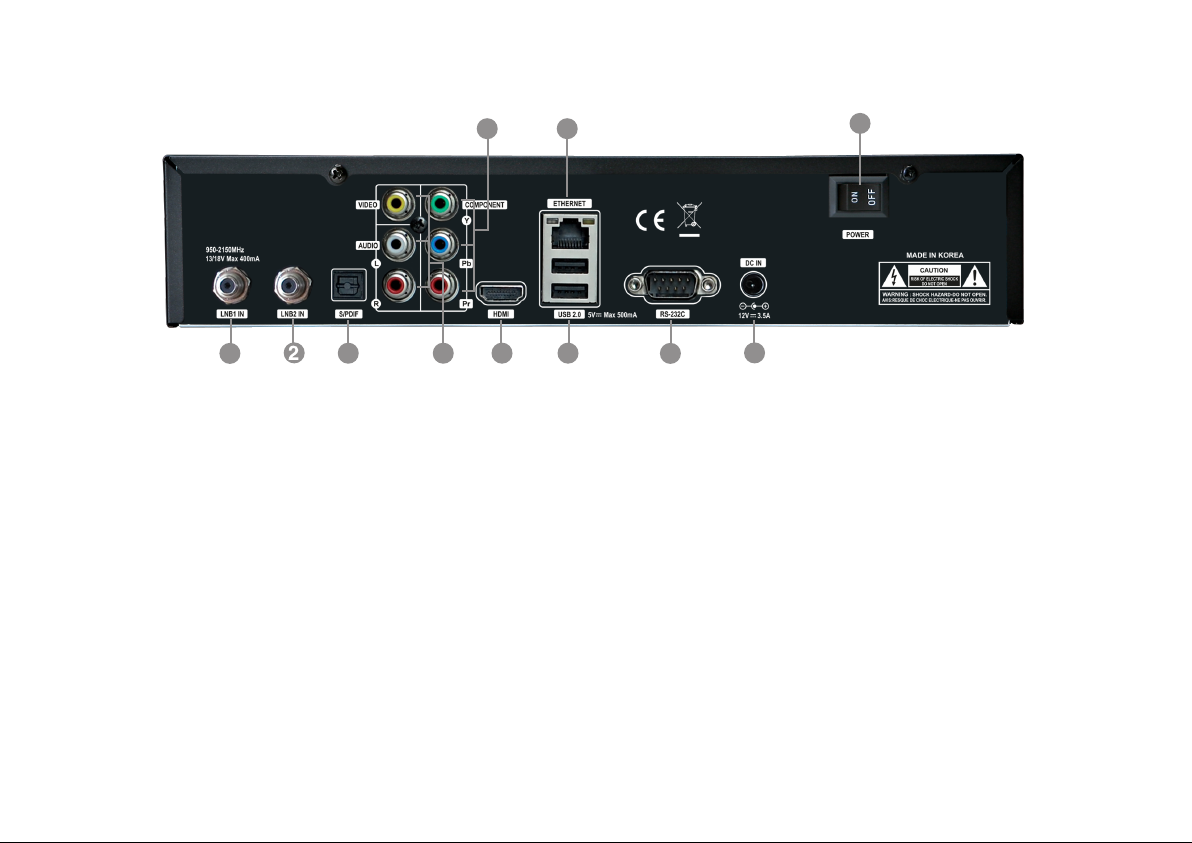

1 LNB1 INPUT
1st Satellite tuner input from the LNB on a dish antenna.
Turn the receiver OFF first before connecting.
2 LNB2 INPUT
2nd satellite tuner input from the LNB on a dish antenna.
Turn the receiver OFF first before connecting.
3 S/PDIF
Connect with an appropriate optical cable to your HiFi system.
4 Audio / Video Output
Connect to TV using RCA cable.
5 Component (YPbPr)
Connect to TV using Component cable.
6 HDMI
To connect HDMI cable for your HD TV.
9
10
7 Ethernet
Communication port via HTTP, FTP, NFS, Telnet and
Samba to access your Hard Drive or to upload channel lists.
This is also used to update force1's software.
8 2x USB
Connect to the External HDD or USB storage
with USB cable (Max. 500mA).
9 RS232
RS232C serial data port.
10 External Power Supply
Connect the power Supply 12V / 3.5A).
11 Power Switch
Turn AC Power On/Off.
INSTALLATION
1. Please refer to the Safety Instruction before powering on the device.

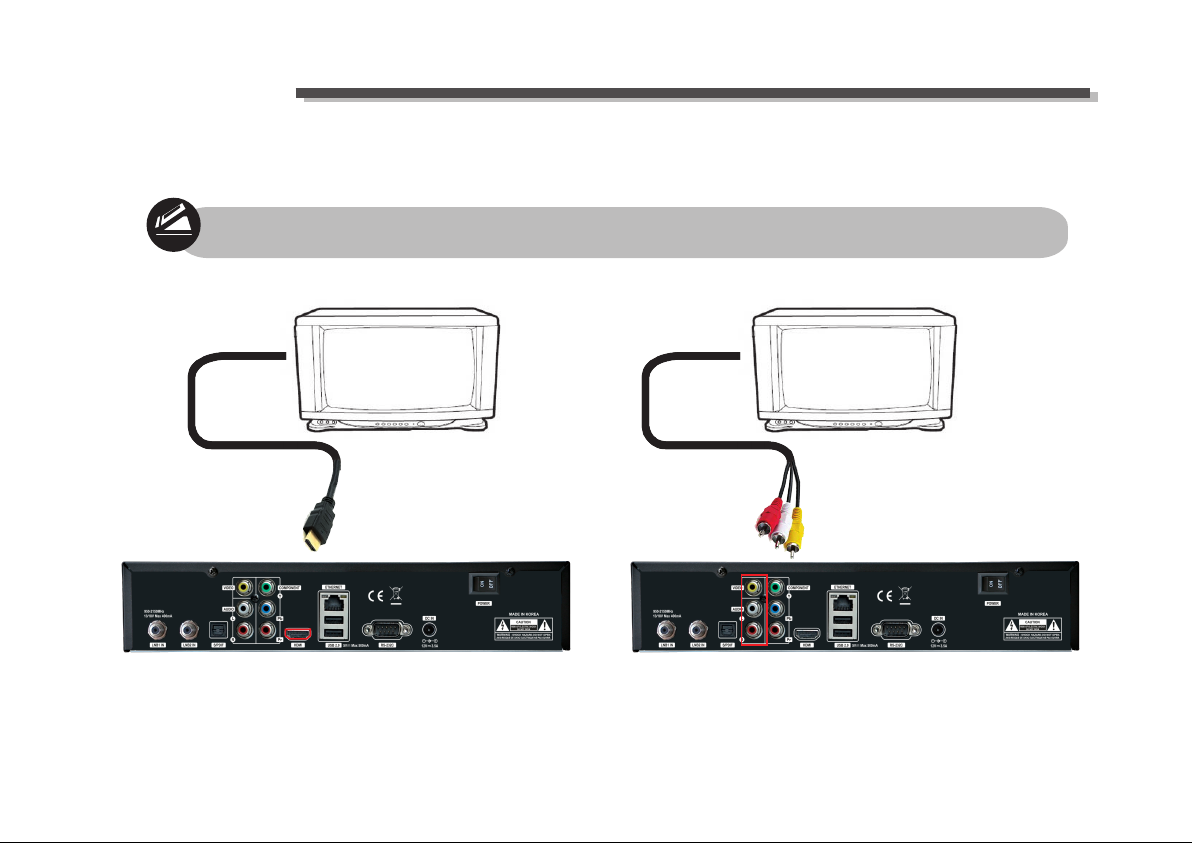

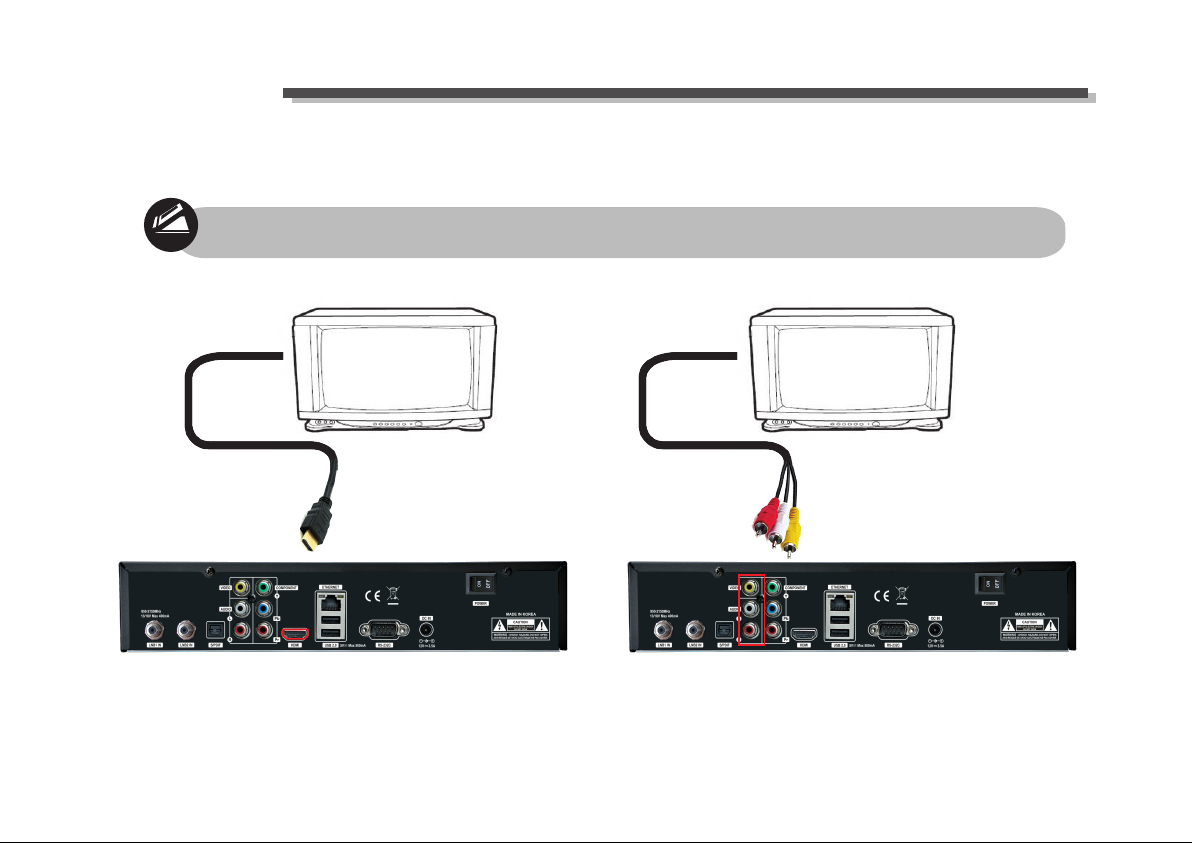

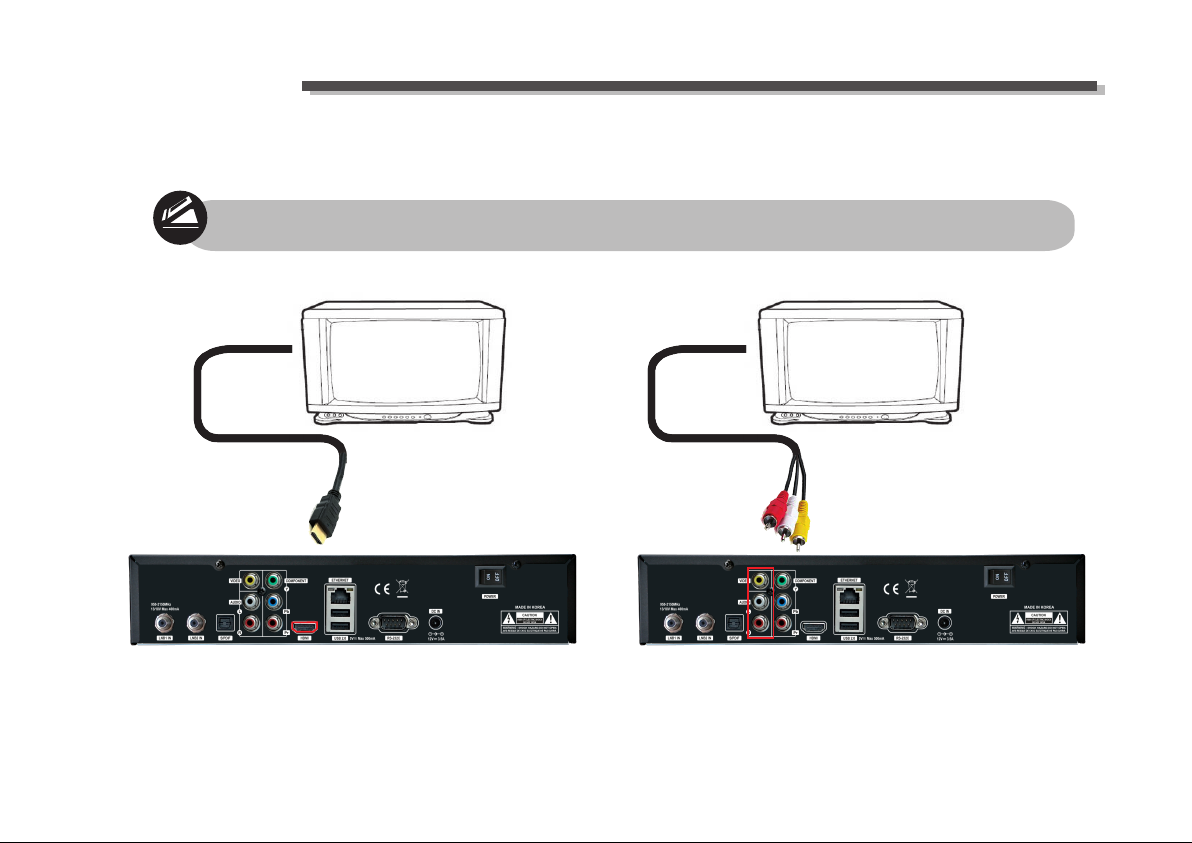

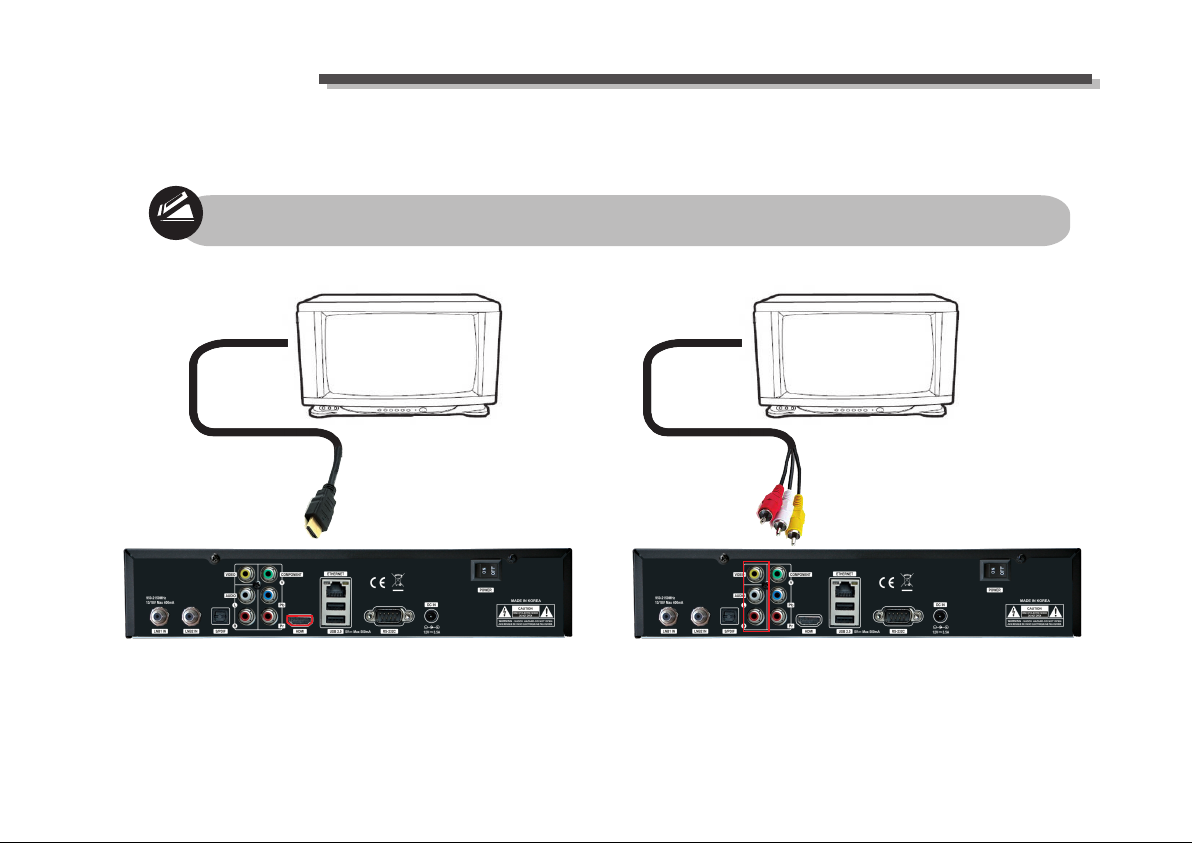

2. Connect force1 to your TV set using HDMI cable or a RCA cable, etc.
Use an HDMI or Component cable in order to view HD.
HDMI RCA
3. Connect the coaxial cable (from the satellite dish) to the LNB input of force1.
4. Power on the force1.
5. After booting up, Initial setup menu comes up for the installation according to your TV settings and
Antenna settings.

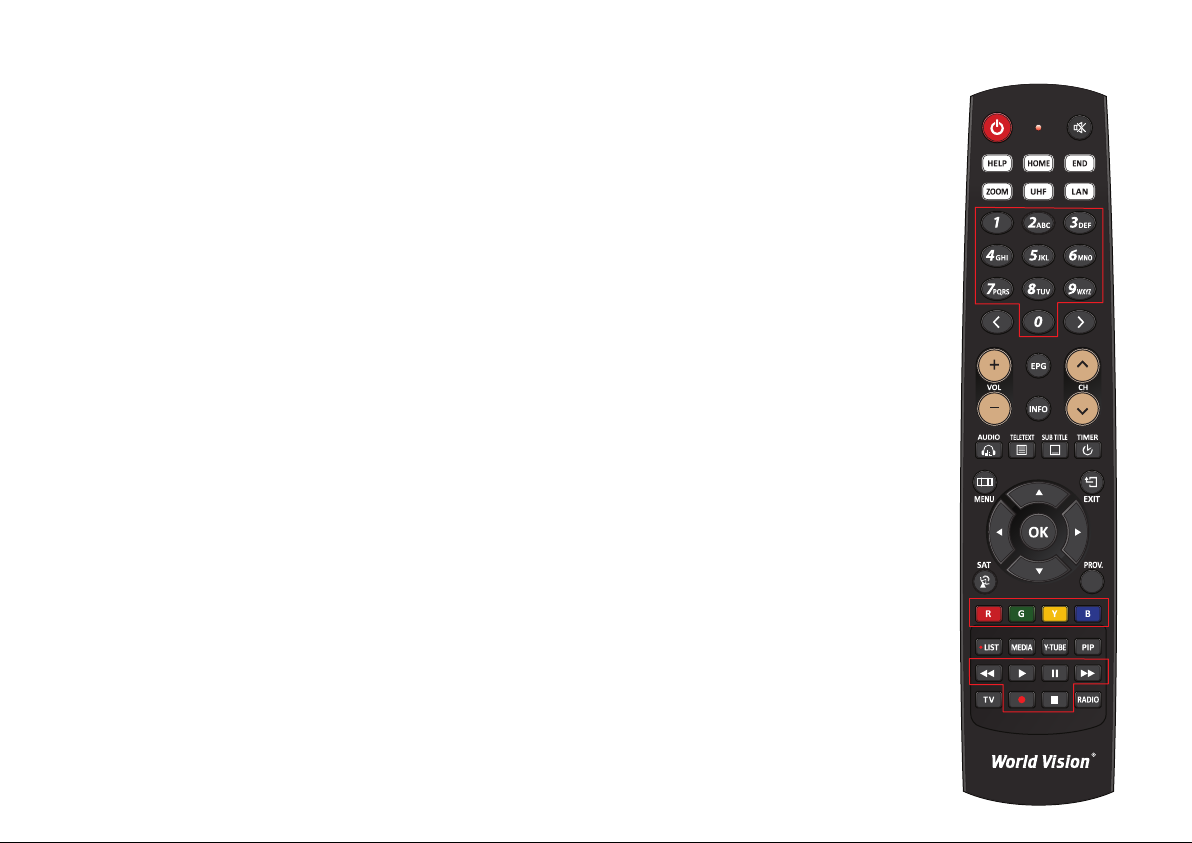

REMOTE CONTROL UNIT

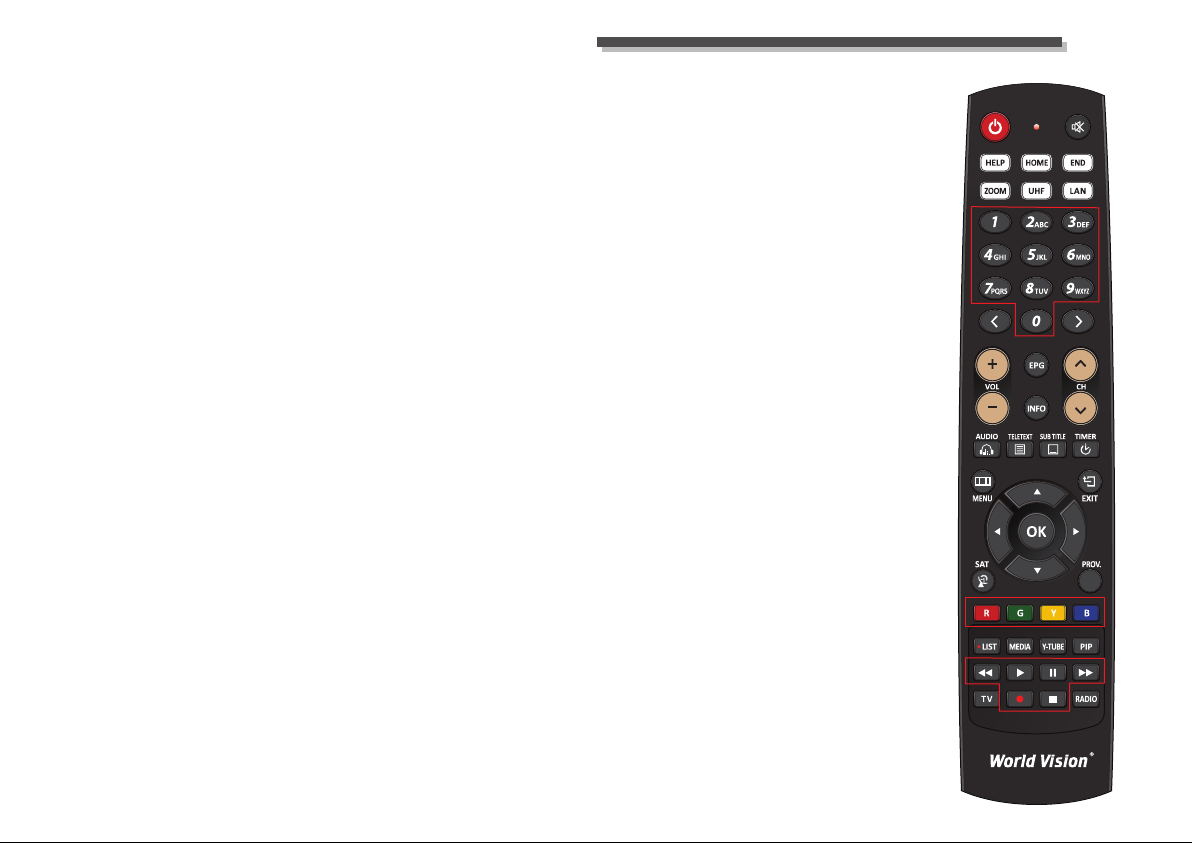

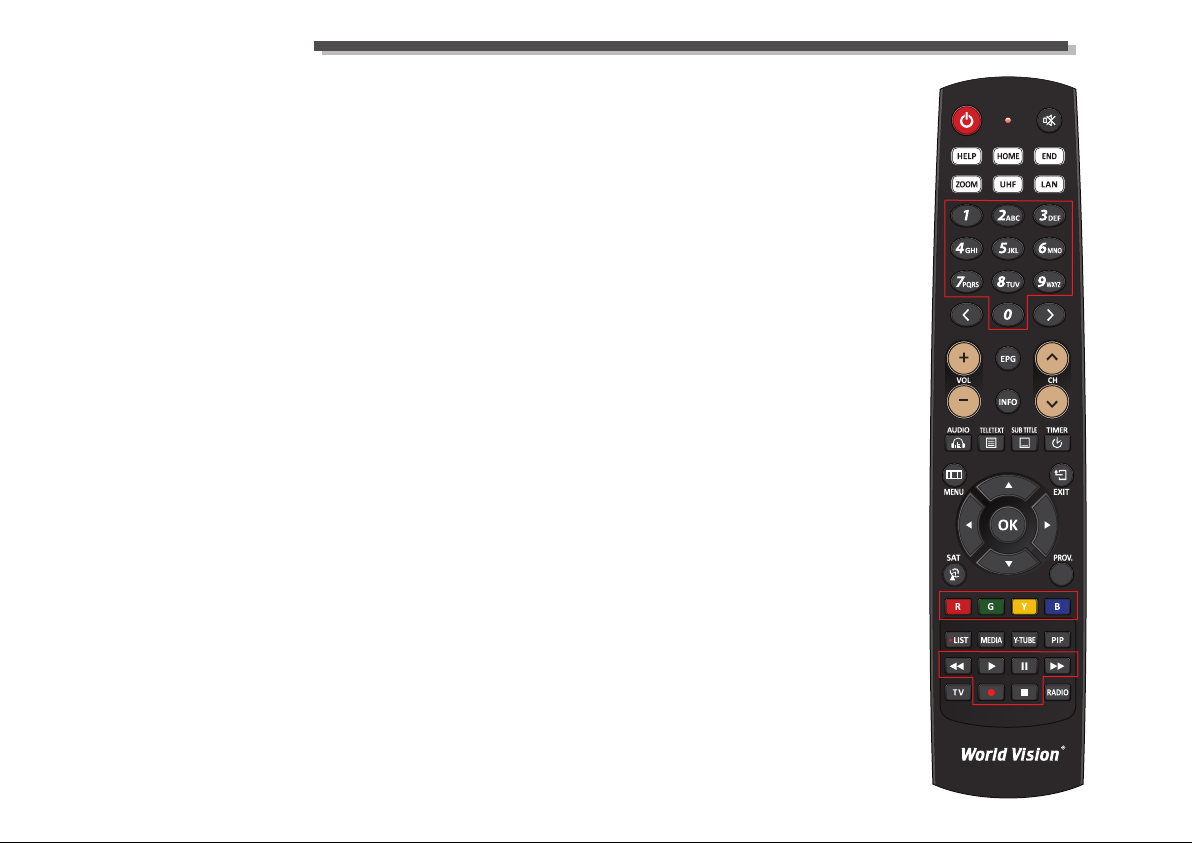

POWER : Switches between operation and standby.
MUTE : Mutes or unmutes the audio temporarily.
HELP : This provides users with a quick guide of using force1.
HOME : Instantly moves to the top of the menu list.
END : Instantly moves to the bottom of the menu list.
Zoom : To zoom the screen In/Out.
LAN : Open network configuration menu.
NUMERIC KEY (0~9) : Control the numerical operation and change the Channel/Service number directly.
PREV (<) : Return to the previous channel/service or move to the end of the Service List or the Play List.
NEXT (>) : Go to the next channel/service or move to the beginning of the Service List or the Play List.
VOL. +/- : Increase/Decrease the volume.
EPG : Displays the Electronic Program Guide (EPG) information if provided.
INFO : Displays the Electronic Program Guide (EPG) information if provided.
CH. +/- : Navigates through the scanned channel list.
AUDIO : Select an audio track and a sound mode.
TELETEXT : Switch between the teletext and TV modes.
SUBTITLE : Display the subtitle language list.
TIMER : Start timer function.
MENU : Open main menu & select sub menu using by navigation buttons.
EXIT : Close and return to the previous menu and screen.
Navigation Keys : Navigates up/down and left/right on the menu options. Up/down keys are used to call up the channel list.
OK : Select a menu, or confirms the selected operation. Also displays the channel list while watching a programme.
SAT : Open channel list according to satellite.
PROV. : Open Provider list.
COLOR BUTTONS : Activates certain menu functions. Usage instructions are shown in each OSD menu.
LIST: Open recorded file menu.
MEDIA : Open media file list.
Y-TUBE : Open YouTube list.
PIP : Open Picture in Picture.
TRICK PLAY BUTTONS : Control multimedia function.
TV : Switch to TV mode.
RADIO : Switch to Radio mode.
SAFETY INSTRUCTIONS
Please read the safety instructions carefully before using the force1.
The manufacturer takes no responsibility for incorrect handling of the force1.
* For sufficient ventilation,leave enough space.
* If unused for a prolonged amount of time,turn the power OFF.
* Do not cover the force1's ventilation openings with items such as newpapers,tablecloths, curtains etc.
* Do not expose the force1 to liquid,moisture,direct sunlight and extreme weather.
* Do not place open flame sources,such as lighted candles, near or on the force1.
* Do not place any containers with liquid,such as vases, on the force1.
* Do not connect or modify cables while the force1 is connected to the power.
* Do not remove the cover. Risk of electric shock!
* Do not touch the force1 with wet hands. Risk of electric shock!
* Do not put any metal items into the slots or ventilation openings.
* Please disconnect your force1 from the main power during thunder or heavy storms.
* Disconnect the main power cable if the power cord is damaged.
* Cleaning : Disconnect the main power cord before cleaning the cover
* Connect the force1 only to suitable sockets. Do not allow overloads to occur.
* The socket-outlet shall be installed near the equipment and shall be easily accessible.
WARNING!
* Modifications and changes to the force1 lead to loss of warranty.
* Incorrect software installation leads to loss of warranty.
* This instruction might be modified without prior notice.
DISPOSAL INSTRUCTIONS
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered
by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream
via designated collection facilities appointed by the government or the local authorities.
The correct disposal of your old appliance will help prevent potential negative consequences
3.
for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office,
waste disposal service or the shop where you purchased the product.
. Use a slightly damp cloth without cleaning agents.
force1
Russian
Руководство пользователя
World Vision force1
- ОС Linux
- Полная поддержка Enigma2
- Быстрый процессор : 1.3GHz Broadcom BCM7356
- 256 Mbyte NAND Flash & 1Gbyte DDR3 RAM
- HD DVB-S/DVB-S2 Satellite Twin Tuner
- Поддержка MPEG-4, H.264 & MPEG-2
- Full HD(1080p 50Hz)
- 2HD AV декодирование (PIP)
- Функция 3D
- Ethernet 10/100/1000 Mɛɢɬɫ
- 1 x слот для модулей условного доступа
- 1 x картоприемник
- 3 x USB 2.0 (1 х Лицевая панель и 2 х Задняя панель)
- 12 ɫɢɦɜɨɥɶɧɵɣ VFD дисплей
- ɐɢɮɪɨɜɨɣɚɭɞɢɨɜыход S/PDIF ɫɩɨɞɞɟɪɠɤɨɣDolby AC-3
-
Простое обновление ПО через Ethernet или USB накопитель
- Переключение канала менее ɱɟɦɡɚ1 сек
- Расширенный EPG и планирование записи по EPG
- Многоязычное меню
- Автоматический и Ручной поиск
- Таймер и запись нескольких передач
- Поддержка телетекстɚɢ субтитров OSD и VBI
- Поддержка протоколов DiSEqC 1.0, 1,1 ,1.2 и 1.3(USALS)
- Внешний блок питания
- Потребление менее 0.5 ȼɬ ɜрежиме ожидания
force1
АКСЕССУАРЫ

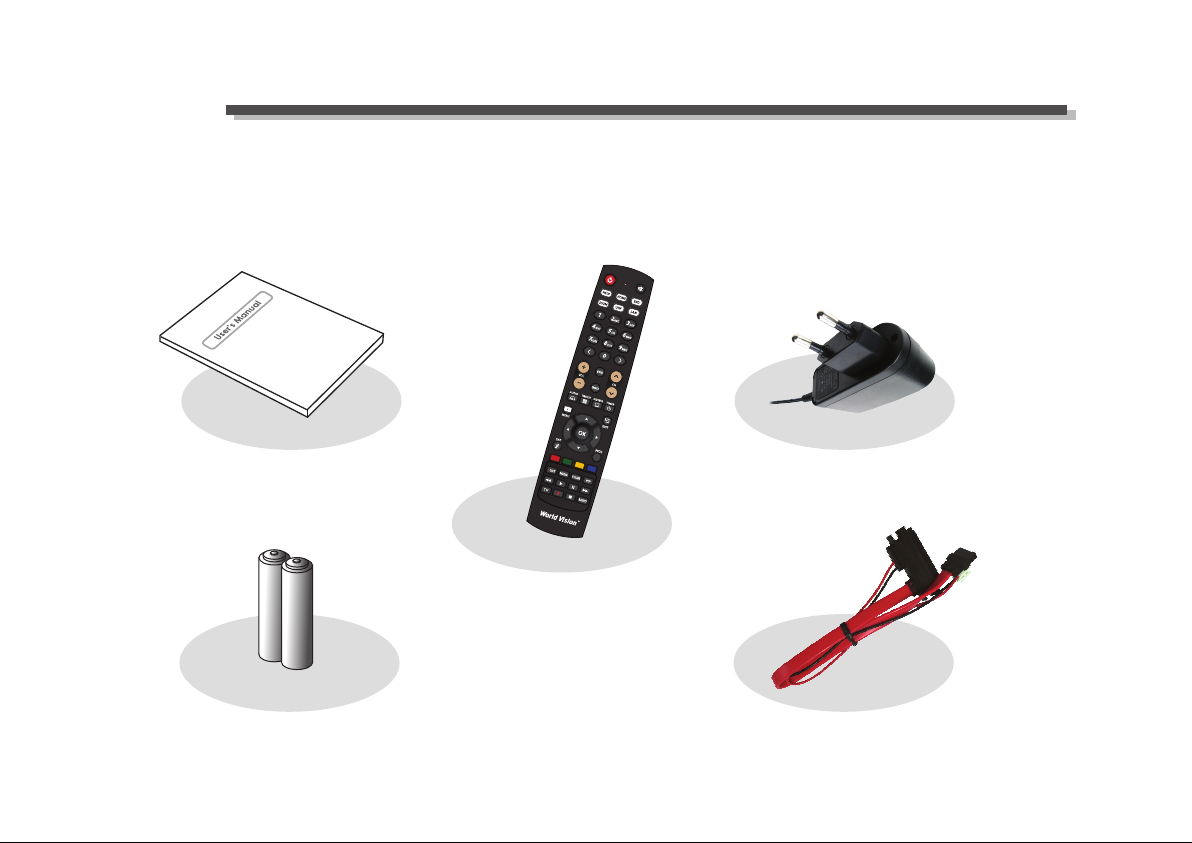

Пожалуйста, проверьте, что данные аксессуары входят в комплект поставки:
