3600W INVERTER GENERATOR
WITH PURE SINE WAVE
User Manual
Product
Info
www.powertoolsupport.com
Read all safety warnings and all instructions
thoroughly before operating this product.
Ensure you keep your manual in a
safe place for future reference.
IM Ed7 03/2018
Contents
QR codes take you where you want to go
quicky and easily
Whether you require product information, spare parts or accessories,
details on warranties or aftersales service, or if you want to watch
a product demonstration video, our QR codes will take you there in
no time at all.
What is a QR code?
A QR-code (QR=Quick Response) is a type of matrix that can be read
with a smartphone camera and that contains a link to a website or
contact details, for example.
Advantage: You are not required to manually enter a website address
or contact details.
How it works
To scan the QR code, all you need is a smartphone with QR codes reader
software and an Internet connection*. This type of software can be
downloaded for free from your smartphone’s app store.
Try it out now
Just scan the QR code with your smartphone and
nd out more about the Aldi product you have
purchased*.
* Depending on your tari you may be charged for the connection.
Product
Info
For Know How Videos, click on the
“Product Assistance” tab, then the
“How To Product Videos” link.
Pack contents / parts 2
Intended use of the 3600W Inverter Generator with Pure Sine Wave 2
Contents of carton 2
Description of symbols 3
General safety warnings 4
Additional Safety Rules for Petrol Products 6
Risk of electrocution and re 8
Risk of re 9
Risk of injury and property damage when transporting generator 10
Risk of breathing – inhalation hazard 10
Risk of unsafe operation 10
Risk of hot surfaces 11
Risk of moving parts 11
Risk from lifting 11

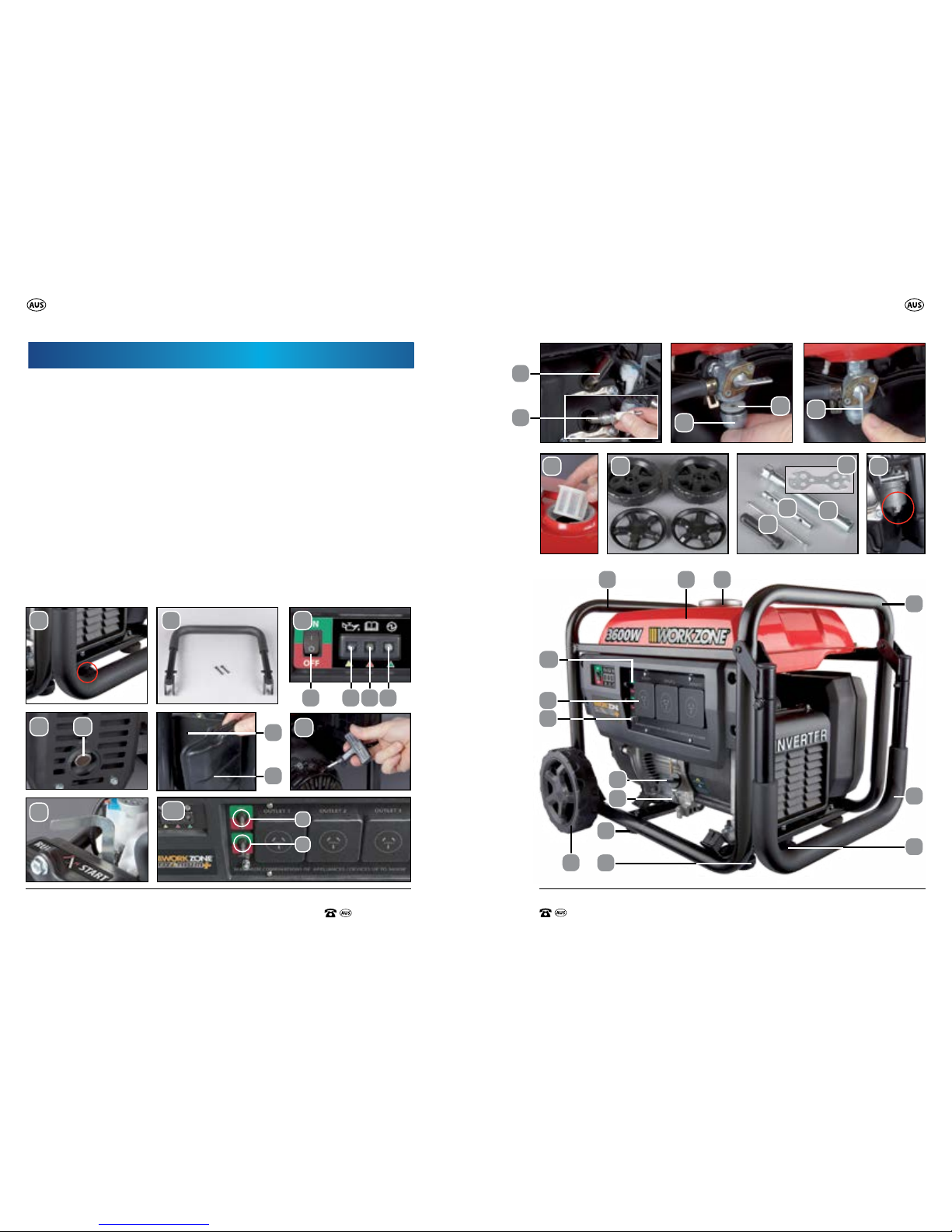

Parts List 12
Inverter technology 14
Operating Periods 14
240V AC Connection 14
Other combinations 15
Assembly / Compact Stand Alone Assembly 16
Portable Wheeled Typed Generator Assembly 17
Assembly of the Main carry handle 18
Indicators 19
Preparing the Generator 20
Checking the Engine Fuel 20
Checking the Engine Oil 21
Engine Oil Replacement 22
Starting your Generator / Starting the Engine 23
Overload Condition 26
Normal Procedure for Stopping the Engine 27
Overload procedure for restarting and resetting the engine 27
Emergency Stop, and / or failure of On/O switches 28
Carbon build up 28
Periodic Maintenance 29
Generator Maintenance 30
Storage 30
Spark Plug 31
Air Filter 32
Fuel Tank Filter 33
Tap Outlet Fuel Filter 34
Cleaning 35
Warranty 35
Environmental protection 36
What your 3 year warranty means 36
Service Support 37
Troubleshooting 37
Specications 39
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
4
Description of symbols
Pack contents / parts
Congratulations on the purchase of your Workzone® Titanium 3600W Inverter
Generator with Pure Sine Wave. When you open your packaging, rst remove all items
and check there are no parts damaged or missing. If you nd anything wrong, do not
operate the product until the parts have been replaced or the fault has been rectied.
Failure to do so could result in serious personal injury.
NOTE: This is a 4 stroke Inverter Generator.
The engine MUST be lled with 600ml of SAE 10W-30 BEFORE starting.
Fresh unleaded fuel must be used in this unit. Do NOT use Ethanol based fuels.
Do NOT mix oil with fuel.
NOTE: First time users or inexperienced operators pay particular attention to
the operation of the Generator, including details of starting and stopping and
correct use of the Generator on pages 19-23, as well as the maintenance
instructions on pages 26-31.
Intended use of the 3600W Inverter Generator with Pure Sine Wave
It is not suitable for trade or commercial use.
This product is suited for home, camping, caravan applications and domestic house
hold mains failure back up. It will allow you to power outdoor lights, power tools,
home appliances including sensitive electronic equipment, including televisions
and computers.
NOTE: For sensitive equipment like computers, sound systems, televisions,
microwaves etc, it is highly recommended to have a surge protector connected
to the generator.
NOTE: This petrol Generator is NOT suitable for:
* Marine applications, and should never be used on board water craft
* Continuous o the grid power
Contents of carton
1 x 3600W Inverter Generator
1 x Instruction Manual
1 x Warranty Card & details
1 x Quick Start Guide
1 x 10mm Tube Spanner
1 x 21mm Spark Plug Tube Spanner
1 x Multi Size Spanner
1 x Double Ended Screwdriver (Phillips and at)
2 x Wheels (+ 2 x assembly bolts, nuts, spring
washer & at washer)
4 x Feet (+ 4 x assembly hex head screws, nuts,
spring washer & at washer)
1 x Wheel Foot (+ 1 x assembly hex head screw)
1 x Handle Assembly (+ 2 x assembly screws
& nyloc nuts)
2 3
The rating plate on your Inverter Generator may show symbols. These represent
important information about the product or instructions on its use.
Conforms to relevant standards for electrical safety
and electromagnetic compatibility.
Wear hearing protection. Wear eye protection.
Wear breathing protection.
Wear safety footwear.
Wear safety gloves.
Fuel Tap (direction of operation).
240V.a.c AC Outlet.
Warning.
Read these instructions for use carefully.
Low Oil Indicator.
Load Status indicator. (Refer to the instruction manual for advice)
Power Supply indicator.
Never use in the home or in partly enclosed areas such as a garages.
Exhaust contains carbon monoxide,
a poisonous gas you cannot see or smell.
Explosive material.
Do not operate in a hazardous location such as areas where there is a risk
of explosion of petrol fumes, leaking gas or explosive dust.
Extremely hot surface. Do not touch a hot muer, gear box or
cylinder, you may get burned. These parts get extremely hot from
operation and remain hot for a short time after the unit is turned o.
Choke Control.
Maintain a safe distance.
General safety warnings
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result
in re and/or serious injury.
The word power tool used in the following warnings and
throughout this manual refers to petrol driven power tools and Generators.
This unit may not be used by people (including children) with reduced physical,
sensory or mental capacities, with a lack of experience and without the appropriate
knowledge, unless they are supervised by someone who is responsible for their
safety or have been instructed by such a person with regard to how the unit is to
be operated. Children should be supervised to ensure that they do not play with
the device.
Non-skilled persons and rst time users should read and understand the full
instruction manual before proceeding with use of the product or recommended
maintenance tasks.
Save all warnings and instructions for future reference
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite
accidents. Rags, cloths, cord, string and similar items should never be left around
the work area.
b. Do not operate power tools in explosive environments, such as in the
presence of ammable liquids, gases, or dust. Power tools create sparks,
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause the operator to lose control.
2. Personal safety
a. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat,
or hearing protection will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the “o” position when
starting, picking up or carrying the tool. Carrying power tools with your nger on
the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or key left attached to a rotating part of the power tool may result in
personal injuries.
e. Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
3. Product use and care
a. Do not force the product. Use the correct product for your application.
The correct product will do the job better and safer at the rate for which it was
designed.
b. Do not use the product if the switch does not turn it “on” and “o”.
Any product that cannot be controlled with the switch is dangerous and must
be repaired.
c. Ensure the product is switched o before making any adjustments,
changing accessories, or storing the product. Such preventive safety
measures reduce the risk of starting the product accidentally.
d. Store idle products out of the reach of children and do not allow persons
unfamiliar with the product or these instructions to operate the product.
Generators are dangerous in the hands of untrained users.
e. Maintain products with care. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may aect the product’s
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained products.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g. Use the product, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work
to be performed. Use of the product for operations dierent from those
intended could result in a hazardous situation.
4 5
Additional Safety Rules for Petrol Products
Additional safety rules for Generators
• The generator is supplied with lifting handles on each side of the generator,
and when lifting, two operators should lift the generator together.
• The generator can also be tted with wheels, and if these are tted, the
generator can be moved with the additional front lifting handle by one
person.
• DO NOT OPERATE IN A HAZARDOUS LOCATION. SUCH AREAS INCLUDE
WHERE THERE IS A RISK OF EXPLOSION OF PETROL FUMES, LEAKING GAS
OR EXPLOSIVE DUST.
• DO NOT OPERATE IN A CONFINED AREA. EXHAUST GASES, SMOKE OR
FUMES COULD REACH DANGEROUS CONCENTRATIONS.
• THE OUTPUT OF THIS GENERATOR IS POTENTIALLY LETHAL. THE
GENERATOR SHOULD NOT BE CONNECTED TO A FIXED EALECTRICAL
INSTALLATION EXCEPT BY AN APPROPRIATELY LICENSED PERSON.
• Protect your generator. This generator is NOT WEATHERPROOF and should
not be exposed to direct sunlight, high ambient temperature and damp, wet
or high humidity conditions.
• Do not smoke while refuelling. This is potentially dangerous as it may ignite
the fuel and cause an explosion.
• Take care not to spill fuel. When refuelling the generator ensure that the
motor has been switched o. Prevent the spilling of fuel as this may also
ignite with the hot motor.
Never refuel whilst the engine running.
• Be careful where you store the generator. Store the generator in a dry area
away from inammable liquids.
• Keep your distance. The generator emits exhaust fumes. As a safety
precaution do not stand close to the unit whilst it is in operation. Ensure
bystanders also keep their distance.
Additional Safety Rules for Petrol Products
• Locate the generator for use in a convenient place so as to use the shortest
extension lead as possible, but still suciently away from the exhaust fumes.
• Ensure the generator has oil. Before commencing the generator, ensure that
the unit has been lled with SAE 10W-30 4 stroke oil.
• Any extension cable should be of heavy duty, 3 core and rated to 15A, and
suitable for outdoor applications.
• Never ll fuel tank indoors. Never ll fuel tank when engine is running or hot.
Do not smoke when lling fuel tank.
• NEVER REFUEL WHEN THE GENERATOR IS RUNNING. Switch the generator to
the o position prior to removing the fuel cap and refuelling.
• Not suitable for ethanol fuels.
• Engine speed has been factory set to provide safe operation. Tampering with
the engine speed adjustment could result in overheating of attachments and
could cause a re. Never attempt to “speed-up” the engine to obtain more
performance. Both the output voltage and frequency will be thrown out of
standard by this practice, endangering attachments and the user.
• Do not parallel connect this generator with another generator, or any other
power supply.
You MUST unplug any load from the generator before starting and
stopping to prevent permanent damage to any appliances.
WARNING
• Persons who are tted with a heart pacemaker, or similar medical conditions
should take care when using this device.
Residual risks
Despite proper use, inconspicuous residual risks cannot be completely ruled out.
The following risks may arise due to the nature of the inverter:
• Injury to health from inhaling exhaust;
• Hearing loss if suitable ear protection is not worn.
6 7
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
8 9
Risk of electrocution and fire
Hazard What could happen How to prevent it
Improper storage of extension cord.
Extension cord can come into contact
with hot engine parts resulting in
damage. Using a damaged extension
cord can result in electrocution or
death.
Remove extension cord from the
generator and store separately away
from generator.
Operation of generator in rain, wet,
icy, or flooded conditions.
Water is an excellent conductor of
electricity! Water which comes in
contact with electrically charged
components can transmit electricity
to the frame and other surfaces,
resulting in electrical shock to anyone
contacting them.
Operate generator in a clean, dry, well
ventilated area. Make sure hands are
dry before touching unit.
Placing generator on or against
highly conductive surface, such as a
steel walkway or metal roof.
Accidental leakage of electrical current
could charge conductive surfaces in
contact with the generator.
Place generator on low conductivity
surface such as a concrete slab.
ALWAYS operate generator a
minimum of 2 meters from any
conductive surface.
Use of worn, damaged or
ungrounded extension cords.
Contact with worn or damaged
extension cords could result in
electrocution.
Use of ungrounded cordsets could
prevent operation of circuit breakers
and result in electrical shock.
Inspect extension cords before use and
replace with new cord if required.
Always use a cordset having a
grounding wire with an appropriate
grounding plug. DO NOT use an
ungrounded plug.
Operation of unit when damaged,
or with guards or panels removed.
Attempting to use the unit when it
has been damaged, or when it is not
functioning normally could result in fire
or electrocution.
Removal of guarding could expose
electrically charged components and
result in electrocution.
Do not operate generator with
mechanical or electrical problem.
Have unit repaired by an Authorised
Service Centre.
Do not operate generator with
protective guarding removed.
Risk of fire
Hazard What could happen How to prevent it
Attempting to fill the fuel
tank while the engine is
running.
Fuel and fuel vapours can become ignited
by coming in contact with hot components
such as the muffler, engine exhaust gases,
or from an electrical spark.
Turn engine off and allow it to cool before
adding fuel to the tank. Equip area of
operation with a fire extinguisher certified
to handle fuel fires.
Sparks, fire, hot objects
Cigarettes, sparks, fires, or other hot
objects can cause fuel or fuel vapours
to ignite.
Add fuel to tank in well ventilated area.
Make sure there are no sources of ignition
near the generator.
Improper storage of fuel
Improperly stored fuel could lead to
accidental ignition. Fuel improperly secured
could get into the hands of children or other
unqualified persons.
Store fuel in an approved container
designed to hold fuel. Store container in
secure location to prevent use by others.
Tampering with factory set
engine speed settings.
Engine speed has been factory set to
provide safe operation. Tampering with
the engine speed adjustment could result
in overheating of attachments and could
cause a fire.
Never attempt to “speed-up” the engine to
obtain more performance. The output of
this generator is electronically controlled
and the change to the speed setting will not
alter the electrical output.
Inadequate ventilation
for generator
Materials placed against or near the
generator or operating the generator in
areas where the temperature exceeds
40°C. ambient (such as storage rooms
or garages) can interfere with its proper
ventilation features causing overheating
and possible ignition of the materials or
buildings.
Operate generator in a clean, dry,
well ventilated area.
DO NOT OPERATE UNIT INDOORS
OR IN ANY CONFINED AREA.
Overfilling the fuel tank
– fuel spillage.
Spilled fuel and its vapours can become
ignited from hot surfaces or sparks.
Use care in filling the tank to avoid spilling
fuel. Make sure fuel cap is secured tightly
and check engine for fuel leaks before
starting engine. Move generator away
from refuelling area or any spillage before
starting engine. Allow for fuel expansion.
Never refuel with the engine running.
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
10 11
Risk of injury and property damage when transporting generator
Hazard What could happen How to prevent it
Fire, inhalation, damage
to vehicle surfaces
Fuel or oil can leak or spill and
could result in fire or breathing
hazard, serious injury or death
can result. Fuel or oil leaks can
damage carpet, paint or other
surfaces in vehicles or trailers.
The generator is equipped with a fuel drain valve,
turn the valve to the off position before transporting to
avoid fuel leaks. Transport fuel only in an approved fuel
container. Always place generator on a protective mat
when transporting to protect against damage to vehicle
from leaks. Remove generator from vehicle immediately
upon arrival at your destination.
Risk of breathing – inhalation hazard
Hazard What could happen How to prevent it
Fuel engines produce
toxic carbon monoxide
exhaust fumes.
Breathing exhaust fumes will
cause serious injury or death.
Operate generator in clean, dry, well ventilated area.
Never operate unit in enclosed areas such as garages,
basements, storage, sheds, or in any location occupied
by humans or animals. Keep children, pets and others
away from area of operating unit.
Risk of unsafe operation
Hazard What could happen How to prevent it
Operation of generator
in careless manner.
All sources of energy include
the potential for injury. Unsafe
operation or maintenance of your
generator could lead to serious
injury or death to you or others.
• Review and understand all of the operating
instructions and warnings in this manual.
• Become familiar with the operation and controls of
the generator. Know how to shut it off quickly.
• Equip area of operation with a fire extinguisher
certified to handle fuel fires.
• Keep children or others away from the generator at
all times.
Operating generator
while suspended
Generator will not operate properly
and will cause damage to the
generator and could cause serious
injury or death to you or others.
Never operate generator while suspended or in an
unlevel position. Always operate generate on a flat, level
surface.
Risk of hot surfaces
Hazard What could happen How to prevent it
Contact with hot engine and
generator components.
Contact with hot surfaces, such as
engines exhaust components, could
result in serious burns.
During operation, touch only the
control surfaces of the generator. Keep
children away from the generator at
all times. They may not be able to
recognize the hazards of this product.
Risk of moving parts
Hazard What could happen How to prevent it
Contact with moving parts can
result in serious injury.
The generator contains parts which
rotate at high speed during operation.
These parts are covered by guarding to
prevent injury.
Never operate generator with guarding
or cover plates removed. Avoid wearing
loose fitting clothing or jewellery which
could be caught by moving parts.
Risk from lifting
Hazard What could happen How to prevent it
Lifting a very heavy object.
Serious injury can result from
attempting to lift too heavy an object.
When lifting, always keep the object
you are lifting near the vertical axis of
your body. DO NOT use you back to
lift heavy loads. Both people should
crouch down, grab the underside
of unit and use your legs to carry
the weight. Keep the object as near
the centre of your body’s gravity as
possible. Avoid twisting your bodies
when carrying the unit; instead, turn
your whole body using your feet.
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
12 13
1. 240Va.c Outlet 1&2 Power On/O switch
2. 240Va.c Outlet 3 Power On/O switch
3. Wheel foot
4. Engine On/O switch
5. Side carry handles (2)
6. Folding carry handle
7. Low oil indicator light
8. Load Status indicator light
9. Power Supply indicator light
10. Muer
11. Exhaust / spark arrestor
12. AC sockets (X3)
13. Fuel drain
14. Control panel
15. Oil Filler cap/dipstick
16. Oil drain plug
17. Ground (frame) terminal
18. Recoil starter
19. Choke lever
20. Air lter cover
21. Air Filter
22. Spark plug lead / cover
23. Spark Plug
24. Tap outlet
25. Fuel tap sediment cap
26. Fuel tap / lever
27. Fuel tank inlet lter
28. Feet (x4)
29. Wheel (x2)
30. 10mm Tube Spanner
31. 21mm Spark Plug Tube Spanner
32. Double Ended Screwdriver
(Phillips and at)
33. Multi Size Spanner
34. Fuel tank
35. Fuel tank cap
Parts List Parts List
20
21
10
27
13
6
19
18
29
30
31
32
33
23
22
3534
5
11
14
4 7 8 9
3
6
5
17
12
1/2
15
29
16
28
28
25
26
24
3
1/2
1
2
Parts List
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
14 15
This generator has been developed with inverter technology providing
regulated, clean and “pure” electricity for a continuous uninterrupted stable
power supply.
Inverter technology provides condence as a power source for camping
applications, outdoor lights, sound systems, televisions, microwaves and power
tools.
Ideal for domestic emergency power applications and camping or caravaning
where power may be required for higher wattage appliances such as caravan air
conditioners.
Can also be used for large electric motors, powertools such as drills, jigsaws
and grinders, appliances like toasters, microwave ovens or TVs, heating/lighting
applications and small to medium fridges.
NOTE: Maintain normal safety precautions with appliances and accessories as
for use on normal reticulated mains supply.
Operating Periods
NOTE: This product is for domestic DIY use only.
Maximum daily operational use should not exceed 10 hours a day.
It is not recommended to continually use the generator day after day.
240V AC Connection
This generator provides a clean digital output suitable for most electrical
appliance/s including televisions, computers, laptops, caravans etc.
It comes tted with 3 x 240V AC outlets, giving you the ability to run
3 x electrical appliances at the one time, as long as the combination of the
maximum rating of each appliance does not exceed the maximum rated
power of the generator.
The maximum operational combination on this generator is 3400W.
For a short period to aid appliances plugged in, start up will peak at 3600W.
APPLIANCE
Caravan
Air Conditioner
Caravan Fridge
Caravan
Hot Water Heater
Laptop Computer
Television
Toaster
9” Angle Grinder
Power Saw
Drill 3/8”
Globe
Hair Dryer
Microwave
Kettle
1500
100-200
1500-2000
250
200
800-1600
1500-2000
500-700
1100
60
1000-1600
1500+
2000+
2200-3200
800
1500-2000
250
200
1200-1600
2800
2400
2000
60
1600
2000
2200-2400
STARTING
WAT TS
APPLIANCE
WAT TS
Inverter technology General Assembly
NOTE: These figures are indicative only. Ensure you check the total rating of the appliance
to be used before connecting to the generator. Refer to page 26.
Always connect the largest appliance you want to run first allowing it time to draw current to
start . After 20-30 seconds connect the second appliance.
240Va.c 240Va.c 240Va.c
OUTLET 1 OUTLET 3OUTLET 2
MAXIMUM COMBINATIONS OF APPLIANCES / DEVICES UP TO 3400W
FRAME
OFF
ON
OFF
ON
LAPTOP
250WTV200W
POWERSAW
700W 1150W
CARAVAN AC
3000W
LAPTOP
250W
POWERSAW
700W 3950W
Other combinations:
Caravan fridge (200w) + toaster (1600w) + drill (1100w) = 2900w
Caravan water heater (1500w) + globe (60w) + TV (200w) = 1760w
Angle grinder (2000w) + TV (200w) + caravan fridge (200w) = 2400w
Hair dryer (1600w) + caravan fridge (200w) + laptop (250w) = 2050w
Inverter technology
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
16 17
3. With the supplied 10mm tube spanner (30) still
holding the hex head screw securely in place,
apply the at washer, spring washer, then the nut
to the top of the hex head screw and tighten in a
clockwise direction using the supplied multi-size
spanner (33) (Fig E).
4. Repeat the same process for the other 3 feet (28).
The generator can now be operated with the
generator sitting on the ground or operating
surface on the four rubber feet (28).
Portable Wheeled Type
Generator Assembly
This generator is supplied with 2 wheels to assist
with transportation, which require the following
assembly:
1. Remove the cover of the wheel by holding one of
the spokes of the outside cover on the wheel, and
pulling towards you until the cover disengages
and can be removed.
2. Insert the bolt through the outside of the wheel
through to the other side, then follow the bolt
through the hole in the corner frame of the
generator (Fig F).
3. Using the 21mm spark plug tube spanner (31)
to secure the bolt head in position, apply the
nut onto the end of the bolt and tighten in a
clockwise direction using the multi size spanner
(33) (Fig G). Repeat for the second wheel.
F.
G.
E.
General Assembly General Assembly
This generator has been designed to be used as
a stand alone / compact generator or a larger
portable / wheeled type generator.
Compact Stand Alone Assembly
Assembly of the Feet
NOTE: These 4 feet (28) can be tted even if the
generator will be tted with the wheeled option.
WARNING: Ensure the engine is switched
o while undertaking this task.
This generator is supplied with 4 feet (28) which
require the following assembly on the generator
(within red markers) (Fig A):
1. Place the generator on a at and level surface and
then raise one side of the generator by placing a
wooden block (or something similar) underneath
the frame (Fig B) so the generator is slightly raised
and allows you access to be able to add the
feet (28).
WARNING: Do not turn the generator upside
down or place the generator on its side. Ensure
the generator is stable and cannot topple.
2. Insert the supplied hex head screw through the
bottom of the foot so it comes out the opposite
side.
Insert the supplied 10mm tube spanner (30), into
the bottom of the foot to securely hold the hex
head screw in place, (Fig C) then place the foot
underneath the hole in the bottom frame and
push through to the upper side (Fig D).
B.
A.
Threaded wheel
foot hole
C.
D.
Assembly
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
18 19
Indicators General Assembly
This generator has three main LED indicators to indicate to the operator
various conditions as follows:
1. Low oil indicator (Fig L)
The low oil indicator light (7) is a yellow LED and will illuminate when the oil
level of the generator is too low. The generator will stop operating within 10
seconds if the yellow light comes on.
The yellow LED will illuminate when
the generator is being attempted to
start if the oil is low, i.e. when the cord
is being pulled, the yellow LED will
glow if there is insucient oil. In this
condition, the generator will not start.
In this condition you need to add oil
for the generator to operate.
2. Load Status indicator (Fig M)
The red load status indicator light (8) advises the operator that a fault
has been detected and the power supply to the control panel has been
interrupted. When the red load status indicator is operating red, there is NO
240Va.c. available to the control panel.
When the engine is running the load status indicator light (8) ashes under
the following conditions:
a. Flashing once indicates low voltage protection, caused by the engine
rotation speed not meeting the specied reqauirements.
b. Flashing twice indicates the engine is overheated, caused by high
temperature.
c. Flashing 3 times indicates overload
protection caused by an excessive
electrical overload.
d. Flashing 4 times indicates there is
an electrical problem most likely
caused by a short circuit.
L.
M.
Following assembly of the wheels, it is
recommended to assemble the additional wheel
foot (3) for stability and to keep the generator on a
level surface.
1. Raise the opposite end of the generator that the
wheels have been assembled on by placing a
wooden block (or something similar) underneath
the bracket that the feet have been assembled on
(Fig B).
2. Insert the supplied hex head screw through the
bottom of the foot so it comes out the opposite
side (Fig H).
Using the supplied 10mm tube spanner (30), insert
into the foot and engage the head on the hex
head screw. Thread the hex head screw into the
large boss on the base frame cross member on the
handle end of the generator (Fig I). Tighten rmly.
Assembly of the Folding Carry Handle
This generator is supplied with a folding carry handle
(6) to assist with transportation when wheeling the
generator around on the wheels.
1. Align the holes on each bracket of the carry handle
with the holes on each side of the generator frame
(Fig J).
2. With the handle in position, insert each screw
through the outer bracket of the handle, then
through the holes in the generator frame, and
through to the opposite side of the internal
bracket of the handle.
3. Secure the handle into position by applying the
nyloc nuts onto the screws and securing
nger tight.
Using the supplied double ended screwdriver
(phillips head) (32) to hold the screw, then use the
multi size spanner (33) in a clockwise direction to
secure the nyloc nut in place (Fig K).
H.
J.
K.
I.
Indicators
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
20 21
• Check to ensure that the fuel drain (13) has been tightened and that fuel is
not leaking.
• Be careful not to admit dust, dirt, water or other foreign objects into the fuel.
• Wipe o spilt fuel thoroughly before starting engine.
• Ensure you DO NOT fuel the generator in close proximity to any open
ames, lit cigarettes, or hot objects.
• The generator should also be located in an open area with fresh air and NOT
in a conned area.
WARNING: Ensure the engine is switched o while undertaking
this task.
1. Remove the fuel tank cap (2) by rotating in an anticlockwise direction.
2. Remove the fuel tank inlet lter (27) and ensure it is clean and free of debris.
Check the level of fuel is sucient.
3. If the fuel tank inlet lter (27) was removed to check the fuel level, ensure it
is replaced back before adding fuel.
4. To add fuel, pour the unleaded fuel from an approved fuel container into the
fuel tank (1). As fuel expands, DO NOT FILL to the lip of the tank. Maximum
ll is to the top of the fuel tank inlet lter (27) rim.
5. Replace fuel tank cap (2) turning in a clockwise direction to lock.
Checking the Engine Oil
The engine of this generator is NOT lled with oil when unpacked.
Prior to starting the engine ensure the oil tank is lled with SAE 10W-30
4 stroke oil. For the rst time ll the engine should be lled with 600ml
of SAE 10W-30 oil. We recommend GARDENLINE Full Synthetic 4 Stroke Oil.
NOTE: Damage to the engine is not covered under warranty if the engine is
run with insucient oil.
1. Before checking or relling oil, be sure the generator is put on a stable and
level surface, ensuring the engine has been switched OFF.
2. Remove the oil ller cap (15) by rotating the cap in an anti-clockwise
direction, and wipe all oil residue o the oil dipstick (15) with a clean rag.
Re insert the oil ller cap / dipstick (15) and thread the cap fully in position.
Then remove the oil ller cap / dipstick (15) by rotating in an anti clockwise
direction and view the oil level on the oil dipstick (15).
Engine Oil Engine Oil
In any of the above instances, when the red load status indicator light
(8) turns on, the power supply to the control panel will be disconnected
automatically.
NOTE:
The engine must be stopped and the issue resolved before the
power supply will be restored.
3. Power Supply indicator (Fig N)
The power supply indicator light (9) is a green LED. It will only display
green when there is a 240V output available, thus the generator must be
operating. This indicator will remain on when the generator is operating and
has 240Va.c. available to the control
panel, with or without appliances
connected to the AC sockets (12).
In an overload condition, there is no
240Va.c. available to the panel so the
green indicator will not operate.
Preparing the Generator
It is important to check the generator
before you commence operating the unit.
IMPORTANT. Ensure that the engine has oil. When leaving the factory,
this generator has NO OIL in the engine.
NOTE. The engine will not start if the generator has no oil.
Checking the Engine Fuel
IMPORTANT: Fuel goes o after about 3-4 months. If you nd your generator
does not start, rst change the fuel in the tank with newly purchased fresh
unleaded fuel. Do not use ethanol based fuels.
WARNING.
• Do not rell fuel tank (1) while engine is running or is hot.
N.
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
22 23
Starting the Engine
NOTE: As the oil tank is not shipped with oil before starting the engine,
ensure you have lled the oil tank to the correct level with oil, and make sure
fuel has been added to the fuel tank (34).
1. Before starting, check to ensure the 240Va.c Outlet Power On/O switch’s
(1 & 2) are in the down “OFF” position, and ensure that no
electrical appliance is connected to the generator by removing any
appliance cords from the outlets (Fig. Q/R).
2. Turn the fuel tap / lever (26) clockwise to the ‘ON’ position (Fig. S).
When vertical it is in the correct position.
3. Push the choke lever (19) towards the front of the generator to the full
choke “START” position (Fig. T). Choke is not necessary if the engine is
already warm and your restarting. The direction for the choke is also
indicated below the choke lever (19) on the air lter cover (20).
Starting/Stopping the Engine Starting/Stopping the Engine
Q. R.
ON
OFF
ON
OFF
3. If the oil level is close to or below the lower level line, rell with 4 stroke oil
to the upper level line (Fig O).
Do not use the generator when the oil level is close to the low level.
Fill the oil tank before use each time.
4. If the oil is contaminated or has discoloured, ensure you change
the oil. Replace the oil dipstick (15). DO NOT start the generator with the oil
dipstick (15) not rmly replaced.
NOTE: This engine is tted with a
low oil indicator light (7). If the oil
level is too low the engine will stop
operating or the engine will not start.
It is advised to check the oil level
each time the generator is used and
ll to the upper mark on the oil
dipstick (15) by the above method.
Do NOT over ll.
Engine oil replacement
1. Place the generator on a at and level surface and warm up the engine for
several minutes. Then stop the engine.
2. Place an oil pan under the generator and commence removing the oil drain
plug (16) by using a 10mm socket (not supplied), and rotating in an anti
clockwise direction to remove, so that the oil can be completely drained
from the oil tank (Fig P).
NOTE: Do not loose the small aluminium sealing washer on the thread of
the oil drain plug.
3. Check the oil drain plug (16), gasket washer, oil ller cap (15) and O-ring.
If these are damaged, have these replaced.
4. Reinstall the oil drain plug (16), and gasket washer
using a 10mm socket (not supplied), and rotating
in a clockwise direction until secure.
5. Rell with 4 stroke oil to the upper level line of the
oil dipstick (15) as detailed above.
CAUTION. Check that no foreign material, debris,
dust enters the crankcase.
6. Ensure to replace the oil ller cap (15).
O.
UPPER
MARK
LOWER
MARK
P.
T.
RUN START
S.
ON
OFF
Starting Your Generator
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
24 25
7. You can now one at a time, physically plug in your appliances to the
available outlets . Ensure when plugged in the appliances are OFF and not
requiring power.
Ensure you have read the appliances manual for operation action to ensure
the appliance doesn’t accidentally power on when turning on the power to
the appliance (Fig X).
8. Switches 1 and 2 shown in Fig R control the ow of power to the
available outlets.
The 240Va.c Outlet 1&2 Power On/O switch (1) controls outlet
1 and outlet 2.
The 240Va.c Outlet 3 Power On/O switch (2) controls outlet 3.
4. Press the engine On/O switch (4) to the “ON” green position as indicated
byan “I” down (Fig. U). This generator will not start without this switch in
the ON position.
5. To start the engine, slowly pull the recoil starter (18) until you feel it
engage and then pull it briskly (Fig. V). When starting the engine for the
very rst time, it may require a number of attempts to start until the fuel
has travelled from the tank to the engine. Slowly pull the recoil starter (18)
to full extent 2 or 3 times to assist an enriched fuel mixture to enter the
carburettor.
6. Once the engine starts, move the choke lever (19).backwards slowly
(towards the rear of the generator) to the “RUN” position (Fig T).
This ensures smooth operation when under load.
Allow the generator to run for a moment unloaded to warm up before
connecting appliances to be powered are connected.
The LED power supply indicator (9) is now showing green and the unit is
ready to provide power to the outlets (Fig W).
Starting/Stopping the Engine Starting/Stopping the Engine
W.
X.
V.U.
ON
OFF
1
2
Y.
(Shading in image above shows which switch controls which outlet)
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
26 27
You may now move one or both of these switches to the UP “ON” position
depending on how many appliances you are using. A reminder here that
the generator will only power a product or combination of products up to
a maximum of 3400W continually and a little higher 3600W at startup
(Fig Y).
9. As you turn on the appliances and use them it will generate load on the
generator and the engine speed uctuate as requirements from the
appliances increases and decreases. This is normal.
WARNING: All appliances are rated dierently. This generator will work
only with Australian approved rated appliances with an input voltage of
220-240Va.c (Fig Z). Check your appliances meet this requirement on its
rating label before using them. In simple terms if you cant use the product
in your home you denitely cannot use it on this generator.
Overload condition ( Where the appliances want more
power then the generator can provide)
Once operating, If the AC side of the generator becomes overloaded , the
red load status indicator (8) LED will illuminate. The generator will continue
to supply 240Va.c output for a very short time, but if the load is not reduced,
the 240V supply will be automatically shut down. To reduce load rstly you
can stop using one appliance and turn it o , see if that recties the problem.
If not refer to page 14 on loading’s and how they work. If this does NOT solve
your problem, you will need to reset an overload condition and shut down
the engine of the generator, howeverENSURE to follow the procedure and
thus restart the engine after the load being applied to the generator has
been reduced. Always connect the largest appliance you want to run rst
allowing it time to draw current to start . After 20-30 seconds connect the
second appliance.
Normal procedure for Stopping the Engine
(Full shut down and Store)
1. Turn “OFF” the 240Va.c Outlet Power On/O switches (1 & 2) (Fig R).
2. Remove any appliances connected to either of the 3 outlets (Fig Q).
3. Allow the engine to slow down and idle for approx 15-30 seconds.
4. Press the engine On/O switch (4) to the “OFF” position as indicated
by an “O” (Fig. U). The unit will stop running .
5. Turn the fuel lever / tap (26) anti clockwise to the “OFF” position (Fig. AA)
Overload procedure for restarting and resetting the engine
1. Turn “OFF” the 240Va.c Outlet Power On/O switches (1 & 2) (Fig R).
2. Allow the engine to slow down and idle for approximately
15-30 seconds.
3. Press the engine On/O switch (4) to the “OFF” position as indicated by an
“O”(Fig. AB). The unit will stop running and is shut down. Now follow the
normal starting procedure to restart the generator.
AB.
AA.
ON
OFF
Z.
Operation Operation
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
28 29
Emergency Stop, and / or failure of On/o Switches
(NOT RECOMMENDED EXCEPT IN EMERGENCY)
In the case of an emergency that requires the generator to be shut down as
fast as possible:
1. Turn “OFF” the 240Va.c Outlet Power On/O switches (1 and 2). If the
switches have failed and power is still going to the appliance outlets
quickly move to step 2.
2. Press the engine On/O switch (4) to the “OFF” position as indicated by an
“O” (Fig. AB). The unit should stop running.
If the switches have not shut down the generator, you can quickly remove
/ pull out the plugs of the appliances plugged into the outlets that need
to be shut down.
3. Where the engine keeps operating, don’t panic, turn the fuel lever / tap
(26) anti clockwise to the “OFF” position (Fig. AA). The generator will run
out of fuel within one minute and then stop.
Do not use the generator again until the generator is serviced by an
authorised service agent and the product is repaired, checked and
the fault corrected.
As always in an emergency protect people that could be in harms way rst.
Carbon build up
Carbon build up can be a problem on generators as the loading on the
engine can vary considerably. Running the generator at low loading for
extended periods can cause carbon build up.
Carbon build up in the engine can be reduced by operating the generator at
approximately 75% of rated load for 25% of the time the generator is used.
i.e, if the generator is used for 4 hours on low load i.e 800W or less, run the
generator for 1 hour at around 75% of rating. This is only required
if the generator has been used for less than 25% of rated load for extended
periods. i.e 2 hrs or more.
NOTE: For best operation and long engine life Use unleaded fuel
without ethanol.
Periodic maintenance
Item Remarks
Pre-operation
check (daily)
Initial 1
months
or 20Hr
Every 3
months
or 50Hr
Every 6
months
or 100Hr
Every 12
months
or 300Hr
Spark plug
Check condition, adjust gap and
clean. Replace if necessary.
•
Engine oil
Check oil level. •
Replace. • •
Air filter
Clean. Replace if necessary.
•
Fuel filter
Clean fuel drain filter. Replace if
necessary.
•
Valve clearance
Check and adjust when engine
is cold.
•
Fuel line
Check fuel hose for crack or
damage. Replace if necessary.
•
Exhaust system
Check for leakage. Retighten or
replace gasket if necessary.
•
Check muffler screen. Clean/
replace if necessary.
•
Carburettor
Check choke operation.
•
Starting system
Check On/Off switch ignition
operation.
•
Decarbonisation
More frequently if necessary.
•
Fittings/
fasteners
Check all fittings and fasteners
correct if necessary.
•
Regular maintenance is most important for the best performance and safe operation.
Maintenance Maintenance
Periodic Maintenance
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
30 31
Your generator should be kept clean and dry at all times. The generator
should not be stored or operated in environments that includes excessive
moisture, dust or any corrosive vapours. If these substances are on the
generator, clean with a cloth or soft bristle brush. Do not use a garden hose
or anything with water pressure to clean the generator. Water may enter the
cooling air slots and could possibly damage the rotor, stator and the internal
windings of the generator head.
• Never store generator with fuel in the tank indoors or in enclosed, poorly
ventilated areas, where fumes can reach an open ame, spark or pilot
light as on a furnace, water heater, clothes dryer or other gas appliances.
• Ensure the fuel tank and carburettor are BOTH fully drained of fuel.
Open the fuel drain (25) on the carburettor to drain the fuel totally from
the fuel tank (1).
• Check the fuel tap / lever (26) is turned o (Fig V).
• Drain and replace the engine oil.
• Clean the generator with a damp soft cloth with mild detergent.
• Do not clean the generator with water.
• Check all nuts bolts and fasteners. Ensure they are tightened if needed
before storage.
To ensure the engine is operating correctly, the spark plug must be properly
gapped and free of carbon deposits. Always check the spark plug cable is
rmly tted to the top of the spark plug.
WARNING: Ensure the engine is switched o while undertaking
this task.
1. Pull the spark plug lead (22) o the spark plug (23) and then remove spark
plug (23) from the generator using the supplied 21mm Spark Plug Tube
Spanner (31) by rotating in a clockwise direction (Fig AC).
2. Remove carbon deposits using a wire brush.
3. Check for discoloration on the top of the spark plug (23).
The standard colour should be a tan colour.
4. Check the spark plug gap. The acceptable gap should be between
0.6 – 0.8mm (Fig. AD).
5. The recommended spark plugs are as follows:
BPR6ES (NGK) RN11YC (Champion) WR6DC (Bosch)
CAUTION: Check that no foreign material, debris, or dust enters the
crankcase.
Replacement spark plugs are available from purchase from lawn mower or
small engine repair shops.
AD.AC.
Maintenance Maintenance
Generator Maintenance
Storage
Spark Plug
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
32 33
WARNING: Ensure the engine is switched o while undertaking
this task.
1. Turn the fuel tap/ lever (26) to the ‘o’ position (Fig AG).
3. The fuel tank inlet lter (27) is located directly under the fuel tank cap
(2) and protects impurities entering the fuel tank (1) during refuelling.
Remove the fuel tank cap (2) by turning in an anti-clockwise direction
(Fig AH).
4. Remove the fuel tank inlet lter (27) (Fig AI) and wash thoroughly
in petrol.
5. Re-assemble by putting the fuel tank inlet lter (27) back, and then
securing the fuel tank cap (2) in a clockwise direction until rmly secured
It is very important to maintain an air lter (21) in proper condition. Damage to
the generator may arise if the lter has:
• Improperly been serviced.
• Dirt and other foreign elements adhering to the lter due to improper
installation and engine wear.
It is recommended the air lter (21) is cleaned every 50 hours (every 10 hours
under dusty conditions).
ALWAYS keep the lter clean at all times.
WARNING: Ensure the engine is switched o while undertaking this task.
1. Remove the air lter cover (20) on the side of the generator using the
supplied 10mm tube spanner (30) by removing (unscrewing) the two
screws on the face of the cover, in an anti-clockwise direction (Fig AE).
2. Remove the air lter (21) (Fig AF).
3. Wash the air lter (21) in hot soapy water and allow to dry.
4. Lubricate the air lter (21) using engine oil (SAE 10W-30).
5. Thoroughly squeeze the air lter (21) removing any excess oil.
6. Replace the air lter (21).
7. Secure the air lter cover (20) back on to the side panel of the air lter
housing using the supplied 10mm Tube Spanner (30) by screwing back in
the two screws in a clockwise direction until secure.
IMPORTANT. Never run the engine without the air lter element in place.
CAUTION: Never use fuel or low burning paint solvents to clean the air lter
(21). A re or explosion could result.
CAUTION: Ensure the air lter (21) is dry before re tting.
Replacement air lters
are available from www.
extrabattery.com.au or by
calling Customer Service
on 1800 909 909.
Maintenance Maintenance
AF.AE.
AI.AH.
AG.
ON
OFF
Air Filter Fuel Tank Inlet Filter
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
34 35
WARNING: Ensure the engine is switched o while undertaking this task.
NOTE: The following procedure should be performed in a well ventilated
area, with no naked ames, sparks, or cigarettes.
NOTE: Safety glasses should also be worn and on/o switch (4) set to the
OFF position.
1. Ensure the fuel tap / lever (26) is in the OFF position (Fig AG).
2. Hold the tap housing and loosen the bottom sediment cup using an
11mm spanner (not supplied) (Fig AJ).
Remove the sediment cup from the bottom of the fuel tap / lever (26) (Fig
AK). Be careful not to move the tap housing. Do not lose the small seal on
the thread of the sediment cap.
3. The lter inside the sediment cup can be cleaned in petrol to remove any
build-up of dirt on the outside of the lter. Do not operate the generator
without this lter in place.
4. After cleaning the lter, replace the seal, then the lter, on top of the
sediment cap and then insert the assembly back on the bottom of the
fuel tap / lever (26) (Fig AL), and secure nger tight in an anti-clockwise
direction. Using an 11mm spanner (not supplied), secure the sediment
cap until tight (Fig AK).
5. Rell the tank with fuel and ensure there are no leaks between the tap
and the tank, the tap and the sediment cap, and with the fuel tap / lever
(26) turned on, ensure there are no leaks where the fuel hose is tted to
the outlet of the tap.
Maintenance Cleaning/Warranty
AK.AJ. AL.
LOOSEN TIGHTEN
1. Keep your machine clean. The outside of the machine can be cleaned
using a damp soft cloth with a mild detergent if required. Never use water
to clean the generator as it may cause damage to internal parts.
2. Some maintenance products and solvents may damage the plastic parts;
these include products containing benzene, trichloroethylene, chloride
and ammonia.
3. Use a vacuum to clean air inlet and outlet louvres of the alternator.
4. Take special care to keep the ventilation inlets/outlets free from
obstruction; cleaning with a soft brush followed by a compressed air jet
will usually be sucient to ensure acceptable internal cleanliness.
5. Wear eye protection when carrying out cleaning.
Your new Workzone® Titanium Generator will more than satisfy your
expectations.
It has been manufactured under stringent Workzone® Titanium Quality
Standards to meet superior performance criteria.
You will nd your new Generator easy and safe to operate, and, with proper
care, it will give you many years of dependable service.
CAUTION. Carefully read through this entire instruction manual before
using your new Workzone® Titanium Generator .
Take special care to heed the Cautions and Warnings.
Your Workzone® Titanium Generator has many features that will make your
job faster and easier. Safety, performance, and dependability have been
given top priority in the development of this Generator, making it easy to
maintain and operate.
Use only Workzone® Titanium replacement parts for your product.
Non-conforming parts or modications made to parts will void
your warranty.
Tap Outlet Fuel Filter Cleaning
Warranty
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
36 37
Recycle unwanted materials instead of disposing of them as waste.
All tools, hoses and packaging should be sorted, taken to the local
recycling centre and disposed of in an environmentally safe way.
Dispose of used motor oil in a manner that is compatible with the
environment.
We suggest you take it in a sealed container to your local service station for
reclamation. Do not throw it in the trash or pour it into the earth.
Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly.
In the event of product failure within its intended use over the course of
the rst 3 years after the date of purchase, we will remedy the problem as
quickly as possible once it has been brought to our attention. In the unlikely
event of such an occurrence, or if you require any information about the
product please contact us via our after sales support services, details of
which can be found in this manual and on the product itself. After Sales
Support TEL: 1800 909 909
If you are having diculty in using your product, you can nd instructional
Know How videos on our website, www.powertoolsupport.com, by clicking
on the Product Assistance tab > How To product Videos.
If you have any issues with the operation of your product, please take it with
a copy of your receipt to one of our National Service Agents for repair or call
us 1800 909 909 for advice.
A listing of our Service Agents is included with your product, however,
you can also nd our most updated listing on our website
www.powertoolsupport.com, by clicking on the Service Agent link.
Warranty/Service Service
Environmental protection
What your 3 year warranty means
Service Support
Troubleshooting
Trouble Possible cause Suggested remedy
Engine will not start
1. Low on fuel or oil content 1a Fully fill tank. Ensure fuel is fresh
1b Ensure oil is at the the correct level.
Refer page 21-22 of this manual.
1c Ensure the generator is horizontal and
not on an angle
1d Turn Off the fuel tap / lever (26).
Loosen the carburettor drain screw.
Allow the fuel in the carburettor bowl
to totally drain. When the fuel has
stopped draining, open the fuel tap /
lever (26) on the tank and fuel starts
running out of the carburettor drain. If
so, tighten the screw on the drain and
allow the carburettor to fill with petrol.
1e If the fuel from the tank does not pass
through the carburettor drain above,
turn off the fuel tap / lever (26) and
clean the fuel filter in the bottom of the
fuel tap. Refer to page 32-33.
2. Engine On/Off switch (4) in “Off”
position
2. Press the Engine On/Off switch (4) to
the “ON” position as indicated by an “I”.
3. Faulty spark plug (23) 3. Replace or clean spark plug (23)
Refer page 30.
4. Choke lever (19) in wrong position 4. Adjust choke lever (19) accordingly
Refer to page 23.
5. Fuel shut-off valve in closed position 5. Open fuel shut-off valve
6. Unit loaded during start-up 6. Remove load from unit
7. Spark plug (23) wire loose 7. Attach wire to spark plug (23)
8. Old fuel in carburettor 8. Fuel will deteriorate in the carburettor
fuel bowl very quickly. Open the drain
screw in the bowl of the carburettor
until fresh fuel runs through.
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
AFTER SALES SUPPORT
(toll free)
3600W Digital Inverter with Pure Sine Wave
e-mail: help@powertoolsupport.com1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
38 39
AC output: 240Vac ~ 50Hz
Rated power: 3400W +/- 5%
Peak power: 3600W +/- 5%
Phase: Single
Power factor: cosφ =1
Displacement: 182cc
Motor: 4 stroke
No load speed: 3000 RPM
Approximate Generator
Run time: (Hours per full tank)
Full Load: 3 hours 20 mins
50% Load: 7 hours 10 mins
25% Load: 11 hours 50 mins
Fuel tank capacity: 10.5L
Fuel type: Unleaded
Oil tank capacity: 600ml
Oil type: 4 Stroke (SAE 10W-30)
Net weight: 31kg
(with wheels and handle)
Spark plug: NGK BPR6ES
Product Dimensions:
(without wheels or carry handle) 52cm x 41cm x 46cm (L x W x H) +/- 10%
Noise rating: 72 dB (A) (taken at 7 metres)
You must wear ear protection at all times.
This product complies with: Safety – AS 3010
For other issues not covered in this chart, please call Customer Service on 1800 909 909.
Troubleshooting Specications
Trouble Possible cause Suggested remedy
No electrical output
1. Faulty receptacle 1. Have service centre replace receptacle
2. Overload has been triggered
(red Overload light on).
2. Remove all appliances. Stop the
generator, and restart. Reconnect
appliances but with reduced load.
3. Faulty power cord 3. Have an electrician replace cord.
4. 240Va.c Outlet Power On/Off switches
(1/2) turned off.
4. Check the 240Va.c Outlet Power On/
Off switches (1/2) are “ON”.
Repeated overload
1. Overload 1. Reduce load
2. Faulty cords or equipment 2. Check for damaged, bare, or frayed
wires on equipment. Replace.
Generator overheating
1. Generator overloaded 1. Reduce load
2. Insufficient ventilation 2. Move to adequate supply of fresh air
Generator keeps stopping,
or is operating rough
1. Check oil level 1. Add oil so oil is at the correct level.
Refer page 21-22 of this manual.
2. Generator not sitting on flat
and level surface
2. Move generator to a level and
flat surface
3. Motor needs to be cleaned of carbon 3. Remove, check and clean spark
arrestor (11) if needed.
Remove, clean or replace spark plug (23)
SpecificationsTroubleshooting Cont:
3600W Digital Inverter with Pure Sine Wave
AFTER SALES SUPPORT
e-mail: help@powertoolsupport.com
1800 909 909
MODEL: №. INF3800A-1 • 03/2018 • 59905
(toll free)
40
MODEL: INF3800A-1 • 03/2018 • 59905
1800 909 909 (toll free)
e-mail: help@powertoolsupport.com
ALDI guarantees that our exclusive brand products are developed to
our stringent quality specications. If you are not entirely satised with this
product, please return it to your nearest ALDI store, within 60 days from
the date of purchase, for a full refund or replacement, or take advantage of
our after sales support by calling the supplier’s Customer Service Hotline.
Made in China
WORKZONE® Titanium is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
www.aldi.com.au
Loading...
