Loopo S150 / S300
EN
www.WOLF-Garten.com
Your safety is important to us -
Please review this Manual carefully for all safety warnings and
take extra caution to keep both children and pets off the lawn
when Robotic Mower is in operation.
Safety rst.....................
2
Installation...................
Quick reference..............
13
33
Safety rst
IMPORTANT!
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Warning decal denitions
Safety warnings & precautions
Safety features
Do not allow children to use or operate the mower.
Children must be supervised at all times.
2 3
Warning
decal denitions
1 2 3 4 5 6 7
1. This is a dangerous power tool. Exercise care when operating
and follow all safety instructions and warnings.
2. Read the Safety Manual carefully before operating your mower.
3. Be careful of thrown objects during operation.
4. Keep a safe distance from the mower while it is operating.
Keep people, especially children, pets and bystanders away
from the area where the mower is operating.
5. CAUTION - Do not touch rotating blade. Keep hands and feet
away and do not lift the mower from the ground.
6. Remove the disabling device before working on or lifting the
mower (see Section 3.b).
7. Do not ride the mower.
Do not dispose of the mower or any of its parts as unsorted
municipal waste. It should be collected separately.
This product conforms to applicable EU directives.
This symbol indicates that the mains electricity is double
insulated.
This symbol indicates that the product is designed for
indoor use only.
Safety warnings &
precautions
A. Before you begin
1. Read this Safety Manual carefully before operating
the mower to become familiar with its controls and
proper use.
2. Never allow children, persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge or people unfamiliar with these
instructions to use the machine. Local regulations
may restrict the age of the operator.
3. You are responsible for accidents or for harm to
other people or their property.
4. It is your responsibility to inform your neighbors
about the risks, and that it is forbidden to enter your
lawn while the mower is operating.
5. If your lawn is open to the street and/or your
neighbors, you must be present during the mower’s
operation to prevent others from accessing your
lawn. Alternatively, you must protect / fence your
lawn so that others will not be able to access the
mower during operation.
B. Preparations
1. Ensure the correct installation of the Perimeter
Wire, as instructed.
2. Inspect periodically the area where the mower is
used and remove all stones, sticks, cones, wires
and other foreign objects.
3. Periodically visually inspect to verify that the blade is
not worn or damaged. Replace a worn or damaged
blade (Part No. MRK9100A/MRK9100W). Switch the
mower off when inspecting or replacing the blade.
4 5
C. Operation
IMPORTANT SAFETY WARNING!
Do not leave the mower to operate unattended if
you know that there are pets, children or people
in the vicinity. Never mow while people (especially
children) or pets are nearby.
1. Do not operate the mower if any safety feature or any part is
damaged, worn or inoperable.
2. Keep hands and feet away from the cutting blade and other
moving parts.
3. Always switch the mower off before lifting it or planning to
operate any adjustments.
4. Never pick up or carry the mower while the motors are running.
5. Do not touch the blade before it has completely stopped rotating.
6. Do not use the mower for any purpose other than cutting lawn.
7. Keep all guards, shields, safety devices, and sensors in place.
Repair or replace damaged parts, including decals.
8. Set the weekly program at times when there are no people on
the grass.
9. Do not connect a damaged power cord to the supply, or touch
a damaged cord before it is disconnected from the supply as it
can lead to contact with live parts.
10. Keep the extension power cord away from the blade to prevent
the mower from damaging it. A damaged power cord can lead
to contact with live parts.
11. If the power cord becomes damaged or entangled during use,
detach it from the mains by pulling the plug from the socket.
12. In the event of accident or breakdown whilst the mower is
operating, immediately press the red STOP button.
D. Transportation
Within the working area:

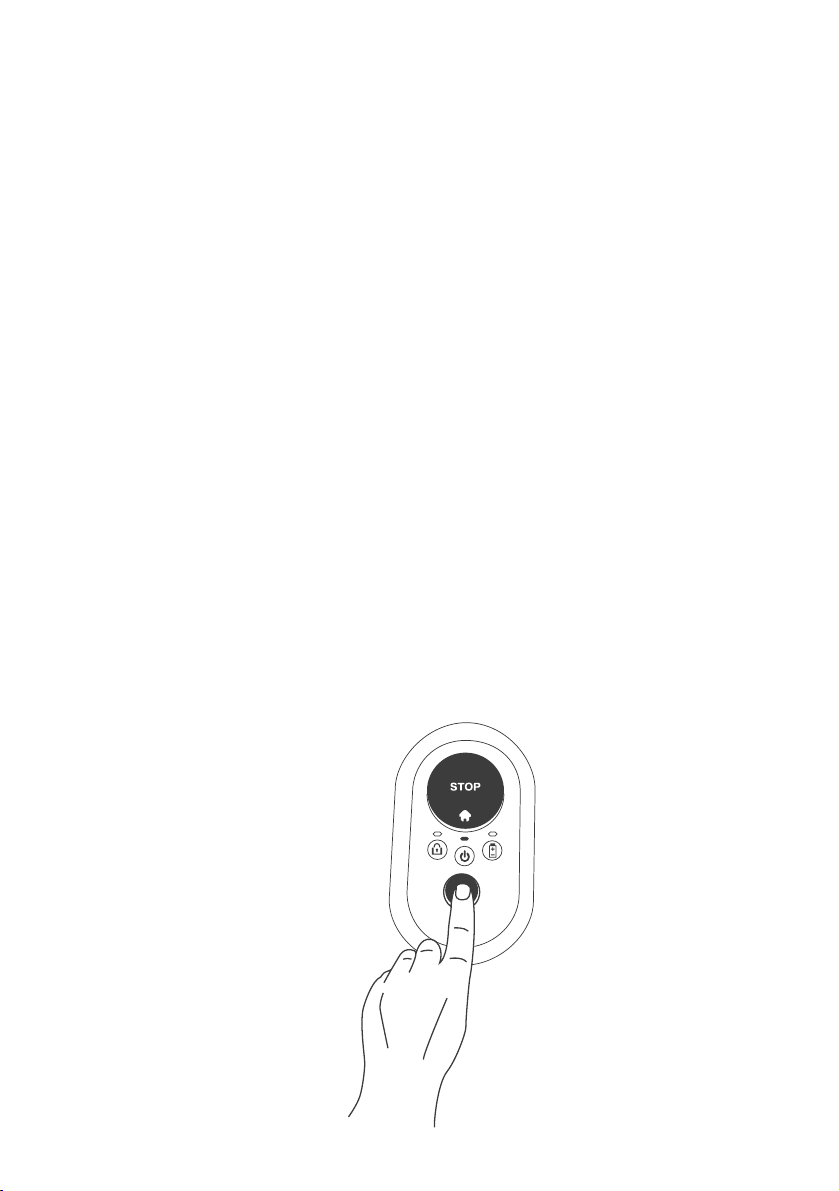

1. Press the STOP button to
stop the mower.
2. Switch the mower off,
and carry it by its carrying
handle as shown in the
picture to the right.
Over long distances:
When transporting your
mower over long distances,
make sure it is switched off.
IMPORTANT! It is recommended to keep the original
packaging for shipping purposes.
6 7
E. Using the remote control (manual mowing)
1. Mow only in daylight or in good artificial light, and avoid
operating on wet grass.
2. Do not operate the mower barefoot or wearing open
sandals. Always wear substantial footwear and long
trousers; always make sure of your footing on slopes.
3. Use extreme caution when reversing the direction of the
mower towards you.
4. Always switch on the motor according to the instructions
while standing away from the blade.
5. Do not mow manually in slopes greater than 15 degrees
or where a firm footing is not possible.
F. Batteries
1. Do not open or damage the battery pack.
2. The Battery Pack contains electrolytes. In case of an
electrolyte leakage from the Battery Pack, the following
actions should be taken:
• Skin contact: Wash the contact areas off immediately
with water and soap.
• Eye contact: Flush the eyes with plenty of clean water
for at least 15 minutes immediately, without rubbing.
• Get medical assistance.
3. Ensure that the battery is charged using the correct
charger recommended by the manufacturer. Incorrect
use may result in electric shock, overheating or leakage of
corrosive liquid from the battery.
G. Maintenance and special instructions
1. Always switch the mower off and remove the
Disabling Device before clearing blockage/
checking/cleaning/working on it, or after striking a
foreign object to inspect the machine for damage.
Never attempt to service or adjust the mower while
it is in operation.
2. In case of abnormal vibrations, stop the mower,
switch it off and check for any damage of the
blade. Replace a worn or damaged blade (Part No.
MRK9100A/MRK9100W) to preserve balance. If the
vibration continues, call for service.
3. Use heavy gloves when inspecting or servicing the blade.
4. Do not perform maintenance barefoot or wearing
open sandals. Always wear suitable work shoes
and long trousers.
5. Replace worn or damaged parts for your safety.
6. Use only original equipment and accessories. It is
not permitted to modify the original design of the
mower. All modifications are made at your own risk.
7. Ensure that only replacement cutting means of the
right type (Part No. MRK9100A/MRK9100W) are used.
8. Maintenance/servicing/cleaning of the mower
should be according to manufacturer’s instructions.
9. Keep all nuts, bolts and screws tight to be sure the
machine is in safe working condition.
WARNING!
When there is a risk of a lightning storm, disconnect
the Perimeter Wire from the Base Station and the
8 9
Power Supply 230 V/120 V plug from the power outlet.
H. Product end of use
1. The mower and its accessories should be collected
separately at the end of their life to prevent waste
electrical and electronic equipment from ending up in
landfill sites, and to protect and improve the quality of
the environment.
2. Do not dispose of the mower or any other of its parts
(including the Power Supply and Base Station) as unsorted
municipal waste – they should be collected separately.
3. Ask your local distributor/dealer about return and
collection systems availability.
4. Do not dispose of the battery pack in a fire, and do not
place used batteries in your household trash.
5. The battery must be collected, recycled, or disposed of in
an environmentally sound manner.
Safety
features
WARNING!
Your mower is equipped with numerous built-in
safety features. However, the mower is a hazardous
device with a sharp blade, which can cause major
injury to anyone who comes in contact with it.
Therefore, it is absolutely forbidden to be on the
lawn while the mower is working. Alternatively,
halt the mower’s operation when people (especially
children) or pets are to stay or play on the lawn.
A. Child Lock
The Child Lock prevents unintended operation of
the mower by an accidental press of one of the
buttons. Only pressing two buttons in the right
order will initiate the operation. It is required to
activate the Child Lock feature if children under
age 6 may come in contact with the mower.
B. Disabling Device
The Disabling Device will prevent anyone from
operating the mower. when it is removed. It is highly
recommended to remove the Disabling Device
to prevent operation of the mower by children or
people who are unfamiliar with the mower. or are
not allowed to use it.
C. Lift Sensor
If the mower is raised from the ground during the blade’s
10 11
operation, the blade will stop rotating immediately.
D. Tilt Sensor
If the mower is tilted up towards a vertical position,
the blade will stop immediately.
E. Obstruction Sensor
Your mower detects interfering obstacles in its way
during operation. When the mower collides with
an obstacle, it will stop the rotation of the blade
immediately, will stop movement in that direction
and reverse itself away from the obstacle.
F. Emergency Stop Button
Pressing the STOP button at any time during operation
will stop the mower and the blade immediately.
G. GO/ON-OFF button
The GO/ON-OFF button allows to completely
power off your mower. Switching the mower off
will prevent it from any operation. It is required to
switch the mower off before lifting it and before
any maintenance operation.
H. Base Station and Perimeter Wire
Your mower cannot operate without a Perimeter
Wire installed and activated through the Base
Station. In the event the Perimeter Wire signal is
turned off, the mower will stop operating.
I. Anti-Theft (not applicable to models
2
for lawns under 200 m
The theft protection function will prevent anyone
from using or driving the mower unless they unlock
it by connecting to it with a registered mobile device.
)
Let’s get
started.
Can’t wait
to mow your
lawn.
12 13
Installation
Congratulations on purchasing your new mower!
Your new mower will move randomly within its working area, as
defined by the Perimeter Wire. This kind of random movement
provides the perfect cut and ensures complete coverage of your lawn.
At the end of each mowing ride, your mower will follow the Perimeter
Wire and automatically return to the Base Station for charging.
After a quick and simple installation, you will be ready to enjoy your
free time while your new friend looks after your lawn.
So where are we heading?
Correct installation of your mower will ensure maximum results. This
is what it takes to prepare it to do a perfect job for you.
Get started

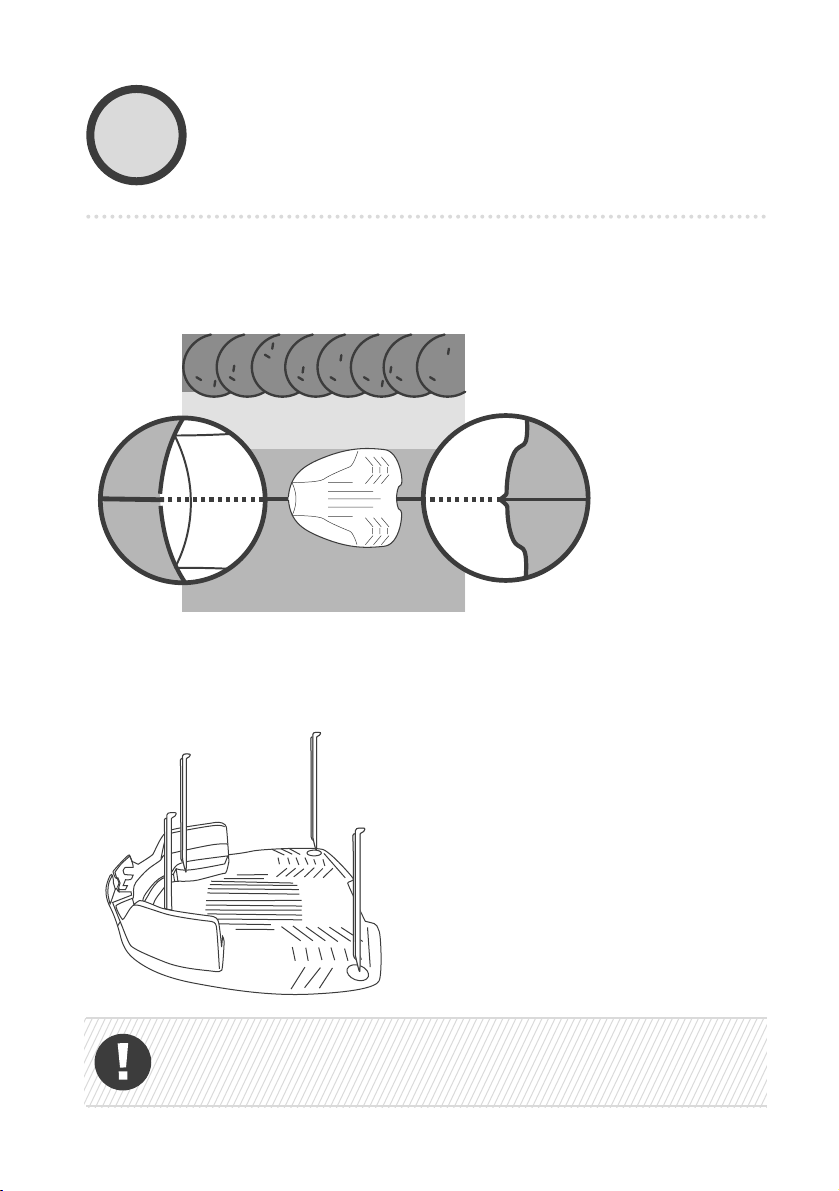

Choose Base Station location
GO!
Your mower is ready
Power up
Connect Everything
Lay the wire
Wire your lawn
Set base
Install the Base Station
14 15
This is what you nd
in the box
The product
Your new Robotic Mower
Wire Pegs*
For securing the wire to the ground
(*) Not provided with Pro models
Base Station
This is where the mower recharges
Perimeter Wire with a plot
connector*
Marks the working area for your mower
(*) Not provided with Pro models
Base Station Head
Generates Perimeter Wire signal
Power Supply
With 10 m / 33 ft extension cable
Base Station Stakes (x4)
For affixing the Base Station to
the ground
Wire Connectors
For splicing the Perimeter Wire in
case of a cut
USER
GUIDE
Plot Connectors
For connecting the Perimeter Wire
to the Base Station
RoboRuler
For measuring the Perimeter Wire’s
distance from the lawn’s edge
User Guide
RoboTool
For blades replacement and
servicing. IMPORTANT! Keep this
tool for future use.
Ready? Let’s begin...
16 17
Get started
Choosing the Base Station location
The Base Station is where your mower recharges, and where the
Perimeter Wire starts and ends.
Follow these simple guidelines to nd a proper location for
your Base Station

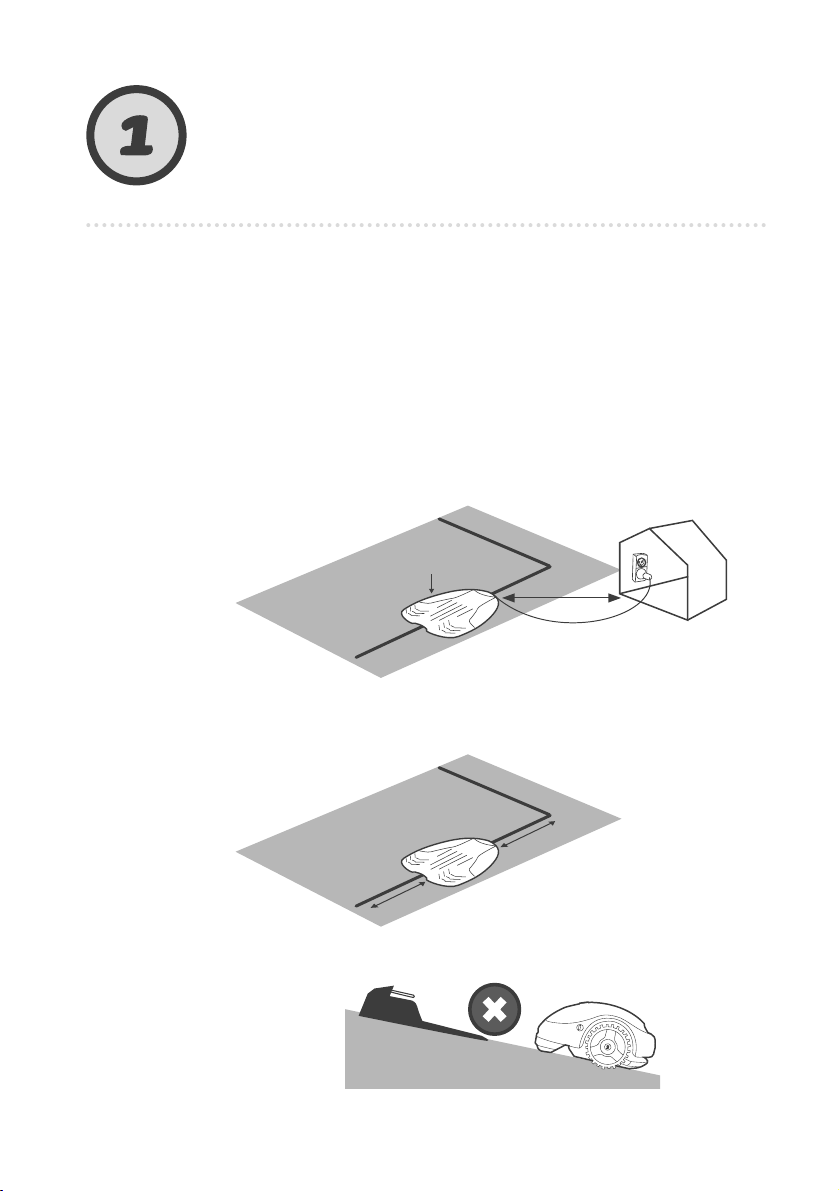

Rule #1:
Up to 10 meters / 33 feet
away from a power outlet
Base Station
Max 10 m / 33 ft
Rule #2:
A min. of 1 meter / 3.3 feet
straight wire before and after the
base to allow smooth docking
Rule #3:
Even and flat (up to
+/-5% slope)
›
1
meter
›
1
meter

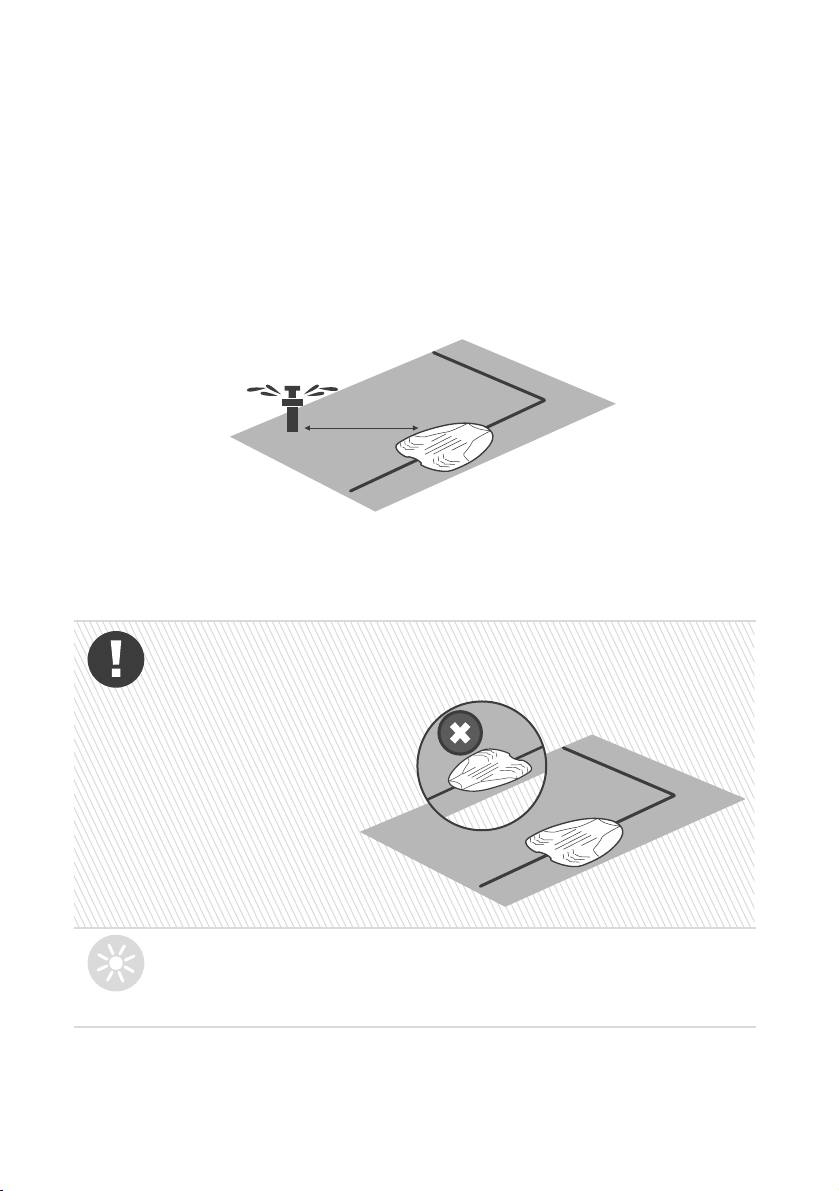

Rule #4:
A minimum of 1 meter / 3.3 feet
from a sprinkler head to avoid
damaging the mower’s internal
components
Min 1 m / 3.3 ft
Watch the proper direction
of the Base Station relative
to the lawn’s edge
The Base Station will be installed at a later stage, after the
Perimeter Wire is in place.
TIP
** See additional installation options in Appendix A **
18 19
Lay the
wire
Lay the Perimeter Wire (“virtual boundary”),
which defines the working area for the mower.
• Have mower’s package nearby.
• Before you start wiring, use your old mower to cut your
TIPS
WHAT
YOU’LL
NEED
grass to the height no more than 6 cm (2.5”) one last time.
This will make inserting pegs easier and help ensure the
mower doesn’t cut the wire.
Hammer
Combination pliers
Cutter

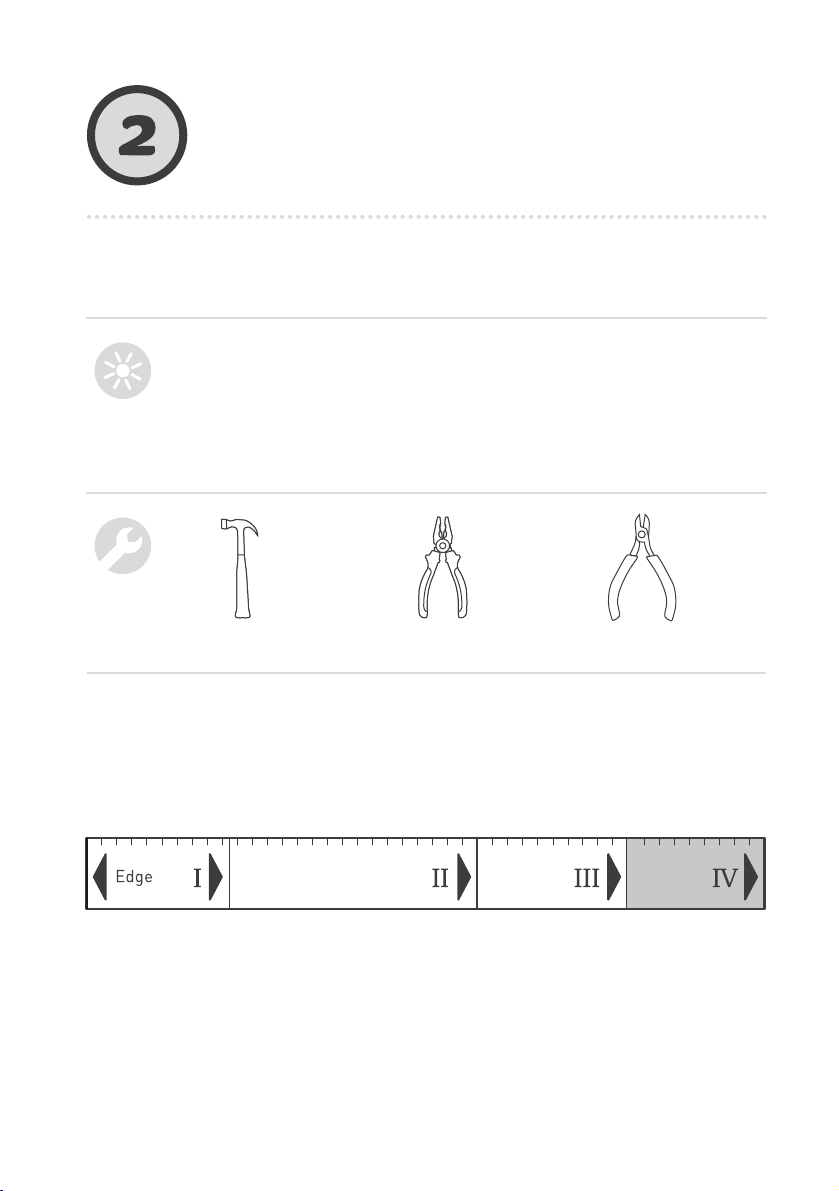

A. Get to know wire distances

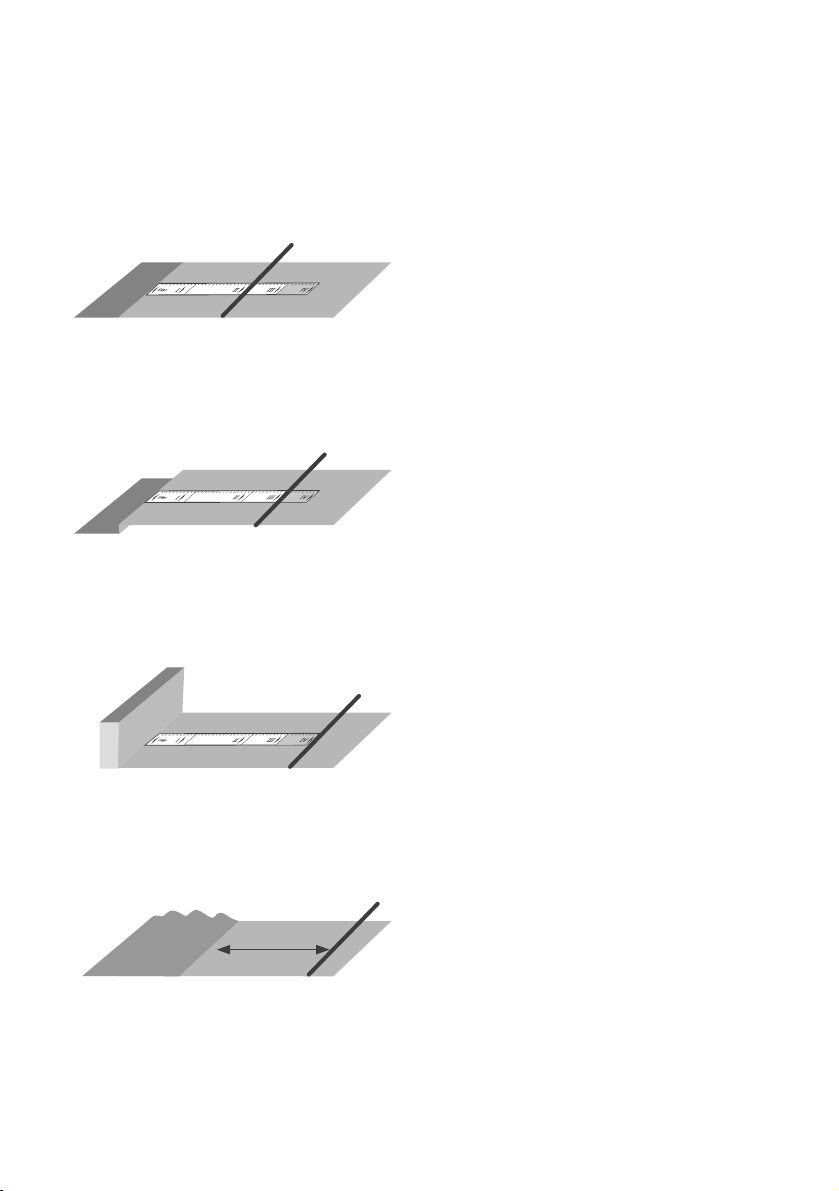

Use the RoboRuler to determine a distance, which you should keep
between the Perimeter Wire and the lawn’s edge.
II
If the edge is relatively flat,
lay the wire at RoboRuler
distance II from it.
III
IV
Min 1.2m (4ft)
If the edge is a drop, use
distance III of the RoboRuler.
When the edge is a wall, use
distance IV of the RoboRuler.
Keep a minimum of 1.2 m (4 ft) if
the edge of the lawn borders water.
20 21
B. Make a good start

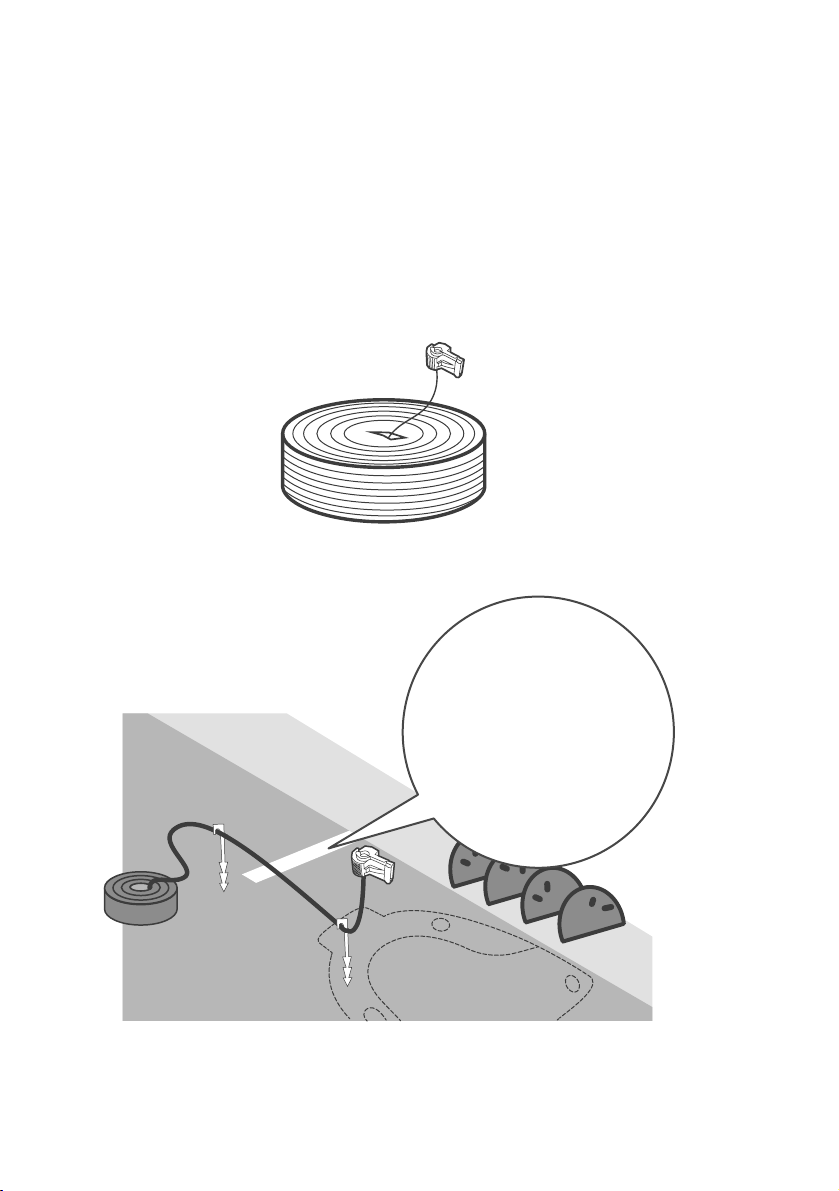

• Pull out the wire end marked “A” from the Perimeter Wire spool
• Leave a tail of approx. 20 cm / 8”
• Once a tail is made, secure it to the ground where you intend to
install your Base Station
Measure the correct
RoboRuler distance from
the edge:
• Distance II for a flat edge
• Distance III for a drop edge
• Distance IV for a wall edge

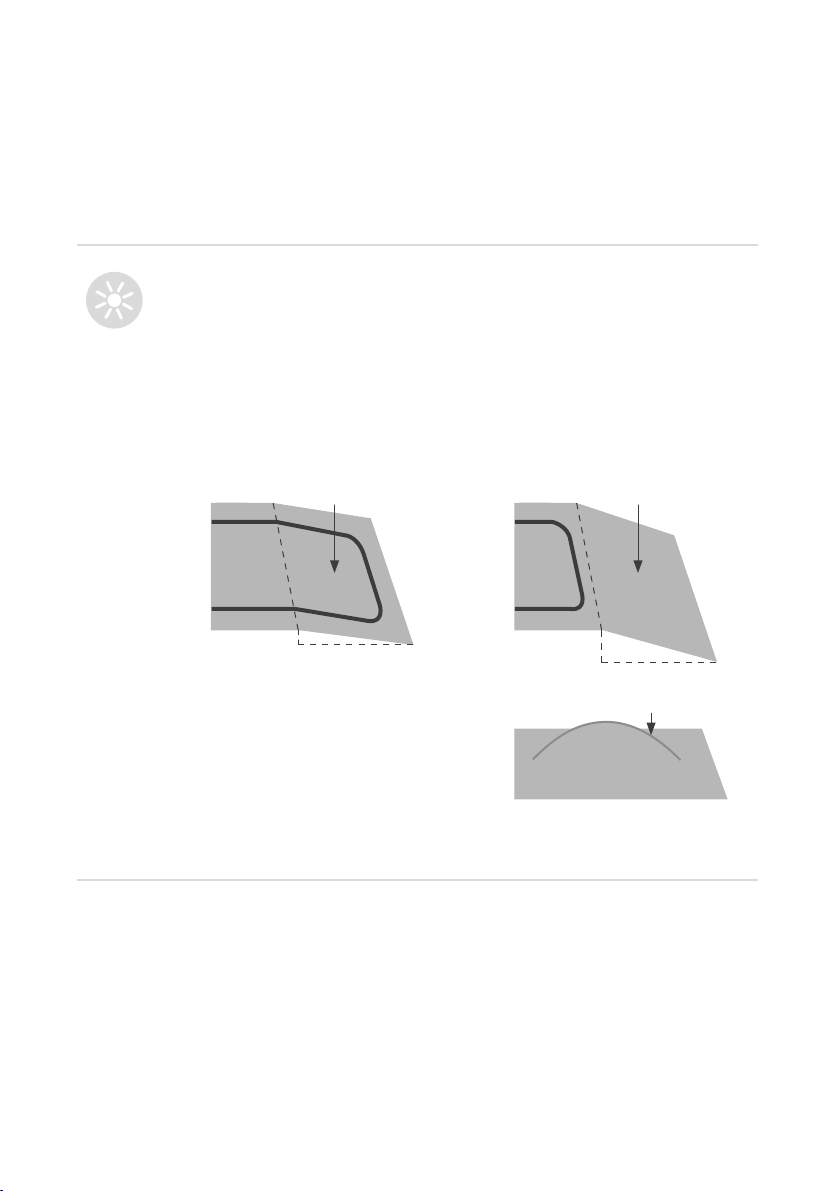

SLOPES
TIP
Slopes along the edge
To ensure your mower doesn’t slip off the lawn, especially
when the grass is wet, the Perimeter Wire must exclude a
slope along the edge of your lawn with an incline of over 10% -
that is, 10 cm rise per 1 m [4 in rise per 3 ft].
Less than 10% More than 10%
Max 15%
Slopes within the lawn
Your mower can mow areas
within the lawn with a slope
of up to 15% [15 cm rise per
1 m/0.5 ft rise per 3 ft].
Well done! This was the most complex part
of the wire installation. Let’s move on…
22 23

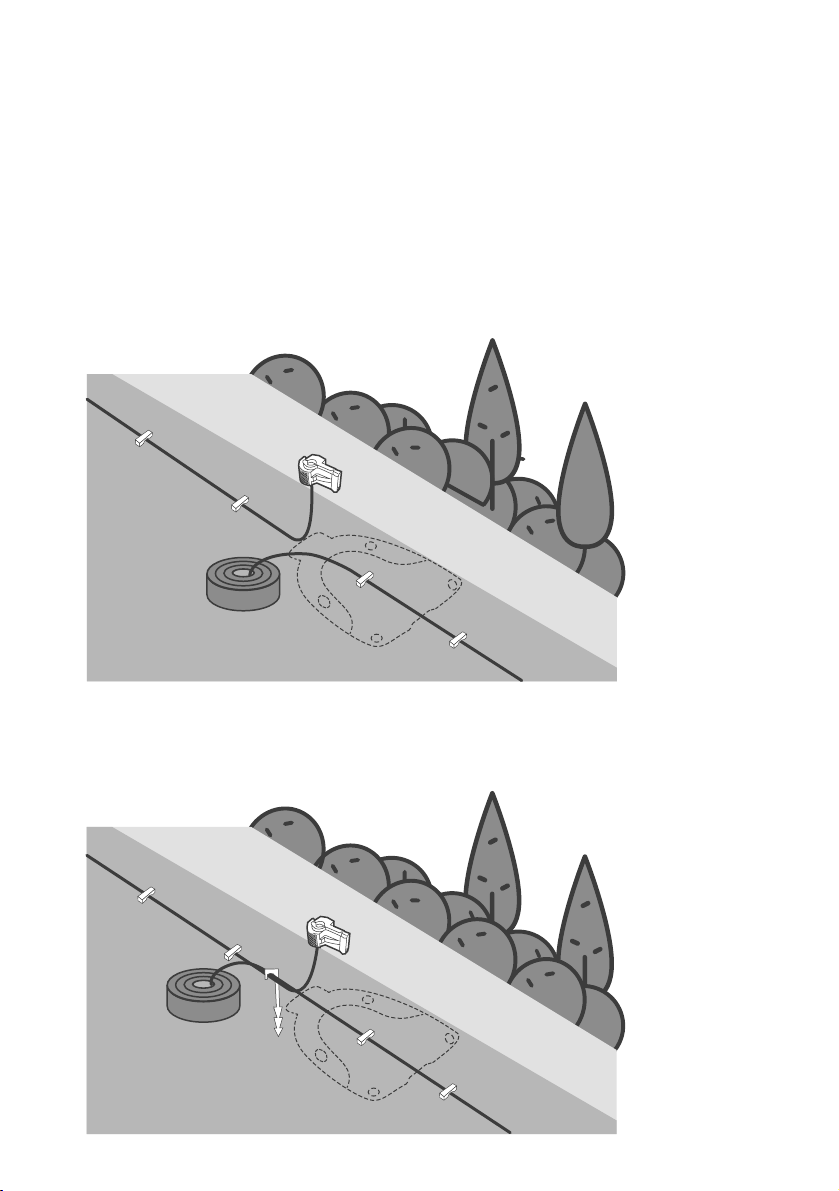

C. Keep laying the wire
Start unwinding the wire counter clockwise around the lawn
starting at the Base Station’s location.
Lay the Perimeter Wire loosely along the perimeter as you walk along
the lawn’s edge.
• The Perimeter Wire is secured to
the ground by the pegs supplied
with the product.
• Pull the wire tight while
hammering the pegs to their
final depth in the ground.
• Take care not to damage
irrigation pipes.
• Place the pegs every few tens of
centimeters.
• Add pegs where necessary to keep
the wire tight to the ground to
avoid damaging it by the mower.

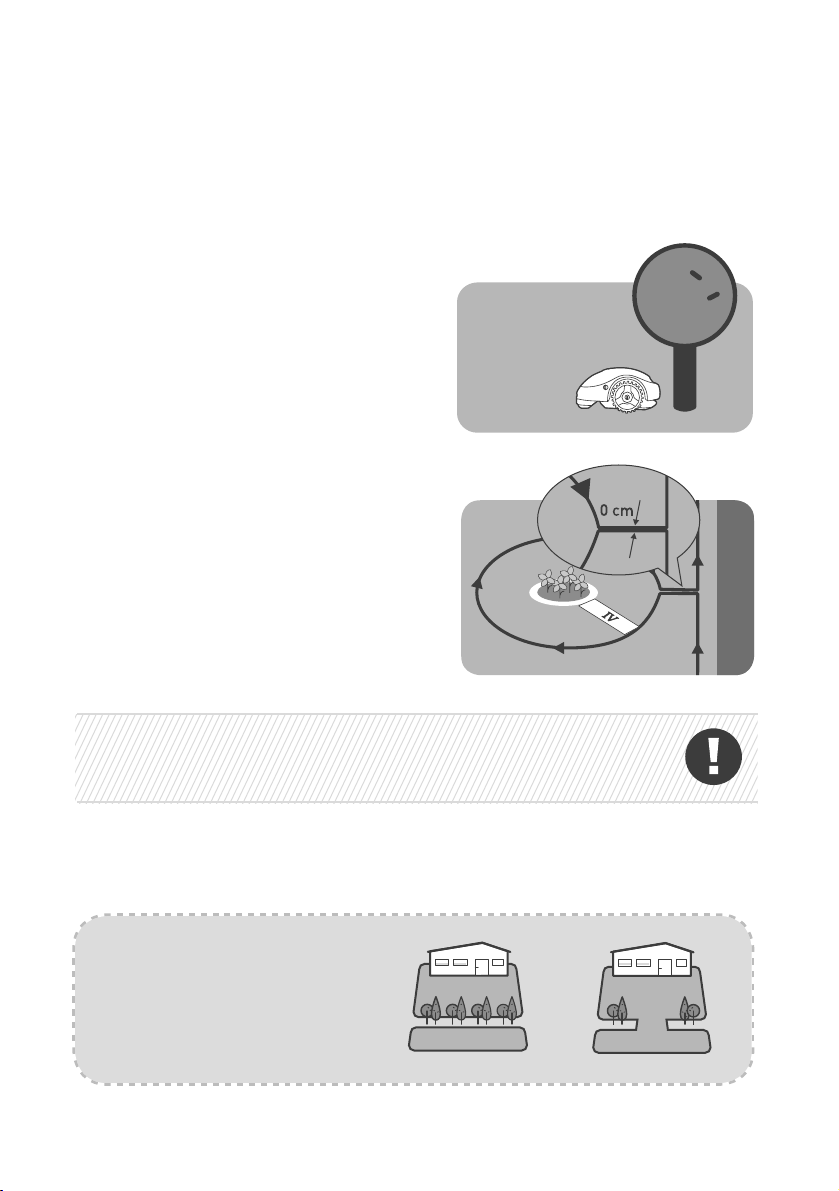

D. Protect obstacles
Hard obstacles
Obstacles that are vertical, rigid
and higher than 15 cm (6 in), such
as trees or telephone poles, do
not need to be protected by the
Perimeter Wire. The mower will
bump into them and turn away.
Soft obstacles
Objects such as flower beds, ponds,
or small trees must be protected
by setting Perimeter Islands.
Set the Perimeter Wire CLOCKWISE around the obstacle,
otherwise the mower will drive into the Perimeter Island or
won’t be able to mow the area around it properly.

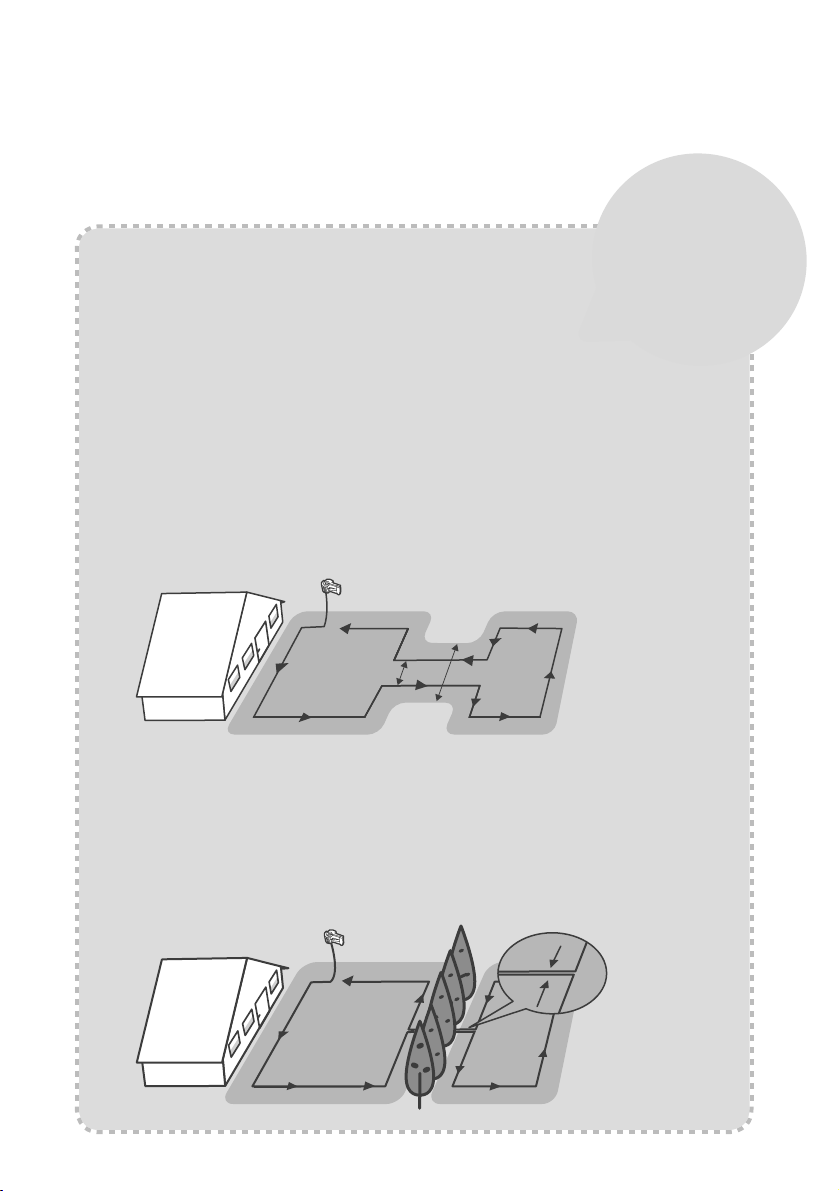

E. What if you have secondary areas?
If your lawn has additional
areas as shown below, see
Appendix B.
24 25
OR

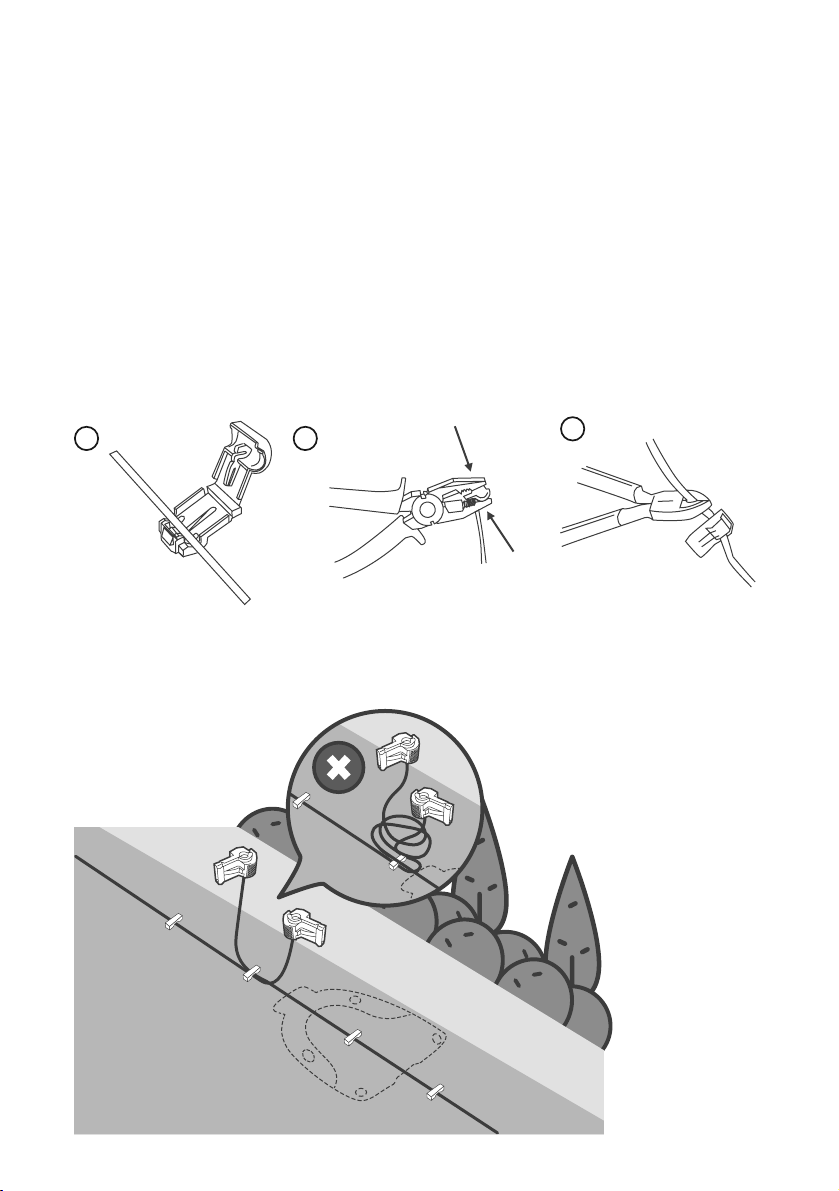

F. Complete wire setup
•
Arrive back to the base location until the two wire ends meet each other
• Put the last peg very close to the first one
• Put one of the provided plot connectors on the second wire
end
• Use pliers to press the connector and a cutter to cut off the
remaining wire
• Make both wire end the same length
a
b
• Do not leave or create wire wraps
c
26 27
3
• Place the Base Station in its planned location
• Properly align the center of the Base Station with the Perimeter Wire
• Fix the base to the ground with the 4 supplied metal stakes
Set base
Be careful not to damage irrigtion pipes when hammering
down the stakes.
Power
up

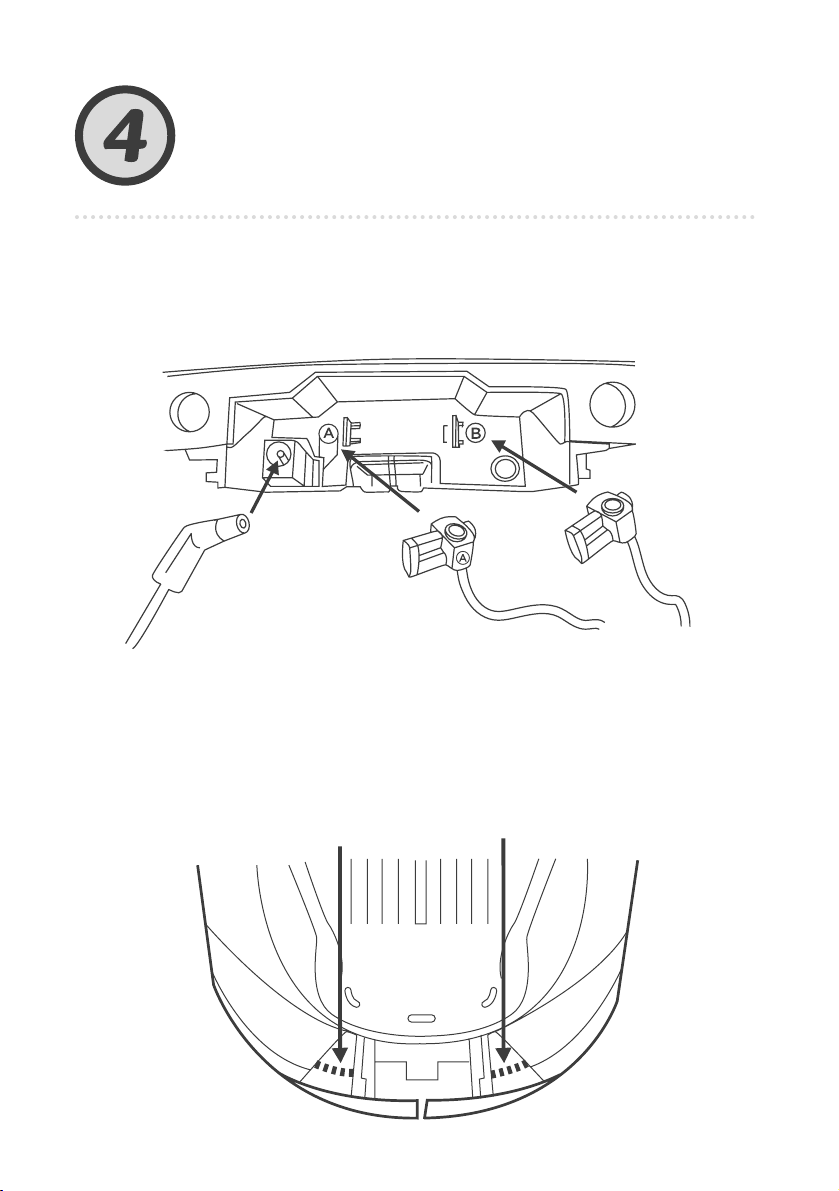

1. Connect the wire tail marked A to the A terminal and the other tail
to the B terminal of the Base Station head.
2. Connect the power supply connector to the Base Station head as well.
3. Note the markings for placing the Base Station Head.
Markings for placing the Base Station Head
28 29

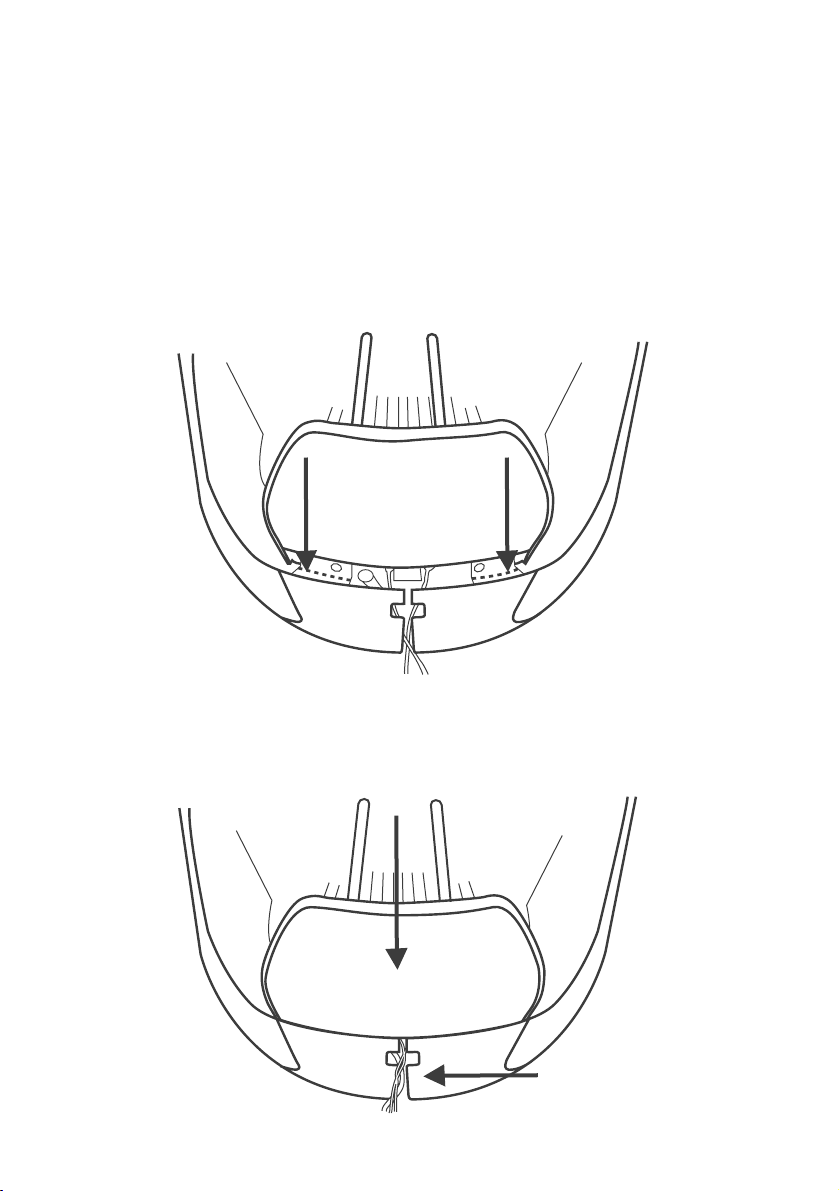

4. Place the head on the Base Station and align it with the markings as
shown in the picture below.
5. Slide the head all the way through.
Pay attention to the sliders and a dedicated slot for threading the wires.
Slide

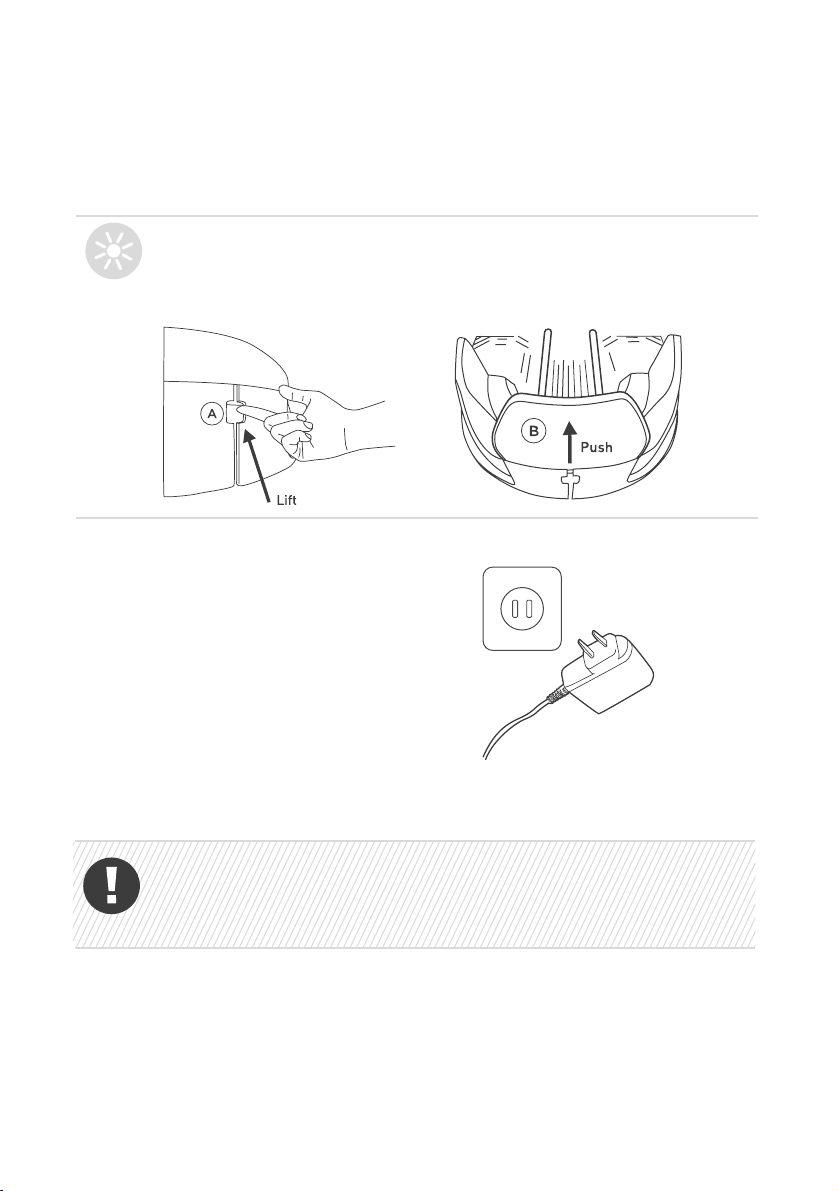

If for some reason you need to remove the base station head,
you can do so by lifting the lever (A) and pushing it towards the
TIP
inside of the base.
6. Plug in the power supply into
a socket.
Take the power cord out of the mowing area (to prevent
the mower from damaging it) and secure the cord firmly to
the ground (so that it does not become a tripping hazard).
30 31
GO!

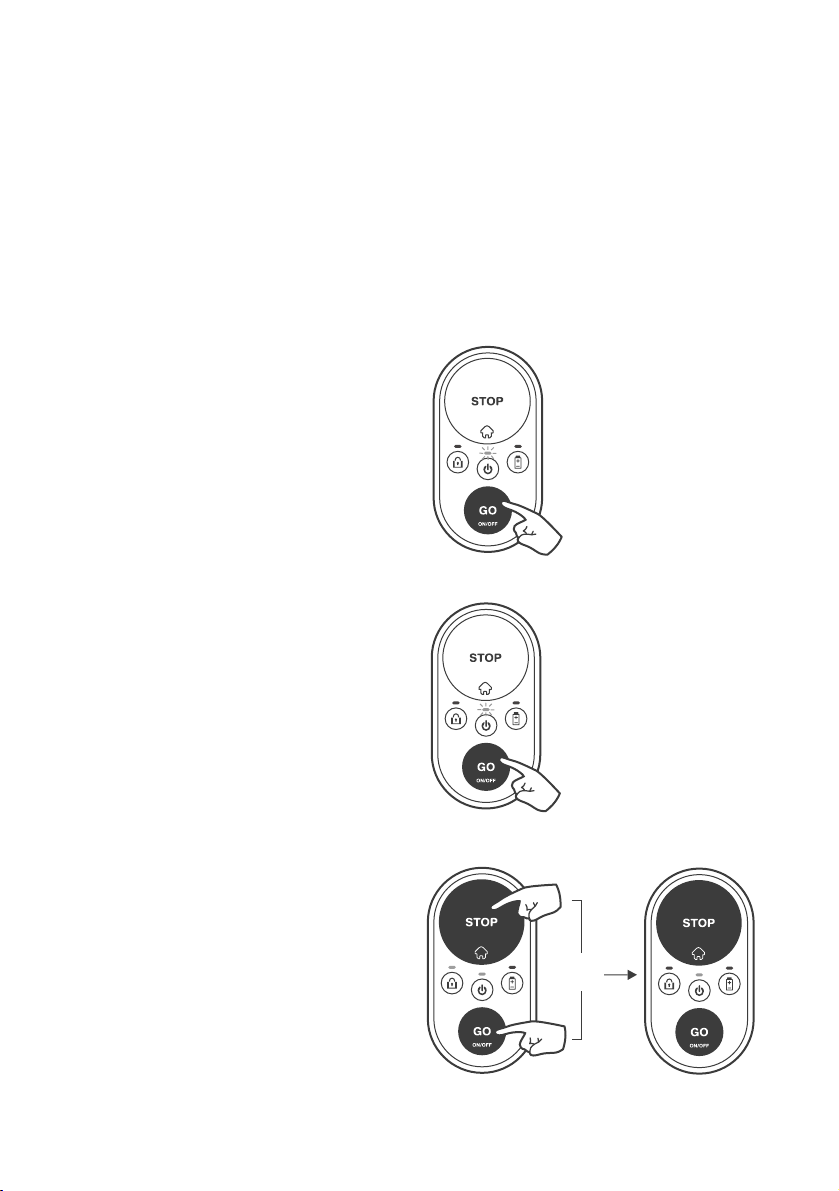

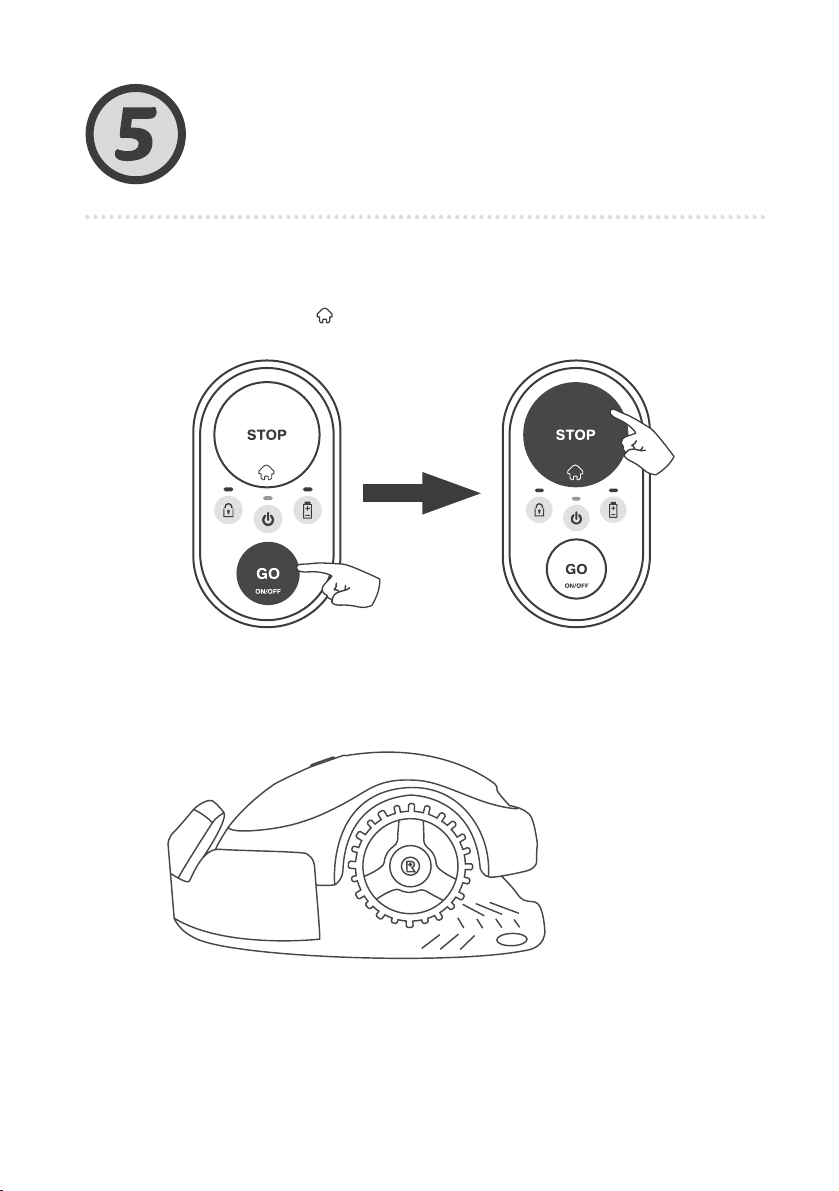

• Place your mower in the center of your lawn
• Press GO for 2 seconds to switch it on
• Now press the STOP /
• The mower will start driving towards the edge of the lawn to locate
the Perimeter Wire. Once on it, the mower will follow the wire to
reach the Base Station and park there for charging.
once to send the mower to the Base Station.
2 sec
Operating your mower is super easy! For basic commands and
troubleshooting, please refer to the “Quick Reference” part
.
Your mower is ready!
Well Done!
Now relax, and let your
mower do the work.
32 33
Quick reference
Knowing your mower
Single-button operation
Additional options with the mobile app
Taking care of your mower
Troubleshooting
FAQs
Knowing your
mower
In order to fully enjoy your mower, learn about its different parts and
messages. Understanding how it works and interacts will lead to smooth
and easy operation.

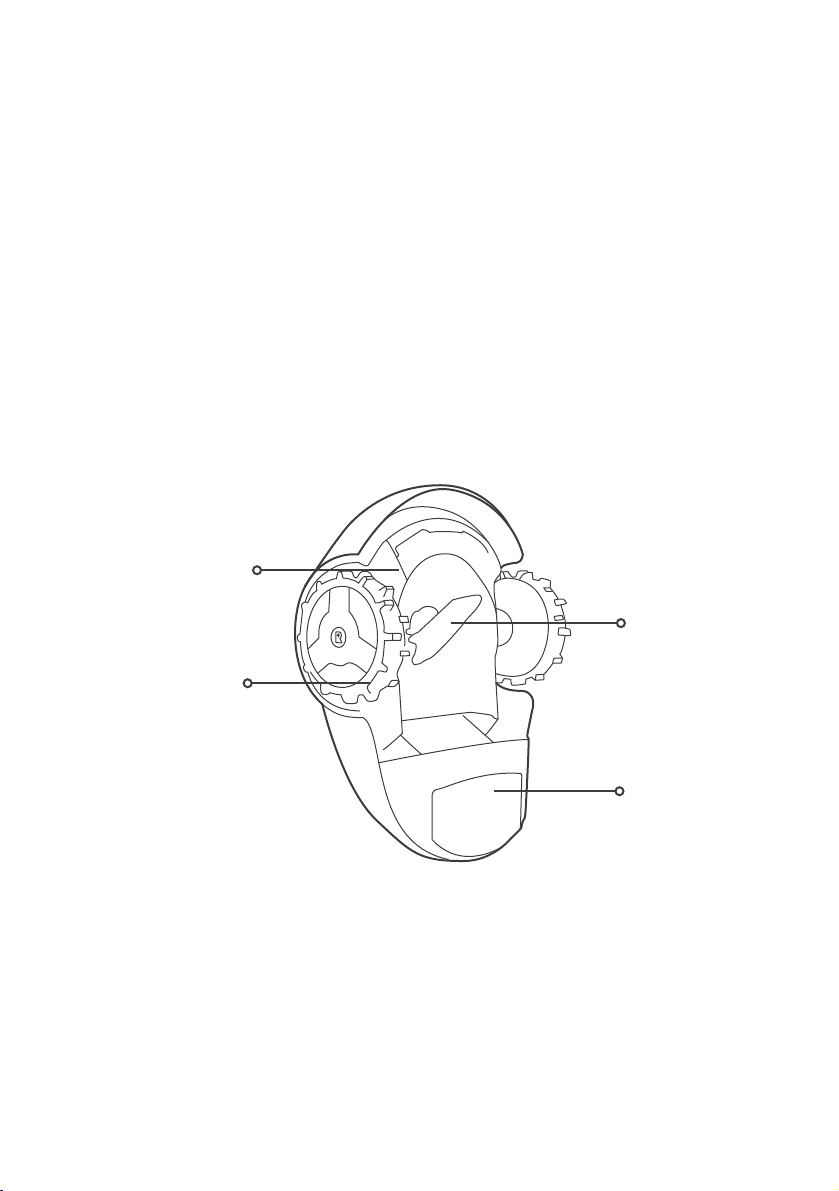

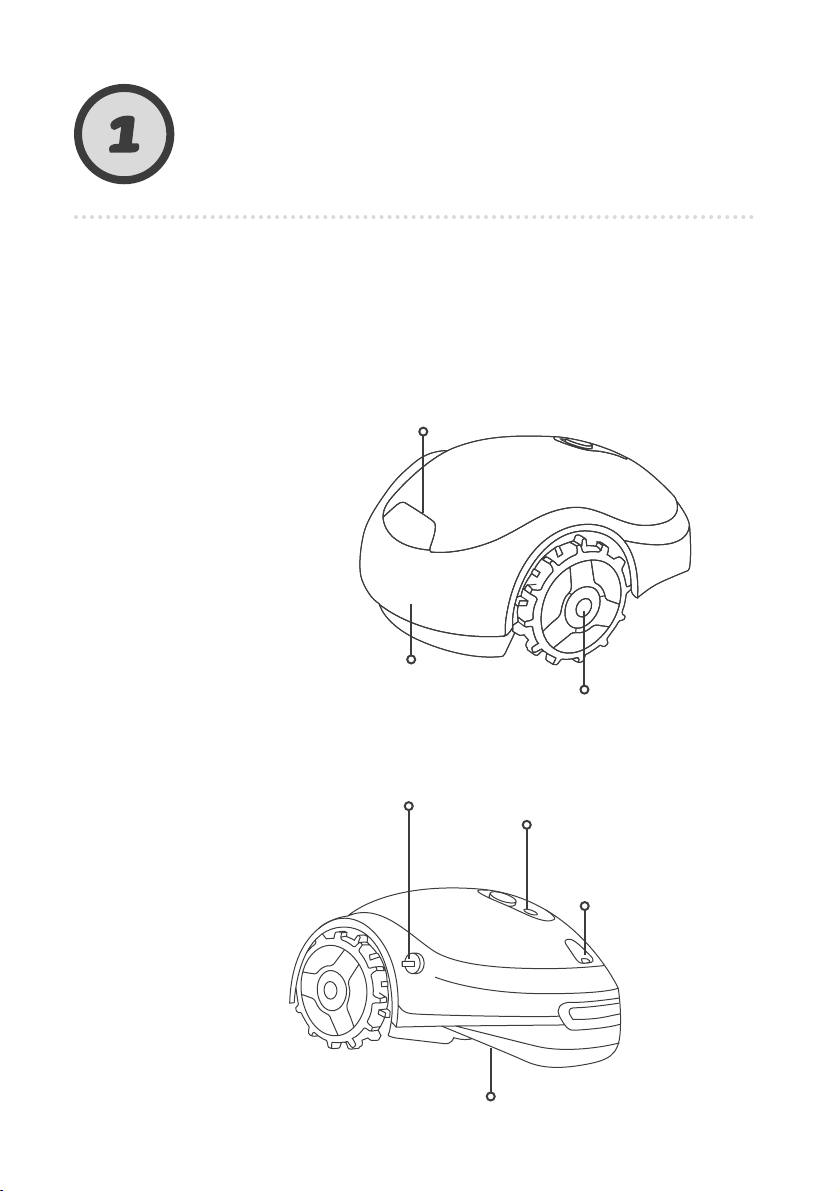

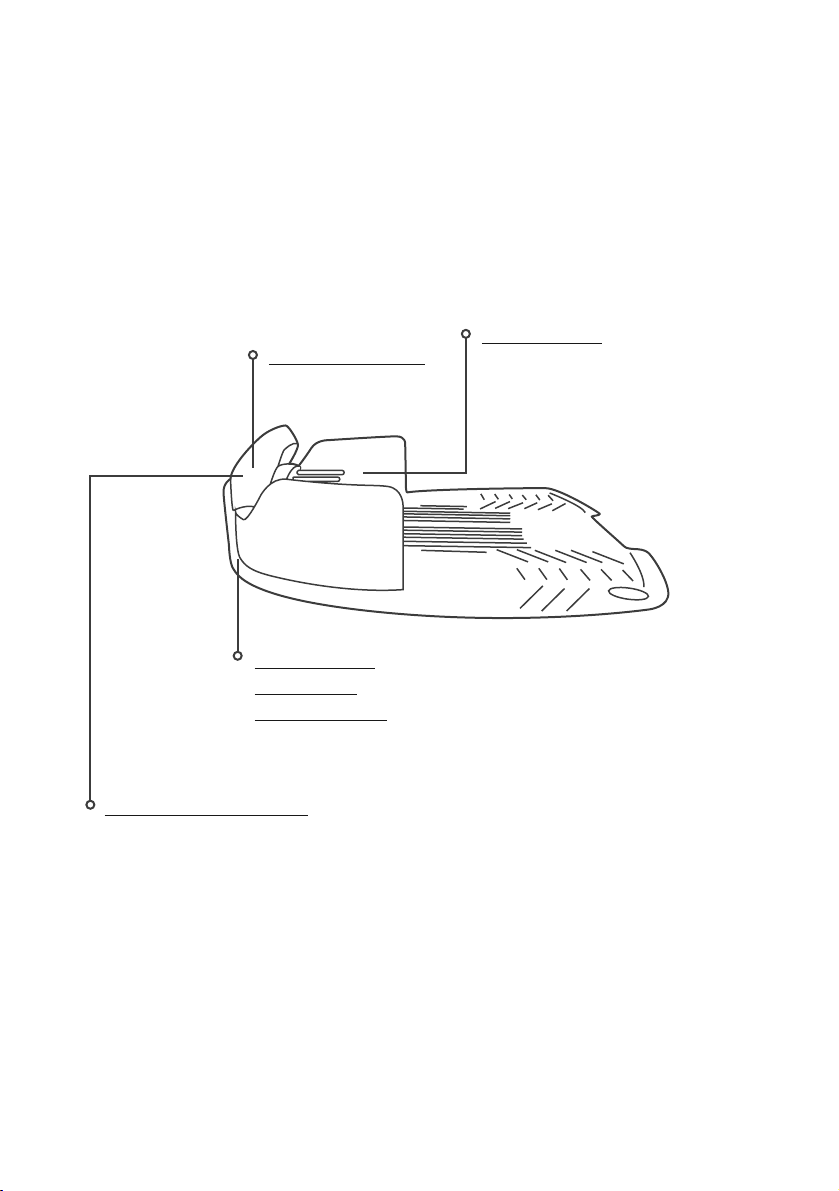

Front side
Carrying handle
Floating deck
Front drive wheel
Rear side
Mowing height
adjustment knob
34 35
Operating panel
Disabling device
Rear glider
Bottom view
Floating
mowing deck
Rugged drive
wheels
Mowing
blade
Glider
surface

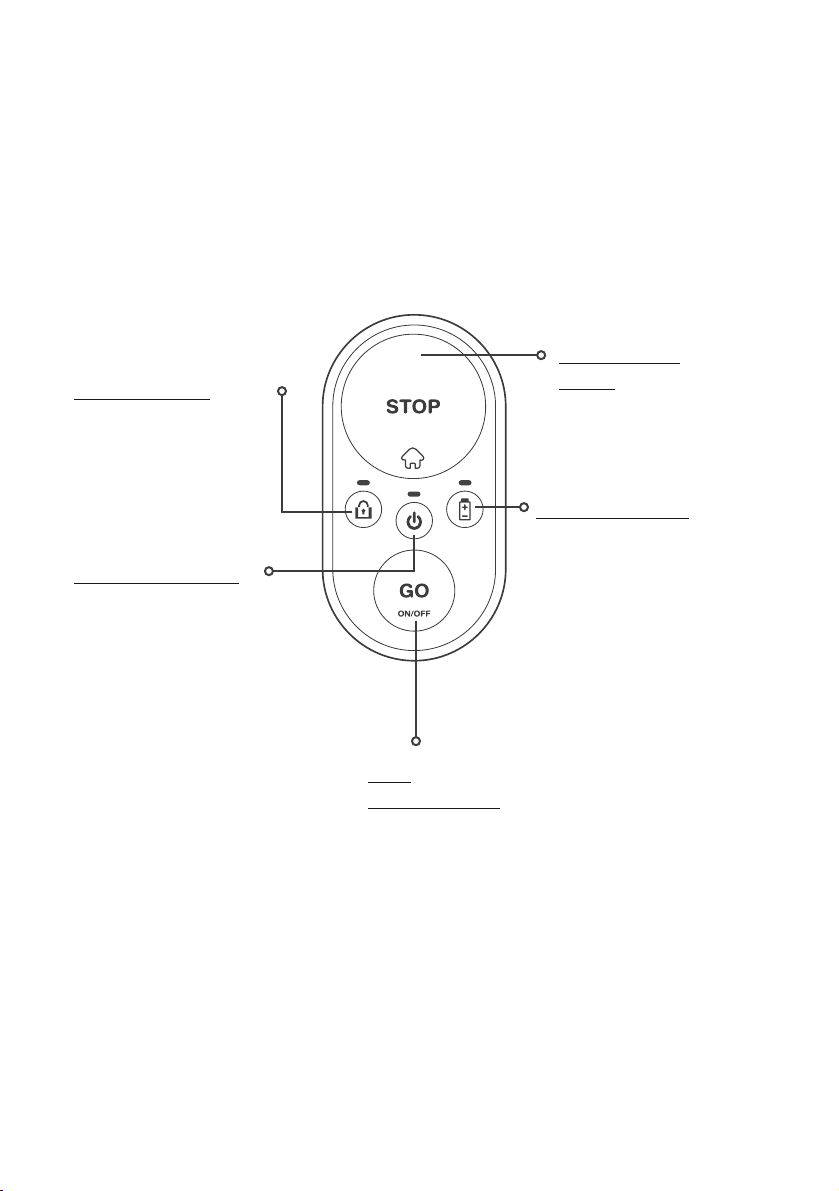

Operating panel
Lock indication:
Steady orange: child
protection is active
Blinking orange: theft
protection is active
ON-OFF indication:
Steady green: mower is switched
on / mower is in operation
Blinking green: mower is returning
to the Base Station / mower is
driving to a starting point
Blinking green fast (and beeping):
mower is departing from Base
Station
Blinking green slow: mower is
asleep
Blinking red / steady red: mower
is at fault (see troubleshooting
section)
STOP / Home
button
Battery indication:
Blinking green: mower is
charging in the base
Steady green: the battery is
fully charged
Blinking red: the battery is
almost empty, recharging will
soon be required
Steady red: the battery is low
and needs to be recharged to
resume operation
GO /
ON-OFF switch
36 37
Base Station
Base Station head
Rear slot and
opening for
head’s removal
Base Station Indication:
Steady green: perimeter wire signal is OK; the mower
is inside the base
Blinking green: perimeter wire signal is OK; the
mower is outside the base
Blinking red fast: perimeter wire is damaged or
disconnected
Blinking red slow: poor perimeter wire connection or
the wire is too long
Steady red: faulty power supply
Charging pins
Single-button
operation
Before anything else
IMPORTANT SAFETY WARNING!
Do not leave the mower to operate unattended if you know
that there are pets, children or people in the vicinity.
Never mow while people (especially children) or pets are
nearby.
• Clean the lawn from stones, fallen branches or other foreign
objects before using the mower.
• Set the mowing height to the desired level. We recommend
setting the mowing height to the maximum during the first
mowing operation or at the beginning of a season, and then
gradually reducing it to the desired level.

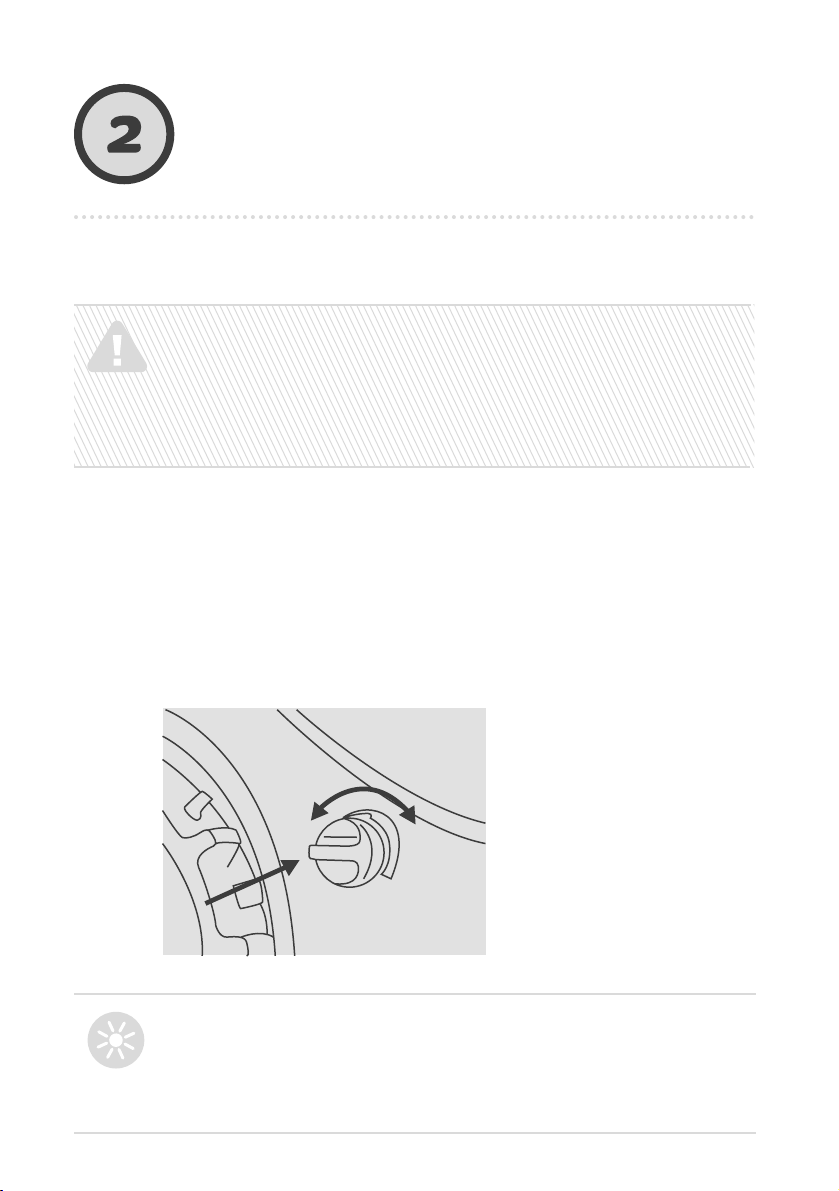

To set the mowing height, push
and turn the mowing height
adjustment knob to the desired
direction:
• I means the lowest mowing
height (15 mm / 0.6”)
• IIII means the highest mowing
height (45 mm / 1.8”)
• Your mower is designed for frequent cutting at a desired
height
TIP
38 39
• Before the first use, make sure your grass is cut not higher
than 60 mm (2.5”)
Powering up

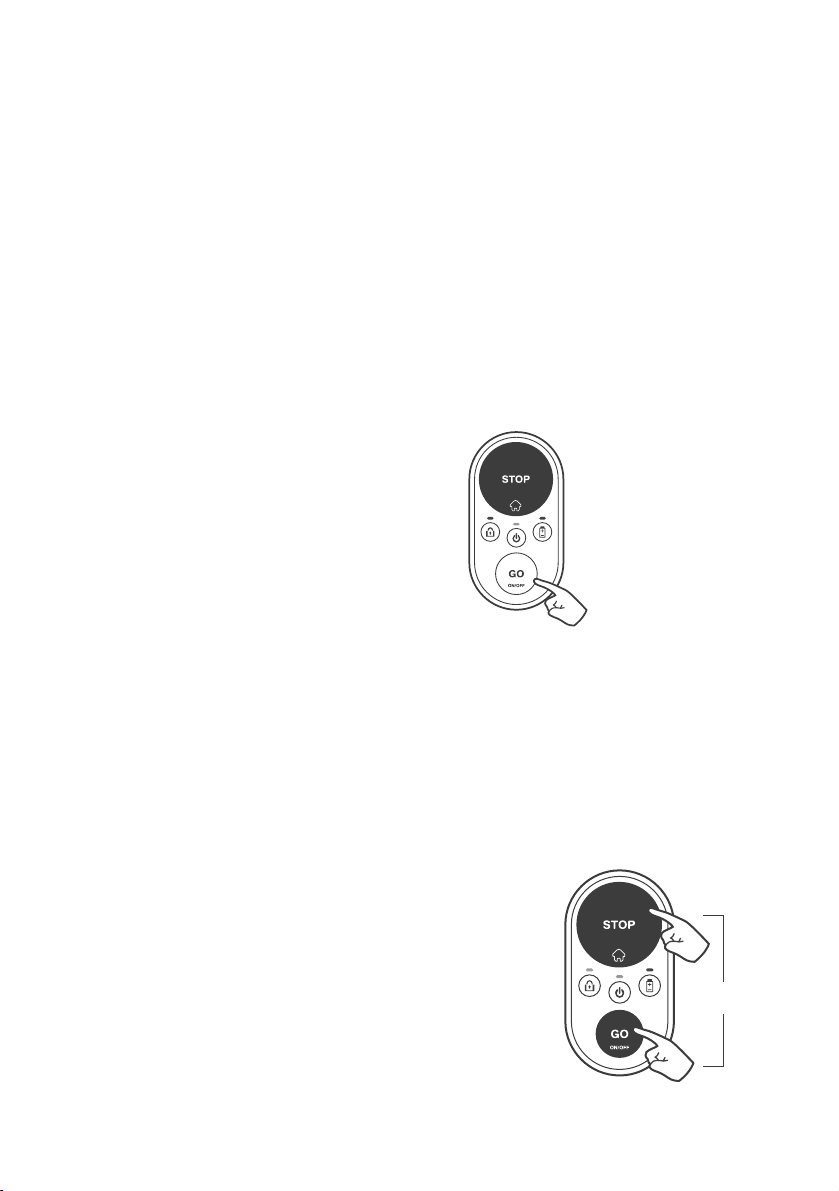

To power up your mower, press and hold the GO button for 2
seconds until the ON/OFF indication is lit.
When you need to switch it off, simply press and hold GO
button for 2 seconds, until the ON/OFF indication goes off.
Note: If the theft protection
is enabled(not applicable
to models for lawns under
200 m2 / 2150 ft2), you will
need to unlock your mower
via the mobile app before
you can switch it off.
2 seconds
Enabling child protection
Child protection prevents accidental use of the mower by little
children. When child protection is enabled, the mower will
require a special combination to start a mowing operation or
to go back to its base.
To enable child protection, press and hold the GO + STOP
buttons together for 6 seconds.
If you wish to disable child protection, press
and hold the GO + STOP buttons together for 6
seconds again.
Alternatively, child protection can be enabled
or disabled conveniently via the mobile app (not
applicable to models for lawns under 200 m2 /
2150 ft2).
6 seconds
Starting a mowing operation

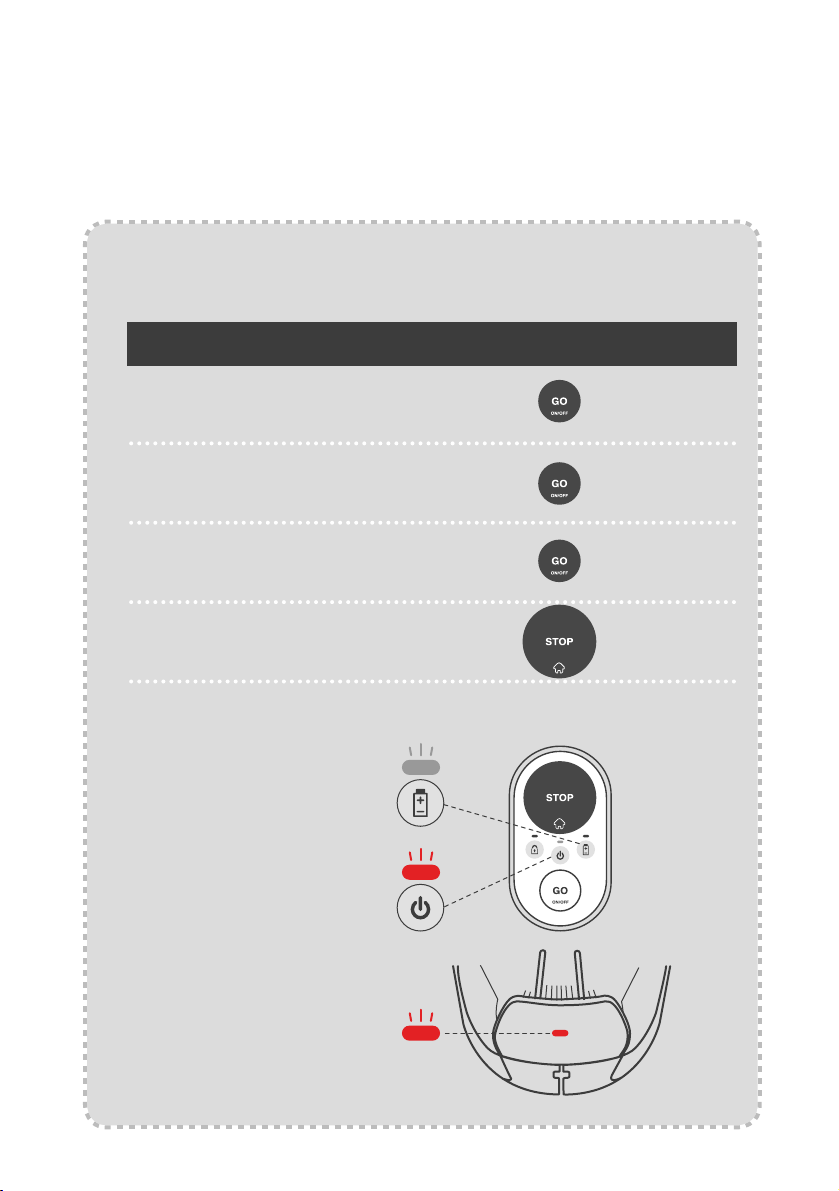

Starting a mowing operation is super easy!
If you wish to start a regular
mowing operation (up to 2 hours
of continuous mowing), all you need
to do is to press the GO button once.
If the regular mowing duration
is too long for your lawn, you can
initiate a short mowing operation
(of up to 60 minutes) by pressing
the GO button twice.
X 1
When child protection is enabled,
X 2
a special combination of keys
is required to start a mowing
operation. Hold down the STOP
button and press the GO button
once to unlock the child protection
for 30 seconds. The Lock indication
will be temporarily switched off.
X 1
Now you can start a mowing
operation as described above. As
soon as the mowing operation is
started, the child protection will
automatically relock itself.
40 41
Stopping an operation
To stop any current operation, press the STOP / button.
Sending the mower to its base
To send the mower to its base, simply press the STOP /
button when the mower is inside the lawn.
If child protection is enabled, see the “Starting mowing
operation” section above to temporarily unlock it. Then press
STOP /
button to send the mower to its base. The child
protection will relock automatically.
Automatic charging
Once a mowing operation is finished, your mower
automatically returns to its base station for charging to be
ready for the next operation.
How much mowing does your lawn need?
The amount of mowing depends on a season and on the
size of your lawn. We recommend the following amounts of
weekly mowing times per lawn size in peak season.
Lawn size Recommended weekly mowing times
Up to 50 m
50 - 100 m
100 - 150 m
150 - 200
m
2
2
2
2
2 hours
4 hours
6 hours
9 hours (not applicable to models for
lawns under 200 m2 / 2150 ft2)
TIPS
For the best look of your lawn, we recommend spreading
the mowing times evenly among as many days in a week as
possible.
Additional options
with the mobile app
(not applicable to models for lawns under
200 m2 / 2150 ft2)
Your mower is a smart connected product. It comes with a
built-in Bluetooth LE (Low Energy) device that enables you to
control your mower from your smartphone.
A free complementary mobile app will allow you to experience
your mower in a whole different way!
You can download the app from Google Play Store (Android)
or from Apple AppStore (iOS).
Along with a totally exciting experience, it brings additional
options and capabilities to your small and clever mower:
• Setting automatic mowing schedule
• Activating theft protection
• Defining additional starting points
• Remote controlling with manual mowing
• Remote diagnostics by a service station
42 43
Taking care of your
mower
Periodic maintenance
WARNING
Severe injury and damage hazard!
Always switch the mower off before lifting it. The blade is very
sharp. It can cause severe cuts or lacerations. Always wear heavy
work gloves when working with or around the blade. NEVER use
a damaged or broken blade. NEVER sharpen the blade manually.
Once a month:
• Inspect the underside of the mower. Clean if necessary.
Carefully scrape the collected grass debris (using a small
stick or similar object) from under the mowing deck.
• Check the Perimeter Wire and add pegs where it is loose
and not tight to the ground. In case of seasonal changes in
the lawn, make sure to adjust the wire accordingly.
• Inspect the Base Station, clean it from mud and debris to
allow proper docking.
IMPORTANT!
NEVER use high pressure water to clean the mower.
Liquids can damage components. Use only a damp or
wet cloth to wipe the surface clean.
To allow better maintenance and to keep your mower in good
condition, it is recommended to take it to a certified
dealer for service prior to winter storage.
Operating the Disabling Device
• The Disabling Device prevents the operation of your mower when it is
removed.
• If the Disabling Device is pulled out, the current operation will be
immediately halted, the Lock indication will blink three times and the
ON/OFF LED will switch off.
• If any button on mower’s operating panel is pressed, the Lock indication
will blink three times to indicate that the Disabling Device is missing.
• If theft protection is enabled, it will remain active even though the
Disabling Device is removed.

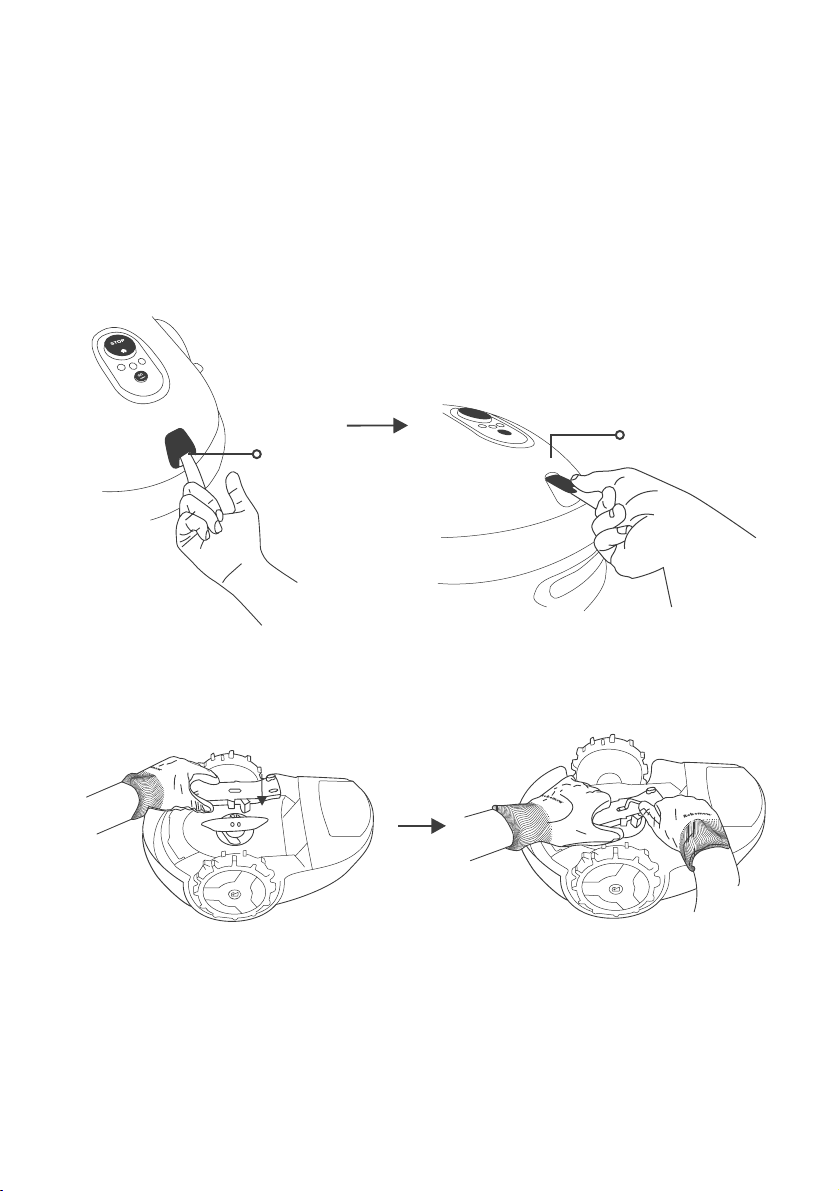

Replacing the blade
1. Power the mower off by pressing GO button for 2 seconds.
44 45
2. Remove the Disabling Device.
Lift
3. Put on heavy-duty gloves, and place RoboTool over
the blade so that it covers the whole blade.
4.Use the provided Allen tool (comes with a replacing blade) to unscrew
the screws while holding the blade with the RoboTool.
Pull
5. Replace the blade with a new one (Part No.MRK9100A/MRK9100W).
6. Make sure to close both screws tightly.
Winter storage
The mower
• Charge the mower fully in its base
• Switch it off by pressing the GO button for 2 seconds
• Store in dry indoor conditions at ambient temperatures above 0˚C.
Base Station
• No winter storage is required for a Base Station. It can be left on the
lawn during the winter period.
• It is recommended to disconnect the Power Supply from the mains
during the winter storage period.
Winter service
• To allow better maintenance and to keep your mower in good condition,
it is recommended to bring it to a certified dealer for service prior to
winter storage.
• Winter service includes operations like cleaning the mower’s parts and
mowing deck, checking for worn parts (such as blade, drive wheels and
other moving parts) and replacing them if required, testing the mower’s
functions and safety components, checking the battery, and uploading
a latest software version, possibly including newly added features.
46 47
Battery replacement
1. Make sure the mower is not in the Base Station.
2. Power the mower off by pressing GO button for 2 seconds.
3. Remove the Disabling Device.
4. Ensure that only a replacement battery of the right type (Part No.
MRK9101A) is used.
5. Warning! Do not use a non-rechargeable battery.
6. For the orientation of the battery with regard to polarity and the
method of replacement, refer to the instructions supplied with the
replacing battery or to our online Help Center.
7. For the instructions on how to deal with a leaking battery, refer to
the “Batteries” section of the provided safety instructions.
8. Environmental protection:
a. Remove the battery from the appliance before scrapping it.
b. The battery is to be disposed of safely.
c. For additional disposal instructions see the “Product end of use”
section of the provided safety instructions.
Troubleshooting
Simple troubleshooting steps
In case of a fault, the On/Off indication on mower’s panel will light up in red. Press
any button to check for an optional sound indication for the fault. The table below
will guide you to the corresponding action to take.
No. of
beeps
• Blinking
• • Blinking
• • • Blinking
• • • • Blinking
ON-OFF
indication
red
red
red
red
Meaning Corrective action
Mower crossed
outside / mower
is stuck in place /
lift event detected/
wrong wire connection
Check the blade /
mow motor overheat
No wire signal /
waiting for signal /
wire is cut
Check drive wheels /
drive motor overheat
• Check that the Perimeter Wire is
not too close to the edge or not on
a sloped area.
• Move the mower inside the lawn or
away from this particular location
and renew the operation.
• Check the ground ditches. Fill with
dirt and level off.
• Swap wire connections at the base
station head
• Remove the Disabling Device and
inspect the blade for foreign material or debris preventing rotation.
• Increase cutting height.
• Confirm power supply is plugged
into the power outlet.
• Check power supply and perimter wire connection to the Base
Station.
• Check the indication on the Base
Station. If the wire is cut, repair is
with the provided wire conenctors.
• Check the drive wheels and
remove grass or other objects.
48 49
No. of
beeps
None Blinking red
None Steady red Other faults • Check in the mobile app* or call
ON-OFF
indication
(two LEDs)
Meaning Corrective action
No power supply /
charging problem
• Confirm power supply is plugged
into the power outlet.
• Confirm a good connection of the
power supply to the Base Station.
• Clean the charging pins.
the service.
(*) All faults and corresponding corrective actions are communicated
and described in the app as well. This feature is not available for models
sold in the United States.
Special indications
Indication Meaning
Periodic beeps + ON/OFF LED is red The mower has been lifted or tilted up.
Error sound + Battery LED blinks red two
times
Error sound + Lock LED blinks two times Mowing attempt while child protection is
Error sound + Lock LED blinks three
times
ON/OFF LED & Battery LED blink
together in red, when the GO button is
pressed
Lock LED blinks three times while ON/
OFF LED is off
Mowing attempt while the battery is low.
Need to recharge battery first.
enabled. Press the GO and STOP buttons
together to temporary release the child
protection. Now press GO once or twice
to start mowing.
Mowing attempt while theft protection
is enabled. Unlock the mower with a
registered mobile device first.
Battery voltage is too low to switch the
mower on. Need to keep charging.
The Disabling Device is removed. Insert
the Disabling Device to operate the
mower.
Rebooting your mower
If for some reason your mower needs to be rebooted, simply switch it off
and on.
Resetting the mower to factory defaults
When it is required to bring the mower to its factory defaults, you may do so
by pressing the GO button for more than 10 seconds (until you hear a long
beep and all LEDs start blinking) while the mower is switched off.
50 51
Frequently
Asked Questions
Mower does not dock properly and sometimes misses Base
Station’s contacts
The entrance to the Base Station is not flat. Fill some ground
to flatten the lawn around the Base Station to allow smooth
entrance. Make sure the Perimeter Wire is laid according to the
installation instructions on the supplied installation template.
Make sure that the Base Station is placed on a relatively level
ground.
Poor mowing quality
The blade may be dull. Remove the Disabling Device. Put on
heavy-duty gloves and inspect the blade. Replace if needed.
Avoid mowing wet grass. For the best cut, operate your mower
when the grass is dry. It is recommended not to mow in the
early morning hours.
Patchy and uneven mowing
Current mowing times are not enough. Increase the time your
mower runs on the lawn. Define additional starting points (not
applicable to models for lawns under 200 m
more uniform coverage.
Mower does not depart from base for a long time (not
applicable to models for lawns under 200 m2 / 2150 ft2)
Tap and hold the grey Home button in the app for 3 seconds
while the mower is in the Base Station. The non-depart
reason will be displayed.
2
/ 2150 ft2) for a
Mower operates at wrong times (not applicable to models
for lawns under 200 m2 / 2150 ft2)
Verify that the time on the mower is set correctly. The mower’s
time is automatically synchronized when it connects with a
mobile device.
Mower bumps in a rigid lawn’s border too frequently
Move the Perimeter Wire to be at a distance of 45 cm /18” from
any rigid border (like a fence) at the lawn’s edge.
The mower is very noisy
The blade may be damaged or unbalanced. Check if the lawn is
free from branches, stones or other objects that can damage
the blade. Replace the blade if needed.
52 53
Appendix A
Additional installation options
1. Internal corner installation.
2. External corner installation.
Refer to our
online Help Center
for additional
information.
Refer to our
online Help Center
for additional
information.
Requires
conguring starting
points via the app
Appendix B
Secondary areas
(not applicable for
models under 200 m
/2150 ft
Connected secondary areas
If your lawn has additional areas connected with a passage
and the mower is able to drive through it, then you should
bear in mind the following rules:
• The minimal distance between the wires in such passage
should be 15 cm / 6”
• The minimal width of such passage should be 57 cm / 22”
Min 15 cm Min 57 cm
2
2
)
Separated secondary areas
If your lawn has areas, that are completely
separated (by a fence, sidewalk, pathway, etc.),
then you can extend the perimeter wire to
cover such secondary areas as shown in the
picture below.

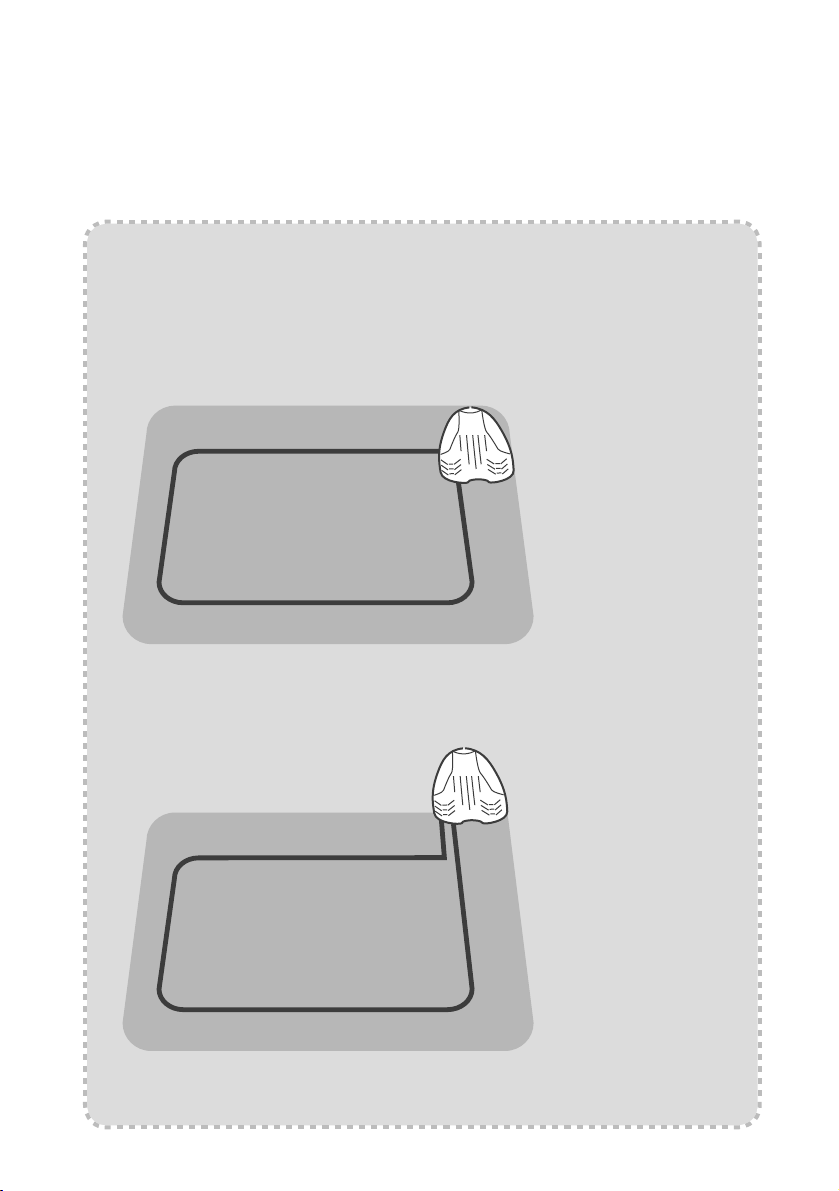

0 cm
54 55
Appendix C
Operating basics
What to do
Switch ON/OFF
Start regular mowing
operation (up to 2 hours)
Start short mowing
opration (60 min)
Send the mower to
the Base Station
Common indications:
Blinking green: The mower is
charging in the Base Station.
Blinking red: There is a fault;
go to the“Troubleshooting”
section of this guide or
connect with the mobile app
for more information.
Green
Red
How to do it
Hold
Press
Press
Press
for 2 seconds
once
twice
when idle
Blinking red fast: The
perimeter wire is cut.
Check the Perimeter Wire’s
connection to the Base
Station. Refer to our online
Help Center for assistance on
finding a wire break.
Red
56 PB
Industriestraße 23 • 66129 Saarbrücken • Germany
Fon/Phone +49 6805 79-202 • Fax +49 6805 79-442
www.WOLF-Garten.com • info@WOLF-Garten.com
DOC9043W_EN
www.WOLF-Garten.com
Loading...
