Features and specications are subject to change at any
time without notice. Visit wolfappliance.com/specs for the
most up-to-date information.
IMPORTANT NOTE: Throughout this guide, dimensions may
1
vary by ±
/8" (3). Dimensions in parentheses are millimeters
unless otherwise specied.
WOLF E SERIES OVENS
24" E Series Oven
The Wolf E series lineup now offers a new 24" wide model
for kitchens where space is limited. Smart technology gives
E series ovens ten cooking modes, with convection fan for
even heating, helping to create great meals with ease. Wolf
E series ovens are crafted of stainless steel. Tubular handles
match the rest of the new Wolf cooking appliance offering,
providing a more cohesive family look. The 24" E series
oven can be installed in a standard or ush inset application.
KEY FEATURES
• Convection fan for even heat distribution.
• Ten cooking modes for precise, easy-to-use control.
• Self-cleaning oven.
• Full-extension bottom rack for easier access to foods.
• Balanced door hinge system for smooth opening and
closing of the door.
24" E SERIES OVEN
TRANSITIONAL
OK
WARM LIGHTTEMPMODETIMER TIME OFF
SO24TE/S/TH
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS
The 24" E series oven can be installed in a standard or ush
inset application. If a cooktop is being installed above an
1
oven, a minimum of
/4" (6) is required between units. Location of the electrical supply within the oven opening may
require additional cabinet depth.
Finish the edges of the opening. They may be visible when
the door is open.
For standard installations, face trim will overlap stiles and
rails. Refer to the chart below.
1
For ush inset installations, a minimum
/4" (6) reveal is
required on all sides. To ensure consistent reveals, each
corner of the opening must be exactly 90°.
INSTALLATION REQUIREMENTS
BASE SUPPORTMIN
24" E Series Oven150 lb (68 kg)
TRIM OVERLAP
Top
Bottom0" (0)
Sides
1
11
/16" (17)
/4" (6)
ELECTRICAL
Installation must comply with all applicable electrical codes.
Locate the electrical supply ush with the back wall and
within the shaded area shown in the illustrations on the
following pages. For ease of installation, the electrical
supply for the oven can be placed in an adjacent cabinet
within reach of the conduit.
Performance may be compromised if the electrical supply is
less than 240 volts.
The 24" oven comes equipped with a standard NEMA 6-20P
style plug. Refer to the illustration below for minimum power
cord plug clearance.
ELECTRICAL REQUIREMENTS
Electrical Supplygrounded, 240/208 VAC, 60 Hz
Service20 amp dedicated circuit
ReceptacleNEMA 6-20R grounding-type
Power Cord6'
(1.8 m)
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS
MINIMUM CORD
CLEARANCE
Power cord clearance.
3"
(76)
wolfappliance.com | 5
WOLF E SERIES OVENS
SIDE
NOTE: Electrical supply must be located in adjacent cabinet within 3'
NOTE: Electrical supply must be located in adjacent cabinet within 3'
WOLF E SERIES OVENS
24" E Series Oven
FLUSH INSET INSTALLATION
7
/8"
(22)
TOP VIEW
23" (584)
FLUSH
INSET
DEPTH
FINISHED
CLEATS*
233/4"
(603)
FLUSH INSET
HEIGHT**
VIEW
ill be visible and should be finished to match cabinetry.
Dimension provides minimum reveals.
(.9 m) of opening.
3
/8"(10)
13
/16" (21)
1
/8" (3)
(603)
233/4"
FLUSH INSET WIDTH**
FRONT VIEW
EE
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS
wolfappliance.com | 7
WOLF MICROWAVE OVENS
Drop Down Door Microwave Ovens
As true cooking instruments, Wolf microwave ovens have
features that make fast meals better meals. New drop down
door microwaves feature a door that hinges at the bottom
for easier access to foods. Available in 24" and 30" widths,
they are designed to match Wolf transitional, professional
and contemporary products. Drop down door microwaves
can be installed in a standard or ush inset application.
KEY FEATURES
• Distinct styles compliment the look of Wolf ovens.
• Bottom-hinged door.
• Large-capacity interior.
• Sensor cooking to monitor and adjust settings.
• Warming feature for gentle heating.
• Reheat setting is perfect for leftovers.
DROP DOWN DOOR MICROWAVES
TRANSITIONAL
MDD24TE/S/TH
PROFESSIONAL
MDD30PM/S/PH
CONTEMPORARY
MDD30CM/B/TH
MDD30TM/S/TH
MDD30PE/S/PH
MDD30TE/S/TH
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS
The drop down door microwave oven can be installed in a
standard or ush inset application.
Finish the edges of the opening. They may be visible when
the door is open.
For standard installations, face trim will overlap stiles and
rails. Refer to the chart below.
1
For ush inset installations, a minimum
/8" (3) reveal is
required on all sides. To ensure consistent reveals, each
corner of the opening must be exactly 90°.
INSTALLATION REQUIREMENTS
BASE SUPPORTMIN
Drop Down Door Microwave125 lb (57 kg)
TRIM OVERLAP24" MODEL30" MODEL
Top
Bottom0" (0)0" (0)
Sides
3
/16" (5)
11
/16" (18) 37/8" (98)
3
/16" (5)
ELECTRICAL
Installation must comply with all applicable electrical codes.
Locate the electrical supply as shown in the illustrations on
the following pages. The receptacle may also be located
in an adjacent cabinet within reach of the power cord. A
separate circuit, servicing only this appliance is required. A
ground fault circuit interrupter (GFCI) is not recommended
and may cause interruption of operation. Refer to the illustration below for minimum power cord plug clearance.
ELECTRICAL REQUIREMENTS
Electrical Supplygrounded, 120 VAC, 60 Hz
Service15 amp dedicated circuit
Receptacle3-prong grounding-type
Power Cord4'
(1.2 m)
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS

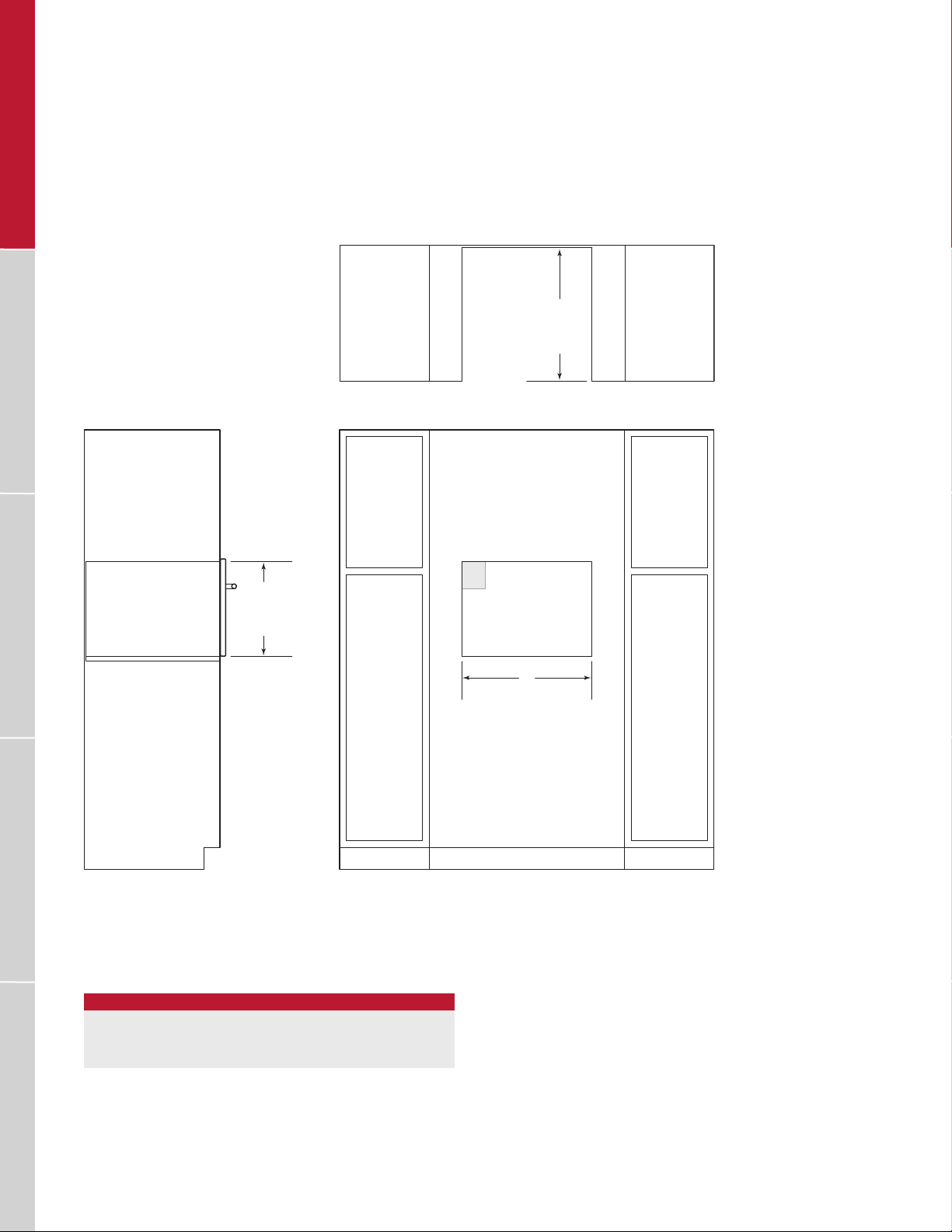

(610) and 30" (762) models require the same opening dimensions.
E
OPENING WIDTH
FRONT VIEW
W
12 | Wolf Customer Care 800.222.7820
WOLF MICROWAVE OVENS
SIDE
*W
**
Drop Down Door Microwave Oven
FLUSH INSET INSTALLATION
7
/8" (22)
FLUSH INSET
TOP VIEW
23" (584)
DEPTH
FINISHED
CLEATS*
181/8"
(460)
FLUSH INSET
HEIGHT**
VIEW
ill be visible and should be finished to match cabinetry.
Dimension provides minimum reveals.
5
E
/16"(8)
A
1
/8" (3)
FLUSH INSET WIDTH**
W
FRONT VIEW
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS
FLUSH INSET WIDTH
DROP DOWN DOOR MICROWAVEWA
24" Model233/4" (603)
13
/16" (21)
30" Model301/8" (765)4" (102)
wolfappliance.com | 13
14| Wolf Customer Care 800.222.7820
WOLF ELECTRIC COOKTOPS

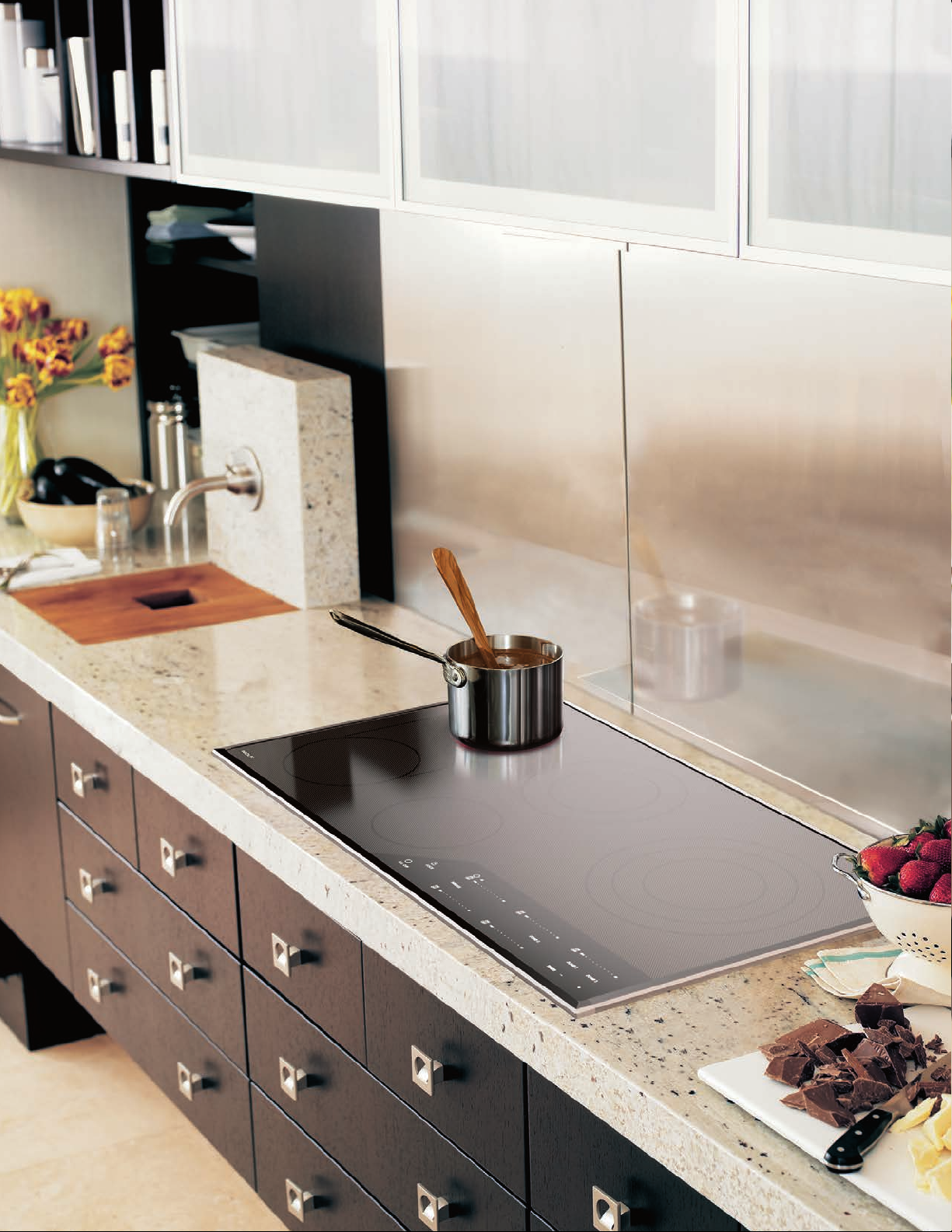

Electric Cooktops
Sleek. Minimal. And let’s not forget powerful and precise.
Wolf electric cooktops offer two modern, rened looks—
transitional and contemporary. All the elements feature a
true simmer setting that hold sauces and stews below the
boiling point. One element includes an even lower onetouch melt setting. Transitional models have stainless steel
trim. Contemporary models can be mounted ush with the
countertop.
KEY FEATURES
• Ceran glass-ceramic surface for scratch resistance
and easy cleaning.
• High-frequency pulsation technology for more even
heating.
• Touch controls, invisible when the cooktop is off, display
an intuitive power scale for precise control.
• True simmer setting prevents scorching.
• Melt setting on one element for gentle heat.
• Dual and triple elements to customize heat for pans of
all sizes.

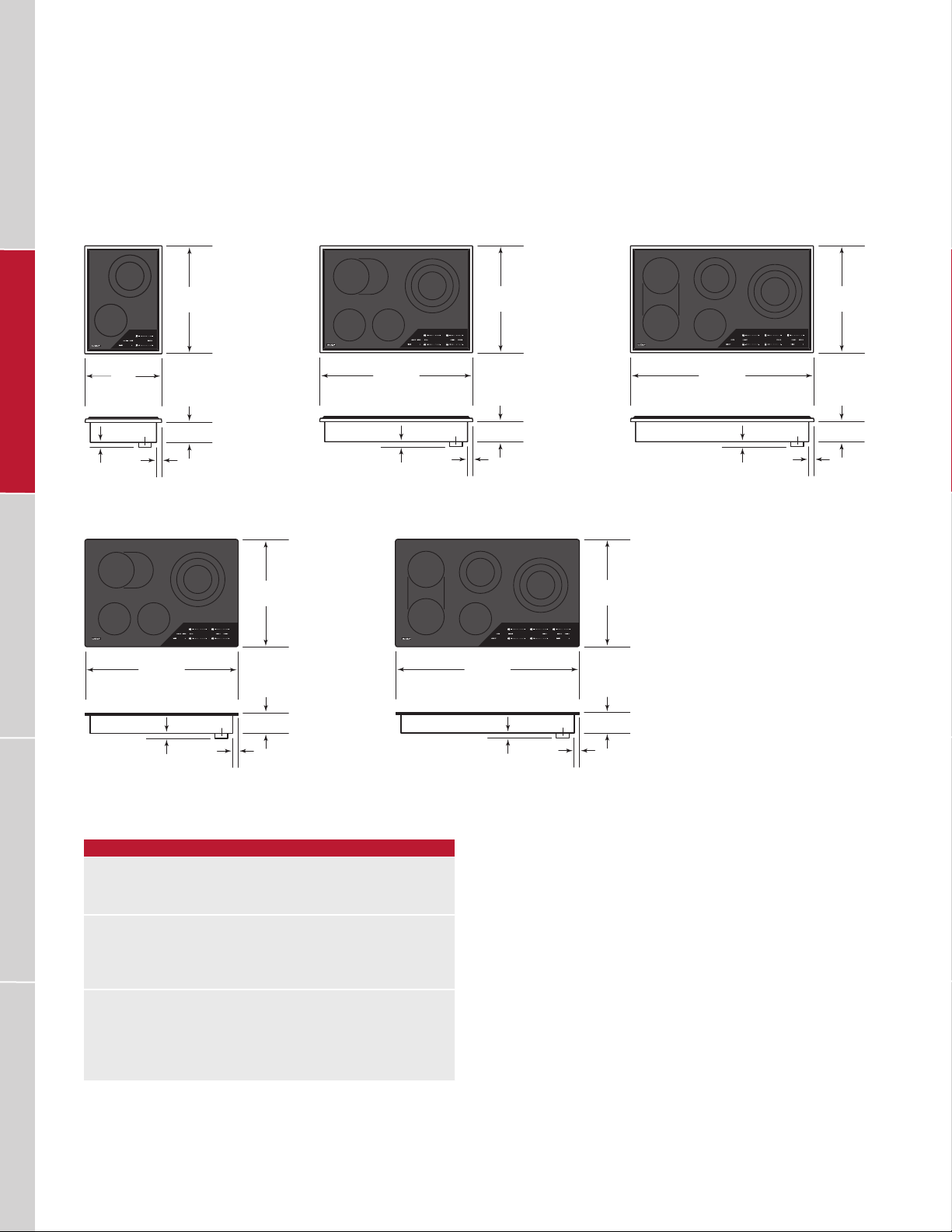

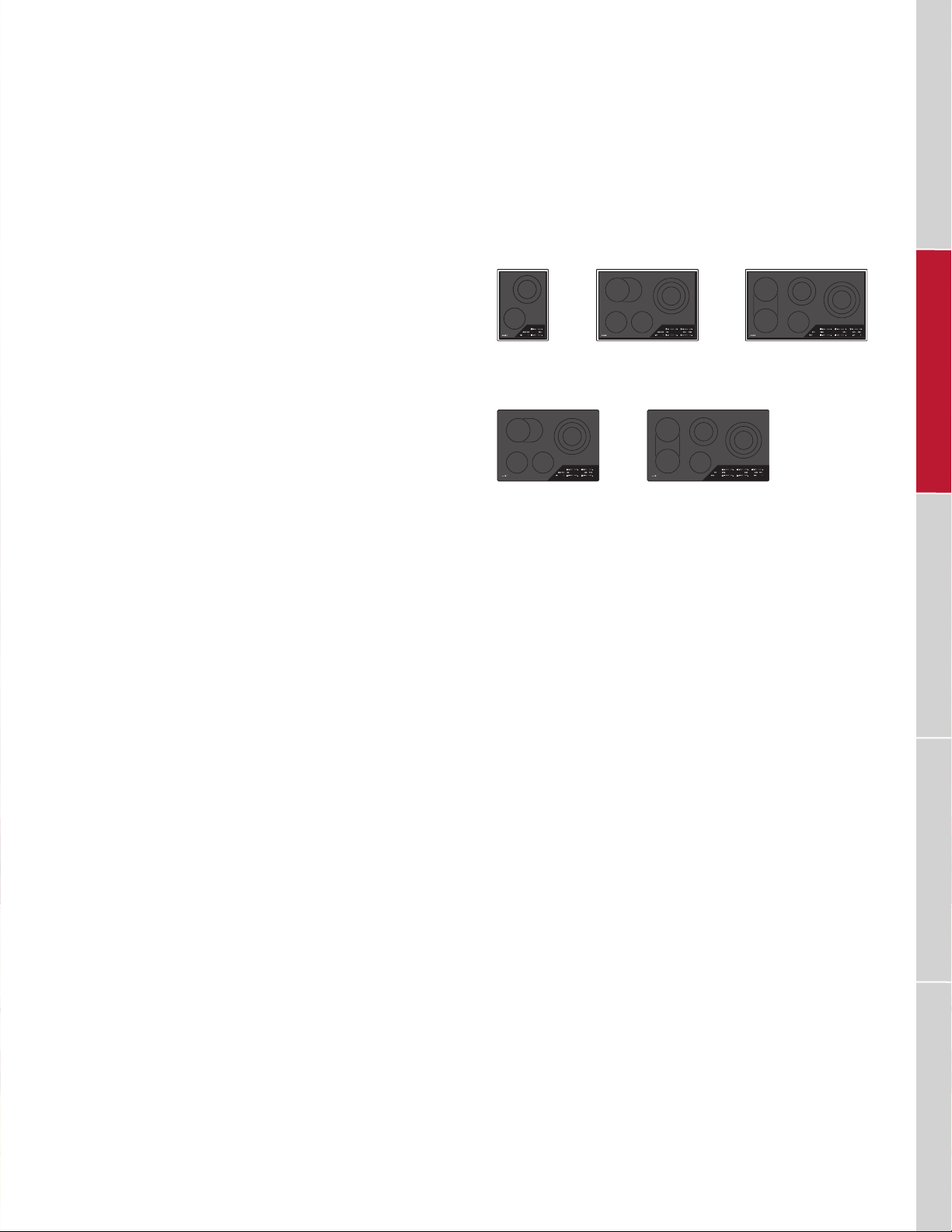

ELECTRIC COOKTOPS
TRANSITIONAL
CE152T/S
CONTEMPORARY
CE304C/B
CE304T/S
CE365T/S
CE365C/B
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS
• Bridge-zone element to create a larger cooking area.
A minimum 2" (51) is required from the bottom of the
cooktop to combustible materials.
Contemporary electric cooktops can be mounted ush with
the top of the countertop, or as a frameless standard installation sitting on top of the countertop surface. If the cooktop
is to be mounted ush with the countertop, a recessed area
surrounding the cooktop cut-out must be provided. Wolf
downdraft systems cannot be used with contemporary
electric cooktops.
IMPORTANT NOTE: Flush mount installations are intended
for granite, solid surface or stone countertop surfaces only.
ELECTRICAL
Installation must comply with all applicable electrical codes.
Locate the electrical supply as shown in the illustrations on
the following pages. A separate circuit, servicing only this
appliance is required.
Performance may be compromised if the electrical supply is
less than 240 volts.
The cooking surface of the Wolf new generation contemporary gas cooktop ts ush to the countertop for a striking,
low-prole look. Front-mounted controls integrate directly
into cabinetry below. New performance enhancements
make delicious results even more of a certainty than ever.
With a choice of knob colors, the new contemporary gas
cooktop offers exceptional design exibility.
KEY FEATURES
• Dual-stacked, sealed burners for precise control and
easy cleanup.
• Flame recognition and automatic reignition for safety and
ease of use.
• True simmer setting on all burners prevents scorching.

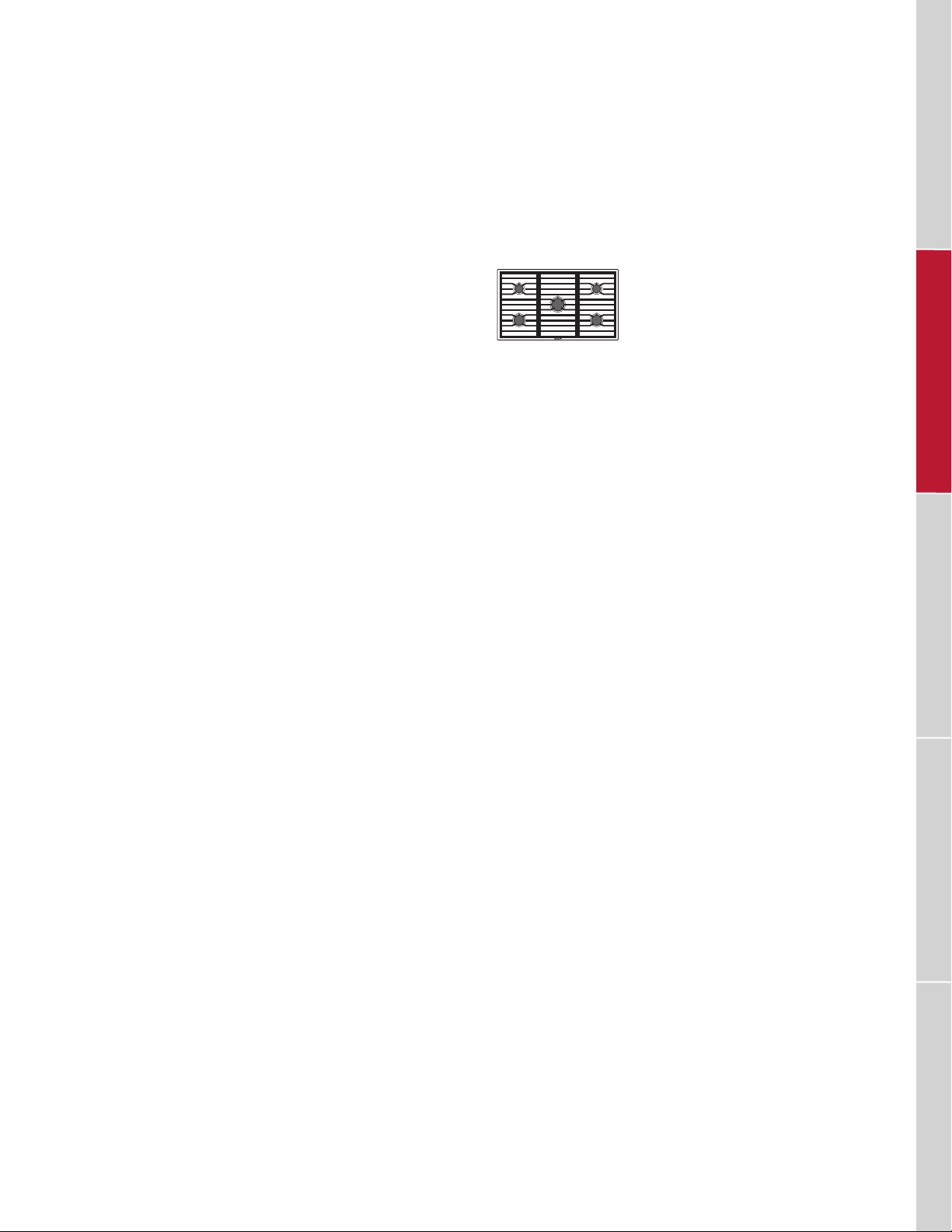

GAS COOKTOP
CONTEMPORARY
CG365C/S
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS
Control knobs for the contemporary gas cooktop are
designed to be mounted on the front face of cabinetry
below the unit. Mounting holes must be drilled through the
cabinet face. Refer to the illustration on the following page
for hole location.
A minimum 2"
(51) is required from the bottom of the
cooktop to combustible materials. If a cooktop is installed
1
above an oven, a minimum of
/4" (6) is required between
units.
ELECTRICAL
Installation must comply with all applicable electrical codes.
Locate the electrical supply as shown in the illustration
on the following page. A separate circuit, servicing only
this appliance is required. A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption of
operation.
ELECTRICAL REQUIREMENTS
Electrical Supplygrounded, 120 VAC, 60 Hz
Service15 amp dedicated circuit
Receptacle3-prong grounding-type
Power Cord6'
(1.8 m)
GAS SUPPLY
Installation must conform with all applicable gas codes.
3
A gas supply line of
the cooktop. If local codes permit, a certied, 3'
1
/2" (13) or 3/4" (19) ID exible metal appliance connector is
recommended to connect the units
/4" (19) rigid pipe must be provided to
(.9 m) long,
1
/2" NPT male inlet to
the gas supply line.
Wolf natural gas cooktops will function up to 10,250'
(3124 m)
will function up to 8,600'
in altitude without adjustment and LP gas cooktops
(2621 m). If the installation exceeds
these elevations, contact an authorized Wolf dealer for a
high altitude conversion kit.
GAS REQUIREMENTS
NATURAL GASWC
Supply Pressure5" (12.5 mb)
Min Line Pressure7" (17.5 mb)
Max Regulator Pressure14" (34.9 mb), .5 psi (3.5 kPa)
LP GASWC
Supply Pressure10" (25 mb)
Min Line Pressure11" (27.4 mb)
Max Regulator Pressure14" (34.9 mb), .5 psi (3.5 kPa)
RANGES / RANGETOPSOVENS / WARMING DRAWERSOUTDOOR GRILLSVENTILATIONCOOKTOPS / COFFEE SYSTEMS
Shaded area above countertop indicates minimum clearance to combustible surfaces,
tible materials cannot be located within this area.
e corner radius 3/8" (10).
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero,
Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks
of Sub-Zero, Inc. All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
FRONT VIEW
24 | Wolf Customer Care 800.222.7820
Wolf Appliance Residential Limited Warranty
FOR RESIDENTIAL USE
FULL TWO YEAR WARRANTY*
For two years from the date of original installation, this Wolf Appliance product warranty covers all parts
and labor to repair or replace, under normal residential use, any part of the product that proves to be
defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty
must be performed by Wolf factory certied service, unless otherwise specied by Wolf Appliance, Inc.
Service will be provided during normal business hours.
LIMITED FIVE YEAR WARRANTY
For ve years from the date of original installation, Wolf Appliance will repair or replace the following
parts that prove to be defective in materials or workmanship: gas burners (excludes appearance), electric
heating elements, blower motors (ventilation hoods), electronic control boards, magnetron tubes and
induction generators. If the owner uses Wolf factory certied service, the service provider will repair or
replace these parts with the owner paying for all other costs, including labor. If the owner uses non-certied service, the owner must contact Wolf Appliance, Inc. (using the information below) to receive repaired
or replacement parts. Wolf Appliance will not reimburse the owner for parts purchased from non-certied
service or other sources.
TERMS APPLICABLE TO EACH WARRANTY
The warranty applies only to products installed for normal residential use. The warranty applies only to
products installed in any one of the fty states of the United States, the District of Columbia or the ten
provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by
negligence, accident or improper use, maintenance, installation, service or repair.
THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF APPLIANCE,
INC. WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION
OF LAW. WOLF APPLIANCE, INC. WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER
EXPRESS, IMPLIED OR STATUTORY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This warranty gives you specic legal rights and you may also
have other legal rights that vary from state to state.
To receive parts and/or service and the name of Wolf factory certied service nearest you, contact Wolf
Appliance, Inc., P.O. Box 44848, Madison, WI 53744; check the contact & support section of our website,
wolfappliance.com, email us at customerservice@subzero.com or call 800-222-7820.
*Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited
60-day parts and labor warranty for cosmetic defects.
*Replacement lters for ventilation hood recirculating kits are not covered by the product warranty.
WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
WNGDG 2/2015
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
