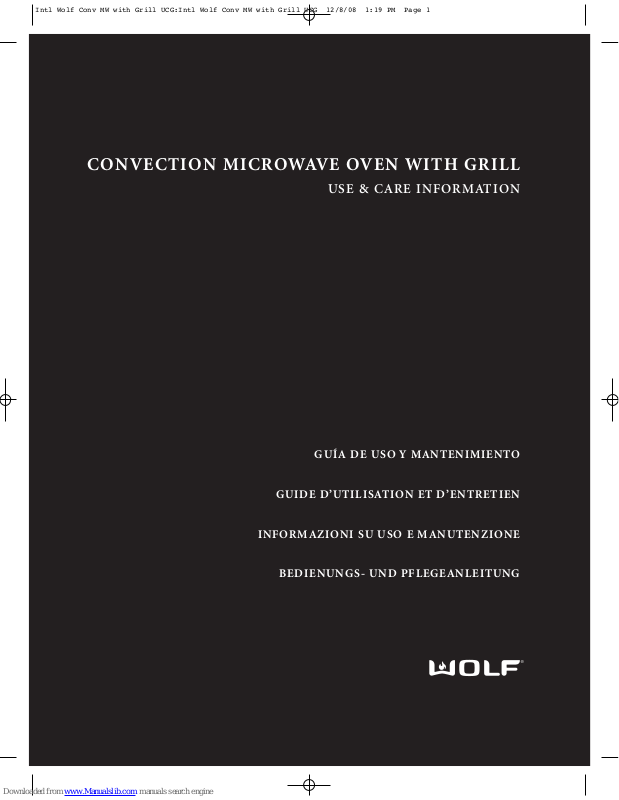

CONVECTION MICROWAVE OVEN WITH GRILL
USE & CARE INFORMATION
GUÍA DE USO Y MANTENIMIENTO
GUIDE D’UTILISATION ET D’ENTRETIEN
INFORMAZIONI SU USO E MANUTENZIONE
BEDIENUNGS- UND PFLEGEANLEITUNG
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 1
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 2
3
ENGLISH
Wolf Convection Microwave Oven 5
Safety Instructions and Precautions 6
Wolf Convection Microwave Features 12
Wolf Convection Microwave Installation 16
Wolf Convection Microwave Operation 20
Wolf Convection Microwave
Automatic Operation 36
Wolf Convection Microwave Care 45
Wolf Troubleshooting 46
Wolf Service Information 48
ESPÃNOL
Horno microondas por convección de Wolf 51
Precauciones e instrucciones de seguridad 52
Propiedades del microondas por
convección de Wolf 58
Instalación del microondas por
convección de Wolf 62
Funcionamiento del microondas
por convección de Wolf 66
Funcionamiento automático
del microondas por convección de Wolf 82
Mantenimiento del microondas
por convección de Wolf 91
Localización y solución de problemas de Wolf 92
Información de mantenimiento de Wolf 94
FRANÇAIS
Four micro-ondes à convection Wolf 97
Instructions et mesures de sécurité 98
Caractéristiques du micro-ondes à
convection Wolf 104
Installation du micro-ondes à
convection Wolf 108
Fonctionnement du micro-ondes à
convection Wolf 112
Fonctionnement automatique
du micro-ondes à convection Wolf 128
Entretien du micro-ondes à
convection Wolf 137
Dépistage des pannes Wolf 138
Service après-vente Wolf 140
ITALIANO
Forno a microonde a convezione Wolf 143
Precauzioni e istruzioni sulla sicurezza 144
Caratteristiche del forno a microonde
a convezione Wolf 150
Installazione del forno a microonde
a convezione Wolf 154
Funzionamento del forno a microonde
a convezione Wolf 158
Funzionamento automatico del
forno a microonde a convezione Wolf 174
Manutenzione del forno a microonde
a convezione Wolf 183
Risoluzione dei problemi Wolf 184
Informazioni sull’assistenza Wolf 186
DEUTSCH
Wolf Umluftmikrowelle 189
Sicherheitshinweise und Vorsichtsmaßnahmen 190
Wolf Umluftmikrowelle - Leistungsmerkmale 196
Wolf Umluftmikrowelle - Installation 200
Wolf Umluftmikrowelle - Betrieb 204
Wolf Umluftmikrowelle
Automatischer Betrieb 220
Wolf Umluftmikrowelle - Pflege 229
Wolf Fehlersuche 230
Serviceinformationen von Wolf 232
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 3
As you read this Use & Care Information,
take particular note of the CAUTION and
WARNING symbols when they appear.
This information is impor tant for safe and
efficient use of the Wolf equipment.
In addition, this Use & Care Information may
signal an IMPORTANT NOTE which highlights
information that is especially important.
signals a situation where minor injury or
product damage may occur if you do not
follow instructions.
states a hazard that may cause serious
injury or death if precautions are not
followed.
WOLF®is a registered trademark of Wolf Appliance, Inc.
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 4
5
THANK YOU
Your purchase of a Wolf convection
microwave oven attests to the importance
you place upon the quality and performance
of your cooking equipment. We understand
this importance and have designed and built
your microwave oven with quality materials
and workmanship to give you years of
dependable service.
We know you are eager to start cooking, but
before you do, please take some time to read
this Use & Care Information. Whether you are
a beginning cook or an expert chef, it will be
to your benefit to familiarize yourself with the
safety practices, features, operation and care
recommendations of the Wolf convection
microwave oven.
We appreciate your choice of a Wolf Appliance product and welcome any suggestions
or comments you may have. To share your
opinions with us, visit www.wolfappliance.com.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
WOLF CONVECTION MICROWAVE OVEN
CONTACT
INFORMATION
Website:
wolfappliance.com
PRECAUTIONS
TO AVOID
POSSIBLE EXPOSURE
TO EXCESSIVE
MICROWAVE ENERGY
Do not attempt to operate this
microwave oven with the door open
since open-door operation can result
in harmful exposure to microwave
energy. It is important not to defeat
or tamper with the safety interlocks.
Do not place any object between the
microwave oven front face and the
door or allow soil or cleaner residue
to accumulate on sealing surfaces.
Do not operate the microwave oven
if it is damaged. It is particularly
important that the oven door close
properly and that there is no damage
to the: door (bent), hinges and
latches (broken or loosened) or door
seals and sealing surfaces.
The microwave oven should not be
adjusted or repaired by anyone
except properly qualified service
personnel.
Read all instructions before using
this appliance to reduce the risk
of burns, electric shock, fire,
injury to persons or exposure to
excessive microwave energy.
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 5
6
TO AVOID THE DANGER OF FIRE
The microwave oven should not be
left unattended during operation.
Power levels that are too high or
cooking times that are too long may
overheat foods resulting in a fire.
The electrical outlet must be readily
accessible so that the unit can be
unplugged easily in an emergency.
The AC power supply must be
230-240 V, 50 Hz, with a minimum
16 A distribution line fuse, or a
minimum 16 A distribution circuit
breaker.
It is recommended that a separate
circuit serving only this appliance be
provided.
Do not store or use the oven
outdoors.
If food being heated begins to
smoke, DO NOT OPEN THE DOOR.
Turn off and unplug the oven and
wait until the food has stopped
smoking. Opening the door while
food is smoking may cause a fire.
Only use microwave-safe containers
and utensils. See page 35.
Do not leave the oven unattended
when using disposable plastic,
paper or other combustible food
containers.
Clean the waveguide cover, the
oven cavity and the turntable after
use. These must be dry and free
from grease. Built-up grease may
overheat and begin to smoke or
catch fire.
IMPORTANT SAFETY INSTRUCTIONS
AND PRECAUTIONS
Do not place flammable materials
near the oven or ventilation
openings. Do not block the ventilation openings.
Remove all metallic seals, wire
twists, etc., from food and food
packages. Arcing on metallic
surfaces may cause a fire.
Do not use the microwave oven to
heat oil for deep frying. The temperature cannot be controlled and the
oil may catch fire.
To make popcorn, only use special
microwave popcorn makers.
Do not store food or any other items
inside the oven.
Check the settings after you start the
oven to ensure the oven is operating
as desired.
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 6
7
Do not operate the oven with the
door open or alter the door safety
latches in any way.
Do not operate the oven if there is
an object between the door seals
and sealing surfaces.
Do not allow grease or dirt to build
up on the door seals and adjacent
parts. Follow the instructions for
“Cleaning and Care” on page 45.
Failure to maintain the oven in a
clean condition could lead to a deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a
hazardous situation.
Individuals with PACEMAKERS should
check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.
TO AVOID THE POSSIBILITY
OF INJURY
Do not operate the oven if it is
damaged or malfunctioning.
Check the following before use:
a) The door; make sure the door
closes properly and ensure it
is not misaligned or warped.
b) The hinges and door safety
latches; check to make sure
they are not broken or loose.
c) The door seals and sealing
surfaces; ensure that they
have not been damaged.
d) Inside the oven cavity or on
the door; make sure there are
no dents.
e) The power supply cord and
plug; ensure that they are not
damaged.
Never adjust, repair or modify the
oven yourself. It is hazardous for
anyone other than a competent
person to carry out any service or
repair operation which involves
the removal of a cover which
gives protection against exposure
to microwave energy.
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 7
8
IMPORTANT SAFETY INSTRUCTIONS
AND PRECAUTIONS
TO AVOID THE POSSIBILITY OF
EXPLOSION AND SUDDEN BOILING
Never use sealed containers.
Remove seals and lids before use.
Sealed containers can explode due
to a build up of pressure even after
the oven has been turned off.
Take care when microwaving liquids.
Use a wide-mouthed container to
allow bubbles to escape.
Microwave heating of beverages can
result in delayed eruptive boiling,
therefore care has to be taken when
handling the container.
To prevent sudden eruption of
boiling liquid and possible scalding:
1) Stir liquid prior to
heating/reheating.
2) It is advisable to insert a glass rod
or similar utensil into the liquid
whilst reheating.
3) Let liquid stand for at least 20
seconds in the oven at the end of
cooking time to prevent delayed
eruptive boiling.
TO AVOID THE POSSIBILITY
OF ELECTRIC SHOCK
Under no circumstances should you
remove the outer cabinet.
Never spill or insert any objects into
the door lock openings or ventilation
openings. In the event of a spill, turn
off and unplug the oven immediately
and call an authorised service agent.
Do not immerse the power supply
cord or plug in water or any other
liquid.
Do not allow the power supply cord
to run over any hot or sharp
surfaces, such as the hot air vent
area at the top rear of the oven.
Do not attempt to replace the oven
lamp yourself or allow anyone who is
not authorised to do so. If the oven
lamp fails, please consult your dealer
or an authorised service agent.
If the power supply cord of this
appliance is damaged, it must be
replaced with a special cord. The
exchange must be made by an
authorised service agent.
Liquids and other foods must not
be heated in sealed containers
since they are liable to explode.
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 8
Do not cook eggs in their shells, and
whole hard boiled eggs should not
be heated in microwave ovens since
they may explode even after
microwave cooking has ended. To
cook or reheat eggs which have not
been scrambled or mixed, pierce the
yolks and the whites, or the eggs
may explode. Shell and slice hard
boiled eggs before reheating them
in the microwave oven.
Pierce the skin of such foods as
potatoes, sausages and fruit before
cooking, or they may explode.
TO AVOID THE POSSIBILITY
OF BURNS
Use pot holders or oven gloves
when removing food from the oven
to prevent burns.
Always open containers, popcorn
makers, oven cooking bags, etc.,
away from the face and hands to
avoid steam burns.
To avoid burns, always test food
temperature and stir before serving
and pay special attention to the
temperature of food and drink given
to babies, children or the elderly.
Temperature of the container is not a
true indication of the temperature of
the food or drink; always check the
food temperature.
Always stand back from the oven
door when opening, to avoid burns
from escaping steam and heat.
Slice stuffed baked foods after
heating to release steam and avoid
burns.
Keep children away from the door to
prevent them burning themselves.
Do not touch the oven door, outer
cabinet, rear cabinet, oven cavity,
ventilation openings, accessories
and dishes during GRILL mode,
CONVECTION mode, DUAL mode,
AUTO COOK and AUTO COOK
FROM FROZEN operation as they
will become hot. Before cleaning
make sure they are not hot.
9
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 9
10
IMPORTANT SAFETY INSTRUCTIONS
AND PRECAUTIONS
OTHER WARNINGS
Never modify the oven in any way.
Do not move the oven while it is in
operation.
This oven is for home food preparation only and may only be used for
cooking food. It is not suitable for
commercial or laboratory use.
TO AVOID MISUSE BY CHILDREN
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or
instruction concerning use of the
appliance by a person responsible
for their safety.
Children should be supervised to
ensure that they do not play with the
appliance.
Do not lean or swing on the oven
door. Do not play with the oven or
use it as a toy.
Children should be taught all important safety instructions: use of pot
holders, careful removal of food
coverings; paying special attention
to packaging (e.g. self-heating materials) designed to make food crisp,
as they may be extra hot.
Only allow children to use the
oven without supervision when
adequate instructions have been
given so that the child is able to
use the oven in a safe way and
understands the hazards of
improper use.
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 10
11
TO PROMOTE TROUBLE-FREE
USE OF YOUR OVEN AND AVOID
DAMAGE
Never operate the oven when it is
empty except where recommended
in the operation manual, see page
27. Doing so may damage the oven.
When using a browning dish or selfheating material, always place a
heat-resistant insulator such as a
porcelain plate under it to prevent
damage to the turntable due to heat
stress. The preheating time specified
in the dish’s instructions must not be
exceeded.
Do not use metal utensils, which
reflect microwaves and may cause
electrical arcing. Do not put cans in
the oven.
Use only the turntable designed for
this oven.
Do not place anything on the outer
cabinet during operation.
Do not use plastic containers for
microwaving if the oven is still hot
from using the GRILL mode,
CONVECTION mode, DUAL mode,
AUTO COOK and AUTO COOK
FROM FROZEN, because they may
melt. Plastic containers must not be
used during above modes unless the
container manufacturer says they
are suitable.
NOTE:
If you are unsure how to connect
your oven, please consult an authorised, qualified electrician.
Neither the manufacturer nor the
dealer can accept any liability for
damage to the oven or personal
injury resulting from failure to
observe the correct electrical
connection procedure.
Water vapour or drops may occasionally form on the oven walls or
around the door seals and sealing
surfaces. This is a normal occurrence and is not an indication of
microwave leakage or a malfunction.
SAVE THESE
INSTRUCTIONS
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 11
12
MICROWAVE OVEN FEATURES
Built-in convection microwave oven with
40 L capacity
230 V model output power—microwave
900W, grill 1300W and convection 1450W
240 V model output power—microwave
900W, grill 1400W and convection 1400W

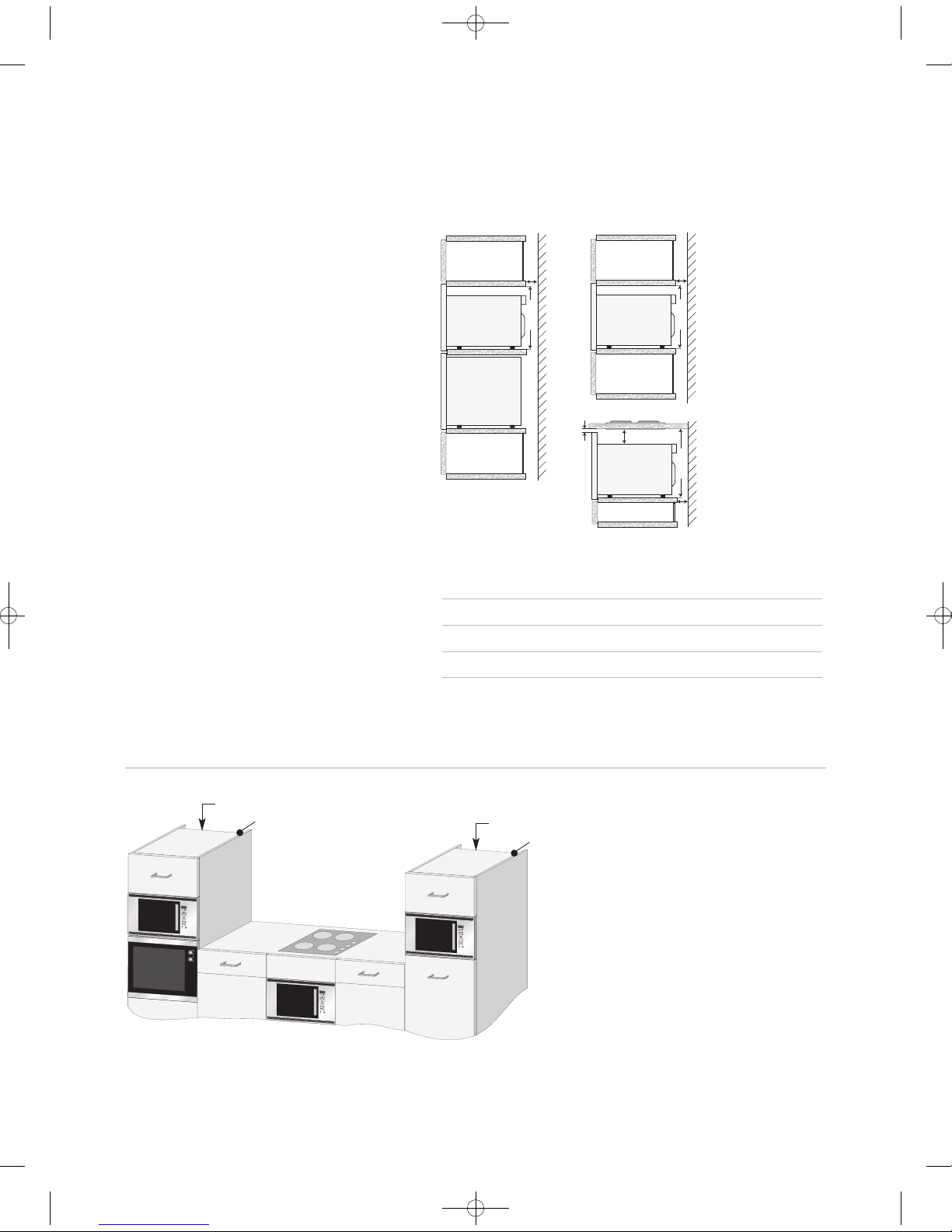

762 mm trim allows microwave to be built
in to fit above a Wolf built-in oven
Classic stainless steel trim
5 auto-cook settings
Multiple language settings
Energy save mode
10 convection temperature settings
WOLF CONVECTION MICROWAVE FEATURES
5 cook settings
Removable 362 mm turntable and turntable
support
Removable low rack for broiling and
removable high rack for baking
Oven door with window
Multiple rack baking
Safety door latches—oven will not operate
unless the door is closed
Oven light comes on when oven is
operating or door is open
Tight door seals
Rear ventilation openings
CONVECTION MICROWAVE OVEN WITH GRILL
Model ICBMW30-230/ICBMW30-240
Door opening
handle
Fixing
point
Grill heating
element
Convection
heating element
Oven
lamp
Fixing
point
Control
panel
Shelf
runners
Fixing
point
Rating
plate
Waveguide
cover
Oven
cavity
CouplingFixing
point
Door seals and
sealing surfaces
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 12
13
WOLF CONVECTION MICROWAVE FEATURES
MICROWAVE OVEN ACCESSORIES
Check to make sure the accessories shown in
the illustrations below are supplied.
Place the turntable support into the
coupling in the centre of the oven floor,
ensuring you place it TOP side up, (TOP is
engraved on one side). It should be able to
freely rotate around the coupling.
Place the turntable on to the turntable
support.
Place the high/low racks onto the turntable
if necessary.
NOTES:
Always operate the oven with the turntable
and support fitted correctly. This promotes
thorough even cooking. A badly fitted
turntable may rattle, may not rotate
properly and damage the oven.
The turntable rotates clockwise or counter
clockwise. The rotary direction may change
each time you start the oven. This does not
affect cooking performance.
When you order accessories, please
mention two details: part name and model
name to your dealer or service agent.
MICROWAVE OVEN ACCESSORIES
Coupling
Turntable
support
Low rack
These racks are used for cooking
in Convection, Dual or Grill mode.
Square shelf Square tray
High rack
Turntable
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 13
14
SQUARE SHELF & SQUARE TRAY
When using the square shelf or square tray,
place them onto the shelf runners as shown in
the illustration below. When using the square
shelf, ensure the shelf locator is on the right
side.
NOTES:
1)
When using either the square shelf or the
square tray, place it at position 1. When
using both of them, place the square tray at
position 1 and the square shelf at position 2
as shown in the diagram.
2)
When using the square shelf and/or the
square tray, leave the turntable in the oven.
3)
When using the square shelf or the square
tray, rotate the square tray or the container
on the square shelf 180˚ halfway to achieve
better results.
4)
When using the square shelf follow the
notes below to prevent them slipping out:
Do not place container with food
weighing more than 5 kg on the square
shelf.
Ensure that the square shelf is in the
correct position and does not rattle.
When removing the food, pull the square
shelf until it is slightly locked, and then
remove the food.
5)
To get the best results when following pack
instructions for convection, please follow
the instructions for “conventional oven”.
WOLF CONVECTION MICROWAVE FEATURES
Never use the square shelf and square
tray for microwave cooking and dual
cooking as this may cause arcing.
SQUARE SHELF & SQUARE TRAY
Square tray Square shelf
Shelf locator
Square shelf
Use the square tray and square
shelf for convection only.
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 14
15

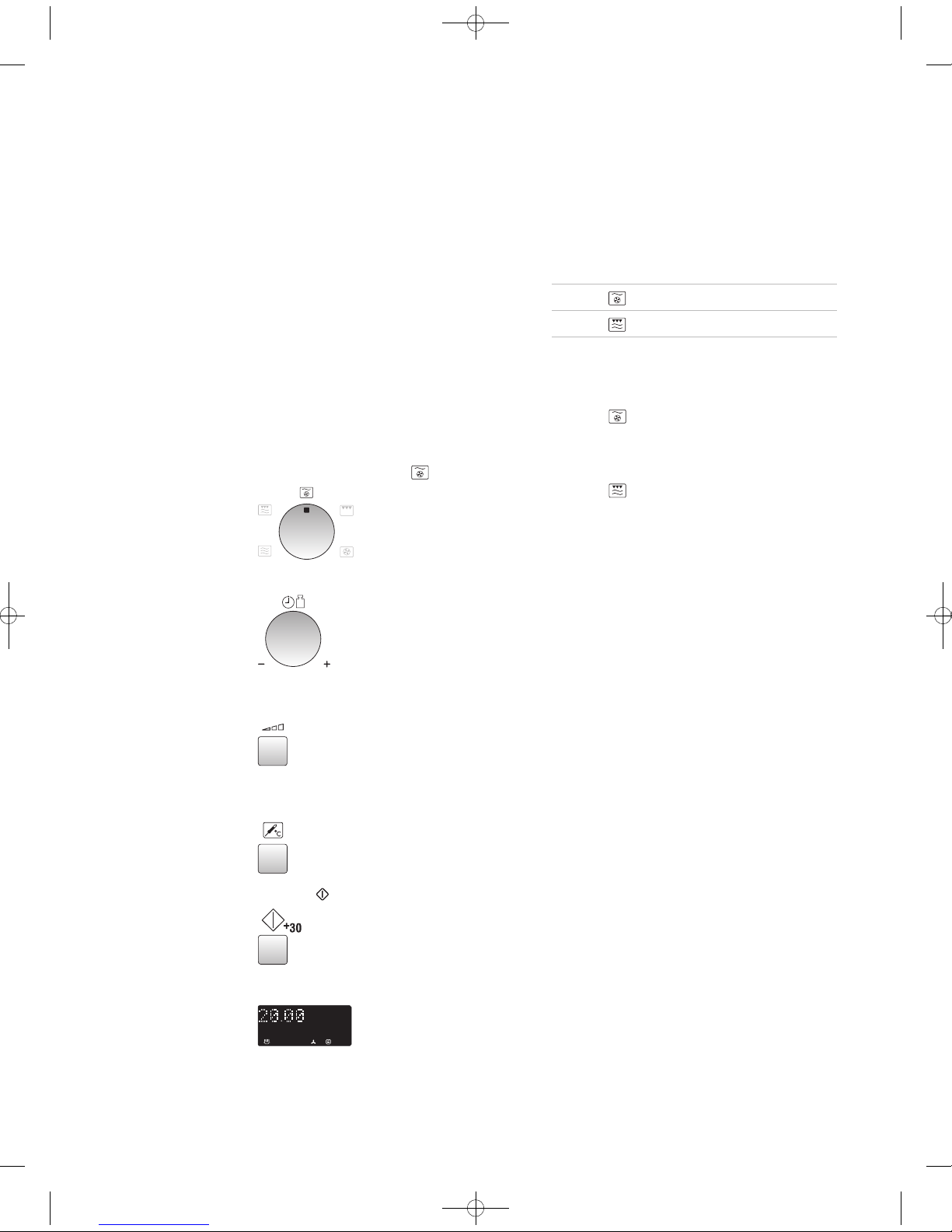

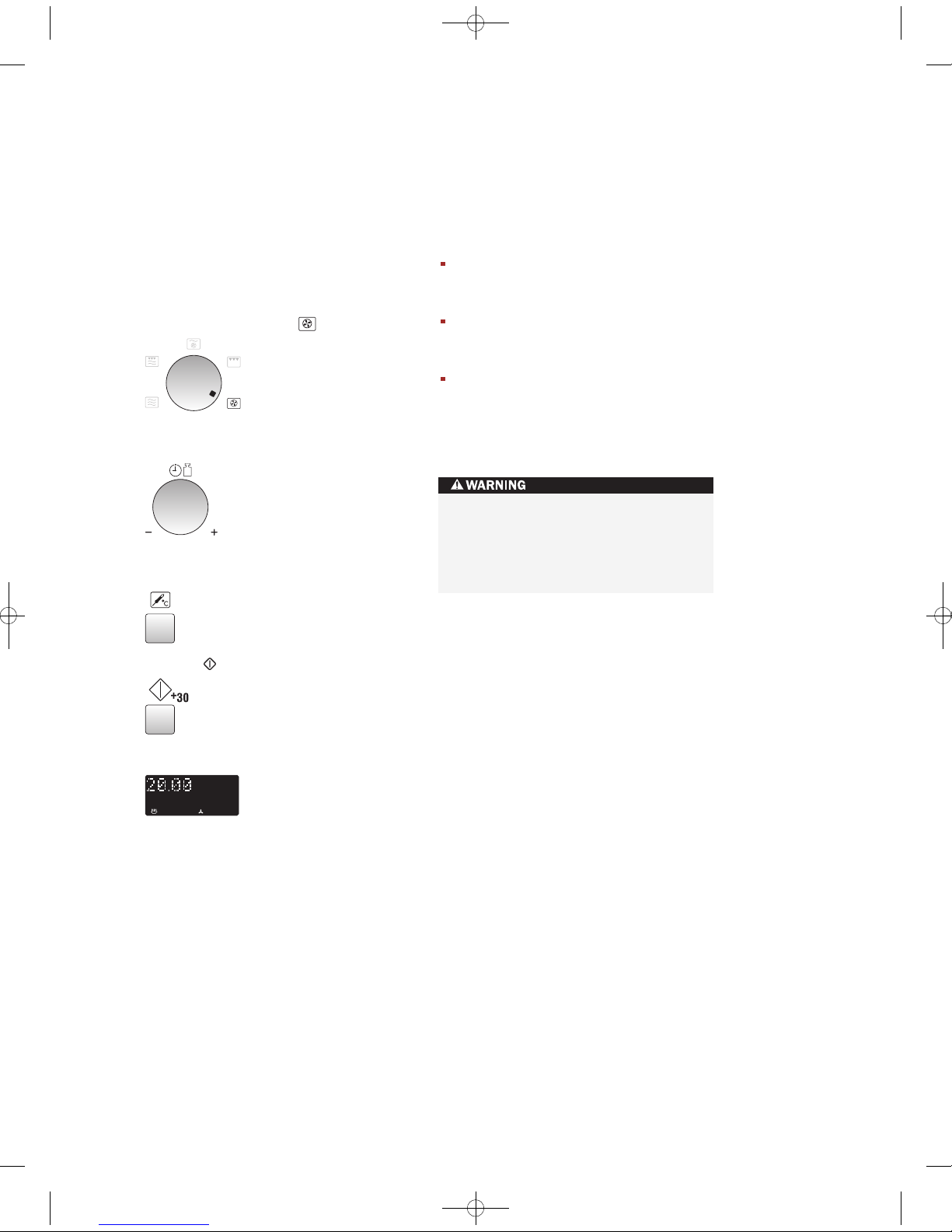

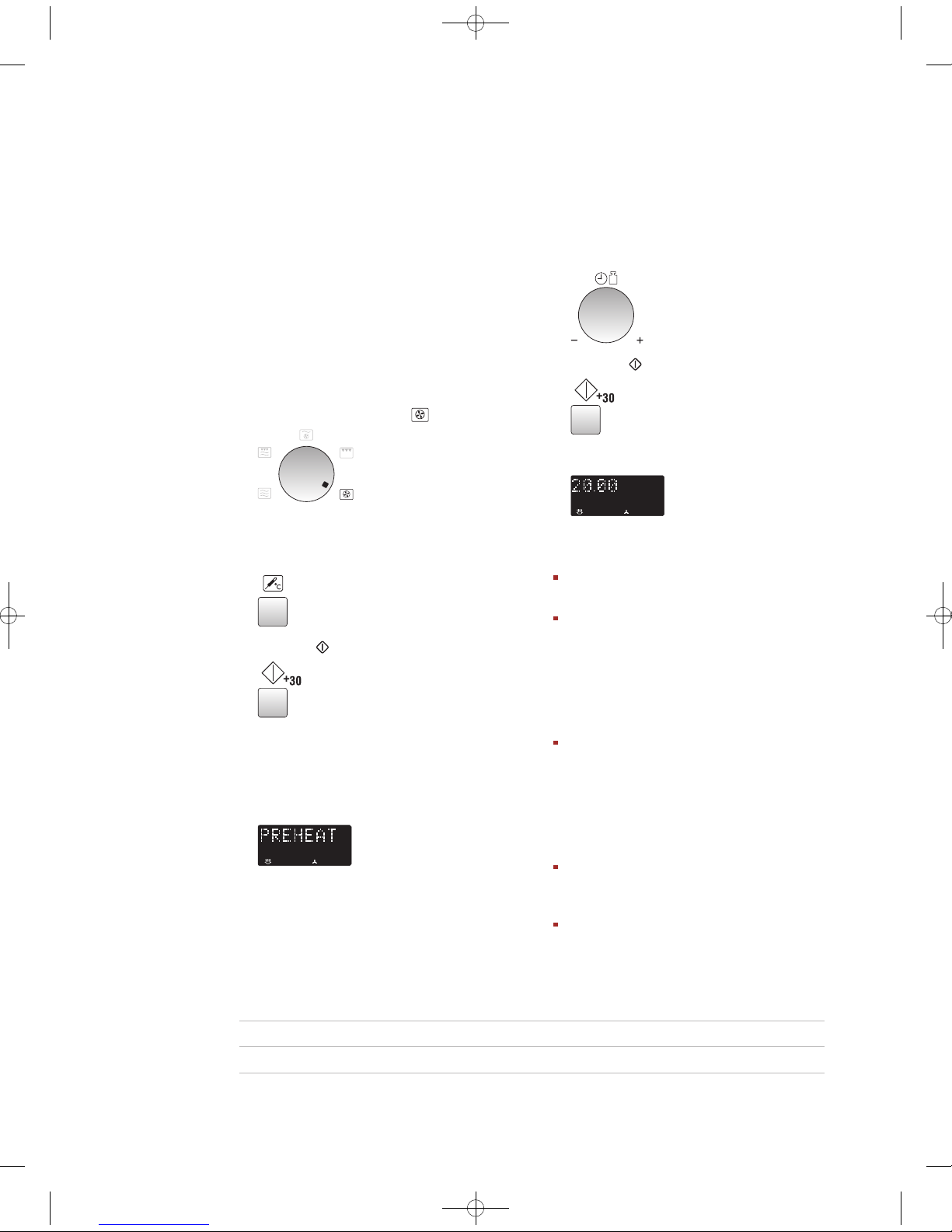

CONTROL PAN EL
WOLF CONVECTION MICROWAVE FEATURES
COOKING IN
PROGRESS indicator
START indicator
LESS/MORE buttons
GRILL indicator
TIMER/WEIGHT knob
Rotate the knob to
enter either the
cooking/defrost time
or weight of food.

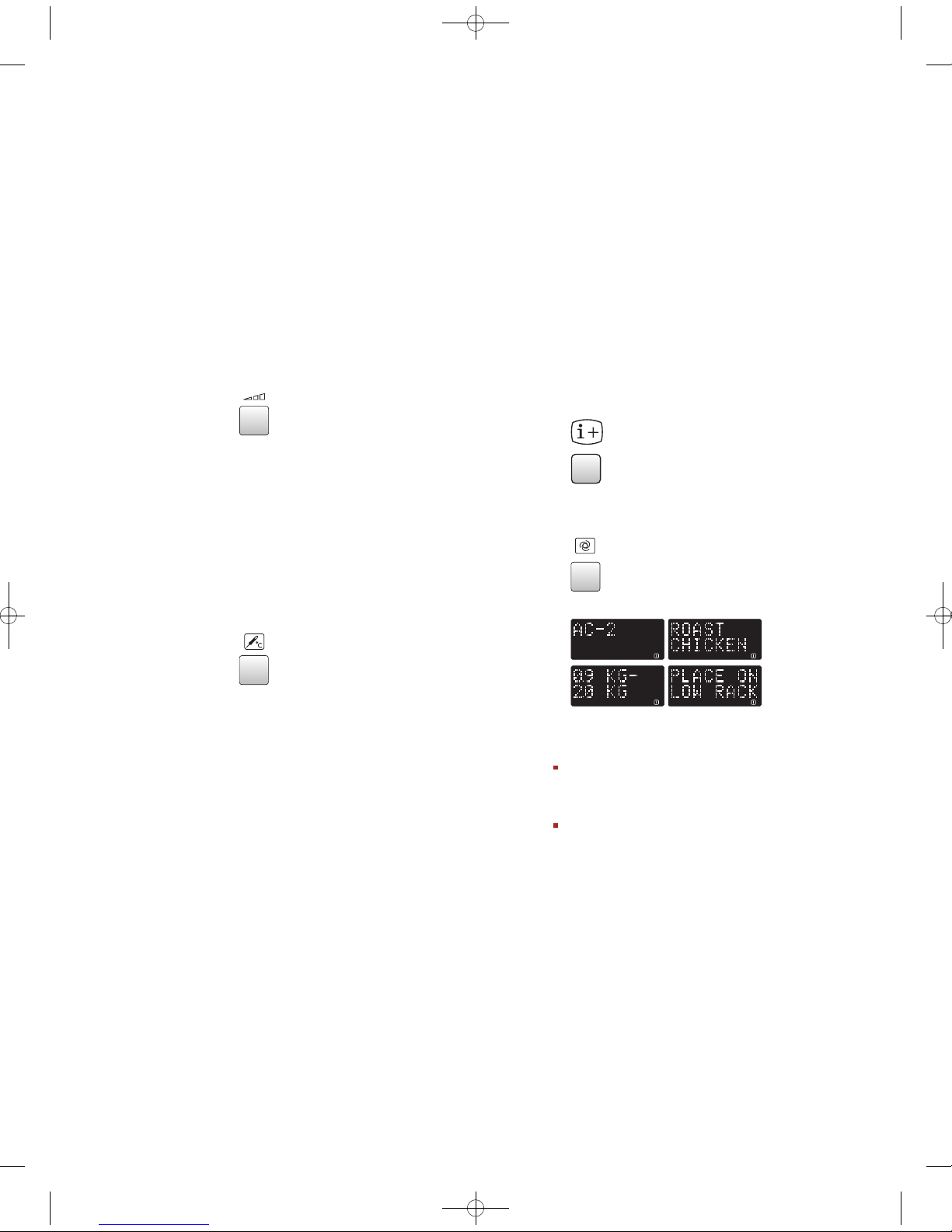

AUTO COOK button
CLOCK SETTING button
CONVECTION button
STOP button
MICROWAVE indicator
CONVECTION indicator
INFORMATION indicator
Digital Display
INFORMATION button
LANGUAGE button
COOK FROM FROZEN
button
AUTO DEFROST button
MICROWAVE POWER
LEVEL button
+30 button (START)
COOKING MODE knob
for microwave cooking
for microwave cooking
with GRILL
for microwave cooking
with CONVECTION
for GRILL
for CONVECTION
Intl Wolf Conv MW with Grill UCG:Intl Wolf Conv MW with Grill UCG 12/8/08 1:19 PM Page 15
Loading...
