Wolf 810919 Installation Guide

Page 1 of 1

810920 / Rev A / June, 2007

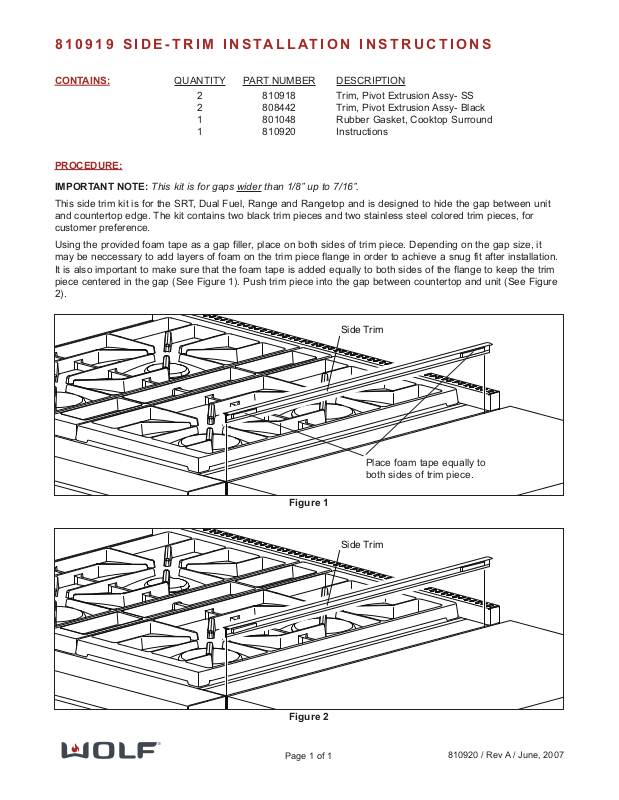

810919 SIDE-TRIM INSTALLATION INSTRUCTIONS

CONTAINS: QUANTITY PART NUMBER DESCRIPTION

2 810918 Trim, Pivot Extrusion Assy- SS
2 808442 Trim, Pivot Extrusion Assy- Black
1 801048 Rubber Gasket, Cooktop Surround
1 810920 Instructions

PROCEDURE:

IMPORTANT NOTE: This kit is for gaps wider than 1/8” up to 7/16”.

This side trim kit is for the SRT, Dual Fuel, Range and Rangetop and is designed to hide the gap between unit
and countertop edge. The kit contains two black trim pieces and two stainless steel colored trim pieces, for
customer preference.

Using the provided foam tape as a gap filler, place on both sides of trim piece. Depending on the gap size, it
may be neccessary to add layers of foam on the trim piece flange in order to achieve a snug fit after installation.
It is also important to make sure that the foam tape is added equally to both sides of the flange to keep the trim
piece centered in the gap (See Figure 1). Push trim piece into the gap between countertop and unit (See Figure

2).

Side Trim

Figure 1

Side Trim

Figure 2

Place foam tape equally to
both sides of trim piece.
