Introduction

Overview

This 2RU rack-mounted MPEG/Video/Audio monitor is the new benchmark in LCD monitors for broadcast and professional video applications requiring support for both file-based and traditional baseband sources. The monitor has 480 x 272 screen resolution, antiglare TFT screens, and fully digital signal processing. It supports H.264/MPEG-4 Part 10, also known as AVC/H.264 or Advanced Video Coding. It also supports H.262/MPEG-2 Part 2. These are decoded from MPEG-2 TS (Transport Stream) containers in ASI or IP transport interfaces. The TS container format can be either 188 bytes or 204 bytes. Error correction bytes are not used. It does not decode encapsulated transport streams in other formats, such as QuickTime (MPEG4/ H.264). The MPEG-2443 also supports 3G/HD/SD-SDI and HDMI. All video formats are scaled to native screen resolution in the highest quality using precision scaling and gamma correction to produce the best images available.

CHAPTER 1

Installation

Topics

This chapter contains detailed information on safety and installation requirements. It also contains an overview of the front and back panel controls, connectors, and screen features. To quickly unpack and set

up this unit for monitoring, please refer instead to Chapter 2: Quick Start.

Topics Page

Introduction 1 Safety 2

821063: MPEG-2443 User Guide

Page 8

Chapter 1 Installation

Introduction

Topics Page

Installation Recommendations 3 On-Screen Display Features 4 Front Panel 5 Rear Panel Connectors 8

Safety

Important Safety Instructions

WARNING:

IMPORTANT:

Do not use this equipment near water, rain or moisture.

1. Read, keep, and follow all of these instructions; heed all warnings.

2. Use only a dry cloth to clean the equipment.

3. Do not block any ventilation openings. Install only in accordance

with the instructions in the section Installation Recommendations

on page 3.

4. Do not install near any heat source such as a radiator, heat register,

amplifier, or stove.

5. Do not expose the equipment to rain or moisture.

6. Do not attempt to plug the unit into a two-blade outlet (with only

two prongs of equal width).

By design, these audio/video monitors will only plug into a threeprong outlet for your safety. If the plug does not fit into your outlet, contact an electrician to replace the obsolete outlet.

7. Protect the power cord from being walked on or pinched,

particularly at the plug’s source on the equipment and at the

socket.

8. Use only the attachments/accessories specified by the

manufacturer.

9. Refer all servicing to qualified service personnel. Servicing will be

required under all of the following conditions:

821063: MPEG-2443 User Guide

Page 9

• The equipment has been damaged in any way, such as when

• Objects have fallen onto the equipment; or the equipment has

• The equipment does not operate normally.

• The equipment has been dropped.

Safety Symbols

Chapter 1 Installation

Installation Recommendations

the power-supply cord or plug is damaged.

been exposed to rain or moisture, or liquid has been spilled onto the equipment.

WARNING:

The symbol to the left warns of electric shock hazard inside the unit. Disconnect the power cord before removing access panels when installing upgrades. Only qualified service personnel are to operate the equipment with covers removed, and are to exercise caution to avoid personal injury or damage to the equipment from overheating.

Installation Recommendations

Mounting

The unit is designed to install into a standard 19" rack mounted at eye level for best visual observation of the monitor screen. Please adhere to the following clearances to provide adequate ventilation:

Clearance Surface

24” Front

3” Rear 2” Sides

1.75” Top and Bottom

Heat Dissipation

This monitor contains four very quiet fans, so no special physical mounting considerations are necessary regarding heat dissipation except under adverse conditions, provided the ambient temperature inside the mounting enclosure does not exceed 40°C (104°F).

Adjacent devices can be rack mounted (or stacked) in proximity

821063: MPEG-2443 User Guide

Page 10

Chapter 1 Installation

Markers:

Input Signal

Audio Level Meters

Under Monitor Display (UMD)

Area

Center

Safe Area

On-Screen Display Features

to the unit. If the temperature is above 104°F (40°C) allow an additional 1RU 1.75” (44.45mm) space above and below the unit for air circulation.

DC Power

The MPEG-2443 requires 24 VDC at 3 Amps. It cannot be harmed by accidental reverse connection of power.

On-Screen Display Features

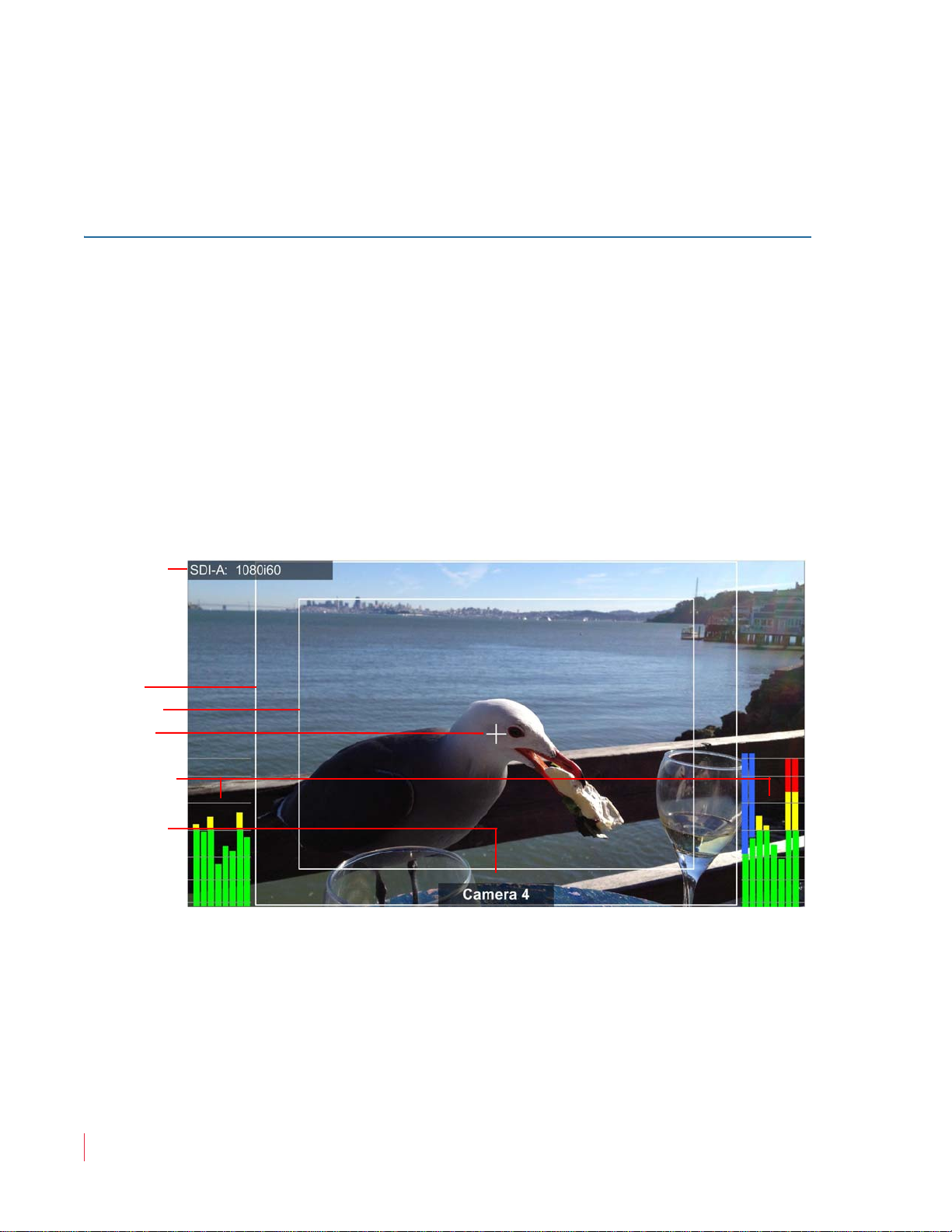

Some of the monitor display features (Figure 1–1) can be rearranged on the screen as described in this section.

Figure 1–1 Display Features

• Input Signal: The detected input signal type is displayed.

• Area Marker: By default the appearance of the Area Marker is

controlled by the

F1 button. Refer to F1 & F2 Buttons on page 29.

The Area marker can be shown in different aspect ratios using the

Marker Menu. Refer to the Marker Menu on page 39.

• Safe Area Marker: By default the appearance of the Safe Area

Marker

is controlled by the F1 button. Refer to F1 & F2 Buttons on

Page 11

Chapter 1 Installation

Tally Lights

Headphone Jack

Speakers

USB Port

Front Panel

page 29. Safe areas, ranging from 80% to 95%, are available from the

Marker Menu. Refer to the Marker Menu on page 39.

• Center Marker: By default the appearance of the Center Marker

is controlled by the F1 button. Refer to F1 & F2 Buttons on page 29.

• Audio Levels: By default the appearance of the Audio Level

Meters

is controlled by the F2 button. Refer to F1 & F2 Buttons on

page 29. Levels for the selected audio channels can be displayed on

up to 16 meters evenly divided between the right and left sides of the monitor screen.

• UMD: The UMD Options Menu on page 41 provides settings to

customize the UMD (Under Monitor Display) text area to show a line of up to 16 characters.

Front Panel

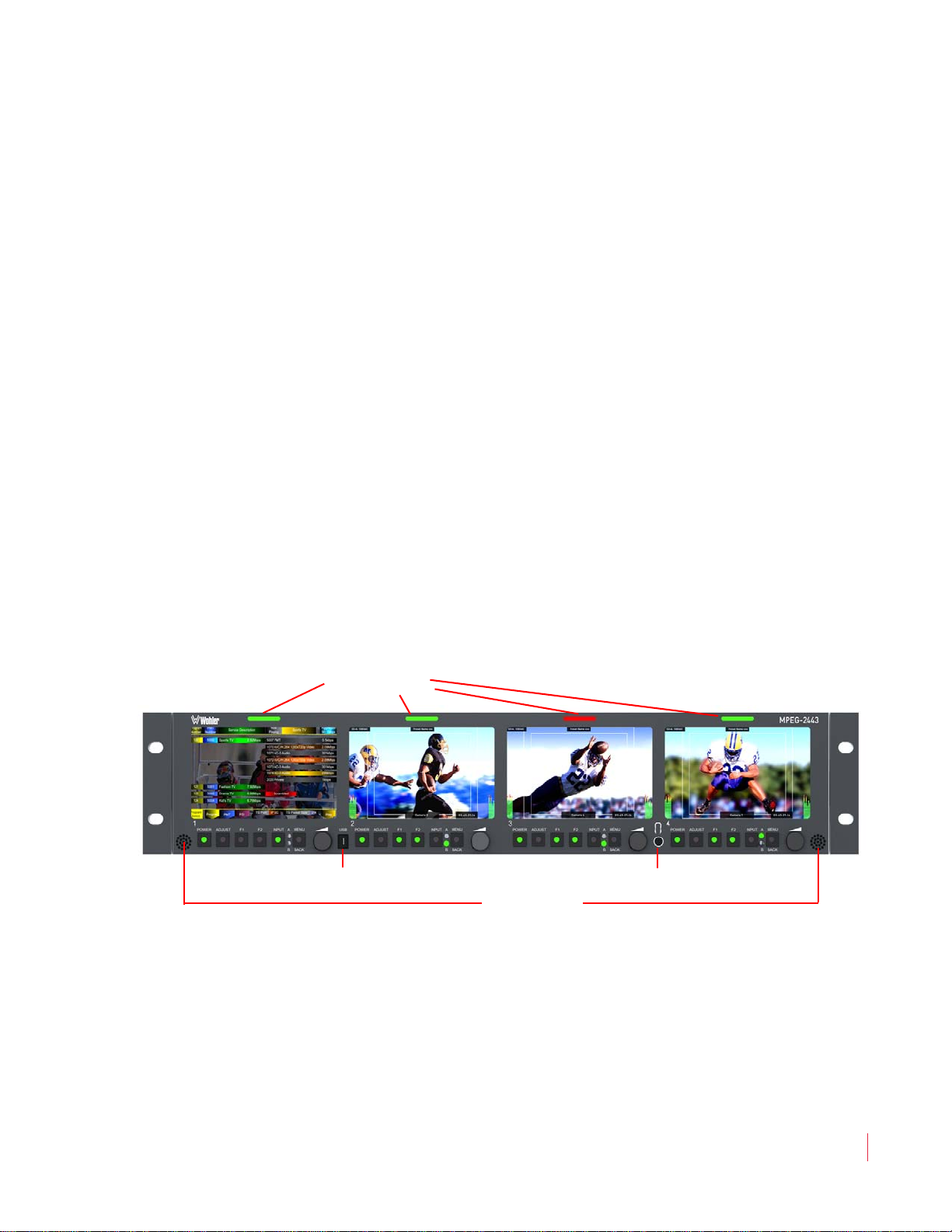

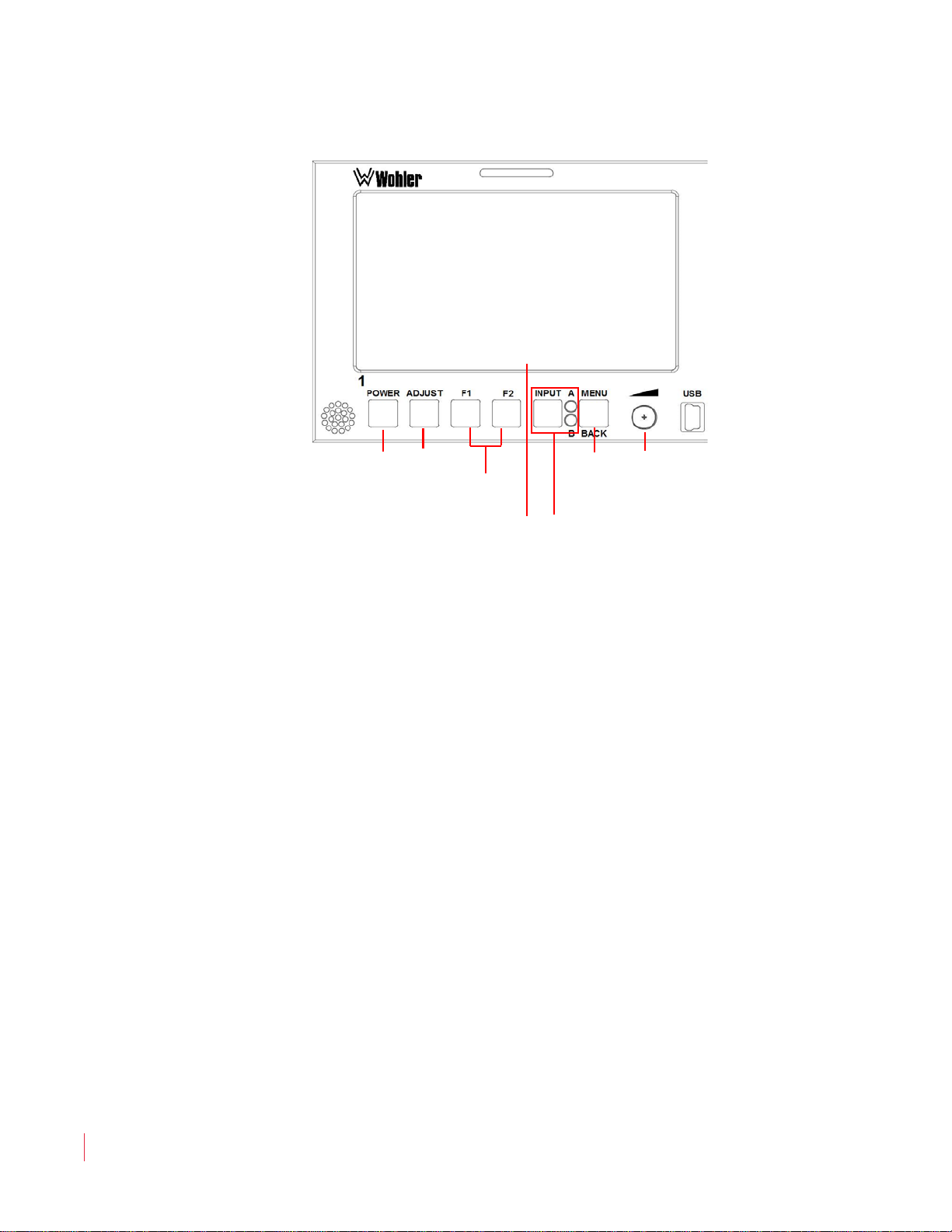

The front panel feature descriptions refer to Figure 1–2 and Figure 1–3 below.

Figure 1–2 Front Panel Overview

821063: MPEG-2443 User Guide

Page 12

Chapter 1 Installation

Power Adjust

Programmable Function

[F] Buttons

Input Source Select

and Indicators

Menu/

Back

Volume, Mute, and

Menu Option Select

LCD Screen

Front Panel

Figure 1–3 Screen Controls (One Set Per Screen)

•

Tally Lights: These tri-color (red/green/amber) lights are

controlled through the Tally and GPI connector on the rear of the

panel.

• Speakers: Speakers on either side of the unit deliver sound from

the selected video input. Pressing or turning the Volume control of

a screen will automatically switch the audio in the speakers and headphones to the audio from that screen’s selected audio channels.

Power: Each of the four Power buttons turns its associated LCD

•

screen on and off. During startup, the power indicator blinks. When the display is ready, it will stop blinking and remain on. Note that it does take some time for each screen to power up. Refer to Power

Buttons on page 20 for more information.

• Adjust: This button opens a menu allowing you to adjust a variety

of video parameters. Refer to Adjust Menu on page 29 for more information.

• F1 and F2: The F1/F2 buttons are programmable as hot keys for

parameter adjustments. The default function for default function of the

F2 button is Level Meters. Refer to the

F1 is Markers; the

Functions Menu on page 43 for more information.

821063: MPEG-2443 User Guide

Page 13

Chapter 1 Installation

Front Panel

• Input: This button opens a menu that allows you to select between

the input sources for each screen: BNC Port A: SDI, BNC Port A:

, BNC Port B: SDI, BNC Port B: ASI, Ethernet Unicast,

ASI Ethernet Multicast

, or HDMI. Selecting either SDI or ASI on Port

A is indicated by the A LED; selecting either SDI or ASI on Port B is

indicated by the

Input LED.

B LED. Selecting Ethernet or HDMI lights the

• Menu/Back: Pressing the Menu button displays the Main Menu.

Pressing it again returns you to the previous menu or to the Main

Screen

from the Main Menu. Refer to Using the Menu System on

page 34 for more information.

• LCD Screen: The LCD screens display the selected video and OSD

features. For MPEG video, they also display data and PID (packet identifier) tables and other useful information.

• USB: This port allows you to connect a flash drive to the MPEG-

2443 to upgrade the firmware.

• Dolby Option: If the MPEG-2443 contains the Dolby option, when

a Dolby D or DD+ bitstream is encountered, it is automatically decoded and downmixed to stereo. This downmix is played through the internal speakers/headphone jack and is displayed on the on-screen meters.

• Volume/Enter: Rotating this knob when a menu is not displayed

increases or decreases the audio volume of the selected video

stream. Pressing or turning any Volume knob selects the audio of

that screen for monitoring and mutes or unmutes the audio. The

Volume knobs are also used to adjust options within the menu

system.

•

Headphone Jack (Mini 1/8”): (Figure 1–2 on page 5) This jack

allows you to monitor the assigned left/right stereo audio channels with stereo headphones from this mini-stereo connector.

821063: MPEG-2443 User Guide

Page 14

Chapter 1 Installation

Tally

& GPI

Cooling

Fan

3G/HD/SD-SDI & ASI In & Out

Power

HDMI In

Rear Panel Connectors

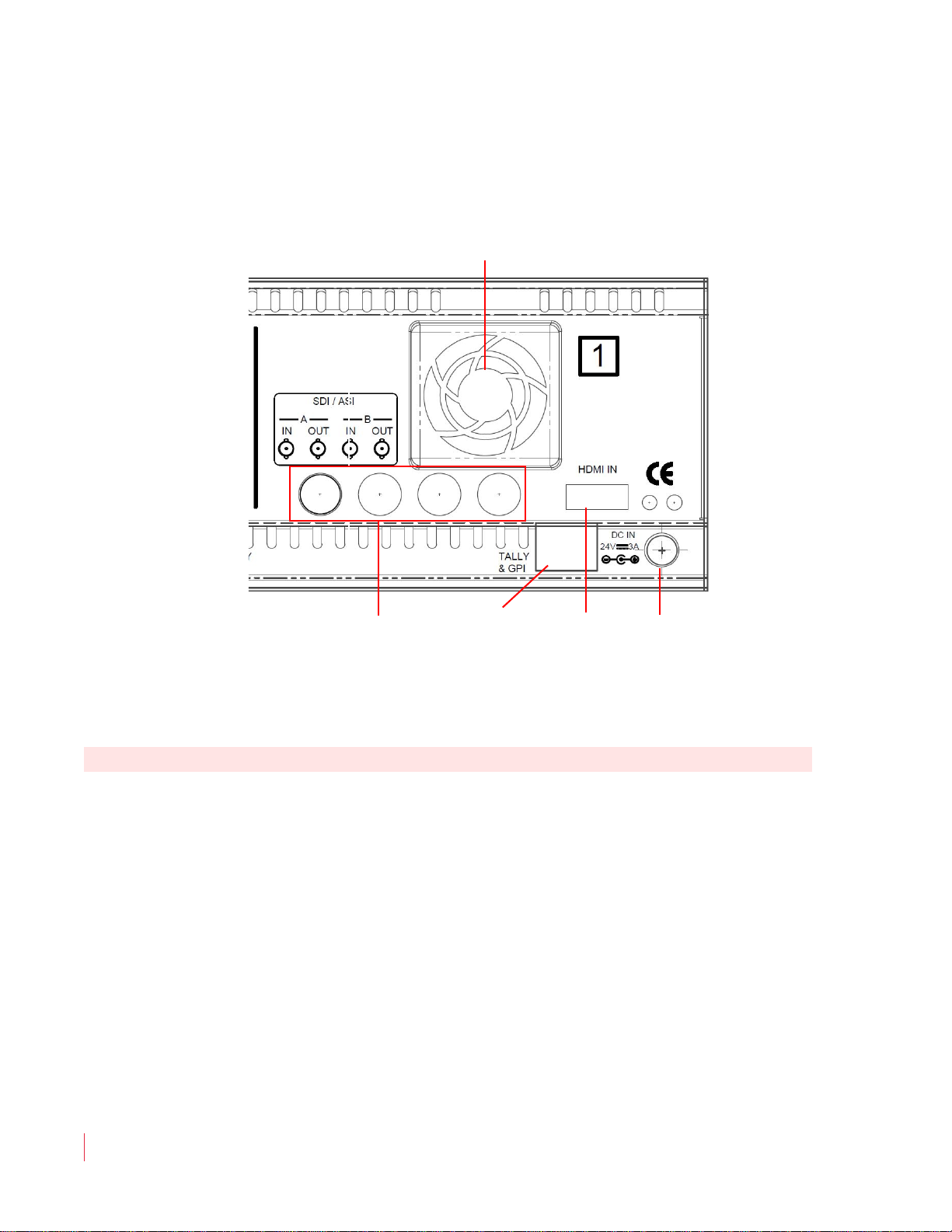

Figure 1–4 MPEG-2443 Rear Panel

• HDMI: This connector accepts an HDMI signal for display. Select

which input type you want from the System Menu on page 48.

Note:

This input does not support scrambled sources.

3G/HD/SD-SDI or ASI I/O (A & B, BNCs):These input

•

connectors accept standard 3G/HD/SD-SDI or ASI MPEG video and audio. The system regenerates the 3G/HD/SD-SDI or ASI signals from each SDI/ASI input before outputting them to these female BNC connectors. Select which input type you want from the

System Menu on page 48.

•

RS-485 I/O (RJ-45) (not shown): These two ports are used for

UMD and tally remote control.

821063: MPEG-2443 User Guide

Page 15

Chapter 1 Installation

Rear Panel Connectors

• Ethernet (RJ-45) (not shown): This connector is used for

network communications and MPEG input to each of the four screens.

Important:

If you plan to plug multiple MPEG-Series monitors into a local area network, please verify first that the Ethernet address of each screen on

each unit is unique, to prevent network problems. Use the Network

to view and set Ethernet addresses.

• Tally and GPI (RJ-45): This 8-pin connector controls the tally

lights on the front panel and allows remote control of the unit. Refer to Figure 1–5 and Table 1–1 when making connections. Refer to the

GPI-In Menu on page 45 to set up operation.

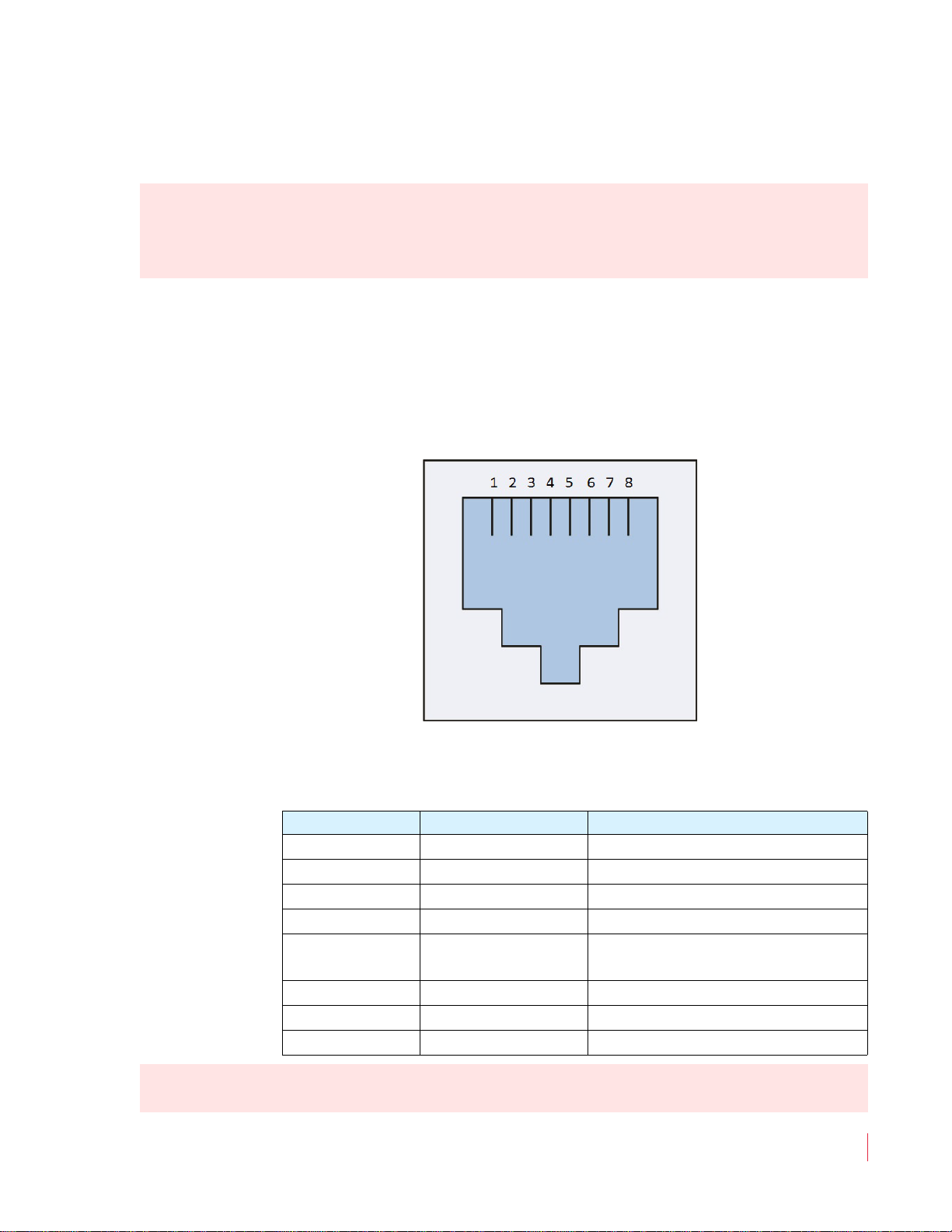

Figure 1–5 Tally & GPI-I/O RJ-45 Connector

Note:

Table 1–1 Tally & GPI RJ-45 Pinout

Pin Name Function

1 Tally Red Red Tally Signal 2 Tally Green Green Tally Signal 3 GPI-In 3 General Purpose Input 3 4 GPI-In 4 General Purpose Input 4

5Gnd

Ground Return for signals on all

other pins 6 GPI-In 6 General Purpose Input 6 7 (future release) 8 (future release)

For a Yellow Tally, activate both the Red Tally and Green Tally

Signal

inputs.

821063: MPEG-2443 User Guide

Page 16

Chapter 1 Installation

Rear Panel Connectors

Important:

A signal input is defined to be a dry contact closure to ground for the

General Purpose Inputs as well as for the Tally LEDs. Do not apply any voltages to these inputs.

• Cooling Fan: Please do not obstruct the airflow from these four

quiet fans.

•

Power (DC): To provide power to the unit, attach the supplied 100

to 240VAC power supply, which will supply 24VDC to this connector.

Page 17

Introduction

Overview

This pictorial guide will show you how to unpack and operate the MPEG-2443 for the first time.

Topics

CHAPTER 2

Quick Start

Topics Page

Introduction 11 Unpacking 12 Packing List 12 Unpacking and Powering for the First Time 12 Setting up Inputs 13 Monitoring a 3G/HD/SD-SDI Signal 13 Monitoring an ASI Stream 14 Monitoring an Ethernet Stream 15 Monitoring an HDMI Signal 17

821063: MPEG-2443 User Guide

Page 18

Chapter 2 Quick Start



Unpacking

Packing List

1. One MPEG-2443 Monitor

2. One 24V 3.0A External Power Supply

3. One IEC Standard Power Cord

4. One MPEG-2443 User Guide (may be on CD-ROM)

Unpacking and Powering for the First Time

1. Take the MPEG-2443 unit out of the box, and install it into a rack

or set it on a table during initial set up.

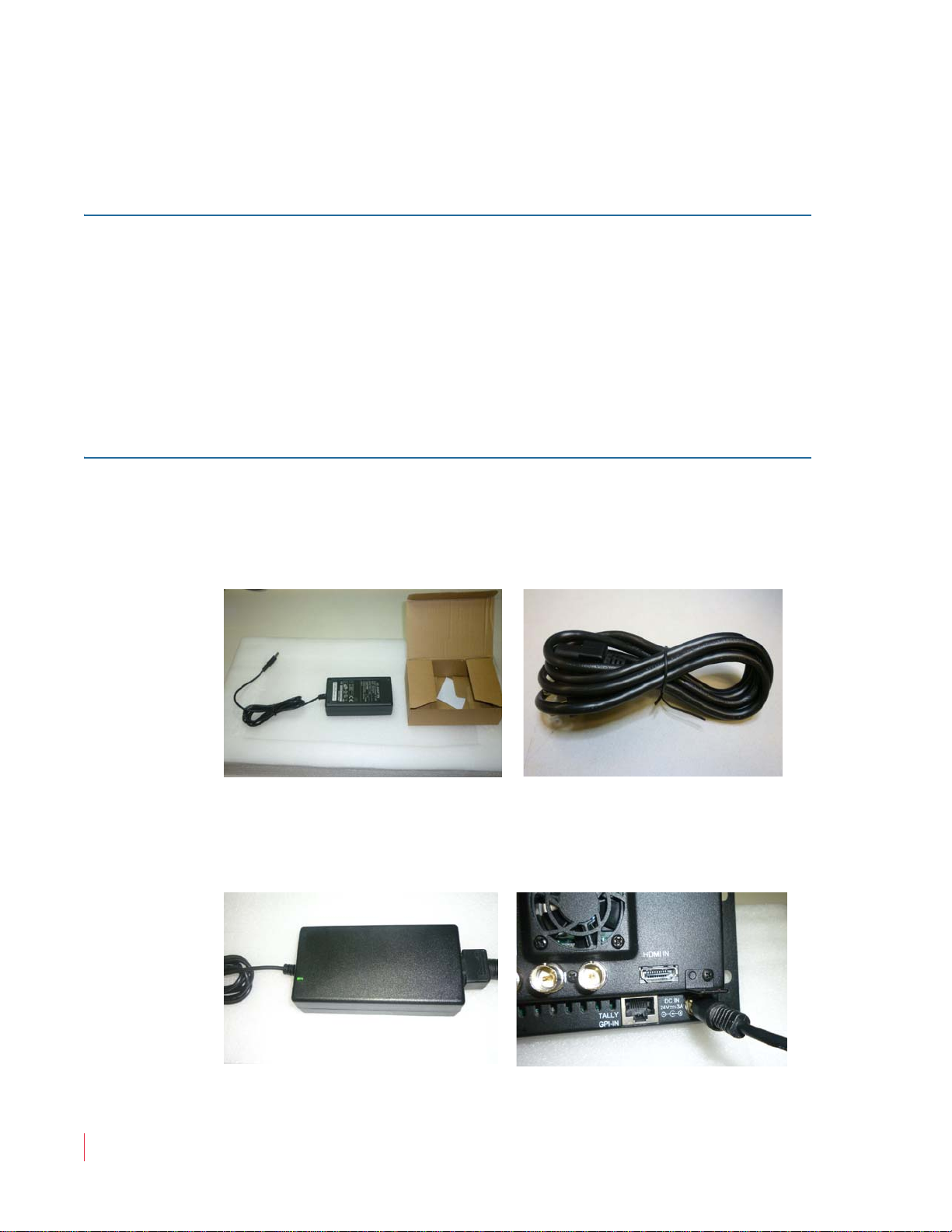

2. Unpack the external power supply and the IEC cord:

3. Plug the IEC power cord into the external power supply and then

plug the cord from the external power supply into the connector on the back panel of the MPEG-2443.

Page 19

Chapter 2 Quick Start



Setting up Inputs

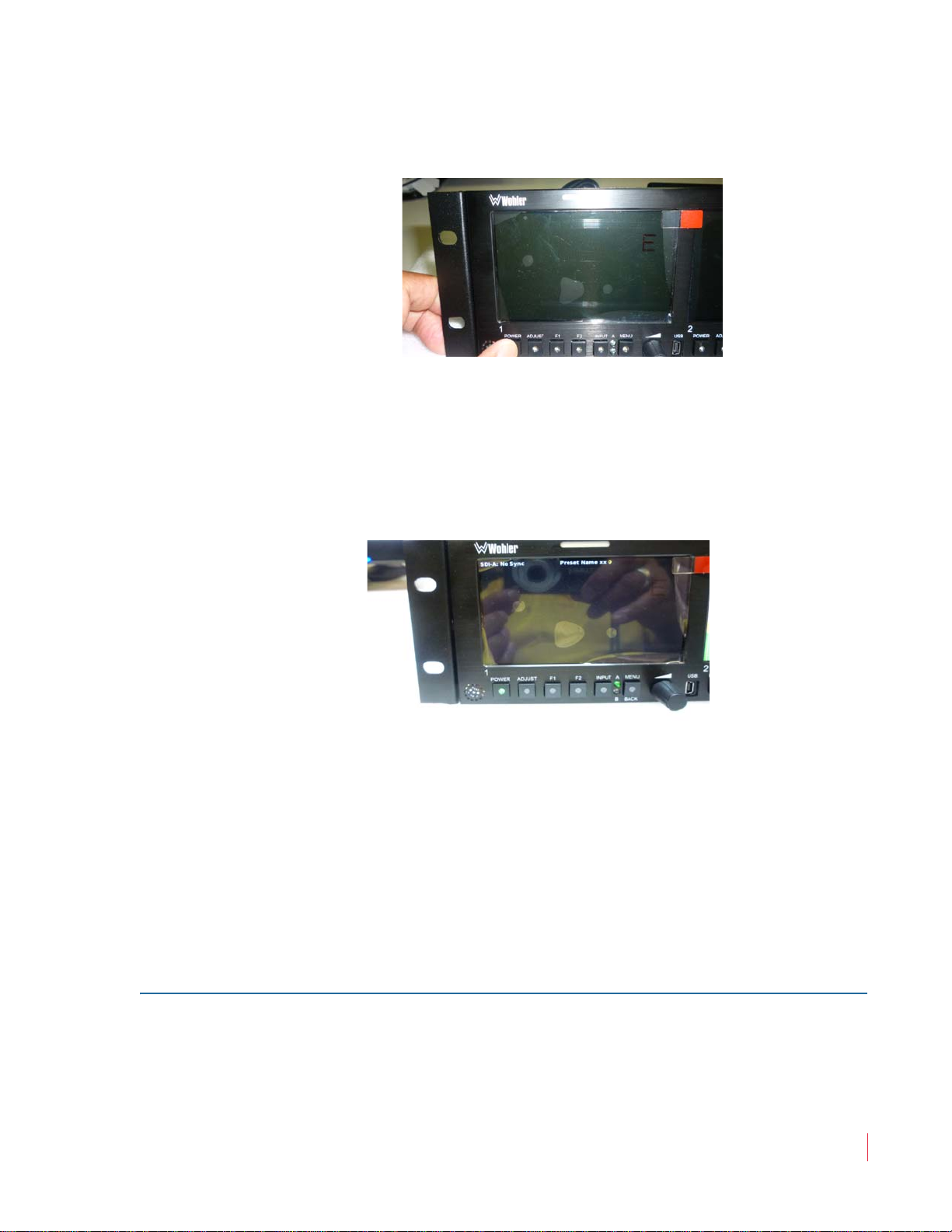

4. After connecting the power cords, you should see the A and B

indicators below each screen light up. Press the Power button

located at the left under each screen:

5. For 30 seconds, the Power indicators should flash. Then the

screens should show a progress bar, followed by some white flashes and a splash screen showing the MPEG Series product line. The start up process takes just over a minute. When the start up process is complete, you should see a screen similar to the following:

6. Proceed to Monitoring a 3G/HD/SD-SDI Signal on page 13,

Monitoring an ASI Stream on page 14, Monitoring an Ethernet Stream on page 15, or Monitoring an HDMI Signal on page 17,

depending upon your monitoring needs.

Setting up Inputs

Monitoring a 3G/HD/SD-SDI Signal

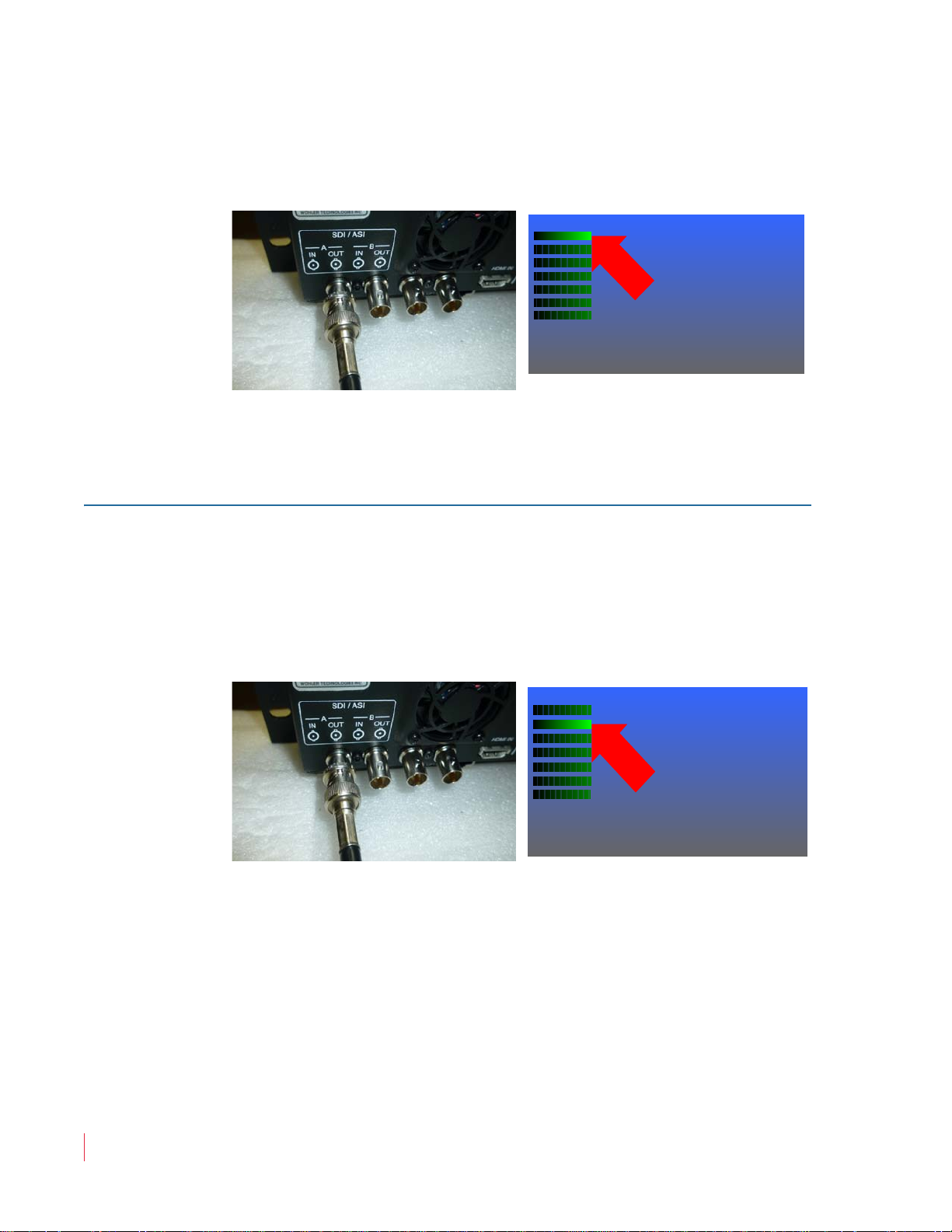

1. If it is not connected already, connect the SDI source to SDI/ASI

A IN

821063: MPEG-2443 User Guide

Page 20

Chapter 2 Quick Start



BNC Port A SDI

Input Menu

BNC Port A ASI BNC Port B SDI BNC Port B ASI

Ethernet Multicast

Ethernet Unicast

HDMI



BNC Port A SDI

Input Me n u

BNC Port A ASI BNC Port B SDI BNC Port B ASI

Ethernet Multicast

Ethernet Unicast

HDMI

Setting up Inputs

2. Press the Input button to display the Input Menu and then turn

the

Volume knob to move the selector to BNC Port A SDI. Press

the Volume knob to select. Use the same process for BNC Port B if you intend to connect an SDI signal to SDI/ASI Input B.

3. When the SDI signal is recognized, it will appear on the screen.

Monitoring an ASI Stream

1. If it is not connected already, connect the ASI source to SDI/ASI

A IN

2. Press the Input button to display the Input Menu and then turn

the Volume knob to move the selector to BNC Port A ASI. Press the Volume knob once to select.

3. When you see

ASI-A:TSSync on the screen, the signal has been

recognized and the lowest-numbered viewable program will be displayed.

Page 21

Chapter 2 Quick Start

Main Menu

Video Menu Audio Menu

Marker Menu

Functions Menu

OSD Menu System Menu Preset Menu

System Status

GPI-In Menu

Network Menu

MPEG Status

UMD Options Menu

5000

120

Play

Program

Select

Program

5001

121

Scrambled

5002

123

5004

124

204TS Packet Size

PMT

Sports TV

Now

Playing

PMT

Number

Program

Number

PSI

Aggregate

90.1Mbps

IP UCTS Port

1072 AVC/H.264 1280x720p Video 2.09Mbps 1073 AC-3 Audio 301kbps 1074 AC-3 Audio 299kbps

1070 AVC/H.264 1280x720p Video 2.09Mbps 1071 AC-3 Audio 301kbps

2020 Private 1kbps

5007 PMT 0.5kbps

Fashion TV 7.92Mbps

Sports TV 2.82Mbps

Drama TV 6.88Mbps Kid’s TV 6.76Mbps

Service Description

Setting up Inputs

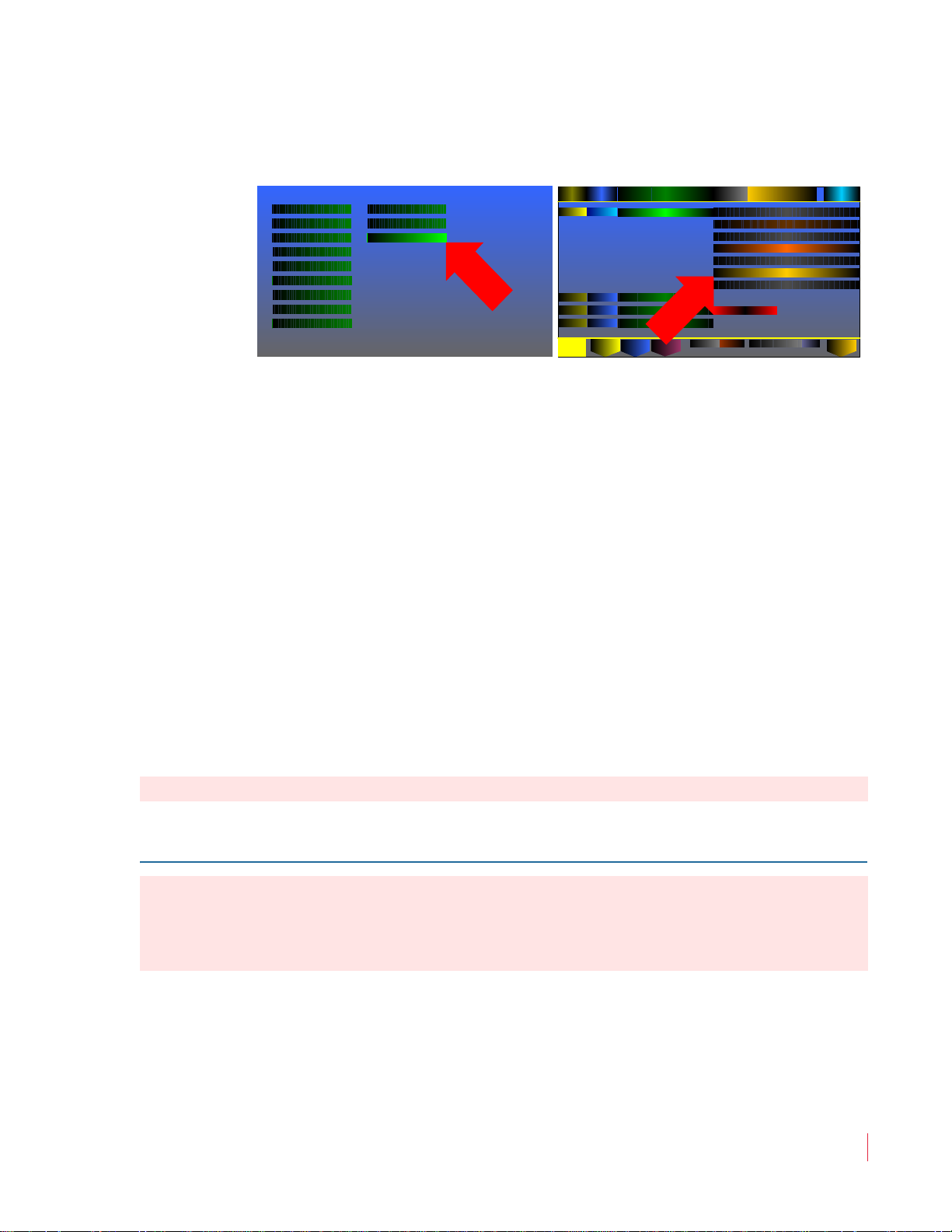

4. Press the Menu button to open the Main Menu. Rotate the

Volume knob to highlight the MPEG Screen selection and press

it.

5. This will proceed to the Program Select menu where you can

select the program number, as well as the video and audio PIDs to be monitored.

A. Turn the Volume knob to highlight a program number and

press it.

B. Then turn the Volume knob to highlight a video PID and

press it.

C. Lastly, turn the Volume knob to highlight an audio PID and

press it.

6. When you select the audio PID, after a few seconds, the MPEG

stream will begin to play with this menu superimposed over it. If

you prefer, you may remove the superimposed MPEG Screen by pressing the Menu button twice.

Note:

This input does not support scrambled sources.

Monitoring an Ethernet Stream

Important:

If you plan to plug multiple MPEG-Series monitors into a local area network, please verify first that the Ethernet address of each screen on

each unit is unique, to prevent network problems. Use the Network

to view and set Ethernet addresses.

1. As in all networks, each device on the network needs to have its

own unique Ethernet address. This includes each screen of this unit, as well as each screen of any other MPEG-Series products in the network. If you are certain that this is so, proceed to step 3 of this procedure. If not, proceed to the next step.

821063: MPEG-2443 User Guide

Page 22

Chapter 2 Quick Start

Main Menu

Video Menu Audio Menu

Marker Menu

Functions Menu

OSD Menu

System Menu

Preset Menu

System Status

GPI-In Menu

Network Menu

MPEG Status

UMD Options Menu

IP Mask

Network Menu

1234Port Number

0 1 2 3 4 5 6 7 8 9

Clear Done

IP Address 192 50168 2

255 255255 0

MultiCast Serv Addr

Gateway Address 192 50168 1

224 00 0 Save

Save

BNC Port A SDI

Input Menu

BNC Port A ASI

BNC Port B SDI

BNC Port B ASI

Ethernet Multicast

Ethernet Unicast

HDMI

Main Menu

Video Menu Audio Menu

Marker Menu

Functions Menu

OSD Menu System Menu Preset Menu

System Status

GPI-In Menu

Network Menu

MPEG Status

UMD Options Menu

5000

120

Play

Program

Select

Program

5001

121

Scrambled

5002

123

5004

124

204TS Packet Size

PMT

Sports TV

Now

Playing

PMT

Number

Program

Number

PSI

Aggregate

90.1Mbps

IP UCTS Port

1072 AVC/H.264 1280x720p Video 2.09Mbps 1073 AC-3 Audio 301kbps 1074 AC-3 Audio 299kbps

1070 AVC/H.264 1280x720p Video 2.09Mbps 1071 AC-3 Audio 301kbps

2020 Private 1kbps

5007 PMT 0.5kbps

Fashion TV 7.92Mbps

Sports TV 2.82Mbps

Drama TV 6.88Mbps Kid’s TV 6.76Mbps

Service Description

Setting up Inputs

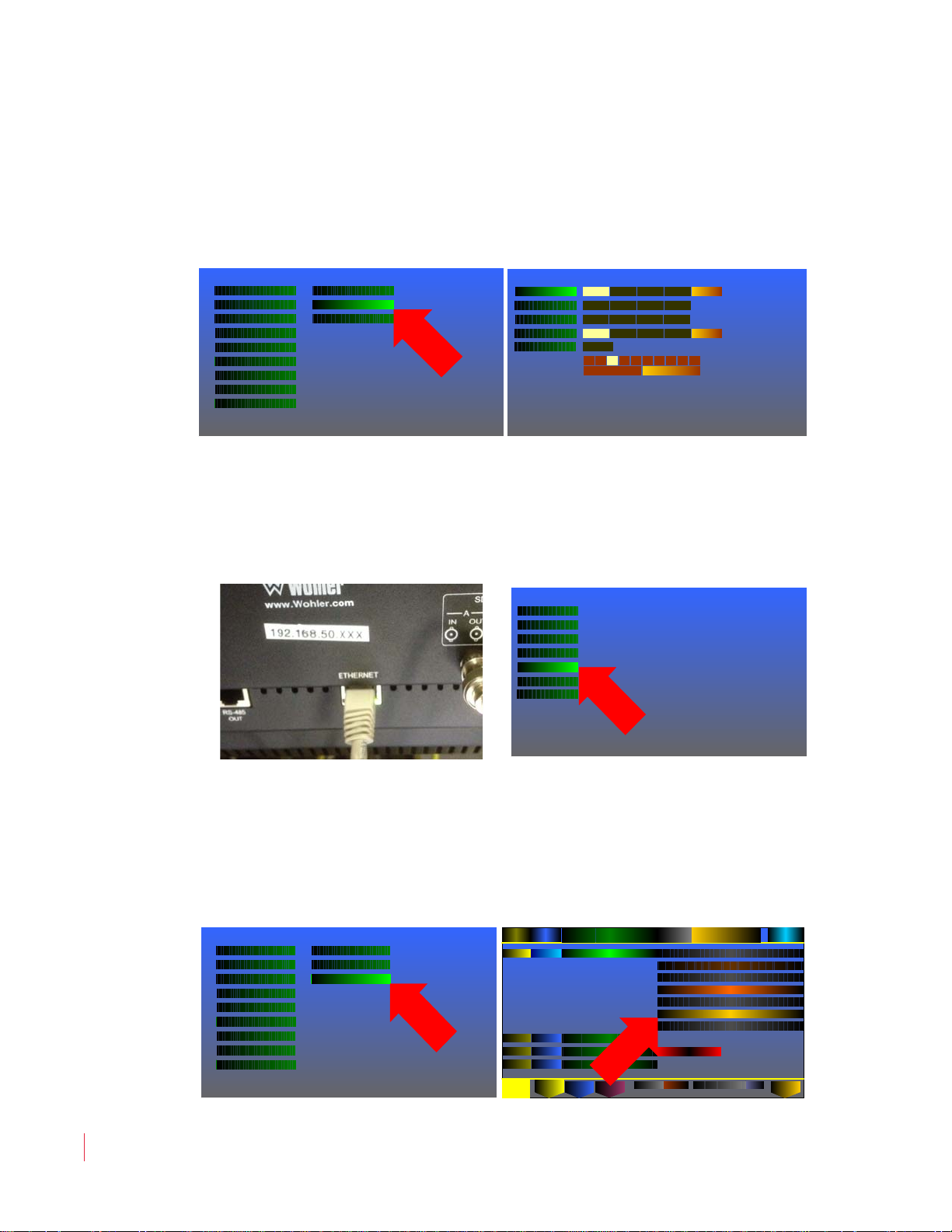

2. If IP addresses need to be set, press the Menu button and then

rotate the

press. The Network Menu will appear. Rotate the Volume knob

to each IP setting you need to change. Press and turn the knob to make the changes. If you will be using Multicast, enter a

MultiCast Server Address as well. Press the Menu button twice

to exit to the main screen. Do this for each screen.

3. Connect the Ethernet plug to the ETHERNET jack on the back

panel of the MPEG-2443. The one jack will serve all four screens.

Press the Input button on the front panel. The Input Menu will appear. Turn the Volume knob to make a choice of Ethernet

Unicast

Volume knob to the Network Menu position and

Volume

or Ethernet Multicast and then press.

821063: MPEG-2443 User Guide

4. When the signal has been recognized, the lowest-numbered

viewable program will be displayed.

5. Press the

Volume knob to highlight the MPEG Screen selection and press

it.

Menu button to open the Main Menu. Rotate the

Page 23

Chapter 2 Quick Start

BNC Port A SDI

Input Menu

BNC Port A ASI BNC Port B SDI BNC Port B ASI

Ethernet Multicast

Ethernet Unicast

HDMI

Setting up Inputs

6. This will proceed to the Program Select menu where you can

select the program number, as well as the video and audio PIDs to be monitored.

A. Turn the Volume knob to highlight a program number and

press it.

B. Then turn the Volume knob to highlight a video PID and

press it.

C. Lastly, turn the Volume knob to highlight an audio PID and

press it.

7. When you select the audio PID, after a few seconds, the MPEG

stream will begin to play with this menu superimposed over it. If

you prefer, you may remove the superimposed MPEG Screen by pressing the Menu button twice.

Note:

This input does not support scrambled sources.

Monitoring an HDMI Signal

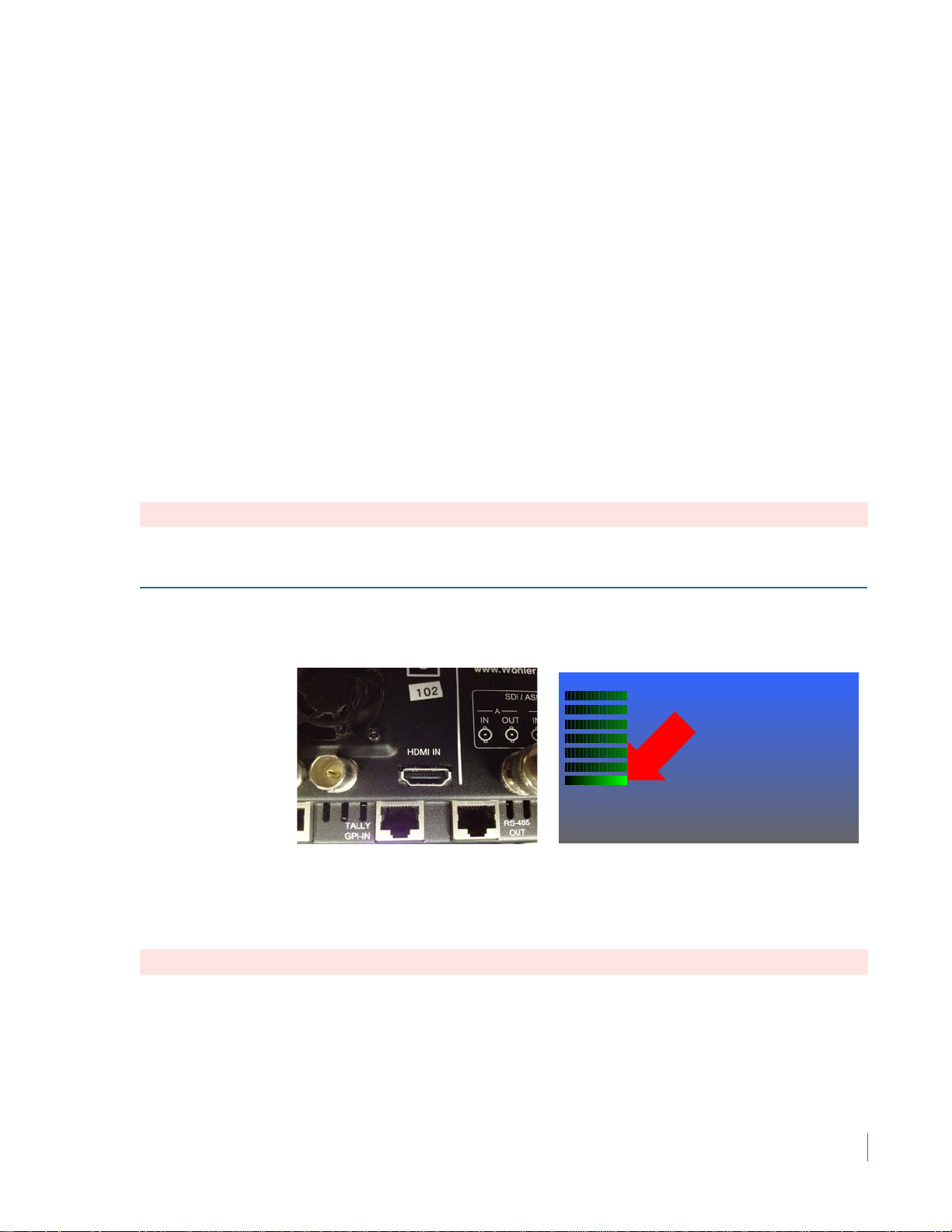

1. Connect the HDMI source plug to the HDMI IN jack on the back

panel for that screen as shown:

Input button to display the Input Menu and then turn

Note:

2. Press the

the Volume knob to move the selector to HDMI. Press the

Volume knob once to select HDMI.

This input does not support scrambled sources.

821063: MPEG-2443 User Guide

Page 24

Chapter 2 Quick Start

Setting up Inputs

Page 25

Introduction

Overview

This chapter describes how to operate your MPEG-2443.

Topics

CHAPTER 3

Operation

Topics Page

Introduction 19 Initially Powering the MPEG-2443 20 Power Buttons 20 Input Button 20 MPEG Menu Operation 22 F1 & F2 Buttons 29 Adjust Menu 29 Screen Saver 31 Saving Your Options 31

821063: MPEG-2443 User Guide

Page 26

Chapter 3 Operation

Initially Powering the MPEG-2443

When the MPEG-2443 is powered for the very first time, it will look to

the SDI-A input as its source. Thereafter, it will power up with the

input that was selected when it was last powered down.

NOTE:

The MPEG-2443 contains much sophisticated and powerful signal processing circuitry. This circuitry takes a relatively long time (approximately 65 seconds) to become fully operational when it is powered. This is normal operation.

Power Butto ns

There is an individual Power button per screen and each may be powered on or off individually. A single press of the Power button

starts the power on sequence, which will take approximately 65

seconds. During this time, the Power LED will blink. For the first 30

seconds, there will be no indication on the screen, but thereafter, various progress bars and startup screens will appear. When the

Power LED is lit steady, the power on sequence is complete.

To power a screen down, hold the Power button for 4 seconds. The screen will turn off, as will the Power LED. The 4 second delay is

intended to prevent accidentally turning off a screen while it is in use.

Input Button

The Input button allows quick selection of the various inputs. Pressing

the knob to select the input needed.

821063: MPEG-2443 User Guide

Input button causes the Input Menu to pop up. Use the Volume

Page 27

Figure 3–1 Input Menu

BNC Port A SDI

Input Menu

BNC Port A ASI BNC Port B SDI BNC Port B ASI

Ethernet Multicast

Ethernet Unicast

HDMI

The selections are as follows:

Chapter 3 Operation

Input Button

1. BNC Port A SDI: This is a 3G/HD/SD-SDI signal. When Port A

is selected, the A LED lights.

2. BNC Port A ASI: This is an ASI (MPEG) signal. When Port A is

selected, the A LED lights.

3. BNC Port B SDI: This is a 3G/HD/SD-SDI signal. When Port B

is selected, the B LED lights.

4. BNC Port B ASI: This is an ASI (MPEG) signal. When Port B is

selected, the B LED lights.

Ethernet Unicast: This selection is used to display UDP MPEG

transport streams received via the Ethernet connection on the

back panel. When this is selected, the green LED within the button glows. If no IP source address is set, selecting

Ethernet

Input

proceeds to the Network Menu where the source address may be selected.

Ethernet Multicast: This selection is used to display UDP MPEG

transport streams received via the Ethernet connection on the

back panel. When this is selected, the green LED within the button glows. If no IP source address is set, selecting

Ethernet

Input

proceeds to the Network Menu where the source address may be selected.

821063: MPEG-2443 User Guide

Page 28

Chapter 3 Operation

Main Menu

Video Menu Audio Menu

Marker Menu

Functions Menu

OSD Menu

System Menu

Preset Menu

System Status

GPI-In Menu

Network Menu

MPEG Status

UMD Options Menu

MPEG Menu Operation

7. HDMI: This choice selects the HDMI connection on the back panel

as the signal source. When this is selected, the green LED within the

Input button glows.

After you make a selection, the stream sync is indicated in the upper

left corner of the monitor screen. Selecting an ASI or Ethernet input

will play the lowest-numbered viewable program number. It will also

enable access to the MPEG Menus to provide PID information and

allow you to change the program to be monitored.

MPEG Menu Operation

The MPEG Menus and Screens are accessed through the Main

highlight the MPEG Menu selection, and press the Volume knob.

. To enter, press the Menu button, rotate the Volume knob to

IMPORTANT:

If there is no MPEG transport stream present on the selected Input, then it is not possible to enter the MPEG Menu. Refer to Input Button

on page 20 to select an input.

Figure 3–1 Main Menu

821063: MPEG-2443 User Guide

In the

MPEG Menu screens, the Adjust, F1, and F2 buttons are

repurposed as hot keys defined by legends on the LCD screen. The

MPEG Menu screens are used to monitor and make selections from the

MPEG transport stream.

Page 29

Program Select Menu

5000

120

Play

Program

Select

Program

5001

121

Scrambled

5002

123

5004

124

PMT

Sports TV

Now

Playing

PMT

Number

Program

Number

PSI

Aggregate

90.1Mbps

1072 AVC/H.264 1280x720p Video 2.09Mbps 1073 AC-3 Audio 301kbps 1074 AC-3 Audio 299kbps

1070 AVC/H.264 1280x720p Video 2.09Mbps 1071 AC-3 Audio 301kbps

2020 Private 1kbps

5007 PMT 0.5kbps

Fashion TV 7.92Mbps

Sports TV 2.82Mbps

Drama TV 6.88Mbps Kid’s TV 6.76Mbps

Service Description

IP UCTS Port 204TS Packet Size

The first MPEG Menu is the Program Select Menu. It appears as

follows superimposed over the video image:

Figure 3–2 MPEG Program Select Menu

Chapter 3 Operation

MPEG Menu Operation

• To select a program to monitor, rotate the Volume knob to scroll up

IMPORTANT:

• To back out of the Video and Audio PID selection so that you can

• To view all of the PIDs in the stream press the

• Press the Menu Back button to exit this menu and go back to the

or down the list. Stop on the program you want and press the

Volume knob. This will open the selection to show the Video,

Audio, and other PIDs contained in that program. This is shown in

Figure 3–2. Again rotate the Volume knob and press to select first a

Video PID and then an Audio PID. When you have selected a Video and an Audio PID, Press

Play (the Volume knob) and the

monitoring of that program will begin.

If a Program is scrambled (encrypted), this will be clearly shown. This product by design is not intended to monitor scrambled streams, so do not attempt to select one.

pick a different program, press the Program hot key.

This will take you to the PMT Select Menu.

Main Menu.

All PIDs hot key.

821063: MPEG-2443 User Guide

Page 30

Chapter 3 Operation

0 1

00 01

NIT 16 SDT 17 EIT 18 TOT 20 SIT 31CATPAT

PMT

PSI Select

ASISync TS

1010 1011 1020

Program

1021

16 17 18

1022 1050 1051 1055 1060 1061 1070 1071 1072 1073

1074 1081 1082 1083 1090 1091 1120

3020 3021 3025 3026

1121 2020 2021

5001 5002 5004 5005 5006

5000

5008 5009 5012 5202

PMT

Select

8191

IP UCTS Port 204TS Packet Size

MPEG Menu Operation

There are several informational data elements in the MPEG Program

Select Menu

• Rate in Mbps or kbps of each Program and each PID.

Aggregate Rate of the MPEG stream

•

TS Port (IP UC, IP MC, ASI-A, or ASI-B)

• TS Packet Size (188 or 204).

PMT Select Menu

The PMT Select Menu appears as follows, superimposed over the

video image to allow you to select a Program Map Table to be viewed:

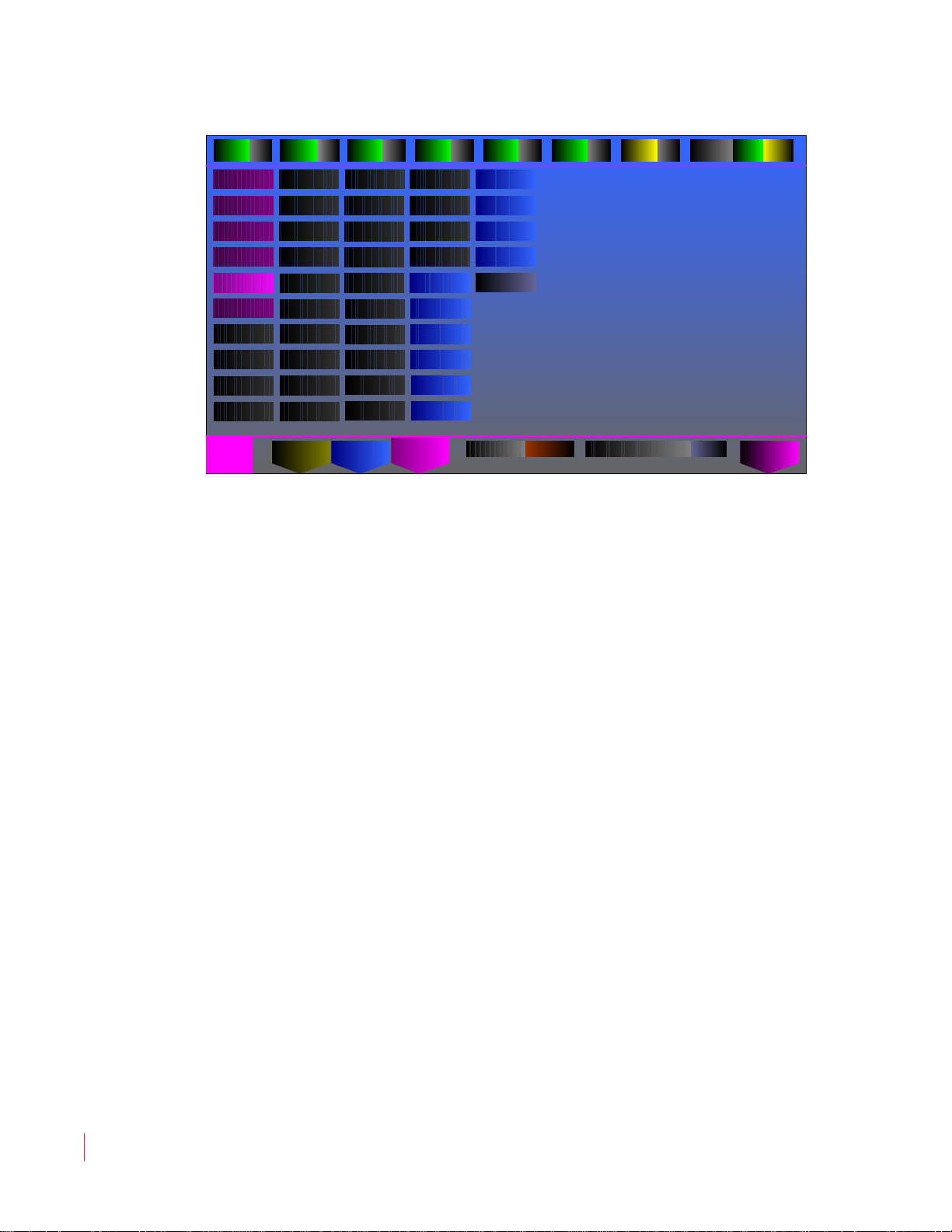

Figure 3–3 PMT Select Menu

821063: MPEG-2443 User Guide

• In this menu, you may view all of the PIDs and select any PMT PID

(shown in blue in the figure above) for further detail. Rotate the

Volume knob, which is labeled as a Select hot key, to highlight the

desired PMT PID. As each PMT PID is highlighted, other PIDs that are associated with it are also highlighted. Video PIDs are

• Alternately, you may press the PSI hot key to proceed to the PSI

highlighted in orange, Audio PIDs are highlighted in gold and other

PIDs are highlighted in turquoise. Press the Select (Volume) hot

key. This will proceed to the PMT PID Information Menu.

Select Menu.

Page 31

Chapter 3 Operation

MPEG Menu Operation

• Pressing the Program hot key will return you to the Program Select

Menu.

• Press the Menu Back button to exit this menu and go back to the

Main Menu.

In addition to showing which PIDs are related to each PMT PID, there

are several informational data elements in the PMT Select Menu:

1. Upper Status Indicators: The Status Indicators across the

top of the MPEG Screen offer a quick go/no go indication of the following list of MPEG parameters. A green color indicates that there is no problem and a yellow indicator is shown for any parameters that may have a problem.

• PAT (Program Association Table)

• CAT (Conditional Access Table)

• NIT (Network Information Table)

• SDT (Service Description Table)

• EIT (Event Information Table)

• TDT (Time and Date Table)

• SIT (Selection Information Table)

• Sync (ASI sync and Transport Stream sync)

2. Lower Status Indicators: The Status Indicators across the

bottom of the MPEG Screen offer a quick indication of the following parameters:

•

• TS Packet Size (188 or 204)

PSI Select Menu

The PSI Select Menu appears as follows, superimposed over the

video image, to allow you to select a Program Status Information PID to display further information about it:

TS Port (IP UC, IP MC, ASI-A, or ASI-B)

821063: MPEG-2443 User Guide

Page 32

Chapter 3 Operation

0 1

Select

1010 1011 1020

Program

1021

17 18

1022 1050 1051 1055 1060 1061

1081 1082 1083 1090 1091 1120

3020 3021 3025 3026

1121 2020 2021

5001 5002 5004 5005 5006

5008 5009 5012 5202 8191

PMT

PSI

5007

PSI

Select

1070 1071 1072 1073

1074

00 01

NIT 16 SDT 17 EIT 18 TOT 20 SIT 31CATPAT

ASISync TS

IP UCTS Port 204TS Packet Size

MPEG Menu Operation

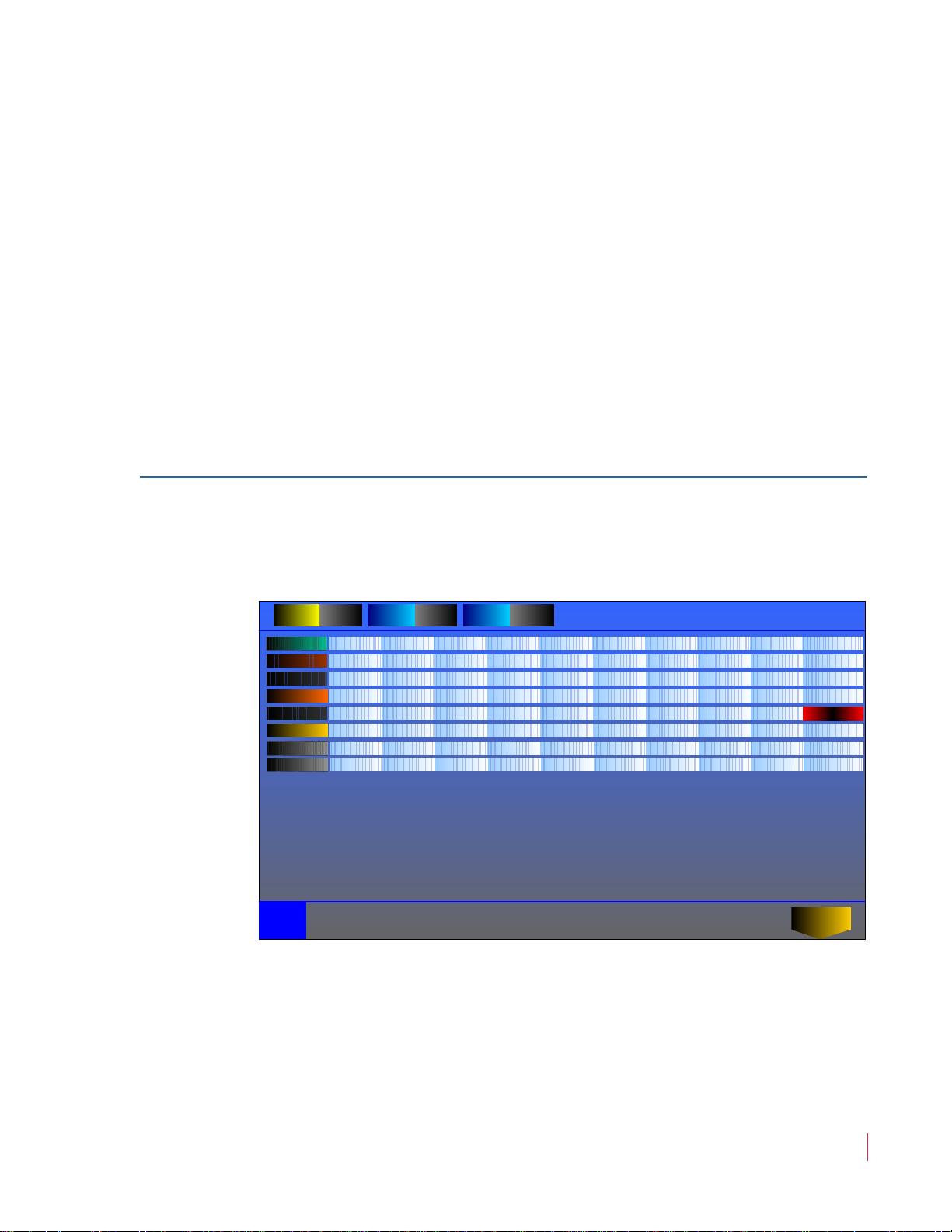

Figure 3–4 PSI Select Menu

• In this menu, you may view all of the PIDs and select any PSI PID

(shown in purple in the figure above) for further detail. Rotate the

Volume knob, which is labeled as a Select hot key, to highlight the

desired PSI PID. Press the Select hot key. This will proceed to the

PSI Information Screen.

• Alternately, you may press the PMT hot key to proceed to the PMT

Select Menu.

• Pressing the Program hot key will return you to the Program Select

Menu.

• Press the Menu Back button to exit this menu and go back to the

Main Menu.

There are several informational data elements in the PSI Select

Upper Status Indicators: The Status Indicators across the

• PAT (Program Association Table)

• CAT (Conditional Access Table)

• NIT (Network Information Table)

Page 33

• SDT (Service Description Table)

1055

Video H.264 1920 1080 59.94Hz 0x1b

PCR

Audio AAC Layer 0 0 44.1kHz Stereo Open/Cpy

PMT

Info

1070 1071 1072 1073

1074

Video H.264 1920 1080 59.94Hz 0x1b Audio MPEG2 Layer 2 192kbps 48kHz Stereo Open/Cpy Audio MPEG2 Layer 2 192kbps 48kHz Stereo Open/Cpy

5007PMT

PGM 120

Clear Clear Clear

Clear

2020

Private

2021

Private

Play

Scrambled

ITRVRA

• EIT (Event Information Table)

• TDT (Time and Date Table)

• SIT (Selection Information Table)

• Sync (ASI sync and Transport Stream sync)

2. Lower Status Indicators: The Status Indicators across the

bottom of the MPEG Screen offer a quick indication of the following parameters:

• TS Port (IP UC, IP MC, ASI-A, or ASI-B)

• TS Packet Size (188 or 204)

PMT PID Information Menu

Chapter 3 Operation

MPEG Menu Operation

The PMT Info Menu in Figure 3–5 shows detailed information for the

selected audio and video program map table PID.

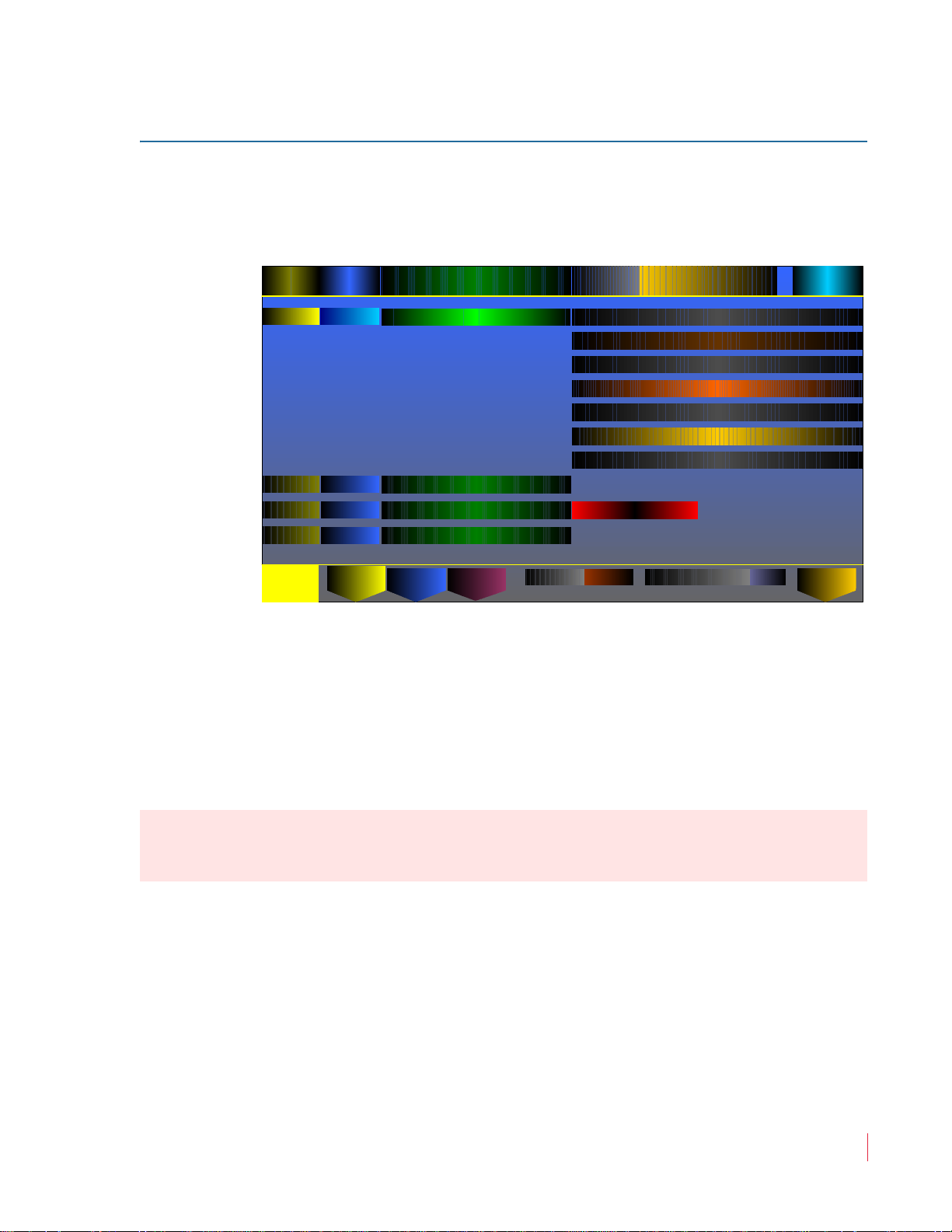

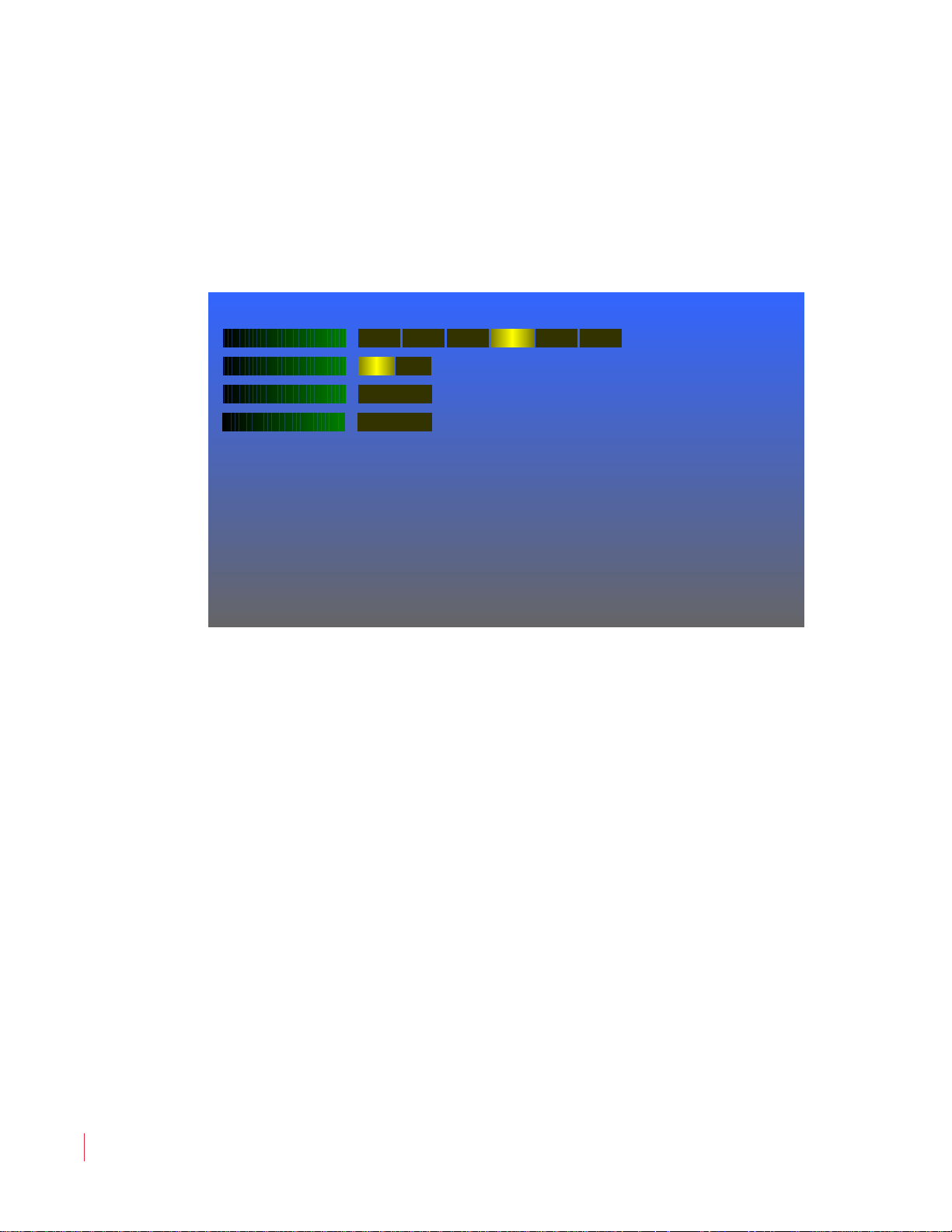

Figure 3–5 PMT Info Menu

• If there is more than one Video PID, rotate the

select the one of interest and then press it. Rotate the to highlight the Audio PID of interest and press it again to start monitoring the program.

Volume knob to

Volume knob

821063: MPEG-2443 User Guide

Page 34

Chapter 3 Operation

PSI

Info

0PAT

PMT

Number

Program

Number

Exit

2.09Mbps

5008

134

5009

147

5005127 5006

130

5001

121

5002

123

5004

124

5000

120

MPEG Menu Operation

• To exit this screen with no changes, press the Menu Exit button.

IMPORTANT:

If a PMT PID is scrambled (encrypted), this will be clearly shown. This product by design is not intended to monitor scrambled streams, so do not attempt to select one.

In addition to the descriptions in the displayed table, there are several

Status Indicators across the top of the PMT PID Information Menu

• PGM (Selected Program Number)

• PMT (Program Map Table)

• RA (Registration Authority)

PSI Information Screen

The PSI Information Screen in Figure 3–6 shows the service

information for each program number.

Figure 3–6 PSI Information Screen

• To exit the screen and return to the PSI Select Menu, press the

Volume knob, labeled Exit.

• To exit this screen to the Main Menu, press the Menu Exit button.

Page 35

In addition to the descriptions in the displayed table, there are other

informational data elements at the bottom of the PSI Information

Screen

• PAT (Program Association Table).

• Stream Rate

F1 & F2 Buttons

Your choice of options can be accessed directly using the function buttons. The option or options that each button controls is set in the

Functions Menu on page 43. By default from the factory, the Function

buttons are set up as follows:

F1: By default, the F1 button will control three options: Whether

the Center marker appears, whether the Area marker appears, and whether the Safety marker appears.

Chapter 3 Operation

F1 & F2 Buttons

F2: By default, the F2 button will control whether the audio Level Meters

Pressing either the F1 or F2 button will light its green indicator,

showing that the option or options are in effect. Pressing the button again removes the option or options, extinguishing the indicator.

Adjust Menu

Certain commonly accessed adjustments are accessed directly by

pressing the Adjust button. This causes the Adjust Menu to appear as

shown in Figure 3–7. Turn the would like to adjust and then press it. Turn the adjust the setting and press it again. You may then either turn the

Volume knob to another characteristic or press the Adjust button to

close the menu. If you do nothing, the menu will disappear after the

OSD Timeout set in the OSD Menu on page 47.

appear on the screen.

Volume knob to the characteristic you

Volume knob again to

821063: MPEG-2443 User Guide

Page 36

Chapter 3 Operation

Backlight

Adjust Menu

Video Blend

Contrast

Red

Saturation

90%

127

100%

Gamma 1.00

Blue 64

Black Level 2

Panel LEDs 7

75%

10%

100%

83%

Adjust Menu

Figure 3–7 Adjust Menu

The following characteristics may be adjusted in this menu:

Backlight: Rotate the Volume knob to adjust the screen

brightness on a scale of 10% to 100%.

2. Video Blend: Rotate the Volume knob to adjust the transparency

of the on-screen displays and menus on a 30% to 100% scale.

3. Contrast: Rotate the Volume knob to adjust the video contrast on

a 40% to 100% scale.

4. Red: Rotate the Volume knob to adjust the red level on a 0 to 255

scale.

Blue: Rotate the Volume knob to adjust the blue level on a 0 to

255 scale.

6. Saturation: Rotate the Volume knob to adjust the video

saturation on a 0% to 100% scale.

7. Gamma: Rotate the Volume knob to adjust the video gamma on a

1.00 to 1.50 scale. The choices are 1.00, 1.05, 1.10, 1.15, 1.20, 1.25,

1.30, 1.35, 1.40, 1.45, or 1.50.

Black Level: Rotate the Volume knob to adjust the black level on

a 0 to 16 scale.

Page 37

9. Panel LEDs: Rotate the Volume knob to adjust the brightness of

the panel LEDs on a 1 to 15 scale. This function on each of the screens works in common on all four of the screens.

Screen Saver

In order to prolong the life of the displays, a Backlight Timeout Interval

is provided. Refer to the Backlight Interval item in the System Menu

on page 48. The default setting is 8 hours. After 8 hours passes with no

button presses or knob turns, the MPEG-2443 will dim its screens. Pressing any button or turning any knob will bring the MPEG-2443 back to normal operation.

Chapter 3 Operation

Screen Saver

Saving Your Options

When power is switched off or otherwise lost, the current option settings in the MPEG-2443 are preserved and are still in effect when

power is restored. In addition, 6 option memories or Presets for each

screen are provided for you to save various configurations to be later recalled. Refer to the Preset Menu on page 49. You may also copy these

Presets from screen to screen.

Sometimes you may want to erase the option settings you have made in

Preset and restore it to the default options that the MPEG-2443

any was originally provided with. To do this, go to the screen you want to restore and use the following steps:

1. Within the

Preset

highlighted, skip to Step 3.

2. Press the Volume knob, then turn it to the number of the Preset

you want to restore and press it again. The highlight.

Preset Menu, turn the Volume knob to the Recall

item. If the Preset you want to restore is already

Preset Menu in the

Preset will recall and

3. Press the Volume knob, then turn it to the Factory selection and

press it again. The current settings as well as those in the selected

Preset will instantly return to their original default settings.

821063: MPEG-2443 User Guide

Page 38

Chapter 3 Operation

Saving Your Options

Page 39

Introduction

Overview

This chapter describes how to use the menu system to configure your MPEG-2443.

Topics

CHAPTER 4

Configuration

Topics Page

Introduction 33 Using the Menu System 34 Video Menu 36 Audio Menu 37 Marker Menu 39 UMD Options Menu 41 Functions Menu 43 GPI-In Menu 45 OSD Menu 47 System Menu 48 Preset Menu 49 Network Menu 52 System Status 53 MPEG Menus 54

821063: MPEG-2443 User Guide

Page 40

System Status

Main Menu

Video Menu Audio Menu

Marker Menu

Functions Menu

OSD Menu

System Menu

Network Menu

Preset Menu

System Status

GPI-In Menu

UMD Options Menu

MPEG Menu

OSD Menu

Source ID

Source Position

OSD Timeout

Preset Menu

Save Menus -> Preset Load Menus <- Preset

Display Preset ID Preset ID Position

Copy Presets -> Unit

Preset ID

UMD Options Menu

UMD Tally Src

UMD Enable

UMD Position

UMD Color

UMD Address

UMD Text

Marker Menu

Marker Enable (All) Marker Background

Marker Color

Center Marker

Area Marker

Safety Marker

Safety M a r ke r Size

Area Ratio

Audio Menu

Level Meter Enable

Audio Scale

Mode Display

Meter Size

SDI Meters

SDI-A Left Audio

SDI-A Right Audio

SDI-B Left Audio

SDI-B Right Audio

Video Menu

Color Temperature

Blue Screen Mono Mode

Scale Type

Video Scale

GPI-In M en u

Blue Screen Mono Mode Video Scale

Level Meters

Center Marker

Area Marker

Safety Marker

MPEG Program

Functions Menu

Blue Screen Mono Mode Video Scale

Level Meters

Center Marker

Area Marker

Safety Marker

MPEG Program

MPEG Menu

Program

PSI

PMT

Exit

Select

PSI Select Menu

PMT Select Menu

Program Menu

PMT Info Menu

PSI Info Menu

Exit

Select

Program

PSI

PMT

System Menu

Backlight Interval

LED Test

Calibration

Upgrade

Network Menu

IP Address

IP Mask

Gateway Address

MultiCast S e rv Ad dr

Port Number

Source Preset

Preset 3 Preset 4 Preset 5 Preset 6

Chapter 4 Configuration

Using the Menu System

The Menu System consists of a tree of menus which list the various options and setting that can be customized for your use. The Menu Tree is shown in Figure 4–1.

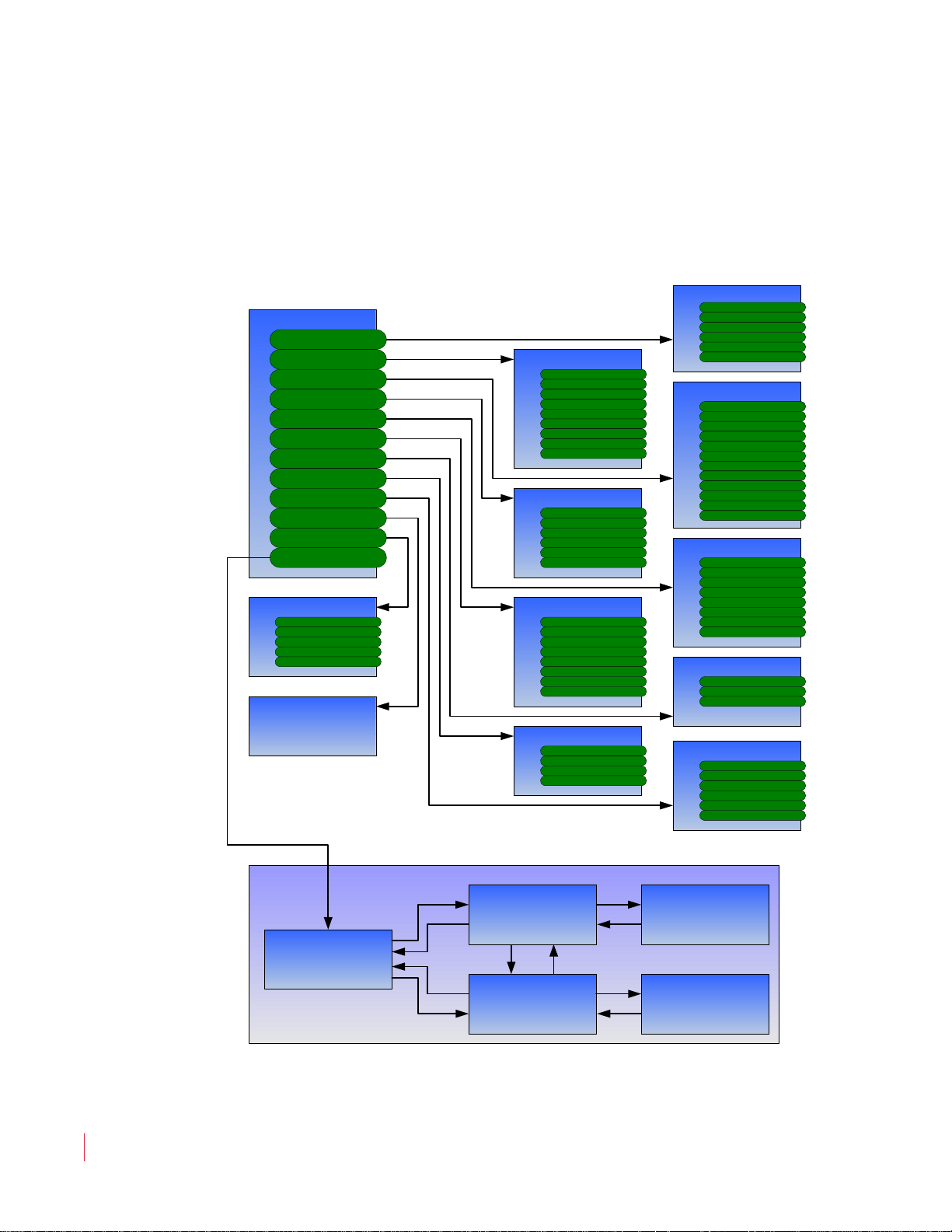

Figure 4–1 MPEG-2443 Menu Tree

Pressing the Menu button enters the Menu System. The first menu

that you see is the

Main Menu. Most of the other menus can be

Page 41

Chapter 4 Configuration

Main Menu

Video Menu Audio Menu

Marker Menu

Functions Menu

OSD Menu

System Menu

Preset Menu

System Status

GPI-In Menu

Network Menu

MPEG Status

UMD Options Menu

Using the Menu System

accessed from the Main Menu, which appears as shown in Figure 4–2

on page 35

Figure 4–2 Main Menu

Rotate the Volume knob to highlight the menu you want to access and then press to enter it. In this or any menu, press the Menu/Back

button to back out of the menu or the particular selection within that menu. The menus are described on the following pages.

821063: MPEG-2443 User Guide

Page 42

Chapter 4 Configuration

Video Menu

Color Temperature

Blue Screen

Video Scale

D50 D55 D65 D75

Off On GPI

GPIOff On

D93

Scale Type Zoom Stretch

Mono Mode GPIOff On

Source Preset None SDI-A ASI-A SDI-B Ucast Mcast HDMIASI-B

Video Menu

This menu customizes the video display. The Video Menu is shown in

Figure 4–3.

Figure 4–3 Video Menu

Rotate the

Volume knob to highlight the item to be adjusted, and then

press to enter it. Again rotate the Volume knob to the option selection

and press to choose it:

1. Color Temperature: Selections from warm to cool are provided.

D65 is the default.

2. Blue Screen: Off is the default selection. Selecting On disables

the red and green colors for alignment purposes. Selecting will allow a GPI input, as set in the GPI-In Menu on page 45, to select whether

Mono Mode: Off is the default selection and enables the color

video display. Selecting Selecting

page 45, to select whether

4. Video Scale: Off is the default selection. Selecting On will enable

the action set in the disable it. Selecting

Menu on page 45, to select whether Off or On is in effect.

GPI

Off or On is in effect.

GPI will allow a GPI input, as set in the GPI-In Menu on

On will display only monochrome video.

Off or On is in effect.

Scale Type setting in this menu; Off will

GPI will allow a GPI input, as set in the GPI-In

Page 43

5. Scale Type: Zoom is the default selection. It will enlarge the

Level Meter Enable

Audio Menu

Audio Scale

Mode Display

SDI-A Left Audio

VU Nordic BBC

VU PPM VU/PPM

DIN

1 2 3 4 5 6 7 8

SDI-A Right Audio

Meter Size Large Small

SDI Meters All 16 Active 2

9 10 11 12 13 14 15 16

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

SDI-B Left Audio 1 2 3 4 5 6 7 8

SDI-B Right Audio

9 10 11 12 13 14 15 16

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Ext. VU

Off On GPIGPI

image, keeping its aspect ratio, until both the vertical and horizontal edges reach or surpass the edges of the screen. Selecting

Stretch will enlarge both the vertical and horizontal dimensions

to reach the edge of the screen, without preserving the aspect ratio. Note that the or

GPI for the Scale Type setting to have any effect.

6. Source Preset: The selected source will be activated on Startup

or upon Loading a preset with a Source Selected. This functionality is disabled if None is selected. (See Preset Menu on

page 49)

Audio Menu

Chapter 4 Configuration

Audio Menu

Video Scale setting in this menu must be set to On

This menu sets up the audio level meters that can appear on the display

and also defines which audio channels you will hear. The Audio Menu

is shown in Figure 4–4

Figure 4–4 Audio Menu

Rotate the Volume knob to highlight the item to be adjusted, and then press to enter it. Again rotate the Volume knob to the option selection

and press to choose it:

821063: MPEG-2443 User Guide

Page 44

Chapter 4 Configuration

Audio Menu

1. Level Meter Enable: Selecting On causes audio level meters to

appear on the screen. Selecting

Either 2 or 16 meters will appear, as defined by the SDI Meters

option in this menu. Selecting GPI input, as set in the GPI-In Menu on page 45, to select whether the audio meters appear or not. The default is

2. Audio Scale: One of five audio scales for the level meters may be

selected.

• Extended VU

• VU

• Nordic

• BBC

• DIN

The default is Extended VU.

Off causes them to disappear.

GPI Control will allow an external

Off.

3. Mode Display: The type of level metering can be chosen. VU/

PPM

is the default, causing both the average and peak levels to be

displayed simultaneously. Optionally, PPM (peak) and VU

(average) can be selected to display individually.

4. Meter Size: Larger meters are easier to see, but cover up more of

the video display. The default selection is Large. A Small

(narrower, but same height) selection is available.

5. SDI Meters: By default, the All 16 selection will allow all 16

channels within an SDI signal to display, with channels 1 – 8 on the left of the screen and channels 9-16 on the right of the screen. Optionally,

Active 2 can be selected to allow only the two

channels that are selected for listening to display. The two channels will appear in the same position that they would have been in if 16 channels were displayed.

SDI-A Left Audio: This option allows you to choose the channel

to be heard in the left speaker or headphone when the SDI-A input

is picked. By default, channel 1 is selected.

SDI-A Right Audio: This option allows you to choose the

channel to be heard in the right speaker or headphone when the SDI-A input is picked. By default, channel

2 is selected.

Page 45

8. SDI-B Left Audio: This option allows you to choose the channel

Marker Enable (All)

Marker Menu

Marker Background

Marker Color

Center Marker

Area Ratio

Normal Matte

White Green Blue Yellow Gray

Off

4:3 13:9 14:9 16:9 1.85:1 2.35:1 32:9

Red

Safety Marker Size 80% 85% 90% 95%

Area Marker Off On

GPI GPI

Safety Marker Off On GPI

Off OnOff

to be heard in the left speaker or headphone when the SDI-B input

is picked. By default, channel 1 is selected.

9. SDI-B Right Audio: This option allows you to choose the

channel to be heard in the right speaker or headphone when the

SDI-B input is picked. By default, channel 2 is selected.

Marker Menu

This menu defines if and how markers will appear on the screen. The

Marker Menu is shown in Figure 4–5.

Figure 4–5 Marker Menu

Chapter 4 Configuration

Marker Menu

Rotate the press to enter it. Again rotate the and press to choose it:

1. Marker Enable (All): Selecting On causes any markers set up in

Volume knob to highlight the item to be adjusted, and then

Volume knob to the option selection

this menu to appear on the screen. Selecting markers to display. The default is

Off.

821063: MPEG-2443 User Guide

Off will not allow any

Page 46

Chapter 4 Configuration

Marker Menu

2. Marker Background: By default the Normal choice is selected,

which means that the background is transparent, allowing the video to display normally.

Marker Color: The color of the markers can be one of six choices.

By default the

4. Center Marker: The center marker may be turned On or Off.

Selecting GPI control will allow an external GPI input, as set in the

GPI-In Menu on page 45, to select whether the

appears or not. The default is

Area Marker: The area marker may be turned On or Off. The

aspect ratio of the

option in this menu. Selecting GPI control will allow an external

GPI input, as set in the GPI-In Menu on page 45, to select whether

the Area Marker appears or not. The default is Off.

6. Area Ratio: Seven choices of Area Marker aspect ratio are

offered. By default the 16:9 ratio is chosen.

Matte represents a future feature.

White choice is selected.

Center Marker

Off.

Area Marker is as selected in the Area Ratio

7. Safety Marker: The area marker may be turned On or Off. The

size of the Safety Marker is as selected in the Safety Marker

option in this menu. Selecting GPI control will allow an

Size

external GPI input, as set in the GPI-In Menu on page 45, to select

whether the Safety Marker appears or not. The default is Off.

8. Safety Marker Size: Seven choices of Safety Marker Size are

offered. By default the 80% size is chosen.

Page 47

UMD Options Menu

UMD Enable

UMD Options Menu

Off On

UMD Position T Left T RightTop BottomB Left B Right

UMD Text Engineering Lab

UMD Color White Green Blue Yellow GrayRed

UMD Tally Src Local RS485

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

# + -

@0 1 2 3 4 5 6 7 8 9 % =

? :

[ ]

. ( )

Shift Space BkSp DoneClear Restore

UMD Address 0 Save

Save UMD Text

MPEG Prog

This menu lets you set how the UMD (Under Monitor Display) is

sourced and how it appears. The UMD Options Menu is shown in

Figure 4–6.

Figure 4–6 UMD Options Menu

Chapter 4 Configuration

UMD Options Menu

Rotate the Volume knob to highlight the item to be adjusted, and then press to enter it. Again rotate the Volume knob to the option selection

and press to choose it:

UMD Tally Src: The text of the UMD Tally may be set as follows:

• Local to display the text set in the UMD ID section of this

menu.

• RS485 so that it may be received from the RS485 interface on

the back panel. The tally protocols supported are TSL 3.1 and

4.0. Selection between them is automatic.

• MPEG Program to display the description of the MPEG

program being viewed.

• The default setting is

UMD Enable: By default, this option is set to Off to prevent the

UMD from appearing on the screen. Selecting UMD set up by this menu to appear on the screen.

Local.

On will cause the

821063: MPEG-2443 User Guide

Page 48

Chapter 4 Configuration

UMD Options Menu

3. UMD Position: The UMD may be displayed at one of six locations

on the screen. By default, the

UMD Color: The color of the of the UMD can be one of six choices.

By default, the White choice is selected.

5. UMD Address: The numeric keys of the on-screen keypad can be

used to set the UMD address 0 - 127. To enter the address, first press the highlight each number and the press it to add that number to the

address. Clear, Restore, Shift, Space, Backspace, and Done

controls are also provided. Up to 3 digits may be entered. When you are finished, select To save, press the

text you entered, press the Menu button.

6. UMD ID: An on-screen keypad is provided to use to enter the local

UMD text. To enter text, rotate the Volume knob to highlight each character and the press it to add that character to the text. Clear,

Restore, Shift, Space, Backspace, and Done controls are also

provided. Up to 16 characters may be entered. When you are

finished, select Done. Save UMD Text will then be highlighted. To save the text, press the Volume knob one more time. To abandon the text you entered, press the Menu button.

Bottom location is selected.

Volume knob one more time and then rotate it to

Done. <Save> will then be highlighted.

Volume knob one more time. To abandon the

Page 49

Functions Menu

Blue Screen

Mono Mode

Video Scale

Level Meters

Center Marker

MPEG Program

Area Marker

Safe ty Mar k e r

F2F1 F2F1 F2F1 F2F1

F2F1

F2F1 F2F1 F2F1

Preset 3 Preset 4 Preset 5 Preset 6

F2 F2 F2

F1 F1 F1

This menu programs the action of the F1 and F2 function buttons on

the front panel. Each function button serves as a hot key to control one or more functions, as desired. The

4–7.

Figure 4–7 Functions Menu

Chapter 4 Configuration

Functions Menu

Functions Menu is shown in Figure

Rotate the

Volume knob to highlight the item to be adjusted, and then

press to enter it. Again rotate the Volume knob to the option selection

and press to choose it:

1. MPEG Program: An F1 through F6 button may be assigned to

go directly to the Program Select MPEG menu. Refer to the

Program Select Menu on page 23. By default, no function button

controls this.

Blue Screen: Blue Screen is described in the Video Menu on

page 36. The F1 or F2 buttons may control whether the blue

screen is set to

On or Off. By default, neither function button

controls this.

3. Mono Mode: Monochrome mode is described in the Video Menu

on page 36. The

monochrome mode is set to

F1 or F2 buttons may control whether

On or Off. By default, neither function

button controls this.

821063: MPEG-2443 User Guide

Page 50

Chapter 4 Configuration

Functions Menu

4. Video Scale: Video scaling is described in the Scale Type option

on the Video Menu on page 36. The

whether the scale type is set to Zoom or Stretch. By default,

neither function button controls this.

5. Level Meters: The audio level meter parameters are described in

the Audio Menu on page 37. The whether the level meters show on the screen or not. By default, function button

6. Center Marker: The Center Marker enable is described in the

Marker Menu on page 39. The F1 or F2 buttons may control

whether the center marker shows on the screen or not. By default,

function button F1 controls this.

7. Area Marker: The Area Marker enable is described in the

Marker Menu on page 39. The F1 or F2 buttons may control

whether the area marker shows on the screen or not. By default,

function button F1 controls this.

F1 or F2 buttons may control

F2 controls this.

8. Safety Marker: The Safety Marker enable is described in the

Marker Menu on page 39. The F1 or F2 buttons may control

whether the safety marker shows on the screen or not. By default,

function button F1 controls this.

9. Presets 3, 4, 5, 6: Any Function Button can be associated with

one of the 4 available Presets. In this case, the associated Preset is Loaded and made active. (See Preset Menu and Video Menu ).

Page 51

GPI-In Menu

Blue Screen Mono Mode Video Scale

Level Meters

Center Marker

MPEG Program

Area Marker

Safety Marker

43 6 43 6 43 6 43 6 43 6 43 6 43 6 43 6

This menu programs the action of the GPI (General Purpose Interface) inputs. The pin numbers of each input are shown on this menu. Each input can control multiple functions, if desired. By default, the GPI inputs are not set to control any function. Refer to Figure 1–5 on page 9 and Table 1–1 on page 9 for the electrical connections of these inputs.

The GPI-In Menu is shown in Figure 4–8.

Figure 4–8 GPI-In Menu

Chapter 4 Configuration

GPI-In Menu

Rotate the Volume knob to highlight the item to be adjusted, and then

press to enter it. Again rotate the

Volume knob to the option selection

and press to choose it:

1. MPEG Program: A closure on a GPI input can cause control to go

directly to the Program Select MPEG menu. Refer to the

Program Select Menu on page 23.

Blue Screen: Blue screen is described in the Video Menu on page

36. The Blue Screen option in the Video Menu must be set to

GPI for a GPI input to take effect.

3. Mono Mode: Monochrome mode is described in the Video Menu

on page 36. The Mono Mode option in the Video Menu must be

set to

GPI for a GPI input to take effect.

821063: MPEG-2443 User Guide

Page 52

Chapter 4 Configuration

GPI-In Menu

4. Video Scale: Video scaling is described in the Scale Type option

on the Video Menu on page 36. The

Video Menu must be set to GPI for a GPI input to take effect.

Level Meters: The audio level meter parameters are described in

the Audio Menu on page 37. The

Audio Menu must be set to GPI for a GPI input to take effect.

the

Center Marker: The Center Marker enable is described in the

Marker Menu on page 39. The

Marker Menu must be set to GPI for a GPI input to take effect.

Area Marker: The Area Marker enable is described in the

Marker Menu on page 39. The

must be set to GPI for a GPI input to take effect.

8. Safety Marker: The Safety Marker enable is described in the

Marker Menu on page 39. The Safety Marker option in the

Marker Menu must be set to GPI for a GPI input to take effect.

Scale Type option in the

Level Meter Display option in

Center Marker option in the

Area Marker option in the Marker

Page 53

OSD Menu

Source Position

OSD Menu

Source ID

OSD Timeout

T Right B LeftT Left

Off 5 SecOn

B Right

Off 30 Sec10 Sec 1 Min

Off

The OSD (On Screen Display) Menu sets up timeouts and positions for various text displays. The OSD Menu is shown in Figure 4–9.

Figure 4–9 OSD Menu

Chapter 4 Configuration

OSD Menu

Rotate the Volume knob to highlight the item to be adjusted, and then press to enter it. Again rotate the Volume knob to the option selection

and press to choose it:

1. Source ID: The Source ID display shows the type of input that

is being displayed. This display can be set to display for 5 seconds after any source change. The default setting

is On. The position on the screen can be adjusted by the Source

Position

Source Position: The Source ID may be displayed at one of

four locations on the screen. By default, the selected.

3. OSD Timeout: These menus may be set to either persist on the

screen indefinitely until the or they may automatically time out and disappear after one of three time choices. By default,

Off, On, or to only

option in this menu.

Top Left location is

Menu button is pressed to exit (Off),

10 seconds is selected.

821063: MPEG-2443 User Guide

Page 54

Chapter 4 Configuration

System Menu

Backlight Interval

LED Test

Calibration

Upgrade

None 5m 4h 8h 24h 48h

Restore

Upgrade

TestOff

System Menu

The System Menu sets up basic operational parameters for each

MPEG-2443 screen. This menu is shown in Figure 4–10.

Figure 4–10 System Menu

Rotate the Volume knob to highlight the item to be adjusted, and then press to enter it. Again rotate the Volume knob to the option selection

and press to choose it:

1. Backlight Interval: To preserve the life of the LCD backlight on

each screen, a timeout is provided. This interval can be set to

None, which leaves and backlight on all of the time, or to one of 5

time intervals. By default,

LED Test: This test function provides a simple test of the LEDs on

the front panel. To adjust the brightness of the LEDs, use item 9 on

page 31 in the Adjust Menu section. The default setting is Off,

which causes the Panel LEDs to light normally.

3. Calibration: If at any time you need to set a MPEG-2443 screen

back to its original factory calibration, this option can be used.

Upgrade: If you have a software upgrade on a flash drive that you

would like to apply to the MPEG-2443, use this option and then following the instructions that will appear on the screen.

8 hours is chosen.

Page 55

Preset Menu

Load Menus<-Preset

Preset Menu

Off OnDisplay Preset ID

Preset ID

Save Menus->Preset 1 32 4 5 6

1 32 4 5 6 Reset

Preset ID Position T Left T Right BottomTop B Left

Copy Presets->Unit U1 U3U2 U4

Preset DefName

A C D E F G H I J K L M

N O P Q R S T U V W X Y Z

# + -

@0 1 2 3 4 5 6 7 8 9 % =

? :

[ ]

( )

Shift Space BkSpClear Restore

B Right

Done

A Preset represents a specific configuration of all of the Menu items. Each screen can have up to 6 Presets which can be recalled at any time to reconfigure. The Preset Menu lets you save, recall, and assign a name to a preset for each MPEG-2443 screen and is shown in Figure 4–

11 on page 49.

To offer you maximum configuration flexibility, you can:

• Save Menu changes to one of 6 Presets.

• Load/Recall one of the 6 Presets.

• Name a Preset using up to 14 characters.

• Enable/Disable the display of the Preset Name on the OSD over the

Video

Chapter 4 Configuration

Preset Menu

• Position the Preset Name to one of several screen locations.

• Copy all presets from one screen to another.

• Restore a Preset back to a Factory Default Configuration.

Figure 4–11 Preset Menu

821063: MPEG-2443 User Guide

Page 56

Chapter 4 Configuration

Preset Menu

Rotate the Volume knob to highlight the item to be adjusted, and then

press to enter it. Again rotate the and press to choose it:

1. Save Menus -> Preset: To save the current MPEG-2443 menu

configuration select one of the six presets and press the Volume knob. This function does not change which Preset is active. It only saves the current Menu configuration to the chosen Preset. Menu changes are not automatically saved therefore after making one or more Menu changes, use the Save function to store those changes to a Preset.

Load menus <- Preset: See Edits Recalling sets the menu

configuration to the configuration prior saved to the Preset being Recalled. This sets the active Preset. The Active Preset is noted by the number following the Preset Name, ie :N where N is 1-6 or an F designating Factory defaults.

Display Preset ID: If you have entered an Preset ID for the

currently recalled Preset, you may display this ID on the screen.

This option sets this display option On or Off. By default, it is On.

Volume knob to the option selection

4. Preset ID Position: This option sets the screen location for the

Preset ID, if you have entered one and if the Display Preset ID

option in this menu is On. Six locations are offered and Top is

selected by default.

5. Copy Presets -> Unit: It can be convenient to configure one of

the MPEG-2443 screens and then simply duplicate this configuration in each of the other screens. This option allows you to copy all 6 presets from one screen to another.

6. Preset ID: The currently-recalled preset name and number are

shown. To name or rename a preset, recall it using the

Preset from

function on this menu. Then click the Preset ID

Recall

function. An on-screen keypad is provided to use to enter text to

name each preset. Enter the text, by rotating the Volume knob to

highlight each character and the pressing it to add that character to the text.

Clear, Restore, Shift, Space, Backspace, and Done

controls are also provided. Up to 8 characters may be entered.

When you are finished, select Done. To save the new text, rotate the Volume knob to highlight Save Preset ID and press it. To

quit without saving the name, press the

Menu button instead.

Presets 3 through 6 can be invoked by associating one of these

presets to a Function Key. In this case, when the Function Key is

Page 57

Chapter 4 Configuration

Preset Menu

pushed, the associated preset is loaded and made active.

(Functions Menu on page 43). The main purpose of this

functionality is to facilitate the selection of an input signal source and other signal parameters such as audio channels. The Video Menu contains a Source Selection item. By selecting a Source and other related menu items and saving the configuration to preset (3-

6), then associating a Function Key to the chosen Preset, when the Function Key is pushed, that preset is loaded which activates the selected source. Therefore, a source (SDI, ASI, Ethernet, or HDMI) can be selected and played with one push of a Function Key.

821063: MPEG-2443 User Guide

Page 58

Chapter 4 Configuration

IP Mask

Network Menu

1234Port Number

0 1 2 3 4 5 6 7 8 9

Clear Done

IP Address 192 50168 2

255 255255 0

MultiCast Serv Addr

Gateway Address 192 50168 1

224 00 0 Save

Save

Network Menu

As in all networks, each device on the network needs to have its own unique Ethernet address. This includes each screen of this unit, as well as each screen of any other MPEG-Series products in the network.

While the IP Addresses of each screen are preconfigured from the factory, they will likely need to be reconfigured in light of the above statement. The

4–12 on page 52.

Figure 4–12 Network Menu

Network Menu where this is done is shown in Figure

Rotate the press to enter it. Again rotate the change and press to replace it. A number in the keypad below will then be highlighted. Rotate and press to select the new numeric entry. Use

Clear to start over and Done when finished. The changeable fields are

as follows:

1. IP Address: After each numeric field is changed, the numbers

Important:

821063: MPEG-2443 User Guide

turn from yellow to black to denote they were changed. When you

have finished, select Save. After a few seconds, the action will be complete, the numbers will turn yellow, and IP Address will be

highlighted.

If you plan to plug multiple MPEG-Series monitors into a local area network, please verify first that the Ethernet address of each screen on each unit is unique, to prevent network problems.

Volume knob to highlight the item to be adjusted, and then

Volume knob to the item you need to

Page 59

Chapter 4 Configuration

System Status

2. IP Mask: After each numeric field is changed, the numbers turn

from yellow to black to denote they were changed. When you have

finished, select Save. After a few seconds, the action will be complete, the numbers will turn yellow, and IP Mask will be

highlighted.

3. Gateway Address: After each numeric field is changed, the

numbers turn from yellow to black to denote they were changed.

When you have finished, select Save. After a few seconds, the

action will be complete, the numbers will turn yellow, and

Gateway Address will be highlighted.

4. MultiCast Serv Addr: If the Multicast feature of this monitor is to

be used, set the address of the multicast source here.

5. Port Number: When the Port Number field is changed, the

number turns from yellow to black to denote it was changed.

When you have finished, select Save. After a few seconds, the action will be complete, the number will turn yellow, and Port

Number

will be highlighted.

Important:

The screen must be restarted to accept Ethernet address changes after

you make them. To do this, press and hold the Power button until the screen turns off. Then press Power once again to turn the screen back

on. The new changes will now be in effect.

System Status

The System Status Screen does not provide editable options, but

instead reports on a variety of useful information, internal settings, and version numbers.

821063: MPEG-2443 User Guide

Page 60

Chapter 4 Configuration

System Status

MPEG-2443

Product

Dvm_25M AR 2014_v2.01MainSys: Appl Version

So ftw a re

192.168.50.1IP Address

Ethernet

255.255.255.0Mask

192.168.50.1Gateway Address

S/N 141095 B4:ED:54:D0:02:ccMAC Address

2.01/ t29CVersion Number/Temperature

www .wohler.com [email protected] +1-510-870-0810 opt 4

224 .1 .1 .4 : 1 23 4MultiCast Address/Port

02_01 03/13 04.03M a in Sys : FPGA Vers io n LD4v2_01: CP4c201FrontPanel: Loader/ControlPnl

MPEG Menus

Figure 4–13 System Status

MPEG Menus

The MPEG Menu System is a combination status screen and menu. Its

operation is described in MPEG Menu Operation on page 22.

Page 61

Introduction

Overview

Specifications, compliance information, and a block diagram of the MPEG-2443 are provided in this chapter.

Topics

CHAPTER 5

Specifications

Topics Page

Introduction 55 Specifications 56 Acceptable MPEG Signal Rates 59 Technical Functional Overview 59

821063: MPEG-2443 User Guide

Page 62

Chapter 5 Specifications

Specifications

The specifications of the audio/video monitors are listed below.

Table 5–2 MPEG-2443 Specifications

Specification Value

Number of Screens 4 Display 4.3” diagonal Native Aspect Ratios 16:9 Viewing Angle 70°H x 70°V Screen Colors 16.7M Resolution (Dots, H x V) 480 x 272 Dot Pitch (H x V, mm) 0.1125 x 0.1095 Contrast Ratio 400:1 Pixel Response (ms) <30 typical Luminance 500 cd/m LED Backlight Life 20,000 hours Dimensions (H x W x D) 3.5” x 19” x 2.2” (89 x 483 x 56 mm) Shipping Weight 8.2 lbs (3.72 kg) Net Weight 6.95 lbs (3.15 kg)

Power Consumption

Operating Temperature 0°C (32°F) to 40°C (104°F)

24 VDC at 3 A. A 100 - 240 VAC +/- 10% CE & UL power supply provides this.

• 2 BNC: 3G/HD/SD-SDI or ASI (75 )

Inputs (per screen)

• 1 HDMI

• 1 RJ-45: Tally and GPI

• 1 RS-485

Inputs (per unit)

• 1 RJ-45: Ethernet

Input and Output (per unit)

Outputs (per screen)

• 1 USB

• 2 BNC: 3G/HD/SD-SDI or ASI (75 )

• 1 RS-485

Outputs (per unit)

• 1/8” Headphone Jack

Space Required 2 RU Supplied Accessories DC power adapter

Note:

All specifications are subject to change without notice.

Page 63

Chapter 5 Specifications

Specifications

The acceptable signal input formats are listed below.

Table 5–3 Acceptable Signal Input Formats

Category Signal Types

3G-SDI (SMPTE-425M, Level A)

SMPTE-274: 1080p (60/59.94/50)

SMPTE-296M: 720p (60/59.94/50/

30/29.97/25/24/

23.98)

HD-SDI (SMPTE-292)

SMPTE-274: 1080i (60/59.94/50) SMPTE-274: 1080psF (24/23.98) SMPTE-274: 1080p (30/29.97/25/24/

23.98)

SMPTE-259M-C (270 Mbps)

SD-SDI

720 x 480i (59.94) NTSC 720 x 576i (50) PAL 525i - NTSC 625i - PAL 525i - PAL-M 720 x 480i (59.94) 720 x 576i (50) 720 x 480p (59.94) 720 x 576p (50)

HDMI

1280 x 720p (60/59.94/50) 1920 x 1080i (60/59.94/50) 640 x 480 (60) 800 x 600 (60) 1024 x 768 (60) 1280 x 1024 (60) 1600 x 1200 (60) 1920 x 1080p (60/59.94/50/30/29.97/

25/24/23.98)

821063: MPEG-2443 User Guide

Page 64

Chapter 5 Specifications

Specifications

Table 5–3 Acceptable Signal Input Formats

Category Signal Types

MPEG / ASI

TS Protocols

MPEG Video (ASI/IP)

MPEG Audio

192 x 192i (50) 480 x 480i (59.94) 528 x 480i (29.97 544 x 576i (25) 704 x 480i (60/59.94, 29.97, 47.95) 704 x 576i (50, 25) 720 x 480i (60/59.94) 720 x 480p (60/59.94) 720 x 576i (50, 25) 768 x 576i (50) 1280 x 720p (60/59.94/50/30/29.97/

25/24/23.98) 1440 x 1080i (60/59.94/50) 1920 x 1080i (60/59.94/50) 1920 x 1080p (60/59.94/50/30/29.97/

25/24/23.98) 1920 x 1088i (60/59.94/50) 1920 x 1088p (60/59.94/50/30/29.97/

25/24/23.98) SPTS/MPTS-ASI, Unicast-IP/IGMP

UDP/RTP, Multicast

100 kb/s - 30 Mb/s CBR, MPEG-2

4:2:0, AVC, MP @ML/HL/HP, MPEG-4 4:2:0 (H.264 MP/LP to L4.2)

MPEG-1/2/3 Layer II, AAC-LC 16-

384 kb/s, MP3, AC3 (optional)

Table 5–4 Acceptable MPEG Signal Rates

Specification Value

Maximum Single TS Decode Rate 23 Mbps Maximum ASI Transport Stream

(MPTS) Rate Maximum Ethernet (MPTS) Rate 35 Mbps

206 Mbps

Page 65

Chapter 5 Specifications

Technical Functional Overview

Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Technical Functional Overview

The following block diagram (Figure 5–14) shows the overall functionality of the MPEG-2443 monitor.

821063: MPEG-2443 User Guide

Page 66

Chapter 5 Specifications

Technical Functional Overview

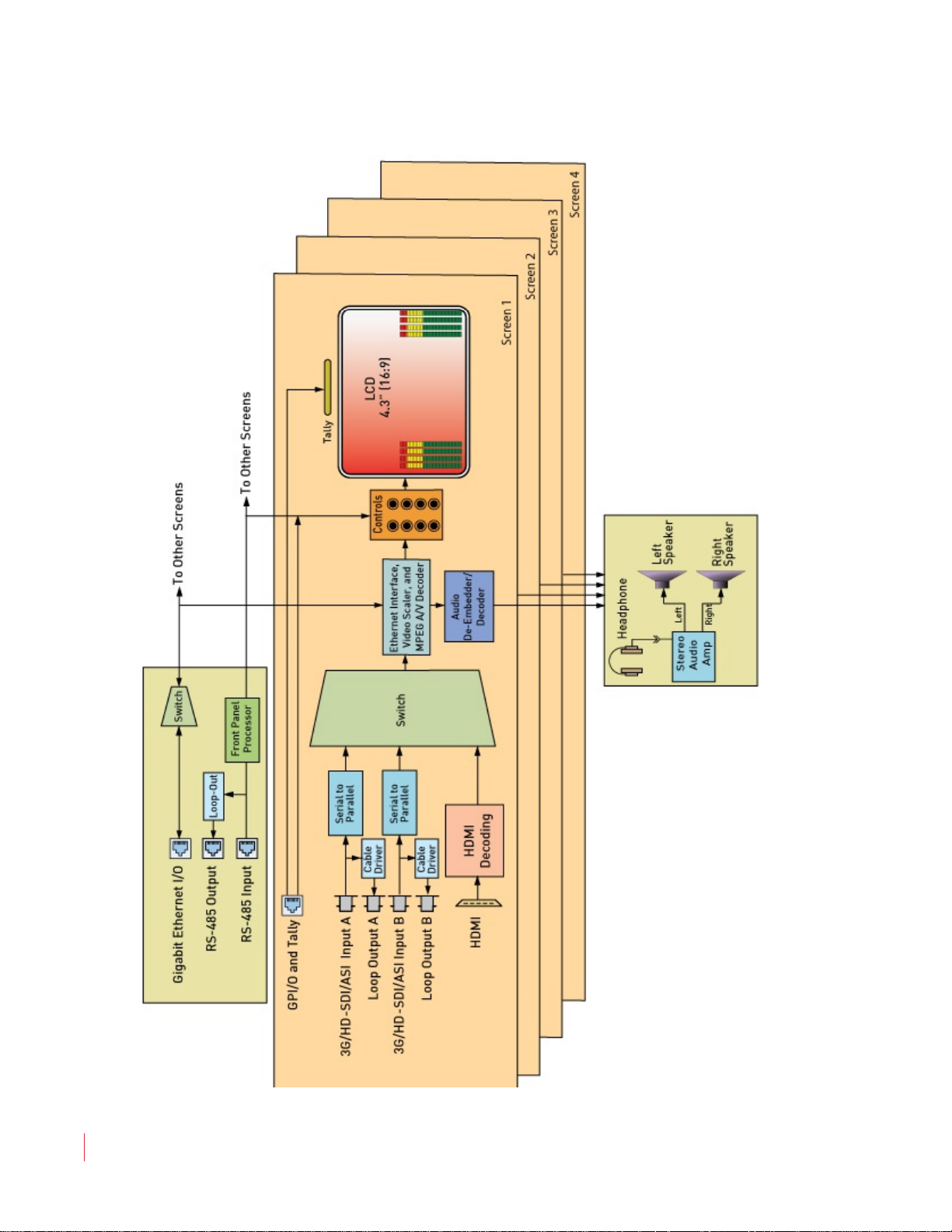

Figure 5–14 MPEG-2443 Block Diagram

Wohler MPEG-2443 User Manual

Table of Contents

Introduction

Overview

Installation

Topics

Safety

Important Safety Instructions

Safety Symbols

Installation Recommendations

Mounting

Heat Dissipation

On-Screen Display Features

DC Power

Front Panel

Rear Panel Connectors

Introduction

Overview

Topics

Quick Start

Unpacking

Packing List

Unpacking and Powering for the First Time

Setting up Inputs

Monitoring a 3G/HD/SD-SDI Signal

Monitoring an ASI Stream

Monitoring an Ethernet Stream

Monitoring an HDMI Signal

Introduction

Overview

Topics

Operation

Initially Powering the MPEG-2443

Power Butto ns

Input Button

MPEG Menu Operation

Program Select Menu

PMT Select Menu

PSI Select Menu

PMT PID Information Menu

PSI Information Screen

F1 & F2 Buttons

Adjust Menu

Screen Saver

Saving Your Options

Introduction

Overview

Topics

Configuration

Using the Menu System

Video Menu

Audio Menu

Marker Menu

UMD Options Menu

Functions Menu

GPI-In Menu

OSD Menu

System Menu

Preset Menu

Network Menu

System Status

MPEG Menus

Introduction

Overview

Topics

Specifications

Specifications

Technical Functional Overview

Compliance
