1

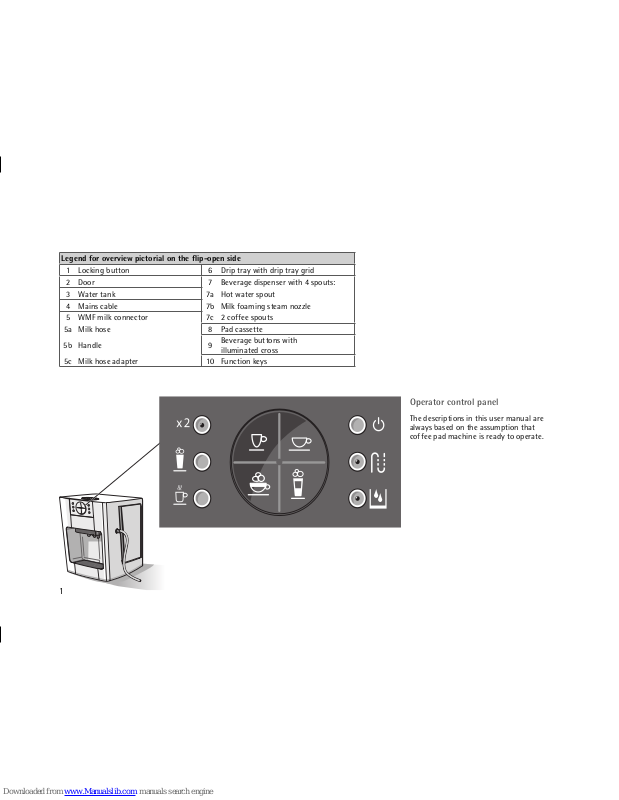

Legend for overview pictorial on the fl ip-open side
1 Locking button 6 Drip tray with drip tray grid
2 Door 7 Beverage dispenser with 4 spouts:
3 Water tank 7a Hot water spout
4 Mains cable 7b Milk foaming steam nozzle
5 WMFmilkconnector 7c 2 coffee spouts
5a Milk hose 8 Pad cassette
5b Handle 9
Beverage buttons with
illuminated cross
5c Milk hose adapter 10 Function keys
Operator control panel
The descriptions in this user manual are
always based on the assumption that
coffee pad machine is ready to operate.
GB
The following functions are what makes
your WMF 10 coffee pad machine unique:
Beverage buttons with illuminated cross
You can select a coffee speciality by
pressing a button.
The signals of the illuminated cross simplify
the operation.
Double cup function
There is double cup function to
simultaneously give two portions of coffee
for the perfect coffee for two.
Milk system
With the WMFmilkconnector, preparing
cappuccino and latte macchiato are
simplicity itself. WMFeasyclean makes
regular cleaning simple.
Teach-In
You can individually set the volumes of your
cups.
Energy saving functions
The sleep mode as well as the automatic
switch off help to save energy.
The following signals are displayed:
Illuminated cross
(in the beverage
buttons fi eld)
fl ashes red Tank must be fi lled
fl ashes red Device being heated
fl ashes red slowly energy-saving sleep mode
glows white
Brewing stand-by for all coffee
beverages and hot water
pulses white Dispensing going on
fl ashes white Teach-In mode active
series of white fl ashes Programming of water hardness
fl ashes white 3x
Reporting success - Teach-In,
programming of water hardness
Double cup button
glows white Double cup function is activated
Descaling button
fl ashes red Descaling program is running
fl ashes red Appliance must be descaled soon
fl ashes red Descaling urgently required
Cleaning button
glows blue
Rinsing or cleaning ongoing
no more beverage removal is possible
fl ashes blue
Rinsing at the time of initial setup/
prompt for rinsing after descaling
rapidly fl ashes blue Prompt for cleaning - 1 minute long
An overview of the functions and indications
Preliminary comments
Congratulations on choosing your new coffee pad machine WMF 10.
Coffee, latte macchiato or cappuccino - with the WMF 10, you can get your favourite hot drink by just pressing a button.
Before starting
Read this user manual before you start preparing the coffee. Only then you can use all the functions, operate your WMF 10 safely
and treat yourself to a wonderful cup of coffee .
Signs and symbols
Next to the text, you will fi nd the following symbols with the following meaning.
Symbols for hazard instructions in Chapters 2 to 6
Hazard!
Hazard of being injured!
Hazard!
Risk of burns and scalding!
Hazard!
Potentially lethal hazard due to electric
shock!
Caution!
Risk of possible material damage!
Symbols for tips and cross references
Useful information and tips Cross reference
Table of contents
1 For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Hazard instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Initial setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.1 Supplied kit and optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Fill the water tank and insert the water fi lter . . . . . . . . . . . . . . . . . . . 7
2.4 Rinsing for fi rst time of use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Switching on and off, cancelling preparation . . . . . . . . . . . . . . . . . . 11
3.2 Preparing the WMF milk connector . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Coffee preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3.1 Inserting the coffee pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.3.2 Inserting the ground coffee cassette . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.3.3 Preparing a small and a large coffee . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.3.4 Preparing cappuccino and latte macchiato . . . . . . . . . . . . . . . . . . . .19
3.4 Milk foam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.5 Hot water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.6 Resetting the cup volumes to default values. . . . . . . . . . . . . . . . . . . 22
4 Energy saving functions . . . . . . . . . . . . . . . . . . . . . . . .23
4.1 Sleep mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.2 Automatic switch-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Caring for the coffee pad machine. . . . . . . . . . . . . . . .24
5.1 Care overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Clean the milk foamer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.2.1 Express cleaning of the WMF easy clean . . . . . . . . . . . . . . . . . . . . . . 25
5.2.2 Cleaning prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.3 Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.4 Manual cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.4.1 Milk foamer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
5.4.2 Coffee spout cassette with sieve insert . . . . . . . . . . . . . . . . . . . . . . .31
5.4.3 Pad cassette and ground coffee cassette . . . . . . . . . . . . . . . . . . . . . .32
5.4.4 Steam nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
5.5 Descaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.5.1 Scaling display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.5.2 Setting the water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.5.3 Descaling agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
5.5.4 Applying the descaling program . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
6 Measures for problem rectifi cation . . . . . . . . . . . . . . .39
7 Transportation and disposal . . . . . . . . . . . . . . . . . . . . . 45
8 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
9 Warranty and Service, Index . . . . . . . . . . . . . . . . . . . . 47
9.1 Warranty and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
9.2 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
GB
For your safety
1
1 For your safety
Maximum possible safety of devices is one of the characteristics of WMF products to which we give our
special attention. The integrated safety devices of WMF 10 are however only effective if you follow the
following safety instructions.
1.1 Intended use
The WMF 10 is a coffee pad machine for coffee, cappuccino and latte macchiato.
The WMF 10 is designed exclusively for preparing coffee and coffee-milk beverages as well as milk foam
and hot water. Only coffee softpads with an external diameter of 7 cm can be used.
The WMF 10 is designed for preparing quantities normal in private use and is unsuitable for commercial
purposes. The WMF 10 is not intended for use in areas such as kitchens for employees, in shops, offi ces
and other commercial areas, in agriculture, or for use by customers in hotels, motels, bed-and-breakfast
hotels and other residential facilities.
This appliance is not intended for use by persons (including children) with limited physical, sensory
or mental abilities or those with a lack of experience and/or knowledge, unless they are supervised
by a person responsible for their safety or have received from such a person instructions on how the
appliance is to be used.
Do not operate the appliance if it is not supervised. The appliance may not be used at altitudes greater
than 1500 m above sea level. In case of misuse, incorrect connection, incorrect operation, improper
repair or non-compliance with the above mentioned specifi cations, no liability will be accepted for any
damage. No liability whatsoever is accepted for damage caused by neglecting cleaning or descaling or by
using other cleaning products or scaling products than those of WMF. All warranty and guarantee claims
will be rendered null and void.
For your safety
2
1.2 Hazard instructions
Despite all safety precautions, there is a hazard potential associated with each device due to improper
handling. Therefore, follow the given instructions while using your coffee pad machine to avoid injuries
and health hazards.
Possible risk to life due to electric shock!
Water or other fl uids that have seeped into the electronic components of your coffee pad machine can
lead to potentially lethal electric shocks.
> Do not clean your coffee machine under running water, with steam cleaners or with steam jets.
> Never open the housing of your coffee pad machine.
> Never reach into the interior of your coffee pad machine, do not use any tools etc.
Possible danger to life due to defects in the appliance!
If the coffee pad machine or the mains cable is damaged, or if there is a doubt about a defect after it has
fallen or after any other mishap, electrical shocks are possible.
> Do not use the appliance under any circumstances, do not activate it.
> Switch off the electric supply and pull out the mains cable.
> Do not connect a damaged mains cable and do not repair it yourself.
> Entrust only qualifi ed technical personnel such as WMF After-sales Service with repairing the
appliance or replacing the mains cable.
GB
For your safety
3
Probable risk of burns or scalding due to hot components or steam and hot liquids!
The spouts in the coffee dispenser become very hot during operation. You can get burnt if you touch the
spouts. You can get scalded by hot beverages and steam that is discharged.
> Do not touch the spouts or surfaces directly in its vicinity.
> Avoid contact with the escaping steam or liquids.
> Handle hot beverages with care.
> Allow the machine to cool down before cleaning. Follow the same procedure when you remove or
attach components or accessories.
Possible health hazard!
Neglecting to clean the milk unit, the water tank or using onsumables or materials other than coffee can
affect your health.
> Clean the machine regularly in accordance with the instructions in Chapter
““5 Caring for the coffee pad machine.” on page 24 ff.
> Fill the water tank only with clean, cold drinking water.
> Only use fresh milk or UHT milk for the milk hose.
> Insert only coffee softpads or the ground coffee cassette in the pad cassette.
Possible material damage to sensitive surfaces.
Due to escaping hot steam or water, delicate surfaces and furniture can get damaged.
> Do not operate the appliance under sensitive furniture.
> Protect the delicate surfaces with a base that is water-proof and heat resistant.
> Ensure that the surface remains dry.
For your safety
4
Possible material damage due to overfl owing drip tray!
If you only infrequently drain the drip tray, it can overfl ow. It can possibly damage the delicate items in
the surrounding area.
> Drain the drip tray regularly and rinse after each use.
> Ensure that the machine is switched off in your absence.
Possible damage to the coffee pad machine
The coffee pad machine is sensitive to frost after initial fi lling with water and can be damaged by frost.
The housing can be melted by open fl ames or hot plates.
> Operate and store the coffee pad machine only in frost-free rooms.
> Do not place the appliance on hot surfaces or in the vicinity of fl ames.
GB
5
Initial setup
2 Initial setup
Now you are only few steps away from preparing and enjoying the perfect coffee.
In this chapter, you can learn step-by-step how you can start operating your
WMF 10.
2.1 Supplied kit and optional accessories
> Check the scope of supply for completeness.
For effective cleaning of your WMF 10, you can additionally purchase the WMF 1 descaler and the WMF
milk system cleaner from the specialist dealer or from the WMF store.
Legend
Scope of supply:
1
WMF 10 coffee pad
machine with mains cable
2
WMFmilkconnector:
Milk hose with handle
and milk hose adapter
3 Ground coffee cassette
4 Filter paper
5User manual
6Water fi lter
7Suction cap
Optional accessories:
8 WMF 1 descaler
9 WMF Milk system cleaner
1
9
8
2
6
5
7
4
3
Initial setup
6
2.2 Installation and connection
> Unpack the coffee pad machine.
Hazard!
Risk of accidents for children at low installation height!
If the height of installation is too low, children can reach into the device and may be injured by hot steam or
water.
> Install the device at least 85 cm, if necessary, even higher, above the fl oor surface.
> Install the device on a surface with a width of at least 60cm.
> Push the device far to the rear so that the drip tray and the device are out of the reach of children.
Possible material damage to sensitive surfaces!
Due to the escaping hot steam or water, delicate installation surfaces can be damaged.
> Protect the delicate installation surfaces with a base that is water-proof and heat resistant.
> Ensure that the surface remains dry.
> Place the coffee pad machine on a stable, horizontal base that is water-proof and heat-resistant. Keep the
machine away from heat sources (hotplate, gas fl ame etc.).
> Place the drip tray grid in the drip tray. Note the position marking on the front right.
> Insert the drip tray with the drip tray grid in the coffee pad machine.
> Insert the plug of the mains cable in an electrical safety socket.
> Protect the mains cable from damage:
- Do not clamp the mains cable.
- Protect the mains cable from sharp edges, moisture, heat or oil.
GB
Initial setup
7
2.3 Fill the water tank and insert the water fi lter
> To switch on the coffee pad machine, press the On-/Off-/C button.
As long as the water tank is empty, the illuminated cross fl ashes red.
Caution!
Possible damage to your coffee pad machine with unsuitable liquids!
Liquids other than drinking water can damage your coffee pad machine or result in clogging.
> Fill the water tank of your coffee pad machine only with clean, cold drinking water.
> Never fi ll the water tank with hot water, mineral water or milk.
> Open the door to the water tank.
> Tilt the water tank outwards until it snaps into the draining position.
> Then lift the water tank outwards.
> Remove the cover and take out the accessories in the tank.
> Rinse the water tank thoroughly with tap water.
Removing the water
tank
Initial setup
8
Depending on the quality of your tap water, you should insert the water fi lter from the scope of supply
here (see “2.1 Supplied kit and optional accessories” on page 5).
The water fi lter ensures a genuine coffee taste. It fi lters out chlorine and other impurities from the water.
> First rinse the water fi lter under water.
> Insert the water fi lter (1) in the locating ring on the fl oor of the water tank without pressing it in.
As time goes on, the quality of the water fi lter deteriorates. With a daily average consumption of 8 cups
of coffee, the water fi lter should be changed not later than after every 2 months (approx. 500 cups).
> Set the changeable display (2) on the tank cover to the time of the next water fi lter replacement.
Water fi lters are available from the specialist dealers
Even if you do not use a water fi lter, the suction cap must be correctly assembled, otherwise the tank
cannot be completely emptied during drink preparation and the last cup is not fi lled completely.
> Take the suction cap (3) and fi x it fi rmly on the locating ring on the fl oor of the water tank.
> When doing so, ensure that the arrow marking on the suction cap points towards the fl oating capsule
(4).
Inserting the water
fi lter
1
Changeable display
setting
2
Suction cap - fi tting
3
4
GB
Initial setup
9
^6
6
6
5
> Place the tank lid on the water tank.
> Pour cold tap water through the fi lling opening up to the maximum marking (5).
When using the water tank, the tilting device (6) must be tilted forward.
> Tip the tilting device (6) forward if required.
> Insert the water tank into the appliance and close the door.
The cleaning button fl ashes blue to prompt you about rinsing.
2.4 Rinsing for fi rst time of use.
> Ensure that the empty pad cassette is pushed in.
> Turn the locking knob to position z.
> Place a collecting vessel with a volume of at least 0.5 litres centrally under all spouts.
Filling the water tank
Inserting the water
tank
Initial setup
10
> Press the cleaning button.
In the beginning, the pump is somewhat louder than usual. During rinsing, the number of rinsing
procedures required is determined electronically. If several rinsing procedures are necessary, they are
interrupted every 45 seconds. The cleaning button fl ashes blue again.
> If required, empty the collecting vessel and fi ll up the tank and press the cleaning button again.
As soon as adequate rinsing has been carried out, steam is generated. The illuminated cross then glows
red. The water is heated.
> Turn the locking knob to position |.
GB
Operation
11
3 Operation
In this chapter, you can learn everything about the easy method of coffee preparation with the WMF 10
and how you can individually customise your WMF 10 - entirely according to your preference!
Before the fi rst operation, you should have carried out the initial setup (see Chapter
„2 Initial setup“ on page 5 ff).
Hazard!
Possible risk of burns or scalding due to hot components or steam and hot liquids.
The spouts become very hot during operation and can cause burns if touched. Hot beverages and escaping
steam can scald you.
> Do not touch the beverage dispenser with spouts.
> Avoid contact with the escaping steam and handle the hot beverage with care.
3.1 Switching on and off, cancelling preparation
With the On-/Off-/C-button, you can switch the coffee pad machine on or off or cancel the preparation
of a beverage.
> To switch on the coffee pad machine, press the On-/Off-/C button.
The illuminated cross
- fl ashes red when the water tank has to be fi lled,
- glows red while the appliance is heating up,
- glows white as soon as the appliance is ready for operation.
Operation
12
> To switch off the coffee pad machine, press the On-/Off-/C button again until the displays go off.
> If you wish to prematurely cancel a beverage preparation process, press the On/Off/C button.
Remember, when switching off the appliance or cancelling a process: The dispensing of the beverage
does not stop immediately. A small quantity continues to fl ow after switching off. Leave the cup in
position for that time.
3.2 Preparing the WMF milk connector
To make milk foam for cappucino, latte macchiato or milk beverages, you have to insert the milk hose of
the WMF milk connector in a vessel with milk.
Milk is a very sensitive foodstuff. Always ensure cleanliness when using milk. Always keep the milk in a
cooler.
GB
Loading...
