INTRODUCTION

MTH400 is a professional radio microphone especially designed for broadcast/high quality
applications.

MTH400 is composed by 3 detachable parts:

• MIC Head (available with cardioid/hyper-cardioid polar pattern).

• MIC Body (the below part can be open to access “Display & Setup controls” area (fig.1) and on

the back the “Batteries holder & Infrared” area (fig. 2).

• MIC Antenna, made with fibreglass reinforced housing and with a “Wireless power switch” (fig.

3). “MIC Antenna” is fastened to body with 2 anvils and a micro-connector.

Wireless power switch with

programmable LED

indication (green/red).

Open MIC Body:

Unscrew & slide down cover,

To access internal setup controls and

batteries holder & infrared.

Fig. 1 Display & Setup controls

Fig. 2 Batteries holder and infrared

Fig. 3 Wireless

power switch

Exchange head:

unscrew it counter-clockwise

1

2

3

MTH400 User Manual

4

SAFETY INSTRUCTION

• Read this safety instruction and the manual first

• Follow all instructions and information.

• Do not lose this manual.

• Do not use this apparatus under the rain or near the water.

• Do not install the apparatus near heaters or in hot environments, do not use outside the

operating temperature range.

• Do not open the apparatus, only qualified service technician are enabled to operate on it. The

apparatus needs servicing when it is not properly working or is damaged by liquids, moisture or
other objects are fallen in the apparatus.

• Use only accessories or replacement parts authorized or specified by the manufacturer.

• Clean the apparatus only with dry cloths, do not use liquids.

• Report the serial number and the purchasing date in front of the manual. It is needed to have

proper replacement parts or accessories from the manufacturer.

• When replacement parts are needed, use only replacement parts authorized from the

manufacturer. Substitution with not authorized parts could result in electric shock, hazards or
fire.

• Keep attention on all the labels with warnings or hazards on the apparatus.

LED INDICATION (POWER SWITCH)

Led indication with bicolor led (red & green) on wireless power switch (fig. 3):

• Wireless transmission status: green when RF transmission power is on (on power on the device,

this LED is red and become green when the RF transmission power is on).

• Battery status: green steady, slowly blinking (< 25%), quickly blinking (<12%)

• Modulation peak (if activated): red

• PTT status: red if active

BATTERIES

MTH400 is working with 2 AA alkaline, NiMH or Lithium batteries (select correct type on setup
controls). Battery status can be checked on internal OLED display or looking to LED status on power
switch (see LED INDICATION section) ❸.

Battery substitution:

• Open MIC body: unscrew counter-clockwise the below cover to access batteries holder;

• Take out below battery to release upper battery leverage;

• 2nd battery falls down and can be remove

Attention: always replace both the batteries

MTH400 User Manual

5

POWERING UP

Move the wireless power switch (fig. 3) in upper position (towards MIC body) to activate wireless
transmission: the front LED ❸ lights up red and then green when the RF transmission power is on
(blinking when battery is low!)

SETUP CONTROL

Open MIC Body to access the “display and controls” area (fig. 1):

A. Graphics Display (OLED)
B. Channel selection buttons (ch)
C. MIC gain setup buttons (gain)
D. 3 position selector (up / down / click)

Fig. 4

OLED POWER UP (OLED IS IN OFF CONDITION)

Pushing down selector (click), the graphic display oled turns on.
At the beginning a <START UP> menu is displayed, then <STATUS> menu enters automatically. In
order to keep the <START UP> menu active, it is necessary to push and hold selector (click) for at
least 2 sec.

OLED POWER DOWN (OLED IS IN ON CONDITION)

Display turns off automatically after 15 sec, unless in <AUDIO> menu (with audio level < 5% from
nominal).

C

A

B

D

MTH400 User Manual

6

DISPLAY MENU

Using up/down selector all menus can be accessed in sequence.

MENU

STATUS

PRESET

Current

Load

FACTORY/USER/PRESET1/2/3/4/5/6/7/8

Save USER

TUNING

CH 00-59

GR 00-39

Freq

according to the freq.

range of the

transmitter

AUDIO

AF In Gain

AF Level

-40 ÷ +40 dB (1dB step)

-54 ÷ +26 dBu (1dBu step)

Phase 0/180

HP Filt

Flat or 60/80/120/170/250/400 Hz

Noise R.

ENR-Wisy/ENC-Wisy

RF/Battery

RF Power

10/20/50/100mW *

Battery Alkaline/NiMH/Lithium

LED

Led Light 0÷16

Led Mode

None/ModPeak/PTT

MIC PTT Mode

Disable/Normal/Muting/No Data

NAME

INFO

IRDA

Lock

Preset parameters

* Depending on the Power Profile

MTH400 User Manual

7

up

down

click

Using <up/down> selector all menus can be accessed in sequence, push <click> to enter edit mode
(on the left side of the display appear “EDIT” and the selected parameter starts blinking):

<up/down> to setup field
<click> again to confirm changes and exit.

If no button is pressed, the device exits the EDIT mode and returns the
parameter as it was previously set.

<START UP> menu

These menus are displayed during power up for few seconds.

This menu gives indication on product:

- product id (MTH400),

- the firmware release (ex. 1.30.0A),

- the band in extended format and

- the serial number.
Keep selector pushed to hold this menu!

<STATUS> menu

This is the first menu displayed after power up.

Major info are displayed:

- Current channel/group (i.e. CH:03 GR:03) or Receiver’s name
(i.e. RECEIVER) if the microphone has already been synchronized
with a receiver

- Current frequency (i.e. 610 MHz)

- Mic gain (i.e. -03dB) and high pass filter (i.e. 60Hz)

- If in the top right there is “RF10”, "RF 50"or "RF 100", the

transmission is active respectively at 10, 50 or 100mW (see

RF/BATTERY menu)

- On left side, the battery bar is displayed

<PRESET> menu

This menu can be entered by scrolling selector.

MTP41 can recall configuration presets.

“FACTORY” recalls the Wisycom factory configuration.
“USER” recalls the user configuration (the transmitter configuration
is copied into the USER using the “save to” submenu).
All “USER” menus are not locked by default, thus this is quick way to

unlock features!
When the user changes some parameters from the PRESET
configuration (for less than frequency) a star appears on the top­right corner until a save command is executed.

The other 8 configuration presets are user programmable thru the infrared and the PC interface
(using the programmer UPK 300/UPK

Mini

or the receiver MRK950/MRK960).

We provide the device with some preset configurations specifically designed for certain types of
microphone or applications (it’s possible to change these presets in any time using the TX manager).
All parameters can be “left unchanged”, “changed” or “changed and lock”, allowing a very flexible
way to pre-program MTH400 configuration.

MTH400 User Manual

8

<TUNING> menu

This menu can be entered by scrolling selector or using quick channel setup button (ch).

In this menu current channel/group and frequencies can be setup.
The name of the group is shown on the top right of the display.
Sync group is a quick self-settable channel synchronized by receiver
(with SYNC group, on the top right of the display is shown the name
of the synchronized receiver).
Use the selector to change values (<+/->) and <click> to confirm.

Using quick channel setup buttons (<CH>), it is possible to enter
quickly in the tuning menu. Note that the menu has a different
layout (see the side image)

<AUDIO> menu

This menu can be entered by scrolling selector or using quick gain setup button (gain).

The sensitivity of the audio input is settable between “AF Gain”
(measured in dB) or “AF Level” (measured in dBu).

To help proper audio gain setting, an audio bar is supplied (with
maximum peak indicator) indicating the headroom to audio peak
(0 dB , nominal deviation 40KHz). Set the gain, with the maximum

input signal, avoiding the peak on the audio bar.

TRY TO SETUP TO HAVE A MAX PEAK HOLD BAR CLOSE TO -6dB.

Using quick gain setup buttons (<GAIN>), it is possible to enter
quickly in the audio gain menu. Note that the menu has a different
layout (see the side image)

The second <AUDIO> menu allows to set:

- audio phase (0° or 180°)

- High Pass filter (Flat, 60, 80, 120, 170, 250, 400 Hz)

The third <AUDIO> menu allows to set the noise reduction:

• ENR-Wisy: designed for maximum noise reduction

• ENC-Wisy: designed for maximum audio fidelity (use this in

case of special vocal application or to remote instruments)

NOTE: To show the three menu screen it's necessary to scroll down with the selector.

<RF/BATTERY> menu

This menu can be entered by scrolling selector.

RF power can be setup to 10mW, 20mW, 50 mW or 100mW
(depending on the Power profile).

If it’s selected “10mW”, in the top right on the STATUS menu
appear “RF10”.
If it’s selected “50mW”, in the top right on the STATUS menu
appear “RF50”.
If it’s selected “100mW”, in the top right on the STATUS menu
appear “RF100”.

Battery type can be setup in Alkaline, NiMH or Lithium.

MTH400 User Manual

9

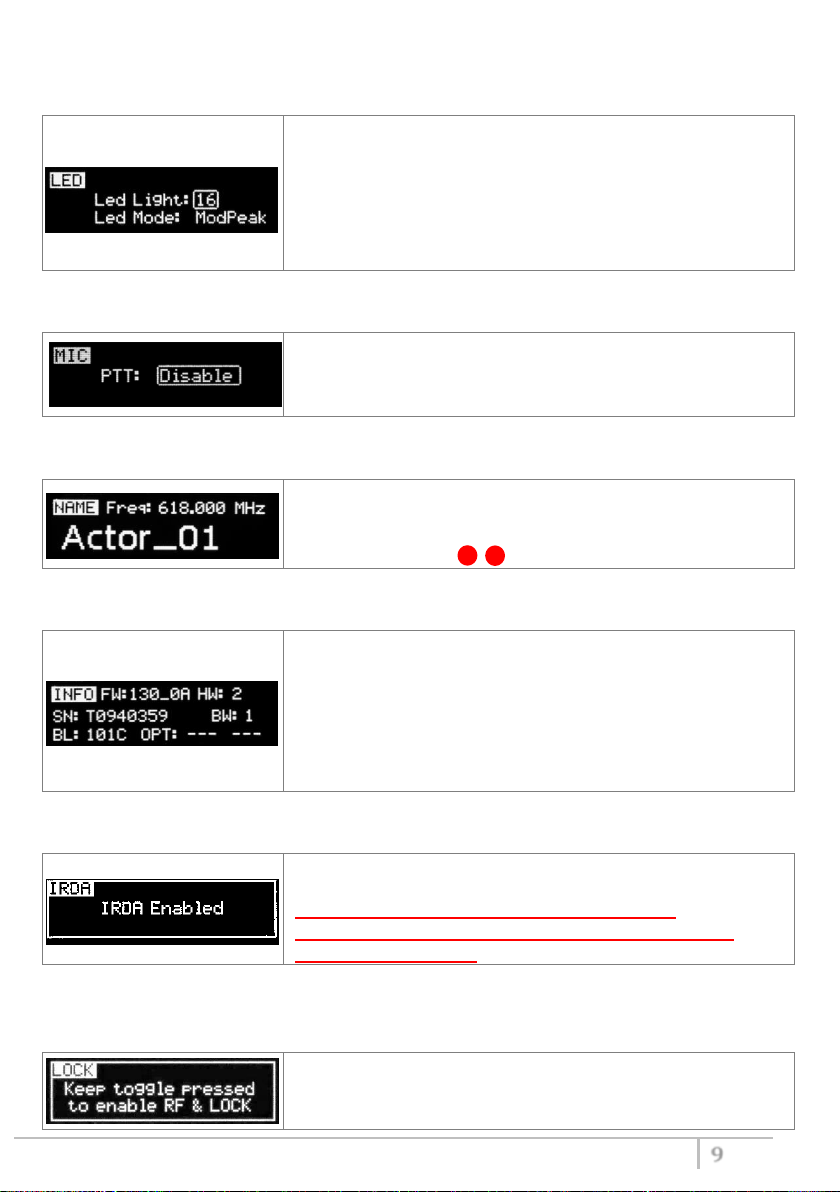

<LED> menu

This menu can be entered by scrolling selector.

Power switch green LED brightness can be setup → Led light (from
0 to 16).
Led Mode setting define when the LED on the power switch (see
Fig. 3) have to become RED:

- None: never,

- ModPeak: when audio get close to saturation)

- PTT: when the PTT button is pushed

<MIC> menu

This menu can be entered by scrolling selector.

4 different PTT mode can be selected: Disable, Normal, Muting,
No Data.

<NAME> menu

This menu can be entered by scrolling selector.

In this menu it’s possible to see the frequency set on the device

and the name of the transmitter.

It’s possible to enter on this menu also pressing at the same time

the CH/GAIN buttons ( B + C )

<INFO> menu

This menu can be entered by scrolling selector.

In this menu it’s possible to see:

- FW version

- HW version

- Serial number

- Bandwidth

- Bootloader version

- Option

<IRDA> menu

This menu can be entered by scrolling selector.

While there is this menu, the device can be connected to IRDA for
setup or firmware upgrades.

Note: if the IRDA interface is enabled and there’s no
communication for around 10 seconds, the IRDA interface is
automatically turned off.

On power on the device, the IRDA interface is enabled for 14 seconds.

<LOCK> menu

This menu can be entered by scrolling selector.

Long pressing (2 sec.) selector button (click) it locks MTH400 in
transmission mode. To unlock, long pressing (2 sec.) selector
button again.

MTH400 User Manual

10

<BOOTLOAD> menu

This menu can be entered by turning on the transmitter while pushing at the same time the quick
channel setup button <CH> or connecting the device via IRDA using the IR Programmer for FW
update

Device is forced in bootloader mode to allow FIRMWARE UPDATE.

The following table sums up which parameters can be set and the related range settings.

MENU

PARAMETER

MEANING

RANGE SETTINGS

TUNING

CH

Channel

0 ÷ 59

GR

Group

0 ÷ 39 + SYNC GROUP

Freq

Frequency

It depends on the MTH400 Model:
See technical spec. and variants for further
details

AUDIO

AF Gain
AF Level

Gain of the
audio signal

-40dB ÷ +40dB step of 1dB

-54dBu ÷ +26dBu step of 1dBu

Phase

Audio signal
phase

0° or 180°
HP

High Pass filter

Flat/60/80/120/170/250/400 Hz

Noise R.

Noise reduction

ENR: Wisycom Extended-NR, noise optimized
ENC: Wisycom Extended-NC, voice optimized

RF/BATTERY

RF Power

RF Power

10mW or 20mW or 50mW or 100mW
(depending on the power profile)

Battery

Battery type

Alkaline, NiMH or Lithium

LED

Led Light

Power switch
green
brightness

0 ÷ 16

Led Mode

It defines when
the power
switch led (see
Fig. 3) has to
become RED

None: never
ModPeak: when audio get close to saturation
PTT: when the PTT button is pushed

MIC

PTT Mode

It defines how
and what
information the
transmitter has
to send

Disable: when the PTT button is pushed, nothing
happen. (the transmitter sends AF+Tone
squelch)
Normal: when the PTT button is pushed, the
transmitter send a different RF signal. According
to the receiver configuration the audio can be
enabled/disable on LINE (and/or COM).

Muting: the transmitter doesn’t send the audio.

The voice is cut, it doesn’t enter to the
microphone
No Data: the transmitter sends neither tone
squelch nor battery data.

MTH400 User Manual

11

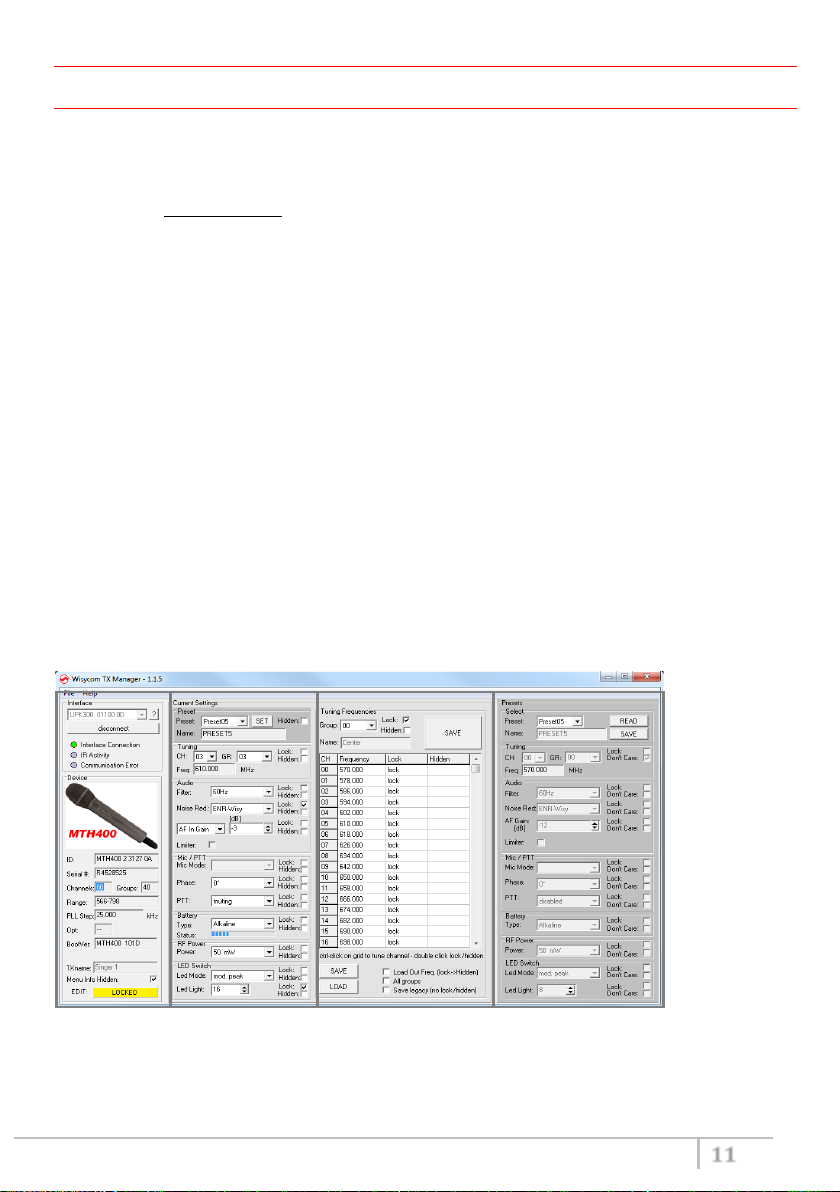

HOW TO USE WISYCOM TX MANAGER (V.1.1.5 OR ABOVE)

Wisycom TX Manager allows to read, modify and update the configuration of Wisycom transmitters.
It is necessary to

• connected the programmer UPK300E/UPKMini or the receiver MRK950/MRK960 to the PC

thru USB connection

• run the Wisycom TX Manager

• enable the IRDA communication on the transmitter (see IRDA menu)

NOTE: Wisycom IR Programmer doesn’t work whit MRK950/MRK960 if it is connected to the PC
using an Ethernet cable.

The Wisycom IR Programmer’s window is divided in 4 parts (see the image below):

❶Interface and Device panel contains all the major information of the connected device

❷Current Settings panel shows the current configuration. Thanks the PRESET panel, a previous

saved configuration can be chosen and loaded like current setting.

❸Tuning Frequencies panel allows to handle Groups, Channels and Frequencies

❹Presets panel allows to read, change and save different configurations

❶

❷

❸

❹

MTH400 User Manual

12

10 different configurations are available:

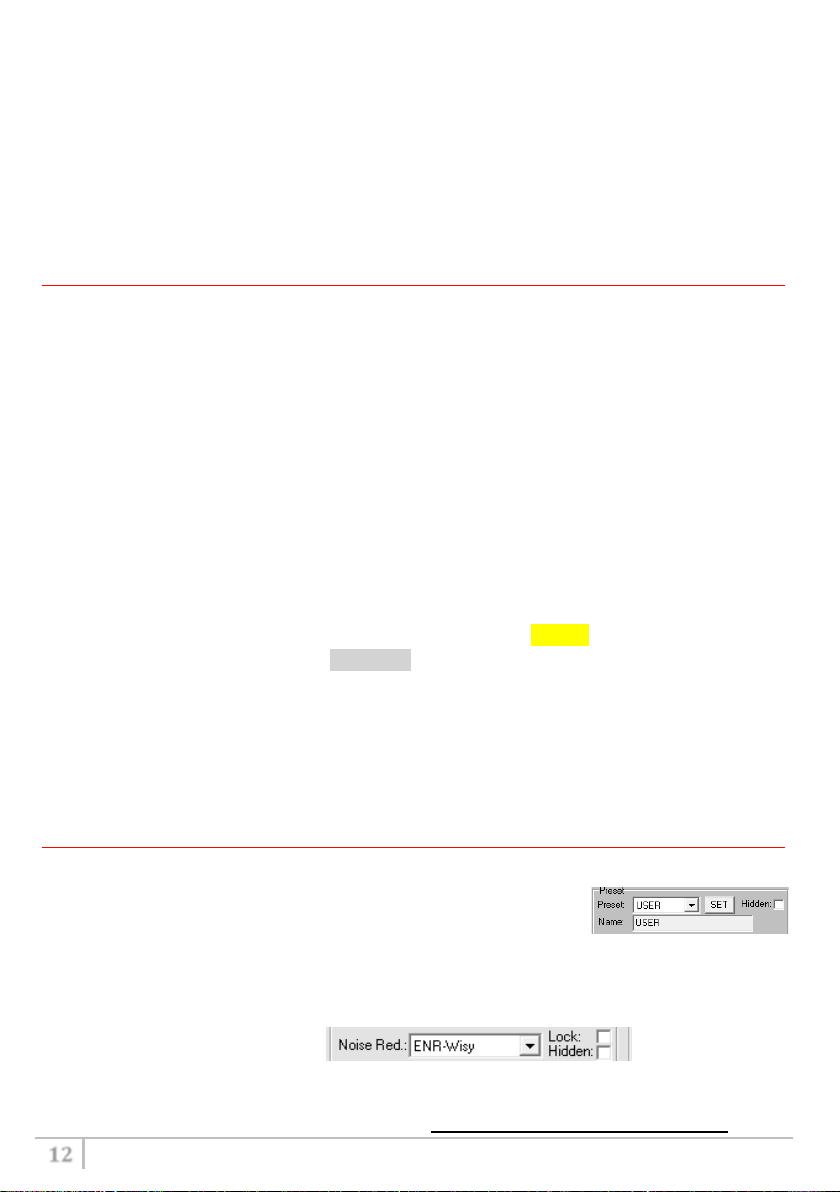

• FACTORY configuration is a locked configuration: no parameter can be changed.

• USER configuration is the only configuration that can be saved using the OLED display (see

<PRESET> menu). Note: It is not possible to change the name of this configuration.

• Other 8 configurations where the user can change both the name and the values of all

parameters.

INTERFACE AND DEVICE PANEL (❶)

At the beginning, the program checks which IR devices are detected and they appears on the
Interface panel.

The user has to select the device and push <connect> button in order to open the communication
with the IR device. A picture on the top in the Interface panel help the user in this selection showing

the type of devices detected. During this process the “IR activity” led blinks to indicate that the
program wait connection’s answer from the IR device.

A successful connection is signaled with the “interface connection” green led, while a failed
connection is signaled with the “communication error” led.

Once a supported device is found, the software automatically reads all the data related to the
remote configuration, as well as the frequencies that are pre-programmed.

Firstly, in order to avoid unwanted operation, no parameters can be changes and the EDIT button,
presents on the bottom of Device panel, is yellow and set to LOCKED state. Pushing the EDIT
button, it becomes grey and sets to UNLOCKED state to indicate that the configurations can be
modified.

In this panel it’s possible to assign a name to the TX (not available for FW v.1.22.0F or previous).
Under this parameter, there is a flag to hide the info menu on the TX (not available for FW v.1.22.0F
or previous)

CURRENT SETTINGS PANEL (❷)

In the Current Settings panel the user can

• with Preset panel → load one of the 10 available configurations

• with other panels → modify all the configuration’s parameters (the same that are

changeable in the OLED display). Each parameter can be locked or hidden clicking the
related lock/hidden button, so the set value cannot be changed next or cannot be visible on
the OLED display.

ATTENTION: All the modifies applied to the Current Settings panel are instantaneous: they are
applied directly to the device and save in its memory but no saved in the preset configuration.

MTH400 User Manual

13

TUNING FREQUENCIES PANEL (❸)

With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one
execute the following operations:

- modify the Group’s Name

- lock and/or hidden the group

- for each channel (0 ÷59) of the selected group: change the frequency value and the

related status (locked/hidden) (in the center grid frequency)

The SAVE button, at the top of the panel, save
the changes of the group selected (name
group, lock/hidden group).

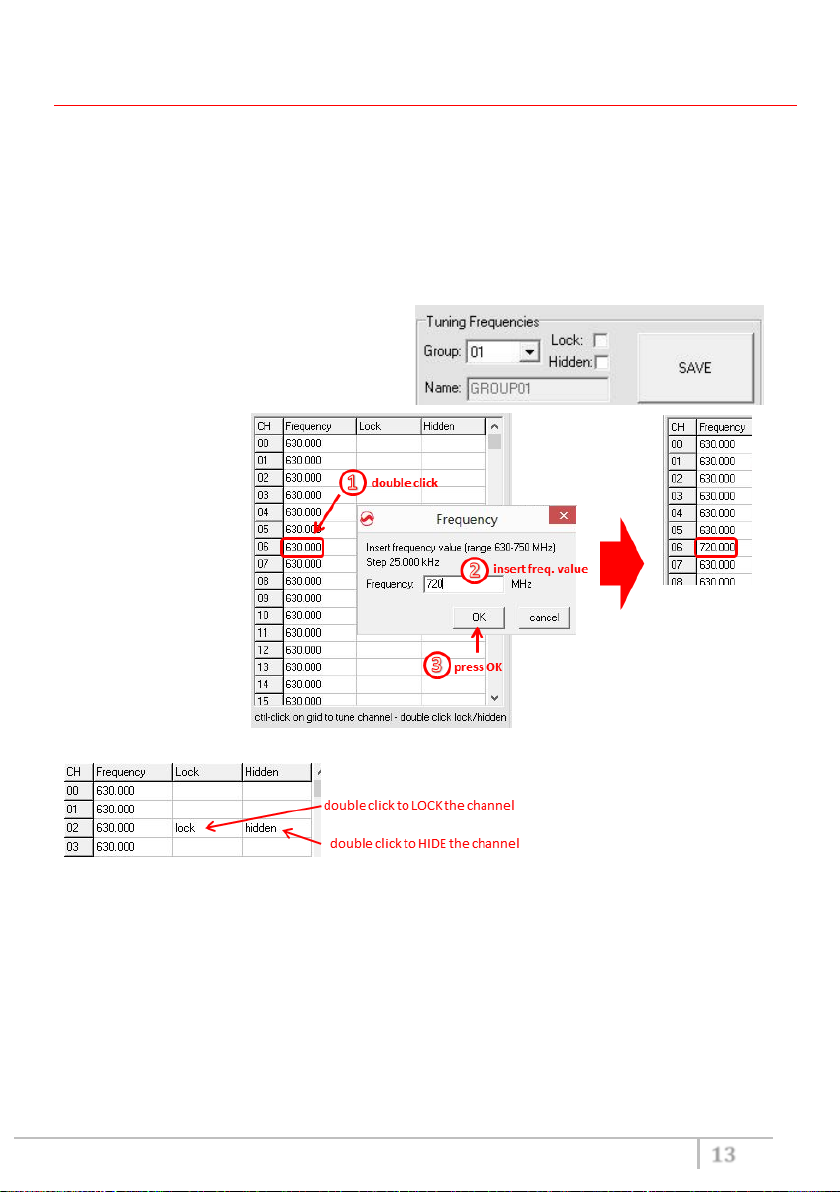

To change a frequency
value for a specific
channel: double click
on the grid frequency

panel (row=channel’s

number), insert the
new frequency value
and press OK button.

To lock/hide a specific channel,
double click on the grid frequency
panel.

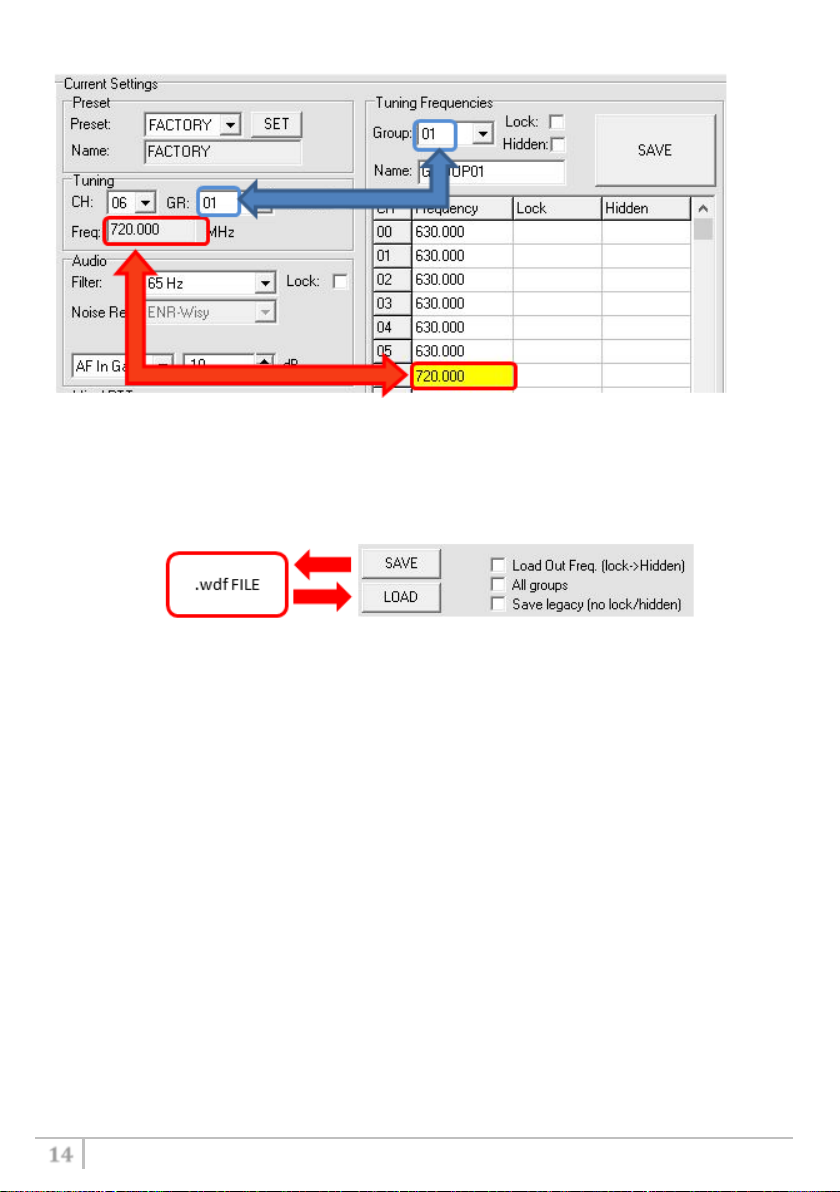

NOTE: keeping pressed the CTRL button on the keyboard and clicking the wanted channel/group
shown on the frequencies grid, the tuning process is executed. It is equivalent to configure the
Tuning in the Current Settings panel but it is easier. The device is re-tuned immediately, so be sure
that the RF power is turned off while changing frequencies with other RF systems in use around you!

If the currently tuned channel is on the same group that is listed on the grid, the background color of
the related cell (channel) on the grid becomes yellow.

MTH400 User Manual

14

Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies
for the selected group from/to a .wdf file. To save the frequencies of all the groups click to the
related button above. The legacy option save the channels without the hidden/lock info.

MTH400 User Manual

15

PRESETS PANEL (❹)

The Preset panel allows to manage all the 10s available configurations.
For each configuration it is possible to set the name and all the parameters value except for
FACTORY and USER configurations (see table below).

PRESETS:

NAME*

LOCK/DON’T CARE

PARAMETERS

VALUE

FACTORY

USER

√

OTHERS √ √

√

√=change is allowed

* Be careful to write a meaningful name for the preset because the name will appear on the settings
list of the device menu! Please, avoid empty names.

If a parameter is “locked”, it cannot be modified by device menu (using OLED display), while if “don’t
care” propriety is active, when the user load the configuration, the parameter’s value doesn’t

changed.

ATTENTION: Changes are applied only after a “save” action.
NOTE: “a trick” In case of the user have a locked parameter and he is in great need for modify it, he
can save the configuration to USER configuration by OLED (see PRESET menu) and then load the
USER configuration (in this way all the parameters have the lock propriety disable and the user can
modify all the parameters).

FILE MENU

Using a file menu at the top left of the
panel it is possible to load/save all the
configuration values of the device
to/from a .wcf file (Wisycom
Configuration File).

Save a .wcf file

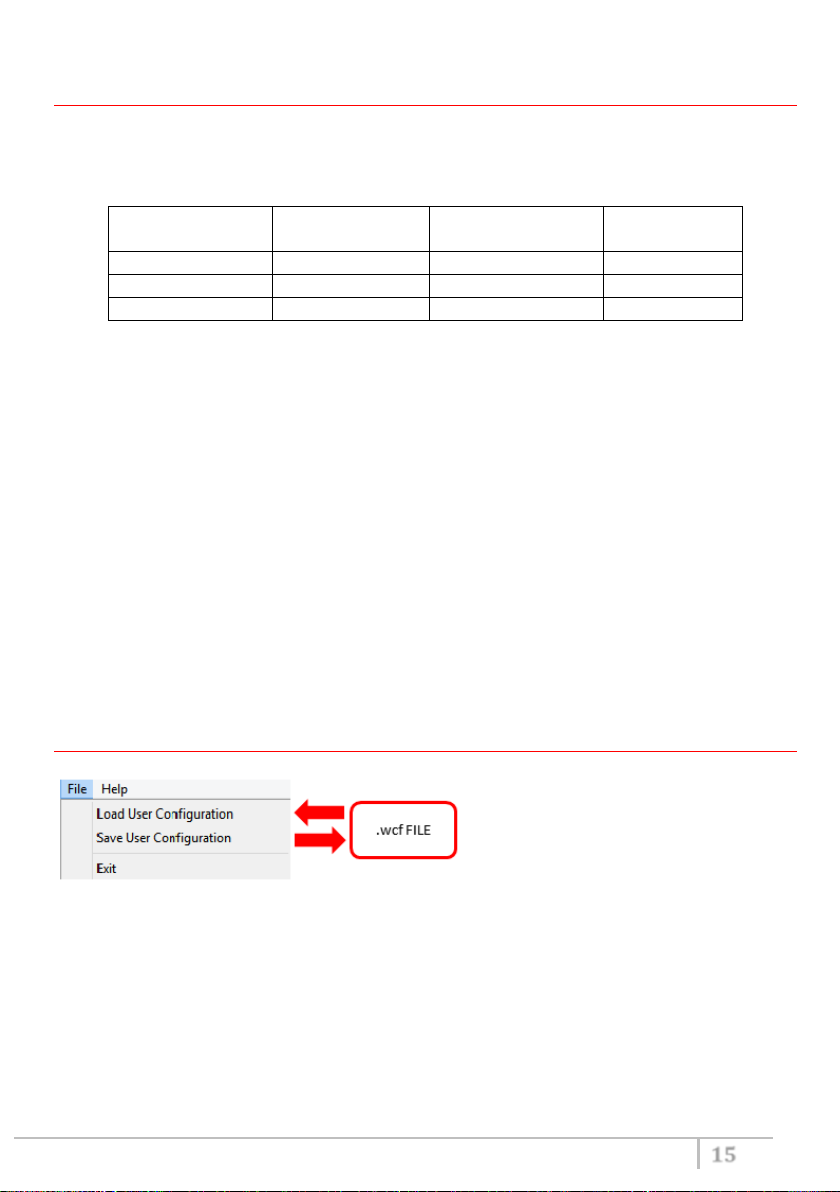

With an infrared device correctly connected, select File->Save User Configuration and select the
destination file.

Load a .wcf file

To load a user configuration select File->Load User Configuration and select a previously saved data
file; a form will be shown, where it's possible to select which data has to be restored and which
skipped. This allow the user to load a particular configuration while keeping other data.

MTH400 User Manual

16

TECHNICAL SPECIFICATIONS

Switchable
channels

2400 allocated by 40 groups of 60 channels (in specific frequency range), quickly
selectable with dedicated buttons

Switching window

Up to 232 MHz, depending on band (see Variants on the next page)

Frequencies

Quartz PLL frequency synthesizer circuit (25 kHz step)

Frequency stability

▪ ± 2,5 ppm (in the rated temperature range)

Temperature range

-10 ÷ +55 °C

Max RF power

▪ 10mW (ERP) (to respect some local norm)
▪ 20/50/100 mW (ERP) (note: in some countries middle power can be disabled, for local

norm!)

Spurious emissions

< 2 nW

Modulation

wideband FM with pre-emphasis

Nominal deviation

±40 kHz (Peak deviation = ±56 kHz)

Telemetry feature

MTH400 transmits also a digitally modulated sub-carrier, suitable for:

▪ tone-squelch
operating

▪ remote battery
monitoring

▪ optional PTT (push
to talk) operation

AF input connection

Directly interchangeable microphone-heads

AF input level

60 dB adjustable range from -54 to +6 dBu at peak deviation (1 kHz), adjustable in 1 dB
steps

Max. input level

+26 dBu

Max sound
pressure

150 dB SPL (0,5% THD), with MCM301/MCM302/MCM303/MCM304/MCM305
condenser-heads

Noise-Reduction

ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise
optimized
ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice
optimized & with reduced pre-emphasis

AF bandwidth

45 Hz ÷ 21 KHz (3dB)
55 Hz ÷ 20 KHz (1dB)

Distortion

< 0.3 % (0.15 % typ.)

Signal-to-noise ratio

typ. 115 dB (A)

rms

with 40kHz deviation

typ. 121 dB (A)

rms

with 56kHz deviation

Led

Led indication with bicolor led (red & green) on wireless power switch:

▪ Wireless transmission status: GREEN on/off

▪ Modulation peek (if activated): RED

▪ Battery lifetime status: GREEN

- steady (> 25%) - slowly blinking (< 25%) - quickly blinking (<12%)

▪ Ptt status: RED if active

Display

High contrast OLED (Organic light-emitting diode) display (96 x 36 pixels)
8 step battery lifetime indication: 7 bars (100%-87%-75%-63-50%-38%-25%) and “empty
bar” quickly blinking (12% remaining)

Power supply

2 AA size cell (Alkaline, rechargeable NiMH or Lithium)

MTH400 Battery life
(2AA alkaline)

▪ approx. 14 hours @ 10mW continuous working
▪ approx. 10 hours @ 50mW continuous working
▪ approx. 7 hours @ 100mW continuous working

Dimensions

 body max. diameter 33 mm (without microphone-head)
 total length 183 mm (without microphone-head)

Weight

Approx. 300g, including battery and MCM3xx (condenser) mic-head ( approx. 260g
batteries excluded)

MTH400 User Manual

17

POWER PROFILE & COUNTRY
FREQUENCY RANGE:

EU max power 50mW (Europe)
0W1 / EUX max power 100mW (Europe)
US max power 50mW, limited to 698MHz (USA & Canada)
USX max power 100mW, limited to 698MHz (USA & Canada)
US8 max power 100mW (USA)
JP max power 10mW, limited to 714MHz (Japan)
NZ max power 100mW, limited to the range 502÷698MHz (New Zealand)

VARIANTS:

▪ COLOR

PV body color titanium gray (ceramic coating)
BL body color black (powder coating)

▪ FREQUENCY RANGE

B5 470-654 MHz
B2 566-798 MHz
B3 510-698 MHz
B8 940-960 MHz

Note: unit is mm

MTH400 User Manual

18

Compliance

Model

In Compliance with

Max Power

Country

MTH400
MTH400-EU

EN 301 489-1/-9
EN 600065
EN 300 422-1/-2

50mW

Europe

MTH400-0W1
MTH400-EUX

EN 301 489-1/-9
EN 600065
EN 300 422-1/-2
EN 300 454-1/-2

100mW*

Europe

MTH400-US

PART 74

FCC-ID: POUMTH400
RSS-123, RSS-102

IC: 11967A-MTH400

Limited to 698MHz

50mW

USA, Canada

MTH400-USX

PART 74

FCC-ID: POUMTH400USX
RSS-123, RSS-102

IC: 11967A-MTH400USX

Limited to 698MHz

100mW

USA, Canada

MTH400-US8

PART 74

FCC-ID: POUMTH400US8

Limited to

941.50-952.00MHz,

952.85-956.25MHz,

956.45-959.85MHz

100mW

USA

MTH400-JP

202-LSC058

Limited to 714 MHz

10mW

Japan

MTH400-NZ

EN 300 422-1/-2
EN 300 454-1/-2

Limited to the range
502÷698MHz

100mW

New Zealand

* MTH400-0W1/MTH400-EUX is not an SRD device, it requires specific authorization by your local frequency

authority! Note: The above technical specifications refer to the MTH 400 “transmitter” section. The acoustic
specs are relevant to the microphone-head used. The MTH 400 transmitter complies with ETSI 300 422.

Before putting the device into operation, please
observe the respective country-specific regulations!

R

MIC marking identifier can be found in the battery compartment.

MTH400 User Manual

19

MANUFACTURER DECLARATIONS

In compliance with the following requirements

• RoHS Directive (2002/95/EC)

• WEEE Directive (2002/96/EC)

Please dispose of the diversity transmitter at the end of its operational lifetime
by taking it to your local collection point or recycling center for such
equipment

• Battery Directive (2006/66/EC)

The supplier batteries or rechargeable batteries can be recycled. Please
dispose of them as special waste or return them to your specialist dealer. In
order to protect the environment, only dispose of exhausted batteries.

FCC Conformity

This device complies with Part 74 of the FCC Rules. Operation is subject to the following two
conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause
undesired operations.

Changes or modification not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.

FCC ID can be found near the battery compartment (unscrew & slide down the cover).

FCC ID: POUMTH400 option US

FCC ID: POUMTH400USX option USX

FCC ID: POUMTH400US8 option US8

MTH400 User Manual

20

Industry Canada Conformity

EN

This device complies with Industry Canada RSS-123. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.

FR

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio RSS-

123. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire

de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.

ITALY ONLY

Obblighi di informazione agli utilizzatori

ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE,
2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature
elettriche ed elettroniche, nonché allo smaltimento dei rifiuti”

Smaltimento di apparecchiature elettriche ed elettroniche di tipo professionale

Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione

indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente
dagli altri rifiuti.
La raccolta differenziata della presente apparecchiatura giunta a fine vita è organizzata e

gestita dal produttore. L’utente che vorrà disfarsi della presente apparecchiatura dovrà

quindi contattare il produttore e seguire il sistema che questo ha adottato per consentire

la raccolta separata dell’apparecchiatura giunta a fine vita.

L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchiatura dismessa al riciclaggio, al

trattamento e allo smaltimento ambientalmente compatibile contribuisce ad evitare possibili effetti
negativi sull’ambiente e sulla salute e favorisce il reimpiego e/o riciclo dei materiali di cui è composta

l’apparecchiatura.
Lo smaltimento abusivo del prodotto da parte del detentore comporta l’applicazione delle sanzioni am-

ministrative previste dalla normativa vigente.

Smaltimento batterie usate

Questo prodotto può contenere batterie. Questo simbolo apposto sulle batterie significa
che non possono essere smaltite insieme a normali rifiuti domestici, bensì devono essere
depositate negli appositi punti di raccolta delle batterie.

Iscrizione al Registro A.E.E. n. IT09100000006319

.

MTH400 User Manual

21

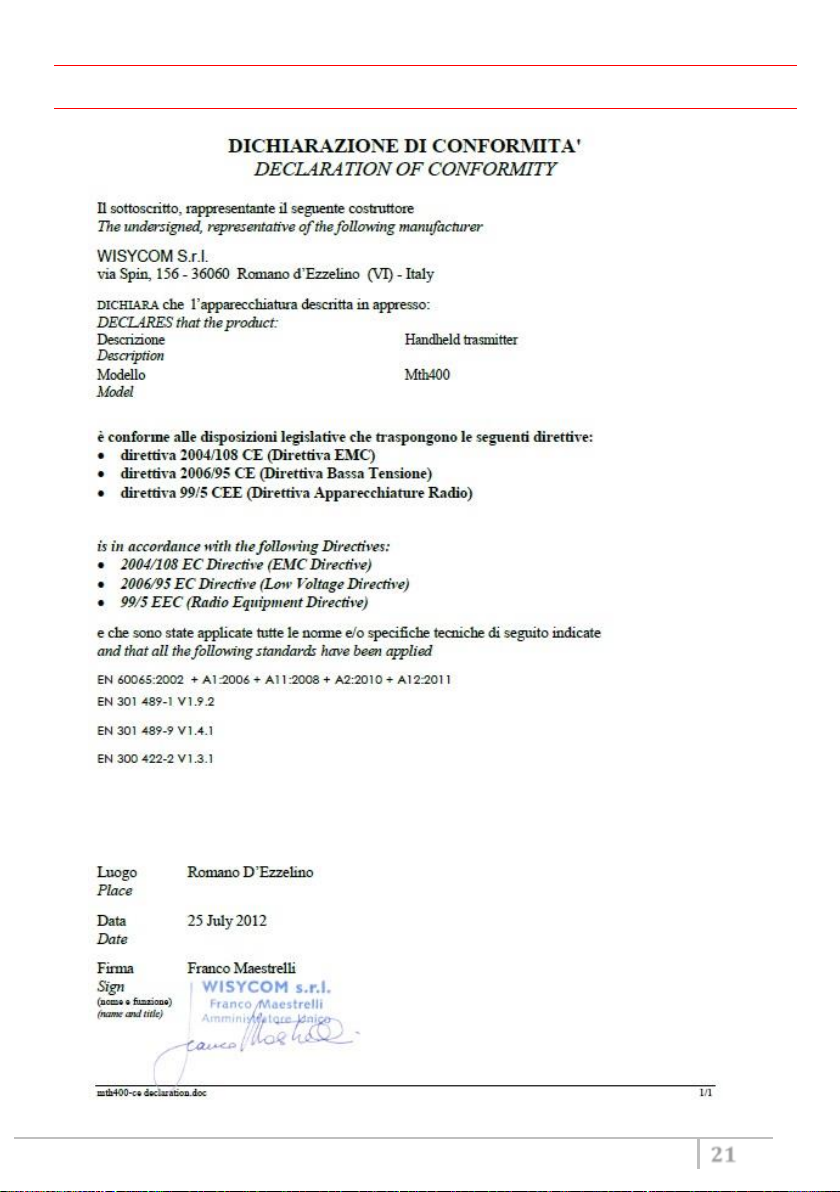

DECLARATION OF CONFORMITY

MTH400 User Manual

22

MTH400 User Manual

23

MTH400 User Manual

24

Via Spin 156 • I-36060 Romano d’Ezzelino • Italy
Tel. [phone] • Fax +39 - 0424 - 382733

www.wisycom.com • e-mail: [email protected]
