Abstract
This document describes the Ericsson Mobile Broadband Module and is
intended to support developers when integrating t he product into host devices.
Purpose
The Integrator’s Guide is designed to give the reader a deeper technical
understanding of t he Ericsson Mobile Broadband Modules and information
needed for integrating the pr oduct into host devices. It also describes the PC
software for the Mobile Broadband Modules that has been developed by
Ericsson.
Trademark and Acknowledgements
Microsoft, Windows, Windows Vista, Internet Explorer, . NET and Outlook are
registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
Intel is a trademark of Intel Corporation in the United States
Ericsson is a trademark of Telefonakti ebolaget LM Ericsson.
GSM and the GSM Logo are registered and owned by the GS M Association.
PGPS is a trademark of Rx Networks Inc.
Linux® is the registered trademark of Linus Torvalds in the U.S. and other
countries.
All trademarks are the property of their respective owners. All other product or
service names mentioned in this document are trademarks of their respective
companies.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
4 (72)
Erics son Confidential
Contents
1 Introduction .............................................................................................. 6
1.1 Target Users ..............................................................................................6
1.2 Prerequisites ..............................................................................................6
2 Product Details and Key Features ......................................................... 7
2.1 USB Quick Enumeration ............................................................................7
2.2 Alw ays On ..................................................................................................8
2.3 Wake on Wireless ......................................................................................9
2.4 Idle Mode Power Management..................................................................9
2.4.1 USB Selective Suspend ...........................................................................10
2.4.2 Continuous Packet Connectivity ..............................................................10
2.4.3 Fast Dormancy .........................................................................................10
2.5 Over-temperature protection....................................................................11
2.5.1 Over-temperature signaling .....................................................................11
2.5.2 GPS Thermal Throttling ...........................................................................11
2.5.3 PA Thermal Throttling ..............................................................................12
3 System Integration Overview ............................................................... 13
3.1 Power On .................................................................................................13
3.2 Power off ..................................................................................................14
3.2.1 Module Restart/Reset ..............................................................................15
3.3 GPS Interface...........................................................................................16
3.3.1 Antenna Recommendations ....................................................................16
3.3.2 External antenna amplifier .......................................................................17
3.3.3 Assisted GPS Features ...........................................................................17
3.3.4 2-antenna version ....................................................................................17
3.4 UICC (USIM Card) ...................................................................................18
3.4.1 UICC Hot Swap........................................................................................19
3.5 Electrostatic Discharge (ESD) Precautions.............................................19
4 Electrical Integration ............................................................................. 20
4.1 Physical size ............................................................................................20
4.2 Pinout .......................................................................................................21
4.3 System Connector ...................................................................................22
4.3.1 Electrical Interface Detail Format ............................................................29
4.3.2 TTL Levels ...............................................................................................29
4.3.3 Power Interfaces ......................................................................................30
4.3.4 Data communication interfaces ...............................................................33
4.3.5 Debug Interface........................................................................................34
4.3.6 Control and Status Interfaces ..................................................................36
4.3.7 UICC Interface .........................................................................................42
4.3.8 PCM 0 & 1 Interface.................................................................................45
4.3.9 RF interface..............................................................................................46

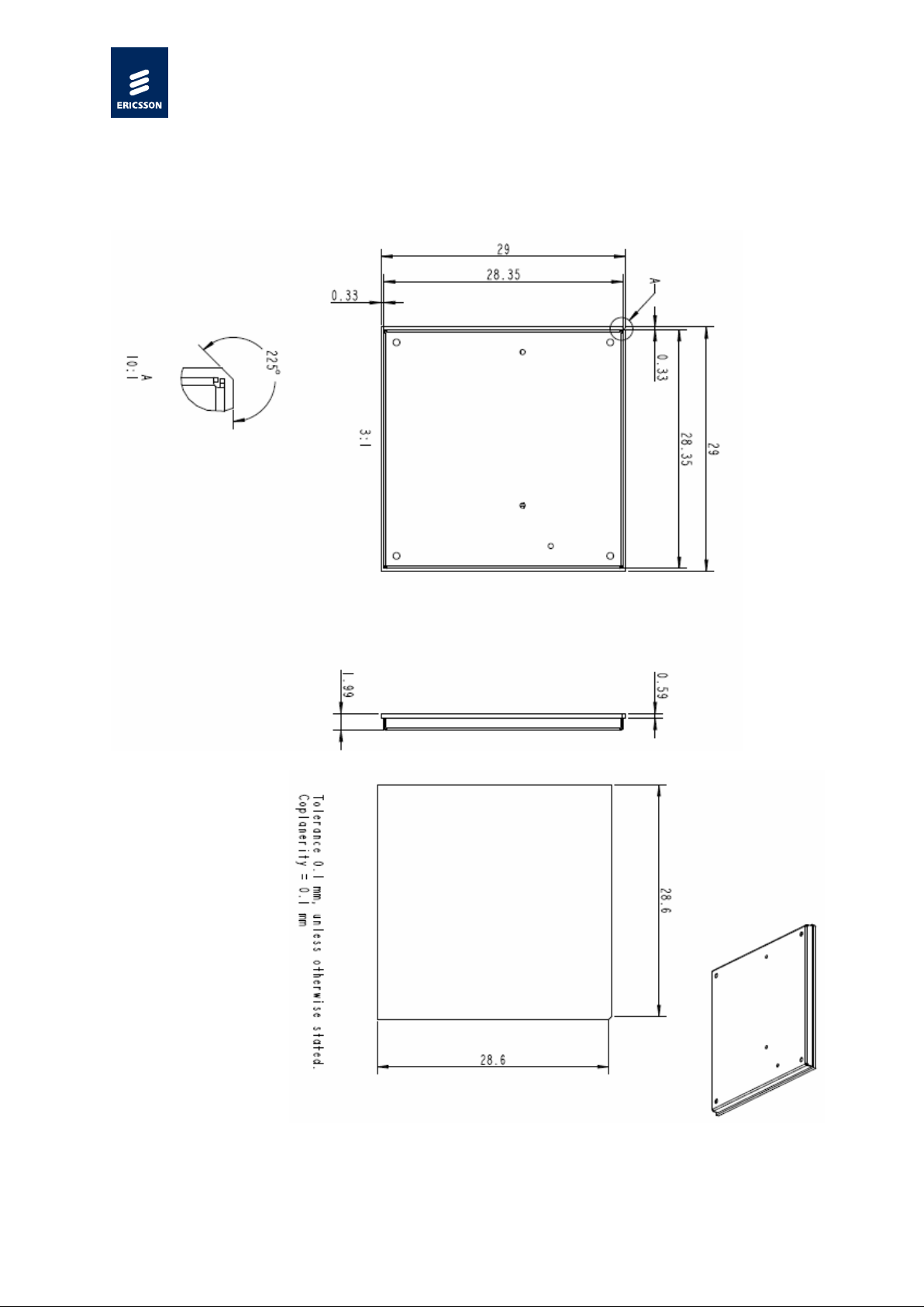

5 Mechanical Dimension .......................................................................... 47
6 Routing guidelines................................................................................. 48
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
5 (72)
Erics son Confidential

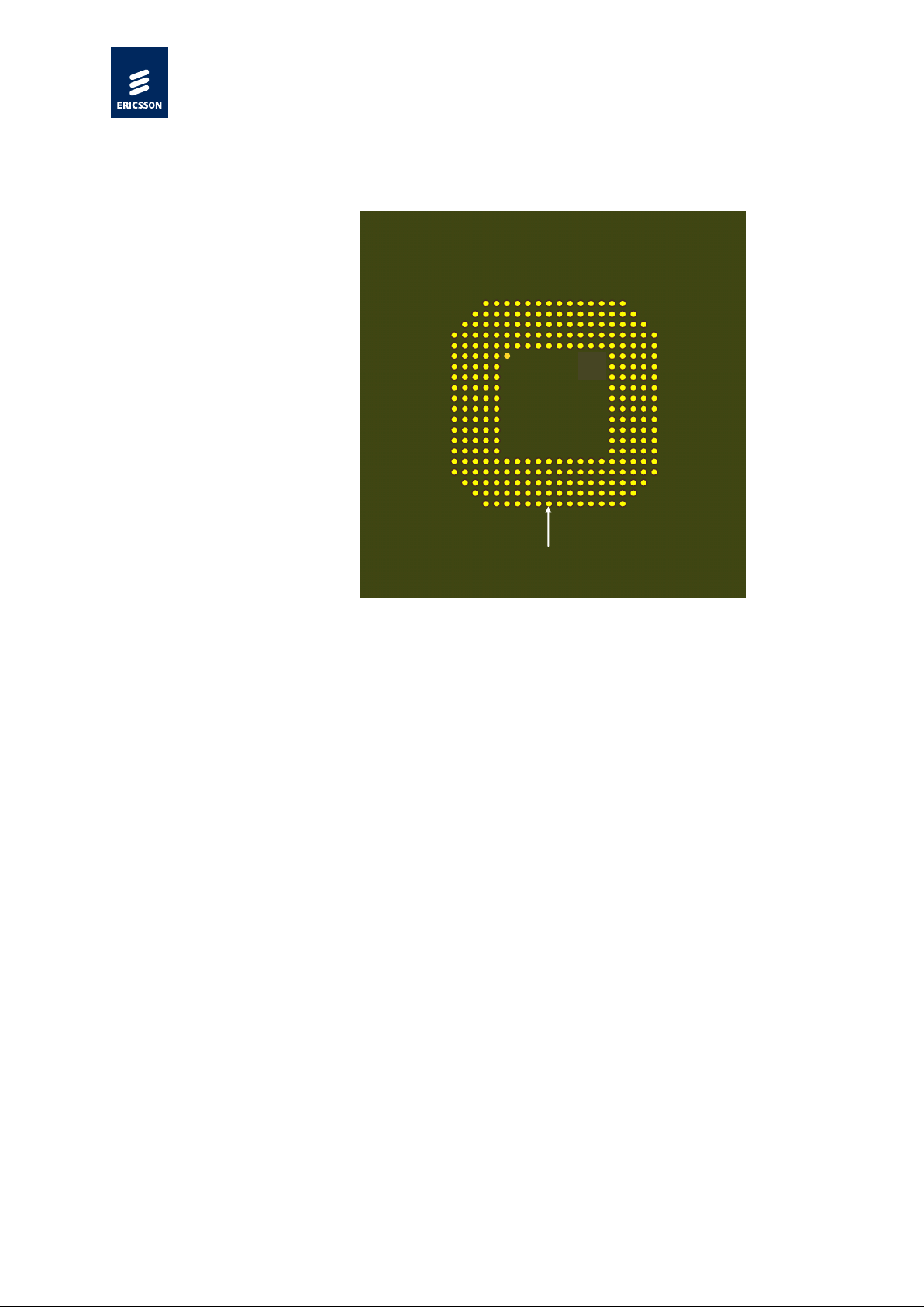

6.1 Recommended PCB Footprint.................................................................48
6.2 Digital I/O routing .....................................................................................49
6.2.1 Clock Routing ...........................................................................................50
6.2.2 USB Routing ............................................................................................50
6.3 Power Routing..........................................................................................51

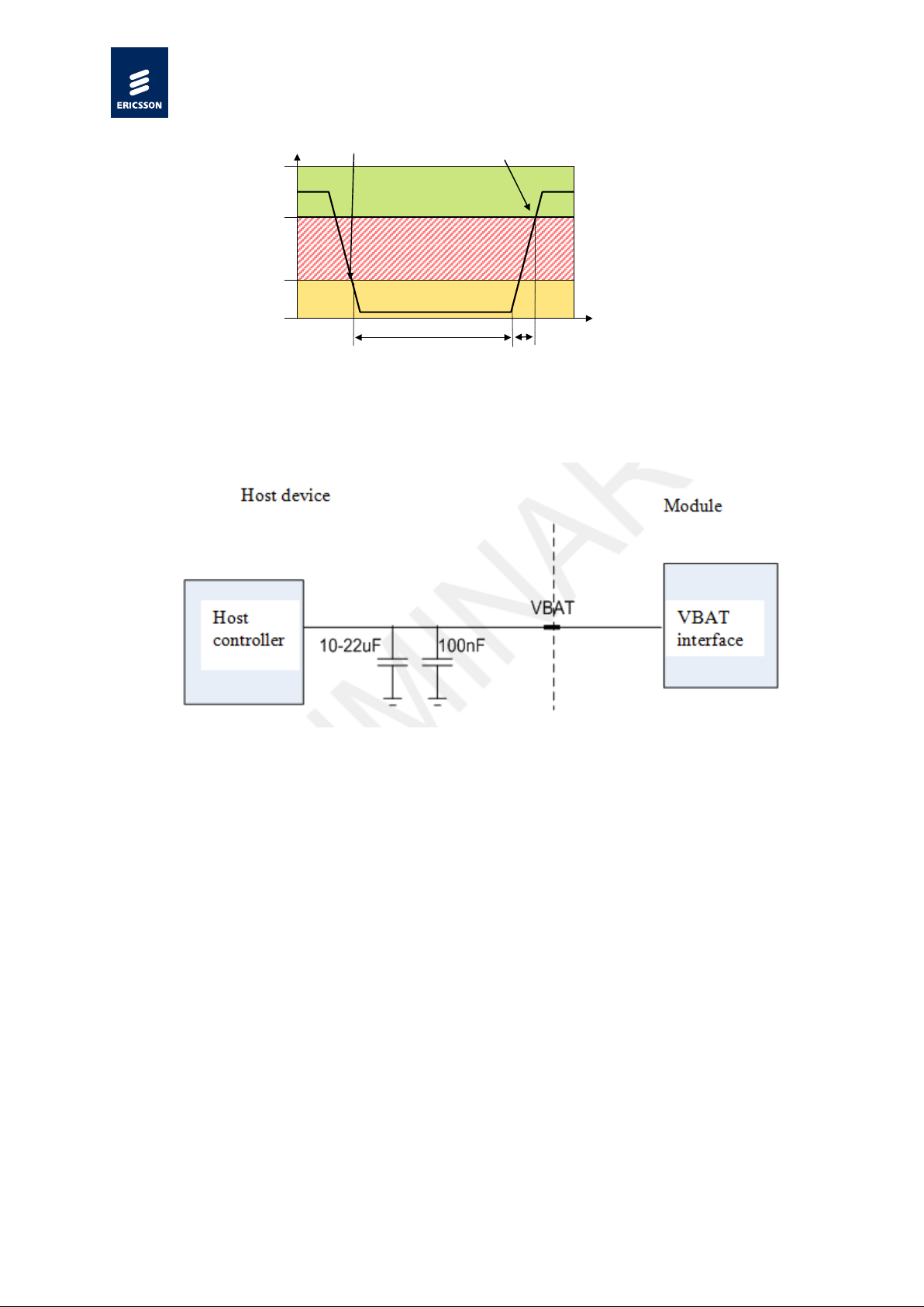

6.3.1 VBAT Routing ..........................................................................................51
6.3.2 GND .........................................................................................................51
6.4 RF Routing ...............................................................................................51
7 Production Guideline............................................................................. 52
7.1 Package type ...........................................................................................52
7.2 Floor life and dry storage .........................................................................52
7.3 Screen stencil design ...............................................................................52
7.4 Assembly..................................................................................................52
7.5 Reflow soldering.......................................................................................53

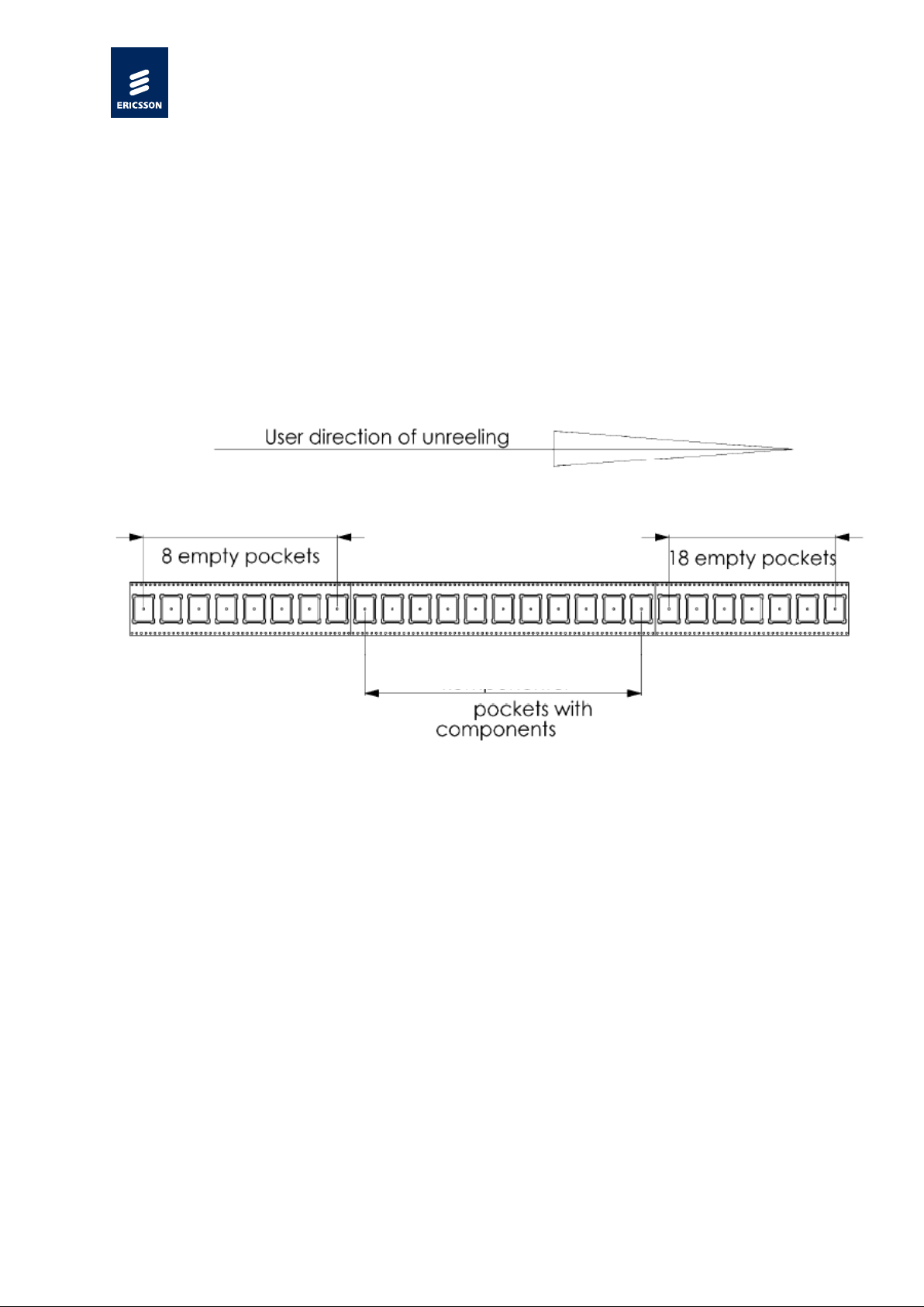

8 Packaging – Tape and Reel Information ............................................. 54
9 SW integration........................................................................................ 56
9.1 Driver and Application Architecture .........................................................56
9.1.1 Windows XP and Vista Architecture ........................................................56
9.1.2 Windows 7 Architecture ...........................................................................57
9.1.3 Linux driver architecture ..........................................................................59
9.2 Connection Profile List .............................................................................60
9.3 Ericsson Mobile Broadband C++ API ......................................................60

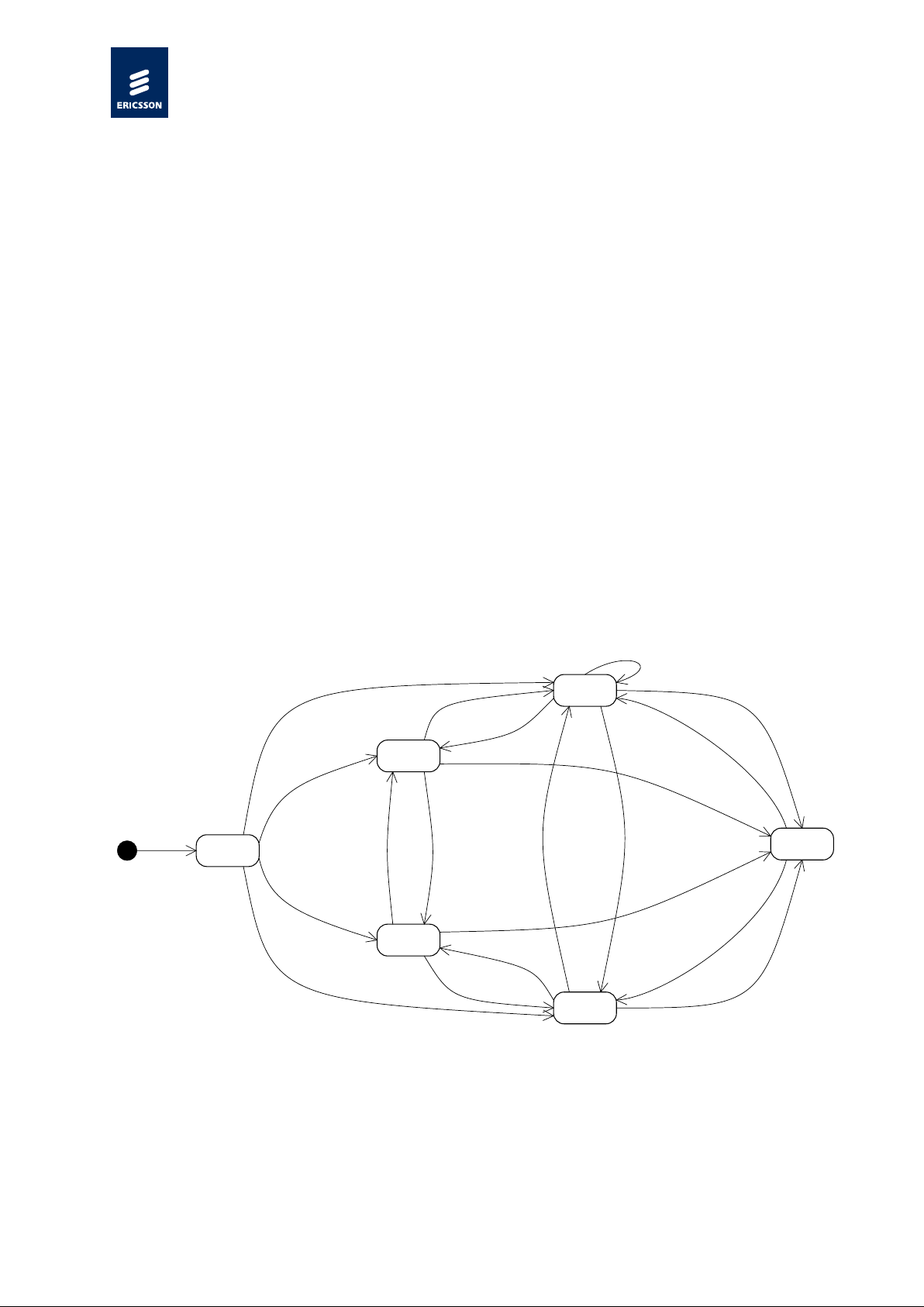

9.4 State machine ..........................................................................................61
9.5 Service Windows Registry Keys ..............................................................62
9.5.1 Module state.............................................................................................62
9.5.2 TCP/IP Configuration ...............................................................................63
10 Firmware Updates .................................................................................. 64
10.1 Network Dependent Firmware Updates ..................................................64
11 Terminology and abbreviations ........................................................... 65
12 References .............................................................................................. 68
13 Annex ...................................................................................................... 70
13.1 Test Setup for Measuring Host-Generated Noise ...................................70
13.1.1 Test Setup ................................................................................................71
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
6 (72)
Erics son Confidential
1 Introduction
Ericsson’s C5621/C33 Mobile Broadband Module is a 277 pin LGA
subassembly, which enables end users to have mobile access to the internet
or corporate network with flexibility and high speed, including ‘a lways online’
capability. It supports data services HSPA Evolution, HSPA, UMTS, EDGE,
GPRS, and SMS. The C5621 module also has an integrated GPS receiver,
which can be used by positioning applications.
The Ericsson Mobile Broadband Module is a solution designed as an add-in
option for various host devices such as netbooks, tablets, Personal Navigation
Devices (PND), e-Readers, handheld gaming devices, cameras and other
consumer devices.
The integrat ion of HSI and SPI are not covered in this document. However,
they will be covered in future revisions.
Integrator's Guide - C5621 / C33
Product introduction and general information can be found in the Technical
Description and User Guide for the mobile br oadband module, see [1].
1.1 Target Users
The Ericsson Mobile Broadband Modules are designed for the embedded
community for integration into any host device. Target focus is mainstream
PC-OEM businesses making slim tablet devices, Personal Navigation Devices
(PND), e-Readers and other consumer devices.
1.2 Prerequisites
Integration of the Ericsson Mobile Broadband Module should be performed at
facilities under host device management. The necessary integration
instruction, driver software and user documentation will be provided. No
special prerequisite knowledge is necessary. In general, it is recommended to
follow the guidelines presented by GSMA for the integration of 3G WWAN
modules into notebook computers, see 3G in Notebooks Guidelines [2]
.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
7 (72)
Erics son Confidential
2 Product Details and Key Features
This section explains the key features of the C5621/C33 Mobile Broadband
modules.
2.1 USB Quick Enumeration
The USB start-up time is defined as the time from the module power-up to
USB enumeration (USB_D+ signal high), and is, normally, less than 3 s. To
further shorten the USB start-up time, quick enumeration can be used as
described below.
The Mobile Broadband Module supports USB quick enumeration to minimize
the time it takes until the USB_D+ signal becomes high. The feature can be
used to improve performance if the host BIOS includes a lock mechanism
which restricts the Mobile Broadband Modules that can be used with the host.
The quick-enumeration process is described below and is depicted in Figure
1.
1 When the module is powered, it will quickly bring up USB functionality to
set the USB_D+ signal high.
2 When the host device detects the module and asks for descriptors, the
module will reply with a descriptor giving VID and PID (PID will not be the
same as in the full enumeration that follows), model name and vendor
name.
3 When the descriptor has been received, the host will send a Set
Configuration command.
4 When the module has replied its descriptor and received the set
configuration command, it will make a soft detach from the USB. If the host
does not ask for the descriptor within a certain t ime limit, the module will
make a soft detach anyway to continue the module start-up sequence.
5 After the module has made the soft detach, it will make a full enumeration.
The descriptor for the full enumeration will include configura tion and
interface descriptors.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
8 (72)
Erics son Confidential
Host
Power On
Mobile Broadband Module
Power On
GetDescriptors
Soft Detach
VID, PID model
and vendor name
Continue Start-up
Set Configuration
USB_D+ Quick Enumeration
USB_D+ Full Enumeration
Figure 1, USB quick-enumeration process
2.2 Always On
The Mobile Broadband Module behavior when the host enters Sleep ( ACPI
S3) or Hibernate (ACP I S4) is configurable by registry key settings. The
WMCore service can command the module to either shut down or stay
registered to the network - “Alwa ys On”. When the Always On setting is
enabled, the module shall be kept powered-on while the host device goes into
sleep/hibernate. W hen the Always On setting is disabled, the module power
supply shall be turned off when host device enters Sleep.
If “ Always On” is enabled, the WWAN LED and WW AN disable functionality
shall also be supported by the host device when in S3. This requirement is to
ensure that the W WAN LED indication is available even if the h ost device is in
Sleep state.
For implementations that do not use the W MCore service, such as Linux or 3
party connection managers, the host device software is required to handle the
Always On functionalit y if implemented.
rd
It is also possible to configure the Mobile Broadband Module to automatically
enable the radio and register to the network without interaction wit h the host
device software. The module checks this configuration at each start-up and
changes the radio state accordingly. Please refer to ME Radio Policy in the AT
command manual [4].
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
9 (72)
Erics son Confidential
2.3 Wake on Wireless
The module supports Wake on W ireless (WoW) functionality, i.e. wake the
host from sleep states. The WoW feature requires the host device to have the
Always On feature enabled. The W oW trigger-rules can be set by AT
commands. The WoW functionality can be configured to use the USB
interface or WAKE_N signal to trigger a wake-up signal in order to wake up
the host.
Table 1 WoW support
Mode l Interface Host State (ACPI)
Integrator's Guide - C5621 / C33
C5621 / C33
USB, WAKE_N
signal
Sleep (S3), Hibernate
(S4) and Off (S5).
The module can be configured to wake the host when an SMS, starting with a
predefined text string (payload) and/or with a predefined orig inating address,
is received by the module. When an SMS, which corresponds to the above
criteria, is received an unsolicited AT response is generated. T he wake event
is signaled using the USB and the normal USB wakeup procedure is triggered.
Additionally it is possible to configure out of band wakeup signaling using the
WAKE_N signal.
In addition to wakeup trigger ed by SMS, the module can be configured to
wake the host when other pr edefined events occur, which generate unsolicited
AT responses. Examples are changes in network status, reception of any
SMS and SMS memory full.
If the wake up was triggered by an S MS, the payload can be fetched using the
SDK or AT commands [9] when the host has resumed from its sleep state.
For further detai ls see [15].
2.4 Idle Mode Power Management
The Mobile Broadband Module supports features to minimize power
consumption when in idle mode. Based on the ongoing activities in t he
module, the module is able to remove or decrease power in various parts of
the platform.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
10 (72)
Erics son Confidential
2.4.1 USB Selective Suspend
The Mobile Broadband Module and the drivers support USB selective
suspend. The USB selective suspend functionality is available for both
Windows and Linux (autosuspend). W hen there is no communication over the
module’s USB interface, the interface will automatically be suspended
independently of other devices connected to the host device. When the
selective suspend mode is reached the power consumption in the module
decreases significantly, and it also allows the host platform to enter lower
power modes.
To optimize the time the module spends in USB selective suspend, it is
important that software applications on the host device subscribes to events
from the W MCore service or utilize unsolicited AT commands instead of
periodically polling for information. Please see note in chapter 4.3.4. 1 for host
design recommendations.
2.4.2 Continuous Packet Connectivity
Integrator's Guide - C5621 / C33
The C5621 module has support for the CPC feature available in 3GPP release
7. CPC is a set of features to save battery power. The most important features
are DRX and DTX.
DRX (Discontinuous Reception): When module is in HSPA mode it has to
monitor a certain signaling channel from the base station to see if data
packets will be delivered to it in coming time slots. If the data traffic is bursty,
the base station can instruct the module to listen to the signaling channel less
frequently than normal. In this way the module’s receiver can be switched off
and save power.
DTX (Discontinuous Transmission): W hen module is in HSP A mode it has to
stay synchronized to the base station. The module does this by sending
control information on a dedicated signaling channel to the base station. This
is done continuously. If data traffic is bursty, the base station can let the
module send information in bursts rather than continuously. In this way the
module’s transmitter can be switched off and save power.
The CPC feature also helps to improve the initial data latency which occurs
while moving from the idle channels to high speed data channels. The CPC
feature needs to be supported in the radio network to be effective.
2.4.3 Fast Dormancy
The C5621 module has support for the Fast Dormancy feature. It is a feature
for saving batter y life. This functionalit y enables a way around the network
timers for downgrading from Cell_DCH/Cell_FACH to the least power state in
a faster manner.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
11 (72)
Erics son Confidential
The module sends a ‘Signalling Connection Rele ase Indication’ Cause to the
network. The UTRAN (network) upon reception of this IE may decide to trigger
an RRC State transition to a more battery efficient state, ultimately IDLE.
Fast Dormancy is triggered and is steered from the host and it’s a feature
available in 3GPP release 8.
Note: The fast dormancy support in C5621 has one of the timers (T323) set to a
default value of 60 seconds.
2.5 Over-temperature protection
To protect the Mobile Broadband Module hardware from over-heating, and to
ensure radio performance and component life l ength, the module supports
over-temperature protection.
The over-temperature protection function consists of three parts:
• Over-temperature signaling
• GPS thermal throttling
• PA thermal throttling
2.5.1 Over-temperature signaling
This function reports to the host SW, e.g. connection manager software, when
the temperature passes through some configurable temperature threshold;
refer to the SDK [5] and the AT Command Manual [4] for details.
2.5.2 GPS Thermal Throttling
The GPS Thermal Throttling function limits the GPS functionalit y according to
module temperature. This is done to prioritize module functionality in higher
temperatures.
GPS will automatically turn off when temperature exceeds Threshold A, see
Figure 2. Any changes in the GPS status depending on this function is
reported, unsolicited, to the host software; see the SDK [5] and the AT
Command Manual [4] for details.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
12 (72)
Erics son Confidential
Temperature
Threshold A
Time
* Start limited search time,
T_status changes to 1
GPS shut down,
T_status changes to 2
* Search time limited to 90s by default
GPS re-start allowed when
below hysteresis, T_status
changes to 1
GPS operation allowed if
last command was GPS
enable, T_status changes
to 0
Figure 2, GPS Thermal Throttling
2.5.3 PA Thermal Throttling
The PA Thermal Throttling function limits the output power according to
module temperature. The temperature thresholds and back-off values are set
in module firmware see Figure 3. The decreased maximal output power will
cause the mobile network to take action, for instance limit uplink throughput or
handover to 2G.
Figure 3, Maximal output power reduction due to PA throttling
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
13 (72)
Erics son Confidential
MAIN Antenna
TX/RX
DIV Antenna
WCDMA RX
LED
VBAT
GND
USB
WWAN_Disable_N
WAKE
GPS_Disable_N
GPS Antenna
UART 0 & 1
SPI
POWER_ON
LGA PADS
UICC
Interface
Control &
Status
Interface
Power
Interface
Data
Communication
Interface
HSI
HW_READY
RTC_CLK
RF
Interface
Mobile Broadband Module
C5621 / C3304
3 System Integration Overview
C5621/ C33 Mobile Broadband Module is a 277 pin LGA SIP module.
Interfaces and functionality needed on the host device side are shown in
Figure 4.
Integrator's Guide - C5621 / C33
3.1 Power On
Figure 4, Mobile Broadband module interface overview. Please note: HIS and
SPI are for future use. HW_Ready is a signal directed out from the
module. All other signals are directed in to the module.
The module start-up is controlled by a GPIO signal, POWER_ON. Once VBAT
and RTC_CLK signals are fed to the module, the host device has to drive
POWER_ON signal high for starting t he module. The modul e asserts
HW_READY signal high. Though HW_READY is not an mandatory signal to
setup the interface towards the module, the host system can utilize this signal
to avoid back feeding. Refer to chapter 4.3.5.3 for the signal description. The
power on sequence is explained in Fi gure 5.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
14 (72)
Erics son Confidential
~ 32 ms
HW_READY
POWER_ON
RTC_CLK
VBAT
Figure 5, Example of Module Power on Sequence
3.2 Power off
The module can be powered off by pulling down the POWER_ON signal low
for minimum 100 μs. The power down sequence is explained in Figure 6.
Though a hardware interface is available for the module shutdown, one shall
use it along with t he software method to shutdown the module safely. The
software solution is realized by using a background service (WMCore) in
Windows, which subscribes to Windows OS power events. When the host
switches state into hibernate ( ACPI S4) or power off (ACPI S5), a shut down
command is sent to the module. The module will autonomously de-register
from the radio network, save the mobile network list, turn off t he radio and shut
down the SIM. Finally the module itself is turned off, including the USB
interface.
The host device designer should keep the power to the module for at least 2
seconds after the Windows OS power event, to ensure that there is time for
the module to shut down properly. The shut down behavior towards the S IM
and network has to comply with 3GPP requirements, please refer to 3GPP TS
24.008 chapter 4.3. 4.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
15 (72)
Erics son Confidential
~ 100 μs
HW_READY
POWER_ON
RTC_CLK
VBAT
Issue
AT+CFUN=0
~ 2 s
Figure 6, Example of Module Power down Sequence
Implementations that do not use the background service, such as Linux or 3rd
party connection managers, needs to issue the shutdown command to the
module and wait unt il the module disables its USB interface before turning off
the power supply to the module. This procedure is recommended to ensure
that the module pro perly de-registers from the radio network and saves the
current network list. The procedure guarantees quick registration on previous
available radio network dur ing the next p ower-on cycle.
Please refer to chapter 4.3.3.1 for more information about module electrical
requirements.
3.2.1 Module Restart/Reset
POWER_ON signal can be utilized to reset/restart the C5621/C33 module.
This can be done by driving this signal low for minimum 200 μs before driving
it high again. This will eventually power cycle the module. It is recommended
that this method of module reset shall be utilized only under irrecoverable
error conditions. For other conditions, it is always recommended to do a soft
reset using AT-Command.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
16 (72)
Erics son Confidential
≥ 200 μs
HW_READY
POWER_ON
RTC_CLK
VBAT
Module Reset Cycle
±
Figure 7, Example of Module Reset Sequence
3.3 GPS Interface
The Mobile Broadband Module supports different kinds of assisted GPS
features, which put requirements on SW to be installed on the host side and in
some use cases also agreements to be signed by the integrator.
3.3.1 Antenna Recommendations
The GPS performance when integrated in a host device is dependent on
antenna efficiency (including cable loss), antenna pattern/polarization and
host-generated noise. The internal noise can be generated from DC/DC
converter, LCD, CPU, hard drives etc and other co-existing radio transceivers
(e.g. W LAN and Bluetooth). To achieve good performance the host-generated
noise level should be less than -116.5 dBm/MHz in 1525.4 2
The noise level is not possible to measure with conventional instruments.
However, there is a way to estimate the noise added by the host platform
using an Over-The-Air (OTA) measurement setup. The test setup is described
in chapter 13.1.
1 MHz band.
General recommendation for designing 3G, 2G and GPS antenna is stated in
the ‘Antenna Performance Guideline’ document [10].
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
17 (72)
Erics son Confidential
3.3.2 External antenna amplifier
If an external antenna amplifier is to be used, the gain of the amplifier coupled
with front end losses in cables and other components must be considered. If
strong jammers are picked up by the antenna and after that amplified by the
antenna amplifier there is a risk that the LNA in the C5621 gw module will
work in the nonlinear area and thereby degrading performance of the GPS.
Therefore, if an antenn a amplifier is to be used, try to avoid placing
transmitting antennas close to the GPS antenn a and do not use a more
powerful antenna amplifier than necessary. I.e. the amplifier does not add any
performance improvement by amplifying the signals more than losses in
cables and passives before entering the LNA in the C5621 gw module.
3.3.3 Assisted GPS Features
Assisted GPS can be divided into Internet-assisted and network-assisted
GPS. There exist multiple variants of both Internet- and network-assisted
GPS.
Integrator's Guide - C5621 / C33
Table 2 Assisted GPS features in Mobile Broadband Modules
Mode l
A-GPS
Technologies
Extended
C5621
Ephemeris,
SUPL
Internet-assisted GPS is based on the ephemeris data that is downloaded
over Internet and transferred to t he module. To collect the ephemeris data,
proprietary code of the provider of the Internet-assisted service (stated in
Table 2) need to be run. The propr ietary code is include d in Ericsson’s PC
software for W indows.
3.3.4 2-antenna version
In the case that 2 antennas are preferred and main and diversity functionality,
as well as GPS functionality is required, a split of antenna signals is needed
outside the C5621 gw module.
An example of how this can be achieved is illustrated in Figure 8 below.
Internet Assisted
Variant
Network Assiste d
Variant
PGPS (RX Networks) OMA SUPL 1.0
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
18 (72)
Erics son Confidential
GPS
1μ
22 p
nm
47n
nm
1
2
3 4
5
6
Ubat
On C56 module
To WCDMA div
GPS extractor
component
Figure 8 Example of antenna signal split for 2 antenna version
The “GPS extractor component” in Figure 8 can be chosen as follows:
TDK-EPC: B39162B7742E310
Taiyo Yuden: G6KU1G575L4WF
Be careful to read the application note of the chosen “GPS extractor
component” in order to include matching components or other external
components in the design.
Also included in the illustration in Figure 8 is an example of how an antenna
amplifier can be power fed. Be aware that capacitors and inductors must not
be omitted. This is in order not to risk damaging components or degrade
performance of the system.
The signal trace from the antenna to the C5621 gw module is carrying RF
signals. Thus, the trace must refer to a ground plane and the trace width must
be calculated by considering the distance to the ground plane and the
dielectric constant of the circuit board used. For all RF signals it is really
important not to place them close to any source of distortion such as digital
signals, clock signals, power signals or any other signal with sharp transients
or high power.
Preferably the antenna should be placed as close as possible to the module to
minimize signal losses and risks for distortions being picked up.

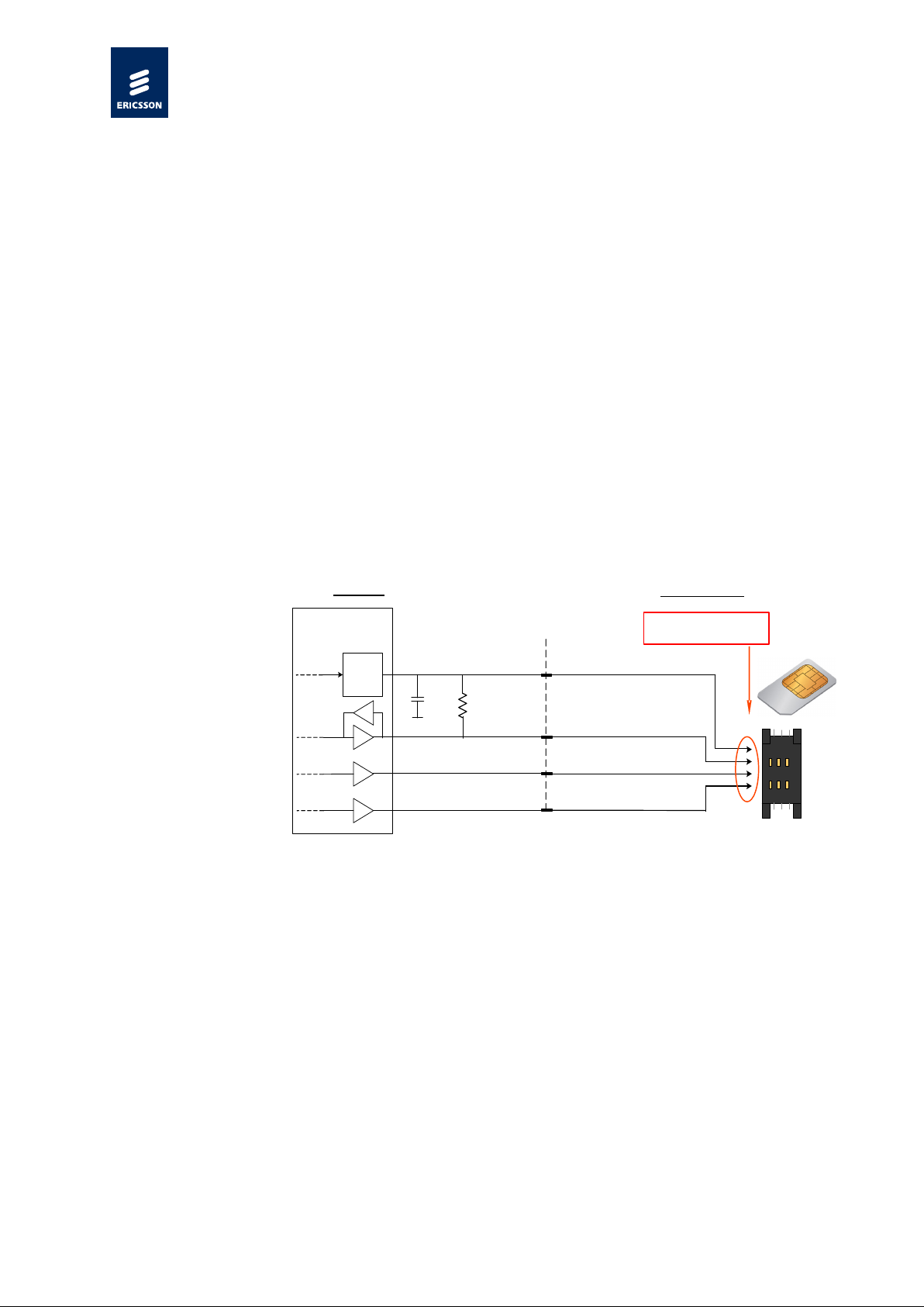

3.4 UICC (USIM Card)
An external S IM card with 3 V or 1.8 V technolog y must be connected to the
Mobile Broad Band Module via the UIM interface pins. It is recommended that
the host device design minimizes the connection length between the Ericsson
Mobile Broadband Module and the UICC reader. It is also recommended to
minimize the potential for coupling of interfering signals to the UICC interface.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
19 (72)
Erics son Confidential
Note: The UICC design (UICC reader, signal strength and i ntegrity), is part of the
3GPP testing on system level.
Note: UICC electrical requirements are not guaranteed by the module in the event of
UICC Hot swap. Host device design is required to choose a UICC socket
which offers such protection.
Note: This is a software-based solution. The S IM_OFF signal is not used.
3.4.1 UICC Hot Swap
The Mobile Broadband module will autonomously detect and reset its internal
logic to handle a UICC hot swap. The module can be configured to send a n
unsolicited AT response when a UICC removal event is registered. W hen a
UICC detection event is registered, the host will be alerted by an unsolicited
response before the module is automatically restarted. The W MCore service
handles this logic and will issue UICC event notifications on the C++ API [5].
The host must be prepared for an automatic module restart when a UICC
detection event is registered. For implementations that d o not use the
WMCore service, such as Linux or 3
device software is required to handle the UICC hot swap functionality, if
implemented.
rd
party connection managers, the host
3.5 Electrostatic Discharge (ESD) Precautions
The Ericsson Mobile Broadband Module is Electrostatic Discharge (ESD)
protected. However, it is recommended that integrators follow electronic
device handling precautions when working with any electronic device system
to prevent damage to the host or the radio device.
When the Ericsson Mobile Broadband Module is mounted in the host, it is the
responsibility of the integrator to ensure that static discharge protection is
designed in to the host product. If exposed, the antenna and UICC interf aces
are vulnerable contact points for ESD.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
20 (72)
Erics son Confidential
4 Electrical Integration
This chapter describes the electrical interface between the Ericsson Mobile
Broadband Module and the host device. A summary of the function of each
signal is provided, together wit h any additional relevant information.
Signals are described from the perspective of the Ericsson Mobile Broadband
Module. Consequently, signals described as ‘Input’ are input signals to the
module, driven by the host [Host ⇒ Module]. Likewise, signals described as
‘Output’ are dri ven by the module into the host [Module ⇒ Host]. Bi-directional
signal flow ( I/O) is indicated by a double-headed arrow [Module ⇔ Host]. In
cases like UICC interface, which utilizes the host circuitry to interface to the
module, it will be indicated as an interface between the module and the
respective component, like [Module ⇒ UICC].
Apart from the module solderi ng process, the system radio performance
depends also on host system design, host device noise, antenna design and
performance etc. The host antenna system design is very important for total
radio performance. For minimal system 3G performance recommendations
see [2]. Note that the operators may have stricter radio performance
requirements than stated in [1].
Integrator's Guide - C5621 / C33
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment if the equipment is installed an d operated with
minimum distance of 20 cm between the radiator and your body. Depending
on host design and antenna location there are requirements on human body
exposure to RF emissions, please refer to [11] and [12] for more information.
The transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
4.1 Physical size
Width: 29 (±0.1) mm
Length: 29 (±0.1) mm
Height: < 1.99 (±0.1) mm
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
21 (72)
Erics son Confidential
GND
VBAT
Control & Status
USB
UICC
RF
TP
SYS_CLK
UART
RTC_CLK
Reserved
NC
Future Use
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
GND
VBAT
Control & Status
USB
UICC
RF
TP
SYS_CLK
UART
RTC_CLK
Reserved
NC
Future Use
4.2 Pino ut
The pin out is configured as a 277 p in LGA. Pad diameter is 0.63mm, pitch
1.27mm. The coordinate F6 in Figure 8 is the reference point.
Integrator's Guide - C5621 / C33
1
Please use electro nic format to vi ew this figure to get better clarity on the details
Figure 9, C5621/C33 Top View (looking through the module)
F6 is the reference point.
1
. The coordinate
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
22 (72)
Erics son Confidential
4.3 System Connector
All signals are routed thro ugh the LGA pads for interfacing with the host
device - power, ground, data, control, status and UICC interface.
Table 3, Pin List
Pin Name Function
A4 RF_ M AI N Main RF Interface for GSM and WCDMA
A5 GND
A6 GND
A7 GND
A8 GND
A9 GND
A10 GND
A11 GND
A12 GND
A13 GND
A14 GND
A15 GND
A16 GND
A17 GND
B3 GND
B4 GND
B5 GND
B6 Reserved NC1
B7 GND
B8 GND
B9 GND
B10 GND
B11 GND
B12 GND
B13 GND
B14 GND
B15 GND
B16 GND
B17 GND
B18 GND
C2 RF_GPS GPS Receiver RF Interface
C3 GND
C4 GND
C5 Reserved NC1
C6 GND
C7 GND
Integrator's Guide - C5621 / C33
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
23 (72)
Erics son Confidential
Pin Name Function
C8 GND
C9 GND
C10 GND
C11 GND
C12 GND
C13 GND
C14 GND
C15 GND
C16 GND
C17 GND
C18 GND
C19 GND
D1 GND
D2 GND
D3 GND
D4 Reserved NC1
D5 GND
D6 Reserved NC1
D7 GND
D8 GND
D9 GND
D10 GND
D11 GND
D12 GND
D13 GND
D14 GND
D15 GND
D16 GND
D17 GND
D18 GND
D19 GND
D20 GND
E1 GND
E2 GND
E3 GND
E4 Reserved NC1
E5 GND
E6 GND
E7 GND
E8 GND
E9 GND
E10 GND
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
24 (72)
Erics son Confidential
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
Pin Name Function
E11 GND
E12 GND
E13 GND
E14 GND
E15 GND
E16 GND
E17 GND
E18 GND
E19 GND
E20 GND
F1 RF_DIV RF Interface for WCDMA Diversity
F2 GND
F3 Reserved
F4 Reserved
F5 GND
F6 GND
F16 GND
F17 GND
F18 GND
F19 GND
F20 GND
G1 GND
G2 GND
G3 Reserved
G4 Reserved
G5 GND
G16 GND
G17 GND
G18 GND
G19 GND
G20 GND
H1 Reserved
H2 Reserved
H3 Reserved
H4 Reserved
H5 GND
H16 GND
H17 GND
H18 GND
H19 GND
H20 GND
J1 Reserved NC1
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
25 (72)
Erics son Confidential
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
Pin Name Function
J2 Reserved
J3 Reserved
J4 Reserved
J5 GND
J16 GND
J17 GND
J18 GND
J19 GND
J20 GND
K1 Reserved
K2 Reserved
K3 Reserved
K4 Reserved
K5 GND
K16 GND
K17 GND
K18 GND
K19 GND
K20 GND
L1 GPS_DISABLE_N GPS RX Disable
L2 HSI_ACDATA HSI 1
L3 HSI_ACFLAG HSI 1
L4 HSI_CAREADY HSI 1
L5 GND
L16 GND
L17 GND
L18 GND
L19 GND
L20 GND
M1 WAKE_N Host Wake up signal
M2 HSI_CADATA HSI 1
M3 HSI_CAFLAG HSI 1
M4 HS I_ AC READ Y HSI 1
M5 GND
M16 GND
M17 Reserved
M18 Reserved
M19 VB AT Power supply
M20 VB AT Power supply
1
Refer enc e d for futur e use; Leave open in the host design
2
Refer enc ed for futur e use; Pull low or tie to GN D in the h os t design
Integrator's Guide - C5621 / C33
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
26 (72)
Erics son Confidential
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
Pin Name Function
N1 Reserved
N2 Reserved
N3 GND
N4 USB_DP USB 2.0
N5 GND
N16 GND
N17 Reserved NC1
N18 Reserved NC1
N19 VB AT Power supply
N20 VB AT Power supply
P1 IPC _ CA_ WAKE HSI/SPI 1
P2 SPI0_MOSI SPI 1
P3 SPI0_CLK SPI 1
P4 USB_DM USB 2.0
P5 GND
P16 GND
P17 Reserved NC1
P18 GND
P19 Reserved NC1
P20 GND
R1 IPC _ AC_ WAKE HSI/SPI 1
R2 SPI0_CS0 SPI 1
R3 SPI0_MISO SPI 1
R4 GND
R5 GND
R16 GND
R17 Reserved
R18 Reserved
R19 Reserved
R20 Reserved
T1 Reserved
T2 SYSCLK Reference WWAN System Clock
T3 GND
T4 HSIC_STROBE HSIC 1
T5 GND
T6 GND
T7 GND
T8 GND
T9 GND
T10 GND
1
Refer enc e d for futur e use; Leave open in the host design
2
Refer enc ed for futur e use; Pull low or tie to GND in the h os t design
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
27 (72)
Erics son Confidential
NC
1
NC
1
NC
1
NC
1
LED interface for WWAN status indication
NC
1
NC
1
NC
1
NC
1
Pin Name Function
T11 GND
T12 GND
T13 GND
T14 GND
T15 GND
T16 GND
T17 Reserved
T18 Reserved
T19 Reserved NC1
T20 POWER_ON Module Power On / Reset contro l
U1 Reserved NC1
U2 AU X_5 V NC1
U3 GND
U4 HSIC_DATA HSIC 1
U5 GND
U6 Reserved
U7 Reserved
U8 WWAN_LED
U9 U IM_ SI MO F F_ N UICC
U10 UIM_CLK UICC
U11 UIM_DATA UICC
U12 UIM_ P W R UICC
U13 Reserved
U14 Reserved
U15 Reserved
U16 Reserved
U17 Reserved NC1
U18 Reserved NC1
U19 RESET_N NC1
U20 Reserved NC1
V2 TEST_PIN Test Pin to be terminated on a TP
V3 WWAN_DISABLE_N Radio Disable Control
V4 GND
V5 Reserved NC1
V6 Reserved NC1
V7 Reserved NC1
V8 TX_ON GSM TX Burs t Indication
V9 Reserved NC1
V10 SW_READY HIS/SPI 1
V11 Reserved NC1
1
Refer enc e d for futur e use; Leave open in the host design
2
Refer enc ed for futur e use; Pull low or tie to GN D in the h os t design
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
28 (72)
Erics son Confidential
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
NC
1
Pin Name Function
V12 UIM_RST UICC
V13 PCM1_ULD PC M1 2
V14 PCM1_SCK PC M1 2
V15 Reserved
V16 Reserved
V17 Reserved
V18 Reserved
V19 Res e rved
W3 Reserved
W4 Reserved
W5 HW_READY Module start-up i n di c a tion
W6 UART0_CTS UART0
W7 UART0_RTS UART0
W8 Reserved
W9 Reserved
W10 PCM0_DLD PC M0 2
W11 PCM0_WS PCM0 2
W12 Reserved NC1
W13 PCM1_WS PCM1 2
W14 PCM1_DLD PC M1 2
W15 SMB_CLK SMB 1
W16 SMB_DATA SMB 1
W17 Reserved
W18 Reserved
Y4 U ART1_TX UART1
Y5 UART1_RX UART1
Y6 U ART0_TX UART0
Y7 UART0_RX UART0
Y8 RTC_CLK 32kHz Module Boot-up Clock
Y9 GND
Y10 PCM0_ULD PC M0 2
Y11 PCM0_SCK PC M0 2
Y12 GND
Y13 Reserved
Y14 Reserved
Y15 Reserved
Y16 Reserved
Y17 Reserved
1
Refer enc e d for futur e use; Leave open in the host design
2
Refer enc ed for futur e use; Pull low or tie to GN D in the h os t design
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
29 (72)
Erics son Confidential
4.3.1 Electrical Interface Detail Format
The description of each interface follows a common format. An example is
shown below:
Interface name: Name of the interface. Preferably, this is the actual name
of the interface in the pin list, but some interfaces are
grouped and the int erface name is a collection of interface
signals.
Function: Describe the basic function of the interface; some
interface signals are grouped according to f unction.
Description: Basic description of the interf ace and the relationship to
the host.
Signal name: All signal names associated to the interface, all names are
given
Direction: Signal flow direction.
Integrator's Guide - C5621 / C33
If not used: Specific details for each signal how to terminate the
LVTTL: TTL signal level.
Details: Any specific details note d.
4.3.2 TTL Levels
The table below defines the TTL levels of C5621/ C33 Mobile Broadband
Module.
Table 4 TTL signal level definitions
Voltage level 1.8V
V
V
Max
V
1.8
High
V
V
>1.35
OutHigh
>1.17
InHigh
physical connection if not used by the host. Fai lure to
observe this convention can result in unpredictable
behavior.
+ 0.3
High
V
V
V
V
V
0.9
Threshold
<0.63
InLow
<0.45
OutLow
0
Low
-0.3
Min
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
30 (72)
Erics son Confidential
4.3.3 Power Interfaces
This chapter describes the power, ground and other signals that control or
indicate power states.
• VBAT
• GND
4.3.3.1 VB AT
Function: Power supply
Description: Voltage supply to module
Signal name: VBAT
Direction: Host => Module
Integrator's Guide - C5621 / C33
If not used: Required
LVTTL: N/A
Details: Voltage provided by the host must range within 3.0V
(minimum) to 4.2V (maximum), the typical value being
3.6V. It is essential that the host platform provides
sufficient voltage during peak current conditions.
Note: The supported voltage rang e is absolute and including volta ge ripple and
glitches. Function and performance are undef ined outside supported range.
Note: When turning off the power to the module, t he host has to ensure the VBAT
voltage is less than 1.2 V during 100 ms time frame, in order for the module
to properly enter its power-off state. Please refer to parameter T
in Figure 9.
off
Note: When turning on the power to the module, the host has to ensure that th e
VBAT power on ramp time is kept above 40µs and below 100 ms. The slope
must be monotonous and the ramp times are specified from 10% to 90% of
VBAT. P lease refer to parameter T
in Figure 10.
rise
Note: There is a limited amount of power supply capacitance mounted on the
module. It is essential that the host platform provides sufficient volt age during
the peak current condit ions. There should also be decoupling (10-22uF)
located close to the VBAT pins on the module. Make sure that VBAT has a
low impedance connection directly to a battery source. Please refer to Figure
11.
Note: When designing the power supply on the host side, the bursty nature o f GS M
TDMA transmission should be taken into consideration. Please refer to
Figure 12 and Figure 13
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
31 (72)
Erics son Confidential
Time
VBAT
Undefined
3.0V
Normal Range Power On
4.2V
0V
1.2V
Power Off detected
Module Power Off
Module Power On
Toff > 100ms
40 us < Tr is e < 100ms
Figure 10, VBAT Electrical Characteristics
Figure 11, VBAT Implementation
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
32 (72)
Erics son Confidential
Time
Pow er
Con sumption
TDMA Fram e (4.615 ms)
Timeslot (~577 µs)
Peak 2.50A aver aged over a
100µs window in TX burst
Transmit bursts
Peak
Pow er
Con sumption
Receive bursts
Time
VB A T
3.0V
4.2V
Operat in g rang e
Non operating range
TDMA Fram e (4 .61 5 m s)
Times lot (~577 µs)
VBAT must never dro p below
3.0V during TX burst
Transmit bursts
Figure 12, Example GPRS/EDGE 3+2 multislot transmission
Figure 13, VBAT during GPRS/EDGE TX burst
Table 5, VBAT Electrical Characteristics
Param eter Condition Low Mid High Unit
Voltage 3.0 3.6 4.2V V
4.3.3.2 GND
Function: Ground
Description: Ground connection(s)
Signal name: GND
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
33 (72)
Erics son Confidential
Direction: N/A
If not used: Required
LVTTL: N/A
Details: Return path for all currents and ground reference.
4.3.4 Data communication interfaces
4.3.4.1 USB 2.0
Function: USB2.0 data communication port
Description: USB transmit and receive port for data communication
between module and host
Signal name: USB_DP
USB_DM
Integrator's Guide - C5621 / C33
Direction: Module host
If not used: Required
LVTTL: N/A
Details: The module USB interf ace is designed to the High Speed
USB specifications; see Universal Serial Bus Specification
2.0 [3].
Power to the USB interface is provided by VBAT input
from the host. The USB start-up time, i.e. from module
startup to D+ high, is less than 3 s. The module has
support for quick enumeration which allows for even
shorter BIOS detection times, please see chapter 2.1
Note: Ericsson strongly recommends that the USB is connected directly to the root
HUB, which is not shared with other USB devices. This ensures that the
module USB selective suspend function is not limited by other devices
connected to the same HUB.
Note: To achieve full throughput performance, the USB host controller should
adhere to USB2.0 specification and be configured for High Speed Mode.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
34 (72)
Erics son Confidential
4.3.5 Debug Interface
UART 0 & 1 signals are used for debugging purpose, when USB interface is
disconnected or suspended. Signals shall be routed to test pads or to a test
connector. All signals shall be placed on the same side of the board, for the
ease of accessibility. UART0 CTS & RTS signals can be left as ‘NC’ as they
are not utilized for debugging purpose. Added to t his, TEST_PIN (Pin V2) shall
be placed alon g with these UART signals for debugging. There is
cable detection functionality. T hus, if the signal goes low on these li nes then
the module will not go to suspend.
It is r ec ommended that the mentioned signals are routed to test pads or test
connector since Ericsson will use them for claims purposes.
Along with the UART signals, USB_DN, USB_DP and RTC_CLK signals from
the module shall be terminated on test pads. These signals shall be used for
debugging the module in the stand-alone mode. The recommendations for
stand-alone mode are described further in this section.
Integrator's Guide - C5621 / C33
4.3.5.1 UART0
Function: UART0 data communication port (for debugging)
Description: UART data communication port with flow control
Signal name: UART0_TX
Direction: Module host
If not used: Leave open
LVTTL: 1.8V
Details: 115200 baud, 8 data bit, 1 stop bit, no parity, flow control.
4.3.5.2 UART1
UART0_RX
UART0_ RTS
UART0_ CTS
Electrical specification and signaling levels according to
[13].
This port is used for debugging purpose.
Function: UART1 data communication port (for debugging)
Description: UART data communication port without flow control
Signal name: UART1_TX
Direction: Module host
UART1_RX
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
35 (72)
Erics son Confidential
If not used: Leave open
LVTTL: 1.8V
Details: 115200 baud, 8 data bit, 1 stop bit, no parity, no flow
control.
Electrical specification and signaling levels according to
[13].
This port is used for debugging purpose.
4.3.5.3 Interface for Stand-alone Debug Mode
Ericsson recommends the device integrators to provide an option to start up
the module in ‘stand alone’ debug mode. This interface will primarily be used
for debugging during the R&D phase of the device integrators and by Ericsson
personnel during claims process.
Integrator's Guide - C5621 / C33
The intention of d efining this interface is to test the C5621/C33 module standalone, if any issues in the system functionality or performance is reported. This
will help to isolate the root cause of the issue.
To start up the module in stand-alone, the following recommendations are to
be considered:
• There shall be possibility to power-up the module in the stand-alone
mode, preferably from an external power source (VBAT), bypassing
the host power-on control log ic. The corresponding reference GND
shall also be provided on a test pad.
• RTC_CLK (32.768kHz) shall be availabl e to start up the module in this
mode. Terminating RTC_CLK to a test pad enables the possibilit y to
connect this signal to an external clock source.
• A default pull-up option for POWER_ON signal enabl es the module to
power-up even when this signal is isolated from the host control logic.
• Possibility to connect USB traces to an external host – by soldering
cable to the test pads or by routing USB traces to a test USB
connector.
The mentioned signals along with the UART signals and TEST_PIN shall be
placed in the same order as indicated in F igure 14, - pin 1 being r eferred as
UART0_R X.
• Series zero ohm resistors are to be provided on USB_DP, USB_DN,
POWER_ON and RTC_CLK signals so that these signals can be
isolated to the external test pads in the stand-alone mode.
• UICC interface on the host PCB shall be available, by default, so that
the module is able to communicate with the SIM.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
36 (72)
Erics son Confidential
VBAT
N4
P4
USB_DN
USB_DP
0 ohm
0 ohm
1.8(VBAT)
100kohm
RTC_CLK
POWER_ON
0 ohm
UICC Interface
SIM
Connector
C5621/C33
T20
Y8
UART0_TX
UART0_RX
UART1_TX
UART1_RX
TEST_PIN
Y4
Y5
Y6
Y7
V2
Host
32.768kHz
0 ohm
RTC_CLK
USB_DN
USB_DP
REF_GND
dependant on the software configuration of t he

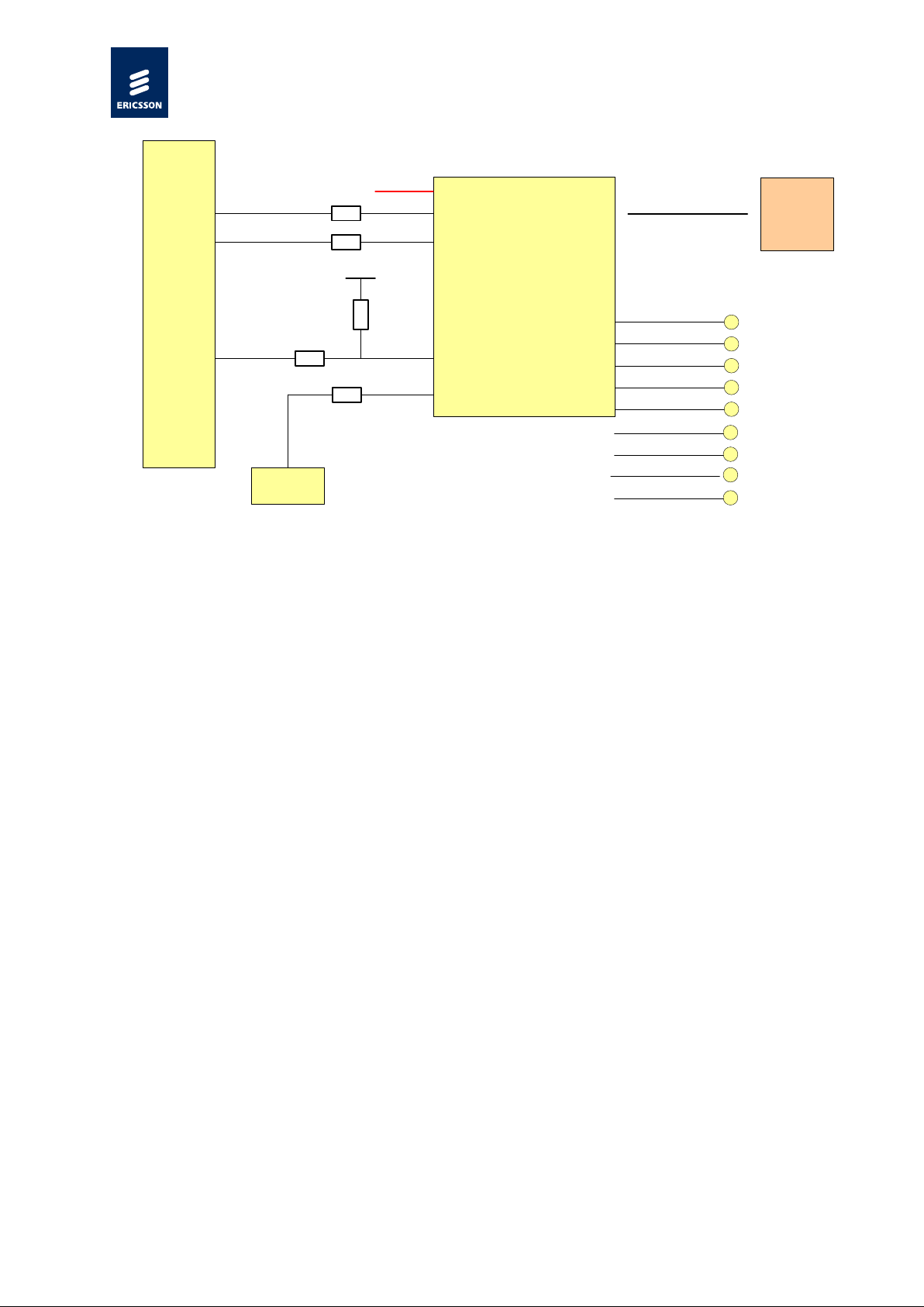

Figure 14 Stand alone setup for C5621/C33
4.3.6 Control and Status Interfaces
The Control and Stat us interfaces consist of the following signals:
• WAKE_N
• WWAN & GPS Disable
• WW AN LED
• HW Ready
• TX_O N
• POW ER_ON
• RTC CLK
• SYSCLK
4.3.6.1 WWAN_DISABLE_N
Function: Wireless disable input signal
Description: Active low input to disable radio functionality
Signal name: WWAN_DISABLE_N
Direction: Host => module
If not used: Leave open
LVTTL: 1.8V
Details: The function of the WWAN_DISABLE_N signal is
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
37 (72)
Erics son Confidential
GPS_DISABLE_N signal.
The GPS_DISABLE_N signal can be configured as
disabled (default) or enabled.
When the GPS_DISABLE_N signal is disabled through
software configuration, all radio transmitters and receivers
will be disabled when the WW AN_DISABLE_N signal is
asserted.
When the GPS_DISABLE_N signal is enabled through software
confi gur ation, all radi o transmitters an d rec ei vers except
the
GPS recei ver will be dis a bled when the WWAN_ DISABLE_ N
signal is asserted. The signal is internally pulled hig h to 1.8V
supply with 1 00kOhm.
Note: The host has to ensure that the WWAN_DISABLE_N signal is not
driven high when VBAT is powered down.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
38 (72)
Erics son Confidential
4.3.6.2 GPS_DISABLE_N
Function: GPS disable input signal
Description: Active low input to disable GPS functionality
Signal name: Note: The host has to ensure that the
Direction: Host => module
If not used: Leave open
LVTTL: 1.8V
Details: Signal is used in conjunction with WWAN_DISABLE_N.
Integrator's Guide - C5621 / C33
WWAN_DISABLE_N signal is not driven high when VBAT
is powered down.
GPS_DISABLE_N
The function of GPS_DISABLE_N is software
configurable in two states; enabled an d disabled.
When GPS_DISABLE_N signal is enabled through
software configuration, the GPS receiver shall be disabled
when the signal is asserted.
When GPS_DISABLE_N signal is disabled through
software configuration, nothing shall happen when the
signal is asserted.
Note: The host has to ensure that the GPS_DISABLE_N signal is not driven high
when VBAT is powered down.
Note: The module must be customized to allow the signal to control t he GPS. The
default configura tion uses the WWAN_DISABLE_N signal t o disable both
WWAN and GPS functions.
4.3.6.3 W AK E _N
Function: Wake up host signal
Description: Wake up the host, active low
Signal name: WAKE_N
Direction: Module => host
If not used: Leave open
LVTTL: 1.8V
Details: The WAKE_N pin can be used to provide an out-of-band
signal for waking up the host device from sleep states.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
39 (72)
Erics son Confidential
up of the module. The signal is indicating the
4.3.6.4 WWAN_LED
Function: Wireless WAN LED control
Description: LED control
Signal name: WWAN_LED
Direction: Module => host
If not used: Leave open
LVTTL: N/A
Integrator's Guide - C5621 / C33
Details:
The Ericsson Mobile Broadband Module uses this pin for
LED control. The pin is driven as a current sink of
approximately 10mA maximum.
The LED will reflect the current WW AN radio status. If the
WWAN radio is on, the led will be l it and vice versa.
Note: It is recommended that the power supply for the LED is disabled when the
VBAT power rails are disabled.
Table 6, WWAN_LED Electrical Characteristics
Parameter Condition Min T yp Max Unit
ON - 10 - mA
WWAN_LED
OFF High Z
Input voltage
level
5.5 V
4.3.6.5 HW_READY
Function: Status signal intended for preventing back
feeding
Description: Status signal for host I/O.
Signal name:
Direction: Module => host
If not used: Leave open
LVTTL: 1.8V
Details: The signal has an initial low state from the start-
HW_REA DY
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
40 (72)
Erics son Confidential
modules on/off/reset state.
4.3.6.6 POWER_ON
Function: Signal to turn on the module
Description: Active high signal to start the module
Integrator's Guide - C5621 / C33
• Via a low signal is the module indicating a
power off or a reset state.
• Via a high signa l is the module indicating
a power on state.
When the HW_READY signal is high, the host
can set the interfaces without risk for current
leakage.
Signal name:
POWER_ON
Direction: Host => module
If not used: Required
LVTTL: 1.8V (VBAT Compatible)
Details: The POWER_ON signal is used by the host to start up the
module. This signal is level-sensitive.
A high level on POWER_ON triggers the module start up
sequence. The POWER_ON signal is internally gated with
the 32kHz clock input signal (RTC_CLK). After 1024
pulses (32ms) the modem starts the boot process.
The module has an internal pull down and requires the
host system to drive this signal HIGH to start the module.
The host controller must pull this pin high in order for the
module to startup.
4.3.6.7 T X_ON (For Future Use)
Function: Indicate GSM TX burst
Description: Active high signal sent dur ing entire GSM TX burst
Signal name: TX_O N
Direction: Module => host
If not used: Leave open
LVTTL: 1.8V
Details: Intended to be used for GSM TX burst masking.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
41 (72)
Erics son Confidential
4.3.6.8 RTC_CLK
Function: Main clock input
Description: Single ended clock input
Signal name: RTC_CLK
Direction: Host => module
If not used: Required
LVTTL: N/A
Details: The signal is primarily used in sleep mode when the 26
Integrator's Guide - C5621 / C33
MHz clock is powered on. The clock should always be
available except in shut-down mode when the platform is
powered off.
The RTC clock should be switched off when the power to
the module is switched off to prevent back leakage.
Table 7 RTC_CLK Electrical Characteristics
Parameter Condition Mi n Typ Ma x Unit
High level
1.7 1.8 2.1 V
input voltage,
V
IH
Low level input
voltage, V
IL
Input
frequency, f
Duty cycle,
t
DCin
Frequency
-0.3 0 0.3 V
32.768 kHz
IN
40 50 60 %
20ppm
tolerance
Rise/fall time 4 200 ns
4.3.6.9 SYSCLK (For Future Use)
Function: Long term stabile 26MHz clock
Description: 26MHz clock output
Signal name: SYSCLK
Direction: Module => host
If not used: Leave open
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
42 (72)
Erics son Confidential
10kOhm
UIM_PWR
UIM_CLK
UIM_RST
UIM_DATA
LGA PADS
LDO
1.8/3V
SIM
Interface
1µF
Place ESD protection
close to SIM card holder
Module
Host Device
Function:
UIM Power
Description:
1.8 V or 3 V power supply to the UICC
LVTTL: 1.8V
Details: The clock presented on the S YSCLK signal is referenced
4.3.7 UICC Interface
The UICC interfaces consist of the following signals:
• UIM Power
• UIM Data
• UIM Clock
• UIM Reset
• UIM SIMOFF
The picture below illustrates the UICC (SIM) interface.
Integrator's Guide - C5621 / C33
to the WWAN system clock.
Note: The UICC interface should be ESD protected on the host side.
Figure 15, UICC interface
4.3.7.1 U IM _PWR
Signal Name: UI M_PW R [Module⇒UICC]
If not used: Required
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
43 (72)
Erics son Confidential
The signal details shall be according to [14].
Description:
Single-ended data signal
LVTTL: N/A
Details:
The UIM_PWR signal is the Ericsson Mobile Broadband
Module power supply to the UICC. The Ericsson Mobile
Broadband Module supports UICC of Class B and C.
Note: Only the UICC reader may be connected to UIM_PWR. The UIM_PWR signal
should not be fitted with decoupling capacitors in the host design.
Table 8, UIM_PWR Electrical Characteristics
Parameter Condition Min T ype Max Unit
1.8 V mode 1.67 1.8 1.98 V
UI M_PW R
3 V mode 2.8 2.85 2.9 V
4.3.7.2 UIM_DATA
Function: UIM Data
Signal Name: UIM_DAT A [Module⇔UICC]
If not used: Required
LVTTL: N/A
Details: The Ericsson Mobile Broadband Module provides this data
signal interface to the host mounted UICC. A 10 kOhm pullup resistor to UIM_PWR is mounted on the module.
The signal details shall be according to [14].
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
44 (72)
Erics son Confidential
Function:
UIM Clock
Description:
Single-ended clock signal
shall be according to [14].
Function:
UIM Reset
Description:
Reset signal to the UICC
Table 9, UIM_DATA Electrical Characteristics:
Parameter Condition Min T ype Max Unit
UIM_DATA
4.3.7.3 UIM_CLK
Signal Name: UIM_CLK [Module⇒UICC]
If not used: Required
LVTTL: N/A
Input low level
Input high level
0.7 x
UI M_PW R
V
0.2 x
UI M_PW R
V
Output low level 0 0.3 V
Output high level
UI M_PW R
-0.3
U IM_P W R V
Details: The Ericsson Mobile Broadband Module provides this clock
Table 10, UIM_CLK Electrical Characteristics
Parameter Condition Min T ype Max Unit
UIM_CLK
4.3.7.4 U IM _RST
signal interface to the host mounted UICC. The signal details
1.8 V mode, low
level
1.8 V mode, high
level
0 0.2 V
1.6 U IM_P W R V
3 V mode, low level 0 0.35 V
3 V mode, high
level
2.4 U IM_P W R V
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
45 (72)
Erics son Confidential
Signal Name: UIM_RST [Module⇒UICC]
If not used: Required
LVTTL: N/A
Details: The Ericsson Mobile Broadband Module provides this reset
signal interface to the host mounted UICC. The signal details
shall be according to [14].
Table 11, UIM_RST Electrical Characteristics
Parameter Condition Min T yp e Max Unit
1.8 V mode, low
level
1.8 V mode, high
UIM_RST
level
3 V mode, low level 0 0.35 V
3 V mode, high
level
4.3.7.5 UIM_SIMOFF_N (For Future Use)
Function: UICC interface disable
Description: Active low UICC interface disable
Signal Name: UIM_SIMOFF_N [UICC⇒Module]
Table 12, UIM_SIMOFF_N Electrical Characteristics
Parameter Condition Min T ype Max Unit
UIM_SIMOFF_N 1.8 V mode 1.67 1.8 1.98 V
0 0.2 V
1.6 UIM_ PW R V
2.4 UIM_ PW R V
4.3.8 PCM 0 & 1 Interface
The module is hardware prepared to support digital voice interface between
the module and the host. PCM 0 & 1 are intended f or that purpose. For
C5621/C33 module configuration, this interface is not enabled. Hence, the
signals corresponding to PCM 0 /1 interface shall be pulled-low or tied t o
GND. Refer to Table 3 for pin details.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
46 (72)
Erics son Confidential
Maximum DC rating on this interface is 3V @ 25 +/- 2
4.3.9 RF interface
4.3.9.1 RF_MAIN
Function: Main antenna port for E-GSM and WCDMA
Description: 50Ω antenna interface used for main RF branch
Signal name: RF_MAIN
Direction: Module antenna system
If not used: Required
LVTTL: N/A
Details: No DC protection implemented on this interface.
4.3.9.2 RF_DIV
Integrator's Guide - C5621 / C33
Function: Antenna port for WCDMA diversity
Description: 50Ω antenna interface used for receive diversity branch
Signal name: RF_DIV
Direction: Antenna system => module
If not used: Required
LVTTL: N/A
Details: No DC protection implemented on this interface.
4.3.9.3 RF_GPS
Function: Antenna port for GPS interface
Description: 50Ω antenna interface used for GPS
Signal name: RF_GPS
Direction: Antenna system => module
If not used: Leave open
LVTTL: N/A
Details:
degrees C.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
47 (72)
Erics son Confidential
5 Mechanical Dimension
Integrator's Guide - C5621 / C33
Figure 16, Physical Dimension (All dimensions in mm)
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
48 (72)
Erics son Confidential
Host PCB Solder Mask
29.2 mm
29.2 mm
6 Routing guidelines
C5621 / C33 Mobile Broadband module is an LGA subassembly, soldered to
the host board, and shares GND plane with the host plat form, it is essential
that the host board layout follows the recommendation given in th is chapter to
get the best performance out of the modul e.
Some of the recommendations provided in this chapter are general PCB
design guidel ine that may be referred from standard texts concerning the
subject.
6.1 Reco mmende d PCB Footpri nt
The solder lands of the host PCB should be a mirror image of the 277
Ø ≥0.63 mm solder lands on the component and prefer ably not routed on the
outer Cu-layer. The pitch is 1.27 mm. Via-in-pad should be Cu-filled (i.e. solid
Cu-microvia).
Integrator's Guide - C5621 / C33
To improve flux outgassing during reflow, the Solder Mask Opening (SMO) is
recommended to extend 50 µm outside the package outline on all f our sides.
Solder Mask Opening
Figure 17, Ø 0.63 mm solder lands with one large solder mask opening
extending at least 50 μm outside the package outline on al l four
sides
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
49 (72)
Erics son Confidential
NSMD Solder lands
Host PCB Solder Mask
If solder mask is used on the mother PCB underneath the C5621/C33, it
should be NSMD design with S MO of Ø ≥0.73 mm.
Figure 18, Ø 0.63 mm NSMD solder lands, SMO Ø ≥0.73 mm
6.2 Digital I/O routing
Keep all trace lengths as short as possible
Use stripline structure for signals with high frequency content (on the
module, all 1.8V I/O signals have a rise/fall time of ~1ns, and should
therefore be routed as striplines, since they all are high bandwidth
signals)
Treat all critical (high bandwidth) signals as current loops, and make
sure that they have a return path. This means that you should refrain
from routing any signals over non-continuous power or ground planes,
because this causes interruptions in the impedance and results in
reflections, and might also increase EMI emissions.
Traces routed on adjacent layers should be oriented perpendicular
towards each other; this will reduce risk for crosstalk.
Impedance matching must be maintained to avoid overshoot,
undershoot and rin ging. Otherwise, radiated emissions increases.
If nothing else is stated, digita l signals should be rout ed with an
impedance of 50-70 Ohm relative GND.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
50 (72)
Erics son Confidential
H
3xH
Reference plane
Aggressor Victim
6.2.1 Clock Routing
Must be routed with a controlled impedance (50-60 Ohm)
Should not be routed over a discontinuous GND plane
Keep clock traces as short as possible
Place serial termination close to transmitter output
Crosstalk:
o Crosstalk falls off with the square of the distance, therefore
adequate spacing is a good method in reducing crosstalk
o As a rule of thumb, 3xH can be used for all clock signals:
Integrator's Guide - C5621 / C33

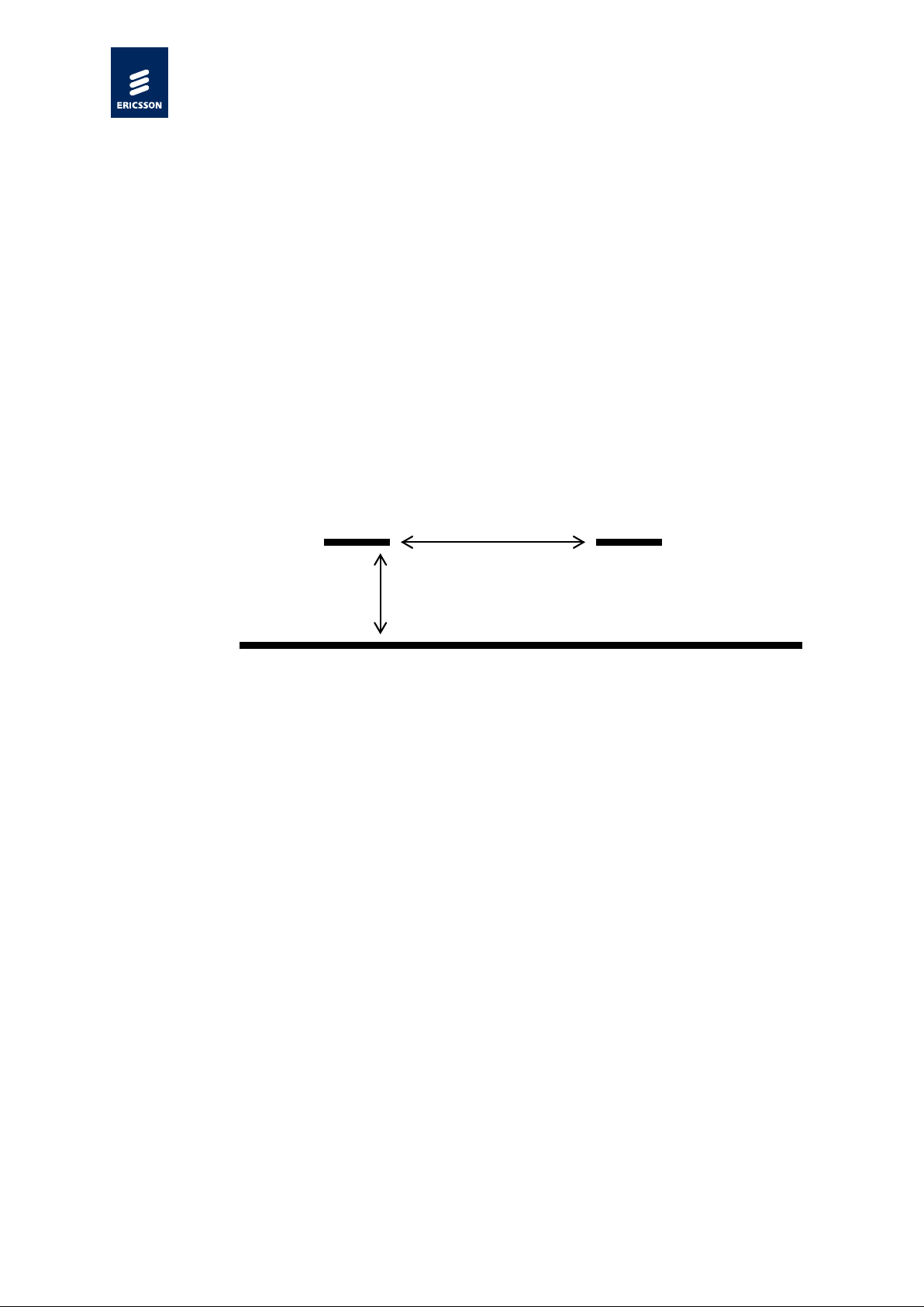

Figure 19, Spacing rul e
Involved signals:
o SYSCLK
o RTC_CLK
o UIM_CLK
6.2.2 USB Routing
Traces should be routed as a differenti al pair, matched in length.
Differential Impedance between the traces shall be 90 Ohm
Involved signals:
o USB_DP
o USB_DM
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
51 (72)
Erics son Confidential
6.3 Power Routing
6.3.1 VBAT Routing
The VBAT pads should have a direct, low impedance connection to a
battery
The decoupling should be placed close to VBAT pads
VBAT net shall be designed such that the suppl y voltage to the module is
always within its operating range even at the maximum current
consumption (worst case being 2G transmit operation). Refer to chapter
4.3.3.1 for details
6.3.2 GND
Integrator's Guide - C5621 / C33
On the layers where a power plane is implemented, a cut-out creating a local
GND plane should be implemented. The local plane should be connected to
the complete GND planes with as many vias as possible; this will increase the
thermal coupling.
6.4 RF Routing
RF signals must have a controlled impedance of 50 Ohm
The signals should be directly connected to respective antennas / antenna
connectors
It is important to isolate the RF-lines from any unwanted signal or noise.
RF stripline is a good choice for realization of RF-lines since it provides
good shieldin g from both radiat ed and conducted noise. Care must also be
taken to isolate main/diversity/GPS traces with regards to each other.
Via fence around the stripline, creating an embedded RF cage in t he PCB,
will improve isolation. Care shall be taken whil e calculating trace
impedance since via fence placed very close to the RF striplines, may
lower the impedance somewhat.
Via stub should be eliminated or minimized
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
52 (72)
Erics son Confidential
7 Production Guideline
7.1 Package type
C5621 / C33 module has EN IG bottom terminations with a LGA design; no
solder mask is present at the underside of the package.
Integrator's Guide - C5621 / C33
Figure 20, Top view of C5621/C33
7.2 Floor life and dry storage
The CE module should be stored in a dr y pack and handled according to
IPC/JEDEC J-STD-033B.1, MSL 3 with bake at:
• 125 °C, when supplied on JEDEC tray
• 40 °C ≤5% RH when supplied on 44 mm tape and reel
7.3 Screen stencil design
Material: Stainless steel
Thickness: 0.1 mm (~4 mil)
Aperture size: Ø 0.63 mm (277x)
All solder paste deposits should be centered on the PCB.
7.4 Assembly
Pick-up position should be centered on the package topside.
Nozzle Ø: 10-20 mm
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
53 (72)
Erics son Confidential
7.5 Reflow soldering
Forced convection soldering in air or N2 can be used.
Reflow profile shall b e with the stated limits in IPC/JEDEC J-STD-020D.1.
The classification temperature (Tc) is 250 °C1.
Integrator's Guide - C5621 / C33
1
The tempe rature value is according to the requirem ents stated in Table 4-2 IP C/JEDE C J-S TD-020D.1.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
54 (72)
Erics son Confidential
724
8 Packaging – Tape and Reel Information
C5621/C33 modules are shipped as tape reels.
Each reel has 724 modules placed into the carrier tape and sealed with the
cover tape. There will be 8 empty pockets as trailer and 18 empty pockets as
leader in each reel.
Figure 21, Reel Direction
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
55 (72)
Erics son Confidential
1
Label
2
Humi dity Indicator
3
Desiccant
4
Shieldin g Bag
5
Modul e Orientation Mark
1
C5621/C33
5 2 1
3
User direction of unreeling
Module
Figure 22, Tape Reel Details
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
56 (72)
Erics son Confidential
Device Name
Function
Mobile Broadband Device Management
This port can be used by an application
Mobile Broad band Network Adapter
NDIS interface over which Ethernet
adapter. Port type Ethernet
Mobile Broadband GPS Interface
GPS COM port which streams out
NMEA. Port type ACM
SIM Card Reader (SC)
PC-Smartcard interface. Port type WDM
Wireless Modem
Modem device which may be used for
9 SW integration
9.1 Driver and Application Architecture
9.1.1 Windows XP and Vista Architecture
The driver and appl ication architecture for XP and Vista is depicted in Figure
23.
The drivers are based on standard USB functionality. Th e Mobile Broadband
Module appears as the following devices when examined i n Windows Device
Manager:
Integrator's Guide - C5621 / C33
to control and obt ain status from the
Mobile Broadband Module. Port type
WDM
(ND IS)
communication can be established.
Appears to W indows as a network
legacy Dial-Up Networking connection.
Port type ACM.
On top of the drivers is an application, WMCore, ru nning as background
service. The service is started automatically at W indows startup and can be
used to change the state of the Mobile Broadband Module without end-user
interaction also prior to W indows login.
The WMCore service provides a number of functions to control the module
and retrieve information about the module and its states. The functions are
accessible through the Ericsson Mobile Broadband C++ API, see [5]. The
service is also used by Ericsson’s Wireless Manager.
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
57 (72)
Erics son Confidential
NME
A
F3507g / F3607gw
Bus Driver
WMCore
GPS
SC
Modem
Modem
Mgmt
Windows 7
Network
subsystem
Wireless Manager 6.0
C++ API
Drivers
USBHW
ETH
Mobile Broadband
Module
ACM
Bus Driver
Service
GPS
SC
Modem
Modem
Mgmt
NDIS
Miniport
Windows
Network
subsystem
Wireless Manager
Ericsson C++ API
Drivers
USBHW
Applications
Control
WDM
ACM
ACM
WDM
ETH
AT
Device Name
Function
Mobile Broadband Device Management
This port can be used by an application
Mobile Broad band Network Adapter
Implements support for the Windows 7
Ethernet and ACM
Mobile Broadband GPS Interface
GPS port that supports the Windows 7
sensor class but can also be used as a
Figure 23, Windo ws XP/Vista driver architecture
9.1.2 Windows 7 Architecture
The driver and appl ication architecture for Windows 7 is depicted in Figure 24 .
The Mobile Broadband Module drivers are based on standard USB
functionality. The W indows 7 drivers support the native Windows 7 Mobile
Broadband API, resulting in a different architecture compared to Windows XP
and Vista, as visualized in Figur e 24. The GPS driver also implements support
for Microsoft’s sensor class. The devices seen in the Windows 7 Device
Manager are as follows:
(NDIS 6.2 0)
to control and obt ain status from the
Mobile Broadband Module. Port type
WDM
Mobile Broadband API. Appears to
Windows as a WWAN adapter. Port type
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
58 (72)
Erics son Confidential
COM interface. Port type ACM
SIM Card Reader (SC)
PC-Smartcard interface. Port type WDM
Wireless Modem
Modem device which may be used for
Port type ACM.
OID
NMEA
ACM
F3507g / F3607gw
Bus Driver
GPS
SC
Modem
Mgmt
DriversUSBHW Applications
IP
Mobile Broadband
Module
ACM
Bus Driver
Service
GPS
SC
Modem
Mgmt
NDIS
6.20
Miniport
Windows 7 Mobile Broadband Core
Wireless Manager
DriversUSBHW
Control
WDM
ACM
WDM
ETH
AT
Sensor
Windows 7 Mobile Broadband API
Windows 7
Mobile Broadband
User Interface
Ericsson
C++ API
Port Layer
legacy Dial-Up Networking connection.
On top of the Windows 7 drivers is located a smaller WMCore service, whic h
handles module functionality not handled b y the Microsoft’s Mobile Broadband
API. The functionalit y handled by the service can be reached through the
Ericsson Mobile Broadband C++ API.
The Wireless Manager works the same way in Windows 7 as it does in
Windows XP and Vista. A port la yer makes sure that Wireless Manager uses
Microsoft’s Mobile Broadband API as much as possible and uses the WMCore
service only for functiona lities not supported by the Mobile Broadband API.
This ensures that Wireless Manager is synchronized with any other
functionality using the Mobile Broadband API, including the native connection
manager in Windows 7.
Figure 24, Windo ws 7 driver and application architecture
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
59 (72)
Erics son Confidential
Host USB Hardware
USB Core
USBnet
ACM
WDM
Hardware
Kernel
Legend
GPS
Control
Kernel-space
User-space
Network
Manager
Module
CDC-NCM
9.1.3 Linux driver architecture
Ericsson is a part of the Linux community to continuously improve the support
in GNU/Linux for Ericsson Mobile Broadband Modules, please see [7] for more
information.
The module firmware provides W DM (W ireless Mobile Communications
Device Management) interfaces for device management and ACM (Abstract
Control Module) interfaces for control and dat a traffic. The module e xposes
ACM ports, which can be used for GPS, Connection Manager and SMS. WDM
and ACM are both based on CDC (Communication Device Class). Control is
handled by AT commands according to the V.25 standard. The network
connection uses USBnet architecture as base with support from CDC-NCM.
The module supports DUN using PPP on the ACM interface.
Note: Kernel modifications may be needed to support customer requested VID/PID
customizations, check with your Linux distributor.
Network Manager and GPS functionality is provided by user space
applications.
For more information please refer to [8]
Figure 25, Linux driver architecture
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
60 (72)
Erics son Confidential
9.2 Connection Profile List
In Windows XP and Vista, the WMCore service includes a list with connection
profiles which can be used by connection managers when setting up
connections. The profile list contains a list of default network operator APN
which is automatically selected by the connection manager depending on the
detected UICC card. The matching between APN and UICC card is done
based on the MCC and MNC (2 or 3 digit). In Windows 7 the list of profiles is
part of the W WAN adapter an d is accessed and handled through the Windows
7 Mobile Broadband API as specified by Microsoft.
Wireless Manager utilizes the profile list in t he WMCore service in Windows
XP and Vista. In Windows 7, Wireless Manager carries the profile list itself to
facilitate updates of the list without requiring a driver update. Updates of the
connection profile list can be made by using a Connection Profile Updater, f or
more information, see [6]. The connection profile upd ater updates the profile
list in WMCore in XP and Vista and the profile list carried by Wireless Manager
in Windows 7.
Integrator's Guide - C5621 / C33
9.3 Ericsson Mobile Broa dba nd C++ API
The Ericsson Mobile Broadband C++ API (the C++ API) is part of the Ericsson
Mobile Broadband Software Development Kit (SDK), which is available for
integration of mobile broadband modules. The C++ API can be used as an
extension to the Mobile Broadband API in Windows 7 to access functionality
not supported in t he Mobile Broadband API. In Windows XP and Vista, the
C++ API covers the entire Mobile Broadband API as well as the extensions.
The C++ API is backward compatible. The C++ API supports multi-process
and multi-thread access. By using the C++ API, application development
becomes easier and more efficient since high-level interfaces can be used.
The C++ API also leverages on function ality provided by the WMCore service,
which includes:
• Module state and concurrency handling
• Windows Auto-connect and pre-logon connect
• Alw ays-on functionality
• Automatic state transitions after Sleep(S3) and W WAN disable
• GPS configuration
• Internet account (APN) configuration
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
61 (72)
Erics son Confidential
HW Off
(D3)
Radio Off
GPS Off
Radio Off
GPS On
Radio On
GPS On
Radio On
GPS Off
Module Powered
(Hardware && Software
Enabled && GPS Disabled)
Module Powered
(Hardware && Software
Enabled && GPS Enabled)
Module Powered
(Software Disabled &&
Hardware Enabled && GPS
Enabled)
Module Powered
( (Hardware || Software
Disabled) && (Hardware ||
GPS Disabled) )
GPS Enable
GPS Disable
GPS Enable &&
HW Enabled
HW Disable ||
GPS Disable
Hardware &&
Software Enabled
Hardware ||
Software Disabled
Software Enabled
Software Disabled
SW Off
(D3 Hot)
HW Disable ||
SW Disable
Software Off
Software Off
Software Off
Software Off
Software On
(Software &&
Hardware Enabled)
Software On
(Software ||
Hardware Disabled)
9.4 State machine
The state machine focuses on the main states of the module; states of the
mobile radio (Radio On/Off) and the GPS radio (GPS On/Off). The transitions
in the state machine that require the Software (radio) and GPS to be enabled
can be made using the WMCore service (recommended) or AT commands
directly. In Windows 7, several of the transitions are caused by the WW AN
(Network) driver.
The transition between HW Off and states where the radio is on can be made
automatically by the module without including any host software, see chapter
2.2.
The module supports a SW Off (D3 hot) state where most functionality is
turned off in the mobile broadband module. The main intention with the state is
to prepare the module to be powered off. Among other things is the SIM card
turned off. In the SW Off state it is possible to turn the module back on again
using AT commands (AT+CFUN). When the module is turned on the SIM card
is reset and all functionality of the mobile broadband module is turned on
again.
Integrator's Guide - C5621 / C33
Additionally, the module supports a separate HW control of GPS Off, see
chapter 0. This feature is not depicted in Figure 26.
Figure 26, State machine for C5621 (Same applicable for C33 - Excluding
GPS events)
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
62 (72)
Erics son Confidential
KeepRadioStateDuringSleep
9.5 Service Windows Registry Keys
The Ericsson WMCore service uses Windows Registry Keys to control the
module behavior during OS power-state changes. Windows TCP/IP settings
can also be optimized automatically when install ing the drivers. When using
the Ericsson Mobile Broadband C++ API there is no need to manually control
the registry settings, however, integrators opting for using the module wit hout
the API could use these. The register settings are used to control the following
features:
• Always On (OS power event behavior)
• Auto connect
• Auto radio enable
• TCP/IP optimization for W WAN devices.
Note: The registry settings are defined within t he definition of the W MCore service.
The registry settings definition and function can be changed or removed
without prior not ice.
9.5.1 Module state
The following parameters control the module function state during OS power
event changes. They are used to synchronize the module state to OS state.
Please refer to the AT Command Manual [4] for details on CFUN state.
The registry keys are set during the driver and WMCore installation.
Search path:
[
HKEY_L OCA L_MA CHINE \SOFTWARE\W MCore]
(32bit installations)
[HKEY_LOCAL_MACHINE\SOF TWA RE\W ow6432 N ode\WMC or e]
(64bit installations)
Table 13 Module state settings
Name Typ e Description
LastKnownRadioState REG_DWORD CFUN value to set after boot / reboot.
ShutdownCFUN REG_DWORD
CFUN value to set before shutdown /
reboot.
REG_DWORD
0: Do not keep current radio state
1: Keep radio state when entering sleep
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
63 (72)
Erics son Confidential
AllowAutoConnectAfterSleep
Table 14 Connection state settings
Name T ype Description
0: Never autoconnect after sleep, regardless of
REG_DWORD
previous state
1: Allow reconnection, if previously connected.
AutoConnectStartup REG_DWORD
DisableAutoConnect REG_DWORD
0: Do not automatically connect after boot.
1: Automatically connect after boot.
0: Does nothing
1: Never autoconnect
9.5.2 TCP/IP Configuration
As part of installation in Windows XP, the following registry settings are made
in order to op timize the throughput for WWAN devices.
[HKEY_LOCAL_MACHINE\SYSTEM\Current ControlSet\Services\Tc pip\Paramet ers]
Table 15 TCP/IP Optimization
Name T ype Value
TcpWindowSize REG_DWORD 0x40290
Tcp1323Opts REG_DWORD 0x1
Note: Setting Tcp1323Opts="0x3" and thus enabling Timestamp might help in some
cases where there is increased packet loss. However, generally better
throughput is achieved with Tcp1323Opts="0x1", since Timestamps add 12
bytes to the header of each IP packet.
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
64 (72)
Erics son Confidential
10 Firmware Updates
Within a single model of the Mobile Broadband Module, diff erent firmware
configuration may be introduced for mainly two reasons:
1. A firmware configuration may be accepted by some mobile operators
whereas other may require further changes to be made. This will result
in that two or more versions have to be available at the same time.
2. Updated firmware configurations with added f eatures and error
corrections are created as maintenance releases, which can be
supplied to the end-user for improved perf ormance.
The first of these two reasons for different firmware configurations has
traditionally resulted in multiple SKUs of the Mobile Broadband Module. The
situation is improved now as the module will be ab le to change f irmware
configuration aut omatically, see chapter 10.1.
Integrator's Guide - C5621 / C33
The second reason for different firmware configurations results in that the
updated firmware is distributed to the end-user as a firmware updater
application to be run o n the host device.
10.1 Network Dependent Firmware Updates
The Mobile Broadband module has the capability of storing several different
firmware configurations in the persistent on-board flash memory. A database
containing information about all operators that have approved a specific
firmware configuration is stored in the module. When a new firmware
configuration is released the database will be updated. During module
manufacturing the latest database available is stored in the module memory
together with the valid released and approved firmware configurations.
During startup, the module will use the UICC card to identify the network
operator that is currently used. The module can, based on this information
select to use a different firmware configuration.
The host software can supply the end user with information regarding the
updates as well as provide interfaces for 3
own support for showing update information.
rd
party applications to implement
For more information regarding Network dependent firmware updates, see [9].
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
65 (72)
Erics son Confidential
11 Terminology and abbreviations
2G Generic term for the second generation of cellular
networks. GSM is a 2G network.
3G
Generic term for the third generation of cellular networks
such as UMTS
3GPP
The 3rd Generation Partnership Project
AC M Abstract Control Model USB communications device
class
AC PI Advanced Configuration and Power Interface
AP N Access Point Name
AR P Antenna Reference Point
CDC USB communications device class
Cu Copper
DRX Discontinuous reception
ECN
Engineering Chan ge Notice
EDGE Enhanced Data rates for GSM Evolution
ENIG Electroless Nickel/Immersion Gold
ESD
Electro-Static Discharge
GPRS General Packet Radio Service
GPS Global Positioning System
GSM Global System for Mobile Communications
GSM A GSM Association
HSPA High Speed Packet Access
LED Light-Emitting Diode
LGA Land Grid Array
LTO Long Term Orbits (Internet Assisted GPS)
MSL Moisture Sensitivity Level
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
66 (72)
Erics son Confidential
N2 Nitrogen
NCM Network Control Model USB communications device
class
NDIS Network Driver Interface Specification
NSMD Non Solder Mask Defined
PCB Printed Circuit Board
PC OEM Personal Computer Original Equipment Manufacturer
PGPS Predicted GPS
PLMN Public Land Mobile Network
Radio Frequency
RF
RH Relative Humidity
Rx
Receive
S AR Specific Absorption Rate
SC Smart Card
SIM Subscriber Identity Module
SIP System In Package
SKU Stock-Keeping Unit
SMO Solder Mask Opening
SUPL Secure User PLane (Network Assisted GPS)
Tx
Transmit
UICC Universal Integrated Circuit Card
UMT S Universal Mobile Telecommunications System
USIM Universal Subscriber Identity Module
USB Universal Serial Bus
WCDMA W ideband Code Division Multiple Access
WDM Wireless Mobile Communications Device Management
Wo W Wake on W ireless
USB communications device class
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
67 (72)
Erics son Confidential
WWAN Wireless Wide Area Network
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
68 (72)
Erics son Confidential
12 References
[1] C5621gw Technical Description
1/1550-KRD 131 24
Ericsson AB
[2] 3G in Notebooks Guidelines version 4
Copyright © 2007 GSM Association
[3] Universal Serial Bus Specification 2.0
Copyright © 2000, Compaq Computer Corporation, Hewlett-Packard
Company, Intel Corporation, Lucent Technologies Inc, Microsoft
Corporation, NEC Corporation, Koninklijke Philips Electronics N.V. All
rights reserved.
[4] AT Command Manual
3/1553-KRD 131 15+
Ericsson AB
Integrator's Guide - C5621 / C33
[5] Ericsson Mobile Broadband SDK
1/1550-CXP 901 4397/1
Ericsson AB
[6] Connection Profile Updater
1553-CXC 172 8313/1
Ericsson AB
[7] MBM Linux Support
1/102 72-HRC 105 042
Ericsson AB
[8] MBM Linux Wiki, h ttp://mbm.sourceforge.net
[9] Network Dependent Firmware Upgrades
1/1550-KRD 131 18+
Ericsson AB
[10] Antenna Performance Guideline
1/1553-FAF 901 658/1
Ericsson AB
[11] Evaluating Compliance with FCC Guidelines for Human Exposure to
Radiofrequency Electromagnetic Fields
OET Bulletin 65 Supplement C (2001-01)
[12] Assessment Of Electronic And Electrical Equipment Related To
[13] Electronic Industries Association, "EIA Standard RS-232-C Interface
Human Exposure Restrictions For Electromagnetic Fields (0 Hz - 300
GHz)
EN 62311:2008
Between Data Terminal Equipment and Data Communication
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
69 (72)
Erics son Confidential
Equipment Employing Serial Data Interchange", August 1969,
reprinted in Telebyte Technology Data Communication Library,
Greenlawn NY, 1985, no ISBN
[14] Smartcards, UICC-Terminal Interface; Physical and logical
Characteristics, ETSI TS 102 221
[15] W ake on Wireless
2/198 10-FAF 901 658/1
Ericsson AB
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
70 (72)
Erics son Confidential
wwanextttot
NNNN ++=
N
N
tot
N
t
∆
N
ext
M
13 Annex
13.1 Test Setup for Measuring Host-Generated Noise
For a module integrated in host the total noise density level (
) seen at the
N
tot
GPS receiver can be expressed as the sum of different contributions.
• Thermal Noise – Generated within the GPS receiver
• External Noise – Generated b y the laptop
• WW AN Noise – Generated by the WW AN transmitter
All of these noise sources are uncorrelated and will add up to a total noise
density
at the auxiliary Antenna Reference Port (ARP), according to
N
tot
Equation 1.
Equation 1 Total noise level [W/Hz]
The thermal noise density generated by the GPS receiver itself is equal
to
, where kT is -174 dBm/Hz at room temperature and F is the
kTFNt=
noise figure, typically 3.5 dB. The noise density generated by the GPS
receiver is then calculated to -170.5 dBm/Hz=-116.5 dBm/MHz.
The thermal noise is the critical contribution and will set the limit for the GPS
performance.
Assume that the WW AN radio is disabled, then
therefore neglected in the further ana lysis.
To minimize the impact of the noise generated outside the GPS receiver a
noise margin M is introduced, according to Figure 27.
Figure 27, Definition of Noise Margin
can be set to zero and
wwan
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
71 (72)
Erics son Confidential
−
=
∆
110
1
log10
10
M
-5,0
0,0
5,0
10,0
15,0
20,0
0,0 1,0 2,0 3,0 4,0 5,0 6,0
Degradation [dB]
Margin [dB]
Noise Margin
The external noise must be lower than the thermal noise to conserve the GPS
performance. The main question is how much lower?
The noise margin can be expressed as a function of the noise degradation as
in Equation 2.
Equation 2 Noise Margin [dB]
Equation 2 then pl otted in Figure 28 Noise Margin as a function
of degradation
as function of the degra dation.
Figure 28 Noise Margin as a function of degradation
It can be seen that if the margin is set to zero, then the degradation is 3 dB. A
consequence of this is that the noise generated by the host device must be
substantially lower than the internal noise generated by the receiver it self.
So if the overall performance shall be conserved we can assume that the total
noise level shall be degraded only 1 dB. This assumption gives,
according to Figure 28 Noise Margin as a function of degradatio n
, that the margin must be 6 dB and therefore the noise generated by t he host
device at ARP must be less than -176.5 dBm/Hz=-116.5 dBm/MHz.
13.1.1 Test Setup
The test setup for measuring host-generated noise at ARP consists of two
host devices:
Integrator's Guide - C5621 / C33
2/1553-KRD 131 24 Uen Re v D 2011-11-15
Eric sson A B 2011
72 (72)
Erics son Confidential
rx
P
totrx
NP
N
C
−=
0
rx
P
N
• Host Device 1 (HD1) is used to control the GPS and measure the
/ NC
0
value.
• Host Device 2 (HD2) is the host device to be investigated, also known as
the Device Under Test (DUT). A coaxial cable is connected from HD2
auxiliary antenna to HD1 auxiliar y antenna reference port ( ARP).
The test is made in two steps:
1 A reference measurement is done with HD2 turned OFF. The signal
strength from all satellites is documented.
2 Then HD2 is turned ON, and a second measurement is performed. The
signal strength from all satellites is documented.
The
difference for each satellite is caused by noise added by HD2.
/ NC
0
This measurement gives valid estimates if the signal strength from the
satellites can be assumed to be constant.
Equation 3 Relation between
and
/ NC
0
Assume that
dependent of
is constant during the measurement period, then C/No is only
, according to Equation 3.
tot
Doing this test with open sky and good signal conditions makes it possible to
estimate the increased noise density caused by HD2.
Loading...
