The Bluetooth Modem Combo Module is a cost-effective wireless access. The Bluetooth circuit of this
module is compliant to Bluetooth 1.1 standard. With V.92 technology, the modem part can achieve internet
connection rates up to 56 kbits/s with backward compatibility. The V.92 Feature include PCM Upstream,
Modem On Hold, Quick Connection and V.44 Data compression. The Audio CODEC will be placed on the
notebook and contact with Modem Codec by AC-Link Interface. The combo card complies with MDC
Domestic form factor.
1.1 Features
1.1.1 Bluetooth Function
o Bluetooth radio firmware is upgradeable for bug fixes, initial version compatible with Bluetooth
specification version 1.1.
o Fully compliant to Bluetooth SIG (BQB) compatibility testing.
o USB Pin assignment is to use MDC reserve pin to communicate with Host.interface
o Bluetooth Profile Support
- General Access Profile
- Service Discovery Application Profile
- Serial Port Profile
- Dial-up Networking Profile
- LAN Access Profile
- Generic Object Exchange Profile
- File Transfer Profile
- Object Push Profile
- Synchronizat ion Profile
o Drivers support Windows 98, 98SE, ME, 2000, XP.
o Supports Power Management ACPI 1.94 (or later)
o Bluetooth performance must exceed 500 kbps, using OBEX.
1.1.2 Modem Function
o AC’97/MC’97 2.2 compliant
o Support Modem Digital Line Guard: The product shall incorporate circuitry to sense whenever the
current on the line exceeds approximately 130mA, and should immediately go back on hook.
o The call progress signal shall be scaled digitally according to the speaker level setting (ATL1, L2,
L3)
o ITU-T V.92 PCM Upstream and V.90 data rates with auto-fallback to V.34, V.32terbo, V.32bis and
fallbacks
o TIA/EIA 602 standard for AT Command set
o Supports V.42 error correction and V.44, V.42bis/MNP5 data compression
o FAX capabilities: ITU-T V.17, V.29, V.27ter, V.21 Ch2 and TIA/EIA 578 Class1 FAX
o Support Wake up on Ring and meet WHQL test requirement..
1.2 Hardware Requirements
Supply Voltage 3.3V & 1.8V
Frequency Range 2.400-2.4835 GHz
Antenna Load 50 Ohm
Receive Sensitivity –80 dBm@0.1% BER
Maximum Receiver Signal -20 dBm
TX Power 4 dBm maximum (class 2)
RF Power Control Step Size 2 dB
Range 10 meters at 0 dBm TX power (class 2)
Radio Compliant with Bluetooth standard version 1.1
Pico Net 1 master to 7 slaves
Operating Channels 79 channels of 1 MHz BW
Security Full support of Bluetooth security provisions including hardware
support for full length 128 bit encryption keys.
Host Interface (USB) USB specification 1.1 compliant and using MDC reserve pin to
communicate with Host
Software Requirements Windows 98SE, ME, 2000, XP.
Mechanical Requirements 27mm x 45mm x 4.7mm(1.2/0.8/2.7mm)
2.The “License Agreement” windows will pop up, please read it carefully. If you agree it, and choose ‘I agree
the terms in the license agreement’ and click on ‘Next’.
3. “Destination Folder” appears, specify the location of the driver and software to be installed then press
‘Next’ bottom.
4. When all the above process are done, it will show ‘Ready to Install the Program” window. Make sure the
driver software is ready to be installed, click ‘Install’.
The following steps provide instructions for installing your 56K Internal modem.
1. Check the BT/modem Module already inserted into the slot.
2. Insert the connector of RJ-11 cable into the female connector of modem. The connector is keyed and will
no allow incorrect insertion. Plug the other end of the RJ-11 cable into an available phone jack.
3.1 Driver Installation
Your modem is using the Plug and Play (PnP) capabilities of you computer. PnP is a set of specifications that
define the ability for the computer hardware and operating system to automatically configure all compliant
devices that are installed, relieving the user of the need to determine which addresses and interrupts to user for
each device.
Proceed to the following section.

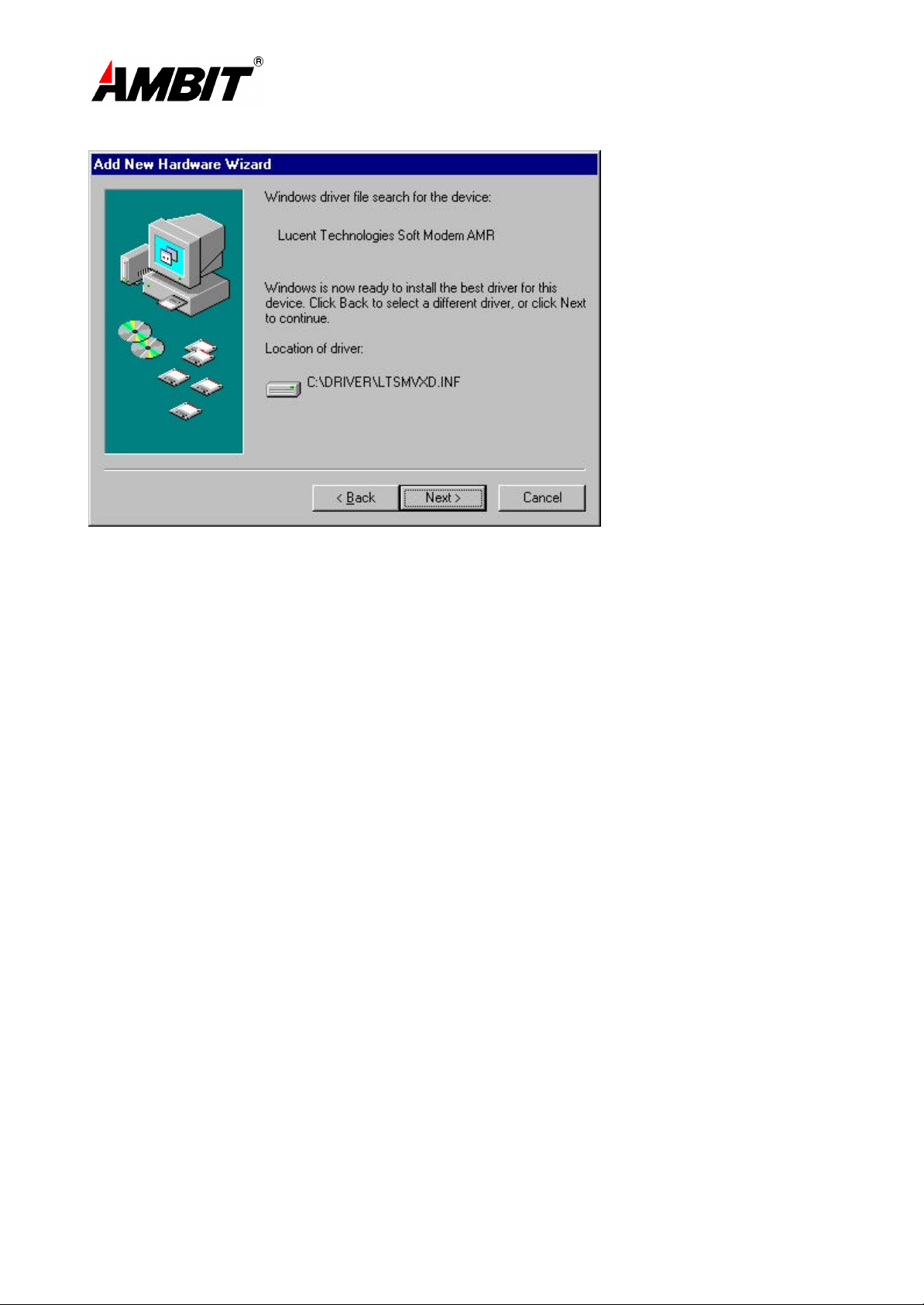

1. Start Windows 98, an “PCI Card” dialog with drive selected will appear. Click “Next”

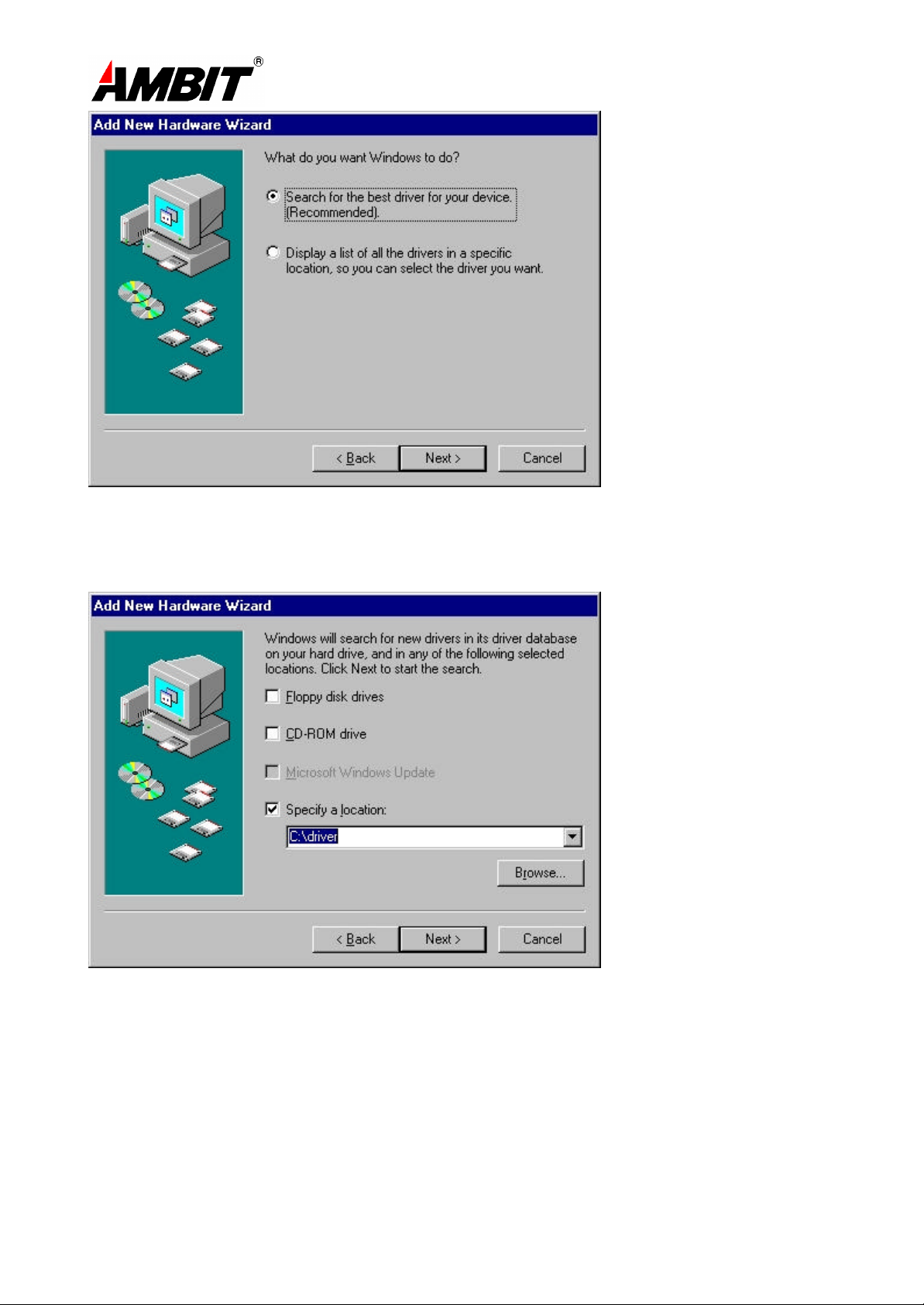

2. Search for the best driver for Modem card and click Next to continue.
A summary of the commands implemented by the modem are shown in Table1. Commands may be executed
when the modem is in COMMAND mode. COMMAND mode is entered upon one of the following conditions:
After power up.
At the termination of a connection.
After the execution of a command other than dial or answer commands (ATO or AT&T).
Upon the receipt of the ESCAPE SEQUENCE (three consecutive characters matching the contents of S register 2)
while online mode.
Upon the on-to-off transition of DTR if D1, &D2, or &D3 has been set.
AT Commands
Basic AT Commands
CommandFunctionCommandFunction
A/ Re-execute command A Go off-hook and attempt to answer a call
B0 Select V.22 connect @1200 bps B1 Select Bell 212A connect @1200 bps
C1 Return OK m essage Dn Dial modifier
E0 Turn off command echo E1 Turn on command echo
H0 Initiate a hang-up sequence H1 If on-hook, go off-hook and enter
I0 Report product code command mode
I1 Report pre-computed checksum I2 Report “OK” if the calculated checksum
I3 Report firmware revision, model, equals the prestored checksum or if the
and interface type prestored checksum value is FFh
I4 Report response programmed by OEM I5 Report the country code parameter
I6 Report modem data pump model I7 Report the DAA code
and code revision L0 Set low speaker volume
L1 Set low speaker volume L2 Set medium speaker volume
L3 Set high speaker volume M0 Turn speaker off
M1 Turn speaker on during handshaking M2 Turn speaker on during handshaking and
and turn speaker off whi le receiving while receiving carrier
carrier M3 Turn speaker off during dialing and
N0 Turn off auto mode detection receiving carrier and turn speaker on
N1 Turn on auto mode detection during answering
P Force pulse dialing Q0 Allow result codes to DTE
Q1 Inhibit result codes to DTE Sn Select S-Register n as default
Sn? Return the value of S-Register n Sn=v Set default S-Register n to value v
T Force DTMF dialing
V0 Report short form result codes V1 Report long form result codes
W0 Report DTE speed only W1 Report line speed, EC protocol and DTE
W2 Report DCE speed only speed
X0 Report basic call progress result codes, X1 Report basic call progress result codes
i.e., Ok, Connect, Ring, No Carrier and connections speeds (Ok, Connect,
(also, for busy, if enabled, and dial tone Ring, No Carrier (also, for busy, if
not detected), No Answer and Error enabled, and dial tone not detected), No
X2 Report basic call progress result codes Answer, Connect XXXX, and Error
and connections speeds, i.e., Ok, X3 Report basic call progress result codes
Connect, Ring, No Carrier (also, for and connections rate, i.e., Ok, Connect,
busy, if enabled, and dial tone not Ring, No Carrier, No Answer, Connect
detected), No Answer, Connect XXXX, XXXX, Busy, and Error
and Error Y0 Disable long space disconnect before onX4 Report all call progress result codes hook
and connections rate, i.e., Ok, Connect,
Ring, No Carrier, No Answer, Connect
XXXX, Busy, No Dial Tone and Error Z0 Restore stored profile 0 after warm reset
Z1 Soft reset and restore stored profile 1 &C0 Soft reset and force RLSD active
after warm reset regardless of the carrier state
&C1 Allow RLSD to follow the carrier state
&D0 Interpret DTR On-to-OFF transition &D1 Interpret DTR On-to-OFF transition
per &Qn per &Qn
&Q0, &Q5, &Q6 The modem ignores DTR &Q0, &Q1, &Q4, &Q5, &Q6 Asynchronous escape
&Q1, &Q4 The modem hangs up &Q2, &Q3 The modem hangs up
&Q2, &Q3 The modem hangs up
per &Qn per &Qn &Q0 through &Q6 The modem hangs up &Q0, &Q1, &Q4, &Q5, &Q6 Soft reset &Q2, &Q3 The modem hangs up
&F0 Restore factory configuration 0
&G0 Disable guard tone &G1 Disable guard tone
&G2 Enable 1800 Hz guard tone &J0 Set S-Register response only for com patibility
&K0 Disable DTE/DCE flow control
&K3 Enable RTS/CTS DTE/DCE flow &K4 Enable XON/XOFF DTE/DCE flow
control control
&K6 Enable both RTS/CTS and XON/XOFF&M0 Select direct asynchronous mode
flow control
&P0 Set 10 pps pulse dial with 39%/61%
make/break
&P1 Set 10 pps pulse dial with 33%/67% &P2 Set 20 pps pulse dial with 39%/61%
make/break make/break
&Q0 Select direct asynchr onous mode
&Q5 Modem negotiates an error corrected &Q6 Select asynchronous operation in normal
link mode
&R0 CTS tracks RTS (sync) or CTS is &R1 CTS is always active (sync) or CTS is
normally ON and will turn OFF normally ON and will turn OFF
only if required by flow control (async) only if required by flow control (async)
&S0 DSR is always active &S1 DSR will become active after answer
&T0 Terminate any test in progress tone has been detected and inactive after
&T1 Initiate local analog loop back the carrier has been lost
&T2 Returns ERROR result code &T3 Initiate local digital loop back
&V Display current configuration and &W0 Store the current configuration as
stored profiles profile 0
&Y0 Recall stored profile 0 upon power up
&Zn=x Store dial string x (up to 34 digits) %E0 Disable line quality monitor and auto
to location n (0 to 3) retrain
%E1 Enable line quality monitor and auto %E2 Enable line quality monitor and fallback/
retrain fall forward
When modem receives a break from the DTE:
\K0,2,4 Enter on-line command mode, no \K1 Clear buffers and send break to remote
break sent to the remote modem modem
\K3 Send break to remote modem \K5 Send break to remote modem in sequence
immediately with transmitted data
When modem receives \B in on-line command state:
\K0,1 Clear buffers and send break to remote \K2,3 Send break to remote modem immediately
modem
\K4,5 Send break to remote modem in sequence with transmitted data
When modem receives break from the remote modem:
\K0,1 Clear data buffers and send break to \K2,3 Send a break immediately to DTE
DTE \K4,5 Send a break with received data to the
DTE
\N0 Select normal speed buffered mode \N1 Select direct mode
\N2 Select reliable link mode \N3 Select auto reliable mode
\N4 Force LAPM mode \N5 Force MNP mode
\V0 Connect messages are controlled \V1 Connect messages are displayed in the
by the command settings X, W, and S95 single line format
+MS Select modulation +H0 Disable Rockwell Protocol Interface (RPI)
+H1 Enable RPI and set DTE speed to /Video ready mode
19200 bps +H2 Enable RPI and set DTE speed to 38400 bps
+H3 Enable RPI and set DTE speed to +H11 Enable RPI+ mode
57600 bps +H16 Enable Video Ready mode
**0 Download to flash memory at last **1 Download to flash memory at 38.4 kbps
sensed speed **2 Download to flash memory at 57.6 kbps
-SDR=0 Disable distinctive ring -SDR=1 Enable distinctive ring type 1
-SDR=2 Enable distinctive ring type 2 -SDR=3 Enable di stinctive ring type 1 and 2
-SDR=4 Enable distinctive ring type 3 -SDR=5 Enable distinctive ring type 1 and 3
-SDR=6 Enable distinctive ring type 2 and 3 -SDR=7 Enable distinctive ring type 1, 2 and 3
ECC Commands
%C0 Disable data compression %C1 Enable MNP 5 data compression
\A0 Set maximum block size in MNP to 64 \A1 Set maximum block size in MNP to 128
\A2 Set maximum block size in MNP to 192 \A3 Set maximum block size in MNP to 256
\Bn Send break of n x 100 ms
-SEC=1, [<tx level>] Enable MNP 10-EC and set transmit level<tx level> 0 to 30 (0 dBm to -30 dBm)
FAX Class 1
+Fclass=1 Service class +FAE=0 Disable data/fax auto answer
+FAE=1 Enable data/fax auto answer +FRH=n Receive data with HDLC framing
+FRM=n Receive data +FRS=n Receive silence, nx10 ms
+FTH=n Transmit data with HDLC framing +FTM=n Transmit data
+FTS=n Stop transmission and wait, nx10 ms
V.92 Command set
1.AT%TT61 V.92 generate V.92 PCM upstream signal for PTT testing.
2.AT+PQC=255 to clear all stored fast connect profiles.
S0 Rings to auto-answer 0-255/rings 0
S1 Ring counter 0-255/rings 0
S2 Escape character 0-255/ASCII 43
S3 Carriage return character 0-127/ASCII 13
S4 Line feed character 0-127/ASCII 10
S5 Backspace character 0-255/ASCII 8
S6 Wait time for di al tone 2-255/s 2
S7 Wait time for carrier 1-255/s 50
S8 Pause time for dial delay modifier 0-255/s 2
S9 Carrier detect response time 1-255/.1 s 0
S10 Carrier loss disconnect time 1-255/.1 s 20
S11 DTMF tone duration 50-255/.001 s 95
S12 Escape prompt delay 0-255/.02 s 50
S14 General bit mapped options status 8 (8h)
S16 Test mode bit mapped options status (&T) 7
S18 Test timer 0-255/s 0
S19 Auto Sync options 0
S20 Auto Sync HDLC address or BSC 0-255 0
Sync character
S21 V.24/general bit mapped options status 48 (30h)
S22 Speaker/results bit mapped options status 112 (70h)
S23 General bit mapped options status 0
S24 Sleep inactivity timer 0-255/s 10
S25 Delay to DTR of f 0-255/s or .01s 0
S26 RTS-to-CTS delay 0-255/.01 s 0
S27 General bit mapped options status 0
S28 General bit mapped options status 0
S29 Flash dial modifier time 0-255/10 ms 0
S30 Disconnect inactivity timer 0-255/10 s 0
S31 General bit mapped options status 0
S32 XON character 0-255/ASCII 10 (Ah)
S33 XOFF character 0-255/ASCII 0
S36 LAPM failure control 7
S37 Line connection speed 0
S38 Delay before forced hang-up 0-255/s 0
S39 Flow control bit mapped options status 0
S40 General bit mapped options status 0
S41 General bit mapped options status 0
S46 Data compression control 0
S48 V.42 negotiation control 7
S82 LAPM break control 0
S86 Call failure reason code 0-255 0
S91 PSTN transmit attenuation level 0-15/dBm 10 (country dependent)
S92 Fax transmit attenuation level 0-15/dBm 10 (country dependent)
S95 Result code messages control 150
This Equipment complies with Part 68 of the FCC Rules. On this equipment is a label that contains, among other information,
the FCC registration number and Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide
this information to your telephone company.
If your telephone equi pment causes harm to the telephone network, the Telephone Company may discontinue your service
temporarily. If posible, they will be notify in advience. But if advance notice isn’t practical, you will notified as soon as
possible. You will be informed of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect proper
operation of your equipment. If they do, you will be notified in advance to give you an opportunity you maintain
uninterrupted telephone service.
The FCC prohibits this equipment’s should fail to operate properly, disconnect the equipment from the phone line to
determine if it is causing the problem. If the problem is with the equipment, disconti nue use and contact your dealer or
vendor.
4.2 FCC Class B Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on , the user is encouraged to try to correct the interference by one or more of the following measures:
l Reorient or relocate the receiving antenna
l increase the separation between the equipment and the receiver
l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
l Consult the dealer or an experienced radio/TV technician for help
Notice: (1)Shielded cables, if any, must be used in order to comply with the emission limits. (2) Any change or
modification not expressly approved by the grantee of the equipment authorized could void the user authority to operate the
equipment.
Caution: Please make sure you already disconnect the phone cable before you want to touch or remove modem module.
