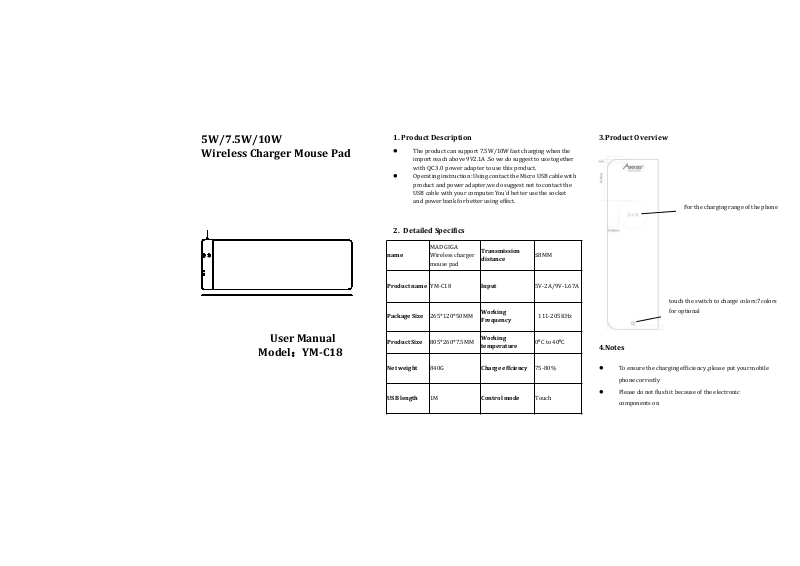

Wintop Electronics YMC18 User Manual
5W/7.5W/10W
t
Wireless Charger Mouse Pad
1. Product Description
The produc
import reach above 9V2.1A .So we do suggest to use together
with QC 3.0 power adapter to use this product.
Operating instruction :Using contact the Micro USB cable with
product and power adapter,we dosuggestnottocontactthe
USB cable with your computer.You’d better use the socket
and power bank for better using effect.
can support 7.5W/10W fast charging when the
2. Detailed Specifics
MAD GIGA
name
Product name YM‐C18 Input 5V‐2A/9V‐1.67A
Package Size 265*120*50MM
Wireless charger
mouse pad
Transmission
distance
Working
Frequency
≤8MM
111‐205KHz
3.Product Overview
For the charging range of the phone
touch the switch to charge colors:7colors
for optional
User Manual
Product Size 805*260*7.5MM
Model：YM‐C18
Net weight 840G Charge effciency 75‐80%
USB length 1M Control mode Touch
Working
temperature
0ºCto40ºC
4.Notes
To ensure the charging efficiency ,please put your mobile
phone correctly
Please do not flush it because of the electronic
components on
5. Protective functions:
6.Warning
7. Technical support
FOD(foreign Object Detection)
Temperature protection
Overcharge protection
Over voltage and over current protection
Short‐circuit protection
Magnetic protection
Power for wireless charging:5W/7.5W/10W(support fast charging
when the input power above 9V‐1.67A)
Power on:red
Charging(7.5W):red
charging(10W):red
full charged:red
To insure the wireless charger efficiency ,please use the
same power adapter to use the product.
It can’t allow to charge the phone with the metal
material ,like the phone case in metal.
Don’t put the ID card above the mouse pad when use
it,otherwise it may lost the information in it .
It have to use in the room with 0ºCto40ºC temperature
Please put the phone in the correct charging range to
insure the wireless charging worked.
Please notes that don’t put any metal material in the left way
when the product works
This manual is written to answer any questions you may have had. If
you have any further questions,
please contact us:
MAD GIGA Web: www.madgiga.com
