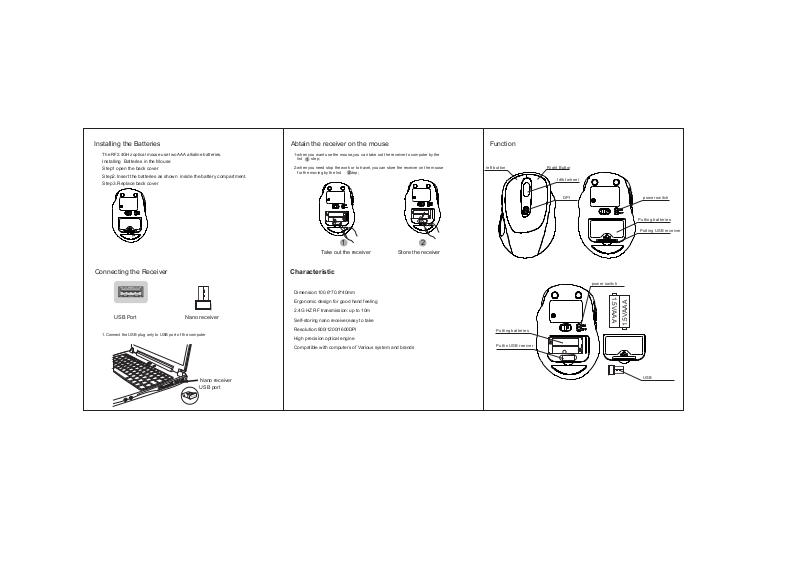

Wintop Electronics WM 125 User Manual

Installing the Batteries

The RF2.4GHz optical mouse use two AAA alkaline batteries.

Installing Batteries in the Mouse

Step1 open the back cover

Step2. Insert the batteries as shown inside the batter y compartment.

Step 3.Replace back cover

Abtain the receiver on the mouse

1:when you want use the mouse,you can take out the receiver to computer by the
list step;

1

2:when you need stop the work or to travel, you can store the receiver on the mouse
for the moving by the list step;

2

Function

left bu tto n

Right B utt or

Idlbt w hee l

Connecting the Receiver

USB Port

1.Connect the USB plug only to USB port of the computer

Nano receiver

Nano receiver
USB port

1

Take out the receiver

Characteristic

Dimension:100.6*70.8*40mm

Ergonomic design for good hand feeling

2.4G HZ RF transmission: up to 10m

Self-storing nano receiver,easy to take

Resolution:800/1200/1600DPI

High precision optical engine

Compatible with computers of Various system and brands

Store the receiver

DP I

power s wit ch

Putti ng ba tte rie s

Putti ng U SB r ece ive r

2

power s wit ch

1.5VAAA

Putti ng ba tte rie s

Putti n US B re eiv er

1.5VAAA

US B

FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
