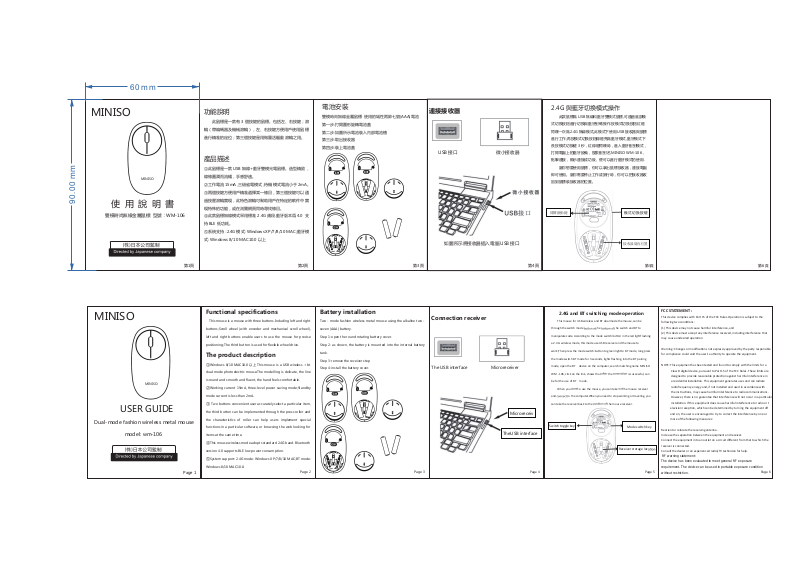

Wintop Electronics WM 106 User Manual
60 mm
MINISO
90. 0 0 m m
MINISO
使 用 說 明 書
雙模時尚無線金屬鼠標 型號：WM-106
功能說明
此鼠標是一款有 3 個按鍵的鼠標。包括左、右按鍵；滾
輪（帶編碼器及機械滾輪），左、右按鍵方便用戶使用鼠標
進行精准的定位；第三個按鍵是用做靈活驅動滾輪之用。
産品描述
①此鼠標是一款 USB 無線+藍牙雙模光電鼠標。造型精致，
線條圓潤而流暢，手感舒適。
②工作電流 15mA，三級省電模式；待機模式電流小于 2mA。
③兩個按鍵方便用戶精准選擇某一條目，第三個按鍵可以通
過按壓滾輪實現，此特色滾輪可幫助用戶在特定的軟件中實
現特殊的功能，或在浏覽網頁同時尋找條目。
④此款鼠標無線模式采用標准 2.4G 頻段.藍牙版本爲 4.0 支
持 BLE 低功耗。
⑤系統支持：2.4G 模式: Windows XP/7/8/10 MAC;藍牙模
式: Windows 8/10 MAC10.0 以上
第1頁
第2頁
電池安裝
雙模時尚無線金屬鼠標 使用的堿性兩節七號(AAA)電池
第一步:打開圓形旋轉電池蓋
第二步:如圖所示電池裝入內部電池槽
第三步:取出接收器
第四步:裝上電池蓋
第3頁
連接接收器
USB 接口 微小接收器
如圖所示將接收器插入電腦 USB 接口
第4頁
2.4G 與藍牙切換模式操作
此款鼠標爲 USB 無線和藍牙雙模式鼠標,可通過底部模
式切換按鈕進行切換與藍牙對碼操作.按模式切換按鈕紅燈
閃爍一次爲 2.4G無線模式,此模式下使用 USB接收器與鼠標
進行工作;再按模式切換按鈕綠燈亮爲藍牙模式,藍牙模式下
長按模式切换键 3 秒，紅綠燈閃爍時，進入藍牙配對模式，
打開電腦上的藍牙設備，搜索配對名 MINISO WM-106，
點擊連接，顯示連接成功後，便可以進行藍牙模式的使用.
當你想要使用鼠標，你可以拿出鼠標接收器，連接電腦
即可使用。當你需要停止工作或旅行時，你可以把接收器收
回到鼠標裝接收器的位置。
開關撥動鍵
模 式切 換按 键
接收器儲存位置
第5
第6
頁
頁
MINISO
MINISO
USER GUIDE
Dual-mode fashion wireless metal mouse
model: wm-106
Page 1
Functional specifications
This mouse is a mouse with three buttons.Including left and right
buttons;Scroll wheel (with encoder and mechanical scroll wheel),
left and right buttons enable users to use the mouse for precise
positioning;The third button is used for flexible wheel drive.
The product description
①
Windows 8/10 MAC10.0 以上 This mouse is a USB wireless + bt
dual-mode photoelectric mouse.The modelling is delicate, the line
is round and smooth and fluent, the hand feels comfortable.
②
Working current 15mA, three-level power saving mode;Standby
mode current is less than 2mA.
③
Two buttons convenient user accurately select a particular item,
the third button can be implemented through the press roller and
the characteristics of roller can help users implement special
functions in a parti cular software, or browsing the web looking for
items at the same time.
④
This mouse wireless mode adopts standard 2.4G band. Bluetooth
version 4.0 suppor ts BLE low power consumption.
⑤
System support: 2.4G mode: Windows XP/7/8/10 MAC;BT mode:
Windows 8/10 MAC10.0.
Page 2
Battery installation
Two - mode fashion wireless metal mouse using the alkaline two -
seven (AAA) battery.
Step 1: open the round rotating battery cover.
Step 2: as shown, the battery is mounted into the internal battery
tank.
Step 3: remove the receiver step
Step 4: install the battery cover.
Page 3
Connection receiver
The USB interface Microreceiver
Microreceiv
TheUSB interface
Page 4
2.4G and BT switching mode operation
This mouse for USB wireless and BT dual mode the mouse, can be
through the switch mode
manipulate code. According to themode switch
a 2.4 G wireless mode, this mode use USB receiver and the mouse to
work;Then press the mode switch
the mode switch BT mode for 3 seconds, lights flashing, into the BT pairing
mode, open the BT device on the computer,search matching name MI NISO
WM - 106, click on the link, shows that
be for the use of BT mode.
When you
and
o the computer.When you need to stop workingor traveling, you
can take the receiverback to the
Switch toggle key
he he switch and BT to
in the red lashing
on to green ligh o BT mod e,long press
the is successful, can
o use the mouse, you can take he mouse receiver
he mouse receiver.
Mode switch key
Receiver storage loc
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operaon is subject to the
following two condions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operaon.
Warning: Changes or modificaons not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protecon against harmful interference in
a residenal installaon. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instrucons, may cause harmful interference to radio communicaons.
However, there is no guarantee that interference will not occur in a parcular
installaon. If this equipment does cause harmful interference to radio or t
elevision recepon, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separaon between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure condition
Page 5 Page 6
without restriction.
