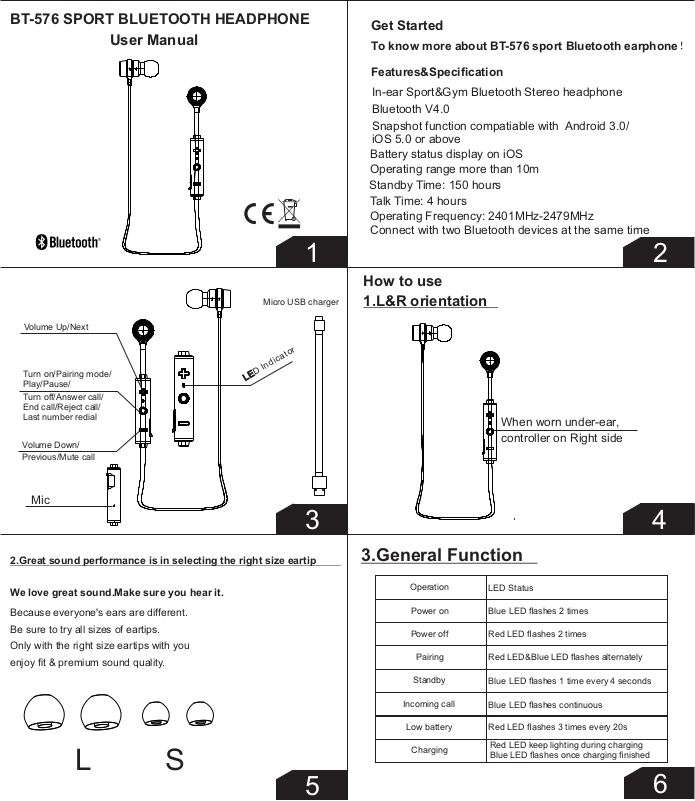

Wintop Electronics BT 576 User Manual

BT-576 SPORT BLUETOOTH HEADPHONE

User Manual

Get Started

To know more about BT-576 sport Bluetooth earphone！

Features&Specification

In-ear Sport&Gym Bluetooth Stereo headphone

Bluetooth V4.0

Snapshot function compatiable with Android 3.0/

iOS 5.0 or above
Battery status display on iOS
Operating range more than 10m

Standby Time: 150 hours

Talk Time: 4 hours

Operating Frequency: 2401MHz-2479MHz

Connect with two Bluetooth devices at the same time

Micro USB charger

Volume Up/Next

or

t

ica

d

Turn on/Pairing mode/
Play/Pause/

Turn off/Answer call/
End call/Reject call/
Last number redial

Volume Down/
Previous/Mute call

Mic

2.Great sound performance is in selecting the right size eartip

We love great sound.Make sure you hear it.

Because everyone's ears are different.

Be sure to try all sizes of eartips.

Only with the right size eartips with you

enjoy fit & premium sound quality.

D In

E

L

L S

1

3

5

How to use

1.L&R orientation

When worn under-ear,
controller on Right side

3.General Function

Operation

Power on

Power off Red LED flashes 2 times

Pairing

Standby

Incoming call

Low battery

Charging

LED Status

Blue LED flashes 2 times

Red LED&Blue LED flashes alternately

Blue LED flashes 1 time every 4 seconds

Blue LED flashes continuous

Red LED flashes 3 times every 20s

Red LED keep lighting during charging
Blue LED flashes once charging finished

2

4

6

4.Basic Buttons Operation

Power on:Press multifuction button for 4 seconds.

Blue LED flashes 2 times.Headphone turn on.
Power off:Press multifuction button for 4 seconds.
Red LED turn off after flashes 2 times.Headphone turn off.

Volume adjust:Each press on “Volume up” or “Volume down”
buttons,one level voice volume changes.When Volume
reaches to Max or Minimum. “Tick” reminding voice occurs.

Play/Pause: Short press multifunction button,music
pause.Press it again,music continues.

Reject call: Long press the multifunction button for
2 seconds to reject a call.
Previous: in standby status, Long press 2 seconds
“Volume down”button,music turns to previous one.
Next: in standby status, Long press 2 seconds

“Volume up”button,music turns to next one.
Answer call：Short press multifunction button to answer

the phone call.

7

5.Pairing (One headphone support connecting 2 phone devices)

Pairing with one phone or other device

Make sure the headphone is power off.
Press and hold the multifunction button for 7 seconds to
enter into the pairing mode.Red LED &Blue LED flashes
alternately,Activate your phone or device Bluetooth
function and search for headphone.From the list of found
devices on your mobile phone,select the headphone“BT-576”
to connect it.Follow the instruction to enter”oooo”as PIN if the
mobile phone reminder to need.Headphone or device can be
used to play your phone music or dial phone call etc.

End call:Short press multifunction button,phone call ended.
Last number redial: in standby status,continuously press

headphone multifunction button twice to redial the last
Battery Capacity status:When headphone connects to iOS

devices show the headphone bettery power status on the
upper right corner.

Charging:New headphone has enough power for pairing
and dialing out for several times.When in low battery,
please charging via USB cable for 2 hours.Red LED keep

lighting during charging,blue LED keep lighting

charging finished.

number.

8

Pairing with two phones or other devices at the same time

This headphone can support 2 devices multi-connection.
It can pair with two mobile phones simultaneously,talking
the call from any of them.After completing pairing with the
first phone, turns off the first phone and the headphone
in sequence,then re-do the pairing procedure with another
phone. Once finished the pairing,restart the first phone and

found the headphone”BT-576” in the bluetooth list to connect
it, then two phones can use with this headphone at the
same time.

9

Warning

1.You must charge the headphone by our matched MicroUSB
charger cable, if you use any other charger to cause any
you have to take responsibility by yourself.

2.You must charge the headphone if it has not been used
for more than 12 months.

3.If any metal tooling inserted in your body, you should use
this headphone under doctor's instruction because there
is a magnet inside the headphone.

issue,

11

10
