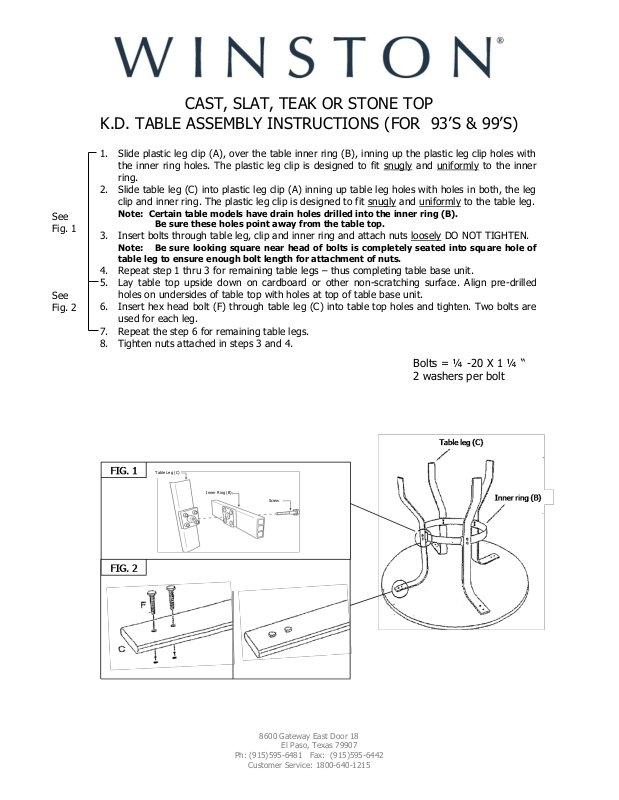

CAST, SLAT, TEAK OR STONE TOP
K.D. TABLE ASSEMBLY INSTRUCTIONS (FOR 93’S & 99’S)
1. Slide plastic leg clip (A), over the table inner ring (B), inning up the plastic leg clip holes with
the inner ring holes. The plastic leg clip is designed to fit snugly and uniformly to the inner
ring.
2. Slide table leg (C) into plastic leg clip (A) inning up table leg holes with holes in both, the leg
clip and inner ring. The plastic leg clip is designed to fit snugly and uniformly to the table leg.
Note: Certain table models have drain holes drilled into the inner ring (B).
Be sure these holes point away from the table top.
3. Insert bolts through table leg, clip and inner ring and attach nuts loosely DO NOT TIGHTEN.
Note: Be sure looking square near head of bolts is completely seated into square hole of
table leg to ensure enough bolt length for attachment of nuts.
4. Repeat step 1 thru 3 for remaining table legs – thus completing table base unit.
5. Lay table top upside down on cardboard or other non-scratching surface. Align pre-drilled
holes on undersides of table top with holes at top of table base unit.
6. Insert hex head bolt (F) through table leg (C) into table top holes and tighten. Two bolts are
used for each leg.
7. Repeat the step 6 for remaining table legs.
8. Tighten nuts attached in steps 3 and 4.

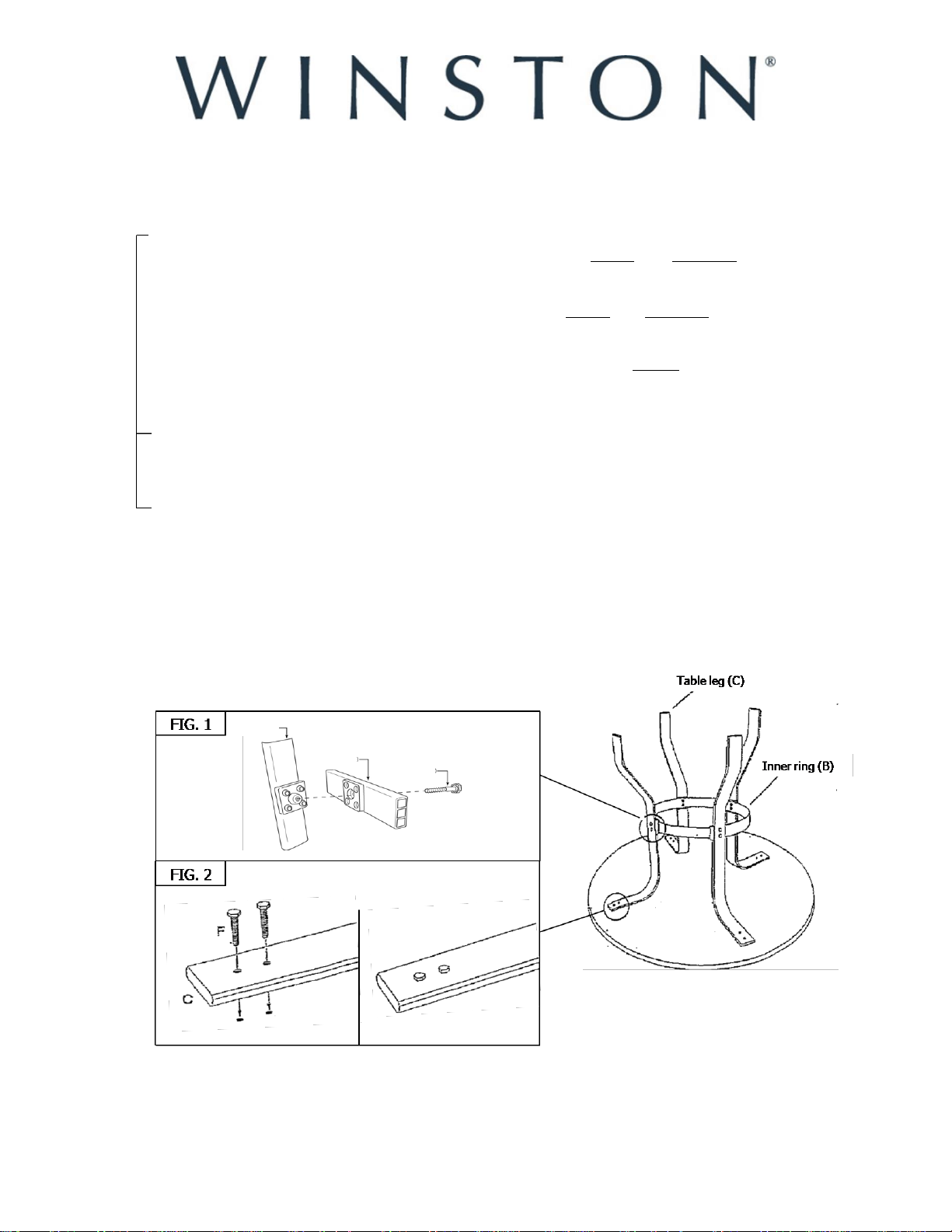

See
Fig. 1
See
Fig. 2
Bolts = ¼ -20 X 1 ¼ “
2 washers per bolt
Inner Ring (B)
Table Leg (C)
Screw
