Winplus WB120 User Manual

一. 產品資訊

項目:

規格

長 x 寬 x 高

18.5 * 14.5 * 5.95mm

電源

USB

認証

FCC / NCC / CE / KCC

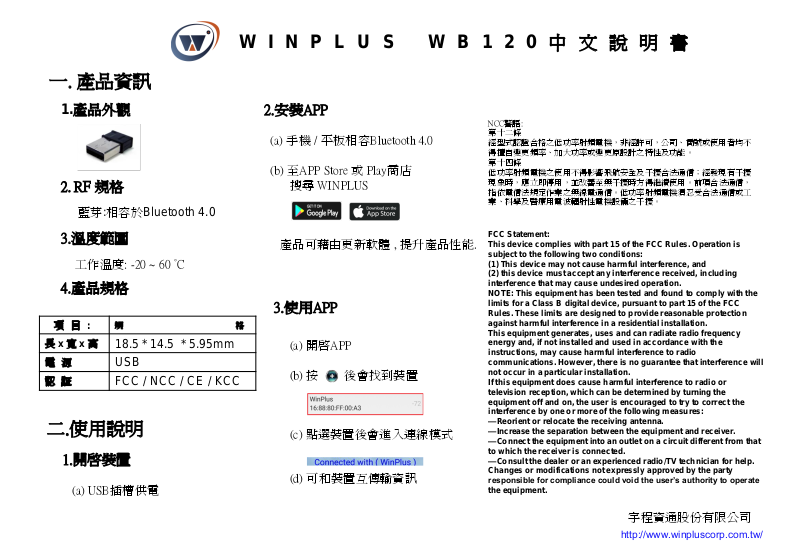

W I N P L U S WB120中文說明書

1.產品外觀

2. RF 規格

藍芽:相容於Bluetooth 4.0

3.溫度範圍

工作溫度: -20 ~ 60 °C

4.產品規格

二.使用說明

1.開啟裝置

(a) USB插槽供電

2.安裝APP

(a) 手機 / 平板相容Bluetooth 4.0

(b) 至APP Store 或 Play商店搜尋 WINPLUS

產品可藉由更新軟體 , 提升產品性能.

3.使用APP

(a) 開啟APP

(b) 按後會找到裝置

(d) 可和裝置互傳輸資訊

NCC警語:

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including

interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

the equipment.

宇程資通股份有限公司

http://www.winpluscorp.com.tw/

Item

Spec.

L x W x H

18.5 * 14.5 * 5.95 mm

Power Supply

USB

Certification

FCC / NCC / CE / KCC

W I N P L U S WB1 2 0 I n s t r u c t i o n

一. Product Information

1. Appearance

2. RF section

Support Bluetooth 4.0

3.Temperature Range

Operating : -20 ~ 60 °C

4. Specification

二. Setup Guide

1.Installation

(a) Insert the WB120

into the USB port.

2. APP Installation

(a) iOS and Android device

compatible with Bluetooth 4.0 (b) Go to APP Store or Play store,

search WINPLUS by your device.

For APP new version,

Please go to web side on below :

3. Start using APP

(a) Turn on the APP (b) Press in the APP

(d) Enter the data you want to transmit.

NCC警語: 第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
