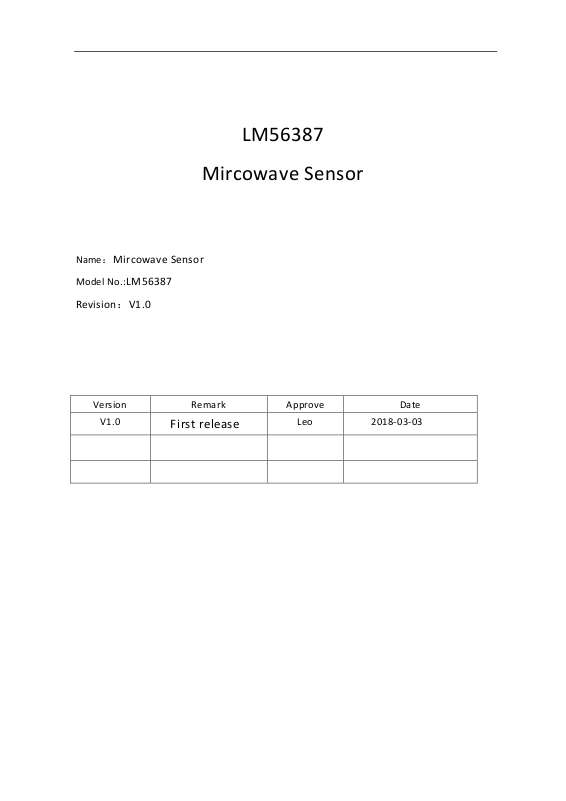

Page 1
LM56387
Mircowave Sensor
Name：Mircowave Sensor
Model No.:LM56387
Revision：V1.0
Version
Remark
Approve
Date
V1.0
First release
Leo
2018-03-03
Page 2
Page 2 of 6
CONTENTS
1. Overview......................................................................................................................2
2 .Applications................................................................................................................. 3
3 .Parameters...................................................................................................................4
4 .Reference Circuit ..........................................................................................................4
5 .FCC Information...........................................................................................................5
Page 3
Page 3 of 6
1.Overview
LM56387 series microwave sensor controller adopts PWM output control, which
can be applied to most PWM modulation drives in the market. Controller adopts 5.8 G
microwave induction technology, can effectively through the plastic, glass and other
nonmetal dielectric objects for motion detection, combined with independent research
and development of microwave induction IC carol and prec ise algorithm can accurately
identify the object movement distance, error rate is less than 10%.Combined with remote
control, it can set up sensor range, light sensor, sensor brightness, delay time, etc., and
make personalized lighting effect Settings.
Applicable for living room，bathroom， passage。
Key Features:
- DC 8V-12V Input.
- PWM Output.
- Mini shape design, applicable to a wider range.
- Built-in light sensor to effectively identify environmental illumination.
- Sensor range, delay time and light sensor can be set by remote control
- The induction distance can reach about 10m.
- Meeting standard of FCC,CE,RoHS,REACH.
- Operation Temperature: -20℃ to +50℃.

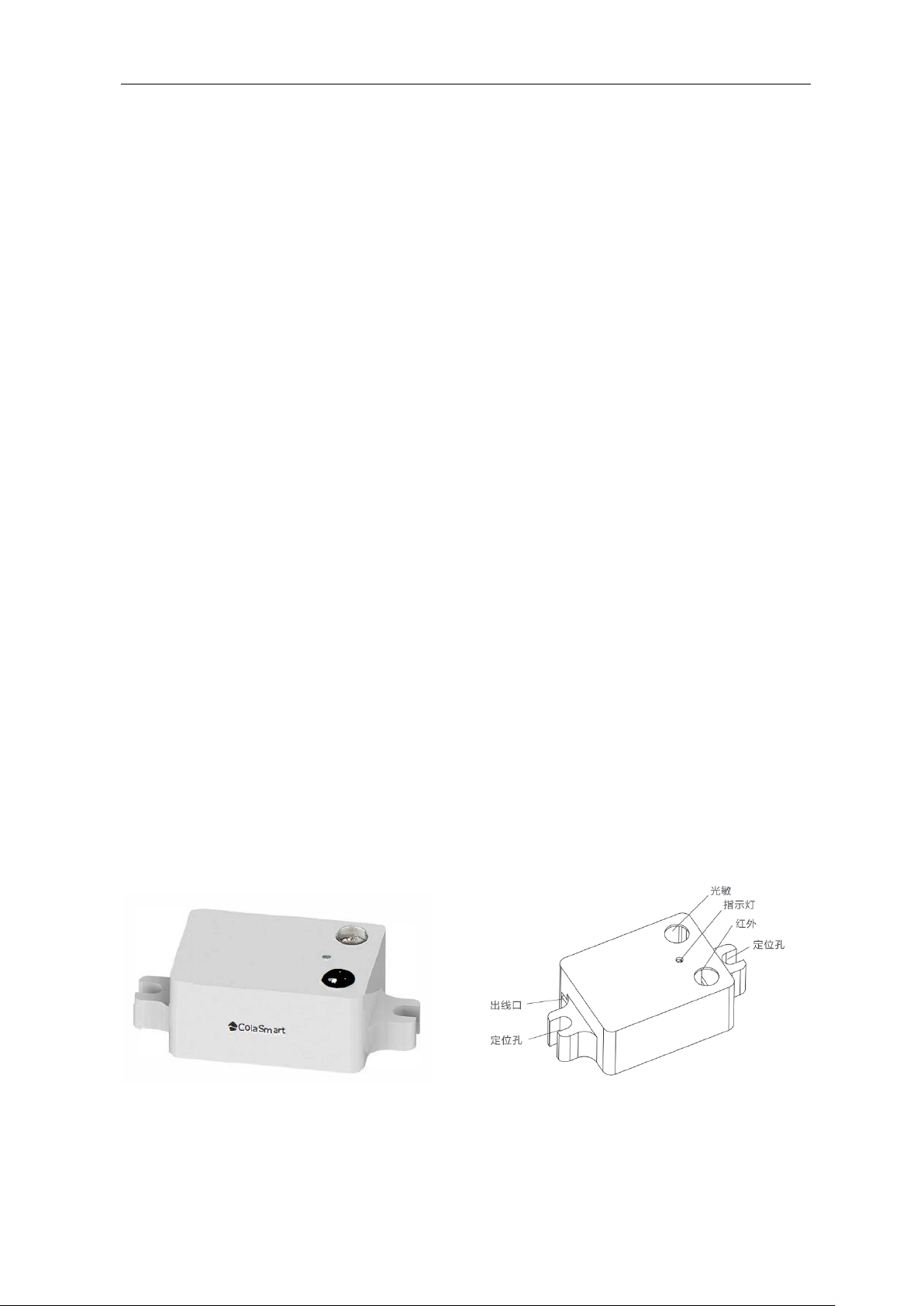

Controller Picture：
Page 4
Page 4 of 6
2. Applications
- lightling.
- Intelligent home products.
- Security equipment.
- Intelligent sensing devices.

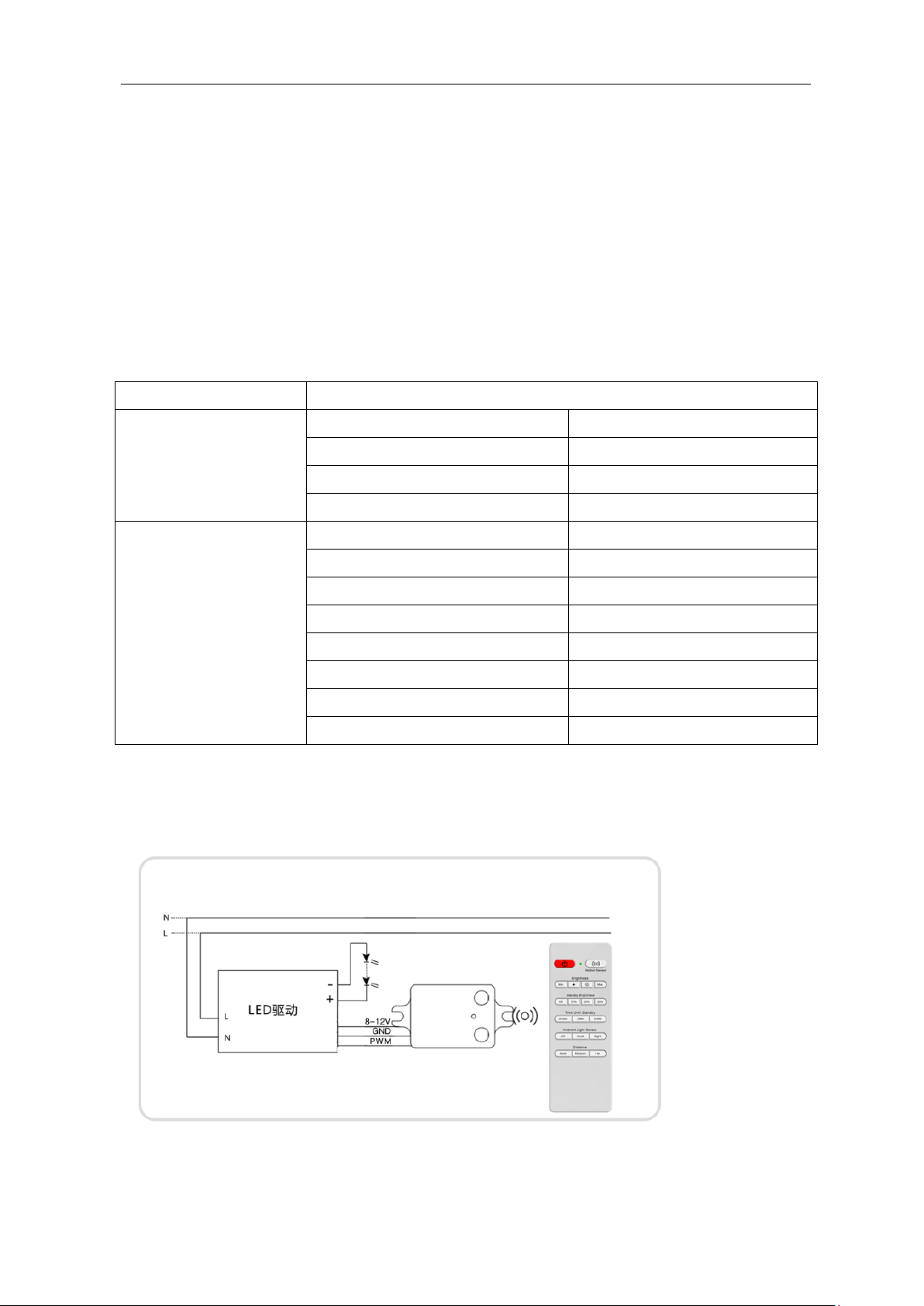

3.Parameters
Controller
LM56387
Electrical parameters
Input voltage
DC 8-12V
Input current
20-25mA
Standby power
<0.15W
Outout voltage
DC 5V （PWM）
Microwave sensor
parameter
Microwave frequency
5771MHz~5872MHz
Transmission power
＜0.5mW
Microwave sensor switch
On/Off
Brightness setting
Min/Bright-/Bright+/Max
Time unitl dim
Off/30Sec/10Min/30Min
Time unitl off
Off/30Sec/10Min/30Min
Light sensor setting
Off/Over cast/Dusk/Night
Distance setting
Very near/Near/Mid range/Far
4.Reference Circuit
Page 5
Page 5 of 6
5. FCC Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH
MODIFICATIONS OR CHANGE COULD VOID THE USER’ S AUTHORITY TO OPERATE THE
EQUIPMENT.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Increase the separation between the equipment and receiver.
-- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
To satisfy FCC exterior labeling requirements, the following text must be placed on the
exterior of the end product “Contains Transmitter module FCC ID: WUI-LM56387”.
6. IC Information
-English:
1. This device complies with Industry Canada RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device
Page 6
Page 6 of 6
must accept any interference, including interference that may cause undesired operation of
the device.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment complies with ISED RF radiation exposure limits set forth for an
uncontrolled environment.
To satisfy ISED exterior labeling requirements, the following text must be placed on the
exterior of the end product “Contains Transmitter module IC:7297A-LM56387”.
-French:
Leprésent appareil est conforme aux CNR d'Industrie Canada applicable aux appareils radio
Exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible
d'en compromettre le fonctionnement."
Cet appareil est conforme aux limitesd'exposition de rayonnement RF ISEDC établiespour
un environnement non contrôlé.
Pour satisfaire la ISED extérieur étiquetage, le texte suivant doit être placé à l’extérieur du
produit final “Contains émetteur module IC:7297A-LM56387”.
