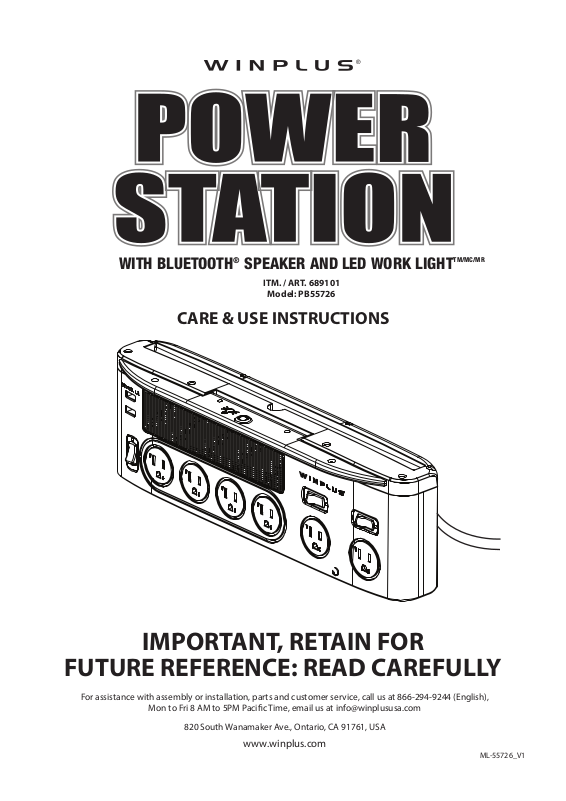

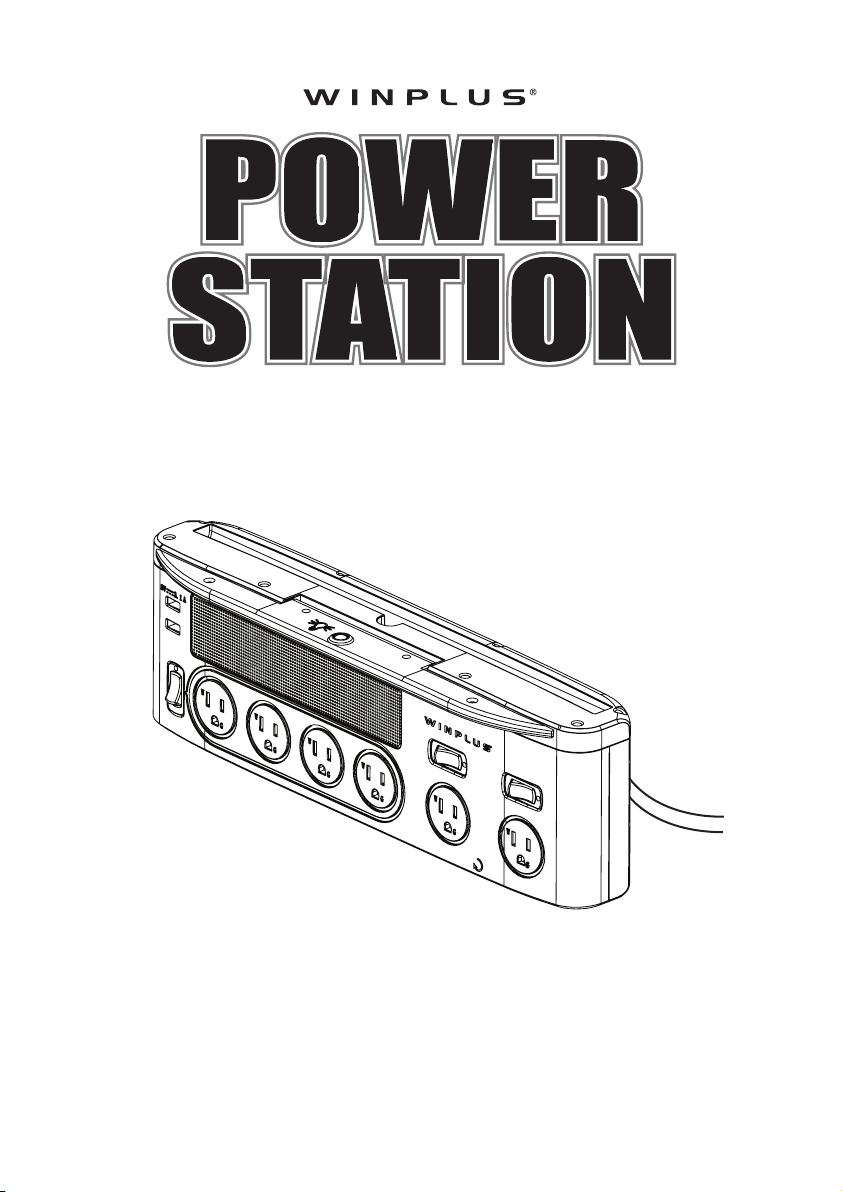

Winplus PB55726 Users Manual
WITH BLUETOOTH® SPEAKER AND LED WORK LIGHT
ITM. / ART. 689101
Model: PB55726
CARE & USE INSTRUCTIONS
IMPORTANT, RETAIN FOR
TM/MC/MR
FUTURE REFERENCE: READ CAREFULLY
For assistance with assembly or installation, parts and customer service, call us at 866-294-9244 (English),
Mon to Fri 8 AM to 5PM Pacic Time, email us at info@winplususa.com
820 South Wanamaker Ave., Ontario, CA 91761, USA
www.winplus.com
ML-55726_V1
Important Safety Instructions
Read this manual thoroughly before rst use and keep it in a safe place for future
reference, along with the purchase receipt and carton. The safety precautions
enclosed herein reduce the risk of re, electric shock and injury when correctly
adhered to. Follow all instructions and take notice of all warnings to reduce the risk
of re or electric shock.

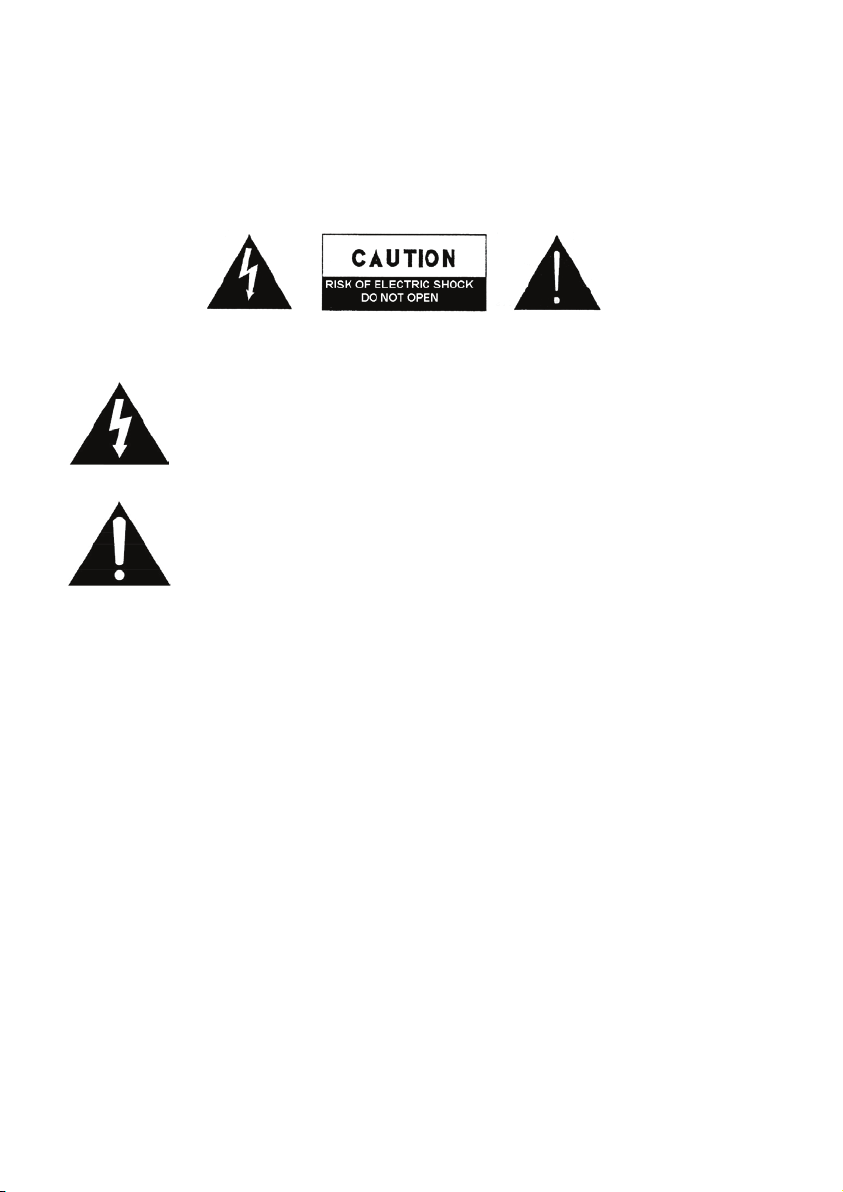

WARNING: SHOCK HAZARD - DO NOT OPEN
The lightning ash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
• Do not defeat the safety purpose of the grounding-type plug. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
2
• Only use attachments/accessories specied by the manufacturer.
• Use only with the mounting plate specied by the manufacturer, or sold with the
apparatus. When the mounting plate is used, use caution when moving the
mounting plate/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
•
•
Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
• A relocatable power tap provided with auxiliary lighting features is not for
permanent installation. Do not permanently mount or remove the plug for
permanent connection to the electrical system.
• Caution marking and rating plate are located at rear enclosure of the apparatus.
• CAUTION: To reduce the risk of electric shock, grounding of the center pin of this
plug must be maintained.
• An appliance with a protective earth terminal should be connected to a mains outlet
with a protective earth connection.
• The mains plug or appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
• WARNING: This apparatus must be securely attached to the wall per installation
instructions. Tripping, sharking, or rocking the machine may cause injury/death.
• WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to
rain or moisture.
• The apparatus shall not be exposed to dripping or splashing and that no objects
lled with liquids, such as vases, shall be placed on apparatus.
• Important: Use indoor and dry location use only.
• Carefully follow all instructions for assembly and mounting. Test the strength of
attachment to the wall before using the product.
• The tablet/smartphone holder slot is only designed to t in tablet and smartphones.
Please do not overload with excessive weight.
• Do not plug into another power bar or extension cord.
• Do not use if power supply cable becomes damaged or broken.
• Always exercise caution when operating any electrical device.
• Do not look directly into the LEDs when operating.
• Keep away from liquids, oils, petrol, and all chemicals.
• This is not a toy.
3
• Keep away from children.
• Supervise young children to ensure they do not play with the product
• Long-life LEDs are not replaceable.
• The wall-mount power station contains no serviceable parts. Opening the product
will void your warranty.
• Turn o when not in use.
CAUTION: Risk of Electric Shock. Do not place any liquid or liquid containers on
top of the Power Station.
CAUTION: Risk of Electric Shock. Do not use in or near wet locations such as
kitchens of baths.
CAUTION: Risk of Electric Fire. Do not charge electrical devices while stowed in
storage compartment.
4

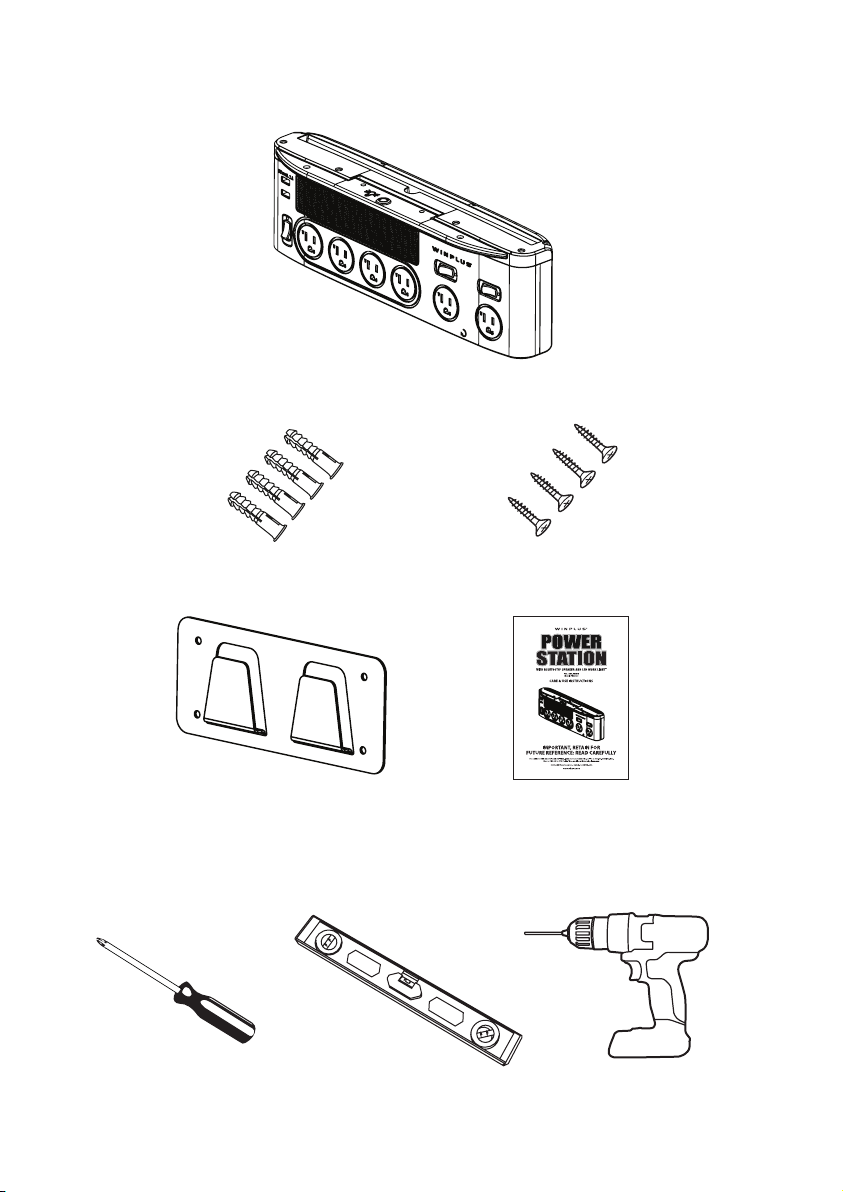

Package Contents
Please layout all parts prior to installation. Read instructions prior to installation.
1 x Power Station with six outlets, two USB ports, Bluetooth® speaker and LED work light
4 x Pegboard anchors
4 x #8 Wood Screws
1 x Instruction Manual1 x Mounting Plate
Tools Needed (not supplied)
#2 Phillips head screwdriver Bubble Level 3/32-inch / 2.4 mm Drill bit
5
5V
2 x USB ports
(total combined
3.1A max)
Tablet / Smartphone
holder slot
3.1A

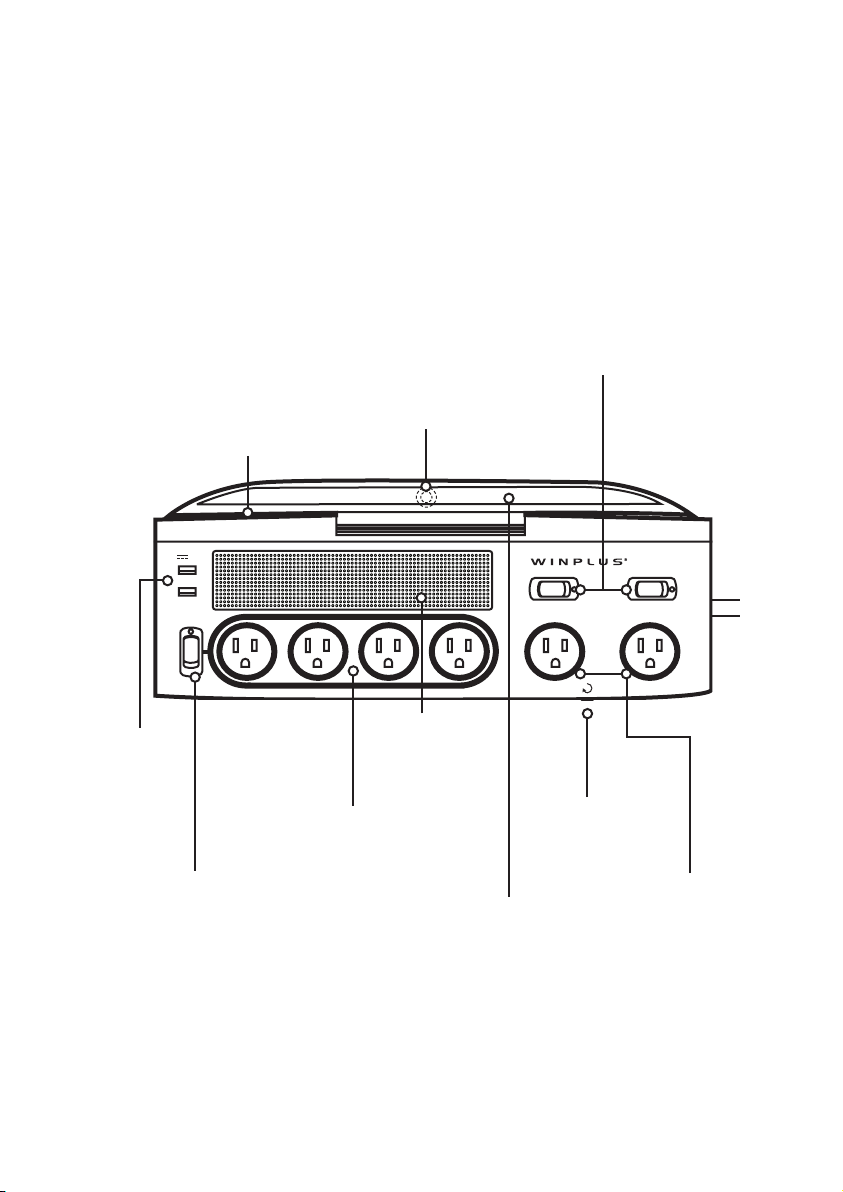

Product Overview
LED work light switch
on the back
Bluetooth®
speaker
4 x standard
socket outlets
2 x Illuminated on/o
switch for individual
wide-spaced outlets
Overload protection
reset button
Illuminated master power
- 4 x Standard socket outlets
- 2 x USB ports
- 1 x Bluetooth® speaker
- 1 x LED Work lights
6
on/o switch
LED work light
2 x wide-spaced
outlets
Features
• 3-in-1 power strip, LED work light, Bluetooth® speaker.
• 6 x 120V outlets (2 x wide-spaced outlets)
• 2 x USB ports (total combined 3.1A)
• Bluetooth® speaker
• Powerful LED work light with 90 rotation
• Holder for Smartphone / Tablet
• Illuminated switches for master power on/o and individual
side-spaced outlet
• Individual switch for LED Light
• 1.8 m / 6 ft power cord
• Overload protection
Technical Specications
Input Voltage and Current 125Vac, 60Hz, 15A
Maximum wattage 1875W
Light output 420 Lumens
Product dimensions 390 mm / 15.35 in x 88 mm / 3.46 in x
126 mm / 4.96 in
Product weight 1.3 kg / 2.9 lb
Power cord length 1.8 m / 6 ft
Location Indoor, wall-mount usage
Bluetooth® speaker specication Bluetooth 3.0
Two speakers, each 3W, 4 input
impedance
Bluetooth® operation range Up to 33 ft (10m)
Bluetooth® support proles A2DP v1.2, AVRCP v1.4, HFP v1.5
Bluetooth® frequency range 2.4 GHz
This power station is ETL/cETL Listed
7
Instructions

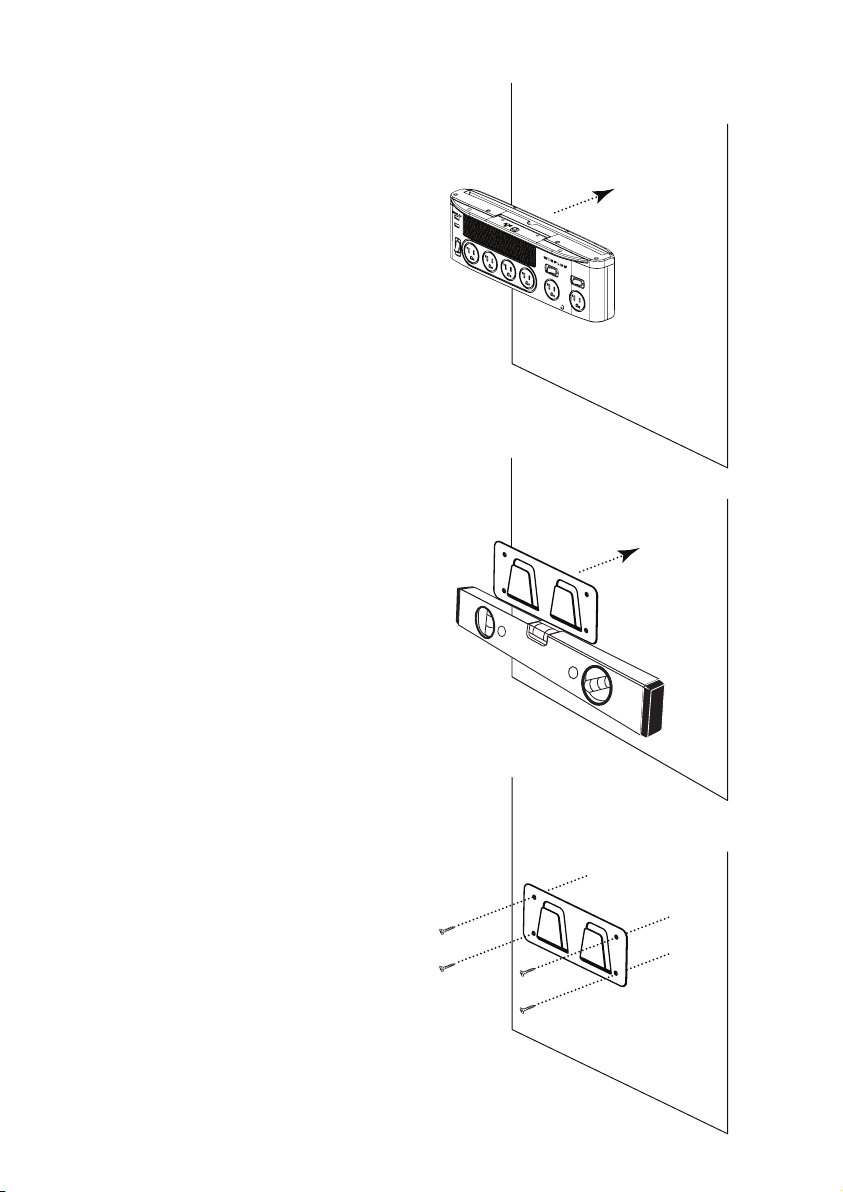

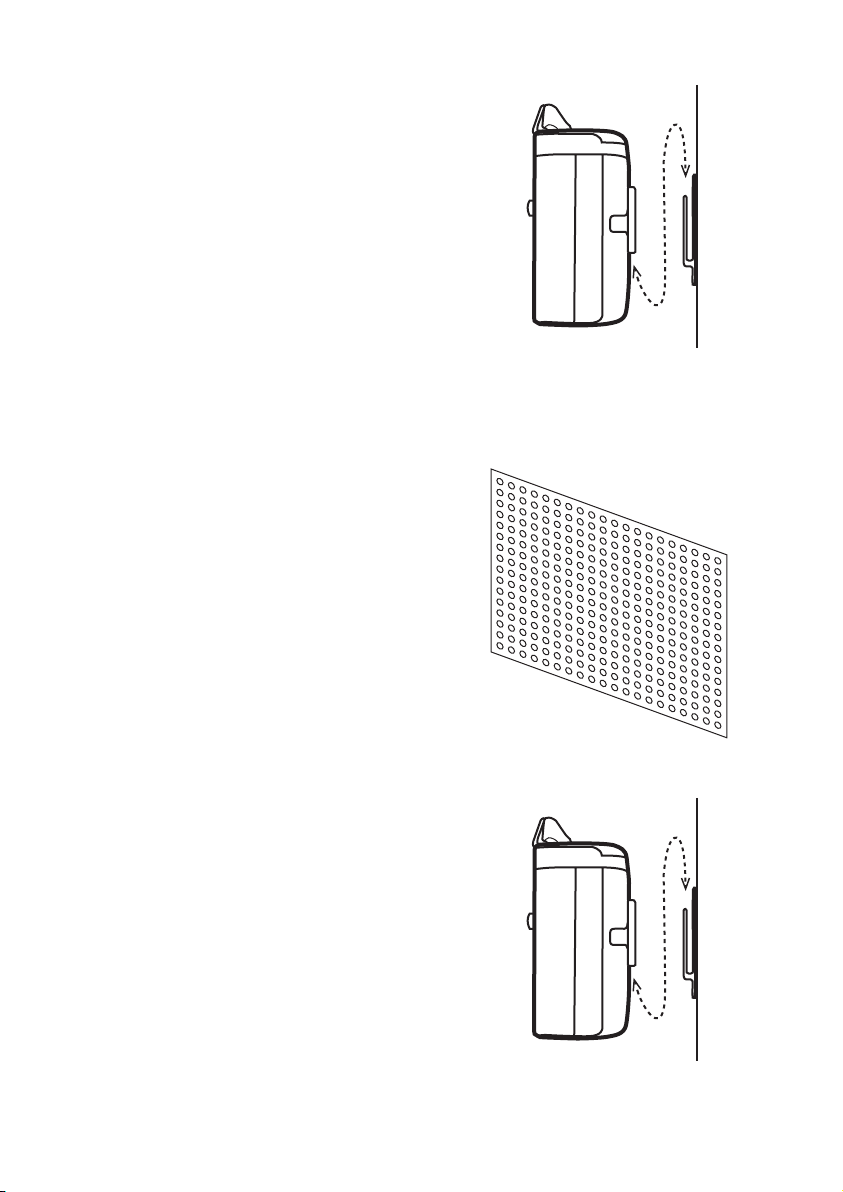

Mounting on wall
1. Fin
d a suitable indoor wall (wood)
location to mount the power station.
Tip: Attach the power station to the
wall above your workbench, and
position the lights to provide work
lighting for small tasks.
2. Locate the mounting plate and use
a bubble level to level it on the wall
surface.
3. Drill
pilot hole, for the four corners of
mounting plate. Then use the 4
wood screws and screwdriver to
attach the mounting plate onto the
wall. Do not over-tighten the screws
- snug tight only.
8
the 3/32-inch / 2.4 mm diameter
4. Hang the Power Station onto the
mounting plate.
Note: Mounting the power station onto
drywall, plaster or masonry may require
additional screws and anchors (not
included).
Mounting on pegboard
1. Find a suitable indoor pegboard
location to mount the power station
2. Push the pegboard anchors to desired
locations on pegboard, for the four
corners of mounting plate. Then use
the screw driver to secure the
mounting plate on the pegboard with
4 pegboard screws. Do not over-
tighten the screws - snug tight only.
3. Hang the Power Station onto the
mounting plate.
9

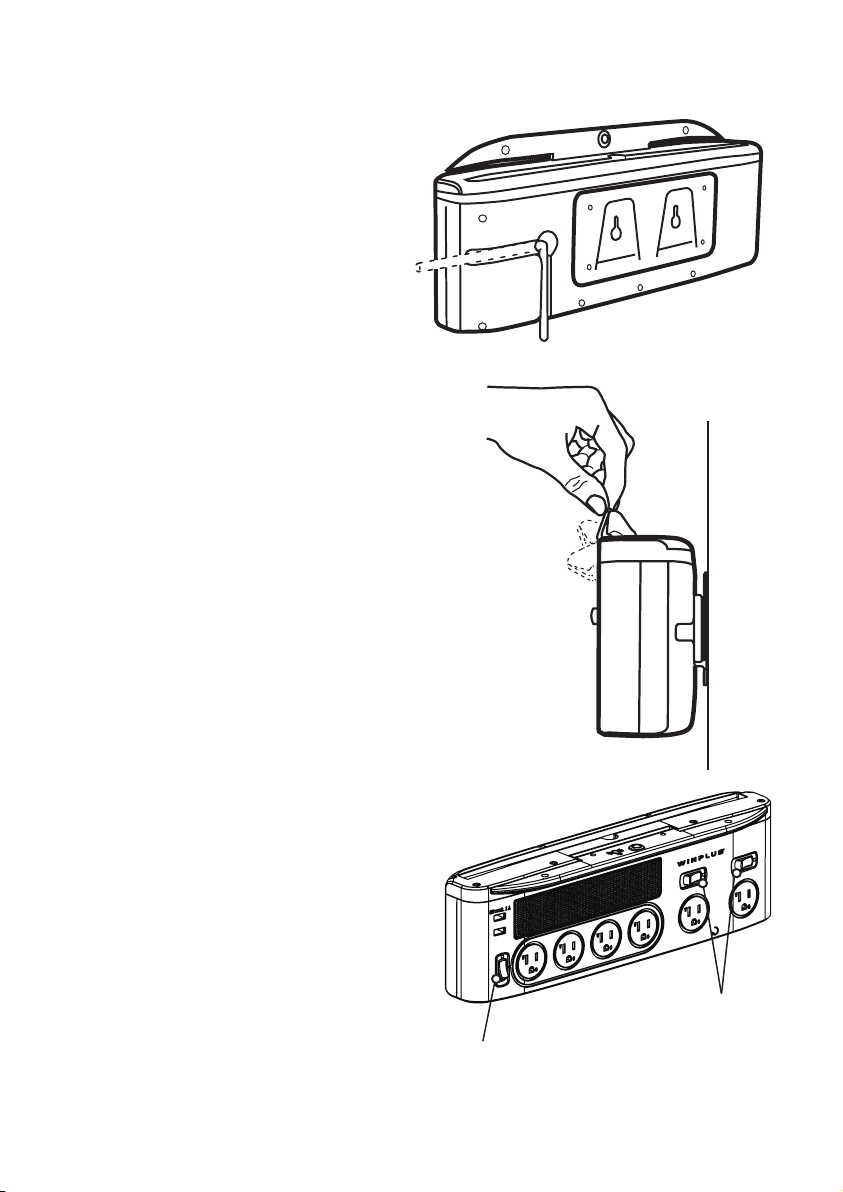

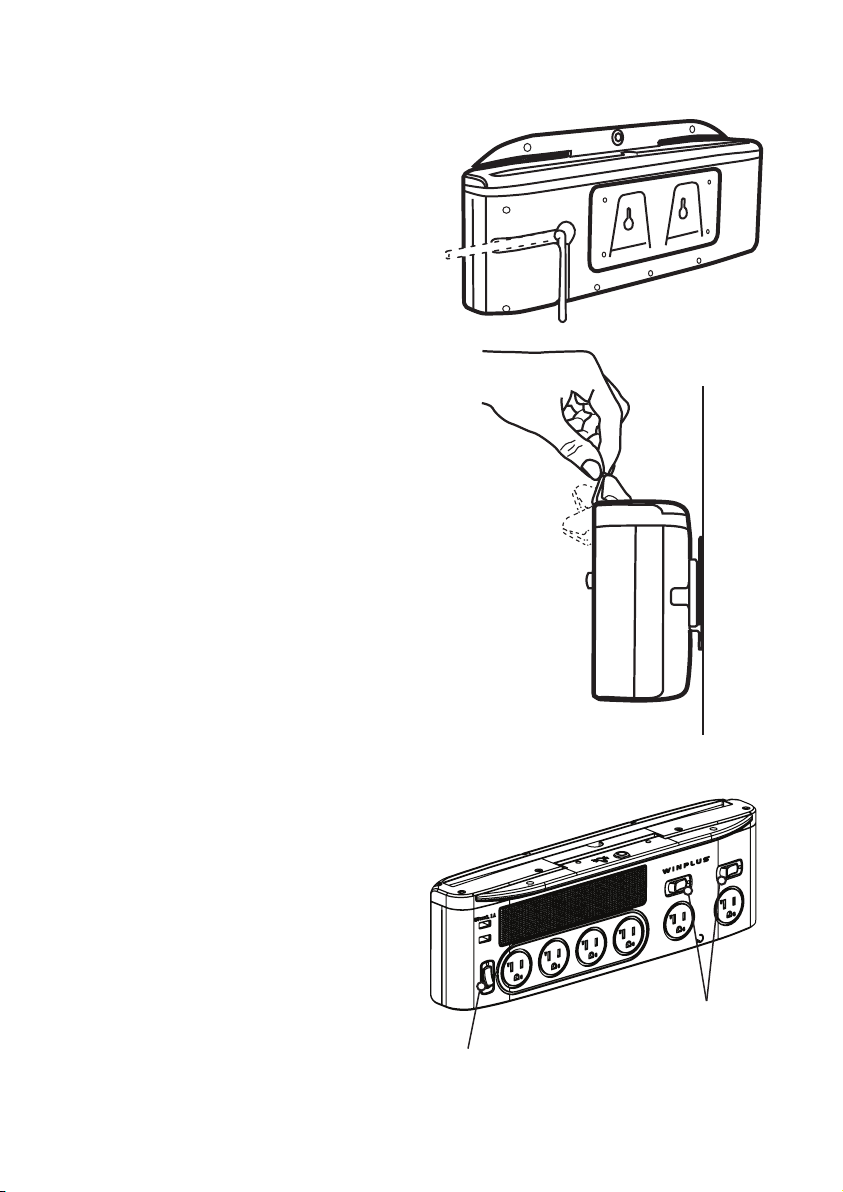

Power cord direction
Power cord slot is provided in the
back of power station. You may
choose either direction to route the
cord as needed.
Using the LED work lights
1. Switch the master power switch on.
2. Use your hand to ip the LED lights
to the desired position.
3. Turn on the LED work light with the
LED light switch. You can press
once to turn to low light setting.
Press the second time to turn to
high setting. Press once more
to turn o the light.
Using the Power Sockets
1. Ensure the power switches are o
and the red lights in the switches
are not illuminated
2. Plug your device in to the
power station
3. Switch the power switches on
4. When you have nished using the
device, turn the power switches o.
10
Individual Power Switch
for wide-spaced outlet
Power Switch for
4 standard size outlet

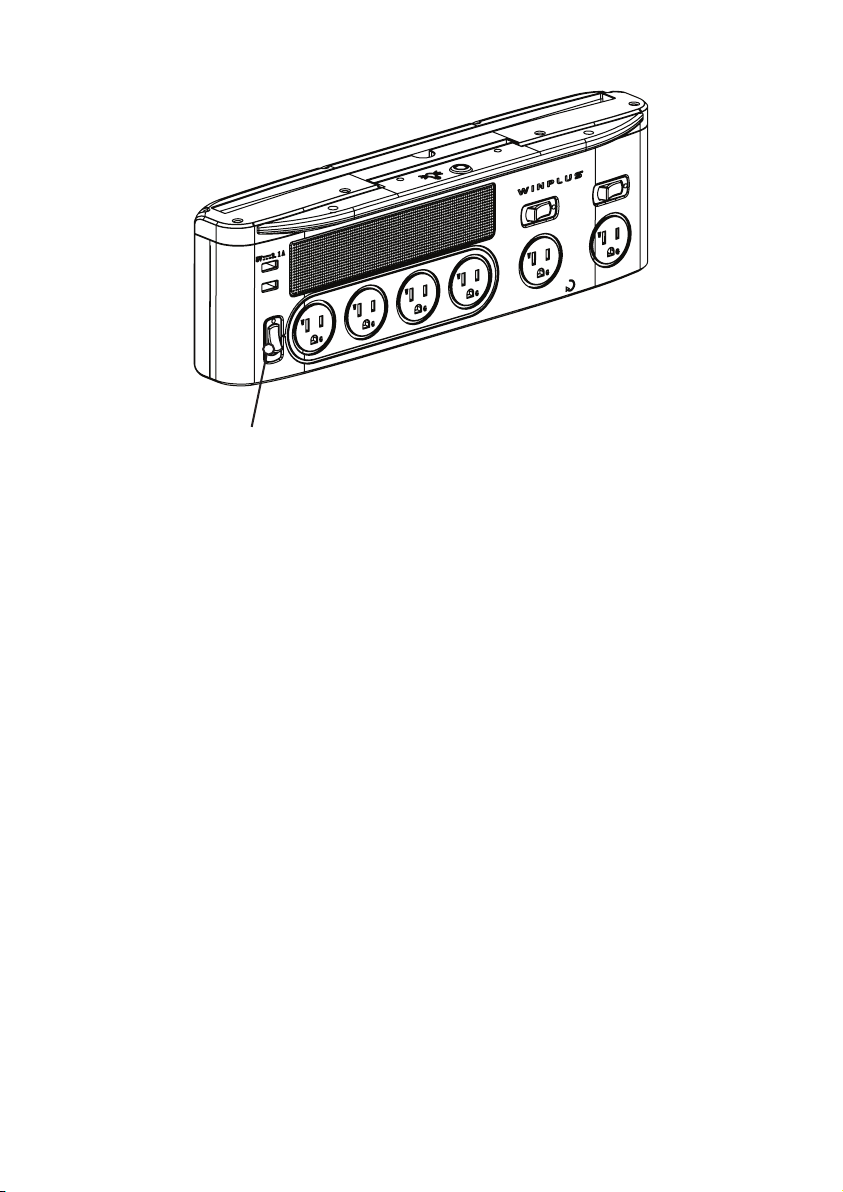

Using the Bluetooth® speaker
Master Power Switch
1. Turn on the Bluetooth® speaker with the master power switch (refer to the
above gure).
2. Turn on Bluetooth® function on your device, and search for the Bluetooth®
speaker “Winplus” (see your device’s instructions to add or setup a Bluetooth
connection).
3. Once the Bluetooth® speaker has been detected, select it to connect.
4. If your device asks for a password, enter ‘0000’ on your device.
5. Once connected, you can play the music through the Bluetooth® speaker
Tip: The Bluetooth® speaker is not for phone call. It will be temporary turned
o when there is incoming call on smartphone. The speaker will be
turned on again when the call is nished.
Tip: Protect your hearing from long exposure of loud sounds at high volume.
Set the volume to an appropriate level in dierent environment. Do not
hold or place the Power Station near the ears.
11
Limited Warranty
This Winplus product carries a 1 year warranty against defects in workmanship and
materials. This product is not guaranteed against wear or breakage due to misuse and/
or abuse.
If during the 1year warranty period your new product is found to be defective, Winplus
North America will repair such defect, or replace the product, without charge for parts
or labor subject to the following conditions:
• All repairs must be performed by Winplus North America.
• All warranty claims must be accompanied by a copy of the sales receipt or bill
of sale.
• The equipment must not have been altered or damaged through negligence,
accident, improper operation, or failure to follow the product instructions for
installation, use, or care.
• The replacement of parts is excluded from the warranty when replacement is
necessary due to normal wear and tear.
• Repair or replacement parts supplied by Winplus North America under this
warranty are protected only for the unexpired portion of the original
warranty.
• This is a “repair or replace” warranty only, and does not cover the costs
incurred for the installation, removal or reinstallation of the product.
OWNER’S RESPONSIBILITIES: Winplus North America will make every eort to
provide warranty service within a reasonable period of time. SHOULD YOU HAVE
ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE
IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR
BUSINESS HOURS MONDAY THROUGH FRIDAY 9:00 AM TO 5:00PM.
NOTE: Toll Free # is for North America Customers ONLY. See Customer service section for
customer contact numbers for other regions/oces.
For customer service and technical support, please call us at 1.866.294.9244 or email us
at customercare@winplususa.com. If at that time it is determined that a replacement
unit is needed, the support representative will issue a Return Authorization and instruct
on how to get a new unit.
Winplus North America makes no other warranty of any kind aside from the limited
express warranty stated herein.
FCC / IC Compliance Statement
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) This device
12
may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
CAN ICES-3(B)/NMB-3(B)
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications or change to this equipment. Such modications or change
could void the user’s authority to operate the equipment.
This radio transmitter (IC: 7297A-PB55726) has been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain
indicated. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy, and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC’s RF exposure guidelines, this equipment should be
installed and operated with a minimum distance of 20cm between the radiator and
your body.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Winplus North America, Inc. is under license.
Other trademarks and trade names are those of their respective owners.
13
Loading...
