Specification

CS-CRD02-XX1

Microwave motion sensor

Specification

File status：

[ ] Draft

[√ ] Published

[ ] Pending

File name：

Product specification

Version：

V1.0

Editor

：

Finished

date

：

Zhejiang Colasmart Technology Co.ltd

Room 205-206,12thBuilding,Zhonghaixin Science and Tech Park,Bulan Road,Shenzhen city,China

Tel: [phone]

LM57176

Specification

Version history

Version

Editor

Participator

Valid from

Remark

V1.0

Niou

2019-06-08

0 Amendment

1 Feature

 CS-CRD02-XX1 microwave module, which applies

colasmart self-R&D CS3921 microwave chip, can

effectively sense human and entity motion

 Light sensor is available when correspondent component

is exter-connected

 IR remote is available when correspondent component is

exter-connected ,and microwave motion sensor

distance,hold time,lux threshold etc can be adjusted by

IR remote

 Plate-antenna applied for the sake of max long-distance

detection purpose

 RGB background mode available

 Working temperature be -20℃– 70℃

2 Application

 Lighting

 Security

 Smart home

3 Specification

LM57176

5734MHz - 5858MHz

Specification

Working voltage

Working current

Working temperature

Frequency

Mounting height

Sense distance

Lux threshold

Hold time

CS-CRD02-XX1

DC 8-12V

20-25mA

-20℃ - +70℃

5.8GHz±75MHz

3-6m standard height 3m

Very near/Near/Medium/Far

OFF/50Lux

1Min/5Min/10Min/30Min

4 Drawing

Specification

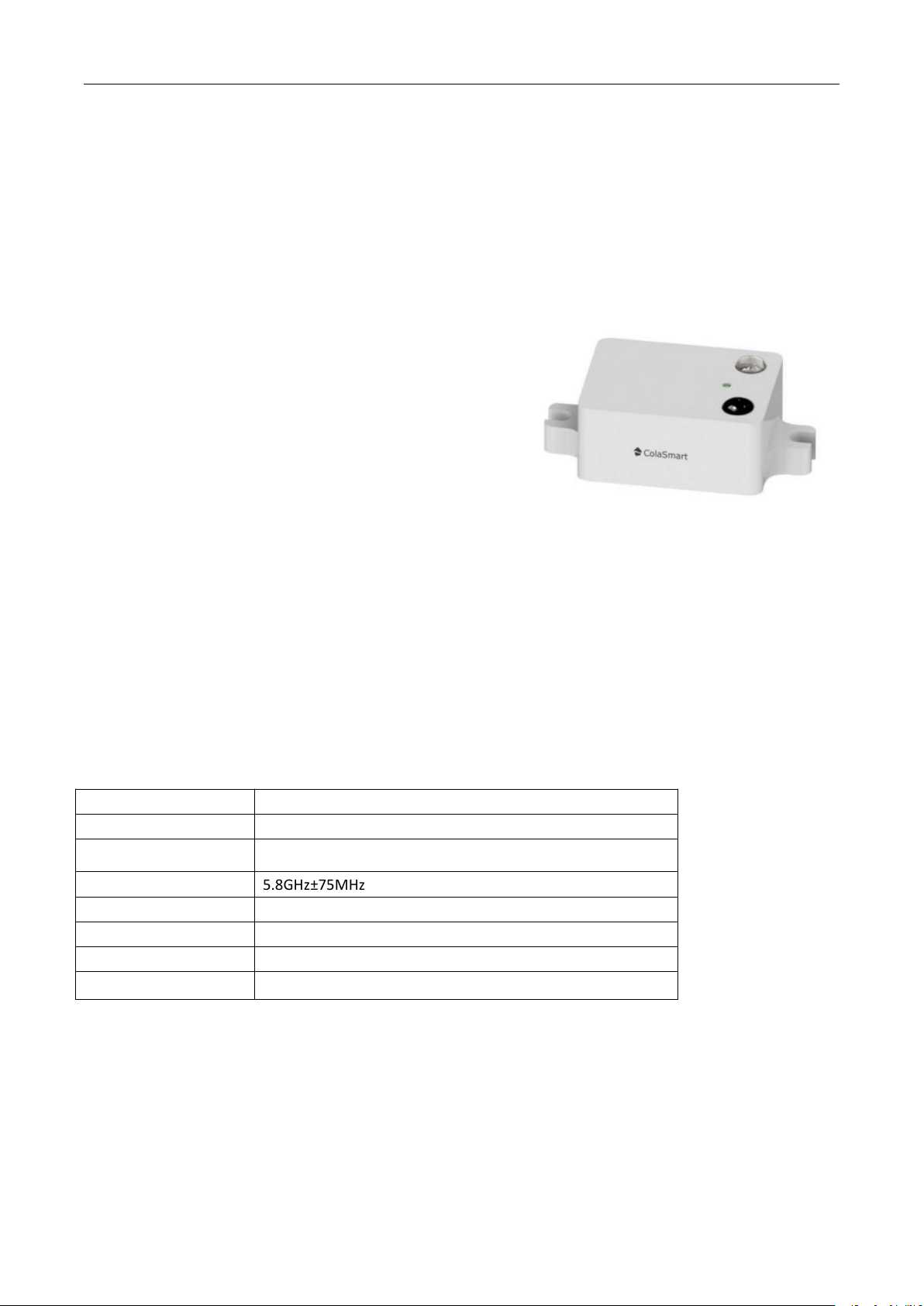

Product Photo

Outline Drawing

Terminal Sequence Diagram

Number Pin Definition

1 + VCC
2 - GND
3 W PWM1 output
4 Y PWM2 output
5 R PWM3 output
6 G PWM4 output
7 B PWM5 output

Specification

Brightness level

Level

1stlevel

2ndlevel

3thlevel

4thlevel

5thlevel

6thlevel

7thlevel

8thlevel

Pwm %

10%

20%

30%

40%

50%

60%

70%

80%

Level

9thlevel

10thlevel

Min

Max

Pwm %

90%

100%

10%

100%

5.5 Color temperature adjust( based on brightness be 100%)

Level

1stlevel

2ndlevel

3thlevel

4thlevel

5thlevel

6thlevel

7thlevel

8thlevel

9thlevel

10thlevel

Warm

white

pwm %

100%

86%

71%

57%

43%

29%

14%

0%

Cool white

pwm %

0%

14%

29%

43%

57%

72%

86%

100%

5.6 Hold time

Hold time level

1min

5min

10min

30min

Time to dim to stand-by
brightness from current
brightness(half of current
brightness)

30s

4min

9min

29min
Time to dim to OFF from
stand-by brightness(half
of current brightness)

30s

1min

1min

1min

5.7 Sense distance

Distance
level

Very near

Near

Medium

Far

Distance
range

1 - 2

2 - 3.5

3.5 - 5

5 - 7

6 Remark

 Sense range will be different according to different install height and sense angle

 Application environment, entity motion velocity etc will effect module sense range ,so above sense range is

only for your reference based on ideal circumstance

 Actual lux threshold is related to your light case material, our value is this specification is only for reference
