Winplus LM56176 Users Manual

Motion-Activated Light with Camera

Model: LM56176

CARE & USE INSTRUCTIONS

IMPORTANT, RETAIN FOR

FUTURE REFERENCE: READ CAREFULLY

For assistance with assembly, installation, parts and customer service, call us at 1-866-294-9244 (English),

Monday - Friday, 8am - 5pm Pacific Time, email us at [e-mail]

2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA

www.KodaBuilt.com

Table of Contents

1. Table of Contents 2

2. Package Contents 3

3. Product Specifications 4

4. Product Overview 5

5. Pre-Installation Check List 6

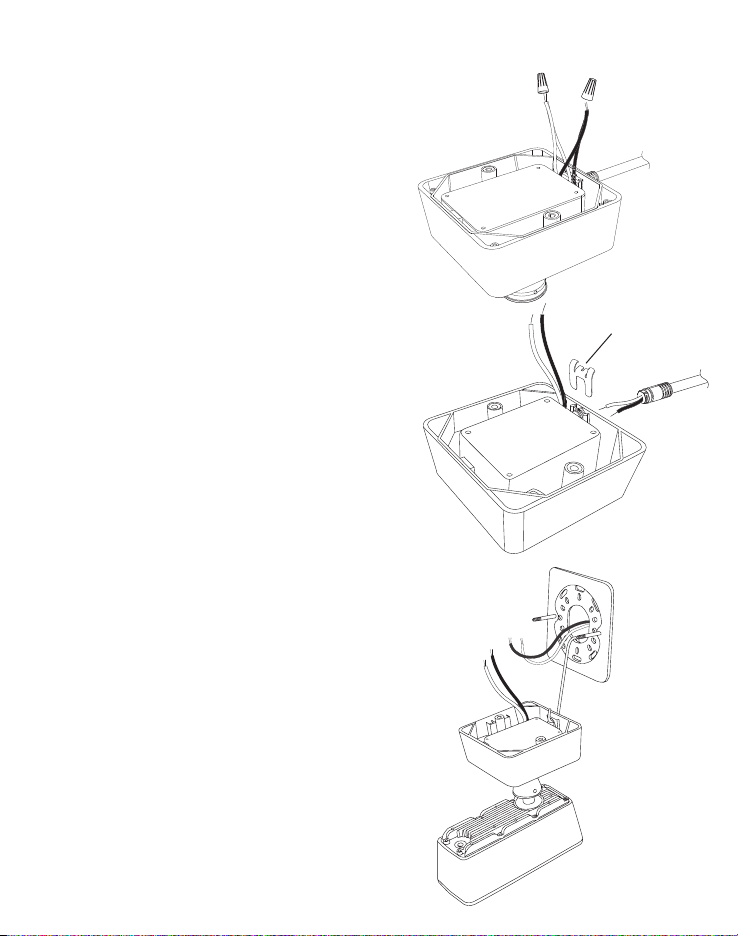

6. Installation 7

7. Set up the App 13

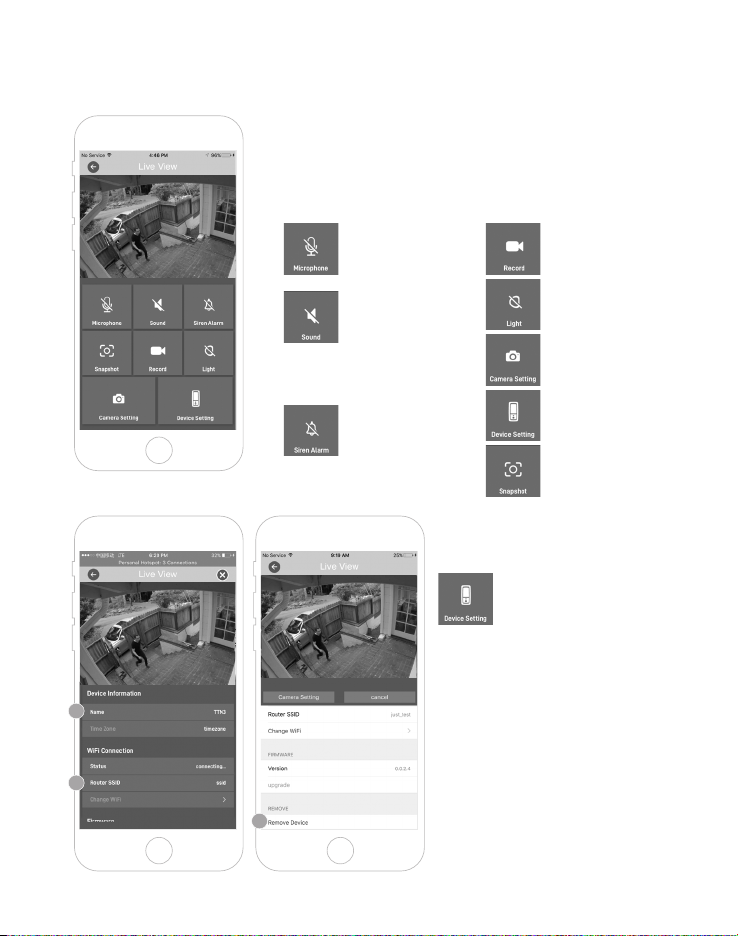

8. Using the App 17

9. Troubleshooting tba

10. FCC / IC Compliance Statement tba

11. Safety Information tba

12. Maintenance & Warranty tba

13. General Information tba

2

1 x Motion-Activated Light with Camera

Conversion Kit (WIN-56176A_V1)

1 x Phillips Screwdriver

1 x S-Hook

3 x Wall Anchor

3 x Self-tapping Screw (for drywall or wood)

2 x Spare Mounting Screw (for light fixture)

1 x Spare Short Screw (for Power Box)

1 x Spare Rubber Plug

1 x Waterproof Cap

1 x Instruction Manual

Package Contains

1 x Quick Installation Guide

1 x Wall Mounting Plate

Tools needed (not included)

Power Drill

3

Product Specications

Input:
Wattage:
Dimensions (D x W x H):

Light Output:
Color Temperature:
Video Resolution:
Viewing Angle:
IR Night Vision:
Connectivity:
Audio:
Siren dB:
Weather Resistance:
Operating Temperature:

120 Vac, 60 Hz, 0.2 A
24 W

7.9 cm x 19.4 cm x 7.5 cm
(3.11 in x 7.64 in x 2.95 in)
(includes external heat sink)
1300 Lm
4000 K
1080p Full HD
106° Field of View
Up to 7.62 m (25 ft)

802.11b/g/n Connection @ 2.4 Ghz
Two-Way Audio with Noise Cancellation

IP65 rating

-20°C~50°C (-4°F~122°F)

4

Status Light

Product Overview

Front View

Ball Joint

Flood Light

Microphone /
Speaker

Camera Lens

UltraSense™
Motion Sensor

Power Box

Power Cord

Back View

Mounting Plate

Power Box

Power Cord

Pairing / Reset Button

5

Download the app

Install the KODA app on your smart device. Scan below QR code or search
KODA in the App Store or Google Play. Download and install the app.

KODA APP

SAMPLE SAMPLE

NOTE: The app is only available on smartphones with Apple iOS 9 or newer, and
Android 5.0 or newer. The KODA app is not accessible from tablets, browsers, or
PCs.

TIP: Check out the installation video at www.KodaBuilt.com to help familiarize
yourself with the installation process before starting.

6

Set up a new account

Set up the app

Sign In to Your Account

Email Address

Password

Reset Password

LOG IN

Sign Up

LIGHTCAM

DOOR BELL

WiFi DECIVE

1. Open the KODA app on your smartphone.

2. Select Sign Up and fill in the information to get
started if you are a new user. If you already have a
KODA account, select Log In and fill in
your login information.

Add a new device

1. Select the icon to add a new device.

2. Select LightCam from the list of devices.

3. Follow the in-app instructions.

7

Set up the app

1

Pair Manually

Pairing your mobile device
with the LightCam

1. Press the pairing button the
back of your LightCam device.
Your LightCam device should be
flashing red and blue indicating
it is ready for pairing. Press

2

Next on the app screen to start
pairing.

2. When you see the
status light on LightCam
pulsating red and blue, press
Next to enter auto-pairing mode.

3. Android users: The app will
automatically jump to the SET
DEVICE NAME page at this stage.

4. iOS users: Press Next on the
auto-pairing screen to start the
pairing process.

8

4

Auto Pairing Instration Script

Next

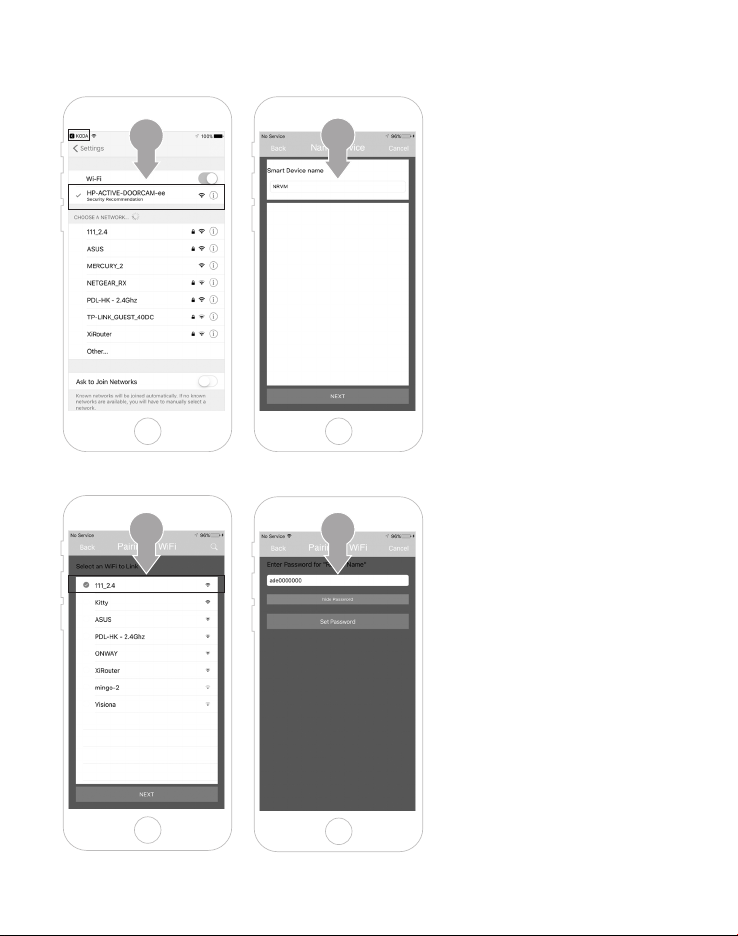

5. Press WiFi Setting to perform

5

manual connect in the iOS WiFi
setting page.
