Winplus LM55811 User Manual

LED Utility Light

with motion sensor

ITM. / ART. 688836

Model: LM55811

CARE & USE INSTRUCTIONS

IMPORTANT, RETAIN FOR

FUTURE REFERENCE: READ CAREFULLY

For assistance with assembly or installation, parts and customer service, call us at 1-866-294-9244 (English),

Mon to Fri 8 AM to 5PM Pacic Time, email us at [e-mail]

820 South Wanamaker Ave., Ontario, CA 91761, USA

www.winplus.com

This product is splash proof, suitable for use in home, oce, warehouse, workshop,
garage and covered wet locations (e.g. covered patios, covered porches, etc.). It is IP65
rated, which means it is protected against dust ingress and is able to withstand splashed
water from any direction (does not include being fully submersed in water or deep
snow). This product is ideal for lighting in wet areas, such as patio awnings and covered
decks. it is also dust and wind proof.

This light is operated by a Smart Sensor Control. It will automatically switch on when
motion is detected and will turn o automatically when there is no movement in area
for preset time.

Important safety instructions:

Please read the following safety information before use.
To reduce risk of re, electric shock, or injury to persons:

• Grounded lights must be plugged into an outlet properly installed and grounded in
accordance with all codes and ordinances.

• Improperly connecting the grounding wire can result in the risk of electric shock. Do not
modify the power cord plug provided with the product. Never remove the grounding
prong from the plug .

• Do not use the light if the power cord or plug is damaged. If damaged, have it repaired
by a service facility before use. If the plug does not t the outlet, have a proper outlet
installed by a qualied electrician.

• Disconnect the power cord plug from the power source before making any adjustment
or changing accessories. Do not attempt to install product while plugged in.

• Do not abuse the power cord. Never use the power cord to carry the light or pull the plug
from an outlet. Keep the power cord away from heat, oil, sharp edges, or moving parts.

• Always refer to a qualied electrician to remove the diuser cover. Unplug and allow to
cool before changing the control setting.

• Store the product out of reach of children.

• Only use product in its intended location.

• Some metal parts in the product may have sharp edges. To prevent cuts, wear gloves
when handling these parts.

Warning:

• LED light output is strong enough to injure human eyes. Precautions must be taken
to prevent looking directly at the LEDs without installing the diuser (cover) for
more than a few seconds.

• If the lighting xture is damaged, it shall be exclusively replaced by the
manufacturer or the service agent or qualied person in order to avoid a hazard.

• The warnings, precautions, and instructions discussed in this manual cannot cover
all possible conditions and situations that may occur. The operator must understand
that common sense and caution are factors which cannot be built into this product,
but must be supplied by the operator.

2

Package Contents:

Please layout all parts and read the
instructions prior to installation.

1 x LED Utility Light with 1.8 m / 6 ft power cable

2 x 61 cm / 24 in zinc plated chains

2 x Hanging hooks

Tools Needed (not included)

Philips head screwdriver Safety glassesDrill, and 5/64 inch / 2 mm drill bit

1 x Cable bushing 1 x Plastic cap

2 x Wood screws

1 x Measuring template2 x Mounting brackets

2 x Self-tapping screw hooks2 x Drywall screws2 x Plastic anchors

3

Product Specications:

1. Operating Voltage: 120V ac, 60 Hz

2. Wattage: 48 W / Stand-by mode: 1.5 W

3. Light Output: 3800 Lm

4. Color Temperature: 4000K

5. LED Life Cycles: up to 50,000 hrs

6. Dimensions: 126 cm / 49.4 in (L) x 12.7 cm / 5 in (W)
x 8.8 cm / 3.46 in (H)

7. Weight: 2.6kg / 5.7lb

8. Waterproof rating: IP 65

9. Operating temperature: -4°F to 104°F / -20°C to 40°C

This product is ETL/cETL Listed

Installation Procedures:

The product is intended to be connected to a plug and does not need to be switched
on/o as it is controlled by the motion sensor. You do not need to disconnect from plug
except for changing Smart Sensor Control setting.

After reconnecting power, please wait for 10 seconds to allow for the calibration
time of sensor.

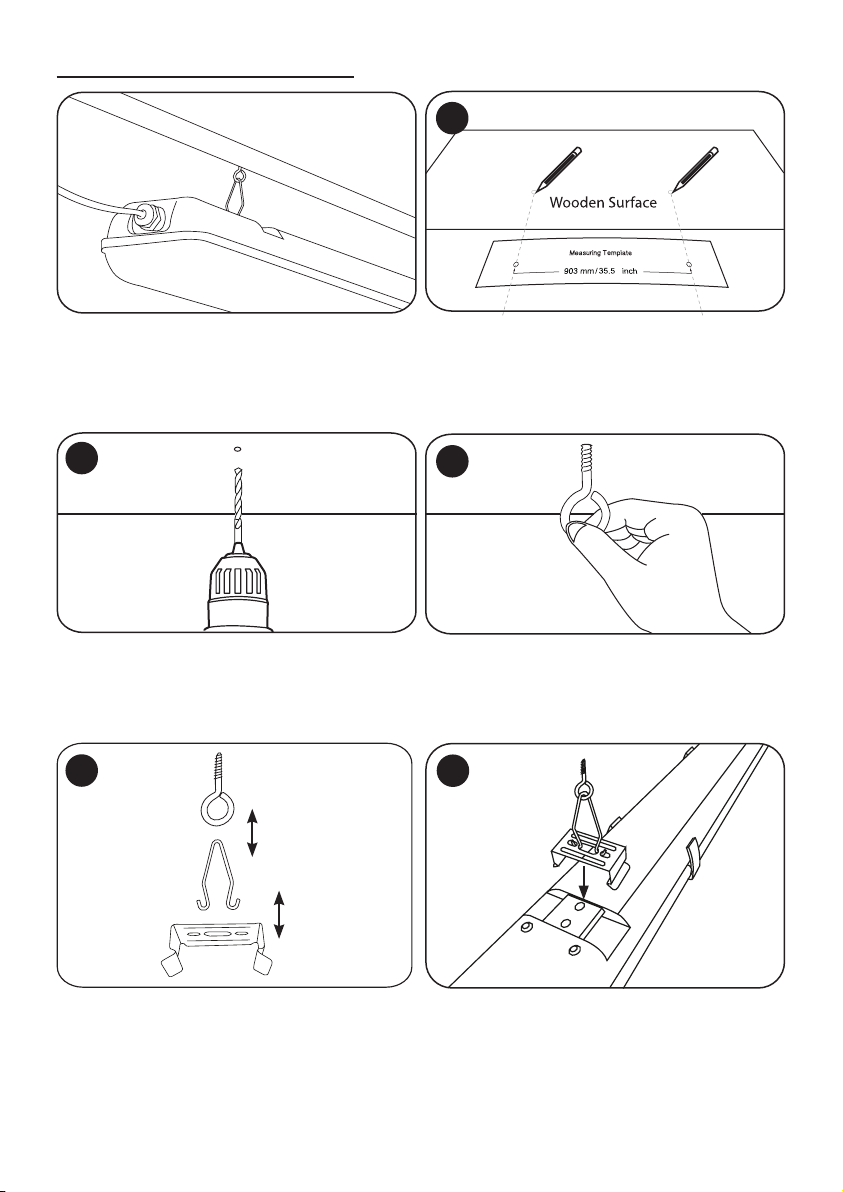

Ceiling hanging with chains:

Final installed illustration

4

1

1. Select a suitable mounting location,
and make sure the wooden surface is
suitable for supporting the lighting
xture. Use the measuring template to
mark the hook locations on mounting
surface.

2 3

2. Wear safety glasses before drilling
pilot holes. Drill two 5/64 inch / 2 mm
diameter pilot holes.

4 5

4c

4a

4b

4a. Determine desired hanging height,
slip wire hanging hook through the chain.

4b. Insert the hanging hook into the
openings of mounting bracket. Repeat for
another mounting bracket.

4c. Connect the chain onto the self­tapping screw hook, and repeat for
another chain and hook.

3. Screw in the self-tapping screw hook
until only the curved eye is visible, no
screw threads should be showing. Repeat
for another hook.

5. Clip mounting brackets onto the
lighting xture.

5

Ceiling ush mount:

1

Final installed illustration

2

2. Wear safety glasses before drilling
pilot holes. Drill two 5/64 inch / 2 mm
diameter pilot holes.

4

1. Select a suitable mounting location,
and make sure the wooden surface is
suitable for supporting the lighting xture.
Use the measuring template to mark the
hook locations on mounting surface.

3

3. Screw on the mounting bracket with
wood screws provided. Repeat for another
mounting bracket.

Note: For concrete or drywall, you may use
drywall screws along with plastic anchor
instead of wood screws.

4. Clip mounting brackets onto the
lighting xture.

6
