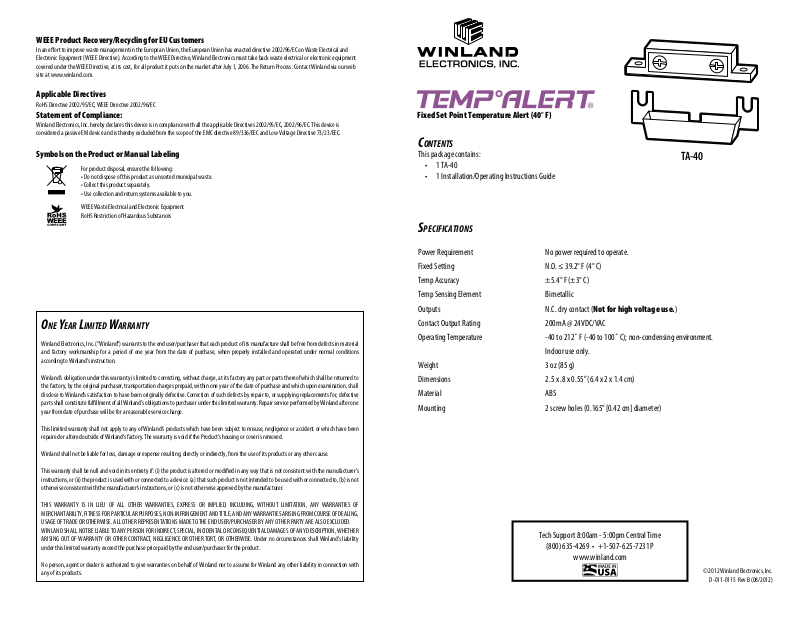

Winland Electronics TA-40 User Manual

Fixed Set Point Temperature Alert (40° F)

CONTENTS

This package contains:

• 1 TA-40

• 1 Installation/Operating Instructions Guide

TA-40

SPECIFICATIONS

Power Requirement No power required to operate.

Fixed Setting N.O. ≤ 39.2° F (4° C)

Temp Accuracy ±5.4° F (±3° C)

Temp Sensing Element Bimetallic

Outputs N.C. dry contact (Not for high voltage use.)

Contact Output Rating 200mA @ 24VDC/VAC

Operating Temperature -40 to 212˚ F (-40 to 100˚ C); non-condensing environment.

Indoor use only.

Weight 3 oz (85 g)

Dimensions 2.5 x .8 x 0.55” (6.4 x 2 x 1.4 cm)

Material ABS

Mounting 2 screw holes (0.165” [0.42 cm] diameter)

Tech Support 8:00am - 5:00pm Central Time

[phone] • [phone] P

www.winland.com

© 2012 Winland Electronics, Inc.

D-011-0115 Rev B (08/2012)

INTRODUCTION

Thank you for your purchase of the Winland Temp˚Alert® model TA-40. Your new Temp˚Alert® has been designed for
reliable monitoring of areas where low temperature limits are critical. Temp˚Alert® monitors and activates when the
temperature drops below 39.2˚ F (4˚ C).

LOCATION

It is difficult to precisely specify the location or quantity of TA-40s to install. A number of factors such as room size,
effectiveness of the ventilation system, and the likelihood of freezing should be considered. If the building already has
an energy management system, an easy rule of thumb is to install a TA-40 near each thermostat. When protecting a
building against freeze damage, always install at least one Temp˚Alert® on every level of the home or business.

INSTALLATION

Items needed:

• Either Standard or Phillips screwdriver

• Quantity of two (2) #6 Screws

• 22-18 AWG twisted pair

Step 1

Use the base of the TA-40 as a template and mark the position of the screw holes. Drill pilot holes if necessary.

Align the TA-40 with mounting holes and install the screws. Do not fully tighten screws at this time.

Step 2

Connect the TA-40 to your warning device by attaching an 22-18 AWG twisted pair cable to the terminals. Slide

the cover on and finish tightening the mounting screws.

Operation and Testing Procedures

The TA-40 must be located in an area where the temperature range is within -40˚ to 212˚ F (-40˚ to 100˚ C). Contacts
will remain closed at temperatures above 39.2˚ F (4˚ C). But if the temperature drops below 39.2˚ F (4˚ C) the
contacts will open to activate any hardwire alarm or wireless transmitter. The tolerance on this temperature switch is
±5.4˚ F.

To manually activate the TA-40 for testing purposes, place the device in a freezer for 10 minutes. Remove the TA-40
from the freezer; test the contacts with an ohmmeter to confirm they have opened.

To insure proper operation, test weekly.
