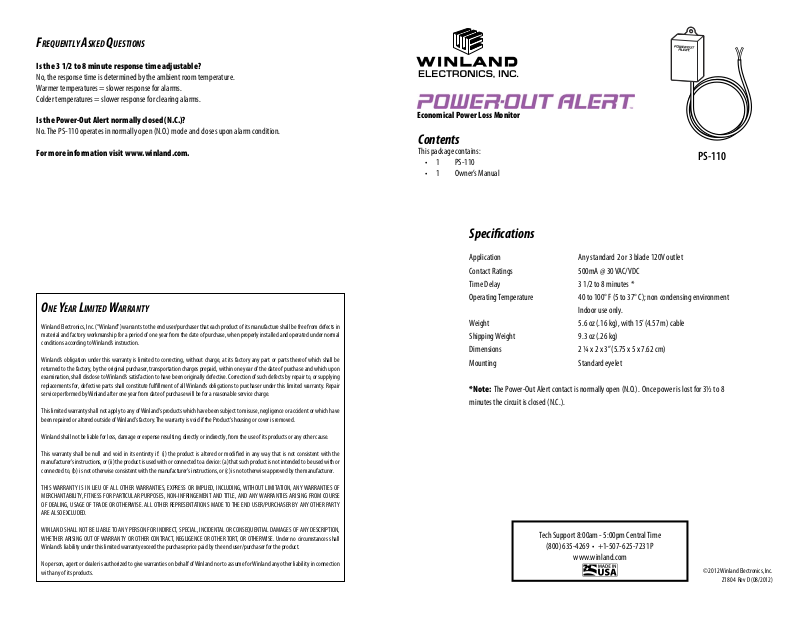

Page 1
Economical Power Loss Monitor
Contents
This package contains:
• 1 PS-110
• 1 Owner’s Manual
Specifications
Application Any standard 2 or 3 blade 120V outlet
Contact Ratings 500mA @ 30 VAC/VDC
Time Delay 3 1/2 to 8 minutes *
Operating Temperature 40 to 100° F (5 to 37° C); non condensing environment
Indoor use only.
Weight 5.6 oz (.16 kg), with 15’ (4.57 m) cable
Shipping Weight 9.3 oz (.26 kg)
Dimensions 2 ¼ x 2 x 3” (5.75 x 5 x 7.62 cm)
Mounting Standard eyelet
*Note: The Power-Out Alert contact is normally open (N.O.). Once power is lost for 3½ to 8
minutes the circuit is closed (N.C.).
PS-110
Tech Support 8:00am - 5:00pm Central Time
(800) 635-4269 • +1-507-625-7231 P
www.winland.com
© 2012 Winland Electronics, Inc.
Z1804 Rev D (08/2012)
Page 2
The PS-110 is designed to provide convenient reliable service. This compact, easy-to-use monitor plugs into any
standard 2-prong 120V AC outlet that requires monitoring. It has an attached 15’ (4.57 m) cable that wires into
remote warning devices such as alarm systems, telephone dialers or other emergency equipment.
When power to the monitored circuit is interrupted for more than 3½ to 8 consecutive minutes, the PS-110
activates alarms and dialers through a dry contact output. This time delay feature means that short power
outages (< 3½ minutes duration) will not cause the PS-110 to activate. As long as electrical power is restored
within 3½ minutes to the circuit which the PS-110 is monitoring, the unit will automatically reset itself to a
normal condition. Several PS-110s can be wired into a single warning system, making power failure monitoring
for an entire complex easy.
Screw Eyelet
To prevent accidental disconnection
Standard 2-Prong 120V Plug In
15’ (4.57 m) attached cable
Page 3
INSTALLATION
A standard screwdriver is all you need to install PS-110.
STEP 1
Disconnect AC Power
To prevent possible injury, shut off electrical power to the circuit by turning off the circuit breaker or removing the
circuit fuse.
STEP 2
Mounting
Plug the PS-110 into a working 2-prong 120V electrical outlet (this outlet should not be controlled by a wall switch).
Remove screw from the center of the outlet’s faceplate and attach the PS-110 with the eyelet and screw.
Note: DO NOT use an extension cord to increase the distance between the electrical outlet and the sensor.
STEP 3
Connecting Power-Out Alert
Connect sensor wires to the remote device being used to receive the warning signal from the PS-110.
STEP 4
Restore power to circuit
Restore electrical power to the circuit by turning the circuit breaker back on or by replacing the fuse. Wait
approximately 15 minutes for the sensor to become operational before continuing. (The time delay will vary
depending on the ambient room temperature.)
STEP 5
Testing
Manually activate the sensor for testing by interrupting the electrical power to the circuit by turning off the circuit
breaker or by removing the fuse for 3½ to 8 minutes. Within 3½ to 8 minutes of the loss of power, the PS-110 will
activate your remote device.
Note: Remember to disconnect the telephone line during testing if the PS-110 is connected to a security system
which incorporates a telephone dialer. Following this procedure will eliminate the possibility of a false alarm
whenever the unit is tested. When testing is complete, remember to reconnect the telephone line if the PS-110 is
connected to a security system which incorporates a telephone dialer.
To insure proper operation, test unit weekly.
Page 4
FREQUENTLY ASKED QUESTIONS
Is the 3 1/2 to 8 minute response time adjustable?
No, the response time is determined by the ambient room temperature.
Warmer temperatures = slower response for alarms.
Colder temperatures = slower response for clearing alarms.
Is the Power-Out Alert normally closed (N.C.)?
No. The PS-110 operates in normally open (N.O.) mode and closes upon alarm condition.
For more information visit www.winland.com.
ONE YEAR LIMITED WARRANTY
Winland Electronics, Inc. (“Winland”) warrants to the end user/purchaser that each product of its manufacture shall be free from defects in
material and factory workmanship for a period of one year from the date of purchase, when properly installed and operated under normal
conditions according to Winland’s instruction.
Winland’s obligation under this warranty is limited to correcting, without charge, at its factory any part or parts thereof which shall be
returned to the factory, by the original purchaser, transportation charges prepaid, within one year of the date of purchase and which upon
examination, shall disclose to Winland’s satisfaction to have been originally defective. Correction of such defects by repair to, or supplying
replacements for, defective parts shall constitute fulfillment of all Winland’s obligations to purchaser under this limited warranty. Repair
service performed by Winland after one year from date of purchase will be for a reasonable service charge.
This limited warranty shall not apply to any of Winland’s products which have been subject to misuse, negligence or accident or which have
been repaired or altered outside of Winland’s factory. The warranty is void if the Product’s housing or cover is removed.
Winland shall not be liable for loss, damage or expense resulting, directly or indirectly, from the use of its products or any other cause.
This warranty shall be null and void in its entirety if: (i) the product is altered or modified in any way that is not consistent with the
manufacturer’s instructions, or (ii) the product is used with or connected to a device: (a) that such product is not intended to be used with or
connected to, (b) is not otherwise consistent with the manufacturer’s instructions, or (c) is not otherwise approved by the manufacturer.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF
MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSES, NON-INFRINGEMENT AND TITLE, AND ANY WARRANTIES ARISING FROM COURSE
OF DEALING, USAGE OF TRADE OR OTHERWISE. ALL OTHER REPRESENTATIONS MADE TO THE END USER/PURCHASER BY ANY OTHER PARTY
ARE ALSO EXCLUDED.
WINLAND SHALL NOT BE LIABLE TO ANY PERSON FOR INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY DESCRIPTION,
WHETHER ARISING OUT OF WARRANTY OR OTHER CONTRACT, NEGLIGENCE OR OTHER TORT, OR OTHERWISE. Under no circumstances shall
Winland’s liability under this limited warranty exceed the purchase price paid by the end user/purchaser for the product.
No person, agent or dealer is authorized to give warranties on behalf of Winland nor to assume for Winland any other liability in connection
with any of its products.
