Winegard FL5000C User Manual

Model FL5000C

For help, call 1-800-788-4417
or email [e-mail].

Specifications

• For indoor use only

• Range of 25 miles

(performance may vary based on terrain and
obstructions)

• For high VHF & UHF channels

• Small, compact size

• Attached 15’ mini coaxial cable

• Includes 3M™ Command™ Brand Strips

• No assembly required

Setup

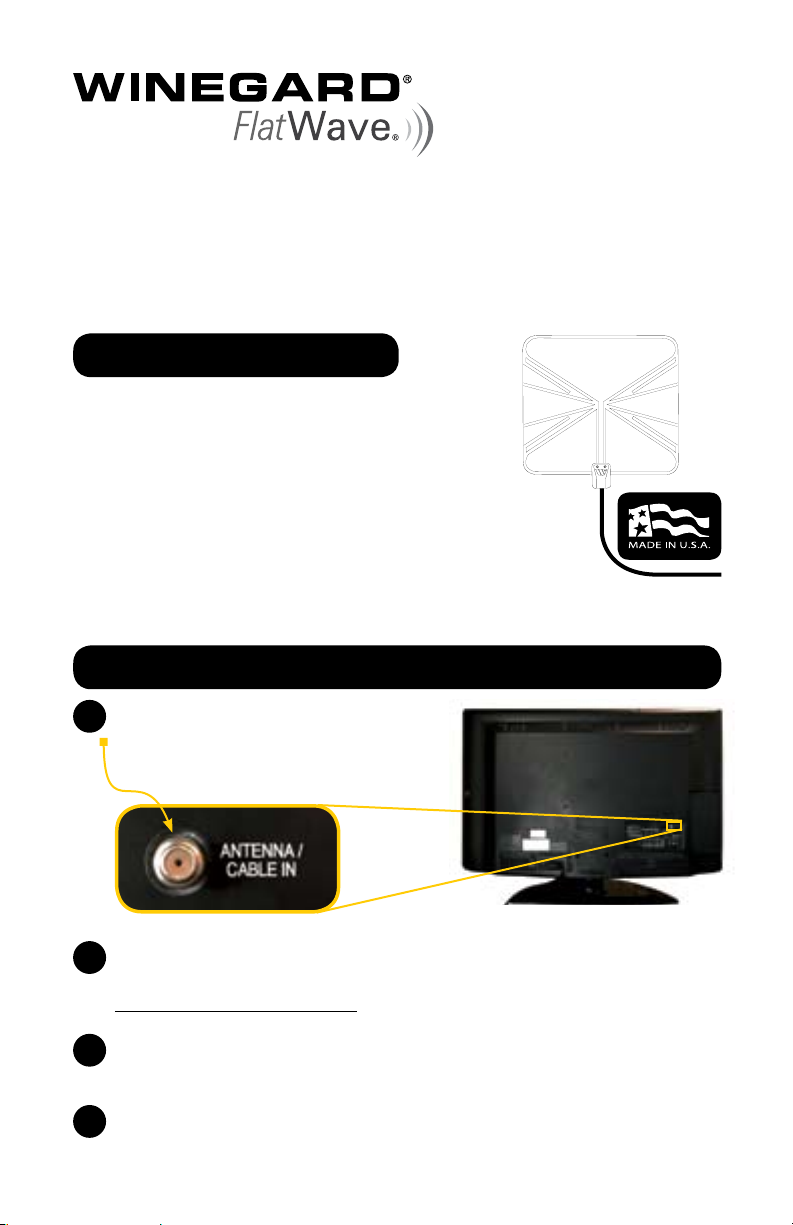

Connect the mini coaxial cable

1

to the “Antenna In” coaxial port
on the TV or compatible device.

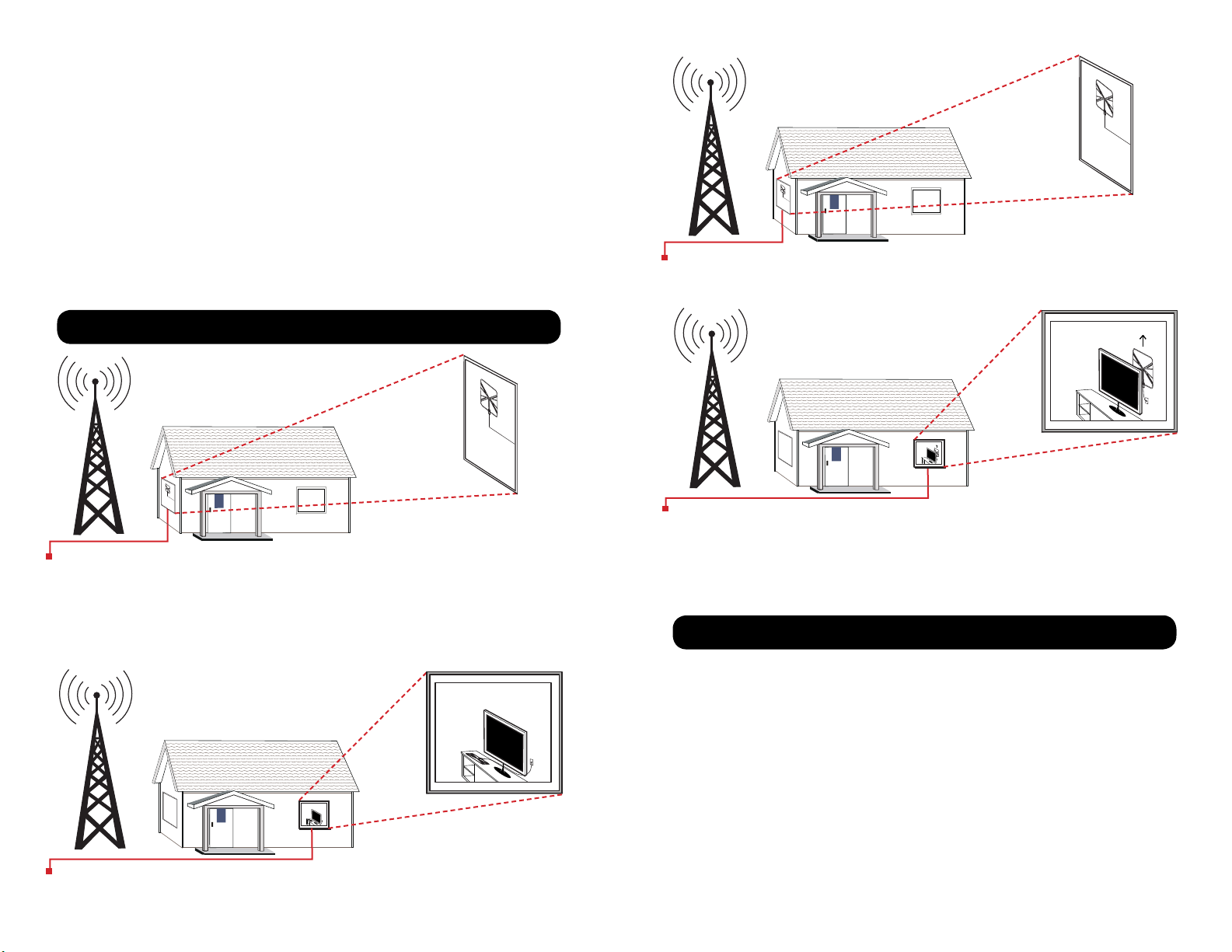

Position the antenna toward the broadcast tower for optimal

2

reception. (For a listing of likely channels available in your area, go online to

www.winegard.com/localchannels.)

Run a channel scan. To keep your channel line-up up-to-date, it is

3

a good idea to run a channel scan monthly.

4

The antenna may need to be repositioned. If so, run a channel
scan every time you reposition the antenna.

2452265

Once the best location has been determined, secure the antenna
with the provided command strips, which can be placed on any part
of the antenna.

If more coaxial cable is needed to mount the antenna in the desired
location, connect the 15’ mini coax cable to a female-to-female barrel
connector (Winegard model FS-8100), sold separately), and attach
additional coaxial cable.

Do not paint the FlatWave antenna. This could block signal and void
your warranty. Note that the antenna is not meant for use in an attic.

Tips for Maximizing Reception

Mount the antenna on a window that faces the broadcast tower of
stations that you want to receive. The sides of the antenna may not
“see” enough signal from the broadcast tower if the sides of the
antenna face the tower.

If the antenna is mounted so that it hangs vertically, the coax cable should
run from the top or bottom of the antenna.

Electronics may reflect the signal from the broadcast tower. If so, try
mounting the antenna higher on the wall, and run a new channel scan.
The higher the antenna, the better signal you will receive.

Questions & Answers

If the antenna is mounted so that it lies flat (e.g. on a table), the cable
should line up with the signal.

Q. What channels can the FlatWave antenna receive?
A. The FlatWave antenna may receive all available local programming.

The antenna can receive programming from all of the major local
broadcast networks (e.g. ABC, CBS, FOX, NBC, PBS) plus additional

networks (Qubo, ION, The CW, This TV, MyNetworkTV, Azteca,
Telefutura, Univision, and Telemundo). The FlatWave antenna can also
receive local news, weather and educational programs that satellite and
cable don’t offer. Reception varies by location.

Q. How can I find out what channels are broadcast in my area?
A. Check out www.winegard.com/localchannels. On this site, you can enter

your address and get a listing of likely channels available in your area.

Questions & Answers, Cont.

Troubleshooting

Q. Do I need to pay for programming?
A. No—local programming received through an over-the-air antenna is free!

Q. How many channels will I receive with the FlatWave antenna?
A. The number of channels will vary from location to location. Generally

speaking, if you live in or near a metropolitan area you will receive more
channels than if you live outside a metropolitan area. Each location is
different. Keep in mind that antenna reception may vary based on terrain
(including trees, buildings, hills and mountains). The fewer obstructions,
the better your chance for receiving strong digital signals.

Q. Does the FlatWave antenna work with any TV?
A. The FlatWave antenna works with any TV or device that has an

ATSC tuner. Devices that have built-in ATSC tuners include TVs,
laptops, PCs, some satellite receivers, and digital recording devices
(DVRs).

Any television manufactured after March 1, 2007 is required by

TIP

an option for scanning for digital channels, then your television has an
ATSC tuner.

Q. Can I connect the FlatWave antenna to multiple televisions?
A. No—the FlatWave antenna is designed to connect to a single

television. Splitting the signal between multiple TVs will degrade the
signal.

Q. Is there anywhere that the antenna shouldn’t be mounted?
A. The antenna is designed for indoor use only. The FlatWave antenna

is not meant to be mounted outdoors or in the attic.

U.S. government to have an ATSC tuner. If your TV menu has

Issue Possible Cause

I am not getting channels. Something may be obstructing the

signal. Try the antenna in a new
location. Try running a new channel
scan on the TV.

One channel is missing. Something may be reflecting the

signal. Try turning the antenna 10
or 20 degrees in either direction
to avoid reflection or to better
optimize the signal, or try moving
the antenna to a new location.
Make sure to run a new channel
scan on the TV every time you
move the antenna and from time to
time to maintain optimal reception.
Refer to the channel scan insert for
more information.

The picture or sound freezes
while I am watching a
channel, or there are boxes in
the picture.

This is often caused by a weak or
intermittent signal. Try moving
the antenna to a better location or
aiming it directly at the tower for
this channel.

Digital Television Facts

Your Winegard antenna is digital and HD ready. This means that the
antenna receives all available digital and HD local programming in
your area.*

Q. How do I know where the signal is strongest?
A. After connecting the coax cable from the FlatWave antenna to the

“Antenna In” port on the TV, run a channel scan. Try the antenna in
different locations, making sure to run a channel scan every time you
move the antenna. Finding TV signal is similar to cell phone coverage.
Sometimes walking a few feet can make a difference. The less
obstructions and the higher the antenna is mounted, the better chance
of receiving a strong signal.

The FlatWave antenna works with any TV or device with an ATSC
tuner. As more and more local networks are broadcasting their
programs in HD, you can experience your favorite shows in crisp,
clear FREE HD! You also have the ability to receive programming that
cable and satellite companies may not provide. It doesn’t get any
better than that!

*Antenna reception may vary based on transmitting antenna tower height, lobe pattern
of the transmitter, height of the receiving antenna, weather conditions and terrain on
receiving path including trees, buildings, hills, mountains, etc.
