Winegard DS-4248, DS-3118 User Manual
WINEGARD
®
HOME DIGITAL SATELLITE ANTENNA
Model DS-4248, DS-3118
SAFETY INFORMATION
WARNING:
WHEN INSTALLING THIS ANTENNA, AVOID
CONTACT WITH OVERHEAD POWER LINES,
LIGHTS AND POWER CIRCUITS. CONTACT
WITH POWER LINES, LIGHTS, AND CIRCUITS
MAY BE FATAL.
ANTENNA GROUNDING
The antenna and coax cable that connects to the receiver
are required to comply with local installation codes and
the appropriate sections of the National Electrical Code
(NEC), especially article 820.
MOUNT DISCLAIMER
To insure maximum safety, Winegard recommends
no roof or wall installations be attempted without a
professional engineer's structural analysis. Local zoning
and/or building codes and insurance companies may
require architect or structural engineering approval prior
to installation. It is the purchaser's responsibility to verify
that the above steps are taken.
Inspect the package and conrm that all parts are present.
If any parts are missing, please contact Winegard
Company at 1-800-288-8094.
PARTS LIST
CODE QTY PART # DESCRIPTION
A 1 2745265 18" (46 cm) Reector
B 1 2745441 Back-up/Feed Support Assy.
C not supplied RG-6 Coaxial Cable
D 1 2745404 Mount Pipe/Roof Bracket
E 1 2780197 Single LNBF Models Only
1 2780185 Dual LNBF Models Only
1 2762417 Hardware Package
HARDWARE PACKAGE PART #3762449
CODE QTY PART # DESCRIPTION
[1] 4 2160228 1/4-20 Hex Nut
[2] 4 2160340 1/4-20 x 5/8" Carriage Bolt
[3] 1 2160217 10-32 Flange Hex Nut
[4] 1 2160346 10-32 x 1-1/4" Carriage Bolt
Printed in U.S.A. Winegard Co. • 3000 Kirkwood St. • Burlington, IA 52601-2000 • 319/754-0600 • FAX 319/754-0787 ©Winegard Co. 2002, 2005 2451687 Rev2, 2/12
ANTENNA ASSEMBLY
STEP 1. Assemble antenna as shown in Figure 1,
except for LNBF and base/tube assembly.
STEP 2. Feed coaxial cable(s) through feed arm as
shown in Figure 1.
STEP 3. Attach LNBF to feed arm. See Figure 1.
SITE SELECTION
STEP 1. Using the digital satellite receiver determine
your azimuth (direction) and elevation. Refer to receiver
manual to perform this step.
STEP 2. After you have determined your azimuth and
elevation step outside to nd the best location for the
antenna. You will need a compass and a protractor or
another means of determining elevation. Remember
that the antenna must have a clear line-of-sight to the
satellites. See Figure 2. The satellite signal will NOT
travel through buildings, heavy tree cover and other
obstructions.
FIGURE 1
A
FIGURE 2
B
INSTALLATION
STEP 1. After conrming that you have a clear line-of-
sight from where you wish to mount the antenna, you
must determine how you are going to mount the antenna
and run your coax downlead to your receiver. Figure 3
shows a typical home installation. As indicated in the
gure, you must ground both the antenna and the coax
downlead before it enters your home. You can order all
the accessories through Winegard or they can be found
at most hardware stores.

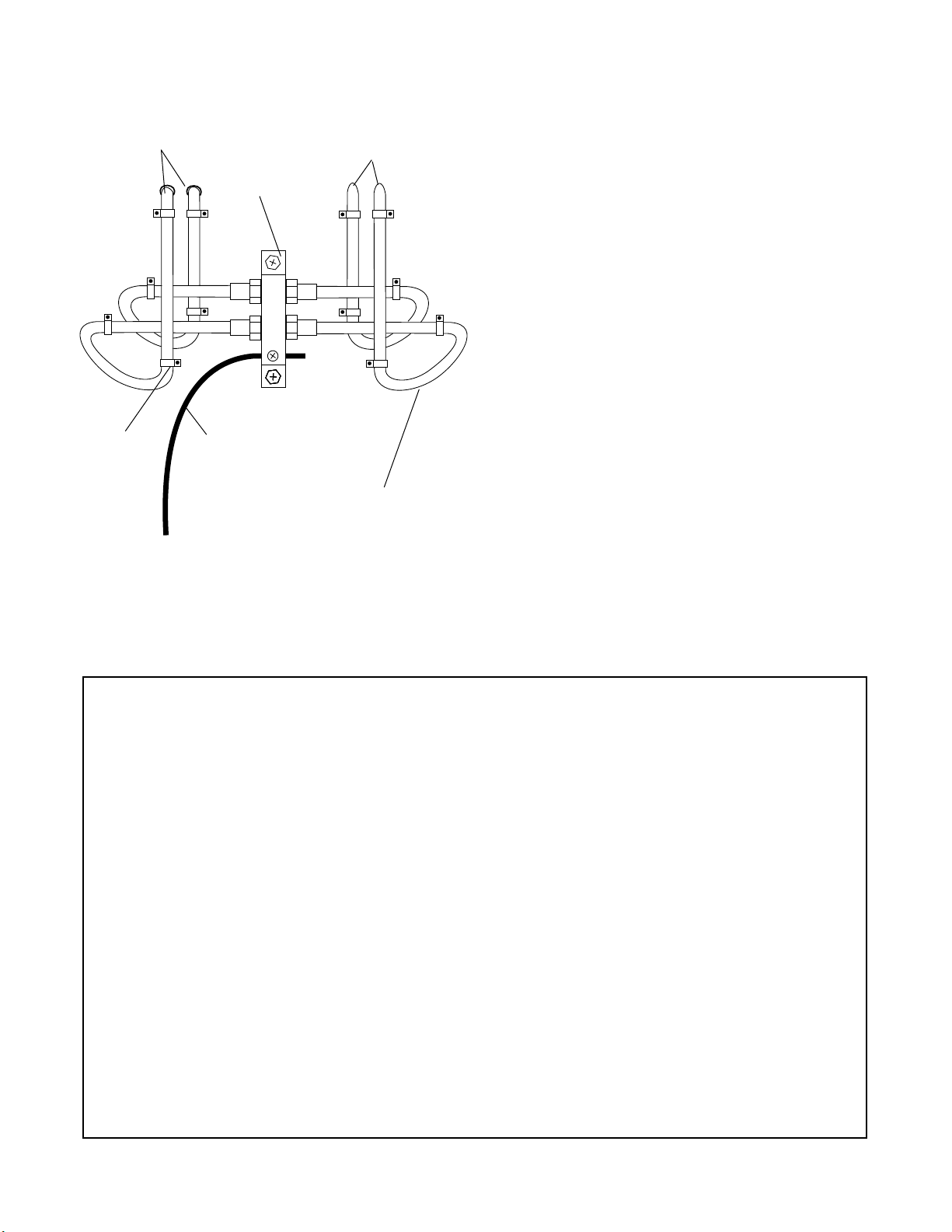

FIGURE 3
Antenna
SW-0030
Cable Clips
GB-8100 (single)
GB-8200 (dual)
Ground Block
GK-4025
Ground Wire
GR-0004
Ground Rod
Receiver
TV
STEP 3. Adjust mount pipe so that it is plumb vertically.
See Figure 5.
FIGURE 5
90o VERTICAL
STEP 4. Set antenna onto mount pipe. See Figure 1.
STEP 5. Feed coaxial cable(s) up through the mount
pipe and through the LNBF feed. See Figure 1.
STEP 6. Attach coaxial cable(s) to LNBF. See Fig. 1.
STEP 7. Attach LNBF to antenna. See Figure 1.
STEP 8. Set elevation on antenna; align colored edge
of clamp with degree marking. See Figure 6.
STEP 9. Run coax cable to point where you plan to
enter the house. Be sure to secure the cable so that
it will not ap in the wind (Cable Clips Model SW-0030
are ideal for this task).
[2]
E
[3]
[4]
NOTE: The DS-4248/DS-3118 satellite dish and LNB are
compatible with the DISH® DISH 300 system and DIRECTV®
satellite systems.
This unit may be used with:
DISH Satellites: 61.5o, 110o, 119o, 129o, 148
DIRECTV Satellites: 101o, 119
Bell TV™ Satellites: 82o, 92
o
o
o
[2]
[1]
D
STEP 2. Attach the mount foot to wall (roof, mast, etc.,)
making sure that the mount foot is vertical (90o). See
Figure 4. Attach ground wire to mount foot (wrap wire
between bolt/lag screw and mount foot).
C
FIGURE 4
6" Level
o
90
Vertical
FIGURE 6
Elevation
Bolts
with look angle value
Azimuth
Angle
Bolts
Align locating edge
(38° shown)
NOT GOOD CORRECT NOT GOOD
