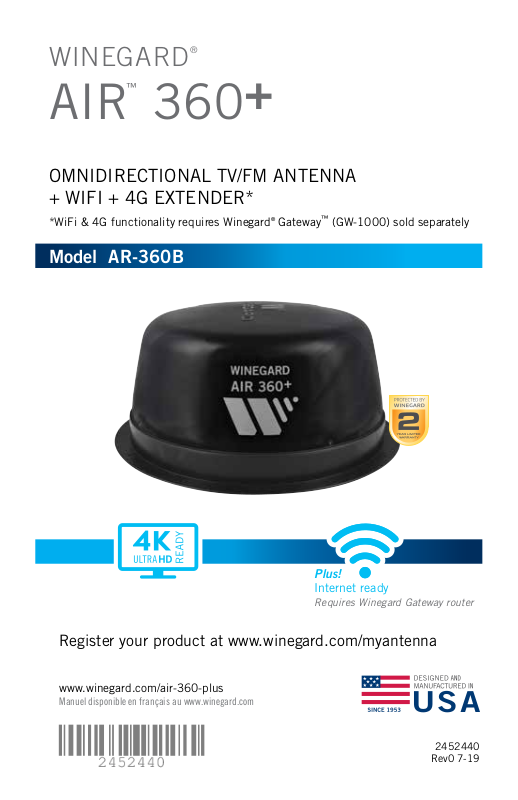

Winegard AR-360B User Manual

WINEGARD

®

AIR™ 360

OMNIDIRECTIONAL TV/FM ANTENNA
+ WIFI + 4G EXTENDER*

*WiFi & 4G functionality requires Winegard® Gateway™ (GW-1000) sold separately

Model AR-360B

+

Plus!
Internet ready

Requires Winegard Gateway router

Register your product at www.winegard.com/myantenna

www.winegard.com/air-360-plus

Manuel disponible en français au www.winegard.com

2452440

Rev0 7-19

Welcome

Thank you for purchasing the Winegard® Air™ 360+ and trusting Winegard to
bring connectivity solutions to you while on the go. This product, combined
with the Winegard® Gateway™ will provide you more freedom when choosing
where to adventure, all while bringing the comforts of TV and secure internet
to you and your devices.

Before installing or operating please read these instructions completely and
carefully. Failure to follow these instructions could cause damage to the
product and/or RV.

If you have any questions or need help, email [e-mail] or call
1-800-320-9992.

Contents

Welcome .....................................................................................1

Contents ..................................................................................... 1

Specifications/Features ................................................................2

Parts Included ............................................................................. 2

Product Information ..................................................................... 3

Installation Instructions ................................................................4

TV Antenna Operation ................................................................10

Troubleshooting .........................................................................12

Warranty Statement ...................................................................13

Disclaimer
Although every effort has been made to ensure that the information in this manual is correct and
complete, no company shall be held liable for any errors or omissions in this manual. Changes
and technological advances are continuously being made in the over-the-air and wireless market.
Information provided in this manual was accurate at time of printing. If the Winegard Air 360+
or Gateway do not function as expected, please contact Winegard Company at 1-800-320-9992,
email [e-mail], or visit our website at www.winegard.com.

–1–

Specifications/Features

8.05

• Designed for RV use

• Durable UV and weather resistant

• 360° Signal Reception

• High Definition VHF/UHF Digital
Signals

• ATSC 3.0 Ready

• Amplified

• State of the art pHEMT technology
with 4G LTE Filter

• Range – Up to 55 miles*

• Height – 8.05”

• Diameter of dome – 18.2”

*Antenna mileage figures based on
average terrain. Actual receiving distance
will vary based on transmitting power,
transmitting antenna tower height,
global pattern of transmitter, height of
receiving antenna, weather conditions, &
terrain between receiving path including
trees, buildings, hills, mountains, etc.

Parts Included

• Frequency Range:

–

VHF 54 to 216 MHz

–

UHF 470 to 700 MHz

–

FM 87.5-108 MHz

• Gain – 18 dB

• Noise – 1 dB

• Impedance – 75 ohms

• Power Supply – DC 12V

• (1) WiFi antenna**

• (2) LTE antennas**

** For use with the Winegard Gateway

8.05” Ht.

18.2” Dia.

Tools needed for installing (not included) – Butyl Tape, Pencil, Scissors,
Hole Saw, Drill, Phillips Screwdriver, Crimping Tool, 18AWG Power Wire

Wall plate

screw (2)

Barrel crimp
splice

Terminal
insulator (2)

Coax to audio

cable

Cable tie (1) not shown

Prewire
hole cover

Dome

10' Power

cable

–2–

Mounting
screw (10)

Winegard
antenna power
supply/wall plate
w/hardware

20' Coax

cable

Power switch
into wall plate

OPTION 3 - GATEWAY ON CEILING

Product Information

The Winegard® Air™ 360+ system will bring in over-the-air local broadcast
television out of the box but has also been designed with the ability to work
with the Winegard Gateway as a WiFi and 4G LTE Extender. It is not intended
to work with any other router system.

The Air 360+ is designed for RVs with a roof-radius of 230 inches to flat and
with a maximum 7 inch roof thickness.

The Air 360+ allows the Winegard Gateway
inside the dome of the antenna or on the ceiling of the RV. For better
performance, it is recommended to install on the ceiling of the RV shown in
Option A below, however either option is acceptable.

The Air 360+ can replace another TV antenna and can utilize the coax cable
that has already been installed. If doing this, you must ensure the coax
runs to the Winegard antenna wall plate/power supply and, if the Winegard
Gateway is to be installed, that the power cable is routed to the Gateway wall
plate/power supply.

It is recommended to install the Air 360+ before attempting to install the
Gateway™ system. Winegard recommends installing the Gateway directly
under the Air 360+. Once the Air 360+ has been installed, there are two
requirements to finding a location on the RV ceiling for installation: +12VDC
must be present, and the three WiFi/4G antenna cables from the Air 360+
must be able to reach the connection points on the Gateway router.

™

to be installed in two locations;

A. Ceiling Mount Install (Recommended)

Compatible with roof radius

COMPATIBLE WITH ROOF RADIUS OF 230 INCHES TO FLAT

of 230 inches to flat

OTA cable

OTA CABLE

WiFi power cable

+12V DC

3A FUSE RECOMMENDED

TV out 2

TV OUT 2

TV OUT 1

TV out 1

PARK CABLE IN

Park Cable in

+12V DC

3A fuse

recommended

TO ANT IN

To Ant in

RED WIRE - TO SWITCH

Red wire to switch

Black wire to ground

BLACK WIRE - TO GROUND

Ant in

ANT IN

+12V DC

+12V DC

GROUND

Ground

1" hole in roof

1" HOLE IN ROOF

WIFI POWER CABLE

Ethernet cable (optional)

ETHERNET CABLE (OPTIONAL)

–3–

WIFI/4G CABLES

WiFi/4G cables

7" max roof thickness

7" MAX ROOF THICKNESS

GATEWAY

Gateway

PREWIRE HOLE COVER

Prewire hole cover

*Must be below outdoor unit

*MUST BE BELOW OUTDOOR UNIT

1" HOLE IN CEILING*

1" hole in ceiling*

OPTION 4 - GATEWAY IN DOME

Product Information cont.

B. Air 360+ In Dome Install

Compatible with roof radius

COMPATIBLE WITH ROOF RADIUS OF 230 INCHES TO FLAT

of 230 inches to flat

1" hole in roof

1" HOLE IN ROOF

OTA cable

OTA CABLE

WiFi power cable

WIFI POWER CABLE

+12V DC

3A FUSE RECOMMENDED

To Ant in

TV out 2

TV OUT 2

TV out 1

TV OUT 1

Park Cable in

PARK CABLE IN

+12V DC

3A fuse
recommended

TO ANT IN

RED WIRE - TO SWITCH

Red wire to switch

BLACK WIRE - TO GROUND

Black wire to ground

ANT IN

Ant in

+12V DC

+12V DC

GROUND

Ground

Gateway

GATEWAY

7" max roof thickness

ETHERNET CABLE (OPTIONAL)

Ethernet cable (optional)

7" MAX ROOF THICKNESS

Installation Instructions

Safety Recommendations

Do not attempt to install this system in the rain or under any wet conditions.

Do not paint this antenna. Painting the antenna will void the warranty.

Before mounting the antenna, determine locations for both the TV antenna
wall plate/power supply and Gateway wall plate/power supply. Keep in mind
the following:

• Coaxial cables will have to run from the power supply to the antenna and

from the power supply to each television.

• If using the Air 360+ to receive FM stations, an additional coax cable

(not provided) will have to run from the wall plate to the coax to audio cable
(provided) and into the radio.

• Coax cables will have to be routed through the roof directly under the

perimeter of the antenna. It will not seal correctly for the cables to exit under
the flange. Failure to install correctly could cause damage to the antenna and
possibly the RV.

• A 12 V connection must be made to the back of both power supplies.

–4–

Installation Instructions cont.

• The Winegard® Gateway™ can always be installed later, however it is

recommended to run the power cable to the intended mounting location of
the Gateway router.

Choose a location for the antenna that meets the following requirements:

• Offers enough support for a secure installation

• Maintains adequate clearance from the edge of the roof and any

obstructions:
– clearance distance of 24 inches needed from center of antenna to front of

the vehicle.
– clearance distance of 18 inches needed from center of antenna to nearest

obstruction and to the edge of the roof.

18"

24"

Front of vehicle

Step 1 – Remove the dome of the antenna by unscrewing the 4 Phillips screws
on the side of the dome. Carefully remove the dome and set it on its side as a
coax cable is connected to the antenna attached to the roof of the dome.

Step 2 – Place the base of the antenna in the location you intend to mount
with the flange indicating FRONT facing the front of the vehicle. Next, with a
pencil, trace around the base of the unit and the cable pass-thru hole that the
coax cable exits. Remove the base from this location.

Top of antenna

18"

Obstruction



Trace antenna base and

FRONT

Front of vehicle

cable pass-thru hole

> If installing the Winegard Gateway on the RV ceiling continue to Step 3.
> If installing the Winegard Gateway in the dome of the Air

to Step 11.

–5–

™

360+ continue

O

Gateway Ceiling Mount Installation (recommended)

N

O

T

R

Step 3 – Where the cable pass thru
hole was traced, drill, using a hole
saw, a 1"-1½" diameter hole through
the roof and ceiling of the vehicle.
Be careful not to damage any wiring
between the roof and ceiling.

Figure 1

U

R

H

T

S

S

A

P

E

L

B

A

C

Do not exceed 1½".

Step 4 – Replace the dome. Verify
the dome holes align with the base
holes. Ensure the dome and gasket

M

are completely tight and screw in the
four Phillips screws.

Step 5 – Connect the provided 20’ coax
cable to the coax cable that exits the base
of the Air 360+. If replacing an existing antenna, connect the coax cable that
is already ran to the coax cable that exits the base of the Air 360+.

Step 6 – Feed all 4 cables (Coax, Yellow, Green, and Red) into the roof of the RV.

Note: The coax cable will need routed wherever the antenna wall plate/power
supply is going to be installed.

F

L

N

R

R

E

A

Step 7 – It is recommended to use Butyl tape (not included) for extra
protection under the entire base flange before screwing to the roof. Reposition
the base of the antenna in the location you intend to mount with the flange
indicating FRONT facing the front of the vehicle. Screw in 6 mounting screws
into the 6 mounting holes around the flange of the base and into the roof.

Step 8 – Next, add approved sealant (check with RV Manufacturer) completely
around the flange base and over each screw.

WARNING: Ensure the gasket of the dome is complete sealed and that there

are NO gaps between the sealant and the base of the Air 360+. Failure to do
so could lead to water damage in the RV.

> If planning to install the Winegard Gateway now or at a later time:

Step 9 – Run the Gateway power cable from the hole where the three
antenna cables (Yellow, Green, and Red) enter the ceiling of the RV to the
predetermined location of the Gateway wall plate/power supply. The white
connector of this power cable should be at the same location as the Yellow,
Green, and Red connectors. The Winegard Gateway will use this power cable.
The bare wires of this power cable should be routed to where the On/Off
switch will be for the Winegard Gateway extender.

–6–

Gateway Ceiling Mount Installation (recommended) cont.

> If installing the Winegard® Gateway™ now, please review the Winegard

Gateway installation manual followed by reviewing the Power Supply
Installation on page 8 of this manual.

> If installing the Gateway at a later time continue to

Step 10.

Step 10 – Zip tie (provided) the prewire power cable
along with the 4G LTE and WiFi cables (Yellow, Green,
and Red) to the notch on the backside of the white
prewire hole cover shown in figure 2. Make sure all
the cables are inside the ceiling and screw the white
prewire hole cover with 2 white screws (provided)
into the ceiling.

Figure 2

Continue to the Power Supply Installation section of this manual.

Gateway In Dome Mount Installation

Step 11– Using a hole saw, drill a 1"­1½" diameter hole through the roof
of the vehicle. Do not drill into the
ceiling and be careful not to damage
any wiring between the roof and
ceiling. Do not exceed 1½".

Figure 3

U

R

H

T

S

S

A

P

E

L

B

A

C

N

O

T

R

F

C

B

A

1

2

3

D

Step 12– Pull the Yellow, Green, and
Red Cables into the dome from the
Cable Pass Thru hole. Secure the
Yellow cable into the A, B, C, and
D clips. Do the same for the Green
cable into the E, F, G, and H clips.

E

H

I

G

F

K

J

Continue clipping in the Red cable
into the I, J, and K clips. See figure 3.

R

R

E

A

Step 13 – Next, using the provided cable tie, zip tie the Gateway prewire
power cable, around 3 inches from the white connector, to tab O in figure 1
on page 6. With scissors, clip off the excess cable tie after the power cable is
secured. Route this cable into the hole drilled into the roof of the vehicle all
the way to the predetermined location of the Gateway wall plate/power supply.
The Winegard Gateway will use this power cable. The bare wires of this power
cable should be routed to where the On/Off switch will be for the Winegard
Gateway extender.

–7–

Gateway In Dome Mount Installation cont.

> If installing the Winegard Gateway now, please review the Winegard Gateway

installation manual followed by reviewing the Power Supply Installation on
page 9 of this manual.

> If installing the Gateway at a later time continue to Step 14.

Step 14 – Replace the dome. Verify the dome holes align with the base holes.
Ensure the dome and gasket are completely tight and screw in the four
Phillips screws.

Step 15 – Connect the provided 20' coax cable to the coax cable that exits the
base of the Air 360+. Feed this cable through the hole drilled in Step 11 and
route the cable to where the antenna wall plate/power supply will be located.
If replacing an existing antenna, connect the coax cable that is already ran to
the coax cable that exits the base of the Air 360+.

Step 16 – It is recommended to use Butyl tape (not included) for extra
protection under the entire base flange before screwing to the roof. Reposition
the base of the antenna in the location you intend to mount with the flange
indicating FRONT facing the front of the vehicle. Screw in 6 mounting screws
into the 6 mounting holes around the flange of the base and into the roof.

Step 17 – Next, add approved sealant (check with RV Manufacturer)
completely around the base and over each screw.

WARNING: Ensure the gasket of the dome is complete sealed and that there

are NO gaps between the sealant and the base of the Air 360+. Failure to do
so could lead to water damage in the RV.

Continue to the Power Supply Installation section of this manual.

–8–

Power Supply Installation – TV Antenna

WARNING: The power supply should be turned off when connecting cables.

Indicator

light

Coaxial
port for
main TV

Step 1 – The power supply may be flush mounted in most standard electrical
boxes. To flush mount, cut a hole in the wall to fit the box. Run two #12 wires
between the wall plate and +12 VDC source, and route downlead cable to this
location.

Step 2 – Make a 12 volt connection from the RV to the power supply. Install
the supplied terminals on wires from +12 VDC source, and crimp the
terminals with an appropriate crimping tool.

Step 3 – Push the wires onto tabs on the back of the power supply. (“PWR”
and “GND” are also noted on the underside of the power supply electronics
board).

Step 4 – Connect the coax cable from the antenna to the “ANTENNA” port on
the power supply, and tighten until fingertight. Then, tighten ¼ turn more.

Step 5 – If hooking up the antenna to two televisions, connect a coax cable
from the “SET 2” port to the “Antenna In” port on the second television.

If hooking up a cable input, connect the cable input to the “CABLE” port on
the power supply.

Step 6 – Mount the power supply in wall with the provided screws.

Step 7 – Connect a coax cable from the coax port on the front of the power

supply to the “Antenna In” coax port on the main TV.

Step 8 – Press the “ON” switch on the front of the power supply, and check
that the wall plate indicator light is on.

This unit is equipped with a polyswitch, which will shut down +12 VDC if
there is a direct short between the antenna and power supply. The indicator
light will not light. Once the short is eliminated, the device will reset itself.

On/Off
button

–9–

Antenna
port

Power &
Ground
tabs

Set 2

port

Cable

port

Power Supply Installation – Gateway

Winegard® Gateway™

The Winegard Gateway is compatible with
the Winegard Air 360+ ONLY. It is the
accompanying piece to take your Air 360+
to the next level in Connectivity. For more
information please visit www.winegard.com
to find a dealer in your area.

Step 1 – Choose a location to install the

GW-1000

supplied Wall Plate with Power On/ Off switch.
When selecting a location, remember that a +12VDC power cable will need
to be run from the Gateway to the switch.

Step 2 – For a wall or panel mount, drill or use a hole saw to create a 1¼”
hole. Pull the Gateway’s power cable and the RV’s power wire through the wall
or panel.

Step 3 – Be sure the switch is in the OFF position before continuing. Slide the
power switch into the wall plate.

Step 4 – Connect the +12V power wire from the

ON

vehicle to a small red terminal insulator. Crimp
the connector.

Step 5 – Connect this small red terminal insulator

On/Off rocker
switch (shown in
OFF Position)

to the isolated spade of the power switch.

Step 6 – Connect the red wire from the Gateway’s
power cable to the other small red terminal
insulator. Crimp the connector.

+12 V

from

vehicle

+12 V
from Air

+

360

Step 7 – Connect this small red terminal insulator
to the middle spade on the switch.

Barrel crimp splice

Step 8 –Slide the ground wire from the vehicle
into one end of the barrel crimp splice, and slide
the black ground wire from the Gateway’s power
cable into the opposite end of the splice. Crimp
the splice.

Step 9 – Mount the wall plate to the wall or panel
with the two supplied wall plate screws.

Power switch into
wall plate

–10–

TV Antenna Operation

Scan. Watch.

Perform Channel Scan:
Select Menu, then
Channel Search

First time users must run a channel scan to receive maximum programming.

Ensure the antenna power supply (wall plate) is in the “ON” position and the
green indicator light is illuminated.

A new scan will find any new channels that have been added in your area as
well as finding any channels that have changed or moved since the last scan.

While the steps to perform a channel scan may vary between televisions or
compatible devices, here are some general guidelines to follow.

– Using the television remote, select “Menu” and then “Settings.”

– Select “Channel Setup.”

– Select “Antenna” or “Air,” depending on your

TV. Make sure you are not on “Cable.”

– Select “Channel Search” or “Channel Scan.”

Keep in mind that steps to perform a channel
scan may vary. If the wording in your TV differs
from the options shown, refer to your TV user
manual for help.

Running a channel scan is NOT the same as
pressing Channel UP/DOWN on your remote.

To receive maximum programming, you have to run
a channel scan after setting up the antenna. To
keep your channel line-up up-to-date, it is a good
idea to run a channel scan monthly, anytime a
channel is lost, and anytime you change locations.

Scan monthly
for programming
updates.

Power indicator light is
green when power is on.

Power button

Note: Refer to Gateway manual for operation instructions.

–11–

Winegard App TV Signal Finder with AR

FREE DOWNLOAD

Finding your favorite TV programming has never been
easier! Using your current location, the app searches
for all available signals and determines the correct

antenna positioning.

Antenna Pointer – Use the top-down map view to
locate all HDTV towers closest to your address or
GPS location. Eliminate signal obstructions such as

trees, hills, and buildings by switching to the AR view.
Simply point your phone to the horizon and rotate 360
degrees to bring into view your desired TV tower and
find where the local channels are in your location. The
number displayed above a tower indicates the number

of channels available. Tap the tower icon to see full
channel details.

Avoid obstructions with the augmented reality (AR)* view.

*May not work on smartphones without sensors.

–12–

Troubleshooting

WARNING: Do NOT install couplers, splitters, etc. between the power supply

and the antenna. Installation of any item on the downlead may cause a short
in the system. The downlead supplies +12 VDC to the preamp in the antenna.

What to do when your RV/TV antenna is not working properly:

TO TEST SYSTEM

Step 1 – Make sure TV set is working properly.

Step 2 – Switch power supply ON and OFF watching for difference in picture

quality. If there is NO difference, use following steps:

CAUTION: The power supply should be turned OFF when connecting/

disconnecting cables to power supply and antenna, but should be turned
ON when testing for voltage.

Step 3 – Disconnect cable
from antenna and check for
+12 VDC at Test Point #1.

TEST POINT #1

+12 VDC at Antenna

2ND Set

No +12 VDC
at this point

If there is +12 VDC, the
power supply is OK. Replace
antenna.

Step 4 – If there is NO
+12 VDC at Test Point #1,
reconnect cable to antenna.
Remove power supply from
wall and visually inspect for
burned/broken parts. If there
are ANY broken/burned

+12 VDC
at
Antenna
Jack

TEST
POINT #2

Set 2
Connection

parts, replace power supply.

Step 5 – Disconnect cable
from antenna jack on power
supply. Check for +12 VDC
at Test Point #2. If +12

White
GND.

Red
+12 VDC

VDC is present, there is a cable problem connecting the power supply to the
antenna. Repair/replace cable.

Step 6 – If +12 VDC is not present at Test Point #2, be sure the green
indicator light is ON. If not, check the polarity of the red/white wires and the
+12 VDC source. If there is still no +12 VDC, replace power supply.

–13–

WINEGARD MOBILE PRODUCTS LIMITED WARRANTY

(2 YEARS PARTS; 1 YEAR LABOR)

Winegard Company warrants this product against defects in materials or workmanship for a period of two (2) years from

the date of original purchase. During year one (1) of such warranty, Winegard Company will also pay authorized labor

costs to an authorized Winegard dealer to repair or replace defective products. No warranty claim will be honored unless

at the time the claim is made, Customer presents proof of purchase to an authorized Winegard dealer (to locate the

nearest authorized Winegard dealer, contact Winegard Company, 3000 Kirkwood Street, Burlington, Iowa 52601, Telephone

800-288-8094 or visit www.winegard.com). Customer must provide proof of purchase with a dated sales receipt for the
Winegard product to verify the product is under warranty. If the date of purchase cannot be verified, the warranty period

If a defect in material or workmanship is discovered, Customer may take the product to an authorized Winegard dealer
for service. Customer must provide proof of purchase to verify the product is under warranty. If the product is brought to
an authorized Winegard dealer for service prior to expiration of year one (1) of the warranty period and a defect in material
or workmanship is verified by Winegard Technical Services, Winegard Company will cover the Winegard dealer’s labor
charges for warranty service. The Winegard dealer must contact Winegard Technical Services in advance for pre-approval
of the service. Approval of the service is at the sole discretion of Winegard Company.

Alternatively, Customer may ship the product prepaid to Winegard Technical Services (located at 2736 Mt. Pleasant
Street, Burlington, Iowa 52601, Telephone [phone]). Customer must return the product along with a brief
description of the problem and provide Winegard Technical Services with Customer’s name, address, and phone number.
Customer must also provide proof of purchase to verify the product is under warranty. If the product is returned before the
expiration of the warranty period, Winegard Company will (at its option) either repair or replace the product.

This Limited Warranty does not apply if the product has been damaged, deteriorates, malfunctions or fails
from: improper installation, misuse, abuse, neglect, accident, tampering, modification of the product as originally
manufactured by Winegard in any manner whatsoever, removing or defacing any serial number, usage not in accordance
with product instructions or acts of nature such as damage caused by wind, lightning, ice or corrosive environments
such as salt spray and acid rain. This Limited Warranty also does not apply if the product becomes unable to perform its'
intended function in any way as a result of the television signal provider making any changes in technology or service.

A Return Material Authorization (RMA) is required prior to returning any product to Winegard Company or Winegard
Warranty Services under this warranty policy. Please call our Technical Services Department at 800-788-4417 or send an
email to [e-mail] to obtain the RMA number. Please furnish the date of purchase when requesting an
RMA number. Enclose the product in a prepaid package and write the RMA number in large, clear letters on the outside
of the package. To avoid confusion or misunderstanding, a shipment(s) without an RMA number(s) or an unauthorized
return(s) will be refused and returned to Customer freight collect.

WINEGARD COMPANY DOES NOT ASSUME ANY LIABILITIES FOR ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, MADE BY
ANY OTHER PERSON.

ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING WARRANTIES OF FITNESS FOR A
PARTICULAR PURPOSE AND MERCHANTABILITY ARE LIMITED TO THE TWO YEAR PERIOD OF THIS WARRANTY.

In states that do not allow limitations on implied warranties, or the exclusion of limitation of incidental or consequential
damages, the above limitations or exclusions do not apply.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of limitation of incidental
or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives Customer specific legal rights. Customer may also have other rights that may vary from state to
state.

shall be considered to begin thirty (30) days after the date of manufacture.

RETURN AUTHORIZATION POLICY

SATELLITE RECEIVER WARRANTY

See manufacturer’s limited warranty policy.

WS-MOBWARREV3

–14–

Winegard Company • 2736 Mt. Pleasant Street • Burlington, IA 52601 • 1-800-288-8094

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store
is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play
logo are trademarks of Google LLC. Winegard is a registered trademark of Winegard Company.
Printed in U.S.A. ©2019 Winegard Company Rev0 7-19 2452440

• Fax [phone] • www.winegard.com
