Windy Nation Solar Panel Charge Controller User Manual
CHC-1224-xx User Manual
Revision 2.0
Solar Panel Charge Controller
User’s Manual
CHC-1224-10
CHC-1224-30
Page 1 of 12
windynation
05/06/2014
CHC-1224-xx User Manual
Revision 2.0
Table of Contents
1 Introduction .................................................................................................................................................. 3
1.1 Features ..................................................................................................................................................... 3
1.2 System Diagram ......................................................................................................................................... 3
1.3 Safety Information ...................................................................................................................................... 4
1.4 Specifications ............................................................................................................................................. 4
1.4.1 Electrical Sp ec ifications .......................................................................................................................... 4
1.4.2 Physical Spec ifications ........................................................................................................................... 4
2 Installation .................................................................................................................................................... 4
2.1 Electrostatic (ESD) Precautions ................................................................................................................. 4

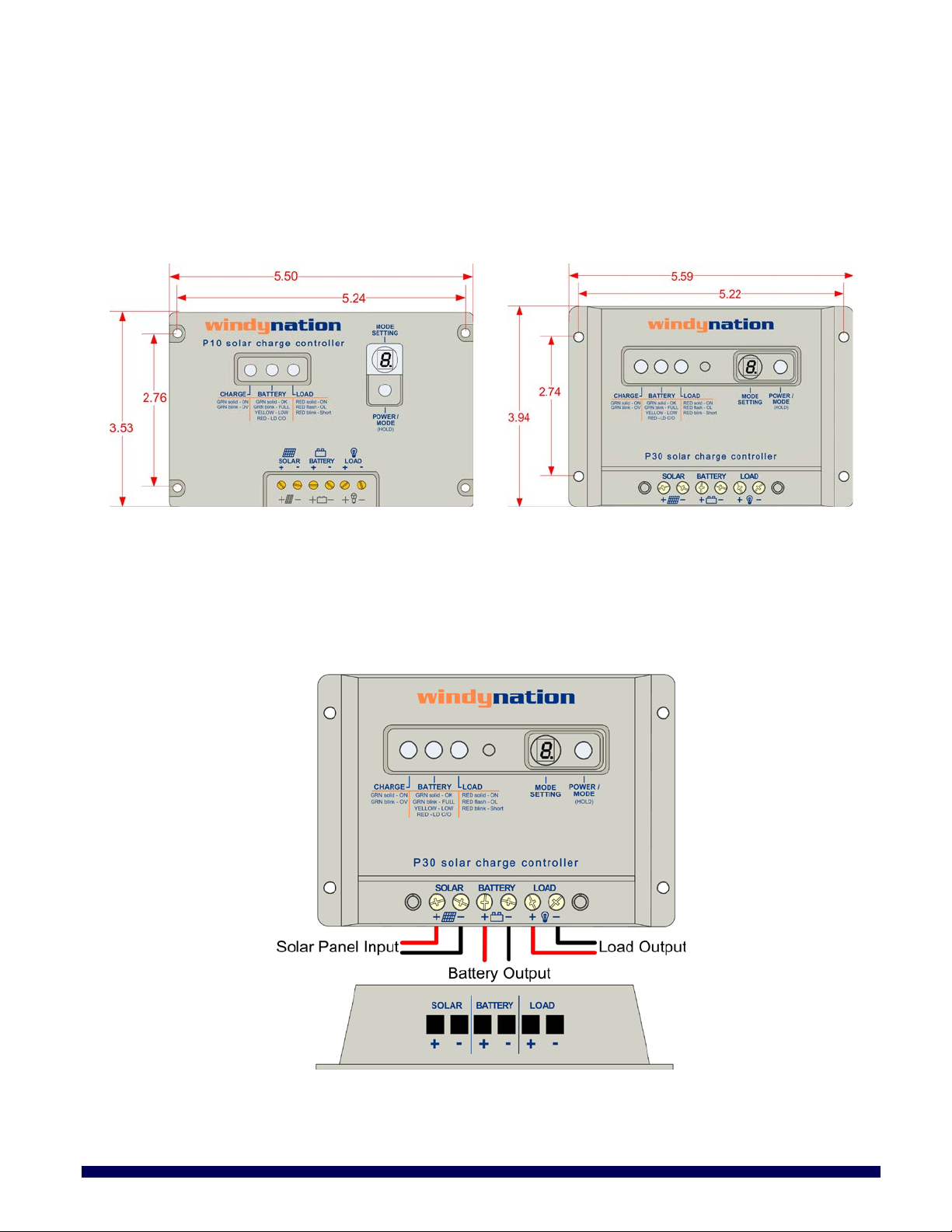

2.2 Mounting ..................................................................................................................................................... 5
2.3 Connections ................................................................................................................................................ 5
2.4 Parallel Connections .................................................................................................................................. 6
3 Operation ..................................................................................................................................................... 7
3.1 Power ......................................................................................................................................................... 7

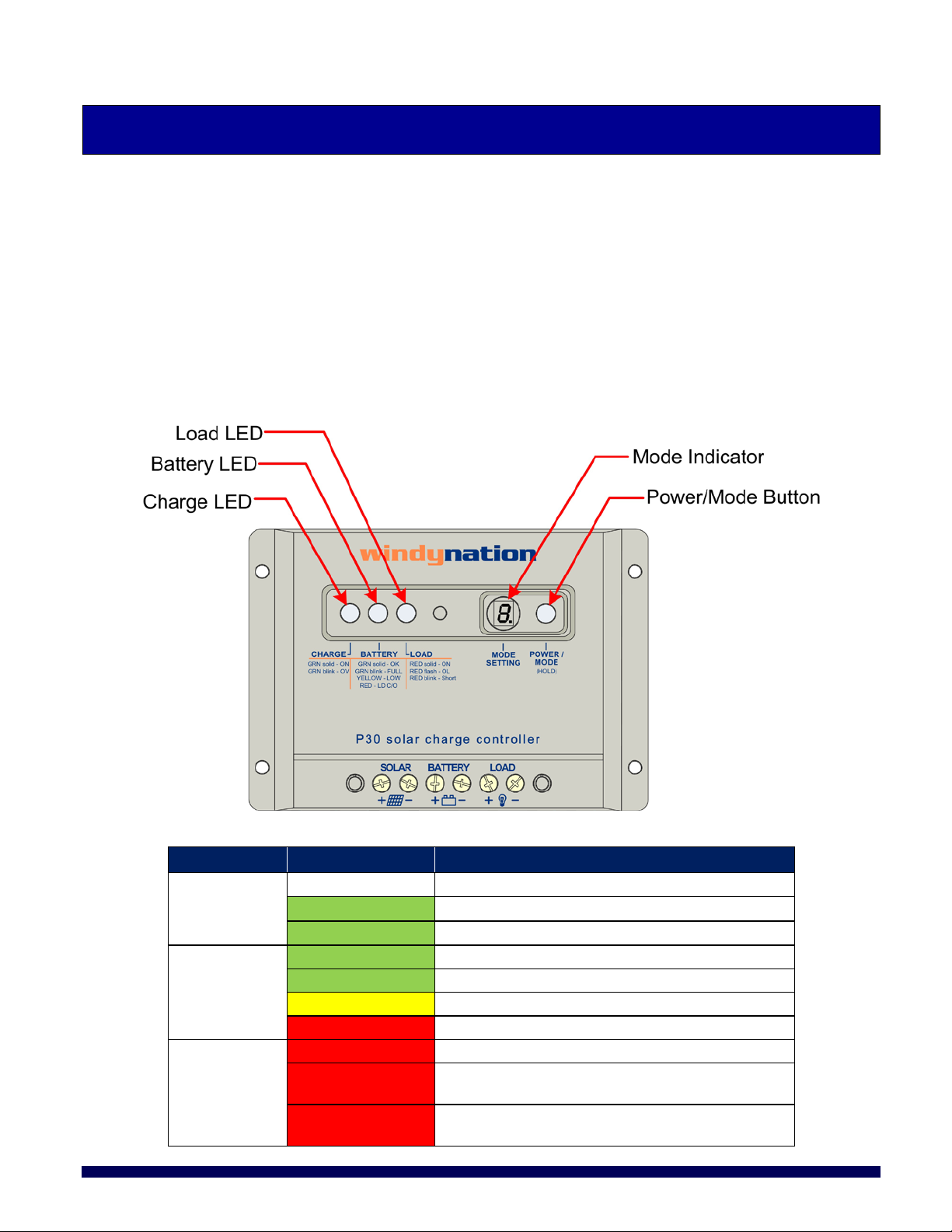

3.2 LED Indicators ............................................................................................................................................ 7
3.2.1 Charge LED ............................................................................................................................................ 8
3.2.2 Battery LED ............................................................................................................................................ 8
3.2.3 Load LED ................................................................................................................................................ 8
3.3 Setting Modes............................................................................................................................................. 8
3.3.1 Normal Control (Default Setting) ............................................................................................................ 9
3.3.2 Night ON+ Day OFF Control Mode ........................................................................................................ 9
3.3.3 Night ON + Set Time Delay OFF Mode .................................................................................................. 9
3.3.1 Common Controller - Test Mode ............................................................................................................ 9
3.3.2 Functional Matrix .................................................................................................................................... 9
4 Application .................................................................................................................................................... 9
4.1 Wire Gauge Reference ............................................................................................................................... 9
4.1.1 Wire Thickness ....................................................................................................................................... 9
5 Troubleshooting And Support .................................................................................................................... 10
5.1 Maintenance & Care ................................................................................................................................. 10
5.2 Troubleshooting ........................................................................................................................................ 10
5.3 Support ..................................................................................................................................................... 10
5.4 Warranty ................................................................................................................................................... 11
5.4.1 Restrictions ........................................................................................................................................... 11
5.4.2 Warranty Claims & Return Procedures ................................................................................................ 11
5.4.3 Disclaimer ............................................................................................................................................. 11
5.4.4 Limitation of Liability ............................................................................................................................. 12
Page 2 of 12
windynation
05/06/2014
CHC-1224-xx User Manual
Revision 2.0
1 INTRODUCTION
The WindyNation So lar Panel Charge Controller provides a reliable charging and power management solution for
solar power battery systems with many of the features that you would expect in a much higher priced controller .
This is made possible by the board microprocessor and embedded intelligent software control.
The controller features automatic 12V or 24V DC detect function that will identify the battery voltage upon initial
charge and uses Pulse-Width Modulation (PWM) for automatic charge management and high efficiency. A built in
temperature sensor provides software controlled charge compensation that accurately adjusts the over -discharge
voltage and maximizes your batteries life.
Built in protection includes overload, short circuit, reverse connection, lightning/surge, PV panel reverse current,
over charging, and discharging protection. In the event of a short circuit or overload event, the system will be
protected and remain undamaged.
The enclosure is made of durable plastic with LED lights to provide status indications of charge, battery status,
and system faults as well a user selectable Work Mode/timing interval that will power various DC powered
systems for specified time intervals after dusk such as night/street lighting.
Please read this manual carefully before installing or using the controller and keep it for future reference.
1.1 FEATURES
Compact size is easy to mount on wall or panel.
Charge controller maintains batteries and extends battery life.
Auto sensing for 12 or 24V systems
Built-in battery test function
Convenient screw terminals for wiring
Separate connections for PV panel, battery, and load
Built-in overload and short circuit protection
Automatic self-recovery after fault removal
LED system status indicators
Requires no adjustments
User selectable on, off, and time modes
Wide operating temperature range -35˚C to +55˚C (-31˚F to +131˚F)
1.2 SYSTEM DIAGRAM
The MCU controller takes sample measurements from the storage battery voltage, discharge current, and
environment temperature to calculate and control the discharge rate.
Page 3 of 12
windynation
05/06/2014
CHC-1224-xx User Manual
Parameter
CHC-1224-10
CHC-1224-30
Rated Charge Current
10 Amps
30 Amps
Rated Load Current
10 Amps
30 Amps
PV Input Voltage
50VDC (Max)
Typical Idle Consumption
At idle < 5mA
Overvoltage Protection
15.6V
31.2V
Low Voltage Indication
12.0V
24.0V
Overload Protection (DC load)
1.25 x Inom>60s
1.5 x Inom >5s
Short Circuit Protection
3x Inom
Boost Charge
14.4V
28.8V
Float Charge Voltage
13.6V
27.2V
Equalization Charge
14.6V
29.2V
Load Disconnection
11.1V
22.2V
Load Reconnection
12.5V
25.0V
Temperature Compensation
-30mV/oC
-60mV/oC
Parameter
CHC-1224-10
CHC-1224-30
Dimension (H x W x D)
5.50” x 3.53” x 1.08”
(140mm x 90mm x 27mm)
5.59” x 3.94” x 1.34”
(142mm x 100mm x 34mm)
Unit Weight
0.31 lb. (142g)
0.33 lb. (150g)
Enclosure
IP30
Operating Temperature
-31oF to 131oF (-35oC to 55oC)
Operating Humidity
10 to 90% relative humidity (non-condensing)
Wire Size
Up to 6mm2
Battery Type
Lead Acid including AGM and Flooded
Revision 2.0
1.3 SAFETY INFORMATION
Please read the installation and operating instructions carefully prior to use. Pay special attention to the
IMPORTANT and WARNING statements in the manual.
WARNING:
Never install during a lightning storm or where unsafe voltages are present.
Solar panels produce power when exposed to light. Use caution when handling copper wiring.
Do not use with equipment that exceeds the rated power for this device.
1.4 SPECIFICATIONS
1.4.1 Electrical Specifications
1.4.2 Ph ysical Sp e cificat io ns
2 INSTALLATION
Insure all terminating connections are clean and tight to prevent arcing and overheating.
The controller must be installed in an area that satisfies all of the following conditions:
1. Dry: Avoid any location where water can contact the controller
2. Cool: Ambient air temperature between 30°F and 105°F (0°C and 40°C)
3. Ventilated: Allow at least 2 in (50 mm) of clearance above and below and at least 1 in (25 mm) on
each side for proper air flow.
2.1 ELECTROSTATIC (ESD) PRECAUTIONS
All electronic circuits may be damaged by static electricity. To minimize the likelihood of electrostatic damage,
discharge yourself by touching an electrical ground (e.g.: copper pipe) prior to handling the unit and avoid
Page 4 of 12
windynation
05/06/2014
