Page 1
Payment Express® BRF300
Hardware Guide
Version 0.3
Page 2
DOCUMENT REVISION INFORMATION
V
V
ersion Revision Information
0.1
0.2
0.3
Initial version.
RELATED DOCUMENTS
ersion Document Title
Page 3
COPYRIGHT
© Copyright 2017, Payment Express Limited
33 Wilkinson Road, Ellerslie
PO Box 8400
Auckland, 1150
New Zealand
www.paymentexpress.com
All rights are reserved. No part of this work may be reproduced or copied in any form or by any means, electronic or
mechanical, including photocopying, without the express written permission of Payment Express Limited.
PROPRIETARY NOTICE
The information described in this document is proprietary and confidential to Payment Express Limited. Any unauthorised
use of this material is expressly prohibited except as authorised by Payment Express Limited in writing.
Page 4
CONTENTS
Document Revision Information .......................................................................................................................................... 2
Related Documents ............................................................................................................................................................. 2
Copyright ............................................................................................................................................................................. 3
Proprietary Notice ............................................................................................................................................................... 3
1 Overview ...................................................................................................................................................................... 1
2 BRF300 ANTENNA LANDSCAPE ASSEMBLY (AB0163) ........................................................................................... 1
2.1 Dimensions ............................................................................................................................................................ 2
2.2 Machine CutOut ..................................................................................................................................................... 3
3 BRF300 ANTENNA PORTRAIT ASSEMBLY (AB0164) .............................................................................................. 4
3.1 Dimensions ............................................................................................................................................................ 5
3.2 Machine CutOut ..................................................................................................................................................... 6
4 Installation .................................................................................................................................................................... 7
5 Secure Acceptance ...................................................................................................................................................... 9
5.1 Serial Numbers ...................................................................................................................................................... 9
5.2 Sign of Tampering .................................................................................................................................................. 9
6 Maintenance ................................................................................................................................................................ 9
6.1 Tradeouts & Deactivation Process ......................................................................................................................... 9
7 Appendix .................................................................................................................................................................... 10
7.1 Contact Payment Express .................................................................................................................................... 10
Page 5
1 OVERVIEW
The BRF300 contactless antenna is an optional receiver that can be plugged into the SCR300 to supp ort contactless
payments (e.g. Visa PayWave, MasterCard PayPass, Amex ExpressPay). The BRF300 also supports closed loop
proprietary payment cards such as MiFare RFID. The BRF300 can also be used as a standalone device.
The Payment Express BRF300 solution comes in two models. The only difference is mounting orientation. One
landscape and one portrait.

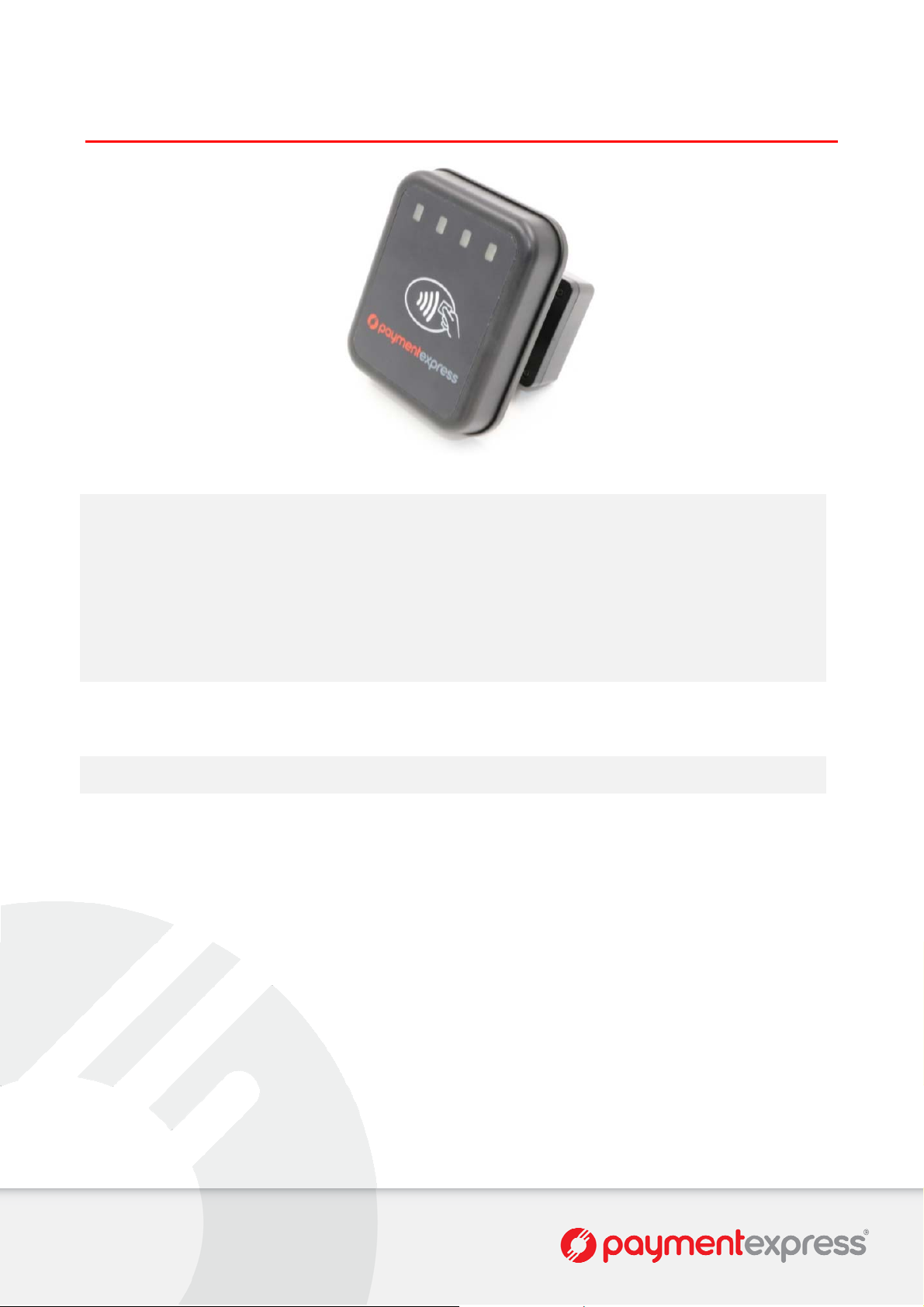

2 BRF300 ANTENNA LANDSCAPE ASSEMBLY (AB0163)
1
Hardware Overview
The BRF contactless antenna is an optional
receiver that can be plugged into the SCR to
support contactless payments (e.g. Visa
PayWave, MasterCard PayPass, Amex
ExpressPay).
Supports closed loop proprietary payment cards
(e.g. MiFare)
32-Bit Cortex M3 120MHz processor
Physical Link Interface
Connection with the SCR300 unit is via the attached cable located on the back of the BRF300 unit.
Power Requirements
The device accepts DC regulated from +9VDC to +45V SEL (Safety Extra Low Voltage).
Operating & Storage Temperature Ratings
Storage: -35 to 80 degrees (Celsius)
Operating: -25 to 75 degrees (Celsius)
Additional Comments
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
Display LEDs x4
Landscape design.
Page 6

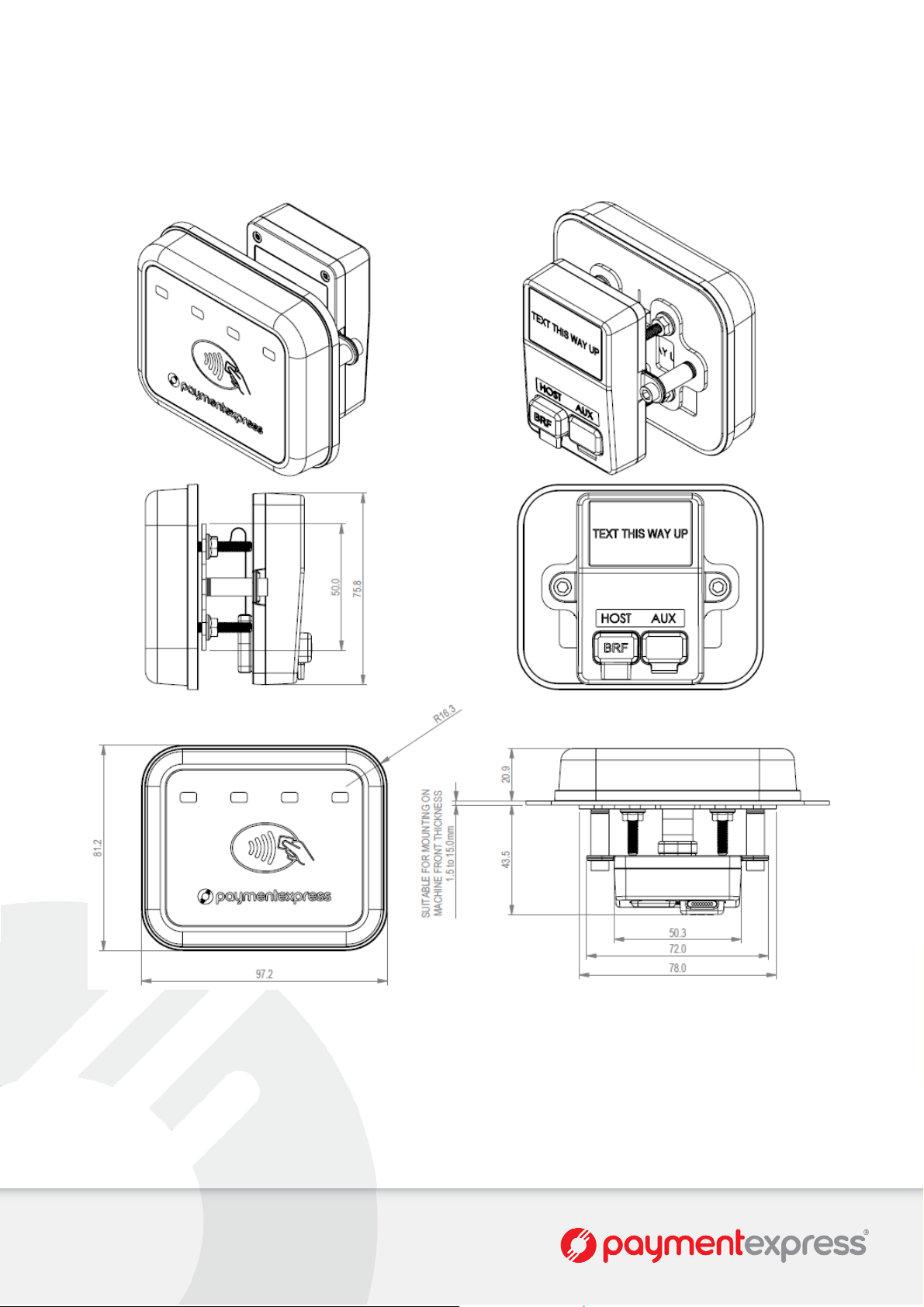

2.1 DIMENSIONS
2
Page 7

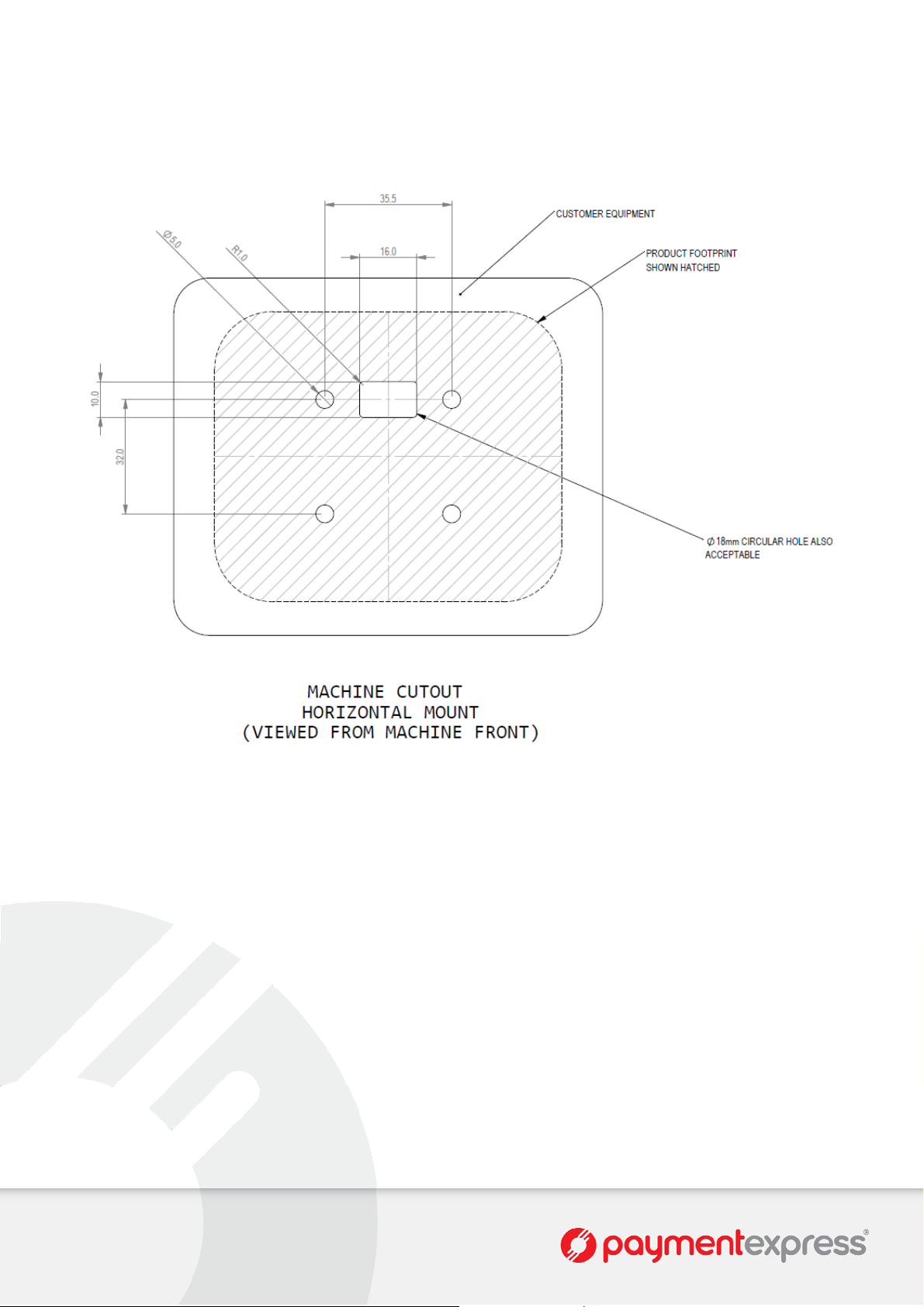

2.2 MACHINE CUTOUT
3
Page 8
3 BRF300 ANTENNA PORTRAIT ASSEMBLY (AB0164)
4
Hardware Overview
The BRF contactless antenna is an optional
receiver that can be plugged into the SCR to
support contactless payments (e.g. Visa
PayWave, MasterCard PayPass, Amex
ExpressPay).
Supports closed loop proprietary payment cards
(e.g. MiFare)
32-Bit Cortex M3 120MHz processor
Physical Link Interface
Connection with the SCR300 unit is via the attached cable located on the back of the BRF300 unit.
Power Requirements
The device accepts DC regulated from +9VDC to +45V SEL (Safety Extra Low Voltage).
Operating & Storage Temperature Ratings
Storage: -35 to 80 degrees (Celsius)
Operating: -25 to 75 degrees (Celsius)
Additional Comments
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
3. This device may not cause harmful interference, and
4. This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
Display LEDs x4
Portrait design.
Page 9

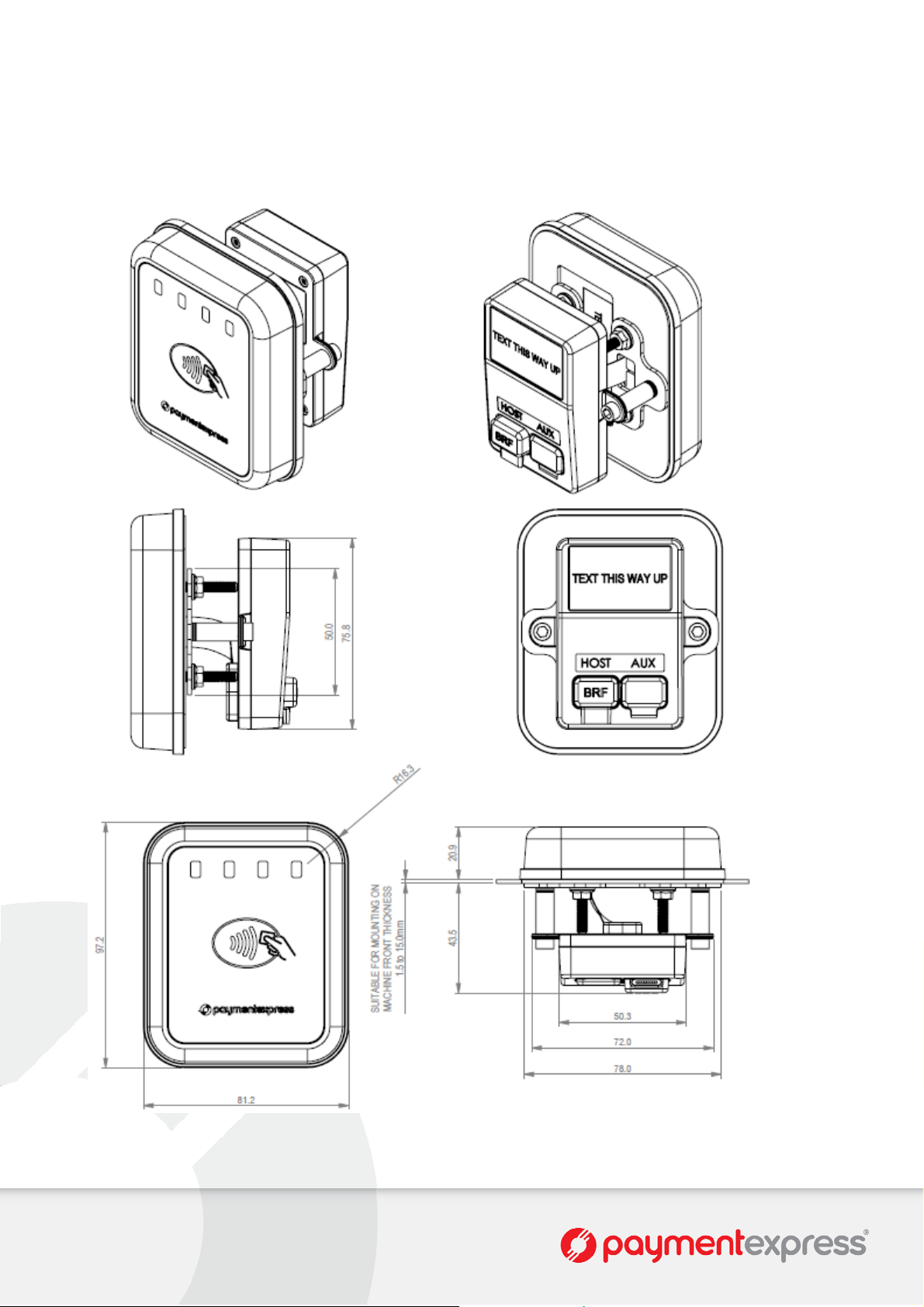

3.1 DIMENSIONS
5
Page 10

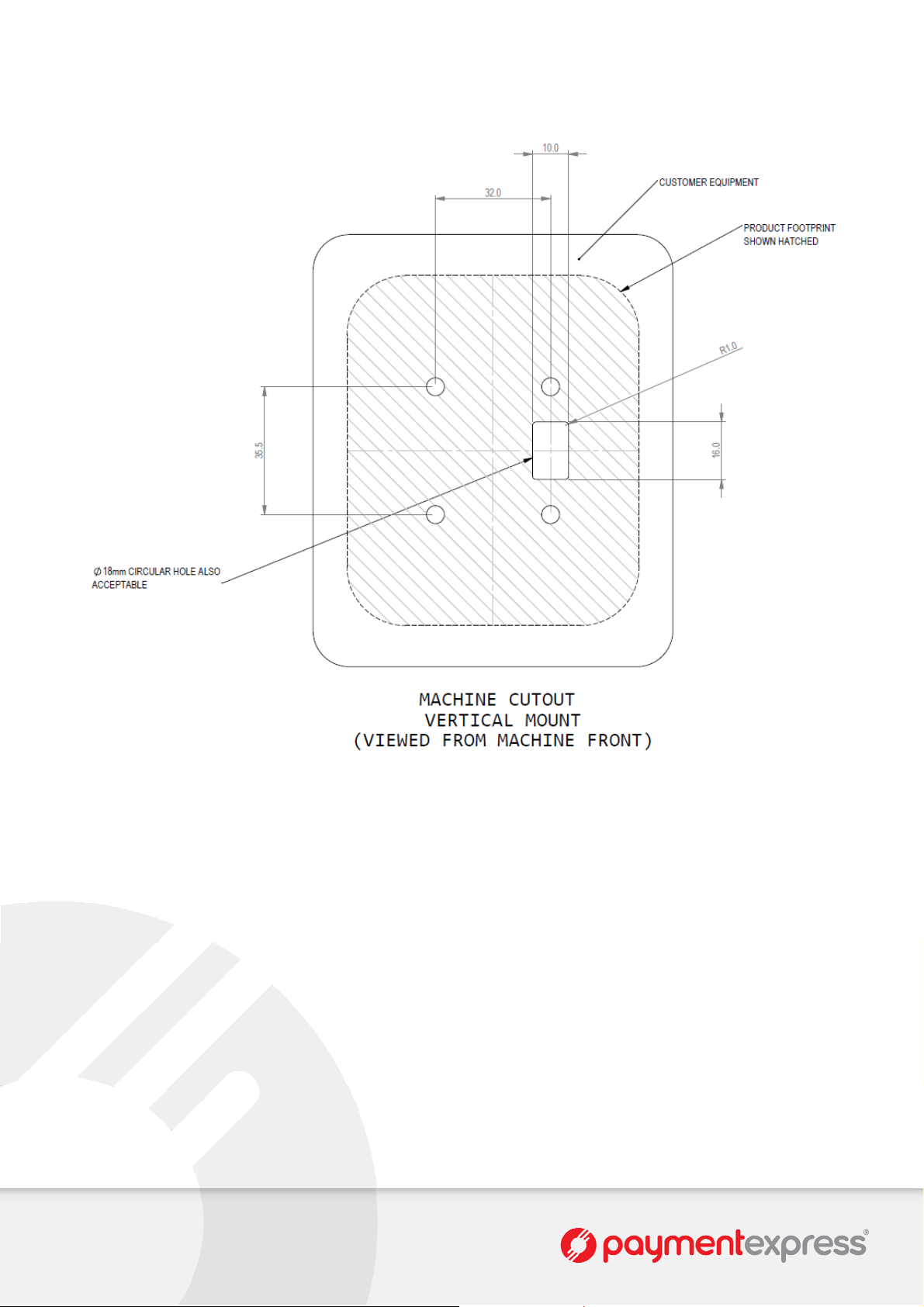

3.2 MACHINE CUTOUT
6
Page 11

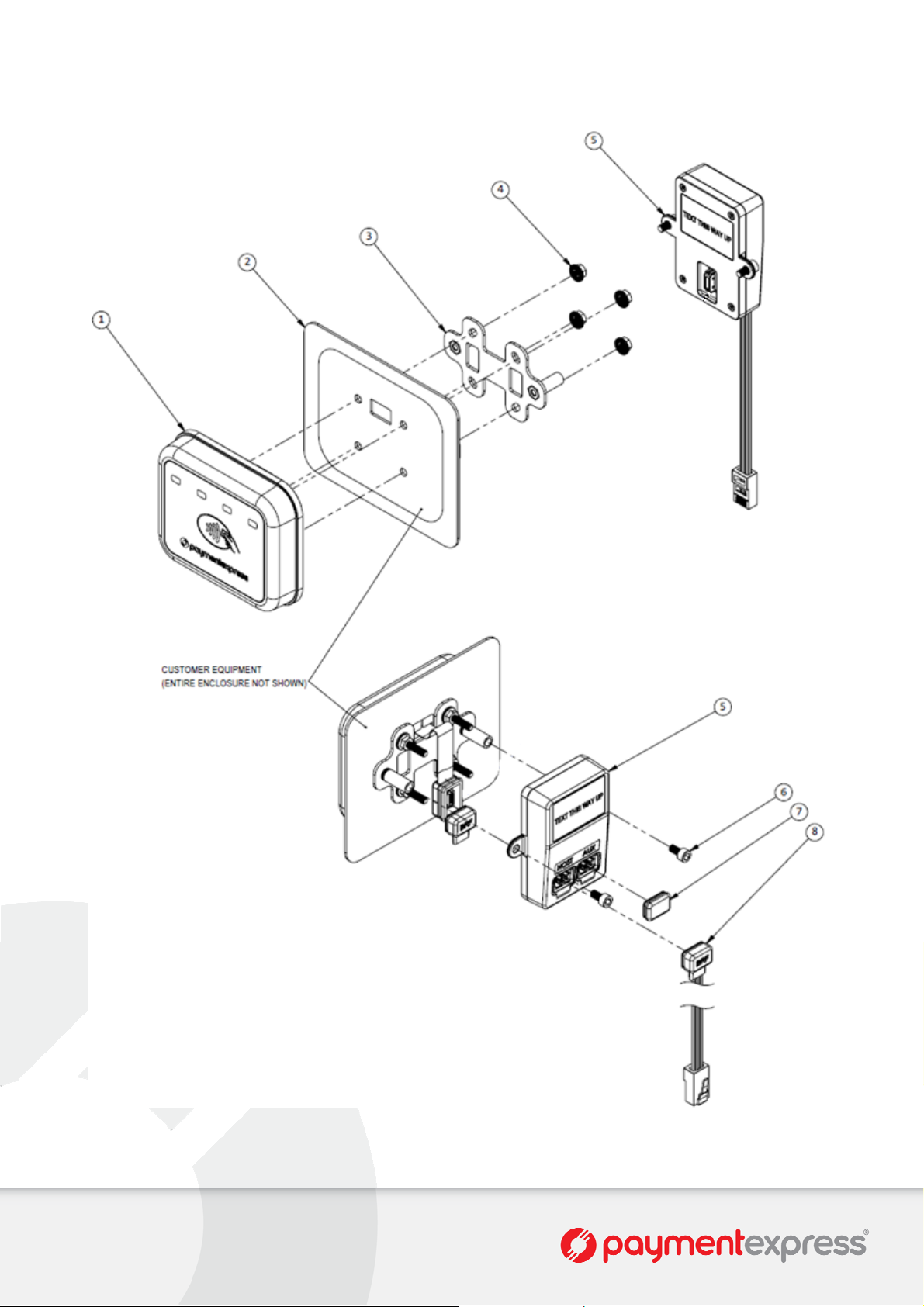

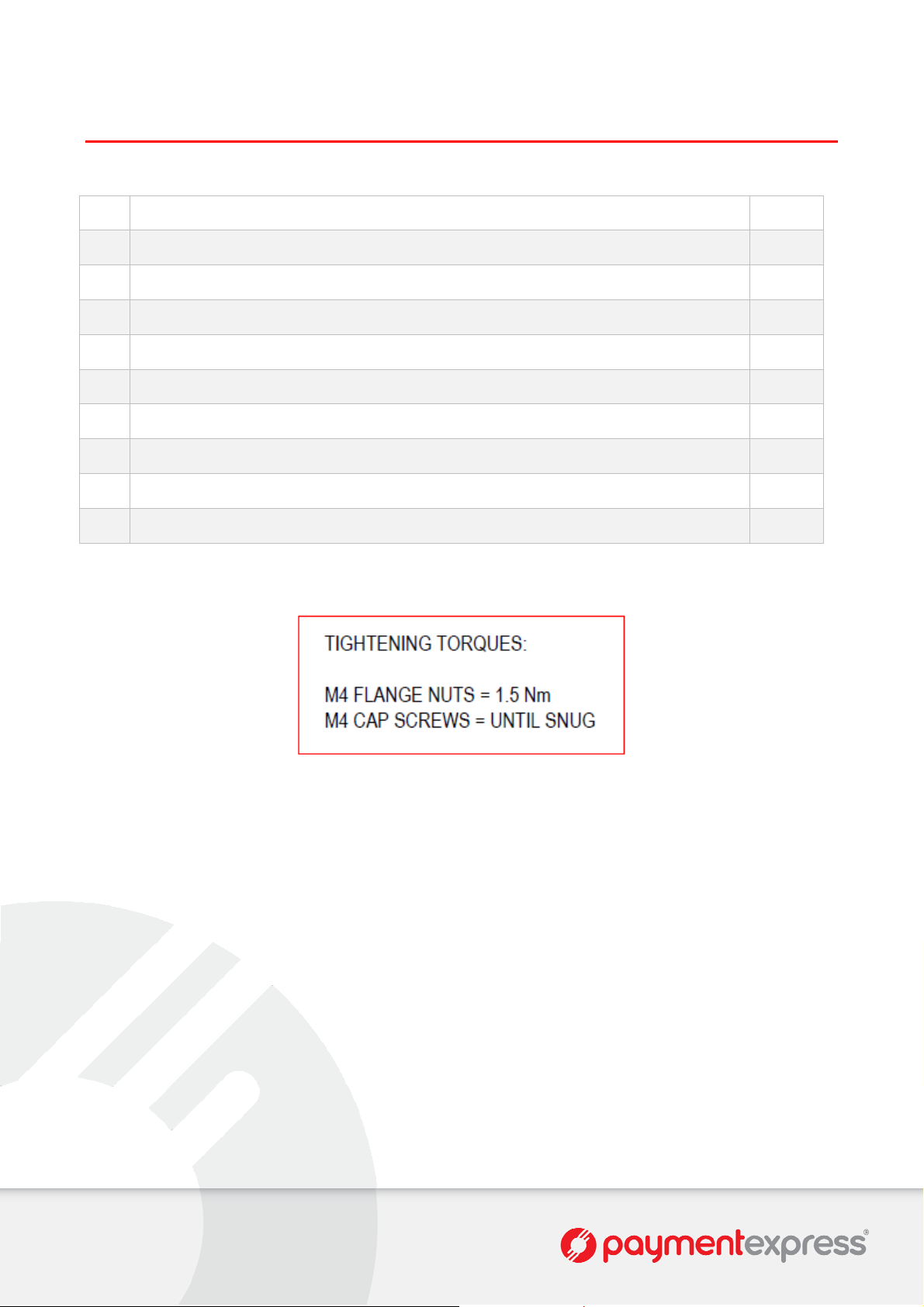

4 INSTALLATION
Part Description Quantity
7
1
2
3
4
5
6
7
8
9
BRF300 Antenna 1
Customer equipment with BRF300 mounting cut-out (see X and X). 1
Sheet Metal BRF300 Mounting Plate 1
Nut M4 Flange Serrated 4
BRF300 Controller Only 1
Screw M4 x 8mm Cap 3.0mm Hex SS304 2
Silicone BRF300 Controller Plug Bung 1
BRF300 Power & Comms Cable, 700mm 1
Silicon BRF300 Controller Plug Cover 1
Page 12
8
Page 13
5 SECURE ACCEPTANCE
The BRF300 solution is a secure payment device and therefore before any units are installed the customer must check
the following.
5.1 SERIAL NUMBERS
Each BRF300 device has their own unique serial number. Upon receiving the unit, the customer must check to ensure
that the serial number on the box matches the serial number on the unit.
Any discrepancies need to be reported to Payment Express (see appendix 7.1 for contact numbers).
5.2 SIGN OF TAMPERING
Customers need to check each unit for signs of tampering.
The following should be checked:
The exterior of the device should have no (new) holes, signs of adhesives or stickers othe r than the dev i ce lab el.
The device label should be straight and smooth.
LED lights. The 4 green LED’s will blink 3 times on power up if tampered.
9
Any signs of tampering or concerns must be reported to Payment Express (see appendix 7.1 for contact numbers).
6 MAINTENANCE
6.1 TRADEOUTS & DEACTIVATION PROCESS
In the event that the BRF300 devices need to be swapped out or deactivated, please follow instructions below.
1. Call Payment Express Support to log a ticket (see appendix 7.1 for contact numbers). Please provide the
following information.
Serial Number of BRF300 device(s).
Brief description of fault / reason for deactivation.
Contact Name.
Contact Phone Number.
Shipping Address (for replacement if needed).
2. Physically remove the device(s).
3. Ship the device(s) back to Payment Express.
Page 14
7 APPENDIX
7.1 CONTACT PAYMENT EXPRESS
Phone
International
Australia
Hong Kong
New Zealand
Singapore
South Africa
United Kingdom
USA
+64 9 309 4693
1 800 006 254 or +61 2 8268 7700
+852 3 678 6766
0800 PAYMENT (729 6368) or 09 309 4693
+65 3 158 1353
+27 10 500 8784
+44 (0) 20 3176 5551
+1 310 670 7299
10
E-mail
Sales
Support
Dev Support
