Overview
<![endif]>English
Turn the motor head or remove it
Page 9
Connections Page 5 Valves Page 7
Connecting |

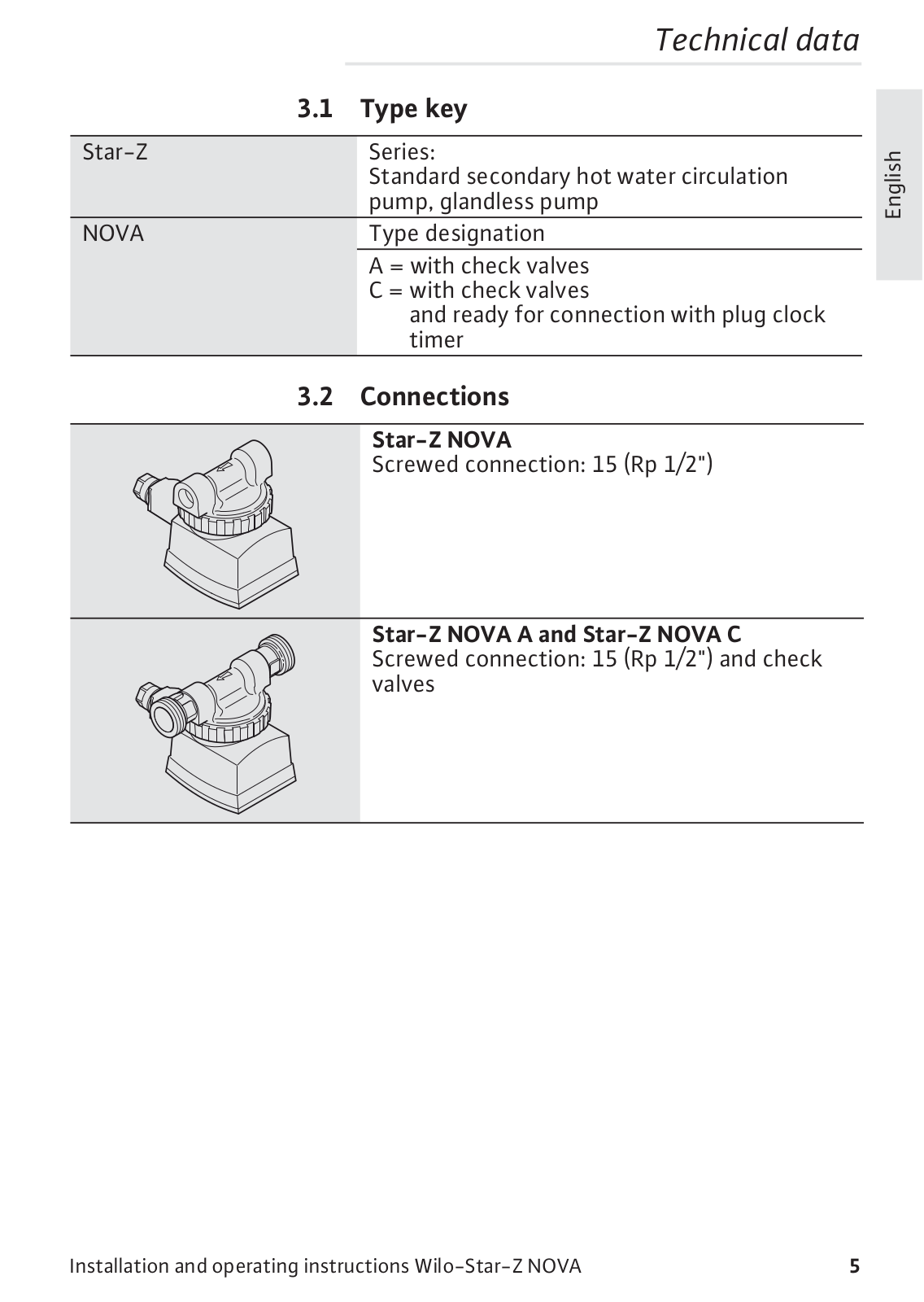

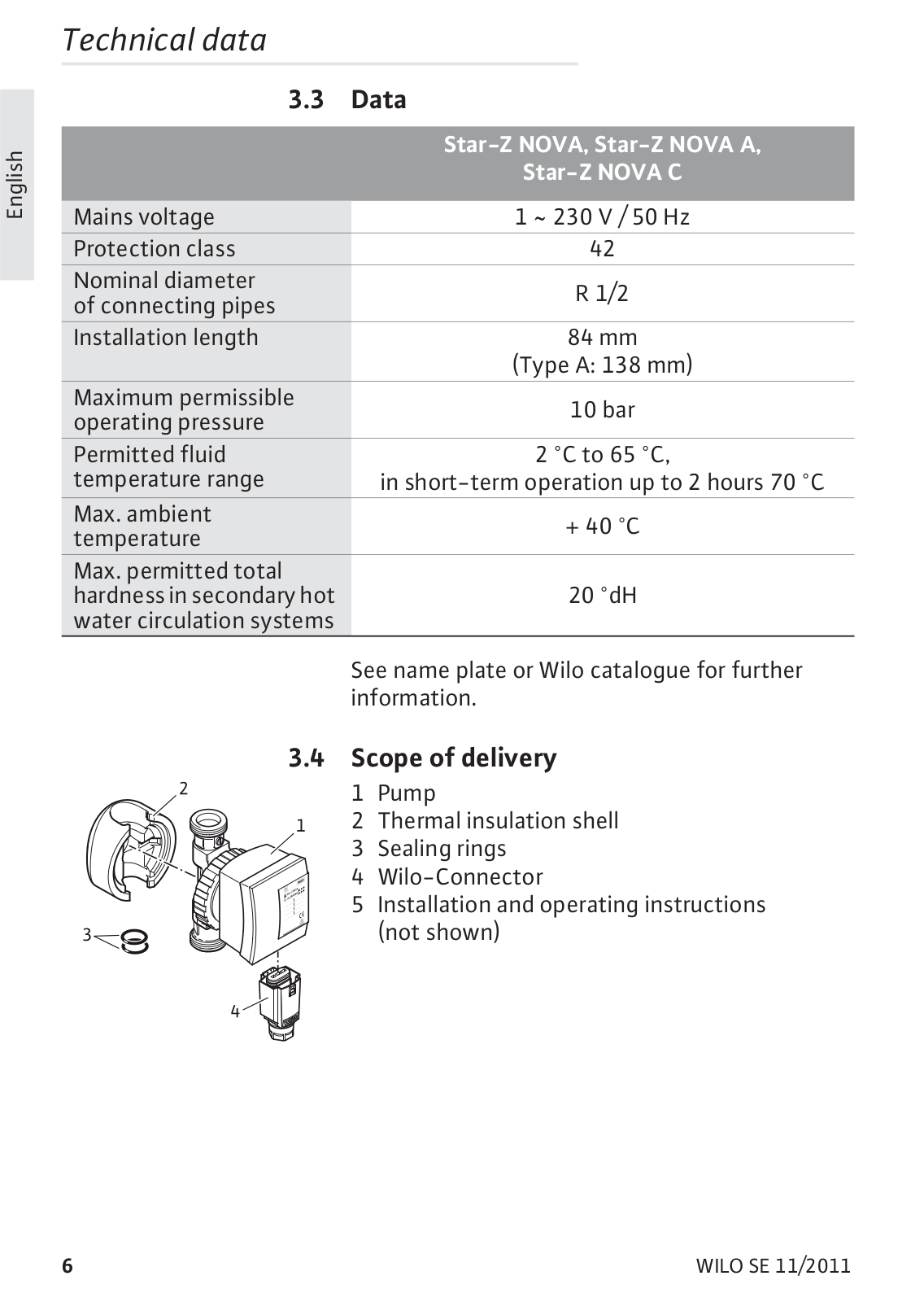

Type key Page 5 |
Page 9 |
|
Electrical connection Page 10
Safety Page 3

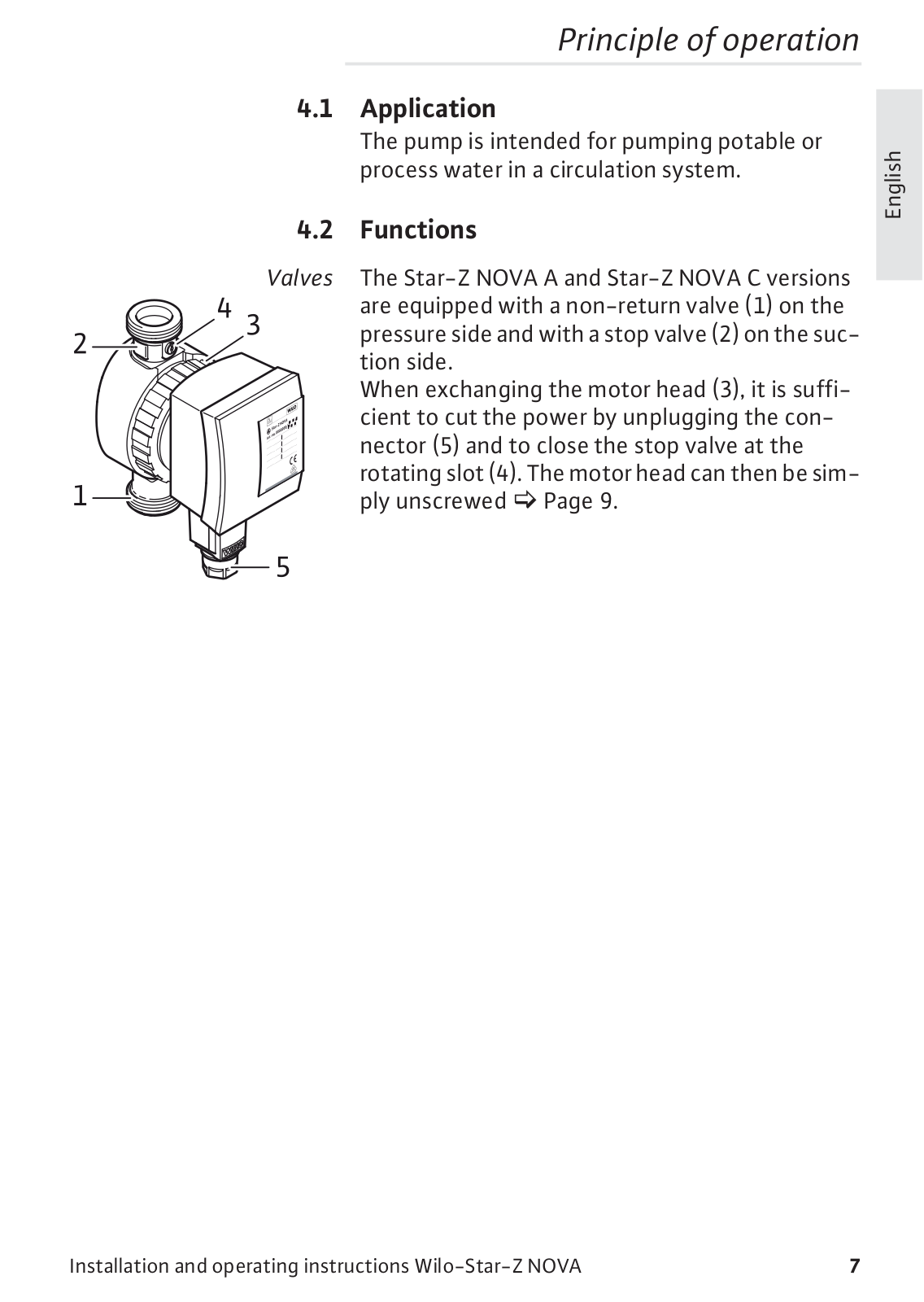

Principle of operation Page 7
Installation Page 8
Faults Page 13
2 |
WILO SE 11/2011 |
|
Safety |
2 |
Safety |
About these instructions |
• Read through these instructions completely |
before installation. Non-observance of these instructions can result in injury to persons and damage to the pump/unit.
• Once installation work is complete, pass the instructions on to the end user.
• Keep the instructions near the pump. They can be used as a reference if problems occur later.
• We accept no liability for damages resulting from failure to follow these instructions.
Safety information Important safety information is indicated as follows:
Danger: Indicates a danger to life due to electrical current.
Warning: Indicates a possible danger to life or injury.
Caution: Indicates possible risks to the pump or other items.
Note: Highlights tips and information.
<![endif]>English
Installation and operating instructions Wilo-Star-Z NOVA |
3 |
<![endif]>English
Safety
Qualification The pump may only be installed by qualified personnel. This product may not be commissioned or operated by persons with insufficient accountability (including children) or who do not possess the relevant specialist knowledge. Exceptions are only permitted on appropriate instruction from safety-responsible persons. The electrical connection may only be established by a qualified electrician.
Regulations The current versions of the following regulations must be observed when installing the equipment:
•Accident prevention regulations
•DVGW worksheet W551 (in Germany)
•VDE 0370/Part 1
•Other local regulations (e.g. IEC, VDE, etc.)
Conversion, spare parts The pump must not be technically modified or converted. It is not permitted to open the pump motor by removing the plastic lid. Only use original spare parts.
Transport Unpack and check the pump and all accessories upon receipt. Report any damage sustained in transit immediately.
Dispatch the pump in the original packing only.
Electrical current There is a danger of an electric shock when working with electrical current. Therefore:
•Switch off the power before beginning work on the pump and make sure that it cannot be switched on again accidentally.
•Do not kink or nip the power cable or allow it to come into contact with heat sources.
•The pump is protected against drips in accordance with protection class IP 42. Protect the pump against water spray. Do not immerse in water or other fluids.
4 |
WILO SE 11/2011 |
