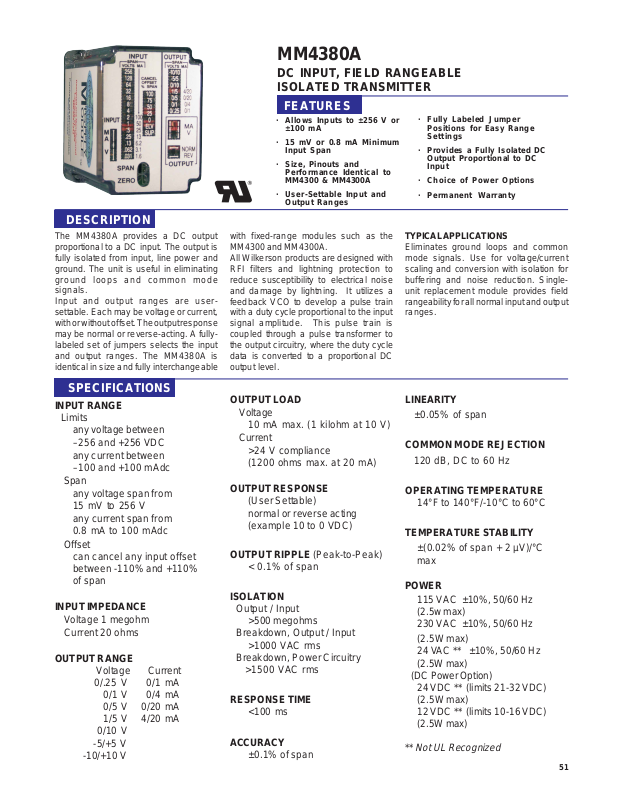

Wilkerson Instrument MM4380A Data sheet
DESCRIPTION
The MM4380A provides a DC output
proportional to a DC input. The output is
fully isolated from input, line power and
ground. The unit is useful in eliminating
ground loops and common mode
signals.
Input and output ranges are usersettable. Each may be voltage or current,
with or without offset. The output response
may be normal or reverse-acting. A fullylabeled set of jumpers selects the input
and output ranges. The MM4380A is
identical in size and fully interchangeable
MM4380A
DC INPUT, FIELD RANGEABLE
ISOLATED TRANSMITTER
FEATURES
· Allows Inputs to ±256 V or
±100 mA
· 15 mV or 0.8 mA Minimum
Input Span
· Size, Pinouts and
Performance Identical to
MM4300 & MM4300A
· User-Settable Input and
Output Ranges
with fixed-range modules such as the
MM4300 and MM4300A.
All Wilkerson products are designed with
RFI filters and lightning protection to
reduce susceptibility to electrical noise
and damage by lightning. It utilizes a
feedback VCO to develop a pulse train
with a duty cycle proportional to the input
signal amplitude. This pulse train is
coupled through a pulse transformer to
the output circuitry, where the duty cycle
data is converted to a proportional DC
output level.
· Fully Labeled Jumper
Positions for Easy Range
Settings
· Provides a Fully Isolated DC
Output Proportional to DC
Input
· Choice of Power Options
· Permanent Warranty
TYPICAL APPLICATIONS
Eliminates ground loops and common
mode signals. Use for voltage/current
scaling and conversion with isolation for
buffering and noise reduction. Singleunit replacement module provides field
rangeability for all normal input and output
ranges.
SPECIFICATIONS
INPUT RANGE
Limits
any voltage between
–256 and +256 VDC
any current between
–100 and +100 mAdc
Span
any voltage span from
15 mV to 256 V
any current span from
0.8 mA to 100 mAdc
Offset
can cancel any input offset
between -110% and +110%
of span
INPUT IMPEDANCE
Voltage 1 megohm
Current 20 ohms
OUTPUT RANGE
Voltage Current
0/.25 V 0/1 mA
0/1 V 0/4 mA
0/5 V 0/20 mA
1/5 V 4/20 mA
0/10 V
-5/+5 V
-10/+10 V
OUTPUT LOAD
Voltage
10 mA max. (1 kilohm at 10 V)
Current
>24 V compliance
(1200 ohms max. at 20 mA)
OUTPUT RESPONSE
(User Settable)
normal or reverse acting
(example 10 to 0 VDC)
OUTPUT RIPPLE (Peak-to-Peak)
< 0.1% of span
ISOLATION
Output / Input
>500 megohms
Breakdown, Output / Input
>1000 VAC rms
Breakdown, Power Circuitry
>1500 VAC rms
RESPONSE TIME
<100 ms
ACCURACY
±0.1% of span
LINEARITY
±0.05% of span
COMMON MODE REJECTION
120 dB, DC to 60 Hz
OPERATING TEMPERATURE
14°F to 140°F/-10°C to 60°C
TEMPERATURE STABILITY
±(0.02% of span + 2 µV)/°C
max
POWER
115 VAC ±10%, 50/60 Hz
(2.5w max)
230 VAC ±10%, 50/60 Hz
(2.5W max)
24 VAC ** ±10%, 50/60 Hz
(2.5W max)
(DC Pow er Option)
24 VDC ** (limits 21-32 VDC)
(2.5W max)
12 VDC ** (limits 10-16 VDC)
(2.5W max)
**
Not UL Recognized
51
MM4380A
ORDERING
INFORMATION
Wilkerson Instrument Co., Inc. Copy and Fax to Place Order.
POWER
115 VAC, 50/60 Hz Power
230 VAC, 50/60 Hz Power
24 VAC, 50/60 Hz Power
24 VDC Power, Transformer Isolated
12 VDC Power, Transformer Isolated
INPUT
Select Units
VDC mADC
Enter Input
Zero Scale
Full Scale
OUTPUT
Select Units
VDC mADC
Enter Output
Zero Scale
Full Scale
ACCESSORIES
Select Output Logic
Normal Acting
Reverse Acting
OPTIONS
Conformal Coating
TAGS
Specify Tag Numbers
Tag number is typed on product label at
no charge.
Enter Tag Number(s)
MM4380A
DR1 DIN-Rail, 35 mm Symmetrical, 39 inches (1 meter) Qty____
MP008 Plastic Socket, 8-Pin, Panel Mount or PVC Snap Track Qty____
TRK48 PVC Snap-Track, 4 ft, for MP008, MP011, & DMP8500 Qty____
DMP008 DIN-Rail Mounting Socket, 8-Pin, 35 mm Symmetrical Rail Qty____
CL P1 Holddown Assembly for MP008 and MP011 Qty____
HKB-HK2D-8 Explosion-Proof Housing with MP008 Installed Qty____
DIMENSIONS
Inches [mm]
CONNECTIONS
PIN 1 Power AC L1 or DC +
PIN 2 No Connection
PIN 3 Power AC L2 or DC PIN 4 No Connection
PIN 5 Input +
PIN 6 Input PIN 7 Output +
PIN 8 Output -
52
