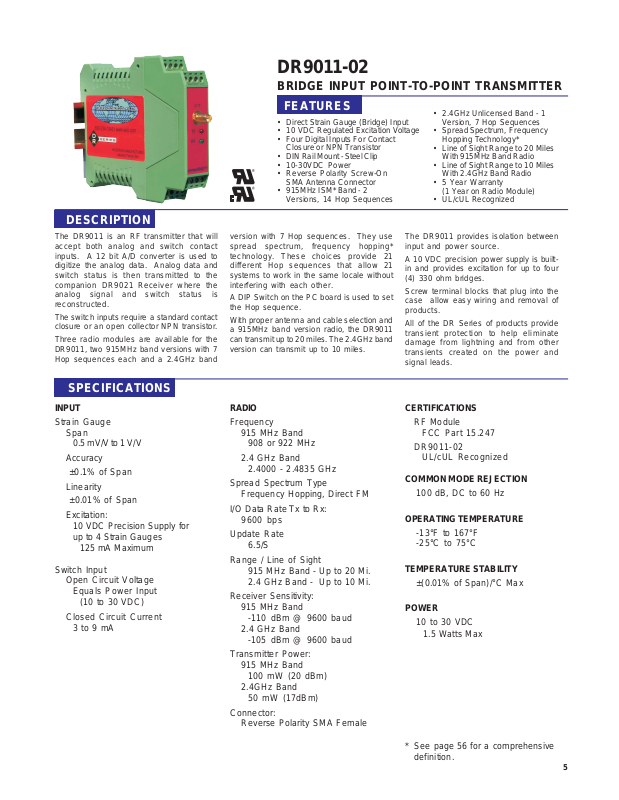

Wilkerson Instrument DR9011-02 Data sheet

DR9011-02
BRIDGE INPUT POINT-TO-POINT TRANSMITTER
DESCRIPTION
The DR9011 is an RF transmitter that will accept both analog and switch contact inputs. A 12 bit A/D converter is used to digitize the analog data. Analog data and switch status is then transmitted to the companion DR9021 Receiver where the analog signal and switch status is reconstructed.
The switch inputs require a standard contact closure or an open collector NPN transistor.
Three radio modules are available for the DR9011, two 915MHz band versions with 7 Hop sequences each and a 2.4GHz band
SPECIFICATIONS
FEATURES
• Direct Strain Gauge (Bridge) Input
• 10 VDC Regulated Excitation Voltage
• Four Digital Inputs For Contact Closure or NPN Transistor
• DIN Rail Mount - Steel Clip
• 10-30VDC Power
• Reverse Polarity Screw-On SMA Antenna Connector
• 915MHz ISM* Band - 2 Versions, 14 Hop Sequences
version with 7 Hop sequences. They use spread spectrum, frequency hopping* technology. These choices provide 21 different Hop sequences that allow 21 systems to work in the same locale without interfering with each other.
A DIP Switch on the PC board is used to set the Hop sequence.
With proper antenna and cable selection and a 915MHz band version radio, the DR9011 can transmit up to 20 miles. The 2.4GHz band version can transmit up to 10 miles.
• 2.4GHz Unlicensed Band - 1 Version, 7 Hop Sequences
• Spread Spectrum, Frequency Hopping Technology*
• Line of Sight Range to 20 Miles With 915MHz Band Radio
• Line of Sight Range to 10 Miles With 2.4GHz Band Radio
• 5 Year Warranty (1 Year on Radio Module)
• UL/cUL Recognized
The DR9011 provides isolation between input and power source.
A 10 VDC precision power supply is built­in and provides excitation for up to four (4) 330 ohm bridges.
Screw terminal blocks that plug into the case allow easy wiring and removal of products.
All of the DR Series of products provide transient protection to help eliminate damage from lightning and from other transients created on the power and signal leads.
INPUT
Strain Gauge
Span
0.5 mV/V to 1 V/V Accuracy ±0.1% of Span Linearity ±0.01% of Span Excitation:
10 VDC Precision Supply for up to 4 Strain Gauges
125 mA Maximum
Switch Input
Open Circuit Voltage
Equals Power Input
(10 to 30 VDC)
Closed Circuit Current
3 to 9 mA
RADIO
Frequency
915 MHz Band
908 or 922 MHz
2.4 GHz Band
2.4000 - 2.4835 GHz
Spread Spectrum Type
Frequency Hopping, Direct FM
I/O Data Rate Tx to Rx:
9600 bps
Update Rate
6.5/S
Range / Line of Sight
915 MHz Band - Up to 20 Mi.
2.4 GHz Band - Up to 10 Mi.
Receiver Sensitivity:
915 MHz Band
-110 dBm @ 9600 baud
2.4 GHz Band
-105 dBm @ 9600 baud
Transmitter Power:
915 MHz Band
100 mW (20 dBm)
2.4GHz Band 50 mW (17dBm)
Connector:
Reverse Polarity SMA Female
CERTIFICATIONS
RF Module
FCC Part 15.247
DR9011-02
UL/cUL Recognized
COMMON MODE REJECTION
100 dB, DC to 60 Hz
OPERATING TEMPERATURE
-13°F to 167°F
-25°C to 75°C
TEMPERATURE STABILITY
±(0.01% of Span)/°C Max
POWER
10 to 30 VDC
1.5 Watts Max
* See page 56 for a comprehensive
definition.
5
DR9011-02
Wilkerson Instrument Co., Inc. Copy and Fax to Place Order.
ORDERING INFORMATION
Input Range
(Must be within minimum to maximum specification)
Span
mV/V V/V
RADIO
908 MHz - Standard 922 MHz - Optional
2.4 GHz
* NOTE: This unit must be used with a DR9021 wireless receiver.
ACCESSORIES
RP = Reverse Polarity 4073 Two Antenna Coupler, Transmit and Receive, 2-Port 900 MHz QTY _____ 4051 Receive Only, 2 to 4 Antenna Coupler 4-Port 900 MHz QTY _____ 4061 Receive Only, 2 to 4 Antenna Coupler 4-Port 2.4 GHz QTY _____ 4062 50 Ohm Termination, For Unused Ports On P/N 4051,4061 QTY _____ 4022 PSP24-024S, 24 VDC 1 Amp Power Supply QTY _____ 4026 Bulkhead Connector Type N Female to Type N Female QTY _____ 4011 Bulkhead Surge Protector Type N Male to Type N Female QTY _____ 4035 Bulkhead Surge Protector Type N Female to Type N Female QTY _____ CBH2 2 Ft WBC195 Cable w/ RP-SMA Male & RP-SMA Female Bulkhead Connector QTY _____ CBH6 6 Ft WBC195 Cable w/ RP-SMA Male & RP-SMA Female Bulkhead Connector QTY _____ CBH10 10 Ft WBC195 Cable w/ RP-SMA Male & RP-SMA Female Bulkhead Connector QTY _____ CBH-X Custom Length WBC195 Cable w/ RP-SMA Male & RP-SMA Female Bulkhead Connector QTY _____ CPT2 2 Ft WBC195 Cable w/ RP-SMA Male & Type N Male Connector QTY _____ CPT6 6 Ft WBC195 Cable w/ RP-SMA Male & Type N Male Connector QTY _____ CPT10 10 Ft WBC195 Cable w/ RP-SMA Male & Type N Male Connector QTY _____ CPT-X Custom Length WBC195 Cable w/ RP-SMA Male & Type N Male Connector QTY _____ For more accessories and cables, see the ACCESSORIES section of this catalog (Page 51).
DIMENSIONS
Inches [mm]
CONNECTIONS
TERMINAL
CONNECTION
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
6
Bridge Input + Bridge Input ­Shield Shield Switch 1 + Switch 1 ­Switch 2 ­Switch 2 + Switch 3 + Switch 3 ­Switch 4 ­Switch 4 + 10 VDC Excitation + Excitation Common Power + Power -
