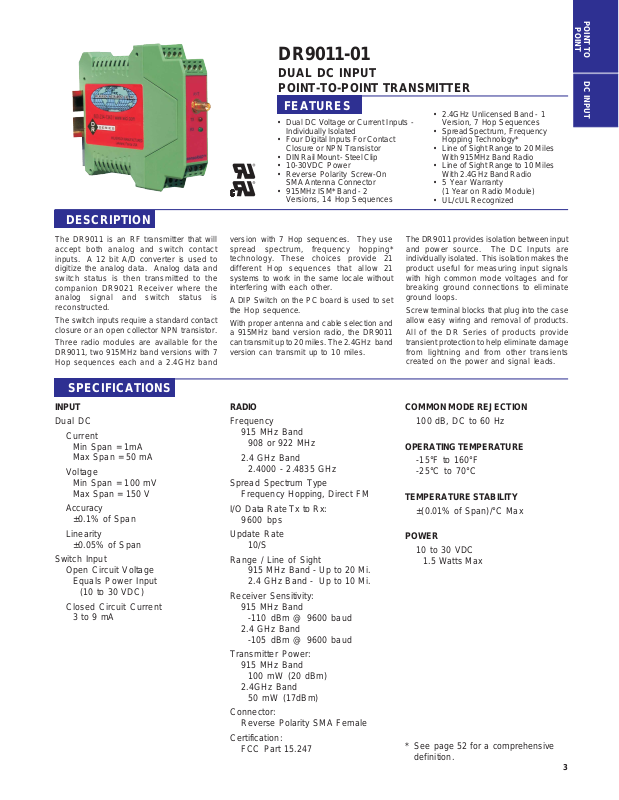

DR9011-01

DUAL DC INPUT
POINT-TO-POINT TRANSMITTER

POINT TO

POINT

DC INPUT

DESCRIPTION

The DR9011 is an RF transmitter that will
accept both analog and switch contact
inputs. A 12 bit A/D converter is used to
digitize the analog data. Analog data and
switch status is then transmitted to the
companion DR9021 Receiver where the
analog signal and switch status is
reconstructed.

The switch inputs require a standard contact
closure or an open collector NPN transistor.

Three radio modules are available for the
DR9011, two 915MHz band versions with 7
Hop sequences each and a 2.4GHz band

SPECIFICATIONS

FEATURES

• Dual DC Voltage or Current Inputs ­Individually Isolated

• Four Digital Inputs For Contact
Closure or NPN Transistor

• DIN Rail Mount - Steel Clip

• 10-30VDC Power

• Reverse Polarity Screw-On
SMA Antenna Connector

• 915MHz ISM* Band - 2
Versions, 14 Hop Sequences

version with 7 Hop sequences. They use
spread spectrum, frequency hopping*
technology. These choices provide 21
different Hop sequences that allow 21
systems to work in the same locale without
interfering with each other.

A DIP Switch on the PC board is used to set
the Hop sequence.

With proper antenna and cable selection and
a 915MHz band version radio, the DR9011
can transmit up to 20 miles. The 2.4GHz band
version can transmit up to 10 miles.

• 2.4GHz Unlicensed Band - 1
Version, 7 Hop Sequences

• Spread Spectrum, Frequency
Hopping Technology*

• Line of Sight Range to 20 Miles
With 915MHz Band Radio

• Line of Sight Range to 10 Miles
With 2.4GHz Band Radio

• 5 Year Warranty
(1 Year on Radio Module)

• UL/cUL Recognized

The DR9011 provides isolation between input
and power source. The DC Inputs are
individually isolated. This isolation makes the
product useful for measuring input signals
with high common mode voltages and for
breaking ground connections to eliminate
ground loops.

Screw terminal blocks that plug into the case
allow easy wiring and removal of products.

All of the DR Series of products provide
transient protection to help eliminate damage
from lightning and from other transients
created on the power and signal leads.

INPUT

Dual DC

Current

Min Span = 1mA
Max Span = 50 mA

Voltage

Min Span = 100 mV
Max Span = 150 V

Accuracy

±0.1% of Span

Linearity

±0.05% of Span

Switch Input

Open Circuit Voltage

Equals Power Input

(10 to 30 VDC)

Closed Circuit Current

3 to 9 mA

RADIO

Frequency

915 MHz Band

908 or 922 MHz

2.4 GHz Band

2.4000 - 2.4835 GHz

Spread Spectrum Type

Frequency Hopping, Direct FM

I/O Data Rate Tx to Rx:

9600 bps

Update Rate

10/S

Range / Line of Sight

915 MHz Band - Up to 20 Mi.

2.4 GHz Band - Up to 10 Mi.

Receiver Sensitivity:

915 MHz Band

-110 dBm @ 9600 baud

2.4 GHz Band

-105 dBm @ 9600 baud

Transmitter Power:

915 MHz Band

100 mW (20 dBm)

2.4GHz Band
50 mW (17dBm)

Connector:

Reverse Polarity SMA Female

Certification:

FCC Part 15.247

COMMON MODE REJECTION

100 dB, DC to 60 Hz

OPERATING TEMPERATURE

-15°F to 160°F

-25°C to 70°C

TEMPERATURE STABILITY

±(0.01% of Span)/°C Max

POWER

10 to 30 VDC

1.5 Watts Max

* See page 52 for a comprehensive

definition.

3

DR9011-01

ORDERING

POINT

POINT TO

INFORMATION

Wilkerson Instrument Co., Inc. Copy and Fax to Place Order.

INPUT 1 - Standard Ranges
Select Input
Current - DC

DC INPUT

0/1 mA

4/20 mA

Other Input Range

(Must be within minimum to maximum specification)

VDC mADC

Zero Scale
Full Scale

RADIO

908 MHz 922 MHz 2.4 GHz

Voltage - DC

0/1 V

-1/1 V
1/5 V
0/5 V

-5/5 V

0/10 V

-10/10 V

INPUT 2 - Standard Ranges
Select Input
Current - DC

0/1 mA

4/20 mA

Voltage - DC

-10/10 V

Other Input Range

(Must be within minimum to maximum specification)

VDC mADC

Zero Scale
Full Scale

Standard Optional

* NOTE: This unit must be used with a DR9021 wireless receiver.

ACCESSORIES

RP = Reverse Polarity
4073 Two Antenna Coupler, Transmit and Receive, 2-Port 900 MHz QTY _____
4051 Receive Only, 2 to 4 Antenna Coupler 4-Port 900 MHz QTY _____
4061 Receive Only, 2 to 4 Antenna Coupler 4-Port 2.4 GHz QTY _____
4062 50 Ohm Termination, For Unused Ports On P/N 4051,4061 QTY _____
4022 PSP24-024S, 24 VDC 1 Amp Power Supply QTY _____
4026 Bulkhead Connector Type N Female to Type N Female QTY _____
4011 Bulkhead Surge Protector Type N Male to Type N Female QTY _____
4035 Bulkhead Surge Protector Type N Female to Type N Female QTY _____
CBH2 2 Ft WBC195 Cable w/ RP-SMA Male & RP-SMA Female Bulkhead Connector QTY _____
CBH6 6 Ft WBC195 Cable w/ RP-SMA Male & RP-SMA Female Bulkhead Connector QTY _____
CBH10 10 Ft WBC195 Cable w/ RP-SMA Male & RP-SMA Female Bulkhead Connector QTY _____
CBH-X Custom Length WBC195 Cable w/ RP-SMA Male & RP-SMA Female Bulkhead Connector QTY _____
CPT2 2 Ft WBC195 Cable w/ RP-SMA Male & Type N Male Connector QTY _____
CPT6 6 Ft WBC195 Cable w/ RP-SMA Male & Type N Male Connector QTY _____
CPT10 10 Ft WBC195 Cable w/ RP-SMA Male & Type N Male Connector QTY _____
CPT-X Custom Length WBC195 Cable w/ RP-SMA Male & Type N Male Connector QTY _____
For more accessories and cables, see the ACCESSORIES section of this catalog (Page 49).

DIMENSIONS

Inches [mm]

CONNECTIONS

TERMINAL

CONNECTION

0/1 V

-1/1 V
1/5 V
0/5 V

-5/5 V

0/10 V

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

4

DC Signal Input 1 +
DC Signal Input 1 ­DC Signal Input 2 +
DC Signal Input 2 ­Switch 1 +
Switch 1 ­Switch 2 ­Switch 2 +
Switch 3 +
Switch 3 ­Switch 4 ­Switch 4 +
No Connection
No Connection
Power +
Power -
