Parts List and Electrical Schematics
GEM5IF and GEM5IFT
THE INTELLIFRESH® SYSTEM
The IntelliFresh® system is a programmable method of storing coffee to maintain temperature and freshness.
It will alert you when the coffee has exceeded the desired holding time. Coffee is brewed directly into an
IntelliFresh
connector on the brewer’s center panel. The IntelliFresh
A note about the GEM5IF remote stand: The warmer elements within the GEM3IF satellite can be shut off
at the rocker switch. The GEM3IF satellite is designed to shut off after 10 hours automatically, once it is
connected to the GEM5IF stand.
EXPLODED VIEW
®
GEM3IF satellite container. The satellites are linked with the brewer through an electrical
®
system is activated when a brew cycle is started.
WARNING: HOT SURFACES. As with all electrical equipment, caution must be taken to avoid
electrical shock. Be sure the power cord is disconnected before removing components. Avoid
burns. Allow the warmer stand to cool before attempting to service.
The GEM5IF (single warmer stand) and the GEM5IFT (twin warmer stand) use some common parts. Items that
are exclusive to each model are indicated on the part list, on the following page.
9
1
10
11
2
12
3
12A
3A
4
4A
5
5A
7A
8A
6
7
8B
8
1
PARTS LIST
INDEX № PART № DESCRIPTION
1
2
a
3
3A
a
4
4A
a
5
5A
6
a
7
7A
8
8A
8B
9
10
11
12
12A
b
b
b
b
c
c
a
b
WC-38535
WC-38504
WC-61317
WC-61383
WC-61315K
WC-61382K
WC-39750
WC-39810
WC-114R
WC-61326
WC-61387
WC-3503
WC-3528
WC-3512
WC-61318
WC-61307
WC-13429
WC-1386-102
WC-13435
LABEL, SLIDE CONTAINER TO CONTACT BACK PANEL GEMTIF/GEMSIF
LABEL, WARNING SHOCK HAZARD INTELLI-FRESH
RETAINER, GEM-5IF
RETAINER, GEM5IFT
KIT, TOP COVER ASSY GEM5IF
KIT, TOP COVER ASSY GEM5IFT
LABEL, FRONT GEM5IF CURTIS LOGO
LABEL, FRONT GEM5IFT CURTIS
SWITCH, ROCKER (RED) 120V NEON SPST 15A 250V
COVER, BOTTOM ASSY GEM5IF
COVER, BOTTOM W/A GEM5IFT
LEG, 3/8”-16 STUD SCREW BUMPER
LEG, 4” ADJUSTABLE 3/8-16 THRD ITALIAN STYLE
LEG, 2 1/2’ ADJUSTABLE SATIN
BOX, IF MODULE GEM-5IF
HOLDER, CONNECTOR FEMALE GEMTIF
HARNESS ASSY IF CONNECTOR RT GEMTIF
HARNESS, ASSY GEM5IF
HARNESS ASSY GEM5IFT
a
GEM5IF ONLY
b
GEM5IFT ONLY
c
OPTIONAL
2

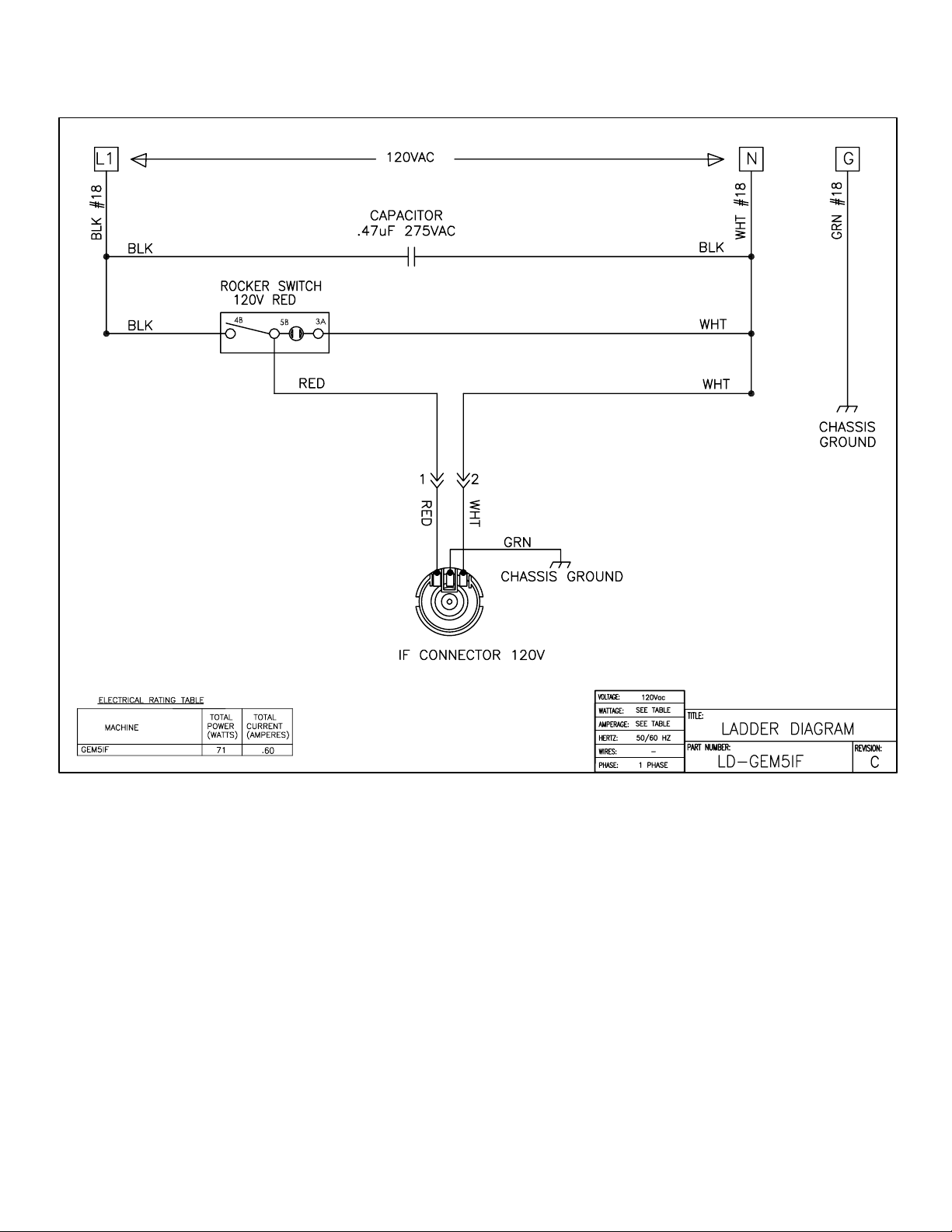

ELECTRICAL SCHEMATIC GEM5IFS
3
ELECTRICAL SCHEMATIC GEM5IFT
4
Product Warranty Information
Wilbur Curtis Co., Inc. certies that its products are free from defects in material and workmanship under normal use. The following limited warranties
and conditions apply:
3 years, parts and labor, from the original date of purchase on digital control boards.
2 years, parts, from the original date of purchase on all other electrical components, ttings and tubing.
1 year, labor, from the original date of purchase on all electrical components, ttings and tubing.
Additionally, Wilbur Curtis Co., Inc. warrants its grinding burrs for forty (40) months from the date of purchase or 40,000 pounds of coffee, whichever
comes rst. Stainless steel components are warranted for two (2) years from the date of purchase against leaking or pitting and replacement parts
are warranted for ninety (90) days from the date of purchase or for the remainder of the limited warranty period of the equipment in which the
component is installed.
All in-warranty service calls must have prior authorization. For authorization, call the Technical Support Department at 1-800-995-0417. The effective
date of this policy is April 1, 2003.
Additional conditions may apply. Go to www.wilburcurtis.com to view full product warranty information.
CONDITIONS & EXCEPTIONS
The warranty covers original equipment at the time of purchase only. The Wilbur Curtis Co., Inc., assumes no responsibility for substitute
replacement parts installed on Curtis equipment that have not been purchased from Wilbur Curtis Co., Inc. Wilbur Curtis Co., Inc. will not accept any
responsibility if the following conditions are not met. The warranty does not cover and is void under the following circumstances:
1) Improper operation of equipment: The equipment must be used for its designed and intended purpose and function.
2) Improper installation of equipment: This equipment must be installed by a professional technician and must comply with all local electrical,
mechanical and plumbing codes.
3) Improper voltage: Equipment must be installed at the voltage stated on the serial plate supplied with this equipment.
4) Improper water supply: This includes, but is not limited to, excessive or low water pressure and inadequate or uctuating water ow rate.
5) Adjustments and cleaning: The resetting of safety thermostats and circuit breakers, programming and temperature adjustments are the
responsibility of the equipment owner. The owner is responsible for proper cleaning and regular maintenance of this equipment.
6) Damage in transit: Equipment damaged in transit is the responsibility of the freight company and a claim should be made with the carrier.
7) Abuse or neglect (including failure to periodically clean or remove lime accumulations): The manufacturer is not responsible for variation
in equipment operation due to excessive lime or local water conditions. The equipment must be maintained according to the manufacturer’s
recommendations.
8) Replacement of items subject to normal use and wear: This shall include, but is not limited to, light bulbs, shear disks, “O” rings, gaskets,
silicone tube, canister assemblies, whipper chambers and plates, mixing bowls, agitation assemblies and whipper propellers.
9) Repairs and/or Replacements are subject to our decision that the workmanship or parts were faulty and the defects showed up under normal
use. All labor shall be performed during regular working hours. Overtime charges are the responsibility of the owner. Charges incurred by
delays, waiting time, or operating restrictions that hinder the service technician’s ability to perform service is the responsibility of the owner of
the equipment. This includes institutional and correctional facilities. Wilbur Curtis Co., Inc. will allow up to 100 miles, round trip, per in-warranty
service call.
RETURN MERCHANDISE AUTHORIZATION: All claims under this warranty must be submitted to the Wilbur Curtis Company Technical Support
Department prior to performing any repair work or return of this equipment to the factory. All returned equipment must be repackaged properly in the
original carton. No units will be accepted if they are damaged in transit due to improper packaging. NO UNITS OR PARTS WILL BE ACCEPTED
WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA). THE RMA NUMBER MUST BE MARKED ON THE CARTON OR SHIPPING
LABEL. All in-warranty service calls must be performed by an authorized service agent. Call the Wilbur Curtis Technical Support Department to nd
an agent near you.
ECN 16674 9/01/15@10.5
WILBUR CURTIS CO., INC.
6913 Acco St., Montebello, CA 90640-5403 USA | Phone: 800-421-6150 | Fax: 323-837-2410
Technical Support Phone: 800/995-0417 (M-F 5:30
Email: techsupport@wilburcurtis.com | Web Site: www.wilburcurtis.com
a.m. - 4:00 p.m. PST)
9/2015 F-3791 rev D
