WIKA CPG Data sheet

Pneumatic service kit
Model CPG-KITP

Applications

■

Oil and gas industry

■

Maintenance and service facilities

■

Calibration service companies and service industry

■

Simple calibrations directly on site

Special features

■

Testing and adjustment of pressure gauges, pressure
sensors, pressure switches or safety valves

■

Reference instrument model CPG1500 with 0.05 % FS

■

Pneumatic version up to 40 bar (max. pressure

generation with hand test pump -950 mbar ... 35 bar
(-13.5 ... 500 psi))

■

Clear and simple operation

Calibration technology

WIKA data sheet CT 93.01

Pneumatic service kit, model CPG-KITP

Description

Application range

The CPG-KITP pneumatic service kit is the ideal tool
for the pneumatic testing, adjustment and calibration of
mechanical and electronic pressure measuring instruments
through comparative measurements or for the setting of
pressure switches. These and other tests can take place
quickly and reliably in the laboratory or workshop, or on site
at the measuring point. With the service kit, service and

maintenance are more complete, safer and more exible. The
kit is high-quality nish, handy and robust and is also suitable

for service use.

Components

The service kit consists of a pneumatic hand test pump

for the generation of a dened test pressure and also a

highly accurate model CPG1500 precision digital pressure
gauge as a reference instrument. Air is used as the pressure
medium. Various connection adapters are also available in
the test case. All components are carefully stowed in the
case and protected for in-house transport.

Simple function

If one connects the test item and the model CPG1500
precision digital pressure gauge to the test pump, on
actuating the pump, the same pressure will act on both

instruments. Using the ne adjustment valve, the test
pressure is set exactly. By comparison of the two measured

values at any given pressure value, a check of the accuracy
and/or adjustment of the pressure measuring instrument
under test can be carried out.

WIKA-CAL software

The collected data from the data logger of the digital
pressure gauge can be transmitted wirelessly to the
WIKA-CAL calibration software for further evaluation.

WIKA-CAL also oers, over and above PC-supported

calibration, the management of the calibration and instrument
data in an SQL database. A WIKA-Wireless interface is
available for the data transfer.

WIKA data sheet CT 93.01

Data sheets showing similar products:
Precision digital pressure gauge; model CPG1500; see data sheet CT 10.51
Hand test pump, pneumatic; model CPP30; see data sheet CT 91.06
Hydraulic service kit; model CPG-KITH; see data sheet CT 93.02

∙ 10/2016

Page 1 of 6

Specications

Specications Metric version

CPG-KITP-EUxx-ZZ

Imperial version
CPG-KITP-USxx-ZZ

CPG1500

Pressure range See ordering information

Pressure connection G ½ male thread ¼ NPT male thread

Wetted parts Stainless steel

CPP30

Pressure range -0.95 ... 35.0 bar -13.5 … +500 psi

Pressure transmission medium Air

Pressure connection G ½ female thread for reference instrument,

freely rotating, hose with G ¼ female thread
for test item

¼ NPT female thread via adapter for
reference instrument, hose with ¼ NPT via
adapter for test item

Fine adjustment Fine adjustment valve

Material Chrome-plated brass, anodised aluminium, high-strength plastic

Dimensions (L x W x H) 220 x 105 x 63 mm (8.66 x 4.13 x 2.48 in)

Weight 0.51 kg (1.12 lbs)

Standard accessories Test item connection hose; length 0.5 m (1.64 ft)

Certicates

Certicate

Calibration Standard: 3.1 calibration certicate per EN 10204

Option: DKD/DAkkS calibration certicate

Recommended recalibration interval 1 year (dependent on conditions of use)

Approvals and certicates, see website

Ordering information Metric version

Measuring range Accuracy

CPG-KITP-EU03-5-ZZ 0 ... 10 bar 0.05 % FS

CPG-KITP-EU07-5-ZZ 0 ... 16 bar 0.05 % FS

CPG-KITP-EU08-5-ZZ 0 ... 25 bar 0.05 % FS

CPG-KITP-EU06-5-ZZ 0 ... 40 bar 0.05 % FS

CPG-KITP-EU04-5-ZZ -1 ... 7 bar 0.05 % FS

CPG-KITP-EU05-5-ZZ -1 ... 40 bar 0.05 % FS

CPG-KITP-EU14-5-ZZ 0 ... 7 bar abs. 0.05 % FS

CPG-KITP-EU13-5-ZZ 0 ... 10 bar abs. 0.05 % FS

CPG-KITP-EU15-5-ZZ 0 ... 20 bar abs. 0.05 % FS

CPG-KITP-EU16-5-ZZ 0 ... 40 bar abs. 0.05 % FS

CPG-KITP-EU03-1-ZZ 0 ... 10 bar 0.1 % FS

CPG-KITP-EU07-1-ZZ 0 ... 16 bar 0.1 % FS

CPG-KITP-EU08-1-ZZ 0 ... 25 bar 0.1 % FS

CPG-KITP-EU06-1-ZZ 0 ... 40 bar 0.1 % FS

CPG-KITP-EU04-1-ZZ -1 ... 7 bar 0.1 % FS

CPG-KITP-EU05-1-ZZ -1 ... 40 bar 0.1 % FS

CPG-KITP-EU14-1-ZZ 0 ... 7 bar abs. 0.1 % FS

CPG-KITP-EU13-1-ZZ 0 ... 10 bar abs. 0.1 % FS

CPG-KITP-EU15-1-ZZ 0 ... 20 bar abs. 0.1 % FS

CPG-KITP-EU16-1-ZZ 0 ... 40 bar abs. 0.1 % FS

1) FS = Full Span

2) Vacuum 0.1 % full span

1)

1)

1)

1)

1) 2)

1) 2)

1) 2)

1) 2)

1) 2)

1) 2)

1)

1)

1)

1)

1)

1)

1)

1)

1)

1)

Page 2 of 6 WIKA data sheet CT 93.01 ∙ 10/2016

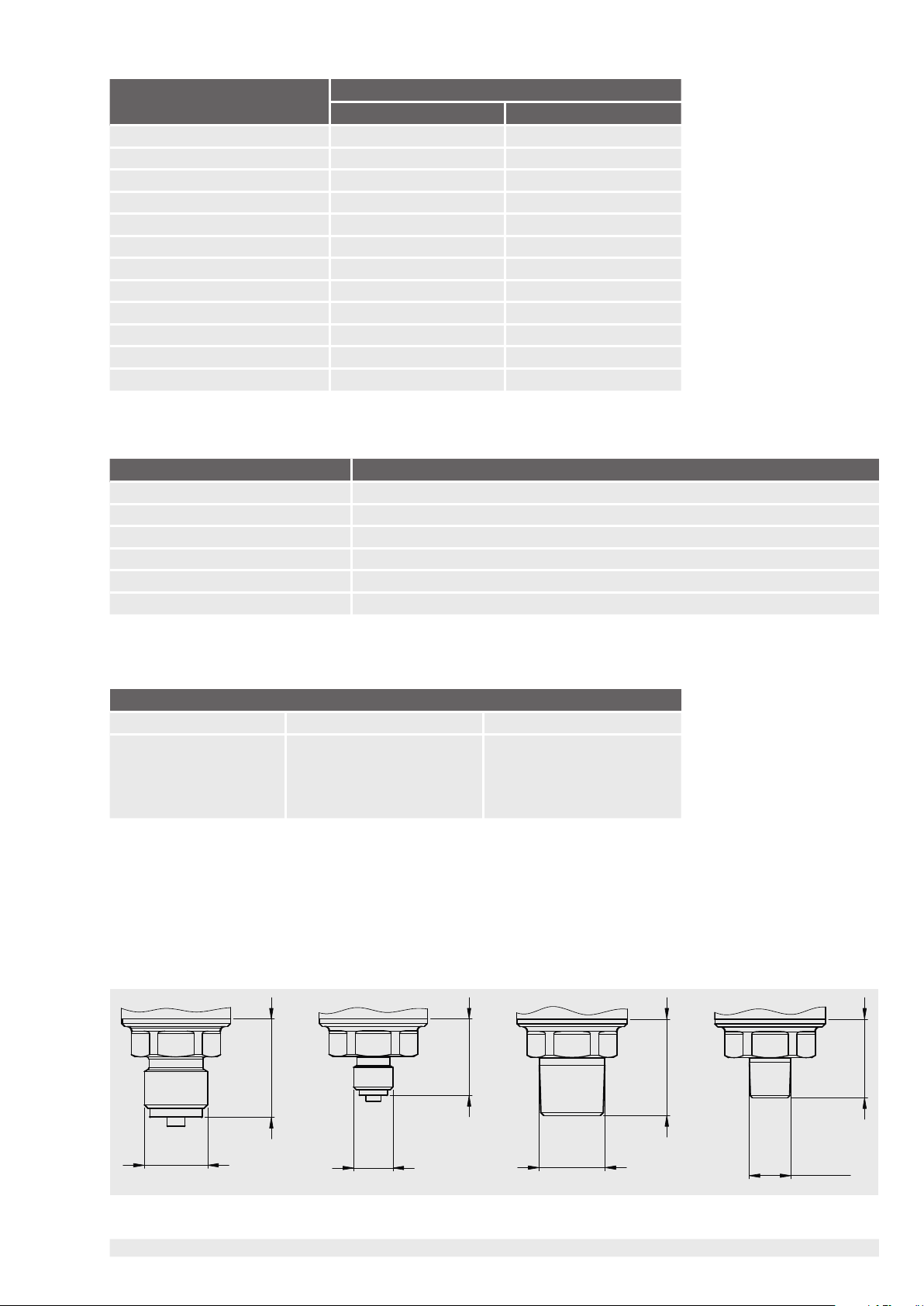

Ordering information Imperial version

Measuring range Accuracy

CPG-KITP-US06-5-ZZ 0 ... 500 psi 0.05 % FS

CPG-KITP-US04-5-ZZ -14.5 ... 100 psi 0.05 % FS

CPG-KITP-US05-5-ZZ -14.5 ... 300 psi 0.05 % FS

CPG-KITP-US14-5-ZZ 0 ... 100 psi abs. 0.05 % FS

CPG-KITP-US15-5-ZZ 0 ... 300 psi abs. 0.05 % FS

CPG-KITP-US16-5-ZZ 0 ... 500 psi abs. 0.05 % FS

CPG-KITP-US06-1-ZZ 0 ... 500 psi 0.1 % FS

CPG-KITP-US04-1-ZZ -14.5 ... 100 psi 0.1 % FS

CPG-KITP-US05-1-ZZ -14.5 ... 300 psi 0.1 % FS

CPG-KITP-US14-1-ZZ 0 ... 100 psi abs. 0.1 % FS

CPG-KITP-US15-1-ZZ 0 ... 300 psi abs. 0.1 % FS

CPG-KITP-US16-1-ZZ 0 ... 500 psi abs. 0.1 % FS

1) FS = Full Span

2) Vacuum 0.1 % full span

1)

1) 2)

1) 2)

1) 2)

1) 2)

1) 2)

1)

1)

1)

1)

1)

1)

Ordering information Accessories

CPG-A-15-ZZ2-Z WIKA-Wireless USB stick for wireless data transfer

WIKA-CAL WIKA-CAL

CPG-A-15-ZZB-Z BSP adapter set

CPG-A-15-ZZF-Z NPT adapter set

CPG-A-15-ZZD-Z Sealing set, consisting of 4 x G ½ USIT seals and 2 x G ¼ USIT seals

CPG-A-15-ZZC-Z 3 x AA alkaline batteries

Adapter set for test item connection

Pressure range BSP NPT

Adapter G ¼ male to:

G ⅛ female
G ⅜ female

G ½ female

Dimensions in mm (in)

Various test connections

32.5 (1.28)

25.5 (1.00)

G ¼ male to:

⅛ NPT female

¼ NPT female

⅜ NPT female

½ NPT female

31.5 (1.24)

25.5 (1.00)

G 1/2

WIKA data sheet CT 93.01 ∙ 10/2016 Page 3 of 6

G 1/4

NPT 1/2

NPT 1/4

Dimensions in mm (in)

CPG1500 without protective rubber cap

Pneumatic hand test pump model CPP30

1

8 7

1

G ½ female connection, freely rotating for reference
instruments

2

2

3

4

5

6

Fine adjustment valve

3

Pressure relief valve

4

Toggle control, pressure/vacuum generation

5

Pump handles

6

Adjustable knurled nut for setting the pump performance
(overpressure protection)

7

G ½ female connection, freely rotating for test items

8

Test item connection hose, length 0.5 m

Page 4 of 6 WIKA data sheet CT 93.01 ∙ 10/2016

WIKA-CAL calibration software

Easy and fast creation of a high-quality calibration certicate

The WIKA-CAL calibration software is used for generating

calibration certicates or logger protocols for pressure

measuring instruments and is available as a demo version for
a cost-free download.
A template helps the user and guides him through the
creation process of a document.
In order to switch from the demo version to a full version of

the respective template, a USB stick with the template has to

be purchased.
The pre-installed demo version automatically changes to

the selected full version when the USB stick is inserted and
is available as long as the USB stick is connected to the

computer.

■

Creation of calibration certicates for mechanical and

electronic pressure measuring instruments

■

A calibration assistant guides you through the calibration

■

Automatic generation of the calibration steps

■

Generation of 3.1 certicates per DIN EN 10204

■

Creation of logger protocols

■

User-friendly interface

■

Languages: German, English, Italian and more due with

software updates

For further information see data sheet CT 95.10

Calibration certicates can be created with the Cal-Template and logger protocols can be created with the Log-Template.

Cal Demo

Generation of calibration certicates limited to 2 measuring points, with

automatic initiation of pressures via a pressure controller.

Cal Light

Generation of calibration certicates with no limitations on measuring

points, without automatic initiation of pressures via a pressure
controller.

Log Demo

Creation of data logger test reports, limited to 5 measured values.

Log

Creation of data logger test reports without limiting the measured
values.

WIKA data sheet CT 93.01 ∙ 10/2016 Page 5 of 6

Scope of delivery

Options

■

Precision digital pressure gauge model CPG1500

■

Pneumatic hand test pump model CPP30

■

Adapter set

■

Protective rubber cap for model CPG1500

■

Case with matching foam insert for CPG1500, CPP30 and
adapter set

■

Operating instructions CPG1500 and CPP30

Accessories

■

WIKA-CAL calibration software

■

WIKA-Wireless USB stick

■

DKD/DAkkS calibration

© 10/2016 WIKA Alexander Wiegand SE & Co. KG, all rights reserved.

The specications given in this document represent the state of engineering at the time of publishing.
We reserve the right to make modications to the specications and materials.

Page 6 of 6 WIKA data sheet CT 93.01 ∙ 10/2016
