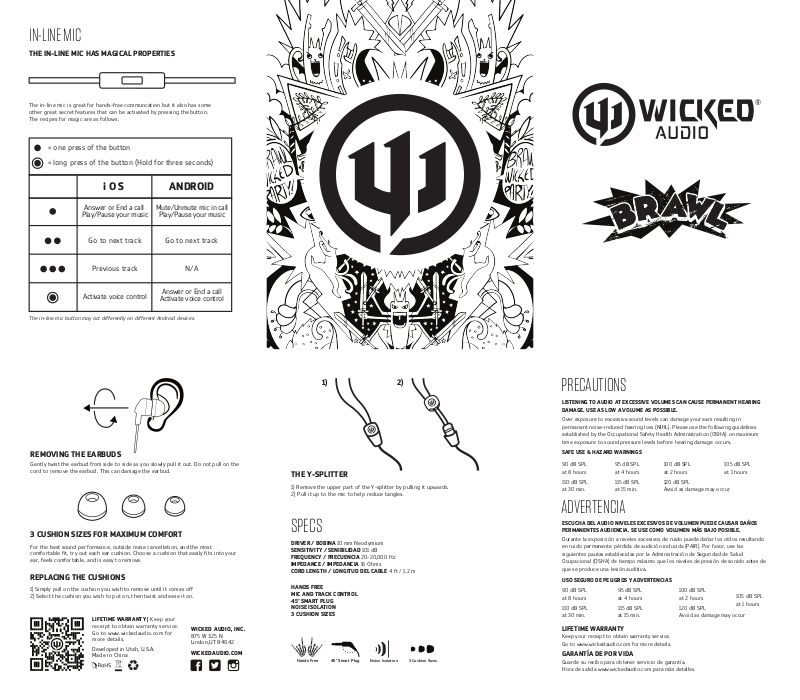

Wicked Audio Brawl User Manual
IN-LINE MIC
THE IN-LINE MIC HAS MAGICAL PROPERTIES
The in-line mic is great for hands-free communcation but it also has some
other great secret features that can be activated by pressing the button.
The recipes for magic are as follows:
= one press of the button
= long press of the button (Hold for three seconds)
iOS ANDROID
Answer or End a call
Play/Pause your music
Go to next track Go to next track
Mute/Unmute mic in call
Play/Pause your music
Previous track
Activate voice control
The in-line mic button may act differently on different Android devices.
N/A
Answer or End a call
Activate voice control
REMOVING THE EARBUDS
Gently twist the earbud from side to side as you slowly pull it out. Do not pull on the
cord to remove the earbud. This can damage the earbud.
3 CUSHION SIZES FOR MAXIMUM COMFORT
For the best sound performance, outside noise cancellation, and the most
comfortable t, try out each ear cushion. Choose a cushion that easily ts into your
ear, feels comfortable, and is easy to remove.
REPLACING THE CUSHIONS
1) Simply pull on the cushion you wish to remove until it comes off
2) Select the cushion you wish to put on, then twist and ease it on.
LIFETIME WARRANTY | Keep your
receipt to obtain warranty service.
Go to www.wickedaudio.com for
more details.
Developed in Utah, U.S.A.
Made in China
WICKED AUDIO, INC.
875 W 325 N
Lindon, UT 84042
WICKEDAUDIO.COM
1) 2)
THE Y-SPLITTER
1) Remove the upper part of the Y-splitter by pulling it upwards.
2) Pull it up to the mic to help reduce tangles.
SPECS
DRIVER / BOBINA 10 mm Neodymium
SENSITIVITY / SENIBILIDAD 101 dB
FREQUENCY / FRECUENCIA 20-20,000 Hz
IMPEDANCE / IMPEDANCIA 16 Ohms
CORD LENGTH / LONGITUD DEL CABLE 4 ft / 1.2 m
HANDS FREE
MIC AND TRACK CONTROL
45° SMART PLUG
NOISE ISOLATION
3 CUSHION SIZES
Hands Free
45° Smart Plug
Noise Isolation
3 Cushion Sizes
PRECAUTIONS
LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING
DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.
Over exposure to excessive sound levels can damage your ears resulting in
permanent noise-induced hearing loss (NIHL). Please use the following guidelines
established by the Occupational Safety Health Administration (OSHA) on maximum
time exposure to sound pressure levels before hearing damage occurs.
SAFE USE & HAZARD WARNINGS
90 dB SPL
at 8 hours
110 dB SPL
at 30 min.
95 dB SPL
at 4 hours
115 dB SPL
at 15 min.
100 dB SPL
at 2 hours
120 dB SPL
Avoid as damage may occur
105 dB SPL
at 1 hours
ADVERTENCIA
ESCUCHA DEL AUDIO NIVELES EXCESIVOS DE VOLUMEN PUEDE CAUSAR DAÑOS
PERMANENTES AUDIENCIA. SE USE COMO VOLUMEN MÁS BAJO POSIBLE.
Durante la exposición a niveles excesivos de ruido puede dañar los oídos resultando
en ruido permanente pérdida de audición inducida (PAIR). Por favor, use las
siguientes pautas establecidas por la Administración de Seguridad de Salud
Ocupacional (OSHA) de tiempo máximo que los niveles de presión de sonido antes de
que se produce una lesión auditiva.
USO SEGURO DE PELIGROS Y ADVERTENCIAS
90 dB SPL
at 8 hours
110 dB SPL
at 30 min.
LIFETIME WARRANTY
Keep your receipt to obtain warranty service.
Go to www.wickedaudio.com for more details.
GARANTÍA DE POR VIDA
Guarde su recibo para obtener servicio de garantía.
Hora de salida www.wickedaudio.com para más detalles.
95 dB SPL
at 4 hours
115 dB SPL
at 15 min.
100 dB SPL
at 2 hours
120 dB SPL
Avoid as damage may occur
105 dB SPL
at 1 hours
