Whynter BWR1002SD User Manual
Whynter 100 Bottle Built-in Stainless Steel Compressor Wine
Refrigerator with Display Rack and LED display
Model # : BWR-1002SD
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.
Table of Contents
PAGE
Safety Precautions
Parts
Product Features

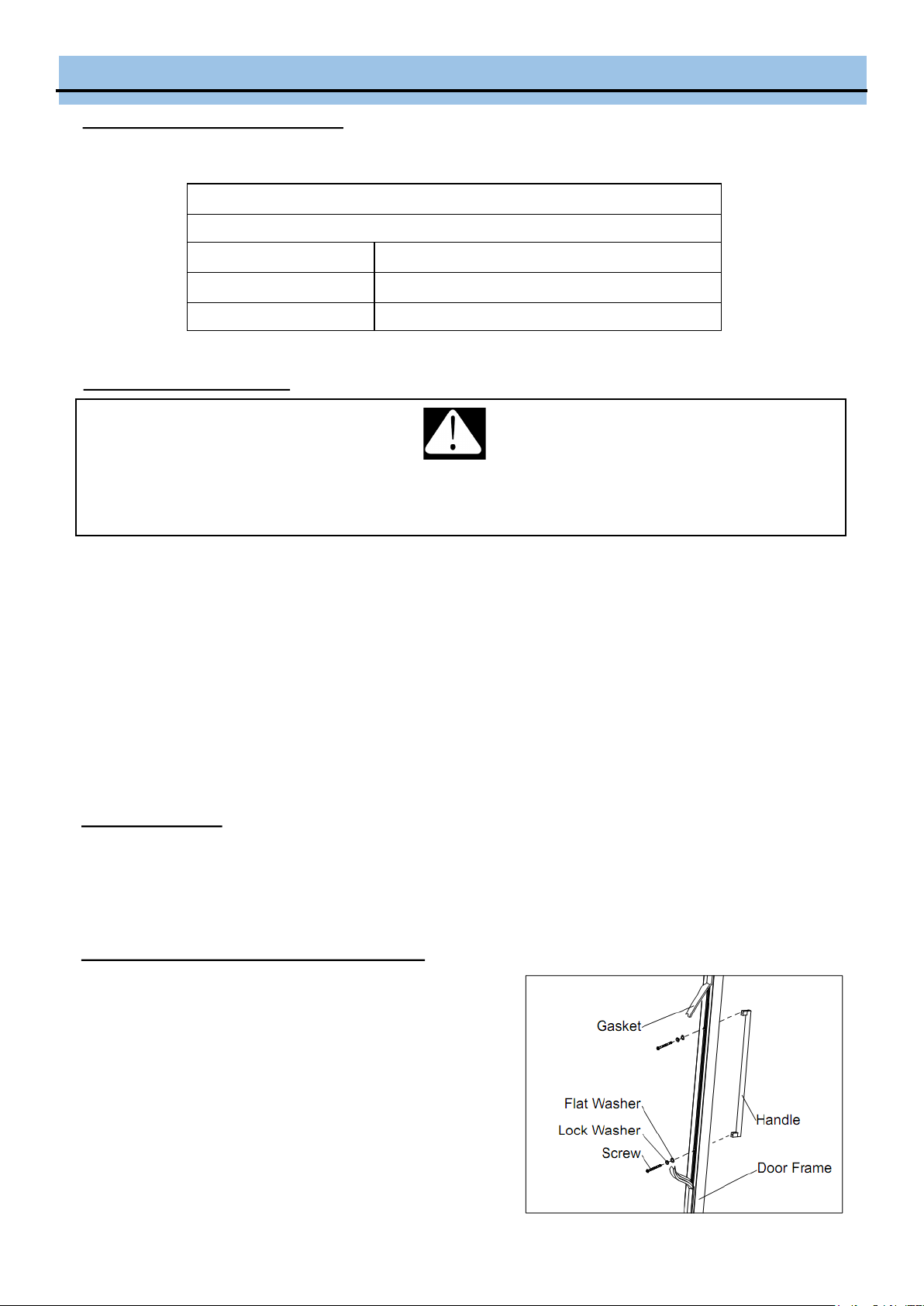

Installation

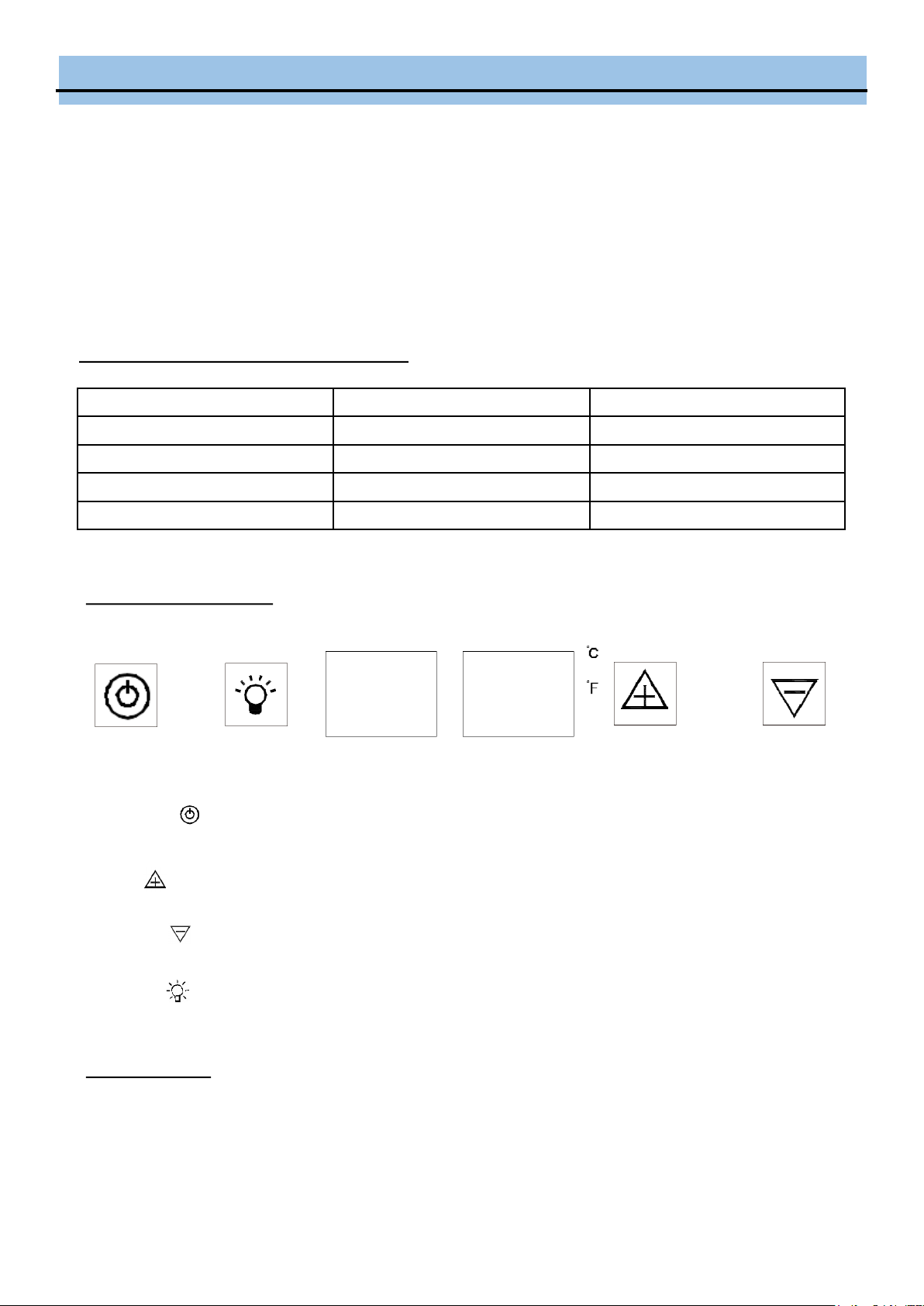

Operation and Controls

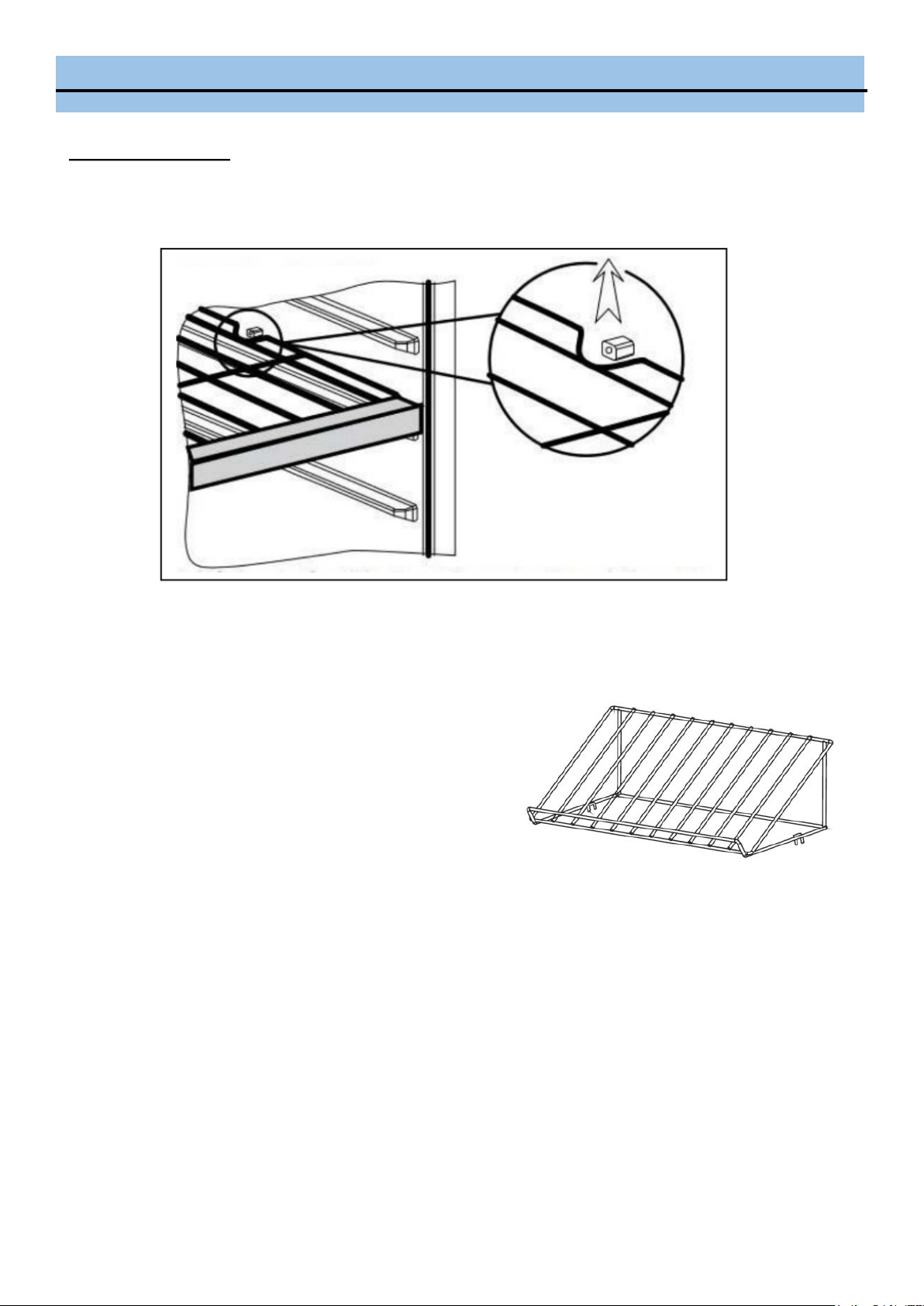

Storage
Care and Maintenance
Troubleshooting
Warranty Information
3 - 4
5
6
7 - 9
10 - 12
13 - 14
15
16 - 17
18
2
Safety Precautions
Your safety and the safety of others are very important to us.
To reduce the risk of fire, electrical shock, or injury when using your appliance, follow
these basic precautions
APPLIANCE SAFETY
This is the Safety Alert Symbol. This symbol alerts you to potential hazards
that may result in serious injury. All safety messages will follow the Safety
Alert Symbol and either the words” DANGER” or “WARNING”.
Danger means that failure to heed this safety
statement may result in severe injury or death.
Warning means that failure to heed this safety
statement may result in extensive product damage, serious injury, or death.
Caution means that failure to heed this safety
statement may result in minor or moderate injury,
or propert
All safety messages will alert you to know what the potential hazard is, tell you how to reduce the
chance of injury, and let you know what can happen if the instructions are not followed.
y or equipment damage.
IMPORTANT SAFEGUIDES
Before the appliance is used, it must be properly positioned and installed as
described in this manual, please read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an
extension cord.
Do not use if the power supply cord is damaged. If damaged, it must be replaced by a qualified electrician.
It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot
be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids or harsh chemicals. These fumes can create a fire hazard or
explosion.
3
Safety Precautions
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of the appliance or any
other appliance.
Before proceeding with cleaning and maintenance operations, make sure to unplug the appliance.
Do not connect or disconnect the electric plug with wet hands.
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this
manual. All other servicing should be referred to a qualified technician.
This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is environ-
mentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse
effect. Care must be taken during transportation and setting up of the appliance that no parts of the cooling
system are damaged. Leaking coolant can ignite and may damage the eyes.
In the event of leakage:
- Avoid open flames and anything which creates a spark
- Disconnect from the mains
- Air the room in which the appliance is located for several minutes and contact the Service Department
for advice
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install the appliance. Failure to do so can result in injury.
To ensure proper ventilation for your appliance, the front of the appliance must be completely unobstruct-
ed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This appliance must be installed in an area protected from the element, such as wind, rain, water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical connections in accordance with state and local codes.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the appliance to be leveled in order to work properly. For a stable installation, make sure
the appliance is placed on a flat, level and solid surface.
Ensure that the surface on which the appliance is placed is strong enough to hold the appliance and the
items stored inside.
This appliance is not intended for use by young children or physically-challenged persons without supervi-
sion/assistance. Young children must be supervised to ensure safety around this or any appliance.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or
discolor the interior.
Keep fingers out of the “pinch point” areas. Clearance between the doors and between the doors and
cabinet are necessarily small. Be careful closing doors when children are in the area.
This wine refrigerator is designed to store wine bottles. If food is stored inside, ensure that there is suffi-
cient airflow between items. Please note that the temperature range for this wine refrigerator is optimized
for wine and beverage storage. Perishable food items may require a different storage environment.
Do not place hot food or beverages into the appliance.
Close the wine refrigerator door immediately after putting in any items to keep the internal temperature
relatively constant.
Avoid placing any objects on top of the appliance.
This is an electrical appliance, to avoid injury from electrical shock do not operate the unit with wet hands,
while standing on a wet surface or while standing in water. Do not use outdoors or in wet conditions.
When positioning or moving the appliance, ensure that it is not turned up side down or unleveled greater
than 45°
Never pull the power cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
Never lift, carry or drag the appliance by the power cord.
This appliance is designed for household, non-commercial use only. Any other use will void the warranty.
Do not plug into the power outlet before set up is completed.
Do not move this appliance without emptying it and securing the door in a closed position.
4
Parts
SETUP A
SETUP B
1. Control Panel
2. Internal Fan (2)
3. Door Handle
4. Charcoal Filter
5. Door Frame
6. Front Vent
7. Leveling Legs (4)
8. Door Hinge Cover
9. Internal Light
10a. Wooden Display Shelf (1)
10b. Wooden Shelves (12)
11. Cylinder Lock and Latch
12. Bottom Door Hinge
13. Drip Tray
14. Power Cord
15. Door Keys
5
(REAR)
13
14
15
Product Features
The Whynter Stainless Steel Compressor Wine Refrigerator offers premium quality and innovative
design ideal for your wine collecting needs. Whether for the enthusiast or the connoisseur, the single zone
compressor wine refrigerator provides premium and advanced wine storage functionality.
This wine storage system can hold up to 100 standard 750ml wine bottles. The powerful compressor cooling
process offers optimum temperatures (low 40ºF to mid 60ºF) for red, white, and sparkling wines. The front
ventilation design of this unit allows for flush with cabinet installation or simply freestanding usage.
The premium appeal of the Whynter BWR-1002SD features a substantial stainless steel trimmed door
accented with a luxurious curved handlebar. The 12 removable wooden flat slide out shelves offer high-end
functionality and safety for your prized wine collection, plus a wire display shelf that lets you proudly display or
safely store opened bottles.
• Capacity: 100 standard 750ml wine bottle
100 bottles (Setup A), 90 (Setup B)
• Stainless steel glass door with sleek black cabinet
• Luxurious curved handlebar
• Tempered double-pane gray-smoked glass for enhanced UV protection
• Adjustable thermostat
• Reversible door swing
• Fahrenheit and Celsius degree temperature indicators
• Environmentally friendly refrigerant
• Interior lighting strip with 9 energy-efficient LED soft white light bulbs
• Internal fan-forced circulation for even temperature distribution throughout the cabinet
• Cylinder lock and two keys
• 12 removable wooden flat slide out shelves
• 1 wire display shelf
TECHNICAL DATA
MODEL :
Capacity
Voltage
Current
Input Power
Power Consumption
Temperature Control
Range
Net Weight
Gross Weight
SETUP A
BWR-1002SD
100 standard wine bottles
115V/60Hz
2.0A
120W
0.9kWh/24h
SETUP B
40ºF - 65ºF / 5ºC - 18ºC
159 lbs
170 lbs
Unit Dimensions
Packaging Dimensions
55"H x 23.5"W x 22.5"D
(24.75" D with handle installed)
58" H x 26" W x 24.5" D
6
