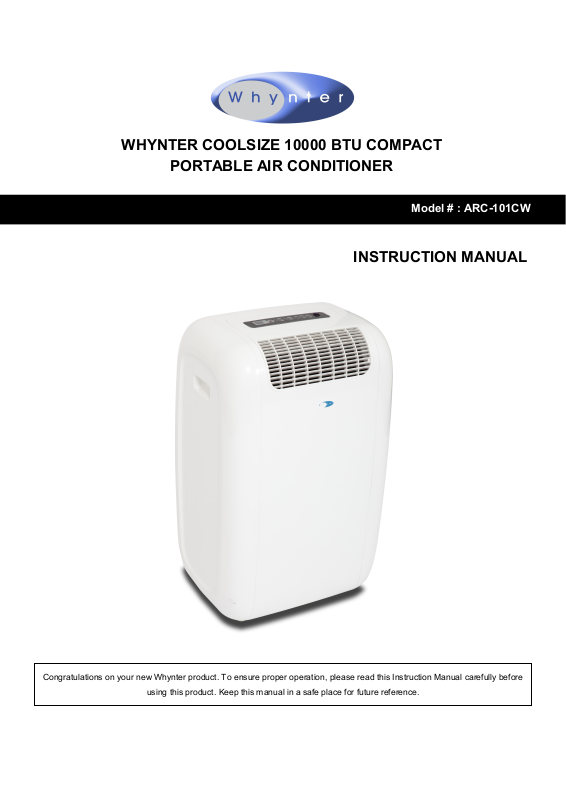

WHYNTER COOLSIZE 10000 BTU COMPACT
PORTABLE AIR CONDITIONER
Model # : ARC-101CW
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
TABLE OF CONTENTS
|
|
PAGE |
|
|
DISPOSAL INFORMATION |
3 |
|
|
SAFETY PRECAUTIONS |
4 |
|
|
INTRODUCTION / TECHNICAL DATA |
5 |
|
|
PARTS IDENTIFICATION |
6 - 7 |
|
|
CONTROL PANEL |
8 |
|
|
INSTALLATION |
9 - 11 |
|
|
OPERATION INSTRUCTIONS |
12 - 13 |
|
|
REMOTE CONTROL |
14 |
|
|
CARE AND MAINTENANCE |
15 |
|
|
TROUBLESHOOTING |
16 - 17 |
|
|
WARRANTY INFORMATION |
18 |
|
2
DISPOSAL INFORMATION
Thank you for choosing the Whynter CoolSize 10000 BTU Compact Portable Air Conditioner. Please follow the instructions provided in this user guide to obtain the very best performance from your portable air conditioner and take full advantage of the many features your portable air conditioner offers you. We trust that your Whynter air conditioner will provide the performance and reliability that we stand for.
Please keep this user manual in a safe place for future reference.
This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances. Your contribution to the correct disposal of this product protects the environment. Further information about the recycling of this product can be obtained from your local municipal authority.
3
SAFETY PRECAUTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN USING YOUR AIR CONDIITIONER, FOLLOW THESE BASIC PRECAUTIONS:
Before the appliance is used, it must be properly positioned and installed as detailed in this manual.
Do not under any circumstances cut or remove the third (ground) prong from the power cord
Make sure this unit is connected to a correctly grounded power supply outlet. Do not use an extension cord or power strip
The power cord is UL listed. It has a built-in L.C.D.I. (leakage, current, detection, interruption) circuit breaker for added safety. If the power supply is interrupted, press the reset button to reconnect the unit to power source
It is recommended to use a separate circuit that its size should be 15 Amps for the air conditioner
Do not use an excessively wet cloth, industrial solvents, oil-based products to clean this portable air conditioner
To avoid the risk of shock, the product should never be used in bathrooms, shower rooms, or in any other steamy or wet areas
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliances
Do not repair, disassemble and/or modify the unit by yourself
Always turn off the portable air conditioner when cleaning the air filter, and transporting
Do not turn this unit on and off by plugging and unplugging. Always use the ON/OFF switch
Transport the unit in an upright position only, or leave it in an upright position for at least 4 hours before first use
Ensure curtains or other objects are not obstructing the air inlet filters
Do not bend or crush the exhaust hose while in use
Always allow at least 20” of clearance around the unit for ventilation. Do not use this unit inside closets, cabinets and/or cramped spaces between furniture
This unit is optimized to operate in an ambient temperature of 64°F – 90°F
This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips
The unit should not be located next to ovens, grills or other sources of high heat
Always place the unit on even and hard and level surface
Do not sit or place objects on the unit
Do not allow children to climb, stand or hang on the appliance. The air conditioner could tip over and get damaged and/or seriously injure somebody
Keep fingers out of the air intakes and air outlets
The appliance is an electrical appliance. To avoid injury from electrical shock do not operate it with wet hands, while standing on a wet surface or while standing in water. Do not use it in outdoors or in wet conditions
When positioning or moving the appliance, ensure it is not turned upside down or greater than 45° or more off level
This appliance is designed for household, non-commercial use only. Any other use will void the warranty
Do not plug into the power outlet before set up is completed
Do not operate this unit without the air filter(s)
Do not use harsh chemicals to clean the filter(s). Dry thoroughly before inserting the filter(s) into the unit
Do not add extra length to the exhaust hose by more than a total length of 9’. This will reduce the cooling efficiency of the portable air conditioner
At the end of each season, all water must be drained from the unit and filter(s) must be cleaned before storage
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS ARE NOT FOLLOWED.
4
INTRODUCTION / TECHNICAL DATA
HOW IT WORKS
The Whynter compact CFC-free, lead-free, and energy efficient 10,000 BTU portable air conditioner, helps you stay cool while working with better environmental standards and reducing energy consumption.
This compact portable air conditioner, specially designed to be mobile, can be easily setup in almost any indoor location and is most commonly used in data closets / server rooms, bedrooms, classrooms and garages / workshops.
This Whynter ARC-101CW compact portable air conditioner features an ECO-FRIENDLY CFCfree GREEN R-410A refrigerant and lead-free RoHS compliant components.
TECHNICAL DATA |
||
|
|
|
Model: |
ARC-101CW |
|
|
|
|
Operational Modes: |
Cool, Fan or Dehumidifier |
|
|
|
|
Cooling Capacity: |
10000 BTU |
|
|
|
|
Dehumidifying Capacity: |
70 Pts / day |
|
|
|
|
Fan Speed: |
3 Fan Speeds |
|
|
|
|
Filters: |
Activated carbon filter and washable pre-filter |
|
|
|
|
Thermostat Control Range: |
61° - 89°F |
|
|
|
|
Timer: |
24 hour programmable timer |
|
|
|
|
Noise Level: |
< 55 dBA |
|
|
|
|
Extendable Hose: |
Extendable hoses (up to 59") |
|
|
|
|
Window Kit Length: |
Minimum: 20” |
|
Maximum: 48” |
||
|
||
|
|
|
Refrigerant: |
R-410A |
|
|
|
|
Air Flow (at high speed): |
264 m3/h / 145 CFM |
|
|
|
|
Maximum Power Consumption: |
1000W / 9.4A |
|
|
|
|
Power Supply: |
115 V / 60Hz |
|
|
|
|
EER: |
10.0 |
|
|
|
|
Unit Dimensions: |
17" W x 14" D x 28" H |
|
|
|
|
Package Dimensions: |
19" W x 16" D x 35" H |
|
|
|
|
Net Weight: |
53 lbs |
|
|
|
|
Gross Weight: |
68 lbs |
|
|
|
|
5
PARTS IDENTIFICATION
Control Panel
Front Air Vent /
Louvers
Handle
Casters (four)
Air Filter
Air Intake
Upper Drain Port
Air Exhaust
Condenser Air
Intake
Lower Drain Port
Power Cord
6
