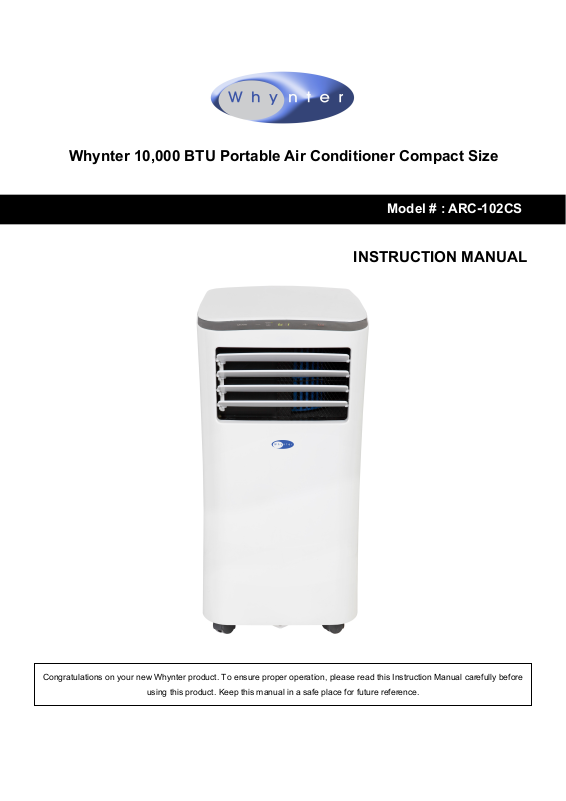

Whynter ARC102CS User Manual
Whynter 10,000 BTU Portable Air Conditioner Compact Size
Model # : ARC-102CS
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.
TABLE OF CONTENTS
PAGE
DISPOSAL INFORMATION
SAFETY PRECAUTIONS
INTRODUCTION / TECHNICAL DATA
PARTS IDENTIFICATION
CONTROL PANEL
INSTALLATION
OPERATION INSTRUCTIONS
REMOTE CONTROL
CARE AND MAINTENANCE
4
5
6
- 7 8
9
- 110 2
13 - 14
15
16
TROUBLESHOOTING
WARRANTY INFORMATION
17 - 18
20
3
DISPOSAL INFORMATION
Thank you for choosing the Whynter 10000 BTU Portable Air Conditioner Compact Size. Please
follow the instructions provided in this user guide to obtain the very best performance from your
portable air conditioner and take full advantage of the many features your portable air conditioner
offers you. We trust that your Whynter air conditioner will provide the performance and reliability
that we stand for.
Please keep this user manual in a safe place for future reference.
This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic
appliances. Your contribution to the correct disposal of this product protects the environment. Further information about the recycling of this product can be obtained from your local municipal authority.
4
SAFETY PRECAUTIONS
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY
WARNING
Before the appliance is used, it must be properly positioned and installed as detailed in this manual.
• Do not under any circumstances cut or remove the third (ground) prong from the power cord
• Make sure this unit is connected to a correctly grounded power supply outlet. Do not use an extension cord or
power strip
• The power cord is UL listed. It has a built-in L.C.D.I. (leakage, current, detection, interruption) circuit breaker
for added safety. If the power supply is interrupted, press the reset button to reconnect the unit to power
source
• It is recommended to use a separate circuit that its size should be 15 Amps for the air conditioner
• Do not use an excessively wet cloth, industrial solvents, oil-based products to clean this portable air condition-
er
• To avoid the risk of shock, the product should never be used in bathrooms, shower rooms, or in any other
steamy or wet areas
• Do not store or use gasoline or other flammab
es
• Do not repair, disassemble and/or modify the unit by yourself
• Always turn off the portable air conditioner when cleaning the air filter, and transporting
• Do not turn this unit on and off by plugging and unplugging. Always use the ON/OFF switch
• Transport the unit in an upright position only, or leave it in an upright position for at least 4 hours before first
use
• Ensure curtains or other objects are not obstructing the air inlet filters
• Do not bend or crush the exhaust hose while in use
• Always allow at least 20” of clearance around the unit for ventilation. Do not use this unit inside closets, cabi-
nets and/or cramped spaces between furniture
• This unit is optimized to operate in an ambient temperature of 64°F – 95°F
• This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips
• The unit should not be located next to ovens, grills or other sources of high heat
• Always place the unit on even and hard and level surface
• Do not sit or place objects on the unit
• Do not allow children to climb, stand or hang on the appliance. The air conditioner could tip over and get dam-
aged and/or seriously injure somebody
• Keep fingers out of the air intakes and air outlets
• The appliance is an electrical appliance. To avoid injury from electrical shock do not operate it with wet hands,
while standing on a wet surface or while standing in water. Do not use it in outdoors or in wet condi-tions
• When positioning or moving the appliance, ensure it is not turned upside down or greater than 45° or more off
level
• This appliance is designed for household, non-commercial use only. Any other use will void the warranty
• Do not plug into the power outlet before set up is completed
• Do not operate this unit without the air filter(s)
• Do not use harsh chemicals to clean the filter(s). Dry thoroughly before inserting the filter(s) into the unit
• At the end of each season, all water must be drained from the unit and filter(s) must be cleaned before stor-
age
WHEN USING YOUR AIR CONDIITIONER, FOLLOW THESE BASIC
PRECAUTIONS:
le vapors and liquids in the vicinity of this or any other applianc-
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS ARE NOT FOLLOWED.
5
INTRODUCTION / TECHNICAL DATA
HOW IT WORKS
The Whynter compact CFC-free, lead-free, and energy efficient 10,000 BTU portable air condi-tioner, helps you
stay cool while working with better environmental standards and reducing energy consumption.
This portable air conditioner is the ideal space-constrained climate-control solution. Designed with a compact
modern style, the unit easily blends in with any room design and is ideal for for a kid’s room. This compact, yet
powerful portable air conditioner can also function as a 68-pint dehumidifier to remove excess humidity from the
air, allowing the ambient air to feel even cooler and improving air comfort.
This Whynter 10000 BTU Portable Air Conditioner Compact Size features an ECO-FRIENDLY CFC-free GREEN
R-410A refrigerant and lead-free RoHS compliant components.
TECHNICAL DATA
Model: ARC-102CS
Operational Modes: Air conditioner, Fan or Dehumidifier
Cooling Capacity: 10000 BTU
Coverage Area: 215 sq. ft.
Dehumidifying Capacity: 68 pints / day
Fan Speed: 2 Fan Speeds (High, Low)
Filters: Activated Carbon Filter and washable pre-filter
Thermostat Control Range: 62° - 86°F
Timer: 24 hour programmable timer
Noise Level: <51 dBA
Extendable Hose: 59”
Window Kit Length:
Refrigerant: R-410A
Air Flow (at high speed): 350 m3/h / 206 CFM
Maximum Power Consumption: 1110W/ 9.8A
Minimum: 26.5”
Maximum: 48”
Power Supply: 115 V / 60Hz
EER: 9.0
Unit Dimensions: 14” W x 14” D x 28” H
Package Dimensions: 15” W x16” D x35” H
Net Weight: 53 lbs
Gross Weight: 62 lbs
6
