W hite-Westinghouse
Product No. WEQ332HS0
Market North America
Color white
Volts 230
Wiring Diagram 137130900
Owner's Guide 137129700
Installation Instructions 134897300
Operating Instructions 137129600
P16L0007.eps P16V0127.eps P16D0050.eps P16C0245.eps P16M0024.eps
137130900e.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995532453
09/02/03
(EN/SERVICE/WTC)
361
ELECTRIC DRYER
Model No.
WEQ332H
Copyright © 2009 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995532453 WEQ332HS0
CABINET/DRUM
34
32
29
13
14
12
6
11
34
36
35
4
80
5
52
80
80
20
34
80
20
15
42
17
34
13
9
30
18
32
18
12
34
24
34
33
21
24
64
52A
44
51
P16V0127
02/09 2
WEQ332HS0 Publication No: 5995532453
CABINET/DRUM
POS. NO PART NO. DESCRIPTION
4 131785200 Bracket, elec power cord, knock out
5 5303281019 Ball, grounding
6 5303281020 Clip, ball, steel, flat nut
9 131793200 Panel, service access, rear
11 5303211428 Cover, terminal block
12 131825900 Bearing, drum support
13 131724300 Bracket, bearing support
14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive
15 # 131553900 Heater Assy, w/housin g/felt
17 3204254 Baffle, heater shield
18 131477000 Screw, 10-16AB x 0.375
20 131469100 Bracket, hinge, rear, top panel mtg.
21 134122532 Drum, dryer, galvanized stl., service kit
24 131963900 Glide, drum
29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special
30 5303201200 Vane, straight
32 137088600 Shaft, drum support, ballhitch
32* 5303307893 Lubricant, high temp
33 # 3204267 Thermostat, safety
34 131243700 Screw, pan head, 8-18AB x 0.375
35 131892100 Screw, 6-20B x 0.230
36 # 134120900 Thermal Limiter
42 134154100 Screw, hex washer head, 10-32 x 0.375, ground
44 134158000 Leveling Leg, screw
51 131472100 Insulator, heater housing
52 # 134101400 Terminal Block, main
* 134110500 • Wiring Harness, main
52A# 3202786 Terminal Block, heater housing
64 131704600 Clip, front, cabinet bottom
80 134547800 Screw, 10-16AB x 0.375
* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32
# Functional Parts
3 02/09
* Non-Illustrated Parts
Publication No: 5995532453 WEQ332HS0

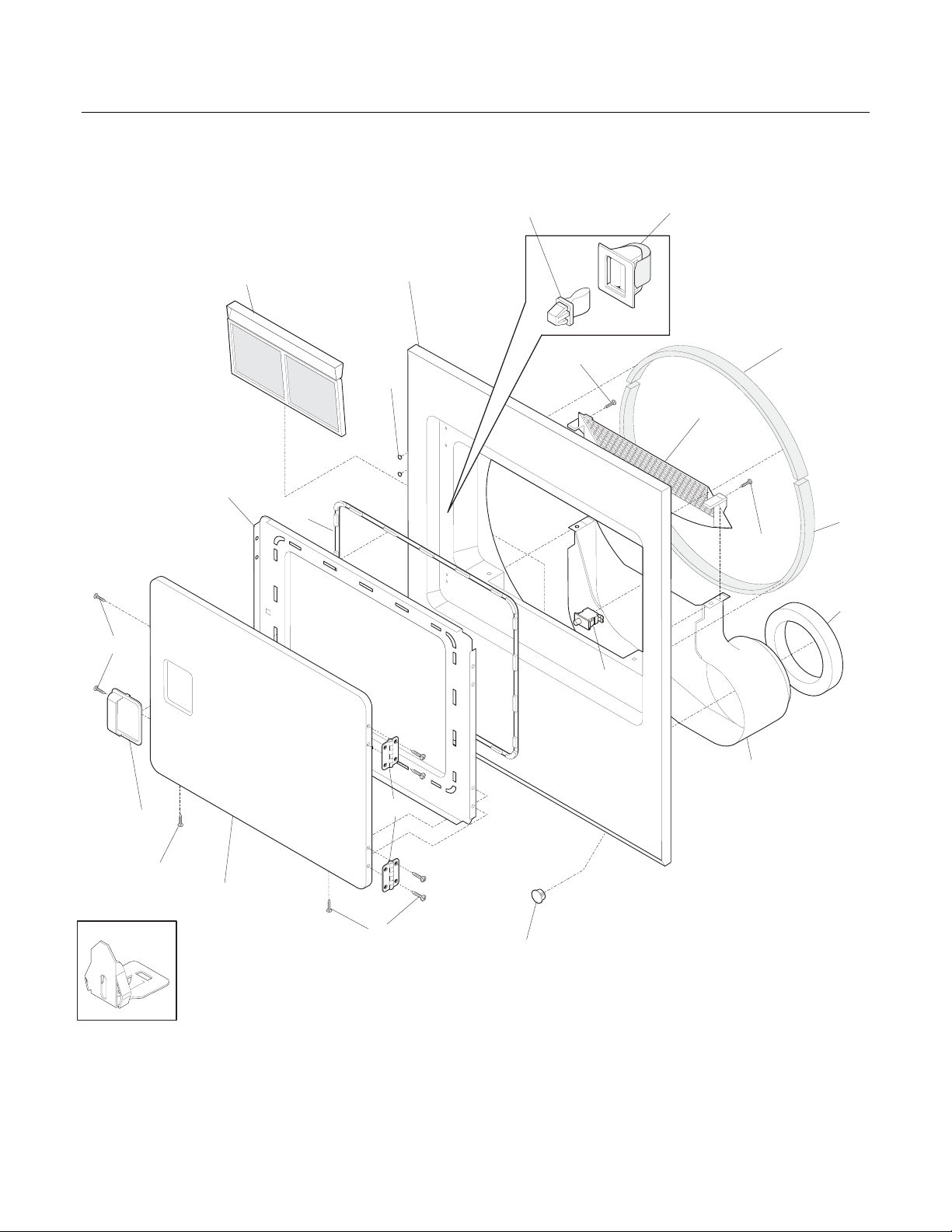

FRONT PANEL/LINT FILTER
42
47
27
44
49
25
22
50
20
9
8
21
50
1
26
6
46
41
42
48
28
42
2
P16D0050
02/09 4
WEQ332HS0 Publication No: 5995532453
FRONT PANEL/LINT FILTER
POS. NO PART NO. DESCRIPTION
1 134417000 Seal, air duct
2 131397000 Plug, dome, white
6 131621900 Duct, air
8 131622202 Cover, lint housing
9 131633200 Plug, white
20 134440200 Seal, felt, upper
20* 5308027429 Adhesive, high temp
21 134134700 Seal, felt, lower
22 131845902 Panel, front, white, w/lamp hole
22* 131474700 Insulation
22* 131870700 Plug, light hole
25 131658800 Door Catch, upper
26 # 134813600 Switch, door
27 131450300 Trap, lint blade assy
28 134440000 Clip, guide
41 134222900 Hinge, dryer door
42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive
44 131129900 Gasket, door seal
46 131644700 Handle, door, white
47 131844104 Panel, inner door, white
48 131789303 Panel, outer door, white
49 5303211430 Door Strike
50 131303300 Screw, pan head, 10-16AB x 0.500, locking
# Functional Parts
5 02/09
* Non-Illustrated Parts
Publication No: 5995532453 WEQ332HS0
CONTROLS/TOP PANEL
53
14
23
15
38
35
10
25
16
1
17
4
7
29
21
02/09 6
P16C0245
WEQ332HS0 Publication No: 5995532453
CONTROLS/TOP PANEL
POS. NO PART NO. DESCRIPTION
1 # 5303297177 Timer, dryer
4 131965300 Knob, rotary, white/gray
7 3205821 Clip, top-to-front
10 134398300 Switch, start, turn type
14 # 134446800 Resistor, power
15 # 134907000 Switch, temp selector, 3 position
16 134034300 Screw, pan hd phillips, 8-18B x 0.250
17 134064501 Bracket, control mtg.
21 131873500 Knob, timer, white/gray, assy
23 137130800 Harness, control console
23*# 134110500 Wiring Harness, main
25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point
29 137128700 Panel, control console
35 # 134904500 Switch, temp selector, 2 position
38 # 5303210285 Buzzer
53 134086812 Panel, dryer top, white, stackable
* # 134101400 Terminal Block, main
# Functional Parts
7 02/09
* Non-Illustrated Parts
Publication No: 5995532453 WEQ332HS0
MOTOR
02/09 8
WEQ332HS0 Publication No: 5995532453
MOTOR
POS. NO PART NO. DESCRIPTION
4 131435200 Lock, blower housing
7 131451600 Tube, exhaust, rear, w/mtg bracket
7* 131456800 Tube, exhaust, side/bottom, Optional Kit
10 # 131775600 Blower Assy, housing, w/cover & wheel
11 131749800 Spacer, idler
15 # 131298300 Thermostat, temp control
20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting
22 131601000 Spring, idler arm
23 # 131863007 Idler Arm Assy, w/pulley
25 # 134 503600 Belt, dryer
27 134242400 Clamp, motor mtg.
28 # 131560100 Motor & Pulley Assy
34 131243700 Screw, pan head, 8-18AB x 0.375
46 134203400 Bracket, motor mtg
47 131633300 Seal, exhaust tube
48 134547800 Screw, 10-16AB x 0.375
52 131202300 Screw, 10-16AB x 0.625
# Functional Parts
9 02/09
* Non-Illustrated Parts
Publication No: 5995532453 WEQ332HS0

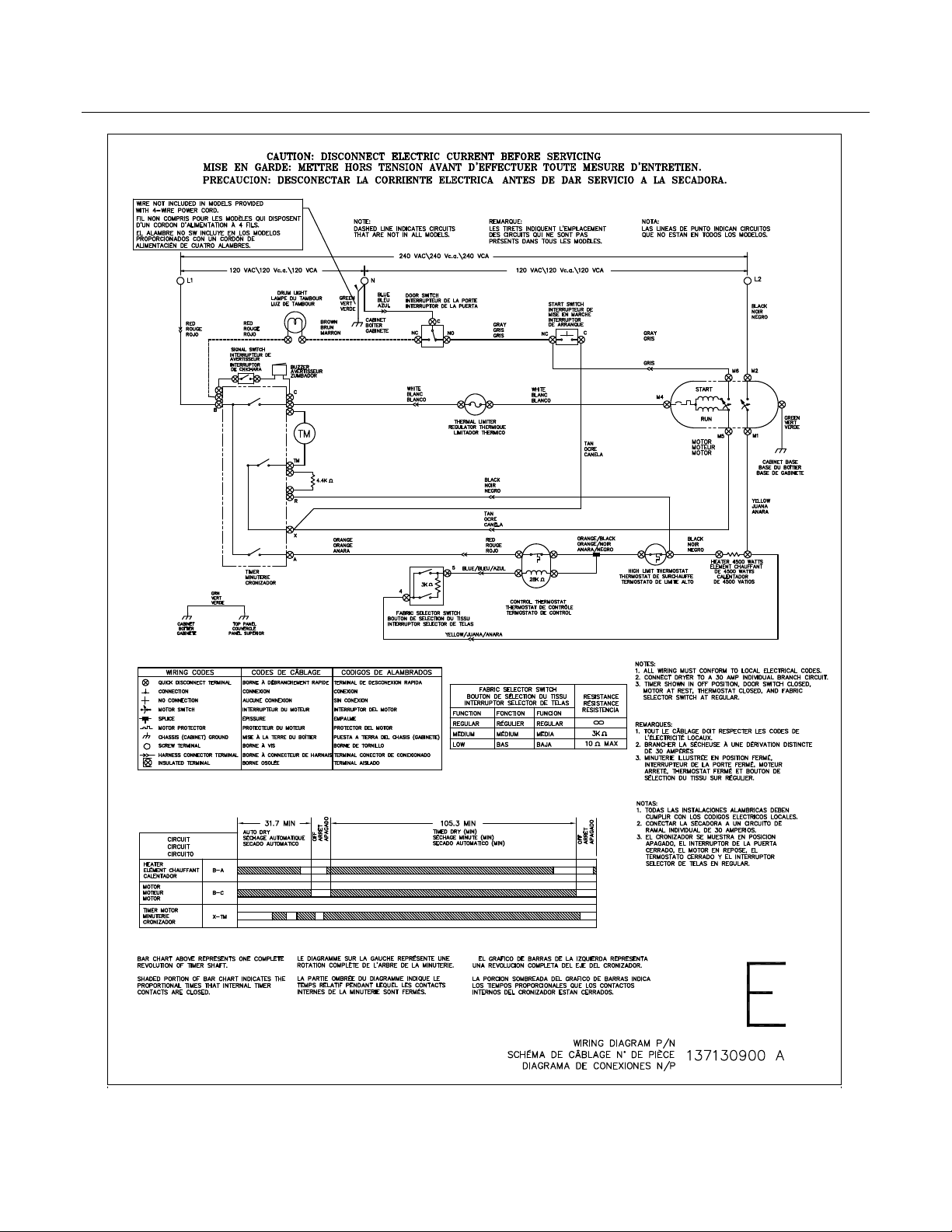

WIRING DIAGRAM
02/09 10
