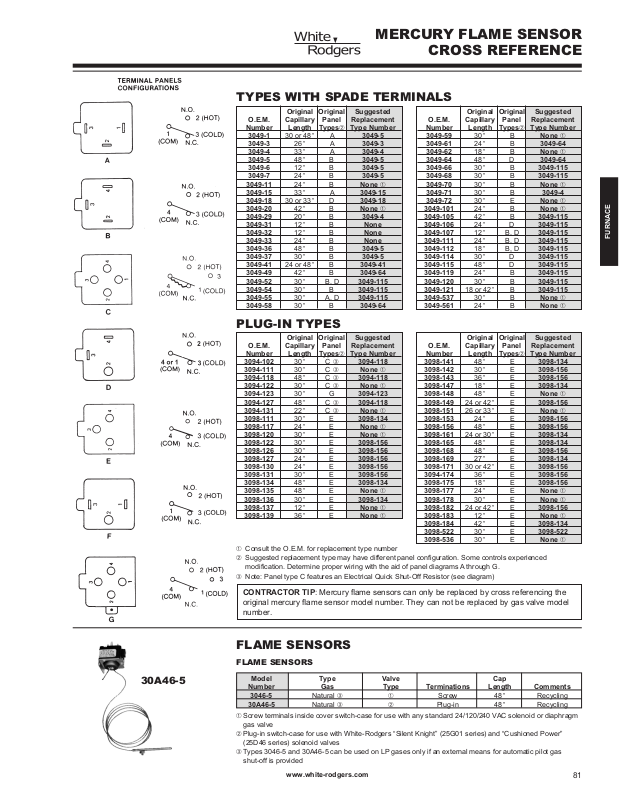

MERCURY FLAME SENSOR
CROSS REFERENCE
TYPES WITH SPADE TERMINALS
Original Original Suggested
O.E.M. Capillary Panel Replacement
Number Length Types➁ Type Number
3049-1 30 or 48” A 3049-5
3049-3 26” A 3049-3
3049-4 33” A 3049-4
3049-5 48” B 3049-5
3049-6 12” B 3049-5
3049-7 24” B 3049-5
3049-11 24” B None ➀
3049-15 33” A 3049-15
3049-18 30 or 33” D 3049-18
3049-20 42” B None ➀
3049-29 20” B 3049-4
3049-31 12” B None
3049-32 12” B None
3049-33 24” B None
3049-36 48” B 3049-5
3049-37 30” B 3049-5
3049-41 24 or 48” B 3049-41
3049-49 42” B 3049-64
3049-52 30” B, D 3049-115
3049-54 30” B 3049-115
3049-55 30” A, D 3049-115
3049-58 30” B 3049-64
PLUG-IN TYPES
Original Original Suggested
O.E.M. Capillary Panel Replacement
Number Length Types➁ Type Number
3094-102 30” C ➂ 3094-118
3094-111 30” C ➂ None ➀
3094-118 48” C ➂ 3094-118
3094-122 30” C ➂ None ➀
3094-123 30” G 3094-123
3094-127 48” C ➂ 3094-118
3094-131 22” C ➂ None ➀
3098-111 30” E 3098-134
3098-117 24” E None ➀
3098-120 30” E None ➀
3098-122 30” E 3098-156
3098-126 30” E 3098-156
3098-127 24” E 3098-156
3098-130 24” E 3098-156
3098-131 30” E 3098-156
3098-134 48” E 3098-134
3098-135 48” E None ➀
3098-136 30” E 3098-134
3098-137 12” E None ➀
3098-139 36” E None ➀
➀ Consult the O.E.M. for replacement type number
➁ Suggested replacement type may have different panel conguration. Some controls experienced
modication. Determine proper wiring with the aid of panel diagrams A through G.
➂ Note: Panel type C features an Electrical Quick Shut-Off Resistor (see diagram)
CONTRACTOR TIP: Mercury ame sensors can only be replaced by cross referencing the
original mercury ame sensor model number. They can not be replaced by gas valve model
number.
Original Original Suggested
O.E.M. Capillary Panel Replacement
Number Length Types➁ Type Number
3049-59 30” B None ➀
3049-61 24” B 3049-64
3049-62 18” B None ➀
3049-64 48” D 3049-64
3049-66 30” B 3049-115
3049-68 30” B 3049-115
3049-70 30” B None ➀
3049-71 30” B 3049-4
3049-72 30” E None ➀
3049-101 24” B None ➀
3049-105 42” B 3049-115
3049-106 24” D 3049-115
3049-107 12” B, D 3049-115
3049-111 24” B, D 3049-115
3049-112 18” B, D 3049-115
3049-114 30” D 3049-115
3049-115 48” D 3049-115
3049-119 24” B 3049-115
3049-120 30” B 3049-115
3049-121 18 or 42” B 3049-115
3049-537 30” B None ➀
3049-561 24” B None ➀
Original Original Suggested
O.E.M. Capillary Panel Replacement
Number Length Types➁ Type Number
3098-141 48” E 3098-134
3098-142 30” E 3098-156
3098-143 36” E 3098-156
3098-147 18” E 3098-134
3098-148 48” E None ➀
3098-149 24 or 42” E 3098-156
3098-151 26 or 33” E None ➀
3098-153 24” E 3098-156
3098-156 48” E 3098-156
3098-161 24 or 30” E 3098-134
3098-165 48” E 3098-134
3098-168 48” E 3098-156
3098-169 27” E 3098-134
3098-171 30 or 42” E 3098-156
3094-174 36” E 3098-156
3098-175 18” E 3098-156
3098-177 24” E None ➀
3098-178 30” E None ➀
3098-182 24 or 42” E 3098-156
3098-183 12” E None ➀
3098-184 42” E 3098-134
3098-522 30” E 3098-522
3098-536 30” E None ➀
FURNACE
30A46-5
FLAME SENSORS
FLAME SENSORS
Model Type Valve Cap
Number Gas Type Terminations Length Comments
3046-5 Natural ➂ ➀ Screw 48” Recycling
30A46-5 Natural ➂ ➁ Plug-in 48” Recycling
➀ Screw terminals inside cover switch-case for use with any standard 24/120/240 VAC solenoid or diaphragm
gas valve
➁ Plug-in switch-case for use with White-Rodgers “Silent Knight” (25G01 series) and “Cushioned Power”
(25D46 series) solenoid valves
➂ Types 3046-5 and 30A46-5 can be used on LP gases only if an external means for automatic pilot gas
shut-off is provided
www.white-rodgers.com
81
