Microwave Oven

INSTRUCTION MANUAL

MODEL: MC928S

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave):

Rated Input Power(Grill):

Rated Input Power(Convection): Oven Capacity:

Turntable Diameter: External Dimensions(LxWxH): Net Weight:

MC928S 230V~50Hz 1450W 900W

1100W

2500W

28L

315mm

520 335mm

495

Approx. 18.6 kg

EN-2

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.

3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAU TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement or near a swimming pool.

19. The temperature of accessible surfaces may be high when the appliance is operating. hot during use. heated surface, and do not cover any vents on the oven.

20. Do not let cord hang over edge of table or counter.

21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

The surfaces are liable to get

Keep cord away from

EN-3

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

25.Children should be supervised to ensure that they do not play with the appliance.

26.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

27.The appliances are not intended to be operated by means of an external timer or separate remote-control system.

28. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

29. Accessible parts may become hot during use. Young children should be kept away steam cleaner is not to be used.

30. Surface of a storage drawer can get hot.

31. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

32. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

33. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)

34.The rear surface of appliance shall be placed against a wall.

EN-4

To Reduce the Risk of Injury to Persons Grounding Installation

This appliance must be grounded. In the event of

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2)The extension cord must be a grounding type 3-wire cord.

3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

EN-5

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of

meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.

Browning dish

Dinnerware

Glass jars

Glassware

Oven cooking bags

Paper plates and cups

Paper towels

Parchment paper

Plastic

Plastic wrap

Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture.

Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.

Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.

Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.

Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape.

Use for short–term cooking/warming only. Do not leave oven unattended while cooking.

Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.

Use as a cover to prevent splattering or a wrap for steaming.

Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.

Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

EN-6

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils

Metal twist ties Paper bags Plastic foam

Wood

May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish.

Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven.

Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

Grill Rack( Only for Grill series )

C B

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

EN-7

Turntable Installation

Hub (underside)

Glass tray

Turntable shaft

Turntable ring assembly

a. Never place the tray should never be restricted. b. Both always be used during cooking. c. All food and containers of food are always placed on the d. If

glass tray breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Installation

1. Select a level surface that provide

enough open space for the intake and/or outlet vents.

12 inch(30cm)

3.0 inch(7.5cm)

OPEN

glass tray

and

for cooking.

turntable ring assembly

upside down. The glass

turntable ring assembly

cracks or

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

(3) Blocking the intake and/or outlet openings can damage the oven. (4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

must

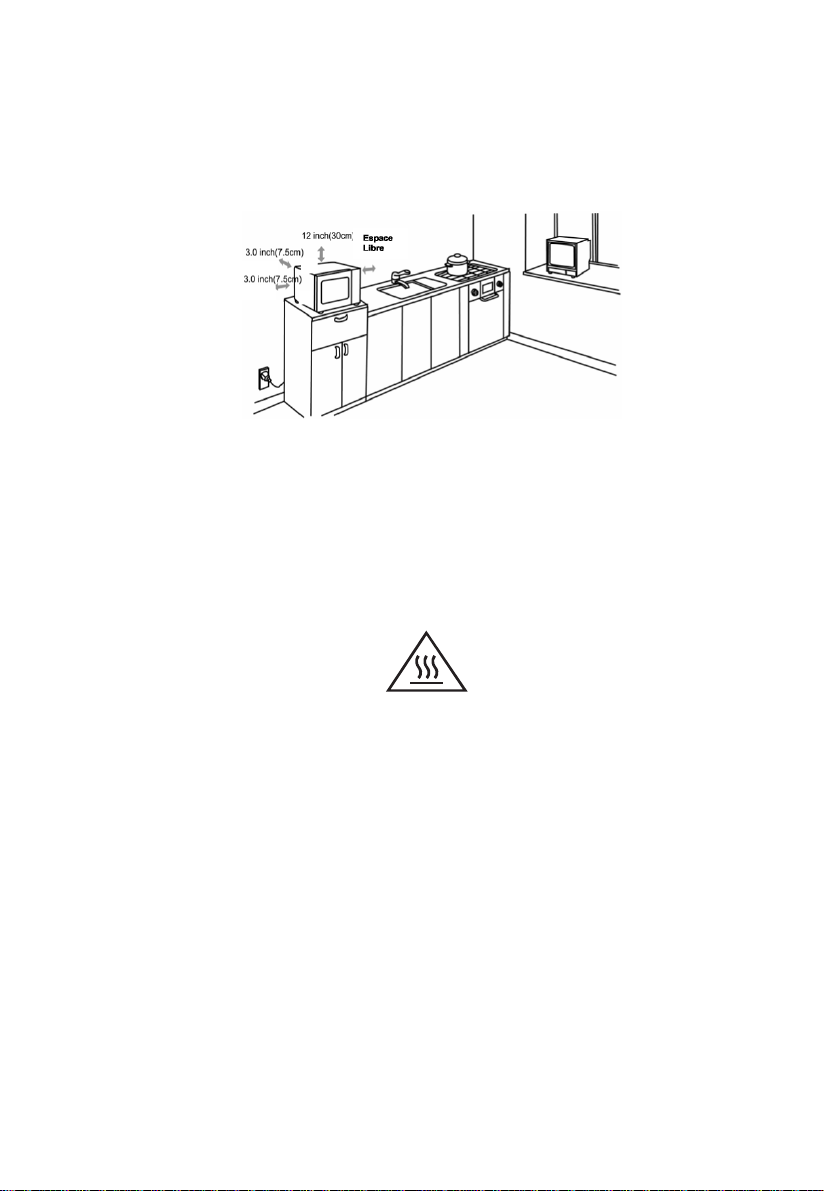

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open. (1) Leave a minimum clearance of 12 inches (30cm) above the oven. (2) Do not remove the legs from the bottom of the oven.

EN-8

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

OPERATION INSTRUCTION

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1.Clock Setting

When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.

1) Press " CLOCK/KITCHEN TIMER " once. "00:00" displays.

2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour).

3) Press " CLOCK/KITCHEN TIMER ", the minute figures will flash.

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

5) Press " CLOCK/KITCHEN TIMER" to finish clock setting. ":" will flash. Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " STOP/CLEAR ", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " MICROWAVE "several times to select the function you want. Then press

START/+30SEC./CONFIRM to confirm.

Press " START/+30SEC./CONFIRM " to start cooking.

Example: If you want to use 80% power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " MICROWAVE " twice, the oven will display "P80".

Turn " " to

adjust the cooking time.

2) Press "

3) Turn " " to adjust the cooking time until the oven display"20:00"

(The maximum cooking time is 95 minutes.)

4) Press " START/+30SEC./CONFIRM " to start cooking, ":" will light and the

" " indicator will flash. NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes

Microwave Power Chart

Microwave Power

START/+30SEC./CONFIRM

Press

Once Twice Thrice 4 times 5 times

" to confirm.

80% 50% 30% 10%100%

EN-9

3. Grill Cooking

1) Press the " GRILL/COMBI. " key once , " G-1 " will flash.

2) Press the " START/+30SEC./CONFIRM " to confirm."G-1" is displayed.

3) Turn " " to adjust the cooking time. (The maximum cooking time is 95 minutes.)

4) Press the " START/+30SEC./CONFIRM " key to start cooking. The" " will flash, ":"

will be lighted.

Note: If half the grill time passes, the oven sounds twice, this is normal. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press" START/+30SEC./CONFIRM" to continue cooking. If no operation, the oven will not pause and continue working.

" " light.

4. Combination Cooking

1) Press the "GRILL/COMBI." key once, " G-1 " will flash.

2) Turn " " to select the combination function, "C-1,C-2,C-3 or C-4" will display.

3) Press " START/+30SEC./CONFIRM " to confirm the function you need.

4) Turn " " to adjust the cooking time. (The maximum cooking time is 95 minutes.)

5) Press the " START/+30SEC./CONFIRM " key to start cooking. The cooking indicators

will flash and ":" will light.

Note: Combination instructions

Instructions

Display

Microwave

Grill

Convection

C-1

C-2

C-3

C-4

5. Convection Cooking(With preheating funtion)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not

used. It is recommended that you should preheat the oven to the appropriate temperature

before placing the food in the oven.

1) Press the "CONVECTION " key once, "140" flash.

2) Turn " " to select the convection function. " " flash." " light.

Choose the convection temperature by keeping turning it.

Note:the temperature can be chosen from 140 degrees to 230 degrees.

3) Press the " START/+30SEC./CONFIRM " to confirm.

EN-10

4) Press the " START/+30SEC./CONFIRM " to start preheating.When the

preheating temperature arrives, the buzzer will sound twice to remind you to

put the food into the oven. And the preheated temperature is displayed and flash.

5) Put the food into the oven and close the door.

Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)

6) Press the " START/+30SEC./CONFIRM " key to start cooking.

6. Convection Cooking( Without pre-heating function)

1) Press the " CONVECTION " key once, "140" flash.

2) Turn " " to select the convection function.

Choose the convection temperature by keeping turning it.

3) Press the " START/+30SEC./CONFIRM " to confirm.

4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)

5) Press the "START/+30SEC./CONFIRM " key to start cooking.

7.Multi-Stage Cooking

Two stages of cooking can be maximumly set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu is not one of the stages of multi-stage cooking

Example: if you want to cook with 100% microwave power for 10 minutes+ 80% microwave power for 5 minutes. The steps are as following:

1) Press "MICROWAVE" once to choose 100% microwave power;

2) Press "START/+30SEC./CONFIRM" to confirm the power.

3) Turn " " to adjust the cooking time of 10 minutes;

4) Press"MICROWAVE" twice to choose 80% microwave power;

5) Press "START/+30SEC./CONFIRM" to confirm the power.

6) Turn " " to adjust the cooking time of 5 minutes;

7) Press "START/+30 SEC./ CONFIRM" to start cooking.

8.Kitchen Timer

(1) Press " " twice, LED will display 00:00. (2) Turn " " to enter the correct timer.(The maximum cooking time is 95 minutes.) (3) Press " " to confirm setting. (4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock be set(24-hour system), LED will display the current time.

Note: The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer.

CLOCK/KITCHEN TIMER

START/+30 SEC./ CONFIRM

EN-11

9. Defrost by W.T.

1) Press "W.T./TIME DEFROST " pad once,the oven will display "d-1",.

2) Turn " " to select the weight of food.At the same time, "g" will lights,

The weight should be 100-2000g.

3) Press "START/+30SEC./CONFIRM" key to start defrosting " " and " " indicators will flash and "g" indicator will go out.

10. Defrost by Time

1) Press " " key twice, the oven will display "d-2", At the same time, " " and " " will be lighted.

2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.

3) Press " START/+30SEC./CONFIRM" key to start defrosting. " " and " " indicators will flash .

W.T./TIME DEFROST

11. Auto Menu

1). In waiting states, turn " " right to choose the function wanted,

the oven will display "A1","A2",......"A10" in turn,

and the responding indicator will light;

2). Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.

3). Turn " " to choose the weight of menu,and "g" indicator will light.

4) Press "START/ +30 SEC./CONFIRM" to start cooking.

Note: Cake menu is under convection cooking with 160 -warm-up function, and you should preheat first following the auto menu operation, when the oven reaches the temperature, it will stop working and sound to remind opening the door to put cake in, then press "Start/+30Sec./Confirm" to start cooking.

EN-12

Auto menu Chart

PIZZA

Potato

Meat

Fish

Vegetable

Beverage

/Coffee

50(with water 450ml)

Pasta

A8 Popcorn

A9 Cake

A10

Chicken

100(with water 800ml)

150(with water 1200ml)

Weight(g)

200 300

400 1 (about 230g) 2 (about 460g) 3 (about 690g)

150

300

450

600

150

250

350

450

650

150

350

500

1(about 240g) 2(about 480g) 3(about 720g)

50 100 475 500 750

1000 1200

Display

200 300 400

1 2

3 150 300 450 600 150 250 350 450 650 150 350 500

50 100 150

100 475 500

750 1000 1200

Power

C-4

100%

80%

100%

80%

100%

Preheat at 160 degrees

C-4

EN-13

12. Speedy Microwave Cooking

1) In waitting state, press "START/+30SEC./CONFIRM" key to cook with 100% power for 30 seconds. Each press on the same key can increase 30 seconds. The

level maximum

2) During microwave,grill,convection and combination states, press " " key to cook with 100% power level for 30 seconds.

START/+30SEC./CONFIRM

Each press on the same key can increase 30 seconds.

Note: this function cannot work under defrost, auto menu and multi-stage cooking.

cooking time is 95 minutes.

3)Speedy Microwave Cooking

In waiting state, turn " " left to choose cooking time directly then press " " key to cook with 100% microwave power.

START/+30SEC./CONFIRM

This program can be set as one of multi-stage.

13. Inquiring Function

(1) In cooking state, press"MICROWAVE "GRILL/COMBI " or " CONVECTION ", the current power will be displayed for 2-3 seconds.

(2) During cooking state, press "CLOCK/KITCHEN TIMER" to check the current time. It will be displayed for 2-3 seconds.

14. Lock-out Function for Children

Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and " " indicator will light.

Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released, and " " indicator will disapear.

15. Specification

(1) The buzzer will sound once when turning the knob at the beginning; (2) "START/+30 SEC./CONFIRM" must be pressed to continue cooking if the door is opened during cooking; (3) Once the cooking programme has been set , "START/+30 SEC./CONFIRM" is not pressed in 5 minutes. The current time will be displayed. The setting will be cancelled. (4) The buzzer sounds once by efficient press, inefficient press will be no responce. (5) The buzzer will sound five times to remind you when cooking is finished.

EN-14

Trouble shooting

It is forbidden to run the unit without any food inside. It is very dangerous.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

EN-15

Four à micro-ondes électronique

Combi- Grill- Convection

MODE D’EMPLOI

Veuillez lire attentivement ces instructions avant d’utiliser votre four à micro-ondes et conservez précieusement ce manuel pour référence ultérieure.

CONSERVEZ CES INSTRUCTIONS

: MC928S

PRECAUTIONS A PRENDRE POUR EVITER UN

age

30V~50

EXPOSITION DANGEREUSE AUX MICRO-ONDES

1- Ne pas chercher à faire fonctionner le four lorsque sa porte est ouverte. Il est essentiel

de ne pas annuler ou apporter des modifications aux dispositifs de verrouillage.

2- Ne mettre aucun objet entre la façade du four et la porte, éviter la formation de dépôt de

salissure, d’aliments ou de produits de nettoyage sur les surfaces d’étanchéité de la fermeture.

3- Ne pas faire fonctionner le four s’il est endommagé.

Il est particulièrement recommandé de fermer correctement la porte du four pour

u’aucune déformation n’apparaisse aux pièces suivantes :

- Porte

- Gonds et loquets de fermeture

- Joint et surfaces d’étanchéité

4- Ce four ne doit pas être réglé ou réparé par une autre personne qu’un personnel qualifié

du service après-vente.

Mise en garde : si la porte ou le joint de porte est endommagé, le four ne doit pas être

utilisé avant d’avoir été remis en état par une personne qualifiée.

réparation sur le four doit être effectuée exclusivement par un technicien qualifié – service après-vente – de votre magasin revendeur

Connaissez votre appareil

Toute intervention ou

Model

Volt

Consommation 1450W Puissance micro-ondes 900W Puissance grill 1100W Puissance convection 2500W Volume L Diamètre plateau tournant Ø 315 mm Dimensions extérieur (BxHxD) 520x x335mm Poids net

MC928S

495

18.6

FR-2

PRECAUTIONS DE SECURITE

 USTENSILES : x Utiliser des récipients en verre ou céramique. x Pour des temps de cuisson courts , des récipients en plastique ou carton peuvent être

utilisés, ainsi que des plats surgelés sous films plastiques, sous réserve que ces films aient été percées avec une fourchette au préalable pour permettre à la vapeur de s’échapper.

x Un plat brunisseur peut être également mis au micro-onde. Se référer aux instructions du

fabriquant. Une mauvaise utilisation du plat brunisseur risque de casser le plateau tournant.

x Avant l’utilisation, vérifier que les ustensiles sont appropriés à l’usage dans un four à

micro-ondes ; Tout ustensile métallique est à proscrire. En effet, les objets métalliques provoquent des étincelles ou flash qui peuvent conduire à de sérieux dommages sur votre appareil. Egalement, ne pas mettre les aliments dans des boites ou sous film aluminium.

x Ne pas utiliser de récipients en bois, ils pourraient se consumer. x Ne pas utiliser de vaisselle en métal, fonte ou en faïence ayant des parties même

minimes en métal (y compris argent ou or), votre appareil tomberait en panne.

x Mise en garde : les liquides ou autres aliments ne doivent pas être chauffés dans des

récipients hermétiques car ils risquent d’exploser ;

x Lorsque des aliments sont chauffés dans des récipients en matière plastique ou en

papier, surveiller le four fréquemment à cause des risques d’inflammation.

x Ne pas ranger d’ustensiles de cuisine ou de papier dans ce four.

 CUISSON : x Le plateau tournant et son support à roulettes doivent être dans le four pendant la cuisson.

Placez le plat sur le plateau tournant et manipulez-le avec précaution pour éviter de le casser.

x Prendre soin de bien centrer le plat au milieu du plateau en verre pour éviter que le plat

ne vienne cogner contre les parois ou la porte.

x Percer avec une fourchette la pelure des pommes de terre, pommes et tout autre fruit ou

légume recouvert d’une pelure, avant de les cuire.

x Les œufs dans leur coquille et les œufs durs entiers ne doivent pas être chauffés dans un

four à micro-ondes car ils risquent d’exploser.

x Ne pas faire de friture dans votre four. x Ne pas chauffer dans le four, des liquides corrosifs ou produits chimiques. x Ne pas laisser trop longtemps de petites portions de nourriture nécessitant peu de temps

de cuisson, elles seront soit trop cuites, soit brûlées.

x Mise en garde : ne laissez les enfants utiliser le four sans surveillance que si des

instructions appropriées ont été données afin que l’enfant puisse utiliser le four de façon sure et comprenne les dangers d’un usage incorrect.

x Ne pas utiliser ce four quand celui-ci est sale ou en présence d’eau condensée sur les

parois. Essuyez et laisser sécher avant utilisation.

x Ne pas faire fonctionner le four sans plateau tournant ou plateau défectueux.

FR-3

 RISQUES D’INCENDIE : x Ne pas faire cuire un aliment dans une serviette, même si cela vous est recommandé

dans une recette de cuisson.

x Ne pas utiliser de papier journal ou de serviettes en papier pour la cuisson. x Ne pas faire sécher de vêtements dans un four à micro-ondes. x Si de la fumée apparaît, arrêter ou débrancher le four et garder la porte fermée pour

étouffer les flammes éventuelles.

x N’utiliser pas le four à micro-ondes à vide. Tout fonctionnement du four sans aliment à

l’intérieur ou avec des aliments à très faible taux d’humidité peut déclencher un feu, la carbonisation ou des étincelles à l’intérieur du four.

x Ne couvrez pas et n’obstruez pas les ouvertures d’aération de votre four. x Ne mettez pas le four près de l’eau, de l’évier de la cuisine, dans une cave humide ou à

proximité d’une piscine.

x Ne plongez pas le cordon ou la fiche de cet appareil dans l’eau. x Eloignez le cordon de toute surface chaude

 ATTENTION AUX BRULURES : x Le chauffage de boissons par micro-ondes peut provoquer un jaillissement brusque et

différé de liquide en ébullition, aussi des précautions doivent elles être prises lorsqu’on manipule le récipient.

x Le contenu des biberons et des pots d’aliments pour bébés doit être remué ou agité et

la température doit être vérifiée avant consommation, afin d’éviter les brûlures.

x Lorsque vous utiliser la fonction Grill ou Grill Combiné, la cavité du four peut devenir

très chaude. Prenez bien soin d’utiliser des gants pour saisir et retirer les plats du four.

x La porte du four, la fenêtre et le plateau peuvent également être très chauds. x Ne pas placer d’objets sur le dessus de l’appareil pendant l’utilisation de la fonction

Grill ou Grill combiné, car même le dessus de l’appareil peut devenir très chaud.

x Veuillez surveiller les aliments dans le four à micro-ondes, afin d’éviter que celui-ci ne

prenne feu en raison d’une cuisson excessive d’un aliment.

 NETTOYAGE : x Assurez-vous toujours que votre four est bien arrêté avant de le nettoyer en

enlevant la prise de courant.

x Garder la cavité interne du four toujours propre et sèche, en la nettoyant régulièrement

avec un chiffon doux. Ne pas utiliser d’éléments abrasifs car vous risquez de rayer ou d’endommager la peinture.

x Les éclaboussures sur la face intérieure de la porte, ainsi que sur les joints de porte et les

parties avoisinantes doivent être nettoyées quotidiennement avec de l’eau chaude savonneuse. Rincer et sécher avec soin. Il est préférable d’entretenir les parties métalliques de la porte avec un chiffon humide. Ne pas utiliser de brosse, d’éponge à récurer ou de chiffon abrasif.

x En cas de détérioration des joints de porte ou des parties avoisinantes, le four ne devra

pas fonctionner jusqu’à sa remise en état par un technicien qualifié du Service après-vente.

FR-4

x Ne jamais verser d’eau dans le four ou tout autre liquide susceptible d’endommager en

particulier le moteur d’entraînement du plateau en verre.

x L’extérieur du four est en métal peint. Nettoyez-le avec un chiffon humidifié d’eau chaude

savonneuse. Rincer et sécher avec un chiffon doux. Ne pas mettre d’eau dans les bouches de ventilation situées sur l’appareil, sur les cotés ou à l’arrière.

 EN CAS DE PANNE : En cas de

problème, s’assurer que :

1. La prise de courant est bien correctement enfoncée et alimentée par le courant du secteur (fusible en état), ce qui est vérifiable par le branchement d’un autre appareil en état de marche.

2. La porte de votre four est correctement fermée.

3. Que rien ne bloque la rotation du plateau tournant.

4. Vérifiez que le panneau de commande est correctement programmé et que la minuterie est réglée.

SI AUCUNE DES ACTIONS CI-DESSUS NE RESOUT LE PROBLEME, CONTACTEZ UN TECHNICIEN QUALIFIE. N'ESSAYEZ PAS DE REGLER OU DE REPARER VOUS-MEME LE FOUR.

 REPARATION : x Si votre four ne fonctionne pas correctement, contacter un spécialiste pour toute

intervention. En aucun cas, le dos ou toute autre pièce du four à micro-ondes ne devra être démontée, sauf par un technicien qualifié après-vente, pour effectuer l’entretien ou les réparations.

Mise en garde : il est dangereux pour quiconque autre qu’une personne qualifiée d’effectuer une opération de maintenance ou une réparation qui nécessite le retrait d’un couvercle protégeant contre l’exposition à l’énergie des micro-ondes.

x Afin de prévenir tout danger, il est impératif, en cas de problème, de s’adresser au

service après-vente du fabricant ou du revendeur, ou à un électricien qualifié et agréé pour ce type de réparation. Dans tous les cas de figures, l’appareil doit être retourné à l’électricien concerné.

NE JAMAIS OUVRIR LE CAPOT

NE PAS FAIRE FONCTIONNER CET APPAREIL SANS RIEN A L’INTERIEUR DE LA CAVITE CE FOUR A MICRO ONDES N’EST DESTINE QU’A L’USAGE DOMESTIQUE IL NE DEVRA PAS ETRE UTILISE DANS UN BUT PROFESSIONNEL, COMMERCIAL OU INDUSTRIEL. NE LAISSER LES ENFANTS UTILISER LE FOUR SANS SURVEILLANCE QUE SI DES INSTRUCTIONS APPROPRIEES ONT ETE DONNEES AFIN QUE L’ENFANT PUISSE UTILISER LE FOUR DE FACON SURE ET COMPRENNE LES DANGERS D’UN USA GE INCORRECT

FR-5

+ 44 hidden pages

Whiteline MX928S User Manual [nl]

Specifications and Main Features

Frequently Asked Questions

User Manual
