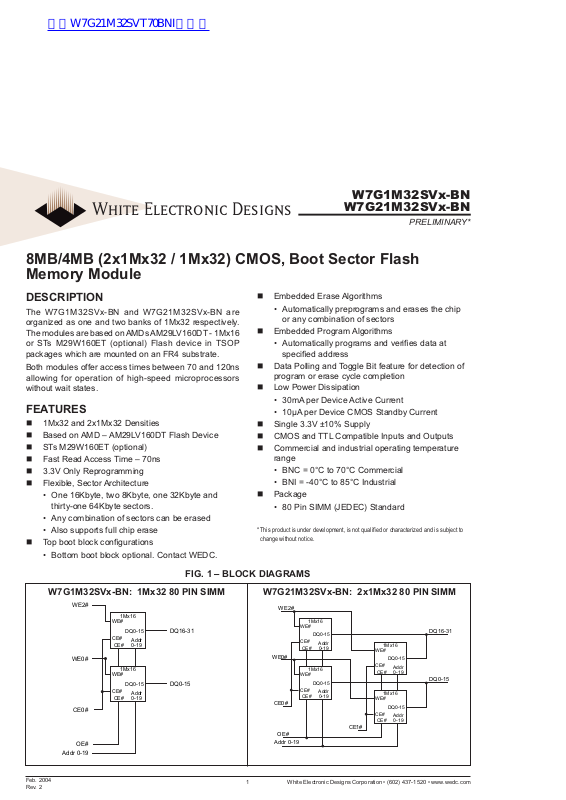

White Electronic Designs W7G1M32SVx-BN, W7G21M32SVx-BN Technical data
1
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
White Electronic Designs
W7G1M32SVx-BN
W7G21M32SVx-BN
Feb. 2004
Rev. 2
PRELIMINARY*
DESCRIPTION
The W7G1M32SVx-BN and W7G21M32SVx-BN are
or ga nized as one and two banks of 1Mx32 re spec tive ly.
The modules are based on AMDs AM29LV160DT - 1Mx16
or STs M29W160ET (optional) Flash device in TSOP
packages which are mount ed on an FR4 sub strate.
Both modules offer access times between 70 and 120ns
allowing for operation of high-speed mi cro pro ces sors
without wait states.
FEATURES
1Mx32 and 2x1Mx32 Densities
Based on AMD – AM29LV160DT Flash Device
STs M29W160ET (optional)
Fast Read Access Time – 70ns
3.3V Only Reprogramming
Flexible, Sector Architecture
• One 16Kbyte, two 8Kbyte, one 32Kbyte and
thirty-one 64Kbyte sectors.
• Any combination of sectors can be erased
• Also supports full chip erase
Top boot block confi gurations
• Bottom boot block optional. Contact WEDC.
W7G1M32SVx-BN: 1Mx32 80 PIN SIMM W7G21M32SVx-BN: 2x1Mx32 80 PIN SIMM
8MB/4MB (2x1Mx32 / 1Mx32) CMOS, Boot Sector Flash
Memory Module
FIG. 1 – BLOCK DIAGRAMS
DQ16-31
1Mx16
WE#
CE#
CE#
Addr
0-19
DQ0-15
WE2#
DQ0-15
1Mx16
WE#
CE#
CE0#
OE#
CE#
Addr
0-19
A
ddr 0-19
DQ0-15
WE0#
1Mx16
WE#
CE#
CE#
Addr
0-19
DQ0-15
WE2#
1Mx16
WE#
CE#
CE0#
OE#
CE#
Addr
0-19
Addr 0-19
DQ0-15
WE0#
DQ16-31
1Mx16
WE#
CE#
CE#
Addr
0-19
DQ0-15
DQ0-15
1Mx16
WE#
CE#
CE1#
CE#
Addr
0-19
DQ0-15
Embedded Erase Algorithms
• Automatically preprograms and erases the chip
or any combination of sectors
Embedded Program Algorithms
• Automatically programs and verifi es data at
specifi ed ad dress
Data Polling and Toggle Bit feature for detection of
pro gram or erase cycle completion
Low Power Dissipation
• 30mA per Device Active Current
• 10µA per Device CMOS Standby Current
Single 3.3V ±10% Supply
CMOS and TTL Compatible Inputs and Outputs
Commercial and industrial operating temperature
range
• BNC = 0°C to 70°C Commercial
• BNI = -40°C to 85°C Industrial
Package
• 80 Pin SIMM (JEDEC) Standard
* This product is under development, is not qualifi ed or characterized and is subject to
change without notice.
查询W7G21M32SVT70BNI供应商
2
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
White Electronic Designs
W7G1M32SVx-BN
W7G21M32SVx-BN
Feb. 2004
Rev. 2
PRELIMINARY
FIGURE 2 – DECOUPLING CAPACITORS ARE PROVIDED FOR IMPROVED NOISE IMMUNITY.
Notes:
Unless otherwise specifi ed.
1. Population Confi guration for 1M x 32 Version
Part Number Confi guration Component
W7G1M32SVxxxBNX 1M x 32 1M x 8
2. Population Confi guration for 2 x 1M x 32 Version
Part Number Confi guration Component
W7G21M32SVxxxBNX 2 x 1M x 32 1M x 8
xx = Speed: 70, 90, 120ns
X = Temerature Range
Please refer to part number matrix pg. 8 or 9
V
CC
12
12
12
12
12
12
12
12
C1
.1 µF
C2
.1 µF
C3
.1 µF
C4
.1 µF
C5
.1 µF
C6
.1 µF
C7
.1 µF
C8
.1 µF
3
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
White Electronic Designs
W7G1M32SVx-BN
W7G21M32SVx-BN
Feb. 2004
Rev. 2
PRELIMINARY
FIGURE 3 – W7G1M32SVxxxBNX & W7G21M32SVxxxBNX PIN CONFIGURATION
Pin Symbol Pin Symbol Pin Symbol Pin Symbol
1 GND 21 CE3 41 A11 61 DQ9
2V
CC
22 CE2 42 A10 62 DQ8
3 NC 23 CE1 43 A9 63 DQ7
4 OE# 24 CE0 44 A8 64 DQ6
5 WE0# 25 GND 45 A7 65 DQ5
6 NC26DQ2946A666DQ4
7 NC* 27 DQ30 47 A5 67 DQ3
8 DQ1628DQ3148 A4 68 DQ2
9 DQ17 29 WE2# 49 A3 69 DQ1
10 DQ18 30 NC 50 A2 70 DQ0
11 DQ19 31 NC 51 A1 71 NC
12 DQ20 32 NC 52 A0 72 V
CC
13 DQ21 33 A19 53 NC 73 PD1
14 DQ22 34 A18 54 GND 74 PD2
15 DQ23 35 A17 55 DQ15 75 PD3
16 DQ24 36 A16 56 DQ14 76 PD4
17 DQ25 37 A15 57 DQ13 77 PD5
18 DQ26 38 A14 58 DQ12 78 PD6
19 DQ27 39 A13 59 DQ11 79 PD7
20 DQ28 40 A12 60 DQ10 80 GND
Notes:
Unless otherwise specifi ed.
1. Population Confi guration for 1M x 32 Version
Part Number Confi guration Component
W7G1M32SVxxxBNX 1M x 32 1M x 8
2. Population Confi guration for 2 x 1M x 32 Version
Part Number Confi guration Component
W7G21M32SVxxxBNX 2 x 1M x 32 1M x 8
xx = Speed: 70, 90, 120ns
X = Temerature Range
Please refer to part number matrix pg. 8 or 9
NC* = Pin 7 can offer custom module options. For optional "Reset" or
"Ready Busy." Contact WEDC.
PIN NAMES
A0 - A19 Address
DQ0 - DQ31 Data Input/Output
CE1#, CE2# Chip Enable
WE0#, WE2# Write Enable
OE# Output Enable
V
CC
Power Supply
NC No Connection
PD Presence Detect
GND Ground
