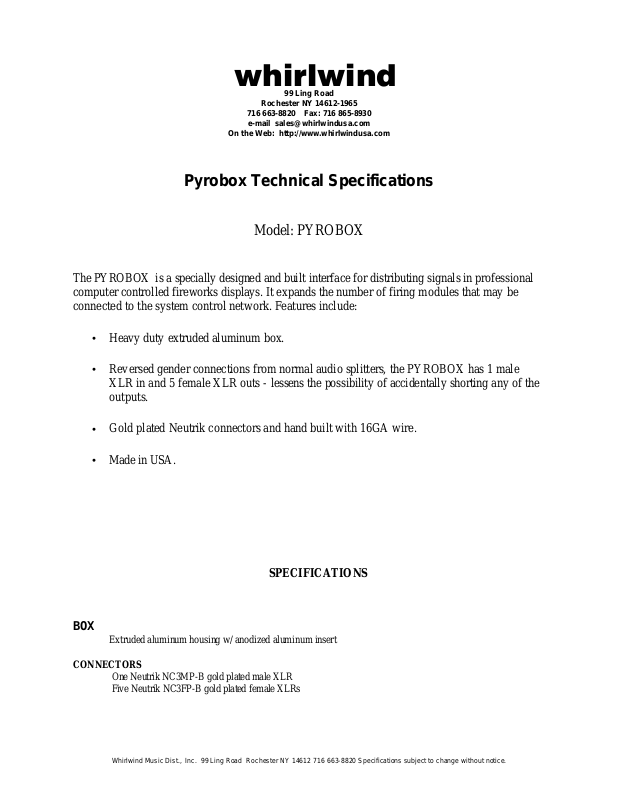

Pyrobox Technical Specifications
Model: PYROBOX
The PYROBOX is a specially designed and built interface for distributing signals in professional
computer controlled fireworks displays. It expands the number of firing modules that may be
connected to the system control network. Features include:
Heavy duty extruded aluminum box.
•
Reversed gender connections from normal audio splitters, the PYROBOX has 1 male
•
XLR in and 5 female XLR outs - lessens the possibility of accidentally shorting any of the
outputs.
Gold plated Neutrik connectors and hand built with 16GA wire.
•
Made in USA.
•
SPECIFICATIONS
BOX
Extruded aluminum housing w/ anodized aluminum insert
CONNECTORS
One Neutrik NC3MP-B gold plated male XLR
Five Neutrik NC3FP-B gold plated female XLRs
Whirlwind Music Dist., Inc. 99 Ling Road Rochester NY 14612 716 663-8820 Specifications subject to change without notice.
