Whirlwind MIP1 Users Manual

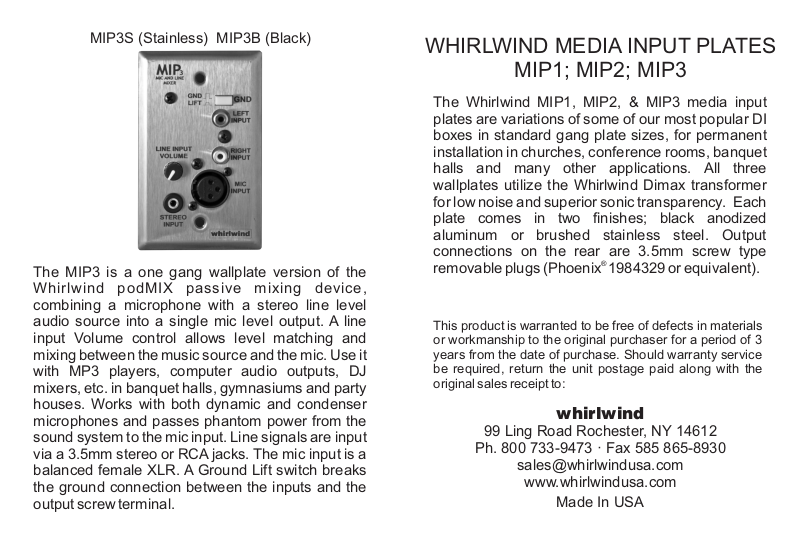

MIP3S (Stainless) MIP3B (Black)

The MIP3 is a one gang wallplate version of the
Whirlwind po dM IX passive mi xi ng d ev ic e,
combining a microphone with a stereo line level
audio source into a single mic level output. A line
input Volume control allows level matching and
mixing between the music source and the mic. Use it
with MP3 players, computer audio outputs, DJ
mixers, etc. in banquet halls, gymnasiums and party
houses. Works with both dynamic and condenser
microphones and passes phantom power from the
sound system to the mic input. Line signals are input
via a 3.5mm stereo or RCA jacks. The mic input is a
balanced female XLR. A Ground Lift switch breaks
the ground connection between the inputs and the
output screw terminal.

WHIRLWIND MEDIA INPUT PLATES

MIP1; MIP2; MIP3

The Whirlwind MIP1, MIP2, & MIP3 media input
plates are variations of some of our most popular DI
boxes in standard gang plate sizes, for permanent
installation in churches, conference rooms, banquet
halls and many other applications. All three
wallplates utilize the Whirlwind Dimax transformer
for low noise and superior sonic transparency. Each
plate comes in two finishes; black anodized
aluminum or brushed stainless steel. Output
connections on the rear are 3.5mm screw type
removable plugs (Phoenix 1984329 or equivalent).

This product is warranted to be free of defects in materials
or workmanship to the original purchaser for a period of 3
years from the date of purchase. Should warranty service
be required, return the unit postage paid along with the
original sales receipt to:

99 Ling Road Rochester, NY 14612

Ph. 800 733-9473 · Fax [phone]

[e-mail]

www.whirlwindusa.com

®

whirlwind

Made In USA

MIP1S (Stainless) MIP1B (Black) MIP2S (Stainless) MIP2B (Black)

The MIP1 is a two gang wallplate with a mono
version of the Whirlwind pcDI computer interface
device featuring RCA and 3.5mm stereo input jacks
and an additional speaker input terminated with a 16
Ohm load resistor. The line and speaker inputs are
summed together and sent to the Dimax transformer
which balances the output signal and attenuates it
by 20 dB. A Ground Lift switch breaks the ground
connection between the inputs and the output screw
terminal. The MIP1 plates have an additional female
XLR for connection of a separate mic channel to the
plate.

The MIP2 is a one gang wallplate with a mono
version of the Whirlwind pcDI computer interface
device featuring RCA and 3.5mm stereo input jacks.
The line inputs are summed together and sent to the
Dimax transformer which balances the output signal
and attenuates it by 20 dB.. There is a Pad switch on
the MIP2 which attenuates the output signal an
additional 20 dB when activated. A Ground Lift
switch breaks the ground connection between the
inputs and the output screw terminal.
